USER MANUAL MMM07M MPM

10 We wish you satisfaction from using the product and thank you to check a wide range of other MP3/MP4 accessories.

19 Velamys gels puree, hetaiod masa products, un dianin, jus sanpemr, nce nucnne meo pao prnveyou.

MLNEXNA MASO FLECHWOLF

MEAT CUISHER

PICADORA DE CAVNE

ORAMAN

T日交易时间

GAS MALCANAS MISHA

TeesMOLEN

MASZYNKA COM MIELENA MEEA

MASINADELOCALCANE

BIOVIR

A

22 NAVODK0BSLUZE 3
DE ULDLINUNGSANLLITNG
KASJTUSUHEND 12
ENUSERMANUAL 16
65MANUALDLINSTRUCCIONCS 20
FR MANUEL DE LUTILSATUR 24
HO HASZNALATUTASITAS 28
MANUAL 1050 32
VARTOTOVOADOVAS 26
U LTOIAJA ROKASGRAMATA 40
CCBUKERSIANDLEING 44
INSTRUKCAO35UCL 49
MANUALDUTIZARE 50
R0 MICTPYKLMNIOOOSCYKMBIAHIO 57
SKPOUZVATELSKAPRUDCKA 62
10000000000000000000000000000000000000000000000000

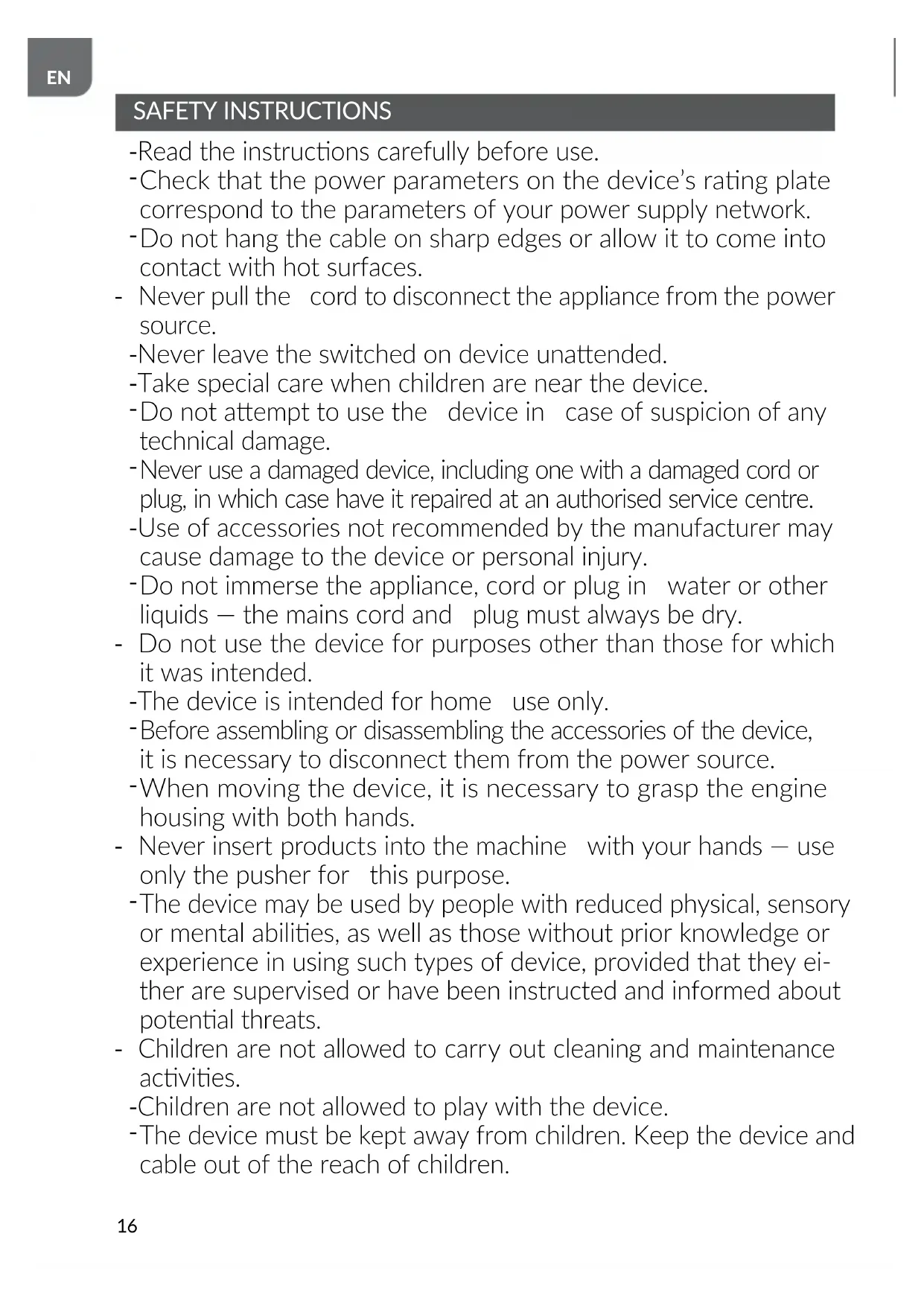

BEZPECNOSTNI POKNY PRIPOUZIVANI

-Read the instructions carefully before use.
- Check that the power parameters on the device's rating plate correspond to the parameters of your power supply network.
- Do not hang the cable on sharp edges or allow it to come into contact with hot surfaces.

• Never pull the cord to disconnect the appliance from the power source.

• Never leave the switched on device unattended.

• Take special care when children are near the device.
• Do not attempt to use the device in case of suspicion of any technical damage.
• Never use a damaged device, including one with a damaged cord or plug, in which case have it repaired at an authorised service centre.
• Use of accessories not recommended by the manufacturer may cause damage to the device or personal injury.

• Do not immerse the appliance, cord or plug in water or other liquids – the mains cord and plug must always be dry.

• Do not use the device for purposes other than those for which it was intended.

• The device is intended for home use only.

• Before assembling or disassembling the accessories of the device, it is necessary to disconnect them from the power source.

• When moving the device, it is necessary to grasp the engine housing with both hands.

• Never insert products into the machine with your hands — use only the pusher for this purpose.

• The device may be used by people with reduced physical, sensory or mental abilities, as well as those without prior knowledge or experience in using such types of device, provided that they either are supervised or have been instructed and informed about potential threats.

• Children are not allowed to carry out cleaning and maintenance activities.

• Children are not allowed to play with the device.

• The device must be kept away from children. Keep the device and cable out of the reach of children.

• Disconnect the device from the power supply each time when the device is left unattended and before any assembling, disassembling, or cleaning works.

• Do not place the device near other electric cookers, burners, ovens, etc.

• Always ensure that all parts of the device are correctly fitted before starting work.

-Do not use the device outdoors.
- Do not place the device on a hot surface.

• Do not pull the plug out of the power socket by pulling the cord.

• Do not connect the plug to the power socket with wet hands.

• For the safety of children, please do not leave freely accessible parts of the packaging (plastic bags, cardboard boxes, polystyrene, etc.).

• Do not wash the components of the device in dishwashers.

• Cleaning of the appliance, in particular parts in direct contact with food, must be carried out before the first use, immediately after the end of the work or in the event that the appliance has not been used for a long time - the procedure is described in the section "CLEANING AND MAINTENANCE".

• WARNING! Do not allow children to play with the film. Danger of suffocation!

• NOTE: The blade of the knife is very sharp, avoid physical contact when emptying and cleaning the device - you can seriously injure yourself.

FEATURES

1. Pusher
2. Food tray
3. Safety-lock button
4. Housing
5. ON/OFF switch/Reverse
6. Reverse switch
7. Mincing chamber

8. Feed screw

9. Stainless steel cutting blade

10. Fine mincer screen (3 mm holes)
11. Medium mincer screen (5 mm holes)
12. Coarse mincer screen (7 mm holes)
13. Ring collar
14. Sausage nozzle
15. Two-piece pate attachment

BEFORE FIRST USE

1. Make sure that your mains power supply corresponds to the voltage stated on the rating plate.
2. Never use the appliance for mincing bones and nut shells.
3. Never use the appliance for mincing food with tough tendons.

4. To avoid jamming, do not overload the appliance.

5. If any hard material blocks the mincer screen or cutting blade, immediately switch off the appliance and remove the obstruction.

6. Wash all parts (except for the housing) in warm soapy water.
7. Make sure that the appliance is off before plugging.

ASSEMBLY

1. Fit the mincing chamber (7) inside the motor housing (4) making sure that the feeding tube is facing up.
2. Next, twist the mincing chamber anticlockwise and you will hear the safety lock click into place.
3. Fit the feed screw (8) inside the mincing chamber (7). Next, slot the cutting blade (9) onto the screw (8).
4. Next, fit one of the mincer screens (10), (11), (12) and screw on the ring collar (13).
5. When making sausage, replace the cutting blade (9) and one of the screens with the inner part of the pate attachment (15) and the sausage nozzle (14), and tighten the ring collar all the up (13).
6. Fit the food tray (2) onto the mincing chamber in the right position.
7. Place the appliance on a sturdy, level and dry surface.

MINCING MEAT

1. Cut meat into small chunks for easy feeding into the mincing chamber.
2. Plug in and switch on the appliance using the ON/OFF switch (5).
3. Guide seasoned meat through the feed tube using the pusher (1).
4. When finished mincing, switch the mincer off using the ON/OFF switch (5) and unplug it.
5. If the motor slows or stops, this may be due to jammed food. Switch the mincer off using the ON/OFF switch (5) then push and hold the REV button (6). After the meat goes back to the mincing chamber switch the mincer on by releasing the REV button (6). Next, clean the appliance parts from any meat and tendons.

MAKING SAUSAGES

1. Prepare the required amount of minced and seasoned meat. Fit the feed screw (8), the inner part of the pates attachment (15) and the sausage nozzle (14) inside the appliance and screw on the ring collar (13).
2. Soak the sausage skins in warm water for about 10 minutes. Pull the sausage skin onto the end of the nozzle (14).
3. Using the food pusher (1) gently guide the sausage filling into the mincing chamber. If necessary, wet the nozzle with some water.
4. The appliance is also provided with a pate attachment. To make pates, fit the pate attachment (15) inside the appliance and screw on the ring collar (13).

NOTE! When screwing on the ring collar, make sure not to screw it too tight as the feed screw may be blocked. The sausage nozzle and the pate attachment must not be used together with the cutting blade or the mincer screens.

DISASSEMBLY

Disassembly is the reverse of assembly.

CLEANING AND MAINTENANCE

WARNING! Before cleaning the appliance, unplug it from the power outlet.

1. Do not use any sharp objects or harsh cleaners (such as solvents) for cleaning the appliance as they will permanently damage the mincer housing.
2. After each use, remove the remnants of minced products and wash all parts in contact with food in warm soapy water.
3. Using chlorine bleaching solutions will cause the aluminium parts to become discoloured.
4. Never immerse the motor housing in water or other liquids - wipe it with a damp cloth.
5. Never clean the appliance using any harsh cleaners which may cause damage to the appliance.
6. After washing, carefully dry all parts.
7. Wipe the mincer screens and the cutting blade with a light coating of vegetable oil to prevent rust developing.

TECHNICAL SPECIFICATIONS

Technical parameters are indicated on the product nameplate.

Noise level: L_WA = 75 dB

KB MAX: 6 min

Power cord lenght: 1,2m

NOTE! MPM agd S.A. reserves its right to modify the technical data.

Proper disposal of the product (waste electrical and electronic equipment)

Marking on the product indicates that after the service-life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health. Used equipment should

be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.

BESCHRIJVING VAN HET APPARAAT

INSTALLATIE VAN HET APPARAAT

TEXHUNECKNEIAPAMETPbI

TexHHueckne npaMeTpbl yka3aHbl

Ha MapKInpoBOOHOM uNTKe n3deJIINr.

YpoBeHbWyma:LwA=75,6

MaKcImaJIbHoe BpEma NOCToHHo pa6oTbI: KB MAX = 6 MmH.

Длина се tebo ro ka6eJЯ: 1,2 M

BHIMAHNE! Kompania MPM agd S.A. coxpaHareT 3a co6oB BO3MOXHOCTb TexHHueCKNX H3MeHeHn.

PpabnIbHna yTuIN3aunr npOdykTa (uHOweHHoe 3eKtpueeCKoe u 3eKtpoHHoe o6OpydoBaHne)

MapKnpoBbKa Ha npOdyKTe yka3bBAeT Ha To, TTo npOdyKT He cIeNyET BblbpacbBAbTB BmEcTe C npy

TMM bbyTOBbIMN OTXOdAMN NO OKOHHaHn CpOKa CnyXbbl. N3HOwCEHHOC ObOpyDoBaHn MOnKcT Oka

3bIBaTb BpCnHOC BO3DcNCTBnE Ha OKpyKaHOU CpeNy 3DOpOBBe YeIOBcKa I3-3a NOTeHuaJIbHOrO

COePkaHnOaChbIX BeIecTB, CMeCen N KOMNoHErOB. CMeuBaHne OTXoIOB B BNDE N3HOseHHoro

3JIeKTPoHHoro HJIeKTPnueckoro 06OpyIDOBaHnC DpyrIMN OTXODAMN ININ INx HeIpoceccHOHaBHa

pa360pka MoKET npBecTn K BbIbpcOy BeUcTeB, BpeHbIX IJIa 3IOPOBBn OKpyKaUoJe cpebl. N3HOUIeHHoe

YCTPOINCTBO HCO6XOIMMO CdaTb Ha NYHK Tc6opa Otpa6oTaHHORO 3JIeKTPnueCCKORIO 3JIeKTPoHHORO 06Opyo

BaHn. YTo6bI NOJyHTb IOpO6HyU INHΦOpMaζuO O MeCTe CdaU ΘJIeKTPnueCKNX N ΘJIeKTPoHHbIX OTXoIDOB,

NOJIb3OBaTeJIb DOJIxKeH O6paTITbcR B MeCTHbI NYHKT C6Opa O6OpyIOBaHn IJy YTNIN3aUHN HnHa 3aBOJ NO

pepepa60Tke n3HOWeHHoro o6OpyDoBaHn.

POKNY TYKAJUCE SA BEZPECNEHOPOUZIVANIA

m = 311 ;

-ДiTи He NOBHHi rpaTnca 3 npncToPoEm.

-Пристрий He NOBHeH BnKOpNCTOBvBaTnCЯ DiTbMn. 36epiraTe npnstprii 3 MepeXeBm Ka6eIem y HeIoCTyHOMy dIa ITei Micci.

-3aBxJn BiDkIouaTe npuJaB iD eJeKTpOmepeKi, KOJI 3aJIuHa-CTe NOro 6e3 HaIy, a TaKoJ npeJcKlaDaHnM, p03bnpaHHaM iPiJ Yac YnUeHHa.

-He po3miuye npnctriin no6n3y iHnx eIektpnpnaB, KOHOpOK, nIIT, dYXOBOK TOIO.

• KomnoheTN npictpoH He moXHa MNTn B nocydomnHm MaunHi.

-OuHsEHHa npIcTpoH, ocObIbO deTaJIeN, kI 6e3nocepEnbO KOHTaKTuOTb 3 iJKeH, cIiD npoBODn TnepeI nepShm BnKOpNC-TaHHaM, BiPa3y nicIaKInueHHa po6Ot n a6o JaKIo npIcTpiI He BnKOpNCToBvBaBCa TpINBaIIh Yac - npoUeDpya OnIcaHa B po3diJI «OuHsEHHa TA IOnIJaI.

-ПОЕРДЖEHн! He Do3BoJMyTe DiTm rpaTnCЯ ПЛiBkoI. He6e3neKa 3aDyxn!

TEXHIHIXAPAKTEPNUCTNKN

TexhiHn npaMeTp n HabeJeHo Ha 3aBockii Ta6nuci Bnpo6y,
