USER MANUAL L 820 S STEINEL

Three metallic wall-mounted handrails with a large '8' displayed on a glass plate (no text or symbols beyond the number)

L 800 / L 810 / L 820 SC

L 800 / L 810 C

DE ...... 6 Textteil beachten!
GB.....13 Follow written instructions!
FR ..... 20 Suivre les instructions ci-après !
NL ..... 27 Tekstpassage in acht nemen!
IT......34 Seguire attentamente le istruzioni!
ES ..... 41 ¡Obsérvese la información textual!
PT ..... 48 Siga as instruções escritas
SE ..... 55 Följ den skriftliga montageinstruktionen.
DK.....62 Følg de skriftlige instruktioner!
Fl......68 Huomioi tekstiosa!
NO.....74 Se tekstdelen!
GR.....80 Τηρείτε γραπτές οδηγίες!
TR ..... 87 Yazılı talimatlara uyunuz!
HU.....93 A szöveges utasításokat tartsa meg!
CZ ..... 99 Dodržujte písemné pokyny!
SK .... 105 Dodržiavajte písomné informácie!
PL.....112 Postępować zgodnie z instrukcją!
RO....119 Respectați instrucțiunile următoare!
Sl.....126 Upoštevajte besedilo!
HR....132 Pridržavajte se uputa!
EE .... 139 Järgige tekstiosa!
LT..... 145 Atsižvelgti į rašytines instrukcijas!
LV.....152 Pievērsiet uzmanību teksta daļai!
BG.....158 Прочетете инструкциите!
CN....165 遵守文字说明要求!
RU....171 Соблюдать текстовую инструкцию!

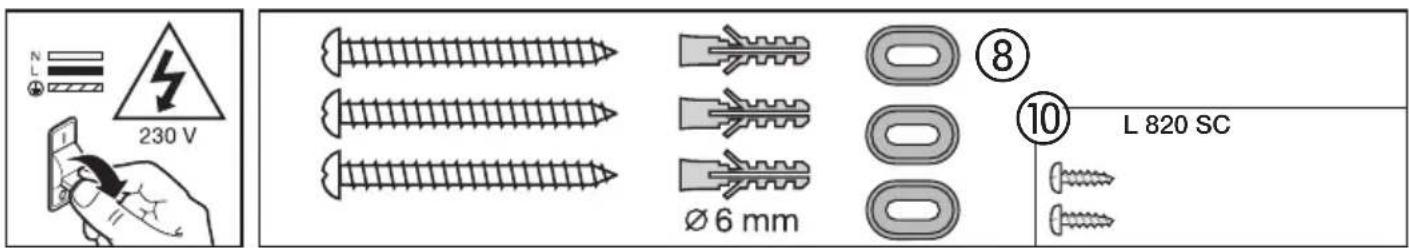

230 V Ø 6 mm ⑧ ⑩ L 820 SC

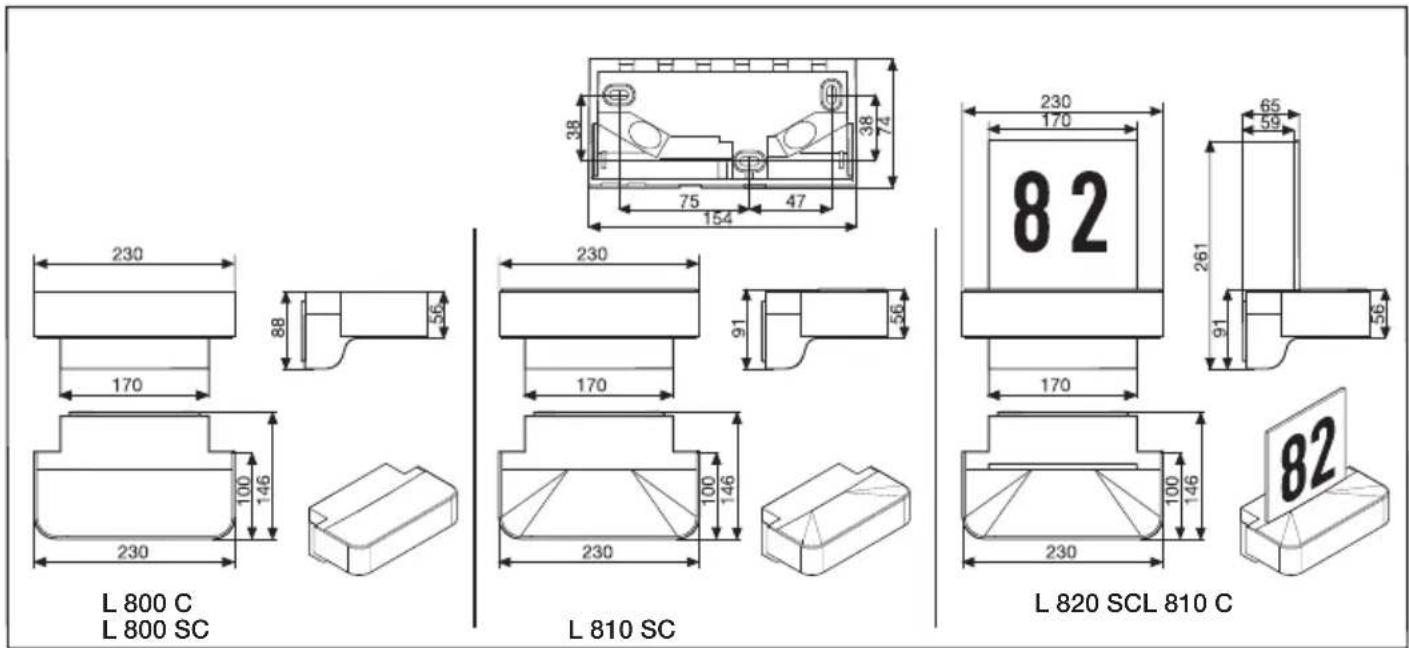

L 800 C L 800 SC 230 170 88 56 230 170 230 100 146 230 100 146 230 38 75 154 47 38 74 230 170 82 65 59 261 91 56 170 100 146 230 100 146 82 L 820 SCL 810 C

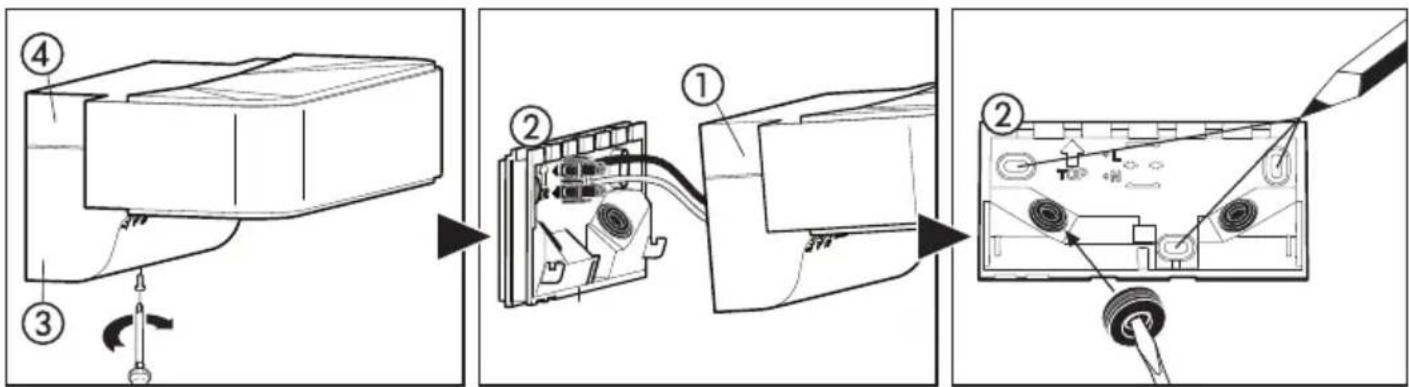

Diagram illustrating the installation and disassembly of a device, showing steps from assembly to final assembly with labeled components.

Ø 6mm ② ⑤ ⑥ ② L N

L 800 C / L 810 C

L 800 SC / L 810 SC / L 820 SC

L 820 SC

82 82 → 82 82 82 82 → 82 82

DE

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funktionen:

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

L 820 SC

Please read carefully and keep in a safe place.

• Under copyright. Reproduction either in whole or in part only with our consent.
• Subject to change in the interest of technical progress.

Symbols

Hazard warning!

Reference to other information in thedocument.

2. General safety precautions

Disconnect the power supply before attempting any work on the unit.

• During installation, the electric power cable being connected must not be live being connected must not be live. Therefore, switch off the power first and use a voltage tester to make sure the wiring is off-circuit.
• Installing the sensor-switched light involves work on the mains voltage supply. This work must therefore be carried out professionally in accordance with national wiring regulations and electrical operating conditions. (e.g. DE: VDE 0100, AT: ÖVE / ÖNORM E8001-1, CH: SEV 1000)

3. L 800 C / L 810 C / L 800 SC / L 810 SC / L 820 SC

① Light enclosure
② Wall mount
③ Bottom cover
④ Top cover
⑤ Mains lead, concealed wiring
⑥ Mains lead, surface wiring

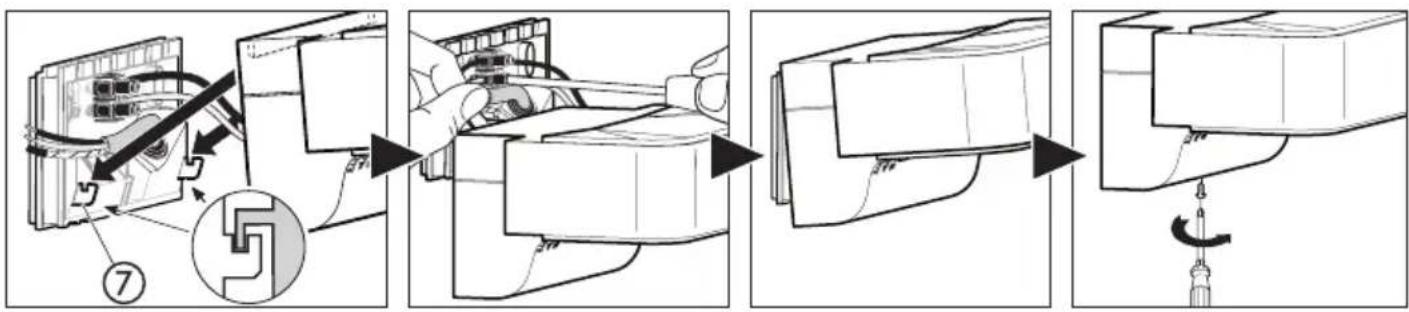

⑦ Mounting hook to simplify installation / cable strain relief grips
⑧ Spacers for surface wiring

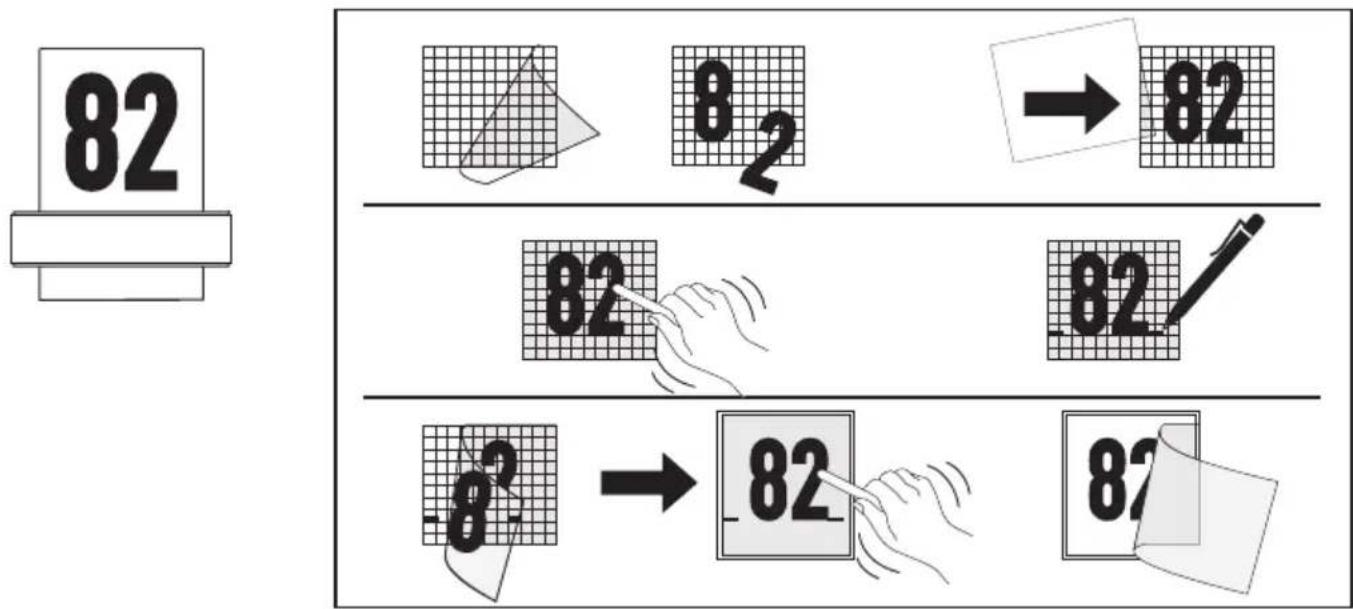

⑨ House number panel (L 820 SC)
⑩ Retaining screws for house number panel (L 820 SC)

4. Principle

Sensor-switched light with an active motion detector. The integrated iHF sensor emits high-frequency electromagnetic waves (5.8 GHz) and receives their echo. Any movement by persons in the light's detection zone is noticed by the sensor as a change in echo. A microprocessor then issues the switch command "switch light ON". Detection is possible through doors, panes of glass or thin walls. (L 800 C / L 800 SC / L 810 C / L 810 SC / L 820 SC)

Note:

When installing, please always allow a distance of at least 3 m to Wi-Fi routers or access points.

The functions of the sensor-switched light can be set via smartphone and tablet or control dial. Bluetooth interconnection is only possible via smartphone or tablet. (L 800 SC / L 800 C / L 810 SC / L 810 C / L 820 SC)

Detection zones for wall mounting:

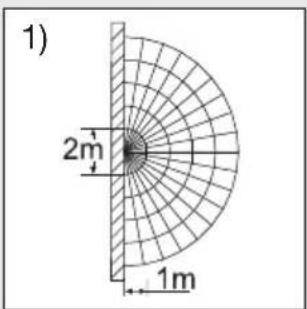

1) Minimum reach (1 m)

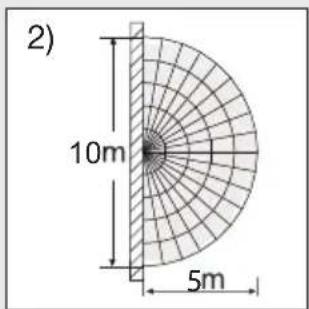

2) Maximum reach (5 m)

1) 2m 1m

2) 10m 5m

A 5 m B 5 m C 5 m

Note:

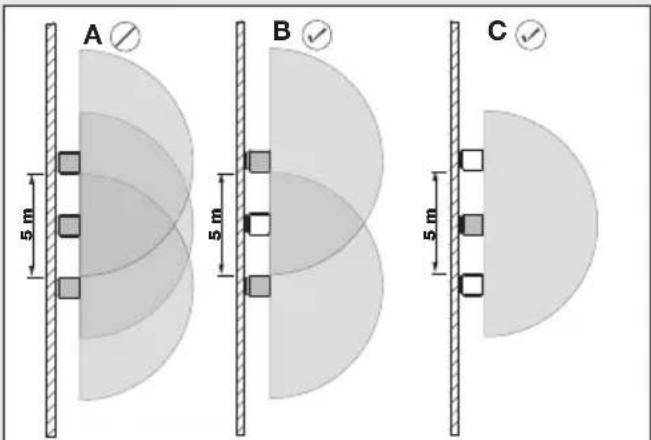

If lights are mounted too close together, switching errors may occur as the high-frequency signals emitted will interfere with each other (Fig. A).

The following measures will help to avoid switching errors of this kind:

• Allow a distance of at least 5 m between lights.
• Interconnect lights via the Steinel Connect App and selectively deactivate the sensor in individual lights via the Sensor-Off function (Fig. B + C).
  As a result of interconnection, movement will also switch lights ON in spite of their sensor being deactivated.

Note:

The high-frequency output of the iHF sensor is approx. 1 mW – 1,000 times less than the transmission power of a mobile phone or microwave oven.

Note:

The sensor is suitable for switching light on automatically. Note: weather conditions may affect the way the sensor works. Strong gusts of wind, snow, rain or hail may cause the light to come on when it is not wanted.

5. Electrical connection

To achieve the stated reach of 5 m, the light should be mounted at a height of approx. 2 m.

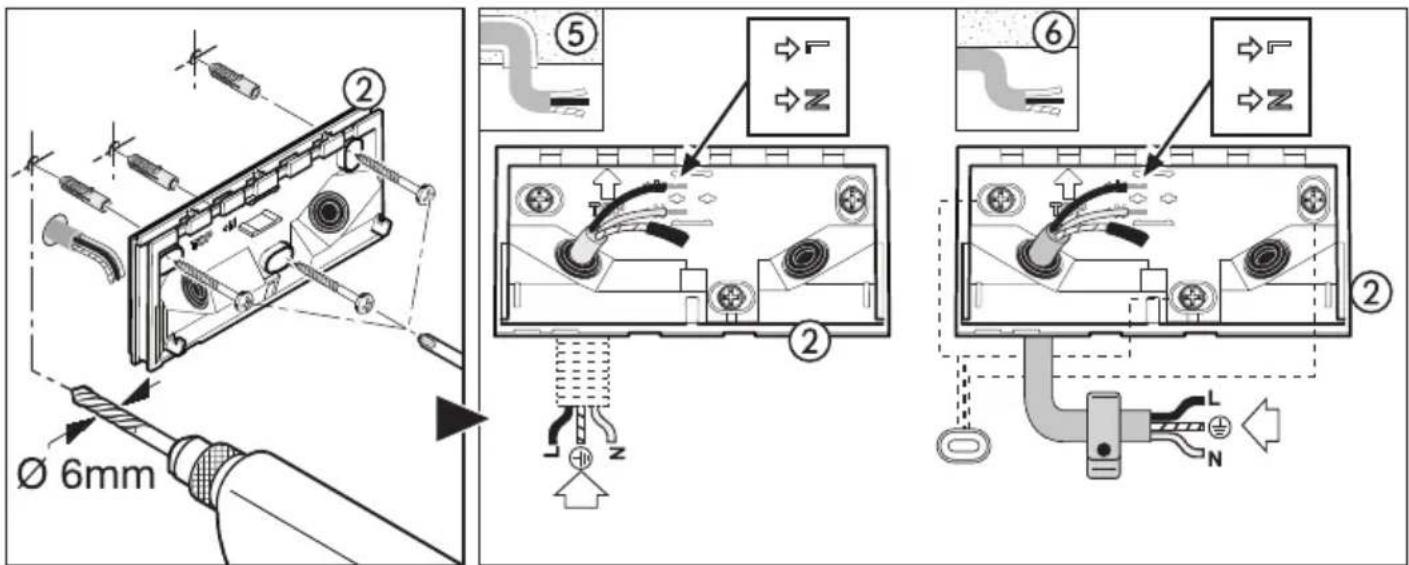

Connecting the mains power supply lead (see diagram)

The supply lead is a three-core cable:

$$ \begin{array}{r l} \mathbf {L} = & \text { phase conductor (usually black, } \ & \text { brown or grey) } \end{array} $$

$$ \mathbf {N} = \text { neutral conductor (usually blue) } $$

$$ \mathbf {P E} = \text { protective - earth conductor (green / yellow) } $$

If you are in any doubt, identify the conductors using a voltage tester; then disconnect from the power supply again. Phase (L) and neutral conductor (N) are connected to the terminal block.

Important:

Incorrectly wired connections will produce a short circuit later on in the product or your fuse box. In this case, you must identify the individual conductors once again and reconnect them.

Note:

The light source of this luminaire cannot be replaced. If the light source needs to be replaced (e.g. at the end of its service life), the complete luminaire must be replaced.

LED LED

A mains power switch for turning the unit ON and OFF may of course be installed in the mains supply lead.

6. Functions

The sensor-switched light can be put into service after mounting the enclosure and connecting to the mains power supply. When putting the light into operation manually at the light switch, it will switch OFF after 1 second for the calibration phase and is then activated for sensor mode.

It is not necessary to operate the light switch a second time.

Functions can be set via Steinel Connect App (L 800 SC / L 800 C / L 810 SC / L 810 C / L 820 SC) or control dial.

Note:

The settings last selected on the control will be used.

Steinel Connect App

To configure the light via smartphone or tablet, you must download the Steinel Connect App from your app store. You will need a Bluetooth-capable smartphone or tablet.

QR codes

Android iOS

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Functions:

Following functions can be set via the Steinel

Connect app:

• Time setting 5 s - 60 min.
  – Twilight setting 2 – 2,000 lux
• Teaching lux
• Basic light level
• Main light level
• Soft light start function

– Teaching time of day
- Reach adjustment
- Bluetooth interconnection

Time setting

The stay-ON time can be set to any period from approx. 5 seconds to a maximum of 60 minutes. Every movement detected re-activates the light. The shortest time setting is recommended when adjusting the detection zone and performing the functional test.

Twilight setting

The brightness response threshold (twilight) can be infinitely varied from approx. 2 - 2,000 lux.

Daylight mode must be selected when adjusting the detection zone and performing the functional test in daylight..

Basic light level

The brightness of the basic light level setting can be varied between 0% and 100%.

Basic light can be set in relation to time or ambient light level.

The light switches to maximum output (100%) for the time selected in response to movement in the detection zone. The light then returns to the basic light level.

Main light level

The brightness of the main light level setting can be varied between 0 % and 100 %.

Soft light start function

On switching ON, light level constantly builds up to 100 % (fade in).

On switching OFF, light level is constantly reduced to 0 % (fade out).

Fade-in and fade-out times are selectable.

Manual override

The manual override parameters can be set via the Steinel Connect app. In the new app, manual override can be set to any specific time of day (teaching time of day).

Bluetooth interconnection (Bluetooth Connect mesh)

The sensor switch complies with the Bluetooth Mesh standard. It can be interconnected with all products complying with the Bluetooth mesh standard.

The sensor switch is configured via the Steinel Connect app. Appropriate network keys are saved on a smartphone or tablet the first time a connection is made between the sensor switch and Steinel Connect app. The key rules out any unauthorised access to the sensor. The network key must be shared for access via another smartphone or tablet.

What is soft light start?

The sensor-switched light features a soft light start function. This means that when turned ON, the light is not switched directly to maximum output but gradually builds up brightness to 100 % within the space of a second. Brightness is also gradually reduced when the light is switched OFF.

Note:

Depending on the local power grid, the LED's may flicker slightly when dimmed. This is not a product defect and no reason for complaint.

7. Maintenance / care

The product requires no maintenance.

The light can be cleaned with a damp cloth (without detergents) if dirty.

Important note: the control gear cannot be replaced.

230V LED

8. Disposal

Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner.

Do not dispose of electrical and electronic equipment as domestic waste.

EU countries only:

Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner.

9. Declaration of Conformity

Hereby, STEINEL GmbH declares that the radio equipment type L 800 SC / L 800 C / L 810 SC / L 810 C / L 820 SC is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.steinel.de

10. Manufacturer's Warranty

Manufacturer's warranty of STEINEL GmbH, Dieselstrasse 80-84, DE-33442 Herzebrock-Clarholz, Germany

All STEINEL products meet the highest quality standards. For this reason, we, the manufacturer, are pleased to provide you, the consumer, with a warranty under the following terms and conditions:

The warranty covers the absence of deficiencies which are proven to be the result of a material defect or fault in manufacturing and which are reported to us immediately after detection and within the warranty period. The warranty shall apply to all STEINEL products sold and used in Germany - excluding STEINEL Professional products.

You can opt for warranty cover in the form of repair or replacement which will be provided free of charge (if applicable, in the form of a successor model of the same or higher quality) or in the form of a credit note.

The warranty period for the STEINEL product you have purchased is 3 years (5 years for products from the XLED home range) in each case from the date on which the product was purchased.

We shall bear the shipping costs but not the transport risks involved in return shipment.

Statutory rights accruing from defects, gratuitousness

The warranty cover described here shall be applicable in addition to the statutory rights of warranty – including special consumer protection provisions – and shall not restrict or replace them. Exercising your statutory rights in the event of defects is gratuitous.

Exemptions from the warranty

All replaceable lamps are expressly excluded from this warranty. In addition to this, the warranty shall not cover:

– any wear resulting from use or any other natural wear of product parts or any deficiencies in the STEINEL product that are attributable to wear caused by use or other natural wear,

– any improper or non-intended use of the product or any failure to observe the operating instructions,

– any unauthorised additions, alterations or other modifications to the product or any deficiencies attributable to the use of accessory,

– supplementary or replacement parts which are not genuine STEINEL parts,

– any maintenance or care of products that is not carried out in accordance with the operating instructions,

– any attachment or installation that is not in accordance with STEINEL's installation instructions,

– any damage or loss occurring in transit.

Application of German law

The warranty shall be governed by German law excluding the United Nations Convention concerning the International Sale of Goods (CISG).

Making claims

If you wish to make a warranty claim, please send your product complete and carriage paid with the original receipt of purchase, which must show the date of purchase and product designation, either to your retailer or directly to us at STEINEL (UK) Ltd. – 25 Manasty Road, Axis Park, Orton Southgate, GB-Peterborough Cambs PE2 6UP United Kingdom.

For this reason, we recommend that you keep your receipt of purchase in a safe place until the warranty period expires.

1. Technical specifications

Dimensions (H × W × D) 88 × 230 × 145 mm	(L 800 SC / L 800 C)
91 × 230 × 145 mm	(L 810 SC / L 810 C)
260 × 230 × 145 mm	(L 820 SC)

Material Light enclosure: aluminiumLight diffuser: plastic

Power supply 220–240 V, 50/60 Hz

Power consumption ( P_on )	7.50 W (L 800 SC / L 800 C)
	9.80 W (L 810 SC / L 810 C)
	9.80 W (L 820 SC)

Power consumption of iHF sensor 0.61 W (SC only)

Light output 466 lm (L 800 SC / L 800 C)
	679 lm (L 810 SC / L 810 C)
	679 lm (L 820 SC)

Efficiency 62 lm/W (L 800 SC/ L 800 C)

69 lm/W (L 810 SC / L 810 C)

69 lm/W (L 820 SC)

Colour rendering index R

_a = 82

Standby network (Pnet)

0.40 W

Power factor 0.89

Colour temperature 3,000 K (warm white)

Average rated life expectancy (L70B50 at 25 °C)

>60,000 hours

Angle of coverage

160° (SC only)

Detection reach

1 – 5 m (SC only)

Twilight setting

2-2,000 Lux

For C: only in combination with a Bluetooth sensor-switched product

Time setting

For SC: 5 s – 60 min

For C: only in combination with a Bluetooth sensor-switched product

Basic light level

For SC: 0 % – 100 %

For C: 0 % - 100 %

Permanent light

selectable

Optimum mounting height

2 m

IP rating

IP44

Protection class

II

Ambient temperature

-20 °C to +40 °C

Bluetooth frequency

2.4 – 2.48 GHz (L 800 / L 810 / L 820 SC)

Bluetooth transmitter power

5 dBm / 3 mW (L 800 / L 810 / L 820 SC)

Sensor frequency 5.8 GHz

Sensor transmitter power < 1 mW

Colour consistency SDCM Starting value: 3

Luminous intensity distribution

Radar chart with concentric circles and radial axes, no text or labels visible

L 800 SC / L 800 C L 810 SC / L 810 C

Radar chart with concentric circles and radial axes, no visible text or labels

L 820 SC

(L 800 SC / L 800 C) This product contains an energy efficiency class "E" light source

(L 810 SC / L 810 C)

(L 820 SC)

This product contains an energy efficiency class "D" light source

12. Troubleshooting

Malfunction Cause Remedy

Sensor-switched light without power	■ Fuse has tripped, not switched ON, break in wiring■ Short circuit	■ Activate, change fuse, turn ON mains switch, check wiring with voltage tester■ Check connections
Sensor-switched light will not switch ON	■ Twilight control set to night mode during daytime operation■ Mains switch OFF■ Fuse has tripped■ Detection zone not correctly adjusted	■ Reset■ Switch ON■ Activate, change fuse, check connection if necessary■ Readjust
Sensor-switched light will not switch OFF	■ Continued movement within the detection zone	■ Check detection zone and readjust if necessary
Sensor-switched light will not switch OFF completely	■ Basic lighting level selected	■ Turn programme selector dial to 0
Sensor-switched light switching ON when it should not	■ Wind is moving trees and bushes in the detection zone■ Cars in the street are detected	■ Change detection zone■ Change detection zone
Large metal objects, such as cars or metal walls, in the detection zone	■ Change detection zone	■ e.g. park car somewhere else
LED floodlight is not shown in the Bluetooth listing	■ Incorrect region selected	■ Settings→ Region EU / Region US
Forgotten password? ■ After entering wrong password:		“Reset password” button; switch power supply OFF and back ON again within 10 minutes; then re-enter password
App won't start	■ Location is not activated	■ Activate location in smartphone settings
Settings for LED floodlight are greyed out	■ LED floodlight is not declared as group master (slave mode)	■ Set master floodlight■ Declare LED floodlight as mast
No Bluetooth LED floodlight found	■ LED floodlight is not in reach■ Bluetooth is deactivated on smartphone	■ Check whether Bluetooth is activated on smartphone or reduce distance to the product■ Re-startsearch
No connection being set up from smartphone to LED floodlight	■ Smartphone too close to device■ Smartphone not compatible with app■ App version not up to date	■ Distance to LED floodlight at least 1.5 m■ Use different smartphone■ UpdateSteinel Connect App in app store

FR

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Fonctions :

Diagram showing a circular pattern with radial lines and concentric circles, labeled with Chinese characters on axes.

L 800 SC / L 800 C L 810 SC / L 810 C

Diagram showing a circular pattern with radial lines and concentric circles, labeled with angular divisions in degrees.

L 820 SC

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Functions:

Wat is soft light start?

Diagram showing a polar coordinate system with labeled axes and concentric circles, likely for geometric or engineering analysis.

L 800 SC / L 800 C L 810 SC / L 810 C

Radar chart with concentric circles and radial lines, no text or symbols present

L 820 SC

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funzioni:

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funciones:

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funções:

Diagram showing a circular grid with labeled axes and concentric circles, likely representing a coordinate system or polar coordinate system.

L 800 SC / L 800 C L 810 SC / L 810 C

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

L 820 SC

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funktioner:

Diagram showing a polar coordinate system with labeled axes and concentric circles, likely for geometric or astronomical analysis.

L 800 SC / L 800 C L 810 SC / L 810 C

Radar chart with concentric circles and radial lines, no visible text or labels

L 820 SC

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funktioner:

Funktioner som kan indstilles via Steinel

Connect-appen:

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Toiminnot:

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funksjoner:

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Λειτουργίες:

Diagram showing a polar coordinate system with labeled axes and concentric circles, likely for geometric or astronomical analysis.

L 800 SC / L 800 C L 810 SC / L 810 C

Radar chart with concentric circles and radial lines, no visible text or labels

L 820 SC

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Fonksiyonlar:

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Műveletek:

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funkce:

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funkcie:

Diagram showing a circuit setup with labeled components including a 230V power source and an LED indicator.

8. Likvidácia

Diagram showing a square with labeled axes and concentric circles, likely illustrating a geometric or directional concept.

L 800 SC / L 800 C L 810 SC / L 810 C

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

L 820 SC

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funkcje:

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funcții:

Diagram showing a circular target with radial lines and concentric circles, labeled with Chinese characters for angular measurements.

L 800 SC / L 800 C L 810 SC / L 810 C

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

L 820 SC

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funkcije:

Funkcije, nastavljive v aplikaciji Steinel Connect:

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funkcije:

Funkcije koje se mogu podesiti pomoću aplikacije Steinel Connect:

– Podešavanje vremena: 5 s – 60 min
- Podešavanje svjetlosnog praga: 2 - 2.000 luksa
- Učenje luksa
– Osnovno svjetlo
- Glavno svjetlo
– Funkcija soft uključivanja svjetla
- Učenje vremena
- Podešavanje dometa
- Bluetooth umreženje

Podešavanje vremena

Kašnjenje isključivanja može se podešavati kontinuirano od oko 5 sekundi do maks. 60 minuta.

Svaki detektirani pokret ponovno uključuje svjetlo. Kod podešavanja područja detekcije i testiranja funkcije preporučuje se podesiti najkraće vrijeme.

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funktsioonid:

Z1 Z30V LED

8. Utiliseerimine

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funkcijos:

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,W,X,Y,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,Z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,z,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-y-

L 800 SC / L 800 C L 810 SC / L 810 C

Radar chart with concentric circles and angular divisions, showing two overlapping lobes in the first quadrant.

L 820 SC

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Funkcijas:

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Функции:

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Diagram showing a circular pattern with labeled axes and concentric circles, likely illustrating a geometric or directional relationship.

L 800 SC / L 800 CL 810 SC / L 810 C

Pure geometric diagram with concentric circles and radial lines, no text or symbols present

L 820 SC

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Эксплуатация:

World map silhouette in grayscale, showing continents and oceans without any text or labels

Contact

www.steinel.de/contact

QR code image containing encoded data, no visible human-readable text
