Product type	Laser pointer / Cross-line laser
Brand	Laserliner
Model	SuperCrossLaser 2GP
Laser class	2 (EN 60825-1:2014/AC:2017) < 1 mW
Laser wavelength (lines)	515 nm (green)
Laser wavelength (plumb/reference)	650 nm (red)
Visible range	40 m (300 lux max)
Range with GRX receiver	40 m
Accuracy	± 0.5 mm/m
Self-leveling range	± 4°
Power supply	4 LR6 (AA) 1.5 V batteries
Battery life	Approx. 6 h
Dimensions (L x H x D)	124 x 119 x 66 mm
Weight	430 g (without accessories)
Operating temperature	0 °C to 50 °C, max RH 80%
Storage temperature	-10 °C to 70 °C, max RH 80%
Leveling	Automatic by damped pendulum
Mounting	Standard tripod (1/4", 5/8"), wall mount, magnets on back
Main functions	Horizontal and vertical lines, plumb laser (2 points), reference beam, tilt mode, GRX receiver mode
Safety	Do not look into the beam; class 2; keep out of reach of children; maintain distance from pacemakers
Maintenance and cleaning	Clean with a damp cloth; no solvents; remove batteries for extended storage
Calibration	Check regularly; tolerance ±0.5 mm/m; calibration recommended every 1-2 years
Warranty and services	Consult the warranty booklet and UMAREX-LASERLINER after-sales service

Frequently Asked Questions - SuperCrossLaser 2GP Laserliner

How to turn on the SuperCrossLaser 2GP?

Unlock the transport lock by sliding the switch to ON. The lasers turn on automatically. Use the selection button to enable/disable the lines.

What to do if the laser lines flash?

Flashing indicates the unit is outside the self-leveling range (±4°). Reposition the instrument on a flatter surface. When the LED turns green, the lines are stable.

How to use tilt mode?

Set the switch to OFF (transport lock). Press the selection button to activate the lasers. Caution: in tilt mode, self-leveling is disabled, the LED stays red.

How to change the batteries?

Open the battery compartment on the device. Insert 4 AA (LR6) batteries following the indicated polarity. Close the compartment.

Does the laser work outdoors?

Yes, but visibility decreases in direct sunlight. For outdoor use over long distances, activate manual receiver mode and use a GRX receiver (optional).

What is the purpose of manual receiver mode (GRX)?

This mode makes the laser pulse at high frequency, allowing special laser receivers to detect the lines even in difficult lighting conditions. To activate, press the receiver mode button.

How to attach the device to a tripod?

Screw the 1/4″ thread under the device onto the tripod. You can also use the 5/8″ adapter provided with some accessories.

How to check the accuracy of the horizontal level?

Place the device 5 m from a wall, mark point B, rotate 2.5 m to the right and mark C. The height difference must not exceed ±2.5 mm. Repeat to the left. See the manual for detailed instructions.

What are the laser safety precautions?

Never look directly into the laser beam or its reflections. Cover reflective surfaces. Do not use at eye level (between 1.40 and 1.90 m). Keep out of reach of children.

How to maintain the device?

Clean the surfaces with a slightly damp cloth, no solvents. Remove batteries if the device is not used for a long time. Store in a dry, clean place.

USER MANUAL SuperCrossLaser 2GP Laserliner

SuperCross-Laser 2GP

AUTOMATIC LEVEL

Laser 515 nm

1H 1V 2P

Laserliner

Laserliner

！

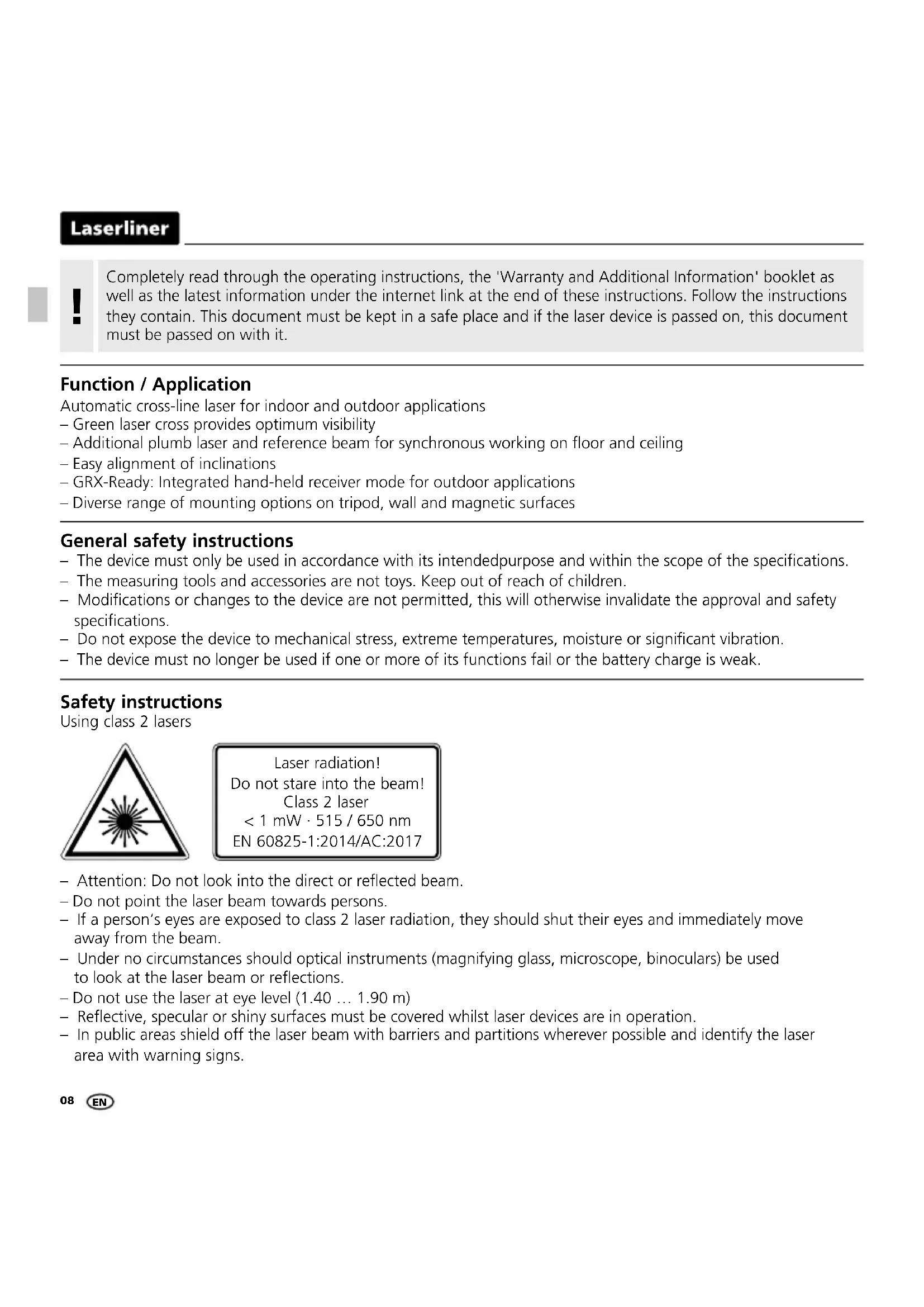

Completely read through the operating instructions, the 'Warranty and Additional Information' booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

Function / Application

Automatic cross-line laser for indoor and outdoor applications

Green laser cross provides optimum visibility
- Additional plumb laser and reference beam for synchronous working on floor and ceiling
- Easy alignment of inclinations
- GRX-Ready: Integrated hand-held receiver mode for outdoor applications
- Diverse range of mounting options on tripod, wall and magnetic surfaces

General safety instructions

The device must only be used in accordance with its intendedpurpose and within the scope of the specifications.
- The measuring tools and accessories are not toys. Keep out of reach of children.
- Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
- Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
- The device must no longer be used if one or more of its functions fail or the battery charge is weak.

Safety instructions

Using class 2 lasers

Laser radiation!

Do not stare into the beam!

Class 2 laser

<1mW·515/650nm

EN 60825-1:2014/AC:2017

• Attention: Do not look into the direct or reflected beam.
• Do not point the laser beam towards persons.
• If a person's eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.
• Under no circumstances should optical instruments (magnifying glass, microscope, binoculars) be used to look at the laser beam or reflections.
• Do not use the laser at eye level (1.40 ... 1.90 m)
• Reflective, specular or shiny surfaces must be covered whilst laser devices are in operation.
  In public areas shield off the laser beam with barriers and partitions wherever possible and identify the laser area with warning signs.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limits in accordance with the EMC Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

When transporting always switch off all lasers, secure the pendulum and set the slide switch to "OFF"!

Special product features

Automatic alignment of the device with a magnetically dampened pendulum system. The device is brought into initial position and aligns itself autonomously.

Transport LOCK: The device is protected with a pendulum lock during transport.

GRX-READY technology enables line lasers to be used even in unfavourable light conditions. The laser lines pulsate at a high frequency and this can be picked up by special laser receivers over long distances.

Green laser technology

Laser modules in DLD design stand for high line quality as well as a clean and clear and therefore easily visible line image. Unlike previous generations they are more temperature-stable and energy efficient.

Furthermore, the human eye has a higher sensitivity to the wave range of the green laser than the red laser, for example. This makes the green laser diode appear much brighter than the red one.

Green lasers, especially in the DLD design, thus offer advantages with regards to how visible the laser line is under unfavourable conditions.

Approx. 6 times brighter than a typical red laser with 630 - 660 nm

Number and direction of the lasers

H = horizontal laser

V = vertical laser

P = Number of laser points

S = slope function

1H 1V 2P

s

Laserliner

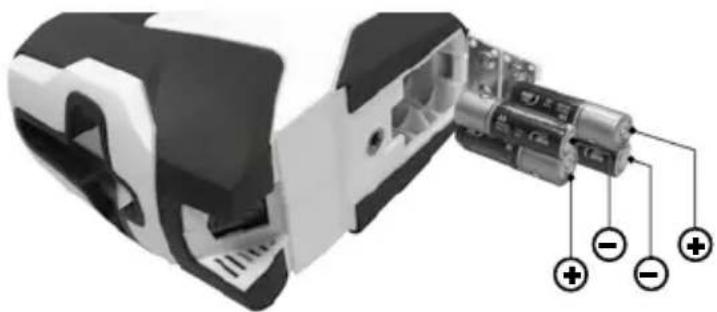

1 Inserting batteries

Open the battery compartment and insert batteries (4 x type AA) according to the symbols. Be sure to pay attention to polarity.

！

Always rotate the special pins into their parked position for transport, see illustration below. Otherwise there is danger of injury.

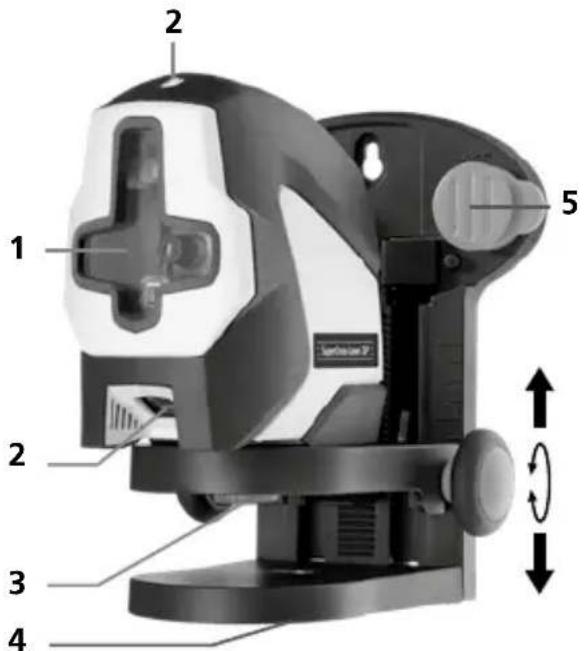

1 Laser output windows
2 Laser-emitting window, plumb laser
3 1/4" fastening screw
4 5/8" tripod threads with threaded bush insert for 1 / 4'' photo-tripod threads
5 Special pins for direct attachment to a wall

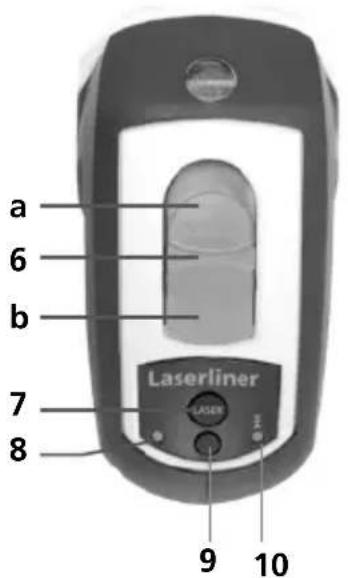

6 Slide switch
a ON
b OFF/Transport lock / Slope mode
7 Laser line selection button
8 LED Status indicator
9 Handreceivermode
10 LED Hand receiver mode

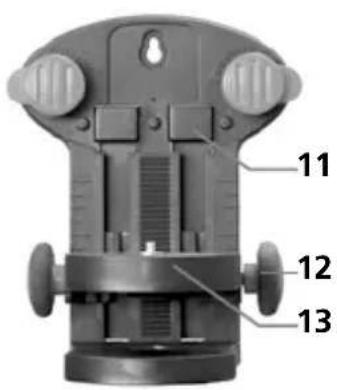

11 Holding magnets on the back-side for attachment to magnetic-responsive objects
12 Height adjustment knob
13 Tripod/wall bracket with 63 mm height adjustment

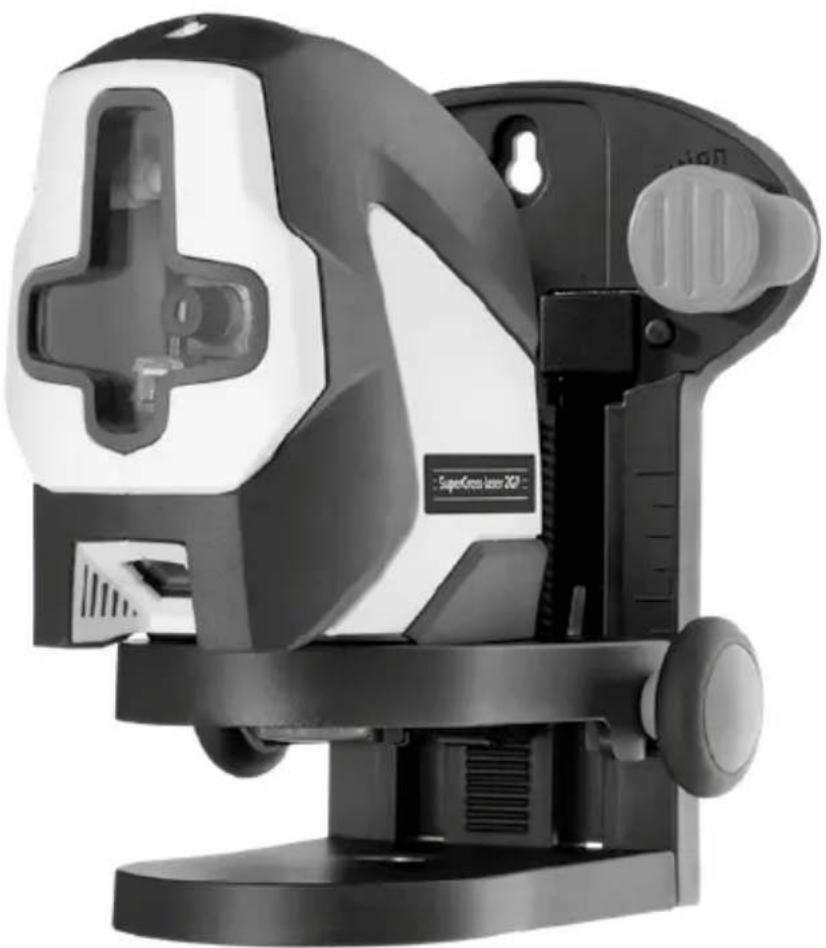

SuperCross-Laser 2GP

2 Horizontal and vertical levelling

Release the transport restraint, set slide switch to "ON". Laser-emitting window, plumb laser. The laser lines can be switched with the selector button.

The transport restraint must be released for horizontal and vertical levelling. The laser lines flash and the LED lights red as soon as the device is outside the automatic levelling range of 4^ . Position the device such that it is within the levelling range. The LED switches back to green and the laser lines stop flashing (steady light).

Slope mode

Do not release the transport restraint, set slide switch to "OFF". Select and switch on the laser with the selection button. Sloping planes can now be measured. This mode cannot be used to perform horizontal or vertical levelling as the laser lines are no longer aligned automatically. The LED lights constantly red.

4 Hand receiver mode

Optional: Working with the laser receiver GRX

Use an GRX laser receiver (optional) to carry out levelling at great distances or when the laser lines are no longer visible. To work with a laser receiver, switch the linelaser into hand receiver mode with the Hand receiver mode button. The laser lines will now pulsate with high frequency, making the laser lines darker. The laser receiver can detect these pulsating laser lines.

Observe the laser receiver's operating instructions for line lasers.

Preparing the calibration check

It is possible for you to check the calibration of the laser. To do this, position the device midway between 2 walls, which must be at least 5m apart. Switch the device on (Laser cross ON).

The best calibration results are achieved if the device is mounted on a tripod.

Laserliner

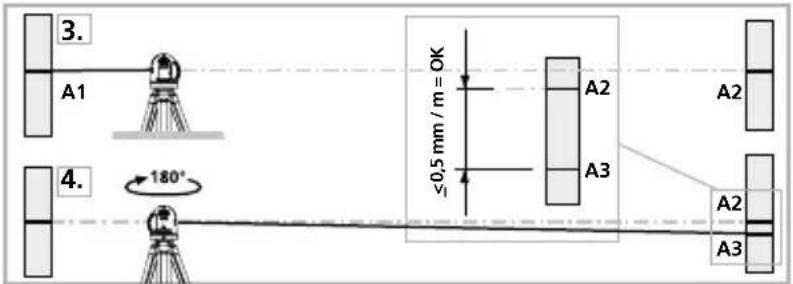

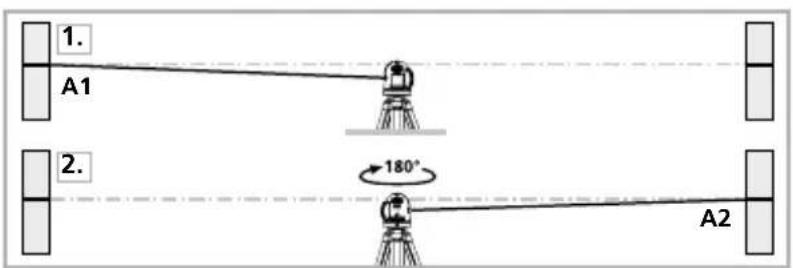

Performing the calibration check

1. Mark point A1 on the wall.

2. Turn the device through 180^ and mark point A2. You now have a horizontal reference between points A1 and A2.

3. Position the device as near as possible to the wall at the height of point A1.

4. Turn the device through 180^ and mark point A3. The difference between points A2 and A3 is the tolerance.

When A2 and A3 are more than 0.5mm / m apart, an adjustment is necessary. Contact your authorised dealer or else the UMAREX-LASERLINER Service Department.

Checking the vertical line

Position the device about 5m from a wall. Fix a plumb bob with a line of 2.5m length on the wall, making sure that the bob can swing freely. Switch on the device and align the vertical laser to the plumb line. The precision is within the specified tolerance if the deviation between the laser line and the plumb line is not greater than ± 2.5mm .

Checking the horizontal line

Position the device about 5m from a wall and switch on the cross laser. Mark point B on the wall. Turn the laser cross approx. 2.5m to the right and mark point C. Check whether the horizontal line from point C is level with point B to within ± 2.5mm . Repeat the process by turning the laser to the left.

Regularly check the calibration before use, after transport and after extended periods of storage.

Danger - powerful magnetic fields

Powerful magnetic fields can adversely affect persons with active medical implants (e.g. pacemaker) as well as electromechanical devices (e.g. magnetic cards, mechanical clocks, precision mechanics, hard disks).

With regard to the effect of powerful magnetic fields on persons, the applicable national stipulations and regulations must be complied with such as BGV B11 §14 „electromagnetic fields" (occupational health and safety - electromagnetic fields) in the Federal Republic of Germany.

To avoid interference/disruption, always keep the implant or device a safe distance of at least 30~cm away from the magnet.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents.

Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Calibration

The measuring device should be calibrated and tested on a regular basis to ensure it is accurate and working properly. We recommend the measuring device is calibrated every 1 - 2 years. If necessary, contact your distributor or the UMAREX-LASERLINER service department.

Technical data (Subject to technical changes without notice. 20W12)
Self-leveling range ± 4°
Accuracy	± 0.5 mm / m
Levelling automatic
Visibility (typical)* 40 m
Working range with hand receiver	(depends on how the technology affects the difference in brightness) 40 m
Laser wavelength 515 nm
Plumb laser wavelength 650 nm
Reference beam wavelength	650 nm
Laser class 2 / < 1 mW (EN 60825-1:2014/AC:2017)
Power supply	4 x 1,5V LR6 (AA)
Operating time	approx. 6 hours
Operating conditions 0°C ... 50°C, max. humidity 80% rH, no condensation, max. working altitude 4000 m above sea level
Storage conditions -10°C ... 70°C, max. humidity 80% rH
Dimensions (W x H x D) 124 x 119 x 66 mm
Weight	430 g (without accessories and batteries)

* at max. 300 lux

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com/info?an=AJF

Laserliner

！
