USER MANUAL Cafe & Latte KM3108 KRUPS

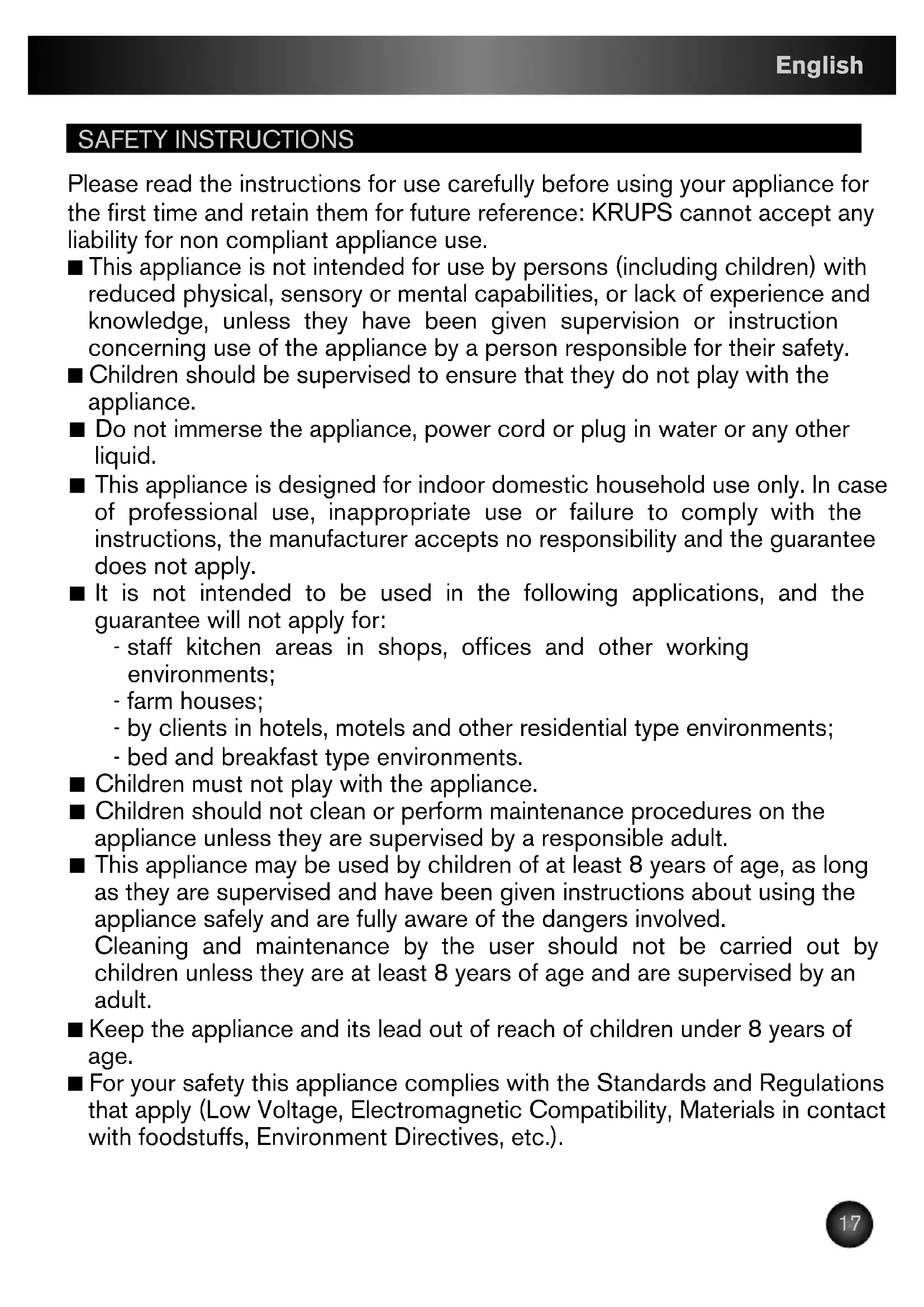

KR_CAFETIERE_CAFE-ET-LATTE_NC00120110_Miseenpage119/06/1315:05Page16SAFETY INSTRUCTIONS Please read the instructions for use carefully before using your appliance for the first time and retain them for future reference: KRUPS cannot accept any liability for non compliant appliance use. ■ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. ■ Children should be supervised to ensure that they do not play with the appliance. ■ Do not immerse the appliance, power cord or plug in water or any other liquid. ■ This appliance is designed for indoor domestic household use only. In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee does not apply. ■ It is not intended to be used in the following applications, and the guarantee will not apply for: - staff kitchen areas in shops, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments. ■ Children must not play with the appliance. ■ Children should not clean or perform maintenance procedures on the appliance unless they are supervised by a responsible adult. ■ This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved. Cleaning and maintenance by the user should not be carried out by children unless they are at least 8 years of age and are supervised by an adult. ■ Keep the appliance and its lead out of reach of children under 8 years of age. ■ For your safety this appliance complies with the Standards and Regulations that apply (Low Voltage, Electromagnetic Compatibility, Materials in contact with foodstuffs, Environment Directives, etc.). English

KR_CAFETIERE_CAFE-ET-LATTE_NC00120110_Miseenpage119/06/1315:05Page17■ Before connecting the appliance, check that the supply voltage of your installation corresponds to that of the appliance and that the socket is earthed. Any error in connection will invalidate the guarantee. ■ Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an Approved Service Centre. ■ Your appliance is intended for domestic use inside the home only. ■ Unplug the appliance when you have finished using it and when you clean it. ■ Do not use the appliance if it is not working correctly or if it has been damaged. In this case, contact an approved service centre. ■ Any intervention other than cleaning and usual maintenance by the customer must be carried out by an approved service centre. ■ Do not use the appliance if the power cord or plug is damaged. The power cord must be replaced by the manufacturer or its after sales service in order to avoid danger. ■ Do not leave the power cord in reach of children. ■ The power cord must never be left near or in contact with the hot parts of your appliance, near a source of heat or on a sharp edge. ■ For your own safety, only use the manufacturer's accessories and spare parts suitable for your appliance. ■ Do not unplug the appliance by pulling on the power cord. ■ Do not use the glass jug over an open flame or on electric cooker plates. ■ Do not put water in the appliance if it is still hot. ■ Always close the lid (a) while the coffee maker is in operation. ■ All appliances are subject to strict quality control. Practical trials are carried out with appliances selected at random, which explains any evidence of use. ■ The glass jug is safe to use in the microwave and dishwasher. ■ Do not use the glass jug without its lid. ■ The milk frother lid and milk jug must be washed by hand, but should not be washed in the dishwasher. Make sure that you clean the milk frother after each use to avoid any accumulation of milk and residue. ■ Make sure that you do not damage the thermal sensor (p) when you insert the frother. ■ While the machine is in operation, do not touch the milk jug because it has a high temperature and could cause burns. ■ Splashes of milk can cause burns. Only use the milk jug with its lid. English

KR_CAFETIERE_CAFE-ET-LATTE_NC00120110_Miseenpage119/06/1315:05Page18■ The milk jug should only be used with the base supplied with it. Do not use the base to heat any item other than the milk jug supplied with your appliance. ■ After switching on your coffee maker, never put your hand on the hotplate when you are removing the jug from the its support. While in operation, this plate reaches a very high temperature, which could cause burns. ■ After switching on your coffee maker, never put your hand on the hotplate and especially when you are removing the glass jug from its support. While in operation, this plate has a very high temperature, which could cause burns. DESCRIPTION RECOMMENDATIONS Before using your appliance for the first time ■ Remove all packaging, stickers and accessories from inside and outside the appliance - fig.1. ■ Run the filter coffee maker once without adding coffee using the equivalent of one jug of water to rinse it (maximum 1 litre). ■ Wash the milk jug and the accessories with hot soapy water. During use ■ Do not move the appliance during operation. ■ Do not unlock the milk jug while the appliance is heating. ■ While the machine is in operation, do not touch the milk jug or the glass jug as this could cause burns - fig.2. At the end of the cycle ■ Unlock the milk jug before picking it up. ■ Use the handle provided. ■ To open the lid, pull it upwards - fig.3. ■ Place the lid gently on a flat surface - fig.4. Coffee maker a Lid b Water tank c Water level indicator d Filter holder e Jug f Jug hotplate g Button to turn on coffee cycle Milk frother h Milk jug lock/unlock button i Milk jug j Milk frother lid k Milk jug heating plate l Hot milk start button m Frothy milk start button p Thermal sensor Accessories n Measuring spoon o Spoonful of Easy Latte Macchiato English

KR_CAFETIERE_CAFE-ET-LATTE_NC00120110_Miseenpage119/06/1315:05Page19CHOICE OF INGREDIENTS Coffee Opt for coffee that is suitable for making filter coffee. Most commercially available ground filter coffee can be found in most good supermarkets. Avoid special espresso ground coffee because it can be too strong and bitter for this type of preparation. Close the packet of ground filter coffee carefully after use. To ensure the coffee stays fresh during storage, seal the packet of coffee after removing as much air as possible. Once opened, the packet of coffee should be kept in the fridge. What variety of coffee should I choose? ■ For full-flavoured coffee Go for pure Arabica coffee for use in filter coffee machines or coffee mainly made up of Arabica blends. Traditionally roasted coffee is preferred because its flavour offers more complexity and finesse. To vary flavours, try pure original coffee. ■ For strong coffee Choose Robusta coffee blends for use in filter coffee machines - 100% Arabica - or Italian roasted or specified as Italian flavour coffee. Milk ■ This appliance allows you to froth and/or heat milk in two different ways in terms of frothing and temperature. ■ You may use skimmed, semi-skimmed or whole milk. ■ The use of special milk (enriched, soya, etc.) may give less satisfactory results particularly in terms of the quality of the froth. ■ We always recommend using fresh, cold milk for best results. Your ideas ■ To flavour your drinks, you can use syrup, (hazelnut, vanilla, caramel, cookies, speculoos, gingerbread, etc.). ■ You can use caramel or chocolate toppings to garnish your drink. ■ Chocolate or coloured vermicelli, chocolate flakes, toasted hazelnuts and mini-marshmallows will give your drinks a decorative touch. Note: do not put ingredients such as syrup, dessert toppings or pieces of chocolate, etc directly into the milk jug. MAKING COFFEE You can make the coffee separately from the milk or at the same time. To do this: ■ Open the lid (a) - fig.5. ■ Fill the water tank with cold water (b) - fig.6. ■ Place a No. 4 filter paper in the filter holder - fig.8. Check that the filter holder is correctly in place. If this is not the case, insert the filter holder vertically then fold down the handle - fig.7. ■ Pour in the required quantity of coffee - fig.9. Dosage : We recommend using one level measuring spoon (n) of coffee per large cup. ■ Close the lid again - fig.10. ■ Press to start the cycle. The button remains lit all the time while the coffee is being prepared - fig.11. ■ Your coffee maker comes with an automatic keep warm function. At the end of the cycle, it will automatically switch off after 30 min. ■ If you do not want to use the keep warm function, press at end of the cycle. ■ The button is no longer lit up and the coffee maker is switched off. English

KR_CAFETIERE_CAFE-ET-LATTE_NC00120110_Miseenpage119/06/1315:05Page20Do not exceed the maximum quantity of water shown on the tank water level indicator. Once the cycle has ended, wait for a few minutes before making a second pot of coffee. Do not try to make more coffee, if the jug already contains some coffee. ■ Your coffee maker is fitted with a drip stop function allowing you to serve coffee before the end of the cycle. Once your coffee has been served, replace the jug to avoid any overflowing.

CLEANING YOUR COFFEE MAKER

To clean your coffee maker ■ Unplug the appliance. ■ Open the lid. ■ Remove the used filter paper: - either by taking it out directly. - or by lifting the filter holder out by the handle - fig.12 (if you remove the filter holder, make sure that you replace it correctly as in fig. 7). ■ Clean with a soft cloth or damp sponge, some hot water and a little washing-up liquid. ■ Do not clean the appliance while it is still hot - fig.14. ■ Never immerse the appliance in water or any other liquid. - fig.15. Dishwasher ■ The filter holder and the glass jug are dishwasher-safe.

DESCALING YOUR COFFEE MAKER

■ Descale your coffee maker: - Every 40 cycles ■ If in doubt, ask the local water authority in your area to find out how hard your water is. ■ You can use: - Either one sachet of descaler suitable for use in kettles or coffee makers diluted in 2 cups of water. - Or 2 cups of commercially available white vinegar which can be purchased from your local hardware store. ■ Pour the prepared descaling solution into the water tank (b) and start the coffee maker (without coffee). ■ Leave the equivalent of one cup to drip into the jug (e), then switch off. ■ Leave to work for one hour. ■ Start the coffee maker up again to finish the cycle. ■ Run the coffee maker 2 or 3 times with the equivalent of one jug of fresh tap water to rinse it. The guarantee excludes coffee makers not working or not running correctly due to descaling not being carried out.

■ Check that the milk jug is unlocked - fig.16. ■ Pick up the jug by the handle provided for this purpose - fig.17. ■ Remove the lid and place it on a flat, stable, heat-resistant surface. ■ Pour the milk into the jug without exceeding the maximum level making sure you reach the minimum level. The maximum and minimum levels of milk are shown by marking inside the pot (Maximum: 250mL, Minimum: 170mL) - fig.18. ■ Put the lid back on the pot - fig.19. ■ Position the milk jug on the hotplate (k) provided for this purpose - fig.20. ■ Check that the milk jug is correctly positioned on the hotplate. ■ Lock the milk jug by turning the button to the padlocked position - fig.21. English

KR_CAFETIERE_CAFE-ET-LATTE_NC00120110_Miseenpage119/06/1315:05Page21Drinking chocolate ■ You can use drinking chocolate with more or less sugar. To do this, we recommend adding it directly to the milk jug. You will obtain a tasty combination without any risk of it overflowing. ■ If you want an authentic hot chocolate, you can use a bar of chocolate. To do this, first of all melt the chocolate in the microwave or in an oven proof dish over pan of hot water as a bain marie. Prepare the milk separately and mix the chocolate and milk together in your cup. Do not put pieces of chocolate directly in the milk jug. Hot Milk ■ To start heating, press the button. ■ The button lights up and the appliance starts up automatically. ■ When the milk is ready, the button switches off automatically after 6 min maximum. ■ Your appliance is fitted with a sensor that automatically regulates the temperature of the milk inside the milk jug. Your milk will be heated to the optimum temperature and without risk of overflowing. ■ The frother rotates to give the milk an even temperature. ■ To serve the milk, unlock the jug. ■ Use the handle to pick up the milk jug - fig.22. ■ Remove the lid and place it on a flat, stable, heat-resistant surface. ■ Pour your hot milk. Frothy Hot Milk ■ To start heating, press the button. ■ The button lights up and the appliance starts up automatically. ■ When the milk is ready, the button switches off automatically after 6 min. ■ Your appliance is fitted with a sensor that automatically regulates the temperature of the milk inside the milk jug. You will obtain smooth, frothy milk at the correct temperature. ■ To serve the milk, unlock the jug. ■ Use the handle to pick up the milk jug. ■ Remove the lid and place it on a flat, stable, heat-resistant surface. ■ Pour your hot milk. Tip: you can use a spoon to distribute the milk froth over the cup. Note: wait for 2 minutes after a milk cycle has finished before starting a new cycle.

CLEANING THE MILK FROTHER

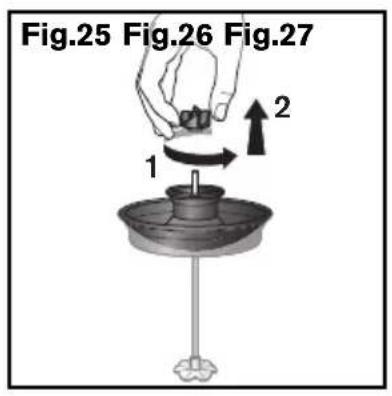

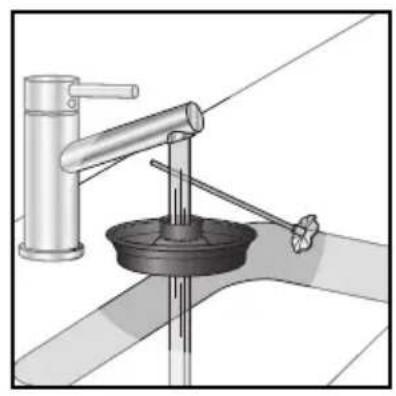

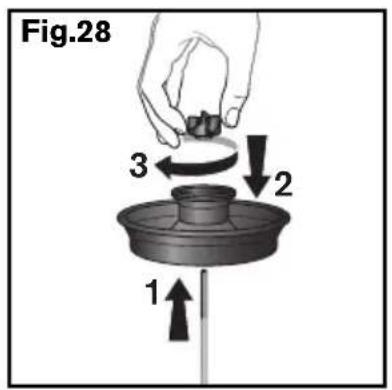

■ Push the rod upwards. ■ Unscrew the end-piece of the frother rod - fig. 25. Be careful not to lose the end-piece. ■ Remove the rod by sliding it out - fig. 26. ■ Run the lid and the rod under the tap to clean them - fig. 27. ■ Fit the rod back on the lid and screw the end-piece on tightly so as to make the assembly ready for use again - fig. 28. Dishwasher ■ The milk jug and milk frother lid are not dishwasher-safe. ■ It is advisable to wash the milk jug and the milk frother lid with hot water, washing-up liquid and a soft sponge straight after use for easy cleaning. ■ Do not use abrasive products for cleaning they will damage the appliance. Limits of use ■ This appliance is used for frothing and/or heating milk. It is not designed for heating other liquids or preparations (soups, sauces, etc.). Unsweetened cocoa sweetened cocoa Chocolate bars GourmetLight English

KR_CAFETIERE_CAFE-ET-LATTE_NC00120110_Miseenpage119/06/1315:05Page22Spoonful of Easy Latte Macchiato Your appliance has a cappuccino accessory for making your preparations containing coffee and frothy hot milk. This accessory allows you to produce levels of coffee and frothy milk in the same container. ■ Pour the hot milk and froth into the cup (2/3) - fig.22. ■ Position the Easy Latte Macchiato spoon above the cup - fig.23. ■ Slowly pour the coffee through the Easy Latte Macchiato spoon (1/3) - fig.24. ACCESSORIES ■ Glass jug You can find the accessories on the website : www.accessories.home-and-cook.com/

POSSIBLE FAULTS AND SOLUTIONS

FAULT POSSIBLE CAUSE SOLUTION

The coffee does not infuse or the coffee maker does not switch on. Appliance not plugged in. Plug the appliance in correctly and check that it is in the "On" position. Empty tank of water. Fill the water tank. The automatic shutdown function has switched the coffee maker off. Switch the coffee maker off and then on again. The appliance seems to be lea- king. The reservoir is perhaps too full. Check that the water reservoir has not been filled beyond the maximum mark. The coffee takes a long time to infuse. Coffee maker needs descaling. Descale the coffee maker. The appliance spits and/or emits a lot of steam at the end of the coffee preparation cycle. Coffee maker needs descaling. Descale the coffee maker. There is still water left in the tank at the end of the coffee preparation cycle. Coffee maker needs descaling. Descale the coffee maker. The filter holder (d) overflows or the coffee runs through too slowly. Too much coffee in the filter holder. Use a measuring spoon. Coffee is too finely ground. Use another type of coffee. The filter holder is not closed correctly. Check that the filter holder is correctly in place - fig. 7. Jug incorrectly positioned on the hot plate. Reposition the jug correctly. The jug has been removed for more than 20 seconds during the infusion cycle. Switch the coffee maker off and then on again. Filter paper incorrectly positioned. Reposition the filter correctly. KR_CAFETIERE_CAFE-ET-LATTE_NC00120110_Miseenpage119/06/1315:05Page23RECYCLING n Disposal of packaging materials and the appliance. n Electronic or electrical products at end-of-life. Your appliance is designed to operate for many years. However, the day you plan to replace it, do not throw it away with normal household rubbish or in a landfill but take it to a suitable waste collection point provided by your local authority (or to a waste collection centre if applicable). n Think of the environment! If you have any further problems or queries, please call our Customer Relations Team first for expert help and advice: Helpline: 0845 330 6460 - UK 01 677 4003 - ROI Or consult our web site: www.krups.co.uk The packaging exclusively consists of material that is not hazardous for the environment and can be disposed of in accordance with the recycling provisions in force. For the disposal of the appliance, contact the corresponding service in your district. i Your appliance contains valuable materials which can be recovered or recycled. ‹ Leave it at a local civic waste collection point. English

FAULT POSSIBLE CAUSE SOLUTION

The coffee tastes bad. Coffee maker needs descaling. Descale the coffee maker. Ground coffee not suitable for filter coffee makers. Use filter coffee. See "Preparing the coffee" section. Poor quality water. Use filtered or bottled water. The lid of the filter holder does not close properly. Filter holder incorrectly inserted. Check that the filter holder is correctly in place. The frothing function does not work. Frothing tool blocked. Clean the frothing accessory see paragraph CLEANING THE MILK FROTHER. The milk jug is not locked into position. Unlock, remove and replace the milk jug. Relock it. The two milk buttons are flas- hing. The heating control device is faulty. Contact the service centre in your country. The milk is cold. Check that the jug is in contact with the hotplate. The milk jug should be positioned correctly on the hotplate. KR_CAFETIERE_CAFE-ET-LATTE_NC00120110_Miseenpage119/06/1315:05Page24KRUPS INTERNATIONAL LIMITED GUARANTEE : www.krups.com This product is repairable by KRUPS during and after the guarantee period. The Guarantee This product is guaranteed by KRUPS (company address and details included in the country list of the KRUPS International Guarantee) against any manufacturing defect in materials or workmanship for a period of 2 years starting from the initial date of purchase. The international manufacturer's guarantee by KRUPS is an extra benefit which does not affect consumer's Statutory Rights. The international manufacturer’s guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At KRUPS’s choice, a replacement product may be provided instead of repairing a defective product. KRUPS’s sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement. Conditions & Exclusions The international KRUPS guarantee only applies within the guarantee period and for those countries listed in the Country List attached and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorised service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a KRUPS authorised service centre. Full address details for each country’s authorised service centres are listed on KRUPS website (www.krups.com) or by calling the appropriate telephone number as set out in the Country List to request the appropriate postal address. KRUPS shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. This guarantee will not cover any damage which could occur as a result of misuse, negligence, failure to follow KRUPS instructions, use on current or voltage other than as stamped on the product, or a modification or unauthorised repair of the product. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following: - using the wrong type of water or consumable - scaling (any de-scaling must be carried out according to the instructions for use); - ingress of water, dust or insects into the product; - mechanical damages, overloading - damages or bad results due to wrong voltage or frequency - accidents including fire, flood, thunderbolt etc - professional or commercial use - damage to any glass or porcelain ware in the product - replacement of consumables This guarantee does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier. The international KRUPS guarantee applies only for products purchased in one of the countries listed, and used for domestic purposes only in one of the countries listed on the Country List. Where a product purchased in one listed country and then used in another listed country: a) The international KRUPS guarantee does not apply in case of non conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or other local technical specifications b) The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by KRUPS c) In cases where the product is not repairable in the new country, the international KRUPS guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible

KR_CAFETIERE_CAFE-ET-LATTE_NC00120110_Miseenpage119/06/1315:05Page25Consumer Statutory Rights This international KRUPS guarantee does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion Additional information Accessories, Consumables and end-user replaceable parts can be purchased, if locally available, as described on the KRUPS internet site. English
