USER MANUAL DDM2300D MSW

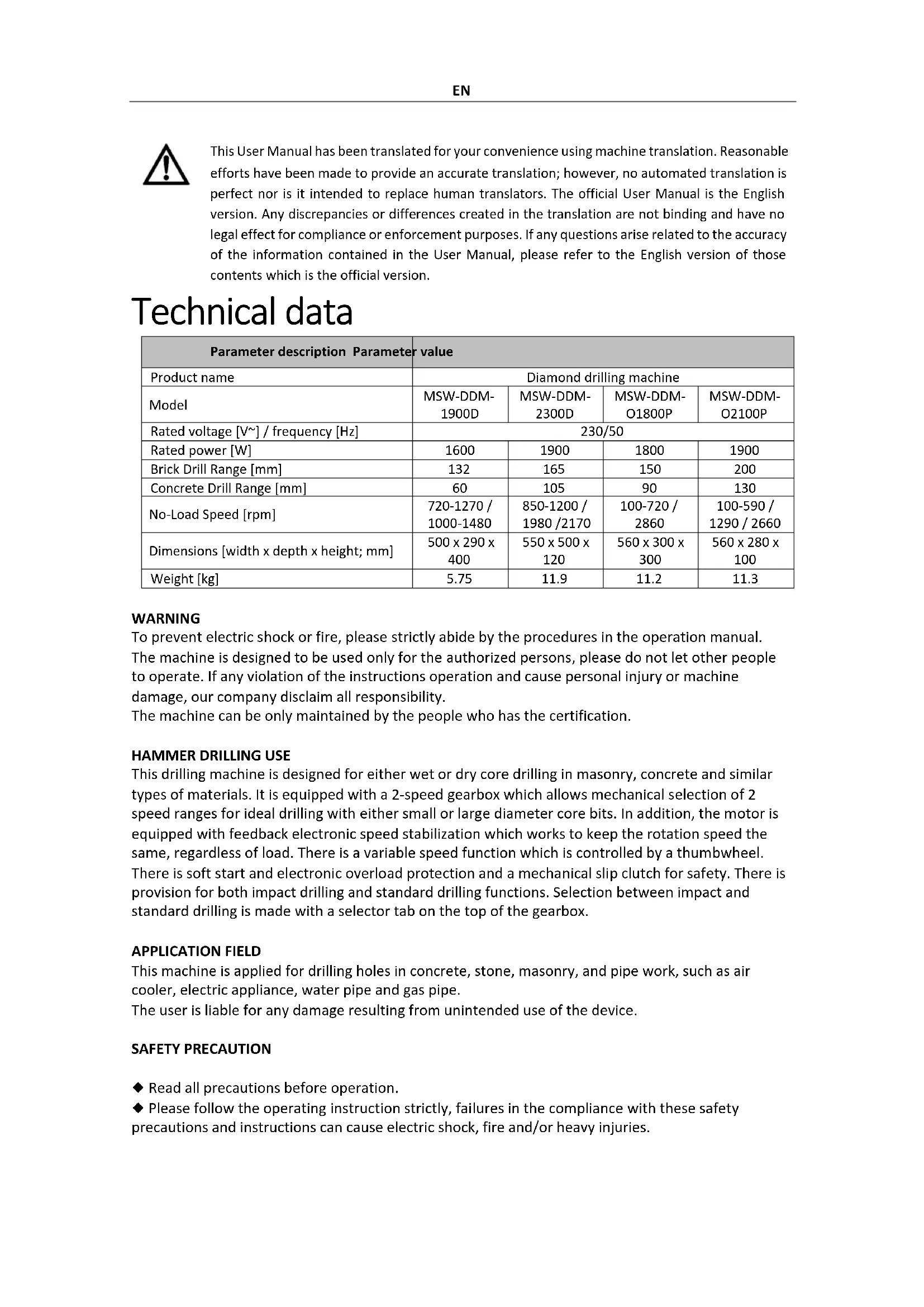

Brick Drill Range [mm]

Concrete Drill Range [mm]

WARNING To prevent electric shock or fire, please strictly abide by the procedures in the operation manual. The machine is designed to be used only for the authorized persons, please do not let other people to operate. If any violation of the instructions operation and cause personal injury or machine damage, our company disclaim all responsibility. The machine can be only maintained by the people who has the certification.

This drilling machine is designed for either wet or dry core drilling in masonry, concrete and similar types of materials. It is equipped with a 2-speed gearbox which allows mechanical selection of 2 speed ranges for ideal drilling with either small or large diameter core bits. In addition, the motor is equipped with feedback electronic speed stabilization which works to keep the rotation speed the same, regardless of load. There is a variable speed function which is controlled by a thumbwheel. There is soft start and electronic overload protection and a mechanical slip clutch for safety. There is provision for both impact drilling and standard drilling functions. Selection between impact and standard drilling is made with a selector tab on the top of the gearbox. APPLICATION FIELD This machine is applied for drilling holes in concrete, stone, masonry, and pipe work, such as air cooler, electric appliance, water pipe and gas pipe. The user is liable for any damage resulting from unintended use of the device. SAFETY PRECAUTION ◆ Read all precautions before operation. ◆ Please follow the operating instruction strictly, failures in the compliance with these safety precautions and instructions can cause electric shock, fire and/or heavy injuries.EN

1. Keep your working area clean and well illuminated. Disorder or unilluminated working areas can

2. Do not work in explosive ambiances with the electric tool, because there are flammable liquid,

gases or dusts. Electric tools generate sparks which can inflame the dust or vapours.

3. Keep children and other persons away from the electric tool while using it. When being

distracted, you can lose the control on the device.

4. Be attentive, pay attention to what you do and go to work with the electric tool with reason. Do

not use an electric tool when you are tired or under the influence of drugs, alcohol or pharmaceuticals. One moment of carelessness while using an electric tool can cause serious injuries.

5. Wear personal protective equipment and always goggles. The wearing of personal protective

equipment, like dust mask, skid-proof shoes, protection helmet or hearing protect- ion, reduces the risk of injuries.

6. Avoid unintended start up. Make sure that the electric tool is switched off before connecting it to

the electricity. When you have your fin-ger on the switch while carrying the electric tool or connect the device to the power when it is switched on, this can cause accidents.

7. Remove adjusting tools or wrenches before switching on the electric tool. A tool or wrench which

is located on a turning device can cause injuries.

8. Avoid abnormal posture. Care for safe standing and keep the balance anytime. Do not work on a

ladder. Thus, you can control the electric tool better in unexpected situations.

9. Wear suitable clothing. Do not wear wide clothing or jewellery. Keep hair, clothing and gloves

away from moving parts. Wide clothing, jewellery or long hair can be caught by moving parts.

10. Do not overload the device. Use the appropriate electric tool for your work. With the appropriate

electric tool you work better and safer in the declared range of performance.

11. Do not use an electric tool whose switch is damaged. An electric tool which cannot be switched

on and off is dangerous and must be repaired.

12. Unplug the plug from the socket before carrying out instrument settings, exchanging accessories

or put the device aside. This safety measure avoids the unintended start of the electric tool.

13. Keep unused electric tools out of reach of children. Do not allow persons to use the device who

are not familiar with it or have not read these instructions. Electric tools are dangerous if they are used by inexperienced persons.

14. Voltage: please be attention that the power voltage should be no more than + 5% of rated

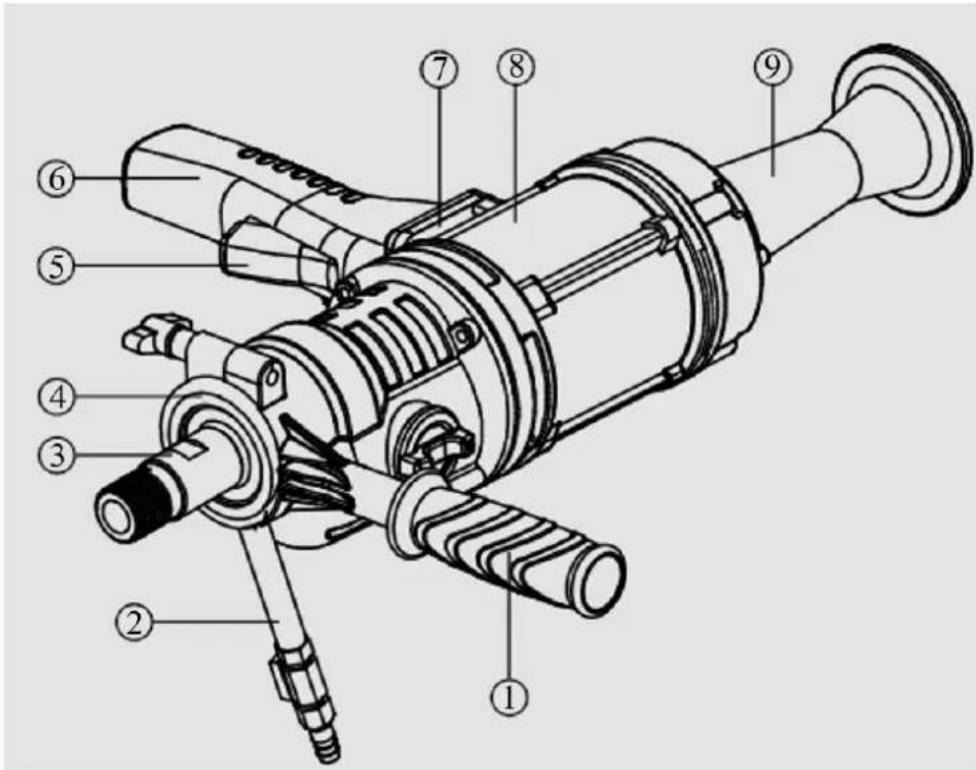

voltage. Higher voltages however can cause irreparable damages. Please note that when operating the machine via a generator, this does not generate higher voltage peaks.EN PRODUCT STRUCTURE

2. Flush water valve

INSTRUCTIONS FOR USE: ◆ Wear hearing protection when operating the machine. ◆ Use the auxiliary handles that are supplied with the device. ◆ Hold the handle while operating the machine.

OIL IMMERSED ADVANTAGES

Oil immersed type diamond drilling machine is a kind of drill for the reinforced concrete, brick, stone, ceramic and refractory materials. It is suitable for equipment installation, installation of water and electricity, tunnels and other construction, installation. Oil immersed type diamond drilling machine gear oil has a very good pressure, when gear meshing friction surface temperature is high enough. The friction losses, greatly improving the service life of the gear. The bearing capacity of gear oil is high, is conducive to the tooth surface protection. At the high temperature it can guarantee the reliable lubrication of the gear. Viscosity temperature performance is good with the variation of working temperature, it ensures a sufficient liquidity at low temperature, ensure the liquid oil to the tooth surface and bearing friction loss, prevent injury. In the high temperature viscosity does not decrease too much, can form a lubricating oil sufficiently thick enough. Attention: Our company does not assume any responsibility because the machine is not solid or fixed safety facilities are not in appropriate place cause accident.EN SAFE OPERATION

1. Please read the manual carefully before operation. This machine may only be used by trained

2. Please check the voltage before start, the power voltage should be no more than ±5% of rated

voltage. Higher voltages however can cause damages such as motor burning and electric leakage.

3. Wear helmet, insulating gloves, workwear. Do not wear wide clothing or jewellery, keep hair

away from it in case of twist.

4. This machine is designed for wet drill bits, do not use other bits, and do not enlarge the motor

5. Pay attention that the water can’t get into the motor, do not block the ventilation, in case of

6. Check the workplace before operation, eliminate danger, such as high voltage power lines, gas

piping water pipe and telecommunication facility and so on.

7. Pay attention to the safety of down layer if the machine should drill holes through floor. When

drill on beam column, check the structure of building.

8. Do not work in explosive ambiances with the electric tool, in which there are flammable liquid,

gases or dusts. Electric tools generate sparks which can inflame the dust or vapours.

9. Make sure, the drill machine starts to operate with no-load, starting with load is prohibited, or

may cause damages to machine and users. Fix the machine well in case of dropping when working on high place.

10. Use high quality three-core cable and make sure the cable is connected with ground. A ground

fault circuit interrupter is necessary. OPERATION

1. The fixation of expansion bolt: Drill a hole by impact drill in the set position, screw the expansion

bolt, make sure it is tight, fix the diamond drill machine on it, and adjust the four regulating screws to keep the drill machine from swinging.

2. The fixation of support rod: determine the drilling location, supporting rod, adjusting the length

of the push rod, and adjust the fastening screws, so that the drilling rig substructure full contact face, and ensure the drill bit and drill vertical face, no swing.

3. Fix the drill bit, connect the power and water supply, move adjusting tools, switch on when the

drill machine is no load, check the drill bit and sound, if everything is fine, then open the water tap, the machine can start to drill when water flow from the drill bit.

4. Take it slow when at first, when the drill bit cut in the wall, change to normal speed. Slow down

when the drill machine run into steel.

5. Both mechanical and electronic protections exist in drill machine. When drilling, if the motor is

working, while the drill bit is not moving, means the drill bit need sharpened or feeding speed is too fast, please pull out the drill bit then re-feed. If the motor stop when drilling, please return on the machine and slow down the feed speed.

6. After some time of use, the abrasion of friction plate may cause slip. Please take the clutch gear

out of gearbox and change friction plates to unified size, tight the screws. Then put the gear back to gearbox (This step should be done by trained person).

INSTRUCTION OF SHIFTING GEAR

To improve the efficiency, some machines are designed with 2-speed gear shift, and some are designed with 3-speed gear shift. “H” / “1” – high speed. “L” / “2” – low speed. “H” / “1” – high speed. “M” / “2” – middle speed.EN “L” / “3” – low speed. H speed is for drilling on soft material with small drill bit, M speed is for drilling on hard material with medium drill bit, L speed is for drilling on hard material with large drill bit. Shift when the machine stops or will stop. Shift in place. If the spindle does not rotate or there is some noise after starting up, the gear may not shift in place. Turn off the machine immediately, and then shift the gear to proper place, rotate the spindle back and forth at the same time till shift in place. Do not shift when the machine is full speed operated, it may lead to overload or stuck.

L – low speed M – middle speed H – high speed Error Cause Solution The Motor does not work Power off, or plug loosed Power up, plug in Carbon brush get stuck, and detach from diverter Re-install carbon brush Reset PRCD failed Push reset button or re-start the motor PRCD get damaged Chang PRCD Slow drilling Drill bit worn out Change drill bit Feeding speed is too low Accelerate feeding speed Drill bit was pasted by chips Clean the drill bit, enhance water pressure Rotate speed is too high Change to low speed Cutting on steel and slip Reduce feeding speed, after cutting through the steel, increase it Too many chips in the hole Clean the bottom of hole and enhance water pressure Less water supply or water leakage Check the ball valve and the water flow Drill bit becoming glazed Re-sharp the drill bit with grinder Drill bit jammed The tube and drill bit or the drill bit and hole wall was jammed by chips. The stand is not secured, move location Switch off the machine, turn the drill bit right and left with wrench or pull the drill bit out and break up the core sample Rotate speed is too high Re-fix the stand Cutting on steel and slip Narrow the gap Drill bit under cutting Spindle is not straight Repair or replace the spindle Drill bit is not straight Replace the drill bit Chips can’t be flushed out of the hole Enhance water pressure, pull out the drill bit, clean the hole Water seal is leaking The seal is worn out Change the seal MAINTENANCE

Warning: Always and on principle pull the mains plug before beginning with works of maintenance or
