USER MANUAL PerfectView CAM 29SX DOMETIC

CAUTION! Safety instruction: Failure to observe this instruction can lead to injury. NOTICE! Failure to observe this instruction can cause material damage and impair the function of the product. NOTE Supplementary information for operating the product. CAM29S-IO-16s.book Seite 6 Mittwoch, 7. Dezember 2016 5:03 17CAM29S Safety and installation instructions

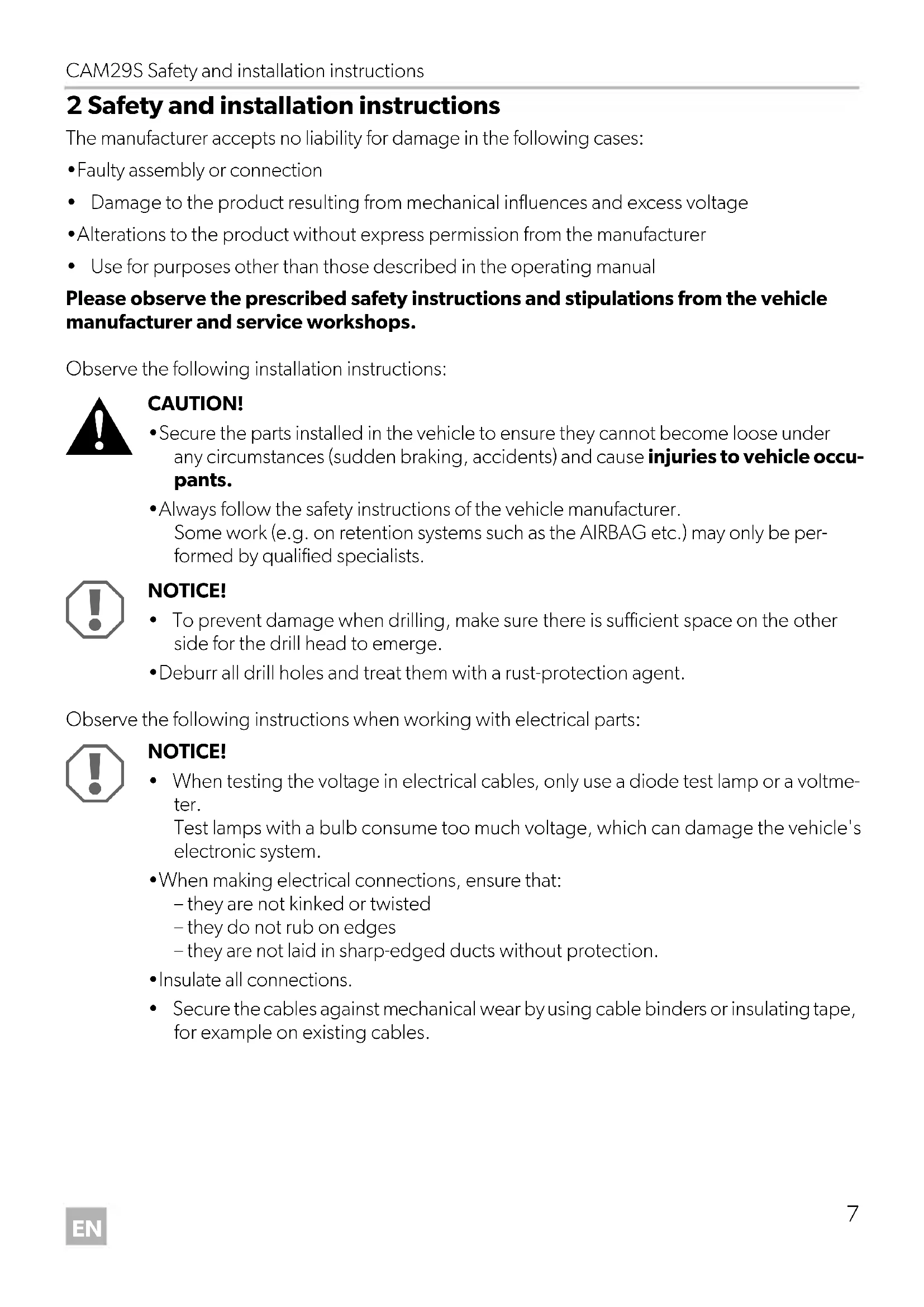

2 Safety and installation instructions The manufacturer accepts no liability for damage in the following cases:

• Faulty assembly or connection

• Damage to the product resulting from mechanical influences and excess voltage

• Alterations to the product without express permission from the manufacturer

• Use for purposes other than those described in the operating manual Please observe the prescribed safety instructions and stipulations from the vehicle manufacturer and service workshops. Observe the following installation instructions:

• Secure the parts installed in the vehicle to ensure they cannot become loose under any circumstances (sudden braking, accidents) and cause injuries to vehicle occu- pants.

• Always follow the safety instructions of the vehicle manufacturer. Some work (e.g. on retention systems such as the AIRBAG etc.) may only be per- formed by qualified specialists.

• To prevent damage when drilling, make sure there is sufficient space on the other side for the drill head to emerge.

• Deburr all drill holes and treat them with a rust-protection agent. Observe the following instructions when working with electrical parts:

• When testing the voltage in electrical cables, only use a diode test lamp or a voltme- ter. Test lamps with a bulb consume too much voltage, which can damage the vehicle's electronic system.

• When making electrical connections, ensure that: – they are not kinked or twisted – they do not rub on edges – they are not laid in sharp-edged ducts without protection.

• Insulate all connections.

The camera is waterproof, however, you should observe the following instructions when handling the camera:

• Do not spray the camera directly with a high-pressure cleaning device.

• Do not open the camera or pull at the cables, as this impairs the leak-tightness and the function of the camera.

• The camera is not suitable for use under water. 3Scope of delivery 4 Accessories/expansions 5Intended use The CAM29S (reference no. 9600000199) is suitable for reversing video systems used in vehicles. Reversing video systems support the driver when reversing, however this does not relieve you of the obligation to take proper care when reversing. 6 Technical description The CAM29S camera can be used in various ways, for example, as a reversing video camera for installing on the outside of vehicles. The electrical connection takes place using a cable ready to plug into the monitor. No. in fig. 3, page 4 Quantity Description Reference no. 1 1 Camera 9600000199 2 1 Connection cable 20 m long ——Fastening material Description Item no. Extension cable, 5 m 9103555986 Extension cable, 20 m 9103555670 CAM29S-IO-16s.book Seite 8 Mittwoch, 7. Dezember 2016 5:03 17CAM29S Installing the reversing video camera

7 Installing the reversing video camera

7.1 Fitting the camera

Observe the following information when selecting an installation location for the camera:

• Note the length of the camera cable.

• If you wish to use the camera as a reversing video camera, installing the camera on the top middle of the vehicle bumper is recommended (fig. 4, page 4). The installation location should be sufficiently firm (e.g. to prevent the camera from being knocked down by branches that may brush the roof of the vehicle). ➤ Select a suitable installation location.

➤ Install the camera in accordance with fig. 4, page 4.

➤ Check that the camera is installed securely. NOTE If you do not have sufficient technical knowledge to install and connect the components in vehicles, have a specialist install the reversing video camera in your vehicle. NOTICE! Before drilling any holes, ensure that no electrical cables or other parts of the vehicle can be damaged by drilling, sawing and filing. NOTE Make sure it is correctly aligned. If the camera is not correctly aligned, the picture will be askew or upside down on the monitor. CAM29S-IO-16s.book Seite 9 Mittwoch, 7. Dezember 2016 5:03 17Laying cables CAM29S

Therefore, please observe the following instructions:

• Wherever possible, lay cables inside the vehicle, as they are better protected there than outside. If you do need to lay a cable outside the vehicle, ensure that it is well fastened (use additional cable ties, insulating tape etc.).

• To prevent damage to the cables when laying them, ensure that they are far enough away from hot or moving vehicle components (exhaust pipes, drive shafts, light systems, fans, heaters, etc.).

• Wrap good-quality insulating tape around the plug connections of the connecting cables and every connection on a cable (including inside the vehicle) to ensure no water can penetrate them (fig. 5 B, page 5). The most suitable tape for this is self-vulcanising tape, e.g. made by 3M.

• When laying the cables, make sure: – they are not kinked or twisted – they do not rub on edges – they are not laid in sharp-edged ducts without protection (fig. 2, page 3).

• Attach the cables securely in the vehicle with cable binders, insulating tape or by glueing them to prevent them from being tripped over.

• Protect every through-hole made in the outer skin of the bodywork against water penetration, for example by using a cable with a sealant and by spraying the cable and the cable sleeve with sealant.

NOTICE! Before drilling any holes, ensure that no electrical cables or other parts of the vehicle can be damaged by drilling, sawing and filing. NOTE

• As far as possible, use original ducts for laying the cables, or other suitable options such as panelling edges, ventilation grilles or dummy plugs. If there is no rubber plug, produce a suitable hole with a diameter of around 13 mm and insert a cable bushing sleeve.

• Cables and connections that are not properly installed will cause malfunctions or damage to components. Correct installation of cables and connections ensures lasting and trouble-free operation of the retrofitted components. NOTE

• Only start sealing through-holes when you have completed all installation work on the camera and have laid the required cable lengths.

• Pull the socket connector of the camera cable through the cable bushing sleeve before inserting the sleeve in the bodywork. CAM29S-IO-16s.book Seite 10 Mittwoch, 7. Dezember 2016 5:03 17CAM29S Connecting electrical power to the reversing video camera

➤ Route the camera cable into the interior of the vehicle so that it cannot be damaged under any circumstances (e.g. by gravel impact). ➤ Lay the camera cable so that should you need to remove the camera, you can easily access the plug connection. 9 Connecting electrical power to the reversing video camera The circuit diagram for the reversing video camera can be found in fig. 6, page 5. Connecting the camera

➤ Insert the plug of the camera cable (fig. 6 2, page 5) as far as it will go into the 6-pin socket (fig. 6 3, page 5) of the connection cable. Ensure that the plastic cap of the socket reaches up to the arrow on the plug. ➤ Connect the 6-pin plug (fig. 6 4, page 5) of the connection cable to the monitor. 10 Checking the function and setting the camera ➤ Check the function of the camera after you have connected it to a monitor. ➤ Use the monitor picture to align the camera if necessary so that the picture on the monitor is horizontal. No. in fig. 6, page 5 Description 1Camera 26-pin mini DIN plug 36-pin mini DIN socket 46-pin plug 5 Monitor with 6-pin socket NOTE Make sure the plug connections are assembled in such a way that the arrows on the plug and the socket are pointing at each other. CAM29S-IO-16s.book Seite 11 Mittwoch, 7. Dezember 2016 5:03 17Maintaining and cleaning the reversing video camera CAM29S

11 Maintaining and cleaning the reversing video camera

➤ Occasionally clean the product with a damp cloth. 12 Troubleshooting The monitor ceases to display camera images. The camera or the monitor may not be properly connected. ➤ Check all plug connections between the camera and the monitor. ➤ Make sure that the monitor is supplied with power. 13 Warranty The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer. For repair and guarantee processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date

• A reason for the claim or description of the fault 14 Disposal ➤ Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations. NOTICE! Do not use sharp or hard objects or cleaning agents for cleaning as these may damage the product. CAM29S-IO-16s.book Seite 12 Mittwoch, 7. Dezember 2016 5:03 17CAM29S Technical data

15 Technical data CAM29S Reference no. 9600000199 Operating voltage: 12 Vg Current: 60 mA Image sensor: ¼" CMOS sensor Preset mirror image function Lens: 160° opening angle, diagonal Pixels: 640 (H) x 480 (V) (307000 pixels) Light sensitivity: 0.5 lux Operating temperature: –20 °C to +70 °C Horizontal picture angle: approx. 130° Vertical picture angle: approx. 100° Protection class: Equivalent to IP68 Dimensions (W x H x D): 76 x 29 x 33 mm Weight: 80 g Certifications:
