USER MANUAL CRX 110U DOMETIC

WARNING Cancer and Reproductive Harm www.P65Warnings.ca.gov CUS REFRIGERATION CRX CRX50-65-80-110-140-IO-US.book Seite 1 Mittwoch, 15. Juli 2020 10:16 10© 2020 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved. CRX50-65-80-110-140-IO-US.book Seite 2 Mittwoch, 15. Juli 2020 10:16 10CRX

ca. 50 mm (2 inch) ca. 50 mm (2 inch)

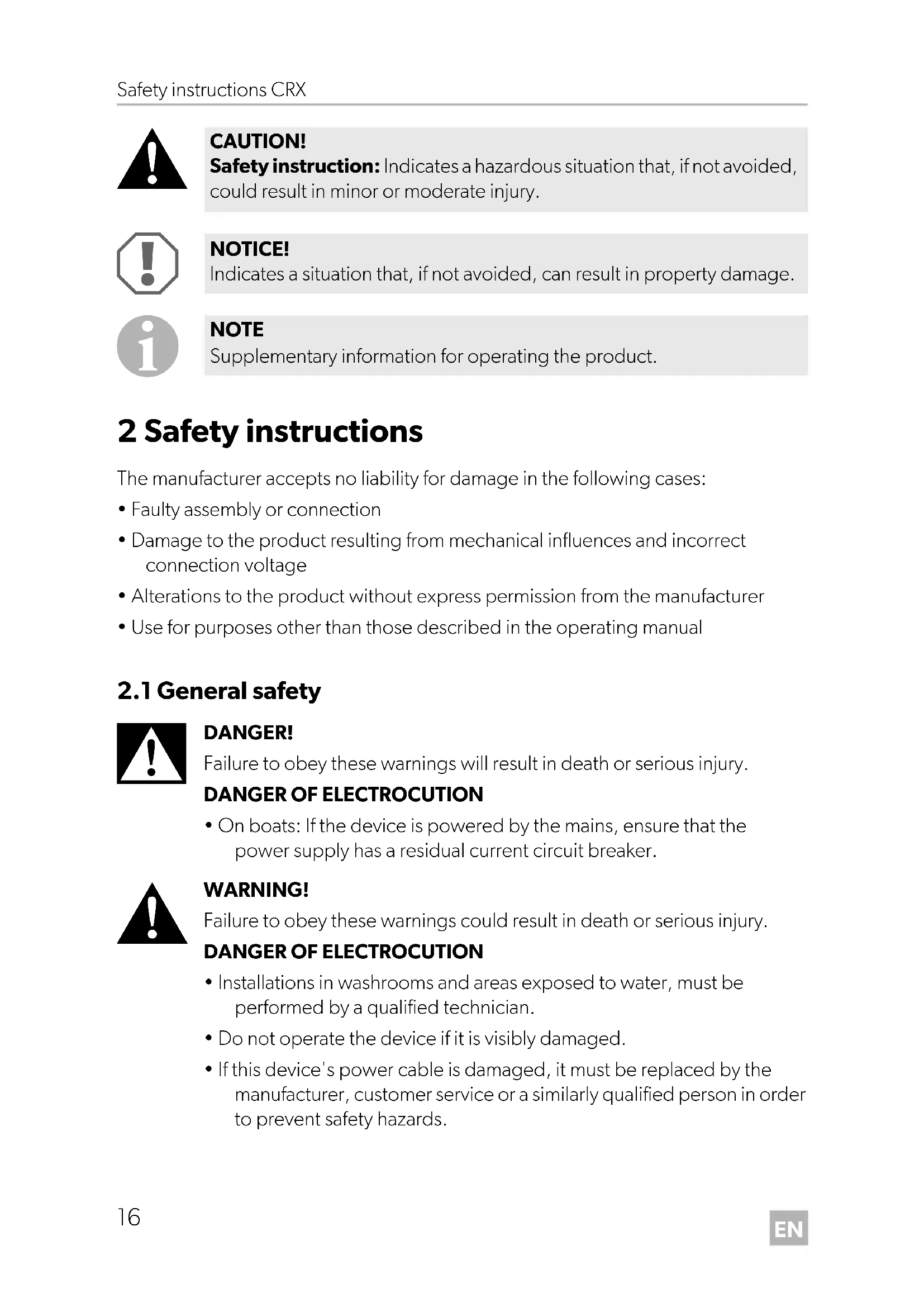

2 Safety instructions The manufacturer accepts no liability for damage in the following cases:

• Faulty assembly or connection

• Damage to the product resulting from mechanical influences and incorrect connection voltage

• Alterations to the product without express permission from the manufacturer

• Use for purposes other than those described in the operating manual

DANGER! Failure to obey these warnings will result in death or serious injury.

DANGER OF ELECTROCUTION

• On boats: If the device is powered by the mains, ensure that the power supply has a residual current circuit breaker.

WARNING! Failure to obey these warnings could result in death or serious injury.

DANGER OF ELECTROCUTION

• Installations in washrooms and areas exposed to water, must be performed by a qualified technician.

• Do not operate the device if it is visibly damaged.

• If this device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards. CAUTION! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. NOTICE! Indicates a situation that, if not avoided, can result in property damage. NOTE Supplementary information for operating the product. CRX50-65-80-110-140-IO-US.book Seite 16 Mittwoch, 15. Juli 2020 10:16 10EN CRX Safety instructions

• This device may only be repaired by qualified personnel. Inadequate repairs may cause serious hazards.

• Disconnect the cooling device from the power supply – before each cleaning and maintenance – after every use HEALTH HAZARD

• This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.

• Children shall not play with the device.

• Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating devices. EXPLOSION HAZARD

• Do not store any explosive substances such as spray cans with a flammable propellant in the cooling device.

CAUTION! Failure to obey these cautions could result in minor or moderate injury. HEALTH HAZARD

• Food may only be stored in its original packaging or in suitable containers.

• Do not put your fingers into the hinge.

• Check that the voltage specification on the type plate is the same as that of the power supply.

• Never pull the plug out of the socket by the connection cable.

• If the refrigerator is connected to the DC socket: Disconnect the refrigerator and other electric consumers from the battery before connecting the quick charging device. CRX50-65-80-110-140-IO-US.book Seite 17 Mittwoch, 15. Juli 2020 10:16 10EN Safety instructions CRX

• If the refrigerator is connected to the DC socket: Disconnect the refrigerator or switch it off when you turn off the engine. Otherwise you may discharge the battery.

• The refrigerator is not suitable for storing substances which are caustic or contain solvents.

• Keep the drainage outlet clean at all times.

• Do not open the refrigerant circuit under any circumstances.

• Never transport the device in a horizontal position, so that no oil can leak out of the compressor.

• Make sure that the refrigerator circuit is not damaged during transpor- tation. The refrigerant in the refrigerator circuit is highly flammable. In the event of any damage to the refrigerator circuit: – Avoid naked flames and sparks. – Air the room well.

• Set up the device in a dry location where it is protected against splashing water.

2.2 Operating the device safely

DANGER! Failure to obey these warnings will result in death or serious injury.

DANGER OF ELECTROCUTION

• Do not touch exposed cables with your bare hands. This applies especially when operating the device from the AC mains.

CAUTION! Failure to obey these cautions could result in minor or moderate injury.

DANGER OF ELECTROCUTION

• Before starting the cooling device, ensure that the power supply line and the plug are dry. HEALTH HAZARD

• Opening the door for long periods can cause significant increase of the temperature in the compartments of the device.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• Store raw meat and fish in suitable containers in the device, so that it is not in contact with or can drip onto other food. CRX50-65-80-110-140-IO-US.book Seite 18 Mittwoch, 15. Juli 2020 10:16 10EN CRX Scope of delivery

• If the device is left empty for long periods: – Switch off the device. – Defrost the device. – Clean and dry the device. – Leave the door open to prevent mould developing within the device.

• If you connect the device to a battery, make sure that no food comes into contact with the battery acid.

• Do not use electrical devices inside the cooling device unless they are recommended by the manufacturer for that purpose.

• Do not place it near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.)

• Danger of overheating! Always ensure sufficient ventilation so that the heat generated during operation can dissipate. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.

• Ensure that the ventilation vents are not covered.

• Do not fill the inner container with ice or fluid.

• Never immerse the appliance in water.

• Protect the appliance and the cable against heat and moisture.

• Make sure that foodstuffs do not touch the walls of the cooling area. 3Scope of delivery Quantity Description1 Refrigerator with shelves1 Water drain outlet1 Installation and operating manual CRX50-65-80-110-140-IO-US.book Seite 19 Mittwoch, 15. Juli 2020 10:16 10EN Accessories CRX

4Accessories Available as accessories (not included in the scope of delivery): If you have any questions, please contact the dealer or your service partner directly. 5 Intended use The refrigerator is designed for installation in caravans and motorhomes and on boats. It is recommended the unit is installed into a fixed position. Once it is installed, only the front of the appliance may be accessible The refrigerator is only suitable for cooling, freezing and storing foodstuffs. The refrigerator is not intended for the proper storage of medicine. For DC only version: The refrigerator must only be supplied at safety extra low voltage corresponding to the marking on the refrigerator.

6 Technical description The CoolMatic CRX series cooling appliances can cool products and keep them cool. Products can be deep-frozen in the freezer compartment. If the refrigerator is operated without a freezer compartment, frozen products can be stored in the short term using the fast-cooling function. All materials used in the refrigerator are compatible for use with foodstuffs. The refrigerant circuit is maintenance-free. Description Explanation Ref. no.Rectifier Suitable for CRX50DC, CRX65DC, CRX80DC, CRX110DC. Transforms an input voltage of 100 – 240 Vw to 24 Vg, so that the refrigerator can be connected to an AC power supply.9600000445Mounting FramesFlush-mount and standard mounting frames are available for all CRX models.Various

The cooling device can withstand a short-term inclination of 30°, for example on boats. The temperature is set using the control panel on the inside left of the refrigerator.

Four temperature ranges from +3 °C (37 °F) to +12°C (54°F), and a fast-cooling function, are available for selection. CRX110, CRX140 Four temperature ranges from +3 °C (37 °F) to +12 °C (54 °F) are available for selection.

CRX110ACDC, CRX140ACDC

Four temperature ranges from +3 °C (37 °F) to +12 °C (54 °F), and a winter mode, are available for selection.

6.1 Control elements inside the refrigerator

The various types of refrigerators are shown in the following illustrations:

• CRX140: fig.5, page 5 No. Explanation 1 Freezer compartment (detachable: CRX50, CRX65, CRX80 only) 2 Control panel 3 Wire shelf (folding, so that bottles can be put in the refrigerator) 4Shelf 5 Fruit compartment 6 Bottle restraint (to hold bottles in the door) 7 Compartment with lid (hinged) CRX50-65-80-110-140-IO-US.book Seite 21 Mittwoch, 15. Juli 2020 10:16 10EN Installing and connecting the refrigerator CRX

7 Installing and connecting the refrigerator

7.1 Safety instructions for installation on boats

Please note the following instructions for installation on boats:

No. in fig. 6, page 5, fig. 7, page 6 Explanation1 IR sensor for switching the interior light2 LED Service display3 LED Blue: Compressor is runningLED Orange: Compressor is off4 On/off button5 Inner lighting6 Temperature selection button7 LED: Fast cooling function on (CRX50, CRX65, CRX80)LED: Winter mode on (CRX110ACDC, CRX140ACDC)8 LEDs: Temperature levels

DANGER! DANGER OF ELECTROCUTION

If the appliance is powered by the mains, ensure that the voltage supply has a residual current circuit breaker. CRX50-65-80-110-140-IO-US.book Seite 22 Mittwoch, 15. Juli 2020 10:16 10EN CRX Installing and connecting the refrigerator

Observe the following when installing the refrigerator:

• Install the refrigerator so that the warm air produced can easily flow away (either upwards or to the sides, fig. 8, page 7). Key for fig. 8, page 7 Observe the following installation dimensions:

NOTICE! DANGER OF DAMAGE

• The cooling device can withstand a short term inclination of 30°, for example on boats. When setting up the refrigerator, note that it must be fastened to take account of this. If you have any questions regard- ing installation, consult your specialist dealer.

• Install the refrigerator so that the warm air produced can easily flow away (either upwards or to the sides, fig. 8, page 7).

• The appliance is designed for ambient temperatures between +16 °C (61 °F) and +43 °C (109 °F).

• CRX110ACDC, CRX140ACDC: In winter mode the appliance can be operated at ambient temperatures between +10 °C (50 °F) and +16 °C (61 °F). WARNING! Fire hazard!

• When positioning the device, ensure the supply cord is not trapped or damaged.

• Keep objects clear of openings in the housing or installation structure (such as ventilation slots, etc.).

• Condensate is produced when the refrigerator is operating normally. You can either wipe up the condensate on the floor of the refrigerator in regular intervals, or drain it through a water drain outlet in the floor of the refrigerator (see chapter “Mounting the water drain outlet (optional)” on page 24).

7.3 Mounting the water drain outlet (optional)

➤ Connect a hose with an inside diameter of 10 mm (0.4 inch) (not included) to the water drain outlet. ➤ Lay the refrigerator on its side in order to access the bottom side. ➤ Mount the water drain outlet (fig. 9 2, page 8) aligned to the front or to the back according to the desired direction. ➤ Remove the water drain plug (fig. 9 1, page 8) inside the refrigerator.

You can also change the hinge of the door, so that it opens to the left rather than the right. ➤ Proceed as shown (fig. a, page 9 to fig. c, page 9).

7.6 Connecting the refrigerator to DC voltage

The refrigerator can be operated with a 12 V or a 24 V DC voltage supply. For safety reasons, the refrigerator is equipped with an electronic system to prevent the polarity being reversed. This protects the refrigerator against reversed polarity when connecting to a battery and against short circuiting. To protect the battery, the refrigerator switches off automatically if the voltage is insufficient (see table below). ➤ Determine the required cross section of the cable in relation to the cable length according to: –12V: fig.d, page 10 –24V: fig.e, page 10 Key to fig. e, page 10:

NOTICE! DANGER OF DAMAGE

• To avoid voltage drops and loss of performance, keep the connection cable as short as possible and not be interrupted. Therefore avoid additional switches, plugs or power strips.

• Disconnect the cooling device and other electric consumers from the battery before you connect the battery to a quick charging device. Overvoltage can damage the electronics of the device. 12 V 24 V Cut-off voltage

➤ Before starting up the device for the first time, check whether the operating volt- age and the battery voltage match (see type plate). ➤ Connect your refrigerator to a plug socket which is fuse-protected at 15 A (at 12 V) or 7.5 A (at 24 V) (fig. f 1, page 11). ➤ Connect the red cable (fig. f rd, page 11) to the positive terminal of the battery. ➤ Connect the black cable (fig. f bk, page 11) to the negative terminal of the battery.

7.7 Connecting the refrigerator to AC voltage

CRX50ACDC, CRX65ACDC, CRX80ACDC, CRX110ACDC, CRX140ACDC Proceed as follows when you connect the refrigerator to the AC supply: ➤ Plug the connector into the AC socket (fig. g 1, page 11). CRX50DC, CRX65DC, CRX80DC, CRX110DC You can connect the refrigerator to 100 – 240 Vw AC power if you use the MPS35 rectifier (accessory). The MPS35 rectifier features a priority circuit which conserves the battery con- nected. When a 100 – 240 Vw mains connection is used, the rectifier automatically switches from battery to mains operation. When disconnected from the 100 – 240 Vw mains supply, the rectifier automatically switches back to battery operation. Mains operation via the rectifier always takes pri- ority over battery operation.

NOTICE! DANGER OF DAMAGE

Make sure the polarity is correct.

DANGER! DANGER OF ELECTROCUTION

• Never handle plugs and switches with wet hands or if you are stand- ing on a wet surface.

• If you are operating your refrigerator on board a boat with an AC mains connection using a shore connection, you must install a residual current circuit breaker between the AC mains supply and the refrigerator. Seek advice from a trained technician. CRX50-65-80-110-140-IO-US.book Seite 26 Mittwoch, 15. Juli 2020 10:16 10EN CRX Using the refrigerator

In mains operation the output voltage of the rectifier will always be 24 V. When the rectifier is in 12 V or 24 V battery operation, the input voltage will be passed through so that the output voltage equals the input voltage. Proceed as follows when you connect the refrigerator to the AC supply: ➤ Attach the rectifier on the back of the refrigerator. ➤ Connect the rectifier as shown in fig. h, page 12. ➤ Connect the refrigerator to the rectifier (fig. h 2, page 12): – Red cable (rd): positive battery terminal – Black cable (bk): negative battery terminal ➤ Plug the connector (fig. h 1, page 12) into the AC socket. 8 Using the refrigerator The refrigerator conserves fresh foodstuffs. The freezer compartment conserves frozen foodstuffs and freezes fresh foodstuffs.

• Do not place any electrical devices inside the cooler. The only exceptions are devices approved for the purpose by the manu- facturer.

• Ensure that food or liquids in glass containers are not excessively refrigerated. Liquids expand when they freeze and can therefore destroy glass containers.

• Food may only be stored in its original packaging or in suitable con- tainers.

• Make sure that you only put items in the cooler which may be kept at the selected temperature. NOTE

• Before starting your new refrigerator for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter “Cleaning and maintenance” on page 31).

• Do not use force to press the flap of the freezer.

• Do not pull out the dividing wall if there is ice in the freezer.

• Choose a well ventilated location which is protected from direct sunlight.

• Allow hot food to cool down first before you put it in the refrigerator.

• Do not open the refrigerator more often than necessary. If the door is left open for more than 5 minutes, the light starts to flash.

• Do not leave the door open for longer than necessary.

• Defrost your refrigerator as soon as a layer of ice forms.

• Avoid unnecessarily low temperature settings.

• Clean dust and dirt from the condenser at regular intervals.

8.2 Switching on the refrigerator

➤ Switch the refrigerator on by pressing the button.

8.3 Setting the temperature

➤ Press the button repeatedly until the desired temperature level is set. The lower/largest LED is the coldest setting. The upper/smallest LED is the warmest setting. To switch from the coldest level to the warmest level press the button again.

NOTE After switching on, the refrigerator needs some time before the com- pressor starts up. NOTE The cooling performance can be affected by:

• The ambient temperature

• The amount of food to be conserved

• The frequency with which the door is opened. If the ambient temperature is at 16 °C (61 °F) to 20 °C (68 °F), set the refrigerator to at least level 2. CRX50-65-80-110-140-IO-US.book Seite 28 Mittwoch, 15. Juli 2020 10:16 10EN CRX Using the refrigerator

(CRX50, CRX65, CRX80 only)

The option of operating the refrigerator using a fast-cooling function allows temper- atures suitable for freezing foods to be reached. ➤ Press the button longer than 3 seconds. ✓ The LED above the button lights up. ➤ Press the button again longer than 3 seconds to operate the refrigerator in normal mode.

8.5 Setting the winter mode

(CRX110ACDC, CRX140ACDC only) The winter mode ensures optimum operation at ambient temperature of below 16 °C (61 °F): ➤ Press the button longer than 3 seconds. ✓ The refrigerator switches to winter mode and the LED lights up above the button. ➤ Press the button again longer than 3 seconds to operate the refrigerator in normal mode.

8.6 Conserving foodstuffs

• Only use the fast-cooling function when the removable freezer com- partment is not being used. Otherwise there is a risk that the freezer compartment becomes too cold and condensate cannot be pre- vented from forming on the outside of the refrigerator. The energy consumption will also increase dramatically.

• Note that bottles and other containers can burst when frozen.

• Note that it is difficult to open the refrigerator directly after closing it.

NOTICE! DANGER OF DAMAGE

• Do not conserve warm foodstuffs in the refrigerator.

You can conserve foodstuffs in the refrigerator. The time for which the food can be conserved in this way is usually stated on the package. The refrigerator is divided in different zones with different temperatures:

• The colder zones are immediately above the drawers for fruit and vegetables, near the back wall.

• Observe the temperature information and best before date on the food packaging.

• Observe the following when using the refrigerator: – Never re-freeze products which have started defrosting or have been defrosted; consume them as soon as possible. – Wrap food in aluminium foil or cling film and shut in a suitable box with a lid. This ensures that aromas, the shape and the freshness will be better con- served.

8.7 Defrosting the freezer

This is how to defrost the refrigerator: ➤ Empty the contents. ➤ If necessary, put them in another cooling device to keep them chilled. ➤ Press the button until the refrigerator switches off. ➤ Close the door properly.

8.8 Releasing the lock

NOTE Food which can easily absorb tastes and odours, as well as liquids and products with a high alcohol content, should be conserved in air-tight containers.

NOTICE! DANGER OF DAMAGE

Never use mechanical tools to remove ice or to loosen objects stuck to the device. The only exceptions are devices approved for the purpose by the manufacturer.

The refrigerator has a locking mechanism (fig. i 1, page 12) which is also used to protect it during transport. The following settings are possible:

• Lock (turn wheel to the Right end stop): the door is locked and secured. To open the door, lift the handle up and open it.

• Vent (turn wheel to the Left end stop): The door is slightly open, but fixed in posi- tion. Use this position if you are not going to use the unit for a long time.

8.9 Switching off and storing the refrigerator

If you do not intend to use the refrigerator for a long time, proceed as follows: ➤ Press the button until the refrigerator switches off. ➤ Disconnect the connection cable from the battery or disconnect the plug on the AC cable plug from the rectifier. ➤ Clean the refrigerator (see chapter “Cleaning and maintenance” on page 31). ➤ Turn the locking wheel (fig. i 1, page 12) to the Right end stop (“Vent”). ➤ Close the door until it latches in. ✓ The door stays open thus preventing smells from arising.

8.10 Change the fuse (CRX50ACDC, CRX65ACDC,

CRX80ACDC, CRX110ACDC, CRX140ACDC only) If the fuse in the AC socket is faulty, it can be replaced. ➤ Lever the fuse compartment (fig. g 2, page 11) open with a screwdriver. ➤ Replace the fuse (250 V/4 A). ➤ Close the fuse compartment again. 9 Cleaning and maintenance

• Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the refrigerator.

➤ Always disconnect the device from the power supply before you clean and service it. ➤ Clean the refrigerator regularly and as soon as it becomes dirty with a damp cloth. ➤ Make sure that no water drips into the seals. This can damage the electronics. ➤ Wipe the refrigerator dry with a cloth after cleaning. ➤ Clean dust and dirt from the condenser at regular intervals. 10 Limited warranty

➤ Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

WARNING! CHILDREN BEWARE

Before disposing of your old refrigerator:

12 Troubleshooting The significance of the red LED (fig. 6 2, page 5, fig. 7 2, page 6) For operational faults it illuminates several times. The number of pulses depends on the type of fault. Each flash lasts for one quarter of a second. After the series of impulses a pause fol- lows. The sequence for the fault is repeated every four seconds.

CRX110, CRX140 Number of flashes Fault Possible cause 1 Low Voltage The supply voltage is outside of the set range. 2 Excessive fan current The fan load on the electronics unit is more than 1 A. Too many start attempts The compressor or fan has been started too often within a short period of time. 3 The motor doesn't start The rotor is jammed. The pressure difference in the cooling system is too high (> 5 bar). 4 Speed too low If the cooling system is overloaded, the mini- mum speed of the motor of 1,850 rpm can- not be maintained. 5 Overheating of the elec- tronics unit If the cooling system is loaded too heavily or the temperature is set too high, the electron- ics can overheat. Constantly Temperature sensor errors Temperature sensor is defective. Number of flashes Fault Possible cause 1 Low Voltage The supply voltage is outside of the set range. 2 Excessive fan current The fan load on the electronics unit is more than 1 A. CRX50-65-80-110-140-IO-US.book Seite 33 Mittwoch, 15. Juli 2020 10:16 10EN Troubleshooting CRX

Compressor does not run (battery connection) 3 The motor doesn't start The rotor is jammed. The pressure difference in the cooling system is too high (> 5 bar). 4 Speed too low If the cooling system is overloaded, the mini- mum speed of the motor of 1,850 rpm can- not be maintained. 5 Overheating of the elec- tronics unit If the cooling system is loaded too heavily or the temperature is set too high, the electron- ics can overheat. Constantly Temperature sensor errors Temperature sensor is defective. Problem Possible cause Remedy

Term = 0 V There is an interruption in the battery – electronics connection Establish a connection Main switch faulty (if installed) Replace the main switch Additional supply line fuse has blown (if installed) Replace the supply line fuse

Battery voltage is too low Charge the battery Start attempt with

Term ≤ U OFF Loose cables Poor contact (corrosion) Establish a connection Battery capacity too low Replacing the battery Cable cross section too small Replace the cable (fig. d, page 10) Start attempt with

Ambient temperature too high – Insufficient ventilation Move the refrigerator to another location Condenser is dirty Clean the condenser Electric circuit between the pins in the compres- sor interrupted Defective compressor Contact customer service Number of flashes Fault Possible cause CRX50-65-80-110-140-IO-US.book Seite 34 Mittwoch, 15. Juli 2020 10:16 10EN CRX Troubleshooting

Compressor is not running (connected to AC supply) Poor cooling, increase in interior temperature

Term Voltage between the positive and negative terminals of the electronics

Cut-in voltage of the electronics

OFF Cut-off voltage of the electronics Problem Possible cause Remedy No voltage Connection supply line interrupted Establish a connection Main switch faulty (if installed) Replace the main switch Additional supply line fuse has blown (if installed) Replace the supply line fuse Voltage is present but the compressor doesn't run Ambient temperature too high – Insufficient ventilation Move the refrigerator to another location Condenser is dirty Clean the condenser Electric circuit between the pins in the compres- sor interrupted Defective compressor Contact customer service Problem Possible cause Remedy Compressor runs for a long time/continuously Ambient temperature too high – Insufficient ventilation Move the refrigerator to another location Condenser is dirty Clean the condenser Faulty fan Replace the fan Compressor does not run often Battery capacity exhausted Charge the battery CRX50-65-80-110-140-IO-US.book Seite 35 Mittwoch, 15. Juli 2020 10:16 10EN Technical data CRX

Unusual noises 13 Technical data Problem Possible cause Remedy Loud humming A component of the refrigerant circuit cannot move freely (touching the wall) Bend the component carefully away from the obstruction There is a foreign object stuck between the cooling unit and the wall Remove the foreign object Fan noise Replace the fan

(2.49 cu.ft.) Freezer compartment storage volume:

Contains fluorinated greenhouse gases Hermetically sealed equipment Rated current12 Vg:24 Vg:100 Vw (ACDC models only):240 Vw (ACDC models only):6.2 A3.0 A0.82 A0.34 A7. 7 A3.6 A0.95 A0.4 ACooling temperature rangeRefrigerator:Freezer: +3 °C (37 °F) to +12 °C (54 °F) –18 °C (0 °F) to –6 °C (21 °F) Winter mode setting (ACDC models only):– 5 W heating, off-cycleClimatic class: TRelative humidity: Max. 90 %Short-term inclination: maximum 30° Max. pressure: LP 11 bar/HP 25 bar Propellant: C

equivalent: 0.067 t(147.7 lbs)0.072 t(158.73 lbs)Global warming potential (GWP): 1430 Dimensions: fig. m, page 14 fig. n, page 14 Weight: 27.6 kg(60.85 lbs)30.6 kg(67.46 lbs)Inspection/certification: CRX110 CRX140

CRX110CACC, CRX140CACC
