| Product Type | Range hood |
| Brand | Gorenje |
| Model | WHU529EBRS |
| Operation | Extraction or recirculation |
| Number of speeds | 3 speeds (1, 2, 3) |
| Lighting | LED, 1 bulb E14 4W |
| Controls | Mechanical keys: lighting, stop, speeds |
| Grease filter | Metallic, dishwasher safe (once a month) |
| Charcoal filter | Optional (recirculation), replace every 4 months |
| Minimum distance above an electric hob | 50 cm |
| Minimum distance above a gas hob | 65 cm |
| Power supply | 230 V ~ 50 Hz |
| Installation | Wall or ceiling, requires 2 people |
| Included accessories | Expansion plugs, fixing screws |
| Safety | Double-pole circuit breaker recommended |
| Maintenance | Monthly interior/exterior cleaning, monthly grease filters, charcoal every 4 months |
| Repairability | Replaceable LED bulb, replaceable filters |
| Manual available in | French, English, German, Spanish, etc. |
Frequently Asked Questions - WHU529EBRS GORENJE
User questions about WHU529EBRS GORENJE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Range hood in PDF format for free! Find your manual WHU529EBRS - GORENJE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WHU529EBRS by GORENJE.
USER MANUAL WHU529EBRS GORENJE
The appliance must not be used as a supporting surface unless explicitly stated.
The room where the appliance is installed must have adequate ventilation when the cooker hood is used together with other appliances that operate on gas or other fuels.
The exhaust system of the hood must not be connected to another existing ventilation system that is used for other purposes, such as venting fumes from appliances operating on gas or other fuels.
Flambéing food under the hood is strictly forbidden.
Open flames are dangerous for the filters and may cause a fire risk, so any circumstances that could lead to this must be avoided.
Any frying must be done carefully to ensure that the oil does not overheat and catch fire. The accessible parts of the hood may become hot when used with cooking appliances.
In addition to the technical and safety measures that must be applied for the venting of fumes, it is important to strictly follow the regulations of the local authorities.
The hood must be cleaned regularly both on the outside and on the inside (at least once a month).
This must be done in accordance with the cleaning instructions provided in this manual. Failure to follow the instructions provided in this manual for the consumer regarding the cleaning of the hood and the filters may lead to a fire risk.
Do not use or leave the hood without a properly installed lamp, as there is a risk of electric shock.
We do not accept any responsibility for damages, injuries, or fires caused by the appliance as a result of not following the instructions, including this manual.
This appliance is marked according to the European Directive 2002/96/EC regarding the disposal of used electrical and electronic equipment (WEEE). By ensuring that this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling.
The symbol
on the product or on its accompanying documents indicates that this product
should not be treated as household waste. Instead, it should be handed over to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
For detailed information regarding the treatment, collection, and recycling of this product, please contact the relevant department of your local authority, the local household waste service, or the store where you purchased this product.
It has been designed, tested, and manufactured in accordance with:
- Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
- Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; ISO 3741; EN 50564; IEC 62301.
- Electromagnetic Compatibility: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3.
Tips for correct use to reduce environmental impact: Switch on the extractor at minimum speed when you start cooking and leave it running for a few minutes after cooking is finished. Increase the speed only when there is a large amount of steam or smoke and use the high speed(s) only in exceptional situations. Replace the grease filter when necessary to maintain effective grease filtration. Clean the grease filter when necessary to maintain effective grease filtration. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.
Additional installation specifications:
Use only the screws provided with the product for installation, or if provided, purchase the correct type of screws. Use screws of the correct length as indicated in the installation manual.
In case of doubt, contact an authorized service center or similar qualified person.
WARNING! If you do not install the screws or fix the elements according to these instructions, there is a risk of electric shock.
USE
The extractor is intended to be used in the version for extraction or for recirculation.
Extraction version
In this case, the fumes are extracted outside through a special pipe connected to the collar located on the upper part of the extractor.
Attention! The extraction pipe is not supplied and must be purchased separately. The diameter of the extraction pipe must be equal to that of the connecting collar.
The horizontal sections of the duct must be easily accessible (about 10° slope) and directed upwards, so that the duct can be easily cleaned from the room.
Attention! If the extractor is equipped with an active carbon filter, it must be removed.
Connect the extractor and the wall openings with a diameter equal to the air outlet (flange connection).
Using pipes and wall openings with a smaller diameter will reduce the efficiency of the extraction and may increase noise.
We are not responsible for problems related to non-compliance with the above requirements.
Use pipes with the minimum required diameter.
Use pipes with the smallest possible number of bends (maximum bend: 90°).
Avoid serious changes in the cross-section of the pipes. Use pipes that are as smooth as possible on the inside. The pipes must be made of non-flammable material.
Venting
For this, an active carbon filter is necessary, and you can obtain it from the manufacturer or the dealer.
The filter absorbs odors and impurities from the extracted air, before returning it to the room through the grille of the vent.
Installation
The minimum distance between the supporting surface for the cooking equipment and the lower part of the extractor must be no less than 50 cm for electric cooking hobs and no less than 65 cm for gas or combination cooking hobs.
If the installation instructions for the gas hob require a greater distance, this must be respected.
Electrical connection
The electrical connection must be made according to the specifications indicated on the data plate, located on the inside of the aspirator. If a plug is provided, connect the aspirator with the plug to an outlet that matches the current ratings and is located in an accessible place. If no plug is provided (direct connection to the electrical grid) or if the plug is not located in an accessible place, the installer must install a two-pole switch in accordance with standards, which ensures disconnection from the grid under conditions related to overcurrent category III, according to the installation instructions.
Warning! Before connecting the aspirator's power cord to the electrical grid and checking its effectiveness, always check that the power cord is not damaged and is properly connected.
Aspirators connected with a special power cord; if the cord is damaged, request a new one from technical service.
Installation
This product is heavy; the unpacking and installation of the aspirator must be carried out by at least two people. Before starting the installation:
Check that the purchased product is the right size for the chosen installation location. - Remove the filter(s) with active carbon (if provided) (see the relevant paragraph). They must be installed only if you intend to use the aspirator in the version with filter. - Check (according to the instructions for transport) for any other provided materials inside the aspirator (e.g., bags with screws, warranty, etc.), remove them and store them. If possible, disconnect and move the furniture or cabinet freely to ensure easier access to the wall/ceiling. Otherwise, place a protective covering on the worktop or floor to protect it from damage or stains. Choose a flat surface for placing the device. Cover the surface with a protective covering and place all parts of the aspirator on it. - Additionally, check that the electrical outlet is near the installation location (accessible and suitable for the aspirator to be installed) and if possible, connect the device to the exhaust duct (only for the exhaust version). - Perform any necessary preparatory work (e.g., install the electrical outlet and/or the hole for the passage of the exhaust duct).
Fixings are provided for securing the aspirator to various types of walls/ceilings. The qualified installer must check the suitability of the materials according to the type of wall/ceiling. The wall/ceiling must be sufficiently sturdy to bear the weight of the aspirator. Do not glue, screw, or secure the device to the wall with adhesive. Installation is only allowed on the surface.
OPERATION OF THE DEVICE
Use the exhaust with the charcoal filter only in the case of concentrated odors. It is advisable to turn on the exhaust 5 minutes before cooking and to leave the aspirator running for about 15 minutes after turning off the hob.
Control panel
A-Button for lighting B-Button for switching off C-Buttons for speed
Turning on and off the lighting
Press button A.
To turn on the aspirator at any speed while it is working
- Press button A for the first, second, or third speed as needed.
To turn off the aspirator
Press button B.
MAINTENANCE
WARNING! Before any maintenance, unplug the aspirator from the electrical mains by disconnecting the connector and remove the intended connector.
Or, if the aspirator is connected via a chain contact, remove the chain from the contact.
Cleaning
The aspirator should be cleaned regularly (at least as often as you perform maintenance on the filter for grease) from the outside and inside. Then, using a cloth, dampened with neutral detergent, clean the surfaces. Do not use abrasive products. DO NOT USE ALCOHOL!
WARNING: Failure to follow the basic rules for cleaning the aspirator and the filter may create a fire hazard. Therefore, we recommend following these instructions. The manufacturer assumes no responsibility for motor damage or fire damage caused by improper maintenance or failure to follow the safety rules.
Filters
The metal grease filter: The grease parts are washed. The grease filter should be cleaned at least once a month with neutral detergent, either by hand or in the dishwasher, which must be set to a low temperature and short cycle. When washed in the dishwasher, the grease filter may discolor, but this does not affect its filtering capacity. To remove the grease filter, pull the handle to release the latch.
The charcoal filter (synthetic) for grease must be replaced at least every two months or when the color becomes visible through the openings of the grid. The charcoal filter is supplied by the manufacturer. This filter should not be washed through the openings of the grid when the filter is installed.
The extractor hood (self-cleaning filter) must be cleaned from grease. The cleaning of the extractor hood is carried out after use, depending on the type of grease and the frequency of use of the hood for cooking. In any case, it is necessary to replace the filter at least every four months. The extractor hood does not require any other maintenance.
Replacing the bulb
The hood is equipped with a lighting system based on LED technology. The light bulbs guarantee optimal illumination with a duration of 10 times longer than traditional bulbs and allow 90% energy savings.
Replace the damaged bulb. Use only bulbs E14 4W max. For more details, see the installation diagrams No. 20 and No. 21 in the instructions.
Energy saving tips
1) When you start cooking, turn on the hood at minimum speed to control the fumes and steam from the food. 2) Use the highest speed only when absolutely necessary. 3) Increase the hood speed only when the amount of fumes requires it. 4) Keep the filters clean for optimal efficiency when removing cooking fumes.
CS-DIGESTOR
Provedeniproodsavani
In this case, the vapors are discharged outside the building through a special duct, which is connected by means of a connecting ring placed on the upper part of the hood.

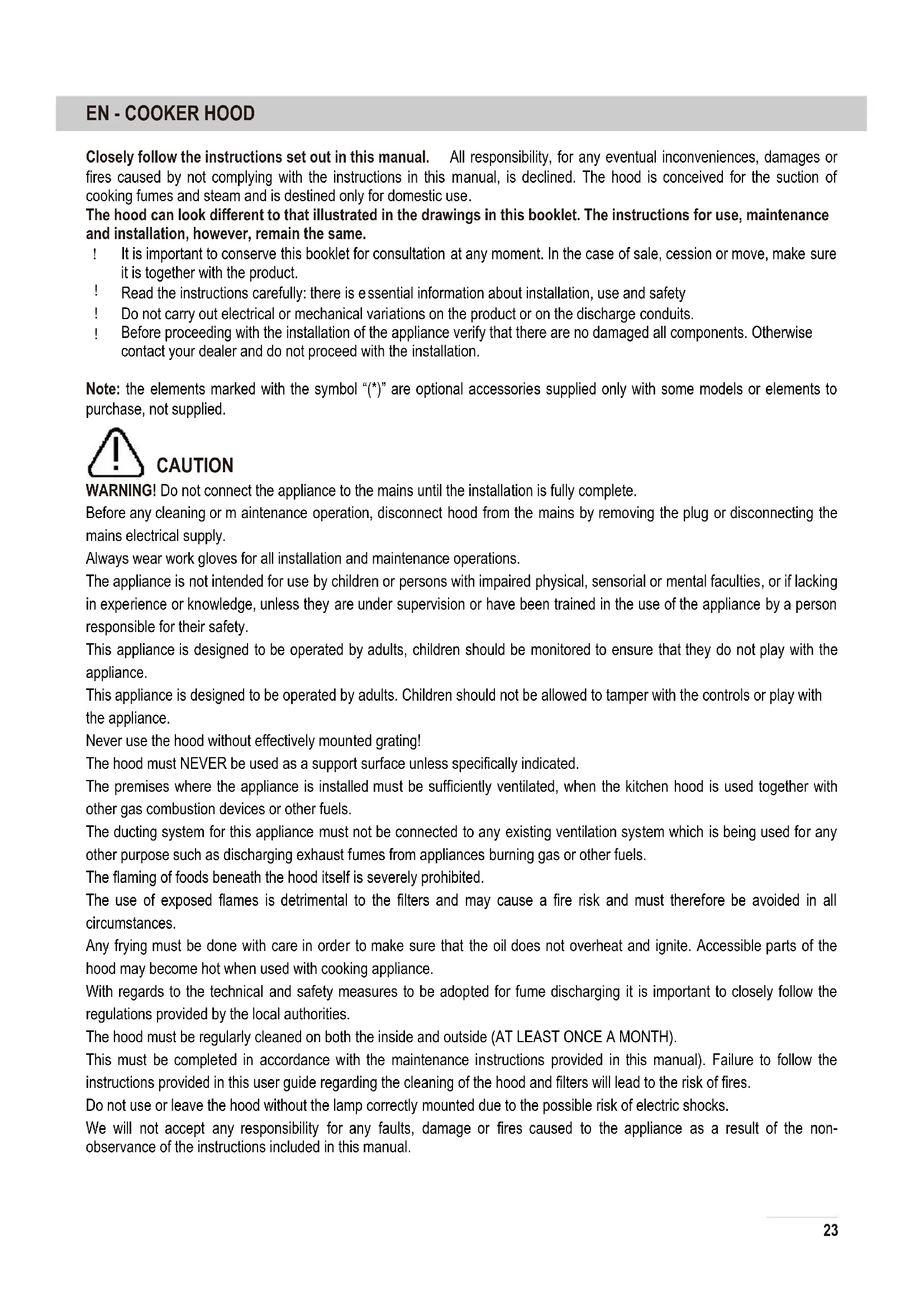

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The hood is conceived for the suction of cooking fumes and steam and is destined only for domestic use.
The hood can look different to that illustrated in the drawings in this booklet. The instructions for use, maintenance and installation, however, remain the same.
It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product. ! Read the instructions carefully: there is essential information about installation, use and safety Do not carry out electrical or mechanical variations on the product or on the discharge conduits. ! Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.
Note: the elements marked with the symbol (*) are optional accessories supplied only with some models or elements to purchase, not supplied.
CAUTION
WARNING! Do not connect the appliance to the mains until the installation is fully complete.
Before any cleaning or maintenance operation, disconnect the hood from the mains by removing the plug or disconnecting the mains electrical supply.
Always wear work gloves for all installation and maintenance operations.
The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.
This appliance is designed to be operated by adults. Children should be monitored to ensure that they do not play with the appliance.
This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.
Never use the hood without effectively mounted grating!
The hood must NEVER be used as a support surface unless specifically indicated.
The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.
The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.
The flaming of foods beneath the hood itself is severely prohibited.
The use of exposed flames is detrimental to the filters and may cause a fire risk and must therefore be avoided in all circumstances.
Any frying must be done with care in order to make sure that the oil does not overheat and ignite. Accessible parts of the hood may become hot when used with cooking appliance.
With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
This must be completed in accordance with the maintenance instructions provided in this manual. Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.
Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observation of the instructions included in this manual.
This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.
Appliance designed, tested and manufactured according to:
Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233. Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; ISO 3741; EN 50564; IEC 62301. EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3.
Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.
Additional Installation Specifications:
Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type. Use the correct length for the screws which are identified in the Installation Guide.
In case of doubt, consult an authorized service assistance center or similar qualified person.
WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
USE
The hood is designed to be used either for exhausting or filter version.
Exhaust version
In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.
Attention! The exhausting pipe is not supplied and must be purchased separately. The diameter of the exhausting pipe must be equal to that of the connection ring.
In horizontal runs, the exhausting pipe must be slightly slanted (about 10 degrees) and directed upwards to vent the air easily from the room to the outside.
Attention! If the hood is supplied with an active charcoal filter, then it must be removed.
Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).
Using tubes and discharge holes on walls with smaller dimensions will cause a reduction in suction performance and a drastic increase in noise.
Any responsibility in this matter is therefore declined.
Use a duct of the minimum indispensable length.
Use a duct with as few elbows as possible (maximum elbow angle: 90 degrees).
Avoid drastic changes in the duct cross-section. Use a duct as smooth as possible inside. The duct must be made of certified material.
Filter version
One active charcoal filter is needed for this and can be obtained from your usual retailer.
The filter removes grease and smells from the extracted air before sending it back into the room through the upper outlet grid.
INSTALLATION
The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50 cm from electric cookers and 65 cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.
Electrical connection
The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug, connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it is not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.
Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.
The hood is provided with a special power cable; if the cable is damaged, request a new one from Technical Service.
Mounting
Very heavy product; hood handling and installation must be carried out by at least two persons. Before beginning installation:
Check that the product purchased is of a suitable size for the chosen installation area. - Remove the charcoal (*) filter/s if supplied (see also relative paragraph). This/these is/are to be mounted only if you want to use the hood in the filtering version. - Check (for transport reasons) that there is no other supplied material inside the hood (e.g. packets with screws () , guarantees () , etc.), eventually removing them and keeping them. - If possible, disconnect and move freestanding or slide-in range from cabinet opening to provide easier access to rear wall/ceiling. Otherwise put a thick, protective covering over countertop, cooktop or range to protect from damage and debris. Select a flat surface for assembling the unit. Cover that surface with a protective covering and place all canopy hood parts and hardware in it. - In addition, check whether near the installation area of the hood (in the area accessible also with the hood mounted) an electric socket is available, and it is possible to connect a fumes discharge device to the outside (only suction version). - Carry out all the masonry work necessary (e.g. installation of an electric socket and/or a hole for the passage of the discharge tube).
Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.
OPERATION
Use the high suction speed in cases of concentrated kitchen vapors. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.
Control Panel
A-Light button B - Power off button C - Speed level buttons
To switch the extractor light on or off
Press button A.
To switch on the extractor or to change the speed at any time when the extractor is running
- Press button C for the first, second or third speed level as required.
To switch the extractor off
Press button B.
MAINTENANCE
ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.
Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.
Cleaning
The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filter) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!
WARNING: Failure to carry out basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.
Filters
Grease metal filter traps cooking grease particles. The grease filter must be cleaned once a month using non-aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolor, but this does not affect its filtering capacity. To remove the grease filter, pull the spring release handle.
Grease paper (synthetic) filter should be replaced at least every two months or whenever the color becomes visible through the holes of the grille. The paper filter is colored on one side. This color should not be visible through the grille holes when the filter is installed.
Charcoal filter (filter version only) absorbs unpleasant odors caused by cooking. The saturation of the charcoal filter occurs after prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four months. The charcoal filter may NOT be washed or regenerated.
Replacing lamps
The hood is equipped with a lighting system based on LED technology. The LEDs guarantee an optimum lighting, a duration up to 10 times as long as the traditional lamps and allow to save 90% electrical energy.
Replace the damaged lamp. Use E14 LED 4Wx1 lamps only.
For more details check the installation drawings no. 20 and no. 21 in the manual.
Energy saving tips
1) When you start cooking, switch on the cooker hood at minimum speed, to control moisture and remove cooking odor 2) Use boost speed only when is strictly necessary 3) Increase the range hood speed only when the amount of vapor makes it necessary 4) Keep range hood filter(s) clean to optimize grease and odor efficiency.
Minimum distance between the lower edge of the cooker hood and:
- electric cooking surface - 50 centimeters,
- gas or combined gas-electric cooking surface - 65 centimeters.
If the installation instructions for the gas hob specify a greater distance, take that distance into account.
Connection to the power supply
Before connecting, check that the data indicated on the rating plate inside the appliance match the actual parameters of the power supply. If the appliance is supplied with a plug, insert the plug into a socket installed in accordance with the regulations and located in an accessible place. If the appliance is supplied without a plug or the socket is in an inaccessible place, connect the appliance to a two-pole switch that ensures complete disconnection from the mains in case of overvoltage category III, in accordance with the installation instructions.
Warning! Before connecting the hood to the power supply and checking its correct operation, make sure that the supply cord is correctly connected.
The hood is supplied with the appropriate cable. If the cable is damaged, contact an authorized service center for replacement.
INSTALLATION
The hood is heavy, therefore it must be transported and installed by at least two people. Before starting installation:
- Make sure the dimensions fit the chosen installation location.
- Carbon filters (charcoal filter) (*), if the hood is equipped with them (see the corresponding section). Install carbon filters (charcoal filter) if you use the hood in recirculation mode.
- Check that there are no foreign objects inside the hood or ducts that may have gotten there during transport, for example, a bag with screws (*), warranty card (*), and if present, remove them.
- If possible, disconnect from the electrical supply and remove the hood or extract the vapor panel from the ceiling to ensure free access to the wall or ceiling in the installation area. If this is not possible, cover the hood or vapor panel with thick material for protection against damage. Perform the hood assembly on a flat surface. Cover the flat surface with protective material and lay out the hood parts and fastening parts. Check that the hood outlet is in the installation area and that free access will be ensured after installation is complete, and that connection to the exhaust air duct is possible. Perform the necessary installation work (installation of the outlet, making holes for the duct).
For fastening the hood to different types of walls and ceilings, accessories are included. Before installation, a qualified specialist must check that the wall or ceiling surface is suitable. The wall or ceiling must be strong enough to support the weight of the appliance. Do not fasten the hood to a wall using nails, screws, etc. The appliance is intended only for surface mounting.
Press the button for the first, second, or third speed of operation.
To turn off the hood:
Press button B.
MAINTENANCE
WARNING! Before cleaning or any other work, make sure that the appliance is disconnected from the electrical supply or that the main switch of the electrical system is turned off.
If the appliance is connected to the electrical supply via a plug, remove the plug from the socket.
Cleaning
Regularly clean the internal and external surfaces of the appliance (at least as often as the grease filters). For cleaning, use a cloth moistened with a neutral liquid detergent. The use of abrasive cleaning agents is prohibited. The use of alcohol is prohibited!
WARNING! Failure to follow the cleaning instructions for the appliance and replacement of filters may lead to fire, so it is recommended to follow the given instructions. The manufacturer is not responsible for possible motor malfunctions or fire due to improper installation or failure to follow the given instructions.
Filters
The grease filter retains particles of grease. Clean the grease filter once a month with a non-aggressive detergent by hand or in a dishwasher on a fast program at a low temperature. Washing in a dishwasher may change the color of the filter, but this will not affect the functionality of the filter. To remove the grease filter, pull it down by its handle.
The paper (synthetic) grease filter must be replaced every two months, or more often if the filter is visible through the grille. The paper filter is colored on only one side, and when installing the filter, the colored side must not be visible through the grille.
The charcoal filter (for recirculation mode) absorbs unpleasant odors that form during cooking. The service life and degree of contamination of the filter depend on the intensity of daily cooking and the frequency of cleaning the grease filter. In any case, the charcoal filter cartridge must be replaced every four months. The charcoal filter cannot be washed or regenerated.
Replacing the lamps
The hood is equipped with modern LED lamps that provide optimal lighting, last 10 times longer than ordinary lamps, and consume up to 90% less electricity.
Replace the burnt-out lamp. Use only LED lamps 14 LED 4Wx1.
Do not use the hood if the grille is not properly installed!
The hood must never be used without the grille unless it is precisely positioned. Leave enough space around the appliance to ensure sufficient ventilation when the kitchen hood is used together with other appliances that burn gas or other fuels.
The ventilation system of the hood must not be connected to any existing ventilation system that is used for other purposes, such as exhausting fumes from gas appliances or other fuels.
Direct connection of the hood to the flue is strictly forbidden.
The use of open flames is dangerous for the filters and may lead to a risk of fire, so it must be avoided in all circumstances.
When frying, pour the oil so that it does not overflow and does not spill. The accessible parts of the hood may become hot when the appliance is used for cooking.
This refers to the technical and safety measures for installation. It is important to follow the rules given by the local authorities.
The hood must be cleaned regularly, both internally and externally (at least once a month).
It must be cleaned in accordance with the maintenance instructions given in this manual. If the instructions in this section for use regarding the cleaning of the hood and filters are not followed, it will lead to a risk of fire.
Do not leave the appliance unattended without proper installation. Incorrect installation may pose a risk of electric shock.
The manufacturer is not responsible for any problems or fires caused by improper use of the appliance or by failure to follow the instructions in this manual.
This appliance is marked according to the European Directive 2002/96/EC on waste electrical and electronic equipment (WEEE). By ensuring correct disposal of this product, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
The symbol
on the product or on the documents accompanying the product indicates that the appliance cannot
be treated as household waste. Instead, it should be handed over to the appropriate collection point for recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery, and recycling of this product, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.
The appliance is designed, tested, and manufactured in accordance with:
- Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
- Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; ISO 3741; EN 50564; IEC 62301. EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3.
Tips for correct use to reduce environmental impact: Turn on the extractor at minimum speed when you start cooking and leave it on for a few minutes after you finish cooking.
Increase the speed only in case of large amounts of fumes and use the boost speed only in extreme situations. When necessary, replace the filters with original spare parts to maintain good efficiency. Clean the grease filter when necessary to maintain good filter efficiency.
Use the maximum diameter of the ventilation system indicated in this manual to optimize efficiency and minimize noise.
Additional installation specifications:
Use the screws provided with the product for installation; if they are not supplied, purchase the correct type of screws. Use the appropriate screw length, as specified in the installation manual.
If you are unsure, consult a regional center for assistance or a qualified person.
WARNING! Improper installation of the device or failure to follow the instructions may result in serious injury.
USE
The aspirator can be used for ventilation or as a filter version.
Ventilation version
In this case, gases are drawn out of the room with the help of a special hose connected to a ring located at the top of the aspirator.
ATTENTION! The exhaust hose is not supplied and must be purchased separately. The diameter of the exhaust hose must be the same as that of the ring.
For horizontal operation, the exhaust hose must be slightly inclined (about 10°) and directed upwards, so that the air can be easily expelled out of the room.
ATTENTION! If the aspirator is supplied together with a filter with an active carbon filter, then it must be removed.
Connect the aspirator and the exhaust ducts with a diameter equal to the air outlet (with a flange).
The use of exhaust ducts with larger dimensions will lead to a decrease in suction performance and a significant increase in noise.
Therefore, any responsibility for this practice is declined.
Use a duct with the minimum required length.
Use a duct with as few bends as possible (maximum bend angle: 90°) and avoid changes in the duct cross-section. Use a duct with as smooth an interior as possible. The duct must be made of certified material.
Filter version
The appliance is intended for use in households and similar applications, as can be found in the sales documentation.
The filter must be removed from the appliance before cleaning, and then replaced in the correct position after cleaning.
INSTALLATION
The minimum distance between the cooking surface and the lowest point of the hood must be at least 50 cm for electric cookers and 65 cm for gas or combined cookers.
If the installation instructions for gas cookers specify a greater distance, this must be respected.
Electrical connection
The main power supply must comply with the specifications indicated on the rating plate located inside the hood. If a plug is provided, connect the hood to a socket that is in accordance with the regulations and positioned in an accessible place after installation. If the appliance is not fitted with a plug (direct connection to the mains) or if the plug is not accessible after installation, use an approved isolating switch, in accordance with the standards that ensure complete disconnection from the mains under overvoltage category III, in accordance with the installation regulations.
Warning! Before reconnecting the hood to the mains and checking its operation, always check that the power cable is correctly connected.
The hood is supplied with a special power cable. If the cable is damaged, replace it with a new one from the technical service department.
Installation
The product is very heavy; therefore, handling and installation of the hood must be carried out by at least two people. Before starting the installation:
Check that the purchased product is the correct size for the installation site. - Remove the filter(s) with a slight pressure (see the relevant paragraph). It/they must be installed only if you intend to use the hood with the filter. - Check (from the transport packaging) that there is no other material inside the hood (e.g., bags with screws, packaging, etc.), which you must remove and keep at the end. If possible, remove and dispose of it separately or with the packaging - within the scope of the cabinet outlet, to ensure better access to the wall/floor. Place the flue, the wall mounting bracket, and the floor or wall to protect them from damage and dirt. Choose a flat surface for mounting the appliance. Cover that surface with a protective cover and place all the parts of the hood and its accessories on it. Also, check that near the installation site of the hood (in the place provided for mounting the hood) there is an electrical socket and that it is possible to connect the exhaust pipe for the outlet of fumes (only for the ducted version). Note: If necessary, additional work is required (e.g., installation of an electrical socket / wall for the flue and a hole for the exhaust).
This appliance is intended for household use only. Before connecting the appliance, read the instructions for use carefully. The manufacturer cannot be held responsible for damage caused by improper use. The appliance must be used in accordance with the instructions for use. Do not place the appliance on a hot surface. Only surface mounting is allowed.
OPERATION
Use the highest speed for extracting when cooking concentrated steam. It is recommended to turn on the extractor 5 minutes before cooking and leave it running during cooking and for about 15 minutes after cooking.
Control panel
A- Light switch B- Switch for off C- Switch for low speed
To turn the light on or off
Press the button.
To turn on the ventilator or change the speed at any time while the ventilator is running - press the button C for first, second or third speed level, as desired. To turn off the ventilator, press button B.
MAINTENANCE
WARNING! Before performing any maintenance operation, disconnect the appliance from the electrical mains by unplugging it and removing the plug from the socket.
If the appliance is connected via a plug and socket, then the plug must be removed from the socket.
Cleaning
The extractor must be cleaned regularly (at least with a damp cloth and mild detergent) both inside and outside. For cleaning, use a soft cloth with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!
WARNING! If the basic cleaning instructions for the extractor are not followed, there may be a risk of fire. Therefore, we recommend following the suggested instructions. We assume no responsibility for any damage or fire caused by improper maintenance or failure to follow the instructions.
FILTERS
The oil filter must be replaced at the intervals specified in the maintenance schedule. The oil filter must be replaced at least once a year, regardless of the operating conditions, even if the machine is used for short periods, at low temperatures, or in short intervals. When the machine is used for short periods, the oil filter may lose its effectiveness, but this does not affect its filtering characteristics. To remove the oil filter, follow the instructions for disassembly.
The paper (synthetic) oil filter must be replaced at least once every two months or when the pressure drop across the filter exceeds the limit. The paper filter is covered on one side. This cover must not be removed or damaged when installing the filter.
The oil filter with bypass (only for models with filter) absorbs impurities from the oil. After the bypass filter is installed, it must be used for a period depending on the oil condition and the filter's service life. In any case, the filter must be replaced at least every four months. The bypass filter must not be washed or reused.
Replacing the lamps
The aspirator is equipped with a lighting system based on LED technology. LED diodes guarantee optimal lighting for up to 10 times longer than traditional lamps and allow you to save up to 90% electrical energy.
Replace the damaged lamp. Use only LED 4W x1 lamps.
Detailed instructions can be found in the installation instructions No. 20 and 21 in the appendix.
It is forbidden to use the vacuum cleaner if the filter is not installed correctly.
It is forbidden to use the vacuum cleaner on wet surfaces unless explicitly stated otherwise.
If the vacuum cleaner is used in applications with devices that burn gas or use other fuels, it is necessary to ensure adequate ventilation.
The vacuum cleaner must not be used in explosive atmospheres or for purposes other than intended, such as for vacuuming dust from gas or other fuel appliances.
It is strictly forbidden to use the vacuum cleaner for cooking food directly under the vacuum cleaner's suction opening.
Open flames can cause filter damage or fire, so do not use the vacuum cleaner under any conditions.
The glass container may become hot during operation, but it should not overheat or deform. Open flames or hot objects may heat up during use.
During operation and maintenance, it is necessary to comply with technical norms and safety standards established by local authorities.
Check the device regularly for internal and external damage (at least once a month).
Follow the maintenance instructions provided in this manual. Failure to follow the filter maintenance instructions may lead to damage.
Do not use the device without a properly installed lamp. Do not touch the lamp without it, as this may result in electric shock.
We are not liable for any malfunctions, damage, or injuries caused by improper use of the instructions provided in this manual.
This product is marked in accordance with EU Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring proper disposal of this product, you will help prevent potential negative consequences for the environment and human health.
On the product itself or its accompanying documents, it is indicated that this device
must not be disposed of as unsorted municipal waste. Please dispose of it separately by taking it to a designated collection point for recycling of electrical and electronic equipment. Dispose of the device in accordance with local regulations regarding waste disposal.
For detailed information on how to handle, recycle, and dispose of this product, please contact your local authority, waste disposal service, or the store where you purchased the device.
The device has been designed, tested, and manufactured in accordance with the standards listed below.
- Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
- Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; ISO 3741; EN 50564; IEC 62301.
- Electromagnetic compatibility: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3.
Recommendations for efficient use to reduce environmental impact. At the beginning of cooking, set the appliance to the minimum power. After cooking, leave the appliance running for a few minutes. Increase the power only when the amount of fumes increases. Use the maximum power only when necessary. If needed, replace the charcoal filters, which effectively absorb odors. If needed, clean the grease filters, which effectively trap grease. To ensure efficient operation, use the maximum diameter of the duct, as specified in this manual.
Additional technical characteristics with installation
If screws are included in the delivery, use them for fixing. If not, use screws of the correct type. Use screws of the correct surface, as specified in the installation manual.
If you need to perform maintenance, contact an authorized service center or a specialist.
WARNING. If you do not close the valve with the screws or other types of fastening in accordance with the instructions, it may lead to electric shock.
USAGE
The valve can be used in ventilation or recirculation mode.
Ventilation mode
In ventilation mode, the valve is opened using a special tube, intended for the upper part of the valve.
Note! The outlet tube is not included in the kit. It must be purchased separately. The diameters of the outlet tube and the connecting ring must match.
In the horizontal section, the outlet tube should be slightly inclined (at an angle of approximately 10°) so that air can be easily removed outside.
Note! If the valve is installed with a flexible duct, its length should be minimal.
Close the valve to the part of the outlet openings, the diameters of which correspond to the air outlet opening (connecting flange).
Using outlet tubes and outlet openings of smaller diameter reduces the efficiency of ventilation and significantly increases the noise level.
Therefore, we disclaim any liability for such consequences.
Use the minimum required cross-section.
Use the ventilation duct with the minimum number of bends (maximum bend angle: 90°). Avoid significant changes in the cross-sectional area of the ventilation duct. Use a duct with the smoothest inner surface. The duct must be made of certified material.
Recirculation mode
For the extractor to work in this mode, it is necessary to install at least one filter with activated carbon, which can be purchased from any dealer.
The filter absorbs odors from the extracted air before it is returned to the room through the upper outlet grille.
INSTALLATION
The distance from the lower part of the extractor to the cooking surface must be at least 50 cm for electric hobs and 65 cm for gas or combination hobs.
If the instructions for installing the gas hob specify a greater distance, this must be respected.
Electrical connection
The voltage in the electrical mains must correspond to the specifications indicated on the rating plate inside the extractor. If the plug is included in the kit, insert it into a socket that complies with the standards and is in good working order before use. If the plug is not included (direct connection to the mains) or if there is no socket nearby, install a suitable two-pole switch that can completely disconnect the appliance from the mains in case of overvoltage category III, according to the installation instructions.
Warning. Before reconnecting the extractor to the mains and checking its correct operation, make sure that the power cable is installed correctly.
The extractor is supplied with a special power cable. If it is damaged, request a new one from technical support.
MOUNTING
The appliance is heavy, so it must be moved and installed by at least two people. Before installation.
- Check that the dimensions of the appliance match the chosen installation location. The carbon filters (*) are only included in the kit (see relevant section). They must be installed only if the extractor is used in recirculation mode.
- Check that no objects left inside the extractor during transport (e.g., bags with screws (), warranty cards (), etc.) remain. If they are there, remove and keep them. If possible, remove or slide out the extractor from the cabinet to ensure easy access to the ceiling or rear wall. If this is not possible, cover the hob, the surrounding surface, and the extractor with a protective material to avoid damage. Choose a flat surface to place the appliance on. Cover it with a protective covering and place the extractor and its mounting parts on it.
- Also check that near the installation area of the extractor there is a socket that will be accessible after installation, and an outlet for the exhaust system that will discharge vapors outside (only in extraction mode). Perform all necessary work (e.g., install the socket, drill the hole for the exhaust pipe).
The kit includes a compensating spring, which is intended for fastening the hood to the surface of walls and ceilings. However, the user should verify whether it can be used on specific walls and ceilings. The wall or ceiling to which the hood is attached must support its weight. Do not attach the device to walls using gypsum plaster or silicone sealant, nor directly to drywall. Only for fastening to the surface.
OPERATION
Use high suction power only when there are many vapors. It is recommended to turn on the hood 5 minutes before starting to cook, and also to leave it on during the entire process and for 15 minutes after it is finished.
Control panel
A - On/off button; B - Off button; C - Power adjustment button
Turning on the hood
Press button A.
Turning on the hood or changing power during operation
First press button C, then select the desired power (first, second, or third).
Turning off the hood
Press button B.
MAINTENANCE
WARNING! Before performing any technical maintenance, disconnect the hood from the electrical supply by switching the switch to the off position and unplugging the plug.
If the device is connected to the mains via a plug and socket, disconnect them.
Cleaning
Clean the hood filter regularly (directly with each use of the hood filter). To do this, use a cloth with a neutral detergent. Do not use abrasive materials. Do not use alcohol!
WARNING. Failure to follow the basic recommendations for cleaning the hood filter may lead to damage. Therefore, it is recommended to follow them. The manufacturer is not responsible for any damage or electric or fire damage caused by improper maintenance or failure to follow the above safety recommendations.
Filters
Metal hood filter is highly resistant to fire. The hood filter should be cleaned once a month using neutral detergents by hand or in a dishwasher at low temperature and short cycle. After cleaning in a dishwasher, the hood filter may lose color, but this does not affect its filtering ability. To remove the hood filter, pull the handle to release the filter.
The mesh (synthetic) hood filter should be replaced once every two months or when the openings of the grid are visibly dirty. Replace the mesh filter with a new one. When the filter is installed, the dirt should not be visible through the grid openings.
The charcoal filter (only for recirculation versions) absorbs odors from cooking. The charcoal filter becomes saturated after three months of use depending on the intensity of cooking and the regularity of cleaning the hood filter. In any case, it should be replaced every two months. The charcoal filter cannot be washed or reused.
Replacing the lamp
The hood is equipped with an LED lighting system. LED lamps provide optimal lighting, save up to 90% of electricity and last up to 10 times longer than incandescent lamps.
Replace the faulty lamp. Use only LED lamps E14 4 W (x1).
Detailed information on page. On the motorized hoods N20 and N21, see the figure.
Energy saving tips
1) At the beginning of cooking, turn on the hood at minimum power to control steam and odors. 2) Use maximum power only when necessary. 3) Increase the hood power as the number of vapors increases. 4) Make sure the filter is clean. This way, steam and odors are removed effectively.
- THE SYMBOL
- USE
- EXTRACTION VERSION
- VENTING
- INSTALLATION
- ELECTRICAL CONNECTION
- OPERATION OF THE DEVICE
- TURNING ON AND OFF THE LIGHTING
- MAINTENANCE
- CLEANING
- FILTERS
- REPLACING THE BULB
- ENERGY SAVING TIPS
- CS-DIGESTOR
- PROVEDENIPROODSAVANI
- CAUTION
- EXHAUST VERSION
- FILTER VERSION
- MOUNTING
- OPERATION
- REPLACING LAMPS
- CONNECTION TO THE POWER SUPPLY
- REPLACING THE LAMPS
- VENTILATION VERSION
- USAGE
- VENTILATION MODE
- RECIRCULATION MODE
- CONTROL PANEL
- TURNING ON THE HOOD
- REPLACING THE LAMP
Brand : GORENJE
Model : WHU529EBRS
Category : Range hood
