USER MANUAL CoolFreeze CFX 75DZW DOMETIC
EN Compressor Cooler Operating manual....5
Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this operating manual must be handed over to the user along with it.
The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.
Contents
1 Explanation of symbols 6
2 Safety instructions 7
2.1 General safety....7
2.2 Operating the cooling device safely .....8
3 Scope of delivery....9
4 Accessories....9
5 Intended use....10
6 Function description....11
6.1 Scope of functions....11
6.2 Operating and display elements .....12
7 Operation 13
7.1 Before initial use ....13
7.2 Energy saving tips....14
7.3 Connecting the cooler .....14
7.4 Using the battery monitor....16
7.5 Using the cooler .....17
7.6 Setting the temperature .....18
7.7 Switching a compartment off or on 19
7.8 Enabling Wi-Fi signal for optional app 20
7.9 Set brightness of displays .....21
7.10 Using the emergency switch .....21
7.11 USB port for power supply 22
7.12 Switching off the cooler 22
7.13 Defrosting the cooler 22
7.14 Replacing the AC fuse.... 23
7.15 Replacing the DC plug fuse 23
7.16 Replacing the light PCB.... 23
8 Cleaning and maintenance 24
9 Troubleshooting 24
10 Guarantee 25
11 Disposal 26
12 Technical data 26
1 Explanation of symbols

DANGER!
Safety instruction: Failure to observe this instruction will cause fatal or serious injury.

WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!
Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE
Supplementary information for operating the product.

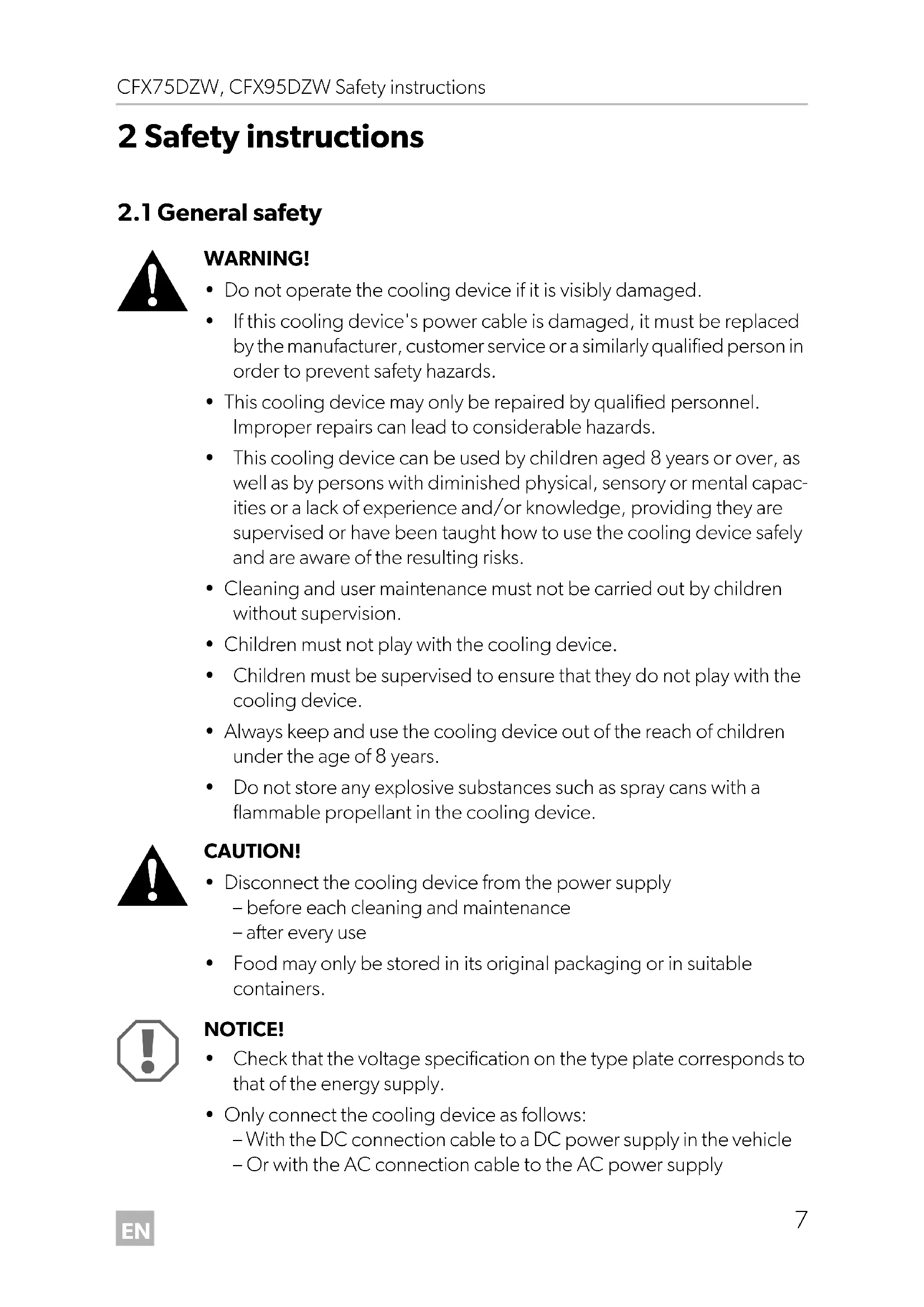

2 Safety instructions
2.1 General safety

WARNING!
- Do not operate the cooling device if it is visibly damaged.
- If this cooling device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.
- This cooling device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.
- This cooling device can be used by children aged 8 years or over, as well as by persons with diminished physical, sensory or mental capacities or a lack of experience and/or knowledge, providing they are supervised or have been taught how to use the cooling device safely and are aware of the resulting risks.
- Cleaning and user maintenance must not be carried out by children without supervision.
• Children must not play with the cooling device. - Children must be supervised to ensure that they do not play with the cooling device.
- Always keep and use the cooling device out of the reach of children under the age of 8 years.
- Do not store any explosive substances such as spray cans with a flammable propellant in the cooling device.

CAUTION!
- Disconnect the cooling device from the power supply
– before each cleaning and maintenance - after every use
- Food may only be stored in its original packaging or in suitable containers.

NOTICE!
- Check that the voltage specification on the type plate corresponds to that of the energy supply.
- Only connect the cooling device as follows:
- With the DC connection cable to a DC power supply in the vehicle
-
Or with the AC connection cable to the AC power supply
-
Never pull the plug out of the socket by the cable.
- If the cooling device is connected to the DC outlet: Disconnect the cooling device and other power consuming devices from the battery before connecting a quick charging device.
- If the cooling device is connected to the DC outlet: Disconnect the cooling device or switch it off when you turn off the engine. Otherwise you may discharge the battery.
- The cooling device is not suitable for transporting caustic materials or materials containing solvents.
- The insulation of the cooling device contains flammable cyclopentane and requires special disposal procedures. Deliver the cooling device at the end of its life-cycle to an appropriate recycling.
2.2 Operating the cooling device safely

CAUTION!
- Before starting the cooling device, ensure that the power supply line and the plug are dry.

NOTICE!
- Do not use electrical devices inside the cooling device unless they are recommended by the manufacturer for the purpose.
- Do not place the cooling device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).
• Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the heat that arises during operation does not build up. Make sure that the cooling device is sufficiently far away from walls and other objects so that the air can circulate.
- Ensure that the ventilation openings are not covered.
- Do not fill the inner container with ice or fluid.
- Never immerse the cooling device in water.
- Protect the cooling device and the cable against heat and moisture.
3 S c o p e o f d
See fig. 1, page 2
Item Quantity Description
11 Cooler
21 Connection cable for DC connection
31 Connection cable for AC connection
-1 Operating manual
4 A c c e s s o r i
Available as accessory (not included in scope of delivery):
Designation Ref. no.
Universal fixing kit (belt system) CFX-UFK 9105304041
Visit the Dometic website (see back page) for information about a Wi-Fi app with control-, display- and alarm functions. Note that the app may not be available in your country.
5 Intended use
The cooler is suitable for cooling and freezing foods.
The cooler is designed to be operated from:
- a DC on-board power supply of a vehicle, boat or caravan
- a DC auxiliary battery
- an AC power supply
The cooling device is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments
- farm houses
- clients in hotels, motels and other residential type environments
• bed and breakfast type environments
• catering and similar non-retail applications

CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing the food or medicine you wish to cool.
6 Function description
The cooler can refrigerate or freeze food products. A fast-acting and efficient cooling system provides maintenance-free cooling performance with a compressor and control module.
The cooler has two separate compartments which can be adjusted independently. The cooler can be used in all combinations:
| Large compartment Small compartment | |
| ☐ | ☐ |
| Refrigerator Freezer | |
| Freezer Refrigerator | |
| Refrigerator Refrigerator | |
| Freezer Freezer | |
The cooler is portable.
The cooler can withstand a heel (inclination) of 30^ , for example when used on boats.

NOTE
The cabinet top surface under the lid gaskets may feel warm. This is normal as heating is included to prevent condensation.
6.1 Scope of functions
• Power supply with priority circuit for connecting to the AC mains
- Three-level battery monitor to protect the vehicle battery
- Display with temperature gauge in °C and °F switches off automatically at low battery voltage
- Independent settings, controls and displays for each compartment
• Temperature setting: With two buttons in steps of 1^ C ( 2^ F)
- Integrated Wi-Fi transmitter hence controllable using an app
- Lid open alarm
• USB port for power supply
- Emergency switch
- Foldable carrying handles
- Three removable wire baskets
6.2 Operating and display elements
Lid latches (fig. 2 1, page 2)
Operating panel (fig. 3, page 2)
| Item Description Explanation | ||
| 1 | ON | Switches the cooler on or off when the button is pressed for between one and two seconds |
| OFF | ||
| 2 | POWER “” | Status indication |
| LED lights up green: Compressor is on | ||
| LED lights up orange: Compressor is off | ||
| LED flashes orange: Display switched off automatically due to low battery voltage | ||
| 3 | ERROR LED flashes red: Device is switched on but not ready for operation | |
| 4 | SET Selects the input mode:Temperature setting (large/small compartment)Celsius or Fahrenheit displaySet battery monitorSet brightness of displayTurn Wi-Fi on or off | |
| 5 | Cooling large | Status indication large compartment |
| LED lights up blue: compartment is cooling | ||
| LED off: compartment is not cooling | ||
| 6 | Display large | Shows information for large compartmentShows “OFF”, when the compartment is switched off |
| 7 | Display small | Shows information for small compartmentShows “OFF”, when the compartment is switched off |
| 8 | Cooling small | Status indication small compartment |
| LED lights up blue: compartment is cooling | ||
| LED off: compartment is not cooling | ||
| 9 | DOWN - | Press once to decrease the value |
| 10 | UP + | Press once to increase the value |
Connection sockets, Emergency switch (when fitted) and USB port (fig. 4, page 3)
Item Description
1 Connection socket AC voltage supply
2 Fuse holder
3 Emergency switch
4 USB port for power supply
5 Connection socket DC voltage supply
7 O p e r a t i o n
7.1 Before initial use

NOTE
Before starting your new cooler for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter "Cleaning and maintenance" on page 24).
Reversing the lid opening direction
The lid hinges can be moved to the opposite side if you want to open the lids from the opposite direction. To do this, proceed as follows:
▶ Open the lids and remove them (fig. 5 A, page 3).
Remove the three screws per side hinge (fig. 5 B, page 3) and take off the hinges.
Remove the plastic covers from the new side hinge positions with a small screw-driver and re-fit to old hinge positions.
▶Re-fit the side hinges in the new positions.
▶ Remove the two plastic covers from the centre hinge (fig. 6 A, page 4).
Remove the four screws from the centre hinge (fig. 6 B, page 4) and take off the hinge.
Remove the plastic cover from the new centre hinge position with a small screwdriver and re-fit to old hinge position (fig. 6 C, page 4).
▶Re-fit the centre hinge in the new position.
▶ Insert the lids in the hinges on the opposite side (fig. 6 D, page 4).
Selecting the temperature units
Temperature display units can be switched between Celsius and Fahrenheit as follows:
▶Switch on the cooler.
▶ Press the "SET" button (fig. 3 4, page 2) three times.
▶ Use the "UP +" (fig. 3 10, page 2) or "DOWN -" (fig. 3 9, page 2) buttons to select Celsius or Fahrenheit.
√ The selected temperature units then appear in both displays for a few seconds. The displays flash several times before returning to the current temperature.
7.2 Energy saving tips
- Choose a well ventilated installation location which is protected against direct sunlight.
- Allow warm food to cool down first before placing it in the cooling device to keep cool.
- Do not open the cooling device more often than necessary.
- Do not leave the cooling device open for longer than necessary.
- Defrost the cooler once a layer of ice forms.
- Avoid unnecessarily low temperatures.
7.3 Connecting the cooler
Connecting to a battery (vehicle or boat)
The cooler can be operated with 12 V== or 24 V---.

NOTICE! Danger of damage!
Disconnect the cooler and other consumer units from the battery before you connect the battery to a quick charging device.
Overvoltage can damage the electronics of the device.
For safety reasons the cooler is equipped with an electronic system to prevent polarity reversal. This protects the cooler against short-circuiting when connecting to a battery.
Using the fused DC plug

NOTICE! Danger of damage!
For protection of the device the DC cable supplied includes a fuse inside the plug. Do not remove the fused DC plug. Only use the DC cable supplied.
Plug the DC connection cable (fig. 1 2, page 2) into the DC voltage socket of the cooler (fig. 4 5, page 3).
▶Connect the connection cable to the DC power outlet.
Connecting to AC mains (e.g. in the home or office)

DANGER! Danger of electrocution!
- Never handle plugs and switches with wet hands or if you are standing on a wet surface.
- If you are operating your cooler on board a boat with an AC mains connection, you must install a residual current circuit breaker between the AC mains and the cooler.
Seek advice from a trained technician.
The coolers have an integrated multi-voltage power supply with priority circuit for connecting to an AC voltage source. The priority circuit automatically switches the cooler to AC operation if the device is connected to an AC power supply, even if the DC connection cable is still attached.
When switching between the AC power supply and the DC battery supply, the red LED may light up briefly.
Plug the AC connection cable (fig. 1 3, page 2) into the AC voltage socket of the cooler (fig. 4 1, page 3).
▶Connect the connection cable to the AC power outlet.
7.4 Using the battery monitor
The device is equipped with a multi-level battery monitor that protects your vehicle battery against excessive discharging when the device is connected to the on-board DC supply.
If the cooler is operated when the vehicle ignition is switched off, the cooler switches off automatically as soon as the supply voltage falls below a set level. The cooler will switch back on once the battery has been recharged to the restart voltage level.

NOTICE! Danger of damage!
When switched off by the battery monitor, the battery will no longer be fully charged. Avoid starting repeatedly or operating current consumers without longer charging phases. Ensure that the battery is recharged.
In "HIGH" mode, the battery monitor responds faster than at the levels "LOW" and "MED" (see the following table).
| Battery monitor mode LOW MED HIGH | |||
| Switch-off voltage at 12 V | 10.1 V | 11.4 V | 11.8 V |
| Restart voltage at 12 V | 11.1 V | 12.2 V | 12.6 V |
| Switch-off voltage at 24 V | 21.5 V | 24.1 V | 24.6 V |
| Restart voltage at 24 V | 23.0 V | 25.3 V | 26.2 V |
The battery monitor mode can be selected as follows:
▶Switch on the cooler.
▶ Press the "SET" button (fig. 3 4, page 2) four times.
▶ Use the "UP +" (fig. 3 10, page 2) or "DOWN -" (fig. 3 9, page 2) buttons to select the battery monitor mode.
√Digital display will be as follows: Lo (LOW), d (MED), HI (HIGH)
√ The selected mode then appears in the display for a few seconds. The display flashes several times before it returns to the current temperature.

NOTE
When the cooler is supplied by the starter battery, select the battery monitor mode "HIGH". If the cooler is connected to a supply battery, the battery monitor mode "LOW" will suffice.
7.5 Using the cooler

NOTICE! Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the heat that generated during operation can dissipate. Ensure that the ventilation slots are not covered. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.
▶Place the cooler on a firm foundation.
Make sure that the ventilation slots are not covered and that the heated air can dissipate.

NOTE
Place the cooler as shown (fig. 1, page 2). If you operate the box in a different orientation it can be damaged.
▶ Connect the cooler, see chapter "Connecting the cooler" on page 14.

NOTICE! Danger from excessively low temperature!
Ensure that the only those objects are placed in the cooler that are intended to be cooled at the selected temperature.
▶ Press the "ON/OFF" button (fig. 3 1, page 2) for between one and two seconds.
√ The LED "⏻" lights up (fig. 3 2, page 2).
√ The displays (fig. 3 6 and 7, page 2) switch on and show the current temperatures.
√ Depending on the compartment set temperatures, the cooler starts cooling either one or both compartments.
√ The LEDs (fig. 3 5 and 8, page 2) light up when the respective compartment is cooling.

NOTE
When operating with the battery, the display switches off automatically if the battery voltage is low. The LED "⏻" flashes orange.
Latching the cooler lids
▶Close the lids.
▶ Press the latches (fig. 2 1, page 2) down, until they latch in place audibly.

NOTE – Alarm "Lid open"
If a lid is left open for three minutes or more and the device is switched on, the respective interior light will flash until the lid is closed.
7.6 Setting the temperature
▶ Press the "SET" button (fig. 3 4, page 2):
- once for the large compartment
– twice for the small compartment
√The display of the respective compartment blinks.
▶ Use the "UP +" (fig. 3 10, page 2) and "DOWN -" (fig. 3 9, page 2) buttons to select the cooling temperature.
You can adjust the cooling temperature so that each compartment works as a refrigerator compartment or as a freezer compartment.
√ The cooling temperature appears in the display for a few seconds. The display flashes several times and then the current temperature is displayed again.

NOTE
The temperature of each compartment can be set to -22^ . The manufacturer however recommends a cooling temperature of -15^ to -18^ for normal usage and optimum energy consumption.
7.7 Switching a compartment off or on
If only one compartment is required, the other compartment can be switched off to save energy.
Switching off compartment
If the display of the compartment shows a temperature, you can switch off the compartment as follows:
▶ Press the "SET" button (fig. 3 4, page 2):
- once for the large compartment
– twice for the small compartment
√The display of the respective compartment blinks.
▶ Press the "ON/OFF" button (fig. 3 1, page 2).
√“OFF” flashes for five seconds on the display of the respective cooling compartment, then “OFF” is displayed.
Switching on compartment
If the display of the compartment shows "OFF", you can switch on the compartment as follows:
▶ Press the "SET" button (fig. 3 4, page 2):
- once for the large compartment
– twice for the small compartment
√The display of the respective compartment blinks.
▶ Press the "ON/OFF" button (fig. 3 1, page 2).
√ The cooling temperature appears in the display for a few seconds. The display flashes several times and then the current temperature is displayed.
7.8 Enabling Wi-Fi signal for optional app
The cooler can be controlled via Wi-Fi using an app that you can install on a compatible device. The app has control, display and alarm functions.
You find further information on the Dometic website for your country (see back page). Note that the app may not be available in your country.
The Wi-Fi name of the compressor cooler begins with "CFX". The preset password is "00000000". You can change the Wi-Fi name and password individually.
Switching the Wi-Fi signal on or off
▶ Press the "SET" button (fig. 3 4, page 2) six times.
▶ Use the "UP+" (fig. 3 10, page 2) and "DOWN-" (fig. 3 9, page 2) buttons to switch the Wi-Fi signal on or off.
√ The desired setting appears in the display for a few seconds. The display flashes several times and then the current temperature is displayed again.

NOTE
- The default setting for the Wi-Fi transmitter is off. For first time use and whenever power to the device is interrupted, switch on the Wi-Fi transmitter to use the app.
- The Wi-Fi transmitter uses a small amount of power. For optimal energy performance switch the Wi-Fi transmitter off if it is not being used.
Resetting the Wi-Fi to factory settings
In case you have personalized the Wi-Fi settings of your cooling device using the Wi-Fi app and forgotten your password, you can reset to the factory settings as follows:
▶ Press the "SET" button (fig. 3 4, page 2) six times.
▶ Hold the "UP +" (fig. 3 10, page 2) button for at least five seconds.
√ In both displays "rES" will blink several times before returning to the previous display.
√The Wi-Fi settings have been reset to factory settings.
For additional information visit the Dometic website from which you downloaded the app.
7.9 Set brightness of displays
The display brightness can be dimmed for low ambient light conditions. To set the dimming level of the display proceed as follows:
▶Switch on the cooler.
▶ Press the "SET" button (fig. 3 4, page 2) five times.
▶ Use the "UP+" (fig. 3 7, page 2) or "DOWN-" (fig. 3 6, page 2) buttons to set the brightness of the displays.
√Display will be as follows:
d0 (default), d1 (medium), d2 (dark)
√ The displays show the set mode for some seconds. The displays flash several times before they returns to the current brightness.

NOTE
- The factory setting of brightness of the display is d0 (default).
- If a fault occurs, the brightness automatically is d0 (default). After troubleshooting the set brightness is reactivated.
7.10 Using the emergency switch
The emergency switch (fig. 4 3, page 3) is located below the control panel. For normal operation the switch is in the "NORMAL USE" position.
If an electronic control failure occurs, slide the switch to "EMERGENCY OVERRIDE" position.

NOTE
If the switch is in the “EMERGENCY OVERRIDE” position, the cooler circuit runs with full cooling capacity and, depending on the running conditions of each compartment at the time of switching, may either freeze one or both compartments, and/or stop cooling one of the compartments.
7.11 USB port for power supply
The USB port allows you to charge small devices like mobile phones and mp3-players.
To use your cooling box with any USB devices, simply connect a USB cable (not included) to your device.

NOTE
Ensure that any small device connected to the USB port is compatible with 5 V/500 mA operation.
7.12 Switching off the cooler
▶Empty the cooler.
▶Switch the cooler off.
▶ Pull out the connection cable.
If you do not want to use the cooler for a longer period of time:
Leave the lids slightly open. This prevents odour build-up.
7.13 Defrosting the cooler
Humidity can form frost in the interior of the cooling device or on the evaporators. This reduces the cooling capacity. Defrost the device in good time to avoid this.

NOTICE! Danger of damage!
Never use hard or pointed tools to remove ice or to loosen objects which have frozen in place.
To defrost the cooler, proceed as follows:
▶Take out the contents of the cooling device.
▶If necessary, place them in another cooling device to keep them cool.
▶Switch off the device.
▶Leave the lids open.
▶Wipe off the defrosted water.
7.14 Replacing the AC fuse

DANGER! Danger of electrocution!
Disconnect the power supply and the connection cable before you replace the device fuse.
▶Disconnect the power supply to the device.
▶ Pull off the connection cable.
▶ Pry out the fuse insert (fig. 4 2, page 3) with a screwdriver.
▶ Replace the defective glass fuse with a new one that has the same type and rating (4 A, 250 V).
▶Press the fuse insert back into the housing.
▶Reconnect the power supply to the device.
7.15 Replacing the DC plug fuse
▶ Unscrew the contact pin housing (fig. 7 3, page 4) from the plug (fig. 7 1, page 4).
▶ Replace the defective fuse (fig. 7 2, page 4) with a new fuse of the same type and rating (3AG, Fast Acting, 10 A).
▶Re-assemble the plug in reverse order.
7.16 Replacing the light PCB
▶Disconnect the power supply to the device.
▶ Pry out the transparent cover with a screwdriver (fig. 8 A, page 4).
▶ Unscrew the PCB mounting screws (fig. 8 B, page 4).
▶ Pull out the plug from the PCB (fig. 8 C, page 4).
▶Replace the defective light PCB with a new one.
▶Fit the new PCB using reverse of removal instructions.
▶Press the transparent cover back into the housing.
▶Reconnect the power supply to the device.
8 Cleaning and maintenance

WARNING!
Always disconnect the device from the power supply before you clean and service it.

NOTICE! Risk of damage
- Never clean the cooler under running water or in dish water.
- Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.
▶ Occasionally clean the device interior and exterior with a damp cloth.
▶Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged.
9 Troubleshooting
Fault Possible cause Suggested remedy
| Device does not function, LED does not glow. | No voltage was detected in the DC power outlet. | In most vehicles the ignition must be turned on before power will be supplied to the DC power outlet. |
| No voltage present in the AC voltage outlet. | Try using another plug outlet. | |
| The device fuse is defective. | Replace the device fuse, see chapter “Replacing the AC fuse” on page 23. | |
| The integrated mains adapter is defective. | This can only be repaired by an authorised repair centre. | |
| The device does not cool (plug is inserted, “POWER” LED is lit). | Defective compressor. | This can only be repaired by an authorised repair centre. |
| The device does not cool (plug is inserted, “POWER” LED flashes orange, display is switched off). | Battery monitor is set too high. | Select a lower battery monitor setting. |
| Battery voltage is too low. | Test the battery and charge it as needed. |
Fault Possible cause Suggested remedy
| When operating from the DC outlet: The ignition is on and the device is not working and the LED is not lit. | The DC outlet is dirty. This results in a poor electrical contact. | If the plug of your cooler becomes very warm in the DC outlet, either the DC outlet must be cleaned or the plug has not been assembled correctly. |
| The fuse of the DC plug has blown. | Replace the fuse in the DC plug, see chapter “Replacing the DC plug fuse” on page 23. | |
| The vehicle fuse has blown. | Replace the vehicle’s DC outlet fuse. Please refer to your vehicle’s operating manual. | |
| The display shows an error message (e.g. “Err1”) and the appliance does not cool. | The appliance has switched off due to an internal fault. | This can only be repaired by an authorised repair centre. |
| The interior light of a compartment flashes. | The lid of the compartment has been left open for more than three minutes. | Close the lid of the compartment. |
10 Guarantee
The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see the back of the instruction manual for the addresses) or your retailer.
For repair and guarantee processing, please include the following documents when you send in the device:
• A copy of the receipt with purchasing date
- A reason for the claim or description of the fault
11 Disposal
▶ Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.
12 Technical data
| CFX75DZW CFX95DZW | ||
| Ref. no.: 9600001409, | 9600001413 | 9600000480,9600000163 |
| Connection voltage: | 12/24 V--- and 100 - 240 V~ | |
| Rated current: | 12 V---: 7.9 A24 V---: 3.6 A100 V~: 0.93 A240 V~: 0.38 A | 12 V---: 9.2 A24 V---: 4.5 A100 V~: 1.10 A240 V~: 0.45 A |
| Cooling capacity: | +10 °C to -22 °C (+50 °F to -8 °F) | |
| Category: | 1 | |
| Energy efficiency class: | A+ | |
| Energy consumption: | 105 kWh/annum | 109 kWh/annum |
| Gross volume:Large compartment:Small compartment: | 45 |30 | | 54 |40,5 | |
| Storage volume:Large compartment:Small compartment: | 43 |27 | | 50,5 |34,5 | |
| Climate class: | N, T | |
| Ambient temperature: | +16 °C to +43 °C (+61 °F to +110 °F) | |
| Noise emission: | 37 dB(A) | |
| USB: | 5 V---, 500 mA | |
| Frequency band (WiFi): | 2.4 GHz | |
| CFX75DZW | CFX95DZW | |
| RF power (WiFi): | 16 ± 1.5 dBm (802.11 b CCK, 11 Mbps)12 ± 1.5 dBm (802.11 g OFDM, 54 Mbps)11 ± 1.5 dBm (802.11 n HT20, MCS7) | |
| Refrigerant: R134a | ||
| Refrigerant quantity: 57 g 67 g | ||
| CO2 equivalent: 0.082 t 0.096 t | ||
| Global warming potential (GWP): 1430 | ||
| Dimensions (W x H x D) in mm:Including handles:Without handles: | 887 x 472 x 495832 x 472 x 495 | 957 x 472 x 530900 x 472 x 530 |
| Weight: 31 kg 32 kg | ||
| Test/certificates: | ![]() | |

NOTE
If the ambient temperature is above 32 °C ( 90 °F ), the minimum temperature cannot be attained.
Contains fluorinated greenhouse gases
Hermetically sealed equipment
There are no restrictions on using the WiFi function of the device in the EU member states.
Grand compartiment Petit compartiment


Activer/désactiver le signal WLAN
ANVISNING – Larm "Öppet lock"
PASS PÅ! Fare for overoppheting!
Dometic Australia Pty. Ltd.
1 John Duncan Court
Varsity Lakes QLD 4227
1800 212121
+61 7 55076001
Mail: sales@dometic.com.au
AUSTRIA
Dometic Austria GmbH
Neudorferstraße 108
A-2353 Guntramsdorf
+43 2236 908070
+43 2236 90807060
Mail: info@dometic.at
BENELUX
Dometic Branch Office Belgium
Zincstraat 3
B-1500 Halle
+32 2 3598040
+32 2 3598050
Mail: info@dometic.be
BRAZIL
Dometic DO Brasil LTDA
Avenida Paulista 1754, conj. 111
SP 01310-920 Sao Paulo
+551132513352
+551132513362
Dometic Group Asia Pacific
Suites 2207-11 · 22/F · Tower 1
The Gateway · 25 Canton Road,
Tsim Sha Tsui · Kowloon
+852 2 4611386
+85224665553
Mail: info@waeco.com.hk
HUNGARY
Dometic Zrt. Sales Office
Kerékgyártó u. 5.
H-1147 Budapest
+3614684400
+3614684401
Dometic Italy S.r.l.
Via Virgilio, 3
I-47122 Forlì (FC)
+39 0543 754901
+390543754983
Mail: vendite@dometic.it
JAPAN
Dometic KK
Maekawa-Shibaura, Bldg. 2
2-13-9 Shibaura Minato-ku
Tokyo 108-0023
+81 3 5445 3333
+81 3 5445 3339
Mail: info@dometic.jp
MEXICO
Circuito Médicos No. 6 Local 1
Colonia Ciudad Satélite
CP 53100 Naucalpan de Juárez
Estado de México
+52 55 5374 4108
+52 55 5393 4683
Mail: info@dometic.com.mx
NETHERLANDS
Dometic Benelux B.V.
Ecustraat 3
NL-4879 NP Etten-Leur
+31 76 5029000
+31 76 5029019
Mail: info@dometic.nl
NEW ZEALAND
Dometic New Zealand Ltd.
PO Box 12011
Penrose
Auckland 1642
+6496221490
+6496221573
Mail: customerservices@dometic.co.nz
NORWAY
Dometic Norway AS
∅sterøyveien 46
N-3232 Sandefjord
+47 33428450
+47 33428459
Mail: firmapost@dometic.no
POLAND
Dometic Poland Sp. z o.o.
Ul. Puławska 435A
PL-02-801 Warszawa
+48 22 414 3200
+48 22 414 3201
Mail: info@dometic.pl
PORTUGAL
Dometic Spain, S.L.
Komsomolskaya square 6-1
RU-107140 Moscow
+7 495 780 79 39
+7 495 916 56 53
Mail: info@dometic.ru
SINGAPORE
Dometic Pte Ltd
18 Boon Lay Way 06-140 Trade Hub 21
Singapore 609966
+65 6795 3177
+65 6862 6620
Mail: dometic@dometic.com.sg
SLOVAKIA
Dometic Slovakia s.r.o. Sales Office Bratislava
Nádražná 34/A
900 28 Ivánka pri Dunaji
/ +421 2 45 529 680
Mail: bratislava@dometic.com
SOUTH AFRICA
Dometic (Pty) Ltd.
Regional Office
South Africa & Sub-Saharan Africa
2 Avalon Road
West Lake View Ext 11
Modderfontein 1645
Johannesburg
+27114504978
+27114504976
Mail: info@dometic.co.za
SPAIN
Dometic Spain S.L.
Avda. Sierra del Guadarrama, 16
E-28691 Villanueva de la Cañada
Madrid
+34 91 833 60 89
+34 900 100 245
Mail: info@dometic.es
SWEDEN
Dometic Scandinavia AB
Gustaf Melins gata 7
Dometic Switzerland AG
Riedackerstrasse 7a
CH-8153 Rümlang
+41 44 8187171
+41 44 8187191
Mail: info@dometic.ch
UNITED ARAB EMIRATES
Dometic Middle East FZCO
P.O.Box17860
S-D 6, Jebel Ali Freezone
Dubai
+97148833858
+97148833868
Mail: info@dometic.ae
UNITED KINGDOM
Dometic UK Ltd.
Dometic House, The Brewery
Blandford St. Mary
Dorset DT119LS
+44 344 626 0133
+44 344 626 0143
Mail: customerservices@dometic.co.uk
USA
Dometic RV Division
1120 North Main Street
Elkhart, IN 46515
+1574-264-2131
