CFX5 25 - Fridge DOMETIC - Free user manual and instructions

Product Type	Portable compressor refrigerator
Brand	Dometic
Model	CFX5 25
Dimensions (L x D x H)	589 x 398 x 420 mm
Weight	9.5 kg
Net volume	25 liters
Power supply	12/24 V DC (DC cable) and 100-240 V AC via mains adapter
Temperature range	-18 °C to +10 °C (adjustable in 1 °C increments)
Refrigerant	R-134a (30 g)
Climate class	N, T (from 16 °C to 43 °C)
Power consumption (12 V)	Approx. 3.5 A (depending on ambient temperature)
Noise level	Approx. 30 dB(A)
Display	LCD screen with backlight, temperature in °C/°F
Connectivity	Integrated Bluetooth and Wi-Fi, controllable via Mobile Cooling app

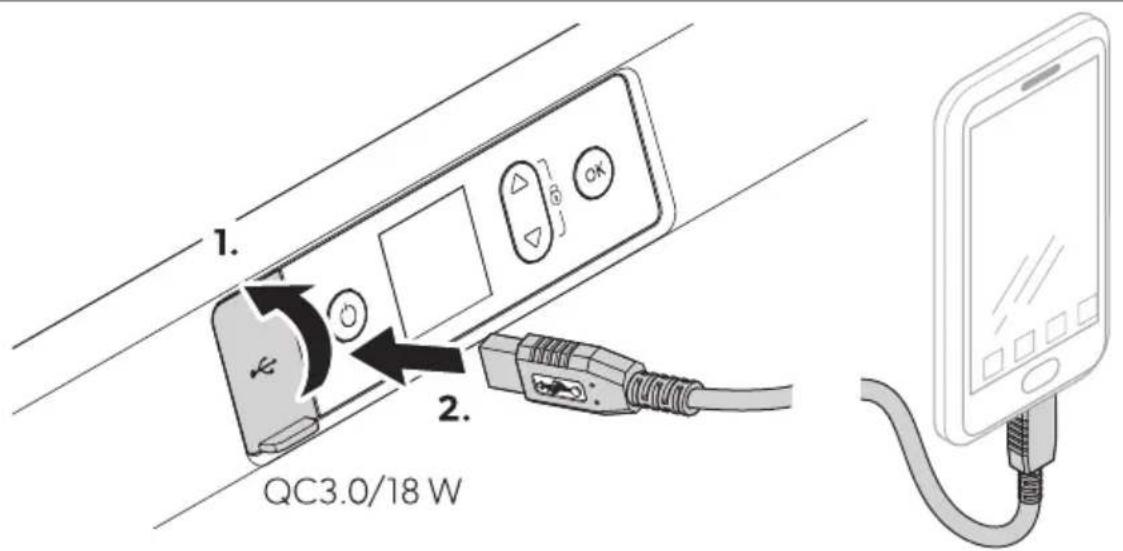

Ports	1 USB-A port (5 V, 2.1 A) for charging mobile devices
Battery protection	3 levels (Low, Med, High) to prevent excessive discharge
Screen lock	Yes, button combination to prevent accidental operation
Defrosting	Manual (turn off the appliance and wait for frost to melt)
Material	ABS plastic, PU foam insulation
Included accessories	Removable basket, DC cable, AC cable, user manual
Warranty	2 years (statutory warranty of conformity)

Frequently Asked Questions - CFX5 25 DOMETIC

How to set the temperature on the Dometic CFX5 25?

To set the temperature, use the arrow buttons (▲/▼) on the control panel. Press the Enter button to confirm. The temperature can be adjusted in 1 °C increments.

How to connect the refrigerator to the Mobile Cooling app?

Enable Bluetooth or Wi-Fi from the device menu. Open the Mobile Cooling app, select your device, and follow the pairing instructions. No password is required for Bluetooth.

What to do if the screen displays 'ERR - Low voltage'?

This message indicates that the battery voltage is too low. Check the battery charge and recharge it if necessary. You can also reduce the battery protection to a lower level in the settings.

How to defrost the Dometic CFX5 25?

Turn off the appliance, remove the food, and leave the lid open to allow the ice to melt. Never use sharp tools to scrape off the ice. Wipe away the defrost water with a cloth.

What type of fuse to use for the DC cable?

The DC cable has a built-in fuse in the plug. Use a fast-acting glass fuse, 3 A (for CFX5 25). To replace, open the fuse holder with a screwdriver and insert a new fuse of the same specifications.

Can I use the refrigerator in a car?

Yes, the Dometic CFX5 25 is designed for mobile use. Connect it to a 12/24 V cigarette lighter socket or directly to an auxiliary battery. Make sure the battery is sufficiently charged.

How to clean the interior of the refrigerator?

Unplug the appliance, clean the interior surfaces with a damp cloth and a little mild detergent. Rinse with clean water and dry thoroughly. Do not use abrasive products or hard objects.

What does the screen lock mean?

The screen lock prevents accidental changes to the settings. To lock or unlock, press the ▲ and ▼ buttons simultaneously for 2 seconds. A lock icon appears when the screen is locked.

What is the power consumption of the CFX5 25?

Power consumption depends on ambient temperature and setting. Typically, it is about 3.5 A on 12 V continuous. For optimal use, place the appliance in a ventilated area away from direct sunlight.

How to replace the fuse of the appliance (mains voltage)?

Disconnect the AC power. Open the fuse holder next to the AC plug using a screwdriver. Replace the faulty fuse with a fuse of the same type (fast-acting, 2 A, 250 V). Close the fuse holder and reconnect.

USER MANUAL CFX5 25 DOMETIC

CFX5 25, CFX5 35, CFX5 45, CFX5 55, CFX5 55IM, CFX5 75DZ, CFX5 95DZ

EN Cooling box Operating Manual...... OM DE Kühlbox Bedienungsanleitung...... KN Gla il re FR Manuel d'utilisation....LP ES Nevera Instrucciones de uso....00 P' Geleira Manual de instruções.....0CK 1' Frigori(ero) ortatile Istruzioni per l'uso..... CBL NL Koelbox Gebruiksaanwijzing...... QDN D, K-lebo./ Betjeningsvejledning.....QMP SO K1lbox Bruksanvisning...... QPC N2 K3- lebo. / Bruksanvisning......B00 FI K114 5laati..o !"ttöohje...... BKB PL Lo678. a t9r1/t1 :na Instrukcja obsługi.... BLK SK Chla6ia i box &'vod na obsluhu...... BNL

CS Chla6i í box &'vod k obsluze......BPM HU Hütőlá6a (aszn'lati utas)t's....KON HR Ra/hla6na . 9ti3a Upute za rukovanje....KKP 'SR SoA9t4 a . 9t9/9 ullanma ,lavuzu.... KMC SL Hla6ilna torba &avodilo za uporabo......K00 R2 C9tie (rigori(i B Instruc-iuni de operare....DCB DEFGHEI F J FI KF ./01234567 89 : 40; <o919567......DBK E' Lah9t9/. a/t asutusjuhend....DDL EL Ψυγείο Οδηγίες χειρισμού...... DMM L' Malt. re) Ni/ &audojimo vadovas...... DOP L0 , 9. /t94 . a/te

ietošanas rokasgrāmata....LOC , R L KO ____ دليل التشغيل

Co) 1right

© 2024 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or pending patent. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.

List of Figures

[]

CFX5 55, CFX5 55IM, CFX5 75DZ, CFX5 95DZ

□ CFX5 25, CFX5 35, CFX5 45

□

CFX5 25, CFX5 35, CFX5 45, CFX5 55

CFX5 55 IM

CFX5 75DZ, CFX5 95DZ

□

		Low	Medium	High
12 V	OFF	10.1 V	11.2 V	11.8 V
	ON	11.4 V	12.2 V	12.6 V
24 V	OFF	21.5 V	24.1 V	24.6 V
	ON	23.0 V	25.3 V	26.2 V

CFX5 25/CFX5 35/CFX5 45/CFX5 55

CFX5 55IM

CFX5 75DZ/CFX5 95DZ

CFX5 25/CFX5 35/CFX5 45/CFX5 55/CFX5 55IM

CFX5 75DZ/CFX5 95DZ

CFX5 75DZ/CFX5 95DZ

CFX5 55 IM

[ ]

□

□

□

□

[]

□

□

English

Important notes...... QM B Explanation of symbols...... QM K | Safety instructions...... ON D Explanation of symbols on the device....00 L | Scope of delivery....QP M J Accessories.....QP N Intended use.....QP O Technical description....BC P Before first use....BQ QC Operation....BB QQ Cleaning and maintenance....BO QB Troubleshooting...... BO QK Warranty....KC QD Disposal....KC QL Technical data....KC

Important notes

Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions must stay with this product.

By using the product, you confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. Failure to read and follow the instructions and warnings set forth herein may result in injury to yourself and others, damage to your product, or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings and related documentation, may be subject to changes and updates. For up-to-date product information, please visit documents.dometic.com.

2 Explanation of symbols

A signal word will identify safety messages and property damage messages and also will indicate the degree or level of hazard seriousness.

DANGER

Indicates a hazardous situation that, if not avoided, will result in death or serious injury.

WARNING

Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION

Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE

Indicates a situation that, if not avoided, can result in property damage.

NOTE: Supplementary information for operating the product.

3 Safety instructions

On boats, if the device is powered by the mains, ensure that the power supply has a residual current device (RCD), a residual current circuit breaker (RCCB), or a ground fault circuit interrupter (GFCI). Installation, especially in potentially damp areas, must be in accordance with all applicable installation regulations. Do not touch exposed cables with your bare hands. This applies especially when operating the device from the AC mains. Before starting the device, ensure that the power supply line and the plug are dry.

WARNING: Explanation of hazard

Do not store explosive substances such as spray cans with a flammable propellant in the cooling device.

Do not operate the cooling device if it is visibly damaged. If the cooling device's power cable is damaged, it must be replaced with a suitable power cable or assembly available from the manufacturer or its service agent to prevent safety hazards. This cooling device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards. Plug the device into sockets that ensure proper connection, especially when the device needs to be earthed.

WARNING: Fire hazard

When positioning the cooling device, ensure that the supply cord is not trapped or damaged. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the device. In the event of any damage to the refrigerant circuit, keep open flames and potential ignition sources away from the cooling device. Ventilate the room well. Switch off the cooling device. For cooling devices with R600a refrigerant: The refrigeration circuit contains a small quantity of an environmentally friendly but flammable refrigerant. It does not damage the ozone layer and does not increase the greenhouse effect. Any leaking refrigerant may ignite. Keep the ventilation openings on the device housing or in installations free of obstructions. Do not use any mechanical objects or other means to speed up the defrosting process, unless they have been recommended by the manufacturer for this purpose. Do not open or damage the refrigerant circuit. Do not use electrical devices inside the cooling device unless they are recommended by the manufacturer for that purpose.

WARNING: Health hazard

This cooling device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the cooling device in a safe way and understand the hazards involved. Children aged from 3 to 8 years are allowed to load and unload cooling devices. Children must be supervised to ensure that they do not play with the device. Cleaning and user maintenance must not be carried out by unsupervised children.

Before starting the cooling device, ensure that the power supply line and the plug are dry. Disconnect the cooling device from the power supply

Before each cleaning and maintenance

After every use

CAUTION: Health hazard

To avoid contamination of food, observe the following instructions:

Check if the cooling capacity of the cooling device is suitable for storing the goods to be cooled. Food may only be stored in its original packaging or in suitable containers. Opening the cooling device for long periods of time can cause significant increase of the temperature in the compartments of the device. Clean regularly surfaces that can come in contact with food and accessible drainage systems.

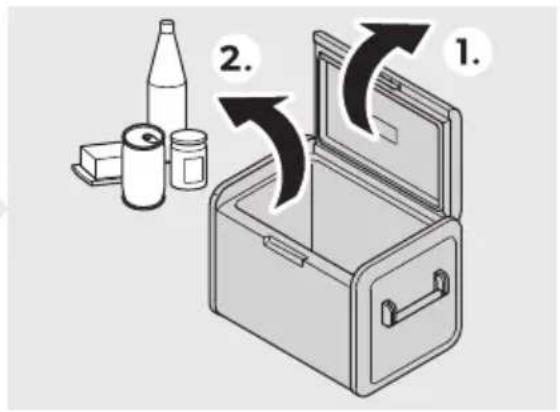

Is the cooling device left empty for long periods?

Switch off the cooling device. Defrost the cooling device. Clean and dry the cooling device. Leave the lid open to prevent mold from developing within the cooling device.

Check that the voltage specification on the data plate corresponds to that of the energy supply. Only connect the cooling device as follows:

With the EU connection cable to a EU power supply in the vehicle

With the JU connection cable to a JU power supply

Never pull the plug out of the socket by the cable. If the cooling device is connected to a EU outlet, disconnect the cooling device and other power consuming devices from the battery before connecting a quick charging device. If the cooling device is connected to a EU outlet, disconnect the cooling device or switch it off when turning off the engine. Otherwise the battery may be discharged. The cooling device is not suitable for transporting caustic materials or materials containing solvents. The insulation of the cooling device contains flammable cyclopentane and requires special disposal procedures. Deliver the cooling device at the end of its life-cycle to an appropriate recycling center. Do not place the cooling device near open flames or other heat sources (heaters, direct sunlight, gas ovens, etc.). Risk of overheating. Ensure at all times that there is a minimum of 50 mm ventilation on all sides of the cooling device. Keep the ventilation area free of any objects that could obstruct the air flow to the cooling components. Do not use or store the cooling device in closed compartments or areas with none or minimal air flow.

Do not fill the inner container with ice or fluids. Never immerse the cooling device in water. Protect the cooling device and cables against heat and moisture. The cooling device shall not be exposed to rain.

Explanation of symbols on the device

Warning: Risk of fire. Flammable materials

A2L

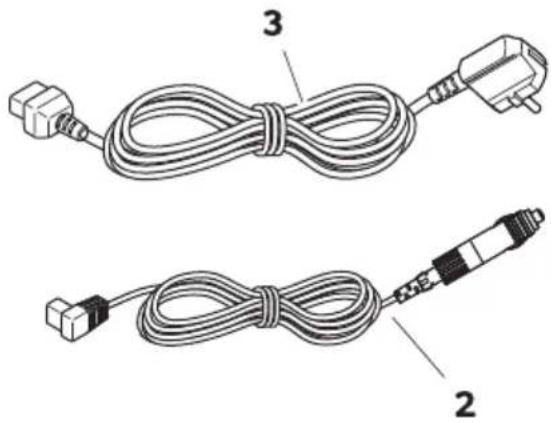

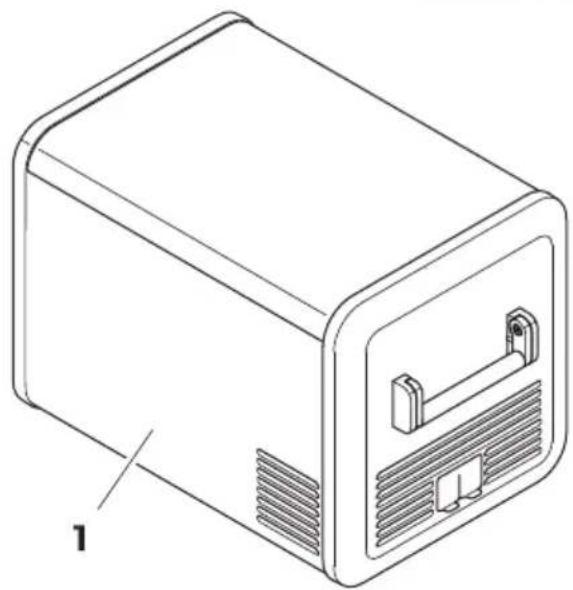

Scope of delivery

Fig. 50 on page 03

Ite4 in [IMAGE]	T 9antit1 De/ ri) tion
Q Q Uooler
B Q Uconnection cable for EU connection
K Q Uconnection cable for J U connection

Cleaning

Available as accessory (not included in scope of delivery)

De/ignation Re(no Mo6el
Prote tive over
WUBL PMBCCQBOCO UYgL BL
WUKL PMBCCQBOCM UYgL KL
WUDL PMBCCQBOCL UYgL DL
WULL PMBCCQBOQC UYgL LL
		UYgL LLIM
WUNL PMBCCQBOQQ UYgL NLEh
WUPL PMBCCQBOCN UYgL PLEh
Fri6ge /li6e
I>ELKLDLU	PMBCCQBDLD UYgL KL
		UYgL DL
I>ELLU	PMBCCQBDLL UYgL LL
		UYgL LLIM
I>ENLU	PMBCCQBDLM UYgL NLEh
I>EPLQCCU	PMBCCQBDLN UYgL PLEh
T 9i . (ixing . it
i Y BL	PMCCCCCQMM UYgL BL
i Y KLDL	PMCCCBPLPP	UYgL KL
		UYgL DL
Mobile Uooling app	j	suits all models

Note that the app may not be available in your country.

The cooling device is suitable for cooling goods. The cooling device is also suitable for use on vehicles.

The cooling device is designed to be operated from an EU on-board power supply of a vehicle or boat, from an EU auxiliary battery, or from an EU power supply.

The cooling device is suitable for camping or other similar recreational uses.

The cooling device is intended to be used in household and similar applications such as:

a) Staff kitchen areas in shops, offices, and other working environments; b) Farm houses; c) Clients in hotels, motels, and other residential type environments; d) Bed and breakfast type environments; e) Catering and similar non-retail applications.

This product is only suitable for the intended purpose and application in accordance with these instructions.

This manual provides information that is necessary for proper installation and/or operation of the product. Poor installation and/or improper operation or maintenance will result in unsatisfactory performance and a possible failure.

The manufacturer accepts no liability for any injury or damage to the product resulting from:

a) Incorrect installation, assembly, or connection, including excess voltage; b) Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer; c) Alterations to the product without express permission from the manufacturer; d) Use for purposes other than those described in this manual.

Dometic reserves the right to change product appearance and product specifications.

A low maintenance refrigerant circuit with compressor provides the cooling. The generous insulation and the powerful compressor ensure efficient and fast cooling.

The cooling device is portable.

The cooling device can withstand a short-term inclination of 30° for use on boats.

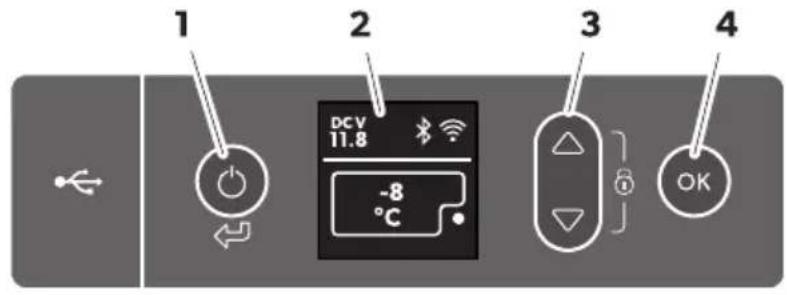

A power supply with priority circuit for connecting to the vehicle power supply. A three-level battery monitor to protect the vehicle battery (switches off automatically at low battery voltage). A display with temperature gauge in °C and °F. A temperature setting in steps of 1 °C (1 °F). An integrated Bluetooth and Wi-Fi function, hence controllable using an app. A foldable carry handle. A USB charger for portable devices such as mobile phones. A removable wire basket. An integrated bottle opener. CFX5 55IM only: Ice maker.

Switches the cooling device on when the button is pressed briefly.

Switches the cooling device off when the button is pressed for three seconds.

Returns to the previous menu.

Display: AC power supply is connected.

DC power supply is connected.

Bluetooth is activated.

Wi-Fi is activated.

The display is locked

The compressor is working

The ice maker is working (only for models with ice maker)

Press to navigate upwards or to increase the selected value.

Press to navigate downwards or to decrease the selected value.

Press and hold for 3 seconds to lock or unlock the display.

Press to select a menu or to save the selected value.

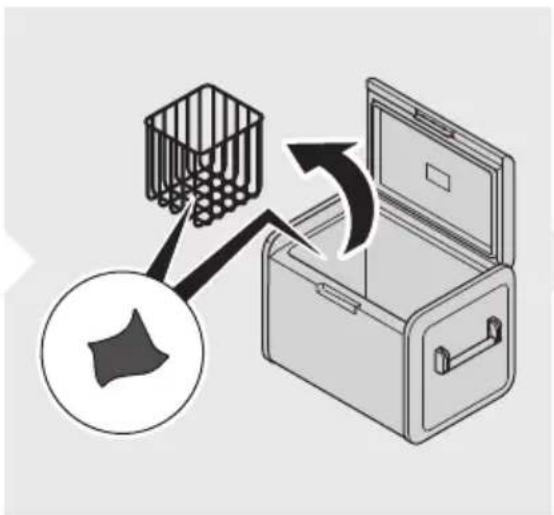

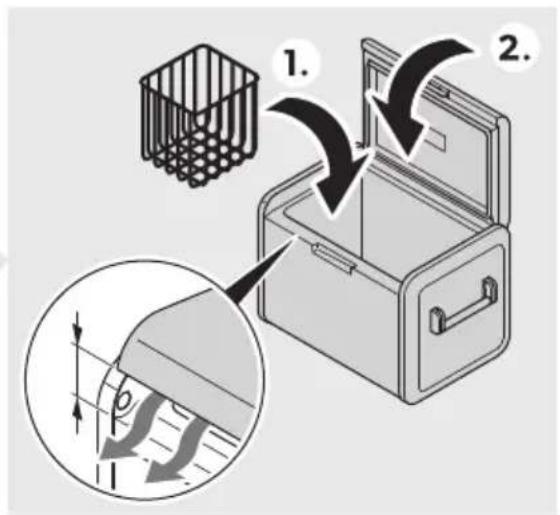

Before starting the cooling device for the first time, clean it inside and outside with a damp cloth for hygienic reasons (see Cleaning and maintenance).

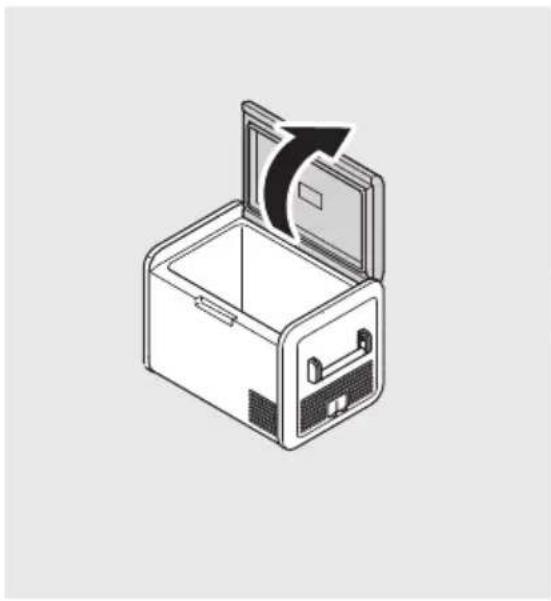

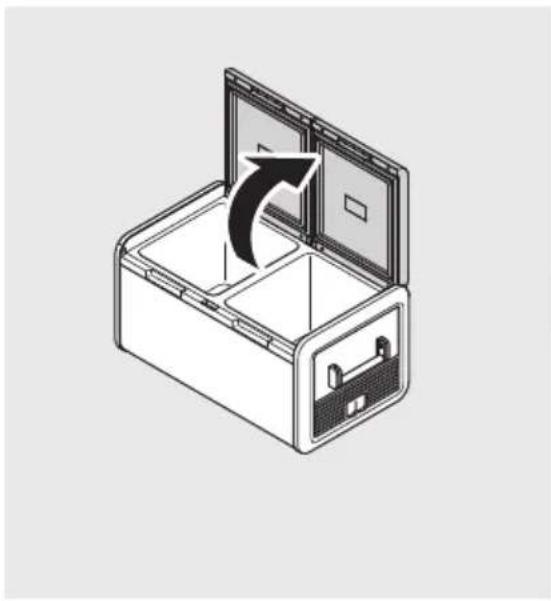

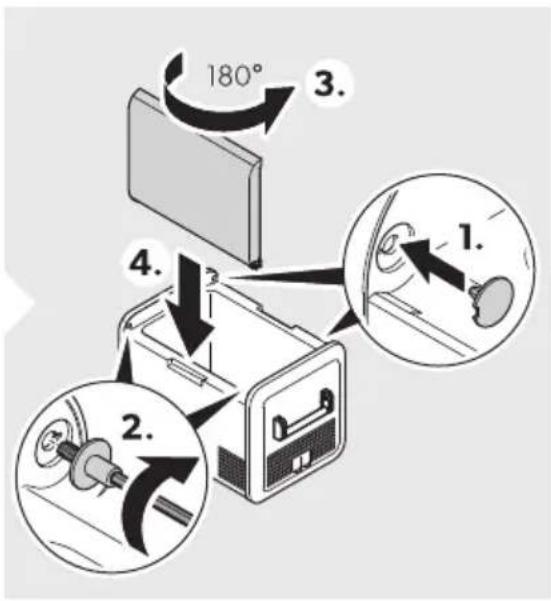

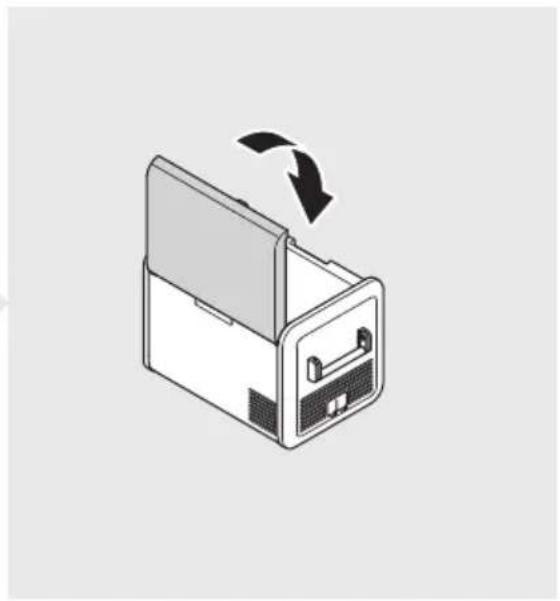

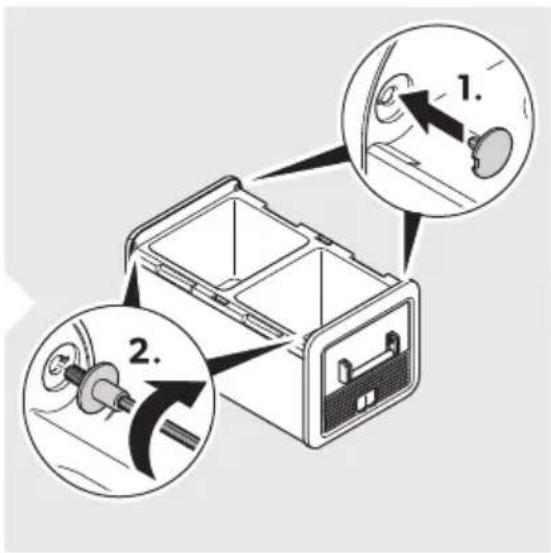

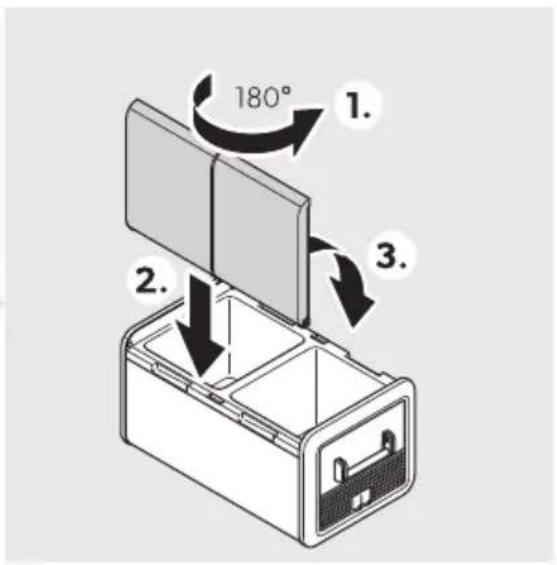

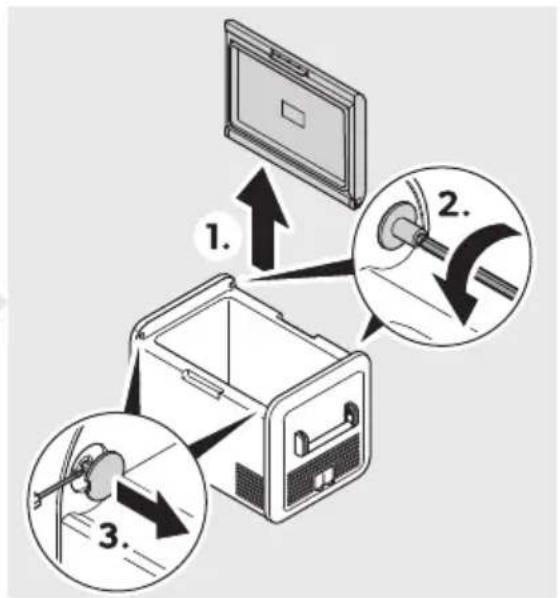

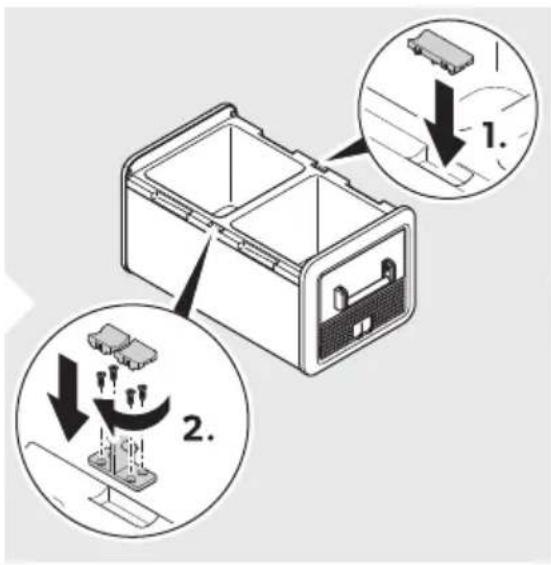

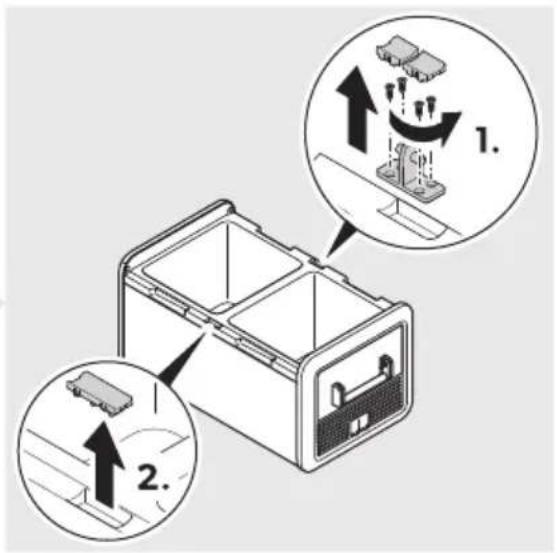

Reversing the lid opening

To reverse the lid opening, proceed as shown.

For CFX 55, CFX 55IM

Fig. 50 on page 5

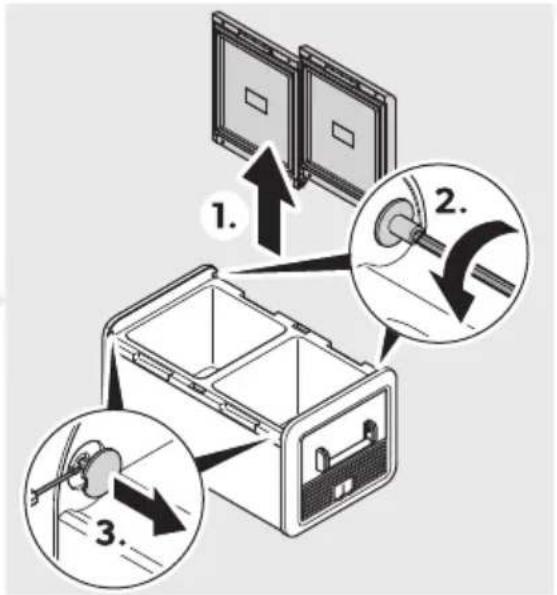

For CFX 575DZ, CFX 595DZ

Fig. 5 on page 4

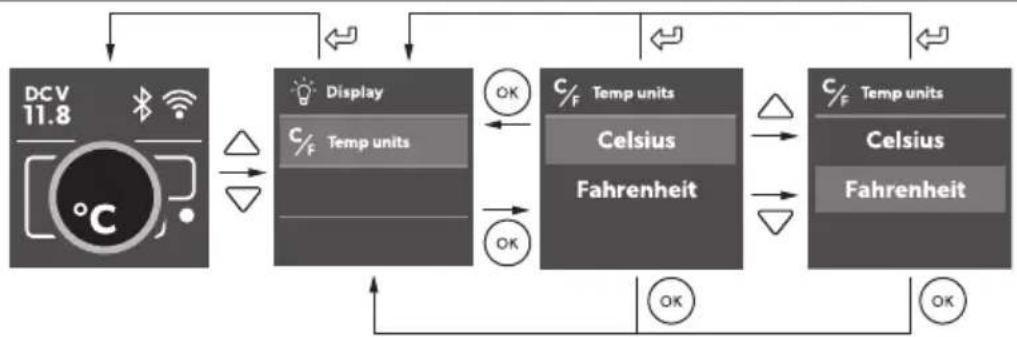

Selecting the temperature units

Proceed as shown?

Fig. □ on page 7

10 Operation

10.1 Avoiding food waste

To avoid food waste, note the following:

Keep temperature fluctuation as low as possible. Only open the cooling device as often and for as long as necessary. Store the goods in such a way that the air can still circulate well. Adjust the temperature to the quantity and type of the goods. Food can easily absorb or release odor or taste. Always store food covered or in closed containers or bottles.

10.2 Saving energy

Choose a well ventilated location which is protected from direct sunlight. Allow warm food to cool down first before placing it in the cooling device to keep cool. Do not open the cooling device more often than necessary. Do not leave the cooling device open for longer than necessary. If the cooling device has a basket, for optimal energy consumption, position the basket according to its position on delivery. On a regular basis, ensure the lid seal still fits properly. Avoid unnecessarily low temperatures.

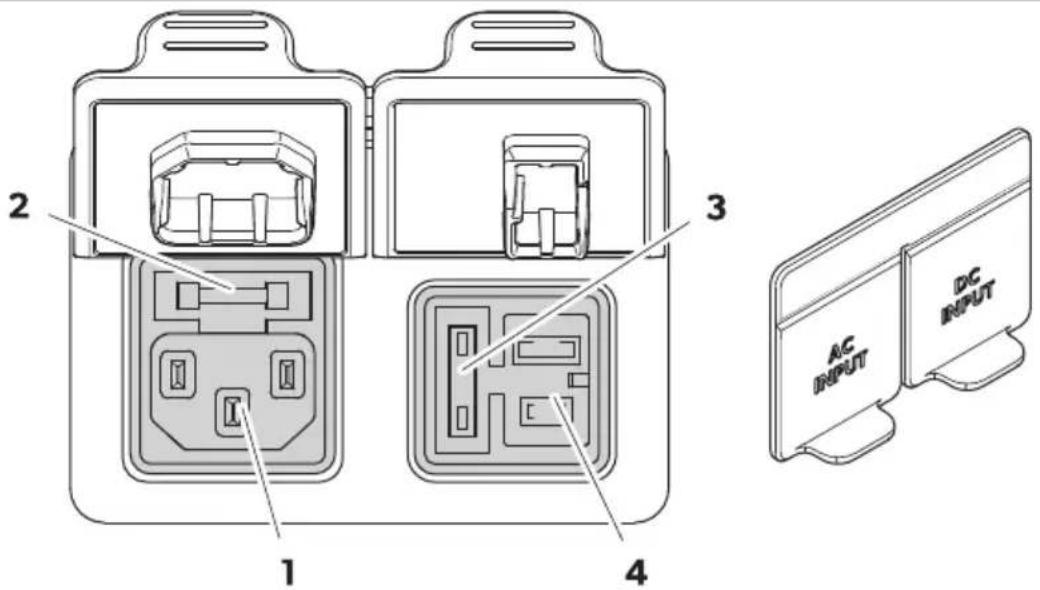

10.3 Connecting the cooling device

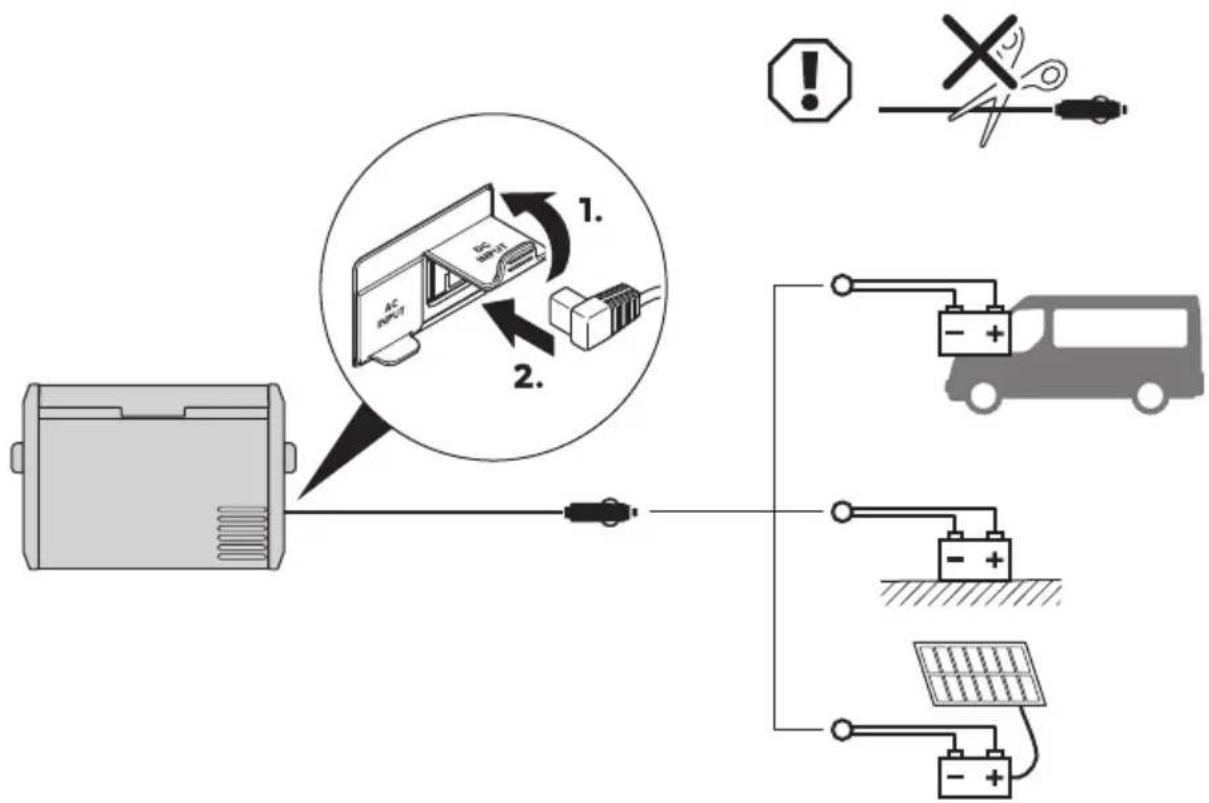

Connecting to a DC source

NOTICE! Damage hazard

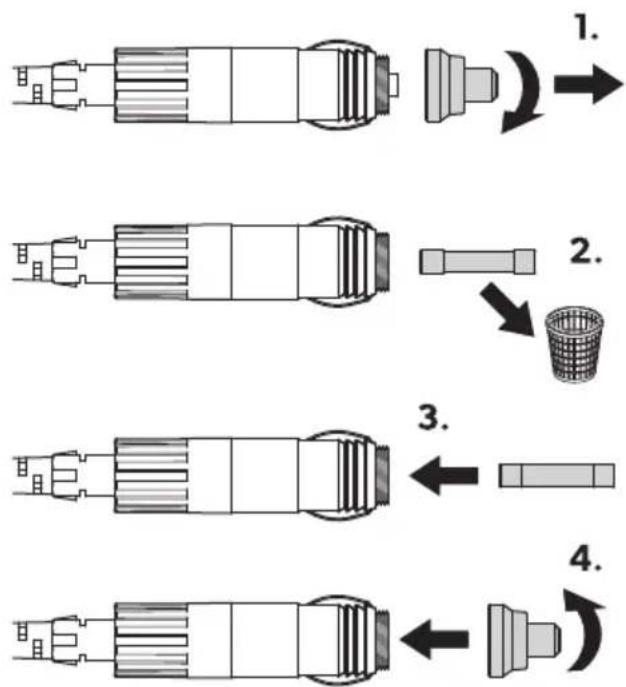

For protection of the device, the EU cable supplied includes a fuse inside the plug. Do not remove the fused EU plug. Only use the EU cable supplied.

Proceed as shown?

Fig. □ on page 7

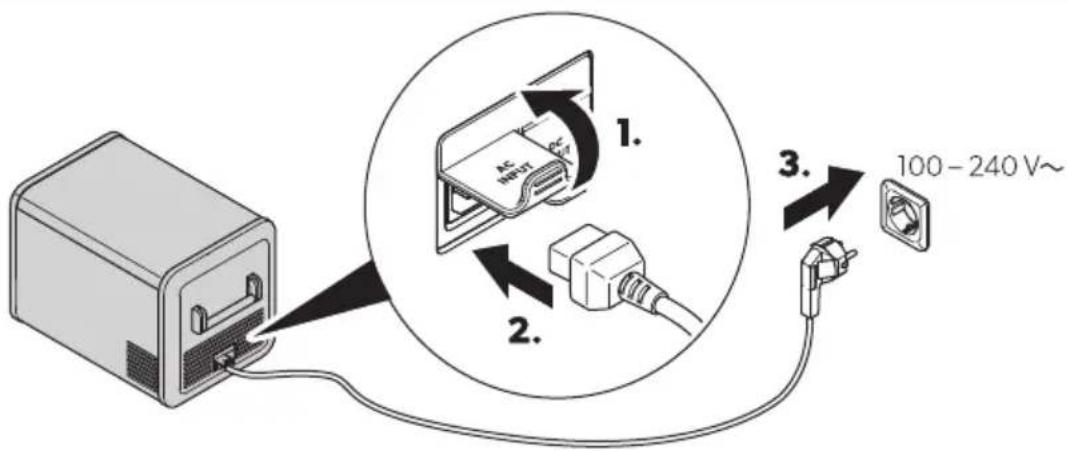

Connecting to an AC power supply

DANGER! Electrocution hazard

Never handle plugs and switches with wet hands or when you are standing on a wet surface.

If necessary, seek advice from a trained technician.

Proceed as shown?

Fig. □ on page 7

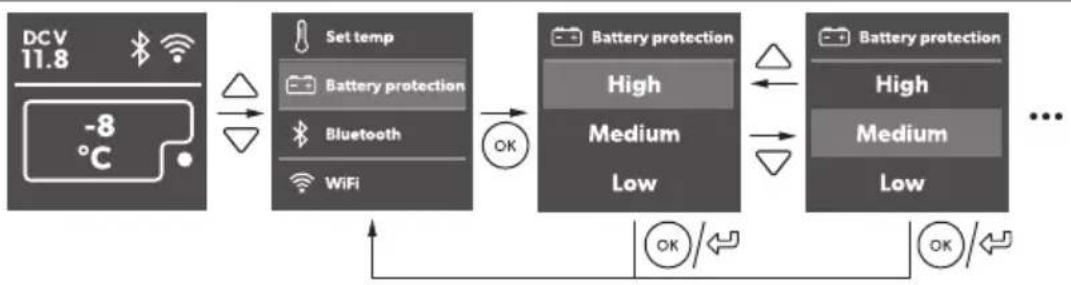

10.4 Using the battery monitor

The cooling device is equipped with a battery monitor that provides a K-stage battery protection. The battery protection prevents excessive discharging when the cooling device is connected to a vehicle starter battery or maximizes the use of a supply battery.

If the cooling device is operated when the vehicle ignition is switched on, the cooling device switches off automatically as soon as the supply voltage falls below a set level. The cooling device will switch back on once the battery has been recharged to the restart voltage level.

NOTICE! Damage hazard

When switched off by the battery monitor, the battery will no longer be fully charged. Avoid starting repeatedly or operating current consumers without longer charging phases. Ensure that the battery is recharged.

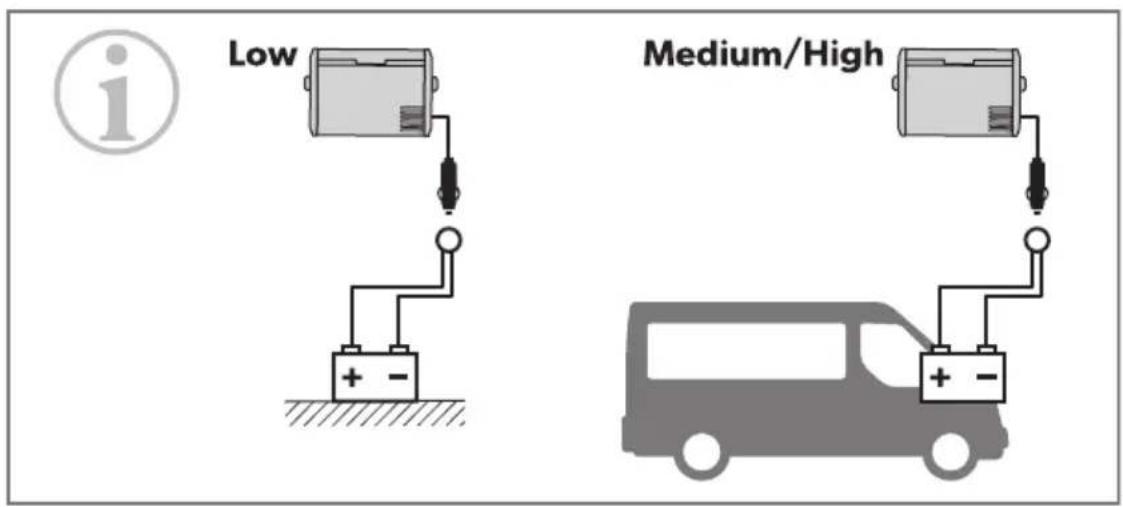

NOTE: When the cooling device is supplied by the starter battery, select the battery monitor mode m(IG(n. If the cooling device is connected to a supply battery, the battery monitor mode m>OV n will suffice.

Proceed as shown?

Fig. □ on page 8

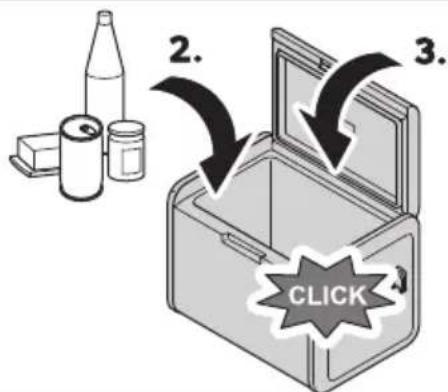

10.5 Using the cooling device

NOTICE! Risk of overheating

Ensure at all times that there is sufficient ventilation so that the heat generated during operation can dissipate. Ensure that the ventilation slots are not covered. Ensure that the device is sufficiently far away from walls and other objects so that the air can circulate.

NOTICE! Damage hazard from excessively low temperature

Ensure that only those objects are placed in the cooling device that are intended to be cooled at the selected temperature.

NOTE When operating with the battery:

a When voltage is off, the display switches off automatically.

a When voltage is ≥ 0 V and ≤ 0 V, the display may show "Low Voltage" depending on the battery monitor mode setting.

Switch the cooling device on?

Fig. □ on page 8

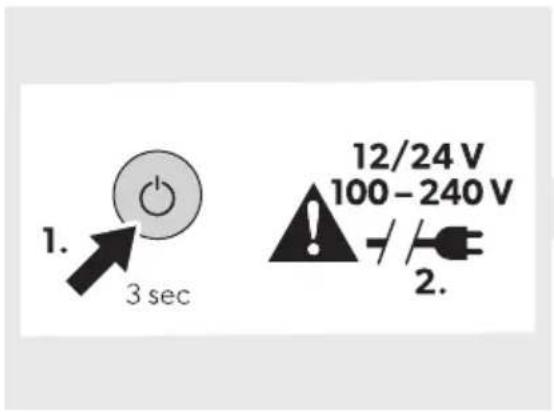

Switch the cooling device off?

Fig. □ on page 9

10.6 Using the display

Display states:

Fig. □ on page 9

Item Description

J | Standby

EN00 CFX5

Item Description

B Idle

U >ocked

Display overview

Fig. on page

Navigating through the menu

The highlighted menu is selected.

Press △ to navigate upwards. Press to navigate downwards.

Choosing a menu

Press to select the required menu.

Changing settings

The highlighted value or setting is selected.

Press to increase the selected value or to choose the previous setting. Press to decrease the selected value or to choose the next setting.

Returning to the previous menu

Press ← to return to the previous menu without saving.

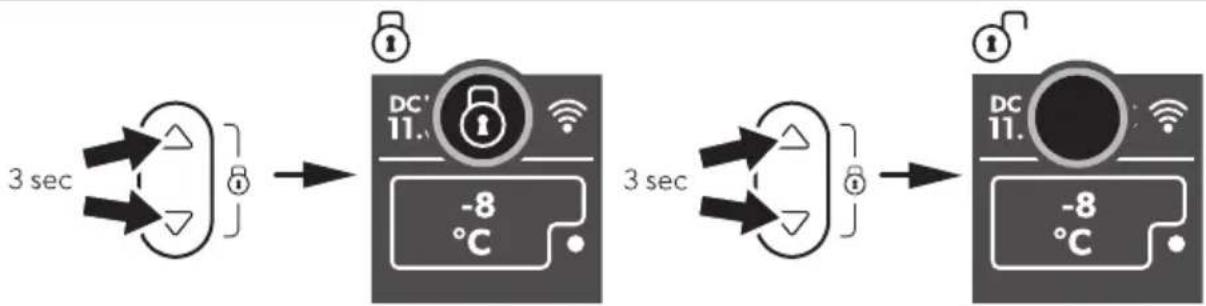

Press and hold simultaneously for 3 s to lock or unlock the display.

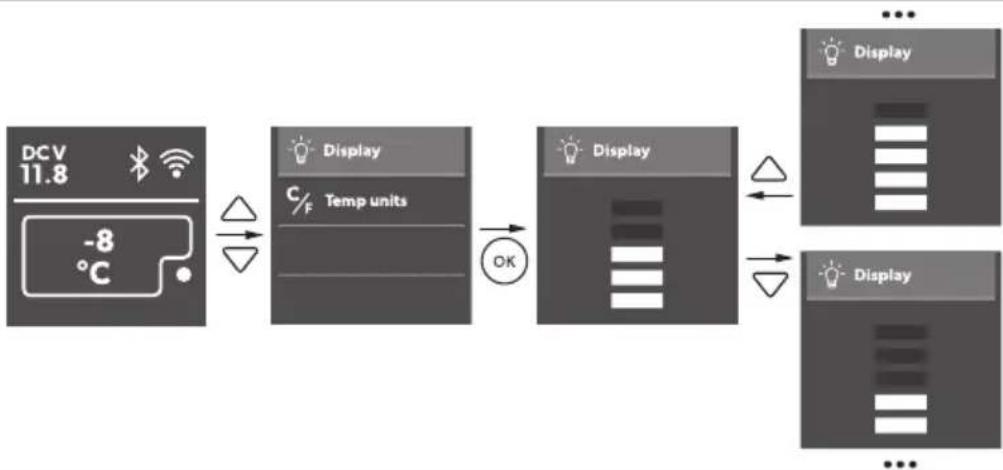

Setting the display brightness

Proceed as shown?

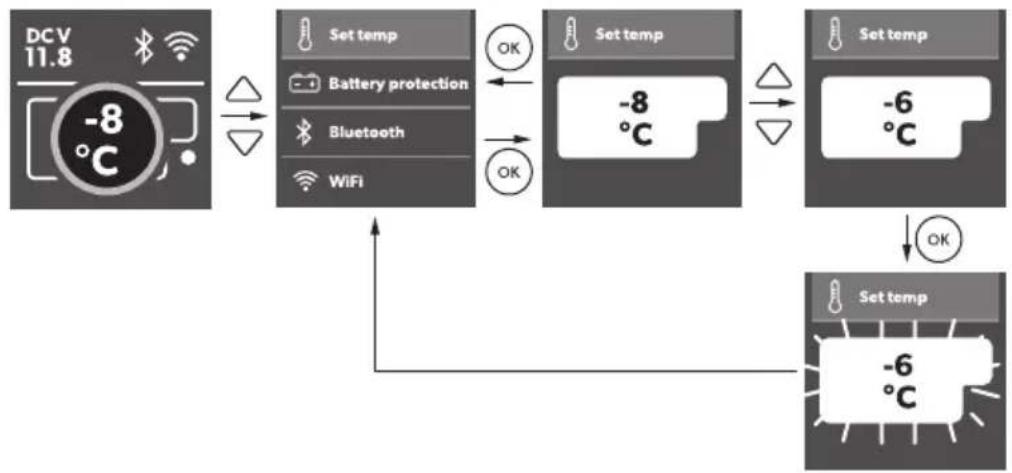

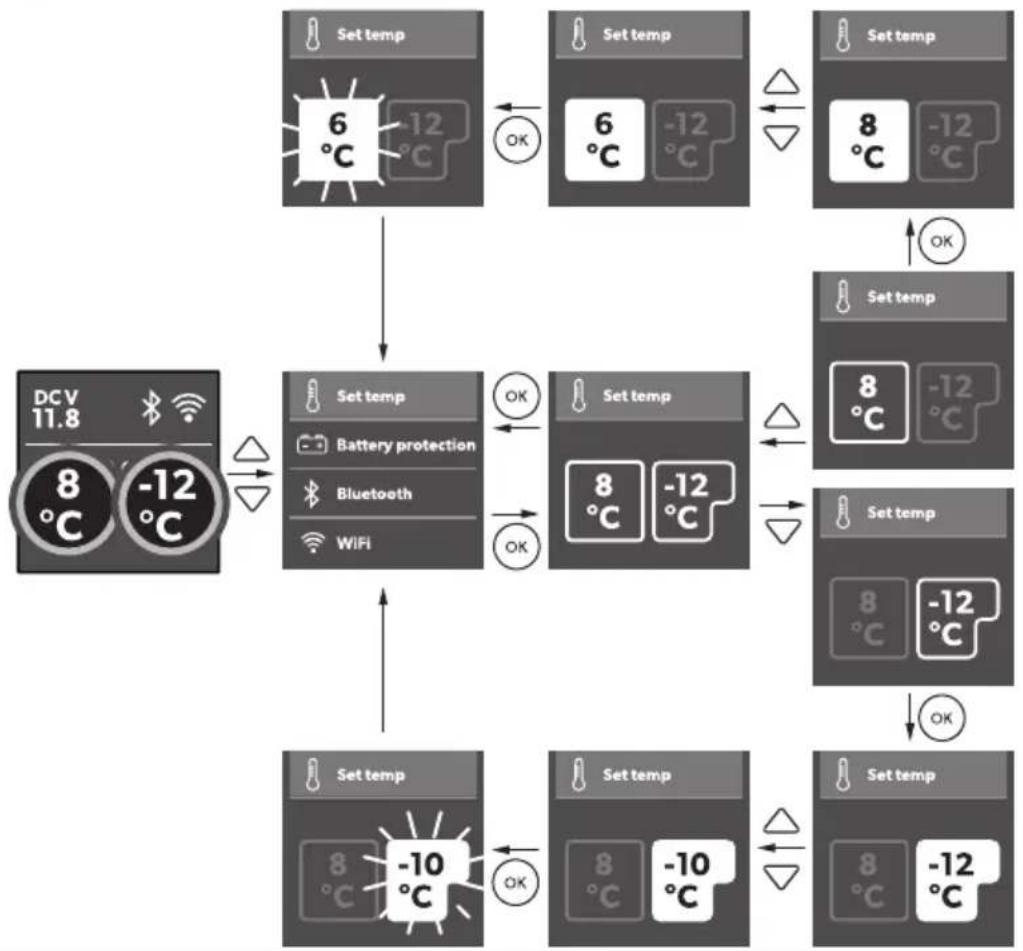

Setting the temperature

Proceed as shown?

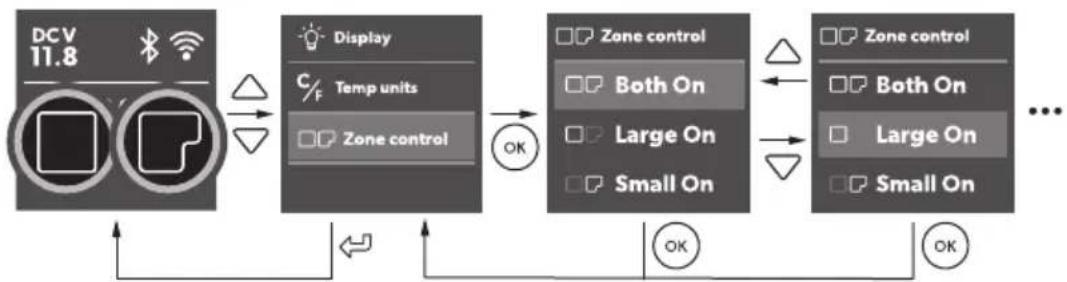

Switching a compartment off (for XCFX5 75DZ, CFX5 95DZ only)

You can activate each zone individually or both of them.

Proceed as shown?

Using the ice maker (XCFX5 55IM only)

NOTE

Independent of the main compartment's temperature setting, the ice maker zone is designed for making ice cubes if the ice maker is switched on. The cooling device's energy consumption increases with the ice maker on. Therefore, you should switch off the ice maker if it is not needed. The factory setting for the ice maker is ON.

Tips for using the ice maker

The ice maker makes ice fast for a number of hours after switching on and then automatically goes into an ice maintenance mode to reduce energy consumption. If multiple batches of ice are required as quickly as possible, switching the ice maker off and back on will set it back into fast ice making mode. Repeat as required.

Lower freezer temperature settings in the main compartment may not be maintained in high ambient temperature conditions with the ice maker switched on.

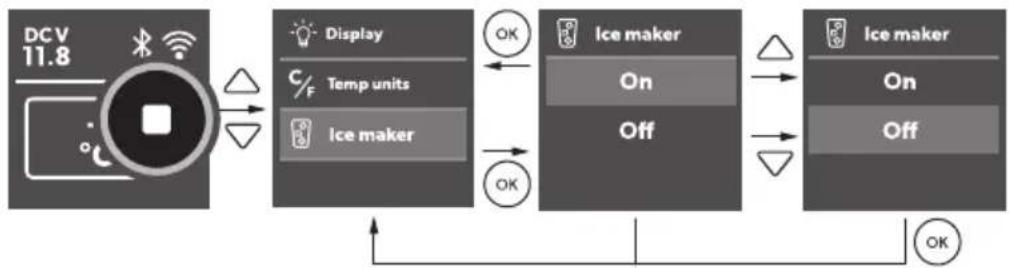

To turn the ice maker on or off proceed as shown.

Fig. 50 (on) page OP2

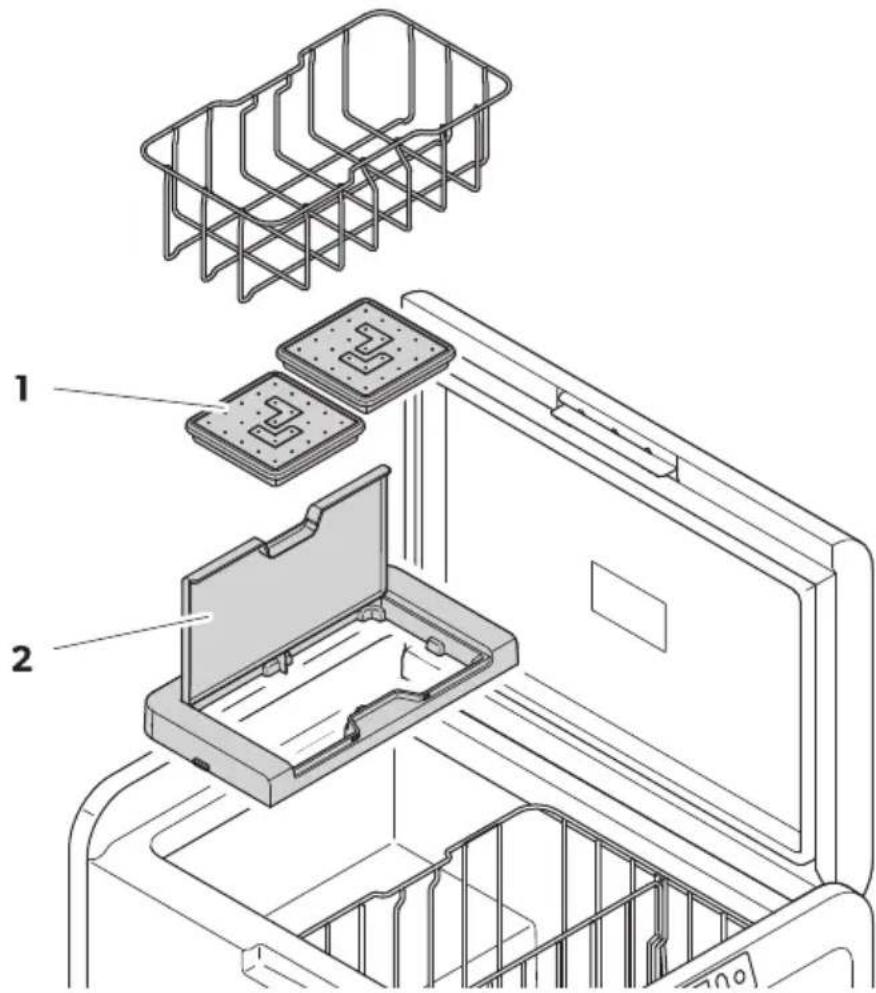

Filling the ice tray with water

Remove the ice trays (Fig. 51) from the ice maker housing (Fig. 52).

Fig. 50 (on) page OP2

Removing the ice cubes

NOTE

Removal may require additional force using two hands in high humidity conditions which may create an ice bond underneath the ice trays.

A. Open the ice maker housing lid and lid under the front of the ice trays. B. Remove the ice tray covers and twist trays to release the ice cubes.

Removing the ice maker housing

The ice maker housing can be removed for cleaning or when not in use to increase usable space inside the cooling device.

Lift the housing at one end until the lug unclips, then remove. Reverse the procedure for re-fitting, pushing down on lugs to snap into position.

Cleaning and drying the ice maker

When not in use, clean and dry the ice trays and inside the ice maker housing to prevent mould. After extended periods of non-use, clean the inside of the ice trays with a mild dishwashing solution and rinse with clean water prior to use.

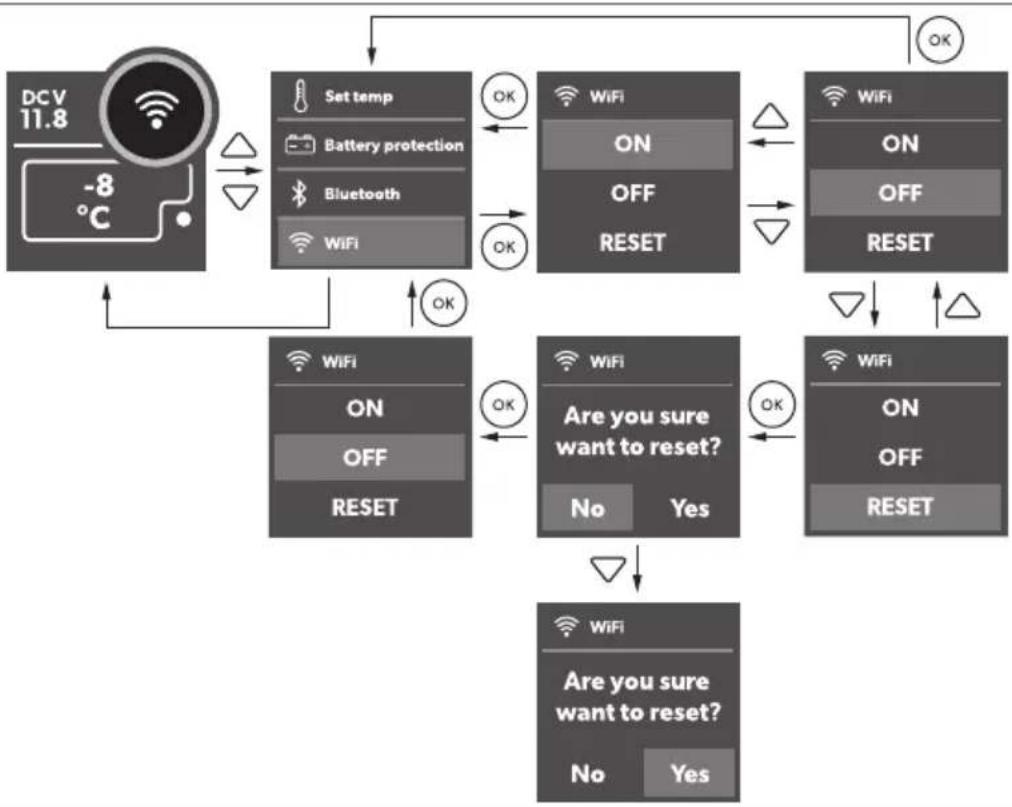

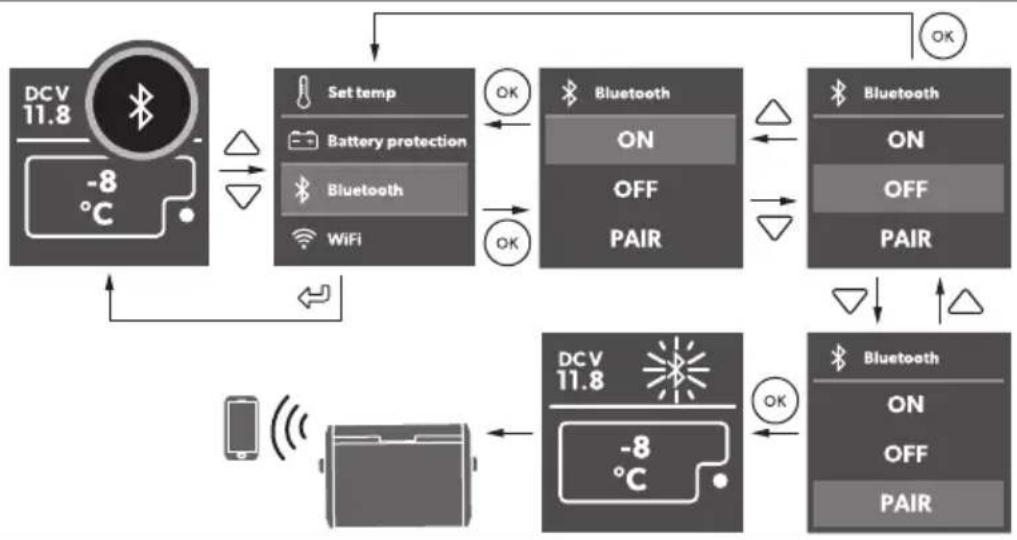

Using Bluetooth and Wi-Fi

Downloading the Mobile Cooling app

The cooling device can be monitored and controlled via Bluetooth or Wi-Fi using an app that you can install on a compatible device.

Download the Mobile Cooling app.

Setting the Bluetooth signal and connecting to the app

The cooling device can be monitored and controlled via Bluetooth. To do so, pair the cooling device with your Bluetooth device.

Note

Pairing must be done within the Mobile Cooling app, not in device settings. There is no password required for Bluetooth connection.

Proceed as shown:

Fig. 500 on page 3

Setting the Wi-Fi signal

Proceed as shown?

Fig. 50 on page OP3

2) Operating Bluetooth and Wi-Fi

Follow the instructions in the mobile cooling app. The Bluetooth or Wi-Fi LED lights up when the cooler is connected.

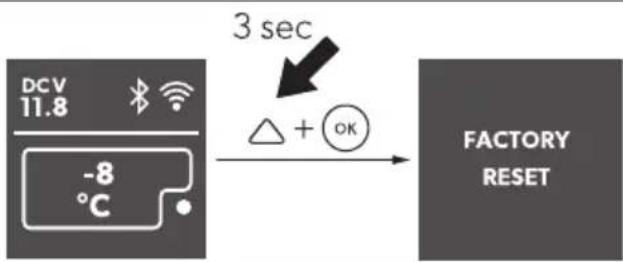

PZSP3 Resetting to factory settings

The reset function changes all display, menu, and app fields to the original factory settings.

Proceed as shown?

Fig. 50 on page OP3

PZSP4 USB port for powering devices

The USB port allows you to charge small devices like mobile phones and MP3 players.

Note: Ensure that any small device connected to the USB port is compatible with USB operation.

Proceed as shown?

Fig. 50 on page OP4

PZSP5 Defrosting the cooling device

Humidity can form frost in the interior of the cooling device or on the evaporator. This reduces the cooling capacity.

Never use hard or pointed tools to remove ice or to loosen objects which have frozen in place.

To defrost the cooling device proceed as follows:

A. Remove the contents of the cooling device. B. If necessary, place the contents in another cooling device to keep them cold. C. Switch off the cooling device. D. Leave the lid open. E. Wipe off defrosted water.

Disconnect the power supply and the connection cable before you replace the device fuse.

A. Disconnect the power supply to the device. B. Remove the connection cable. C. Pry out the fuse insert (Fig. 02 2) with a screwdriver. D. Replace the defective glass fuse with a new one of the same type and rating (fast acting H J H BLC b).

E. Press the fuse insert back into the housing.

F. Reconnect the power supply to the device.

A. Disconnect the power supply to the cooling device. B. Pry out the fuse cover (Fig. 03) with a screwdriver. C. Reverse the fuse cover and use hook to remove the defective blade fuse. D. Push in a new fuse of the same type and rating.

E. Re-fit the fuse cover. F. Reconnect the power supply to the cooling device.

Replace the defective fuse with a new fuse of the same type and rating as shown.

Replacing the light

The lamp can only be replaced by the manufacturer, a service agent, or a similarly qualified person to avoid hazard.

Cleaning and maintenance

Ensure that the cooling device is disconnected from the power supply before any cleaning or maintenance work.

Never clean the cooling device under running water or in dish water.

Do not use abrasive cleaning agents or hard objects during cleaning.

Occasionally clean the device interior and exterior with a damp cloth. Ensure that the air inlet and outlet vents on the cooling device are free of any dust and dirt so that heat can be released and the cooling device is not damaged.

Troubleshooting

Proble4 Po//ible a9/e S9gge/te6 re4 e61
Fhe device does not function (EU modeH ignition on).	&o voltage was detected in the EU power outlet	> In most vehicles the ignition must be turned on before power will be supplied to the EU power outlet.
	Fhe EU outlet is dirt". This results in a poor electrical contact.	> Is the plug of the device becomes ver" warm in the EU outlet either the EU outlet must be cleaned or the plug has not been assembled correctl".
	Fhe use of the EU plug has blown. Replace the defective use in the EU plug see Replacing the EU plug use.
	Fhe device EU use has blown. Replace the EU device use see Replacing the EU use.
	Fhe vehicle use has blown. Replace the vehicle's EU outlet use. Refer to "our vehicle's operating manual.
Evice does not function (J U mode).	&o voltage was detected in the J U voltage socket.	> Fr" using another plug outlet.
	Fhe device J U use has blown. Replace the J U device use see Replacing the J U use.
	Fhe integrated J U adapter is defective.	This can onl" be repaired b" an authorized repair center.
Fhe displa" does not respond to ke"-strokes.	Fhe displa" is locked. Unlock the displa"F see >ockingf un locking the displa".
Fhe app cannot control the device.	Bluetooth or V i-Yi is not connected.	> Uconnect to Bluetooth (see | et ting the Bluetooth signal and con necting to the app) or connect to V i-Yi (see | etting the V i-Yi signal.
Fhe displa" shows an alert message or warning code.	j | ee the following tables.	>

Fault possible, age suggested, read again.

ej >RRF - >id open r K min	>id open more than K min	>id not full" latched	Uheck lid latched full"
		Internal fault J authorized repair center in-spection re' uired
ej >RRF - boltage low	The device has stopped work-ing on EU due to low voltage	Insufficient suppl" voltage Uheck voltage drop from bat-ter" to power outlet and in-crease wiring gauge if neces-sar"
		Batter" voltage is too low Fest the batter" and charge as needed
		Batter" protection is set too high	I elect a lower batter" protec-tion setting
	The device has stopped work-ing on EU due to abnormal-l" high voltage r KQL b (un-likel" event j for electronicsprotection onl" j uses samealert message as low voltageabove)	Vrong EU suppl" voltagespecification	Rnsure EU suppl" voltagespecification matches productrating label
		Vault" suppl" volt-age	Uheck EU voltage suppl" andrepair or replace it fault"
		Internal fault J authorized repair center in-spection re' uired

P2S2 R arning o6e/

RSampleZ

Yig.

R arning o6e	Fa9lt Po//ible a9/e S9gge/te6 re4 e61
eV J R&I&G CQ	&FU open circuit I h s Eh >J RGR	Internal fault	J authorized repair center in-spection re' uired
eV J R&I&G CB	&FU short circuit I h s Eh >J RGR
eV J R&I&G 0Q	&FU open circuit Eh | MJ >>
eV J R&I&G 0B	&FU short circuit Eh | MJ >>
eV J R&I&G CKf DK	Uommunication error		Wower oc the device for at least 0 min then restart. Is the problem persists authorized repair center inspection is re-’ uired.
eV J R&I&G CP	Eh valve or Ice maker valve fault"

R arning o6e Fa9lt Po//ible a9/e S9gge/te6 re4 e61

eV J R&I&G KB Yan over-current	Internal Gault Wower oc the device for at least L minH then restart. If the problem persistsH authorized repair center inspection is re- uired.
eV J R&I&G KK Uompressor start Gail
eV J R&I&G KD Uompressor speed low	a (igh ambient temperature a) ir vent blocked or insuici- cient clearance a Internal Gault	a Wower oc the device for at least KC min or move to a cooler locationH then restart. a Ulear the vents a) authorized repair center inspection re' uired

P3 R arrant1

The statutory warranty period applies. If the product is defective, please contact the manufacturer's branch in your country (see dometic.com/dealer) or your retailer.

For repair and warranty processing, please include the following documents when you send in the device:

a copy of the receipt with purchasing date

a reason for the claim or description of the fault

Note that self-repair or nonprofessional repair can have safety consequences and might void the warranty.

P4 Disposal

Recycling packaging material: Place the packaging material in the appropriate recycling waste bins wherever possible.

WARNING: Risk of child entrapment.

Before disposing of your old cooling device, dismantle the lid. Leave the baskets in place so that children may not easily climb inside.

If you wish to finally dispose of the product, ask your local recycling center or specialist dealer for details about how to do this in accordance with the applicable disposal regulations. The product can be disposed of free of charge.

If the product contains any non-replaceable batteries or rechargeable batteries, you don't have to remove them before disposal.

Technical data

N2. The minimum temperature shown in the cooling capacity may be attained if the ambient temperature is above KBI U.

Test certificates

Yellow RWJ use conditions.

	CFX5 25
Uonnection voltage	QB b≠f BD b=QCC b≠t BDC b~
Rated current	QB b≠P.BJBD b≠D.BJQCC b≠0.QJBDC b≠C.DMJ
Uooling capacit" BCI Uzt j	BBI U
Ultimate class &H F
bolume BL >
J mbient temperature QMI Uct DKI U
Refrigerant RMCCa
Refrigerant 'uantit" QL g
Yre' uenc" range V iYiZ BDCC M( zzt BDOK.L M( zBluetoothf B>RZ BDCC M( zzt BDOK.L M( z
Yre' uenc" band (V iYi) B.D G( z
RY output power V iYiZ QP.PQ dBm (OCB.00b)H	QP.PQ dBm (OCB.00g)+QP.PQ dBm (OCB.00n)+Bluetoothz QQ.BK dBmBluetooth >RZ QQ.BK dBm
E imensions V S E S ( (including handles)V eight QM kg	KDB mmμu LMP mmμu DBC mm
	CFX5 35
Uonnection voltage	QB b≠f BD b=QCC b≠t BDC b~
Rated current	QB b≠0.P JBD b≠K.O JQCC b≠0.JBDC b≠C.DG J
Uooling capacit" BCI Uzt j	BBI U
Ultimate class &H F

EN000 CFX5

	CFX5 35
bolume KM >
J mbient temperature QMI Uct DKI U
Refrigerant RMCCa
Refrigerant 'uantit" ON g
Yre' uenc" range V iYiZ BDCC M( zt BDOK.L M( z	Bluetoothf B>RZ BDCC M( zt BDOK.L M( z
Yre' uenc" band (V iYi) B.D G( z
RY output power V iYiZ OP.PQ dBm (OCB.00b)H	QP.PQ dBm (OCB.00g)+QP.PQ dBm (OCB.00n)+Bluetoothz 00.BK dBmBluetooth >RZ 00.BK dBm
E imensions V S E S ( (including handles)	KPO mmμu MPD mmμu DCN mm
V eight OP.O kg
	CFX5 45
Uonction voltage	QB b≠f BD b =GCC b≠ BDC b ~
Rated current	QB b≠P.D JBD b≠D.Q JQCC b≠Q.CM JBDC b≠C.DD J
Uooling capacit" BCI Ujt j	BBI U
Ultimate class &H F
bolume DM >
J mbient temperature QMI Uct DKI U
Refrigerant RMCCa
Refrigerant 'uantit" BC g
Yre' uenc" range V iYiZ BDCC M( zt BDOK.L M( z	Bluetoothf B>RZ BDCC M( zt BDOK.L M( z
Yre' uenc" band (V iYi) B.D G( z	CFX5 45
RY output power V iYiZ QP.PQ dBm (OCB.00b)H	QP.PQ dBm (OCB.00g)+QP.PQ dBm (OCB.00n)+Bluetooth Z 00.BK dBmBluetooth >RZ 00.BK dBm
E imensions V S E S (including handles)	KPO mmqu MPD mmqu DNM mm
V eight B0.N kg
	CFX5 55
Uonnection voltage	QB b≠ BD b =GCC b≠ BDC b ~
Rated current	QB b≠ P.M JBD b≠ D.B JQCC b≠ Q.CO JBDC b≠ C.DM J
Uooling capacit" BCI Uzt j	BBI U
Ultimate class &H F
Fotal volume LL >
J mbient temperature OMI Uct DKI U
Refrigerant RMCCa
Refrigerant 'uantit" BB g
Yre' uenc" range V iYiZ BDCC M( zzt BDOK.L M( z	Bluetooth f B>RZ BDCC M( zzt BDOK.L M( z
Yre' uenc" band (V iYi) B.D G( z
RY output power V iYiZ QP.PQ dBm (OCB.00b)H	QP.PQ dBm (OCB.00g)+QP.PQ dBm (OCB.00n)+Bluetooth Z 00.BK dBmBluetooth >RZ 00.BK dBm
E imensions V S E S (including handles)	NBC mmqu DLL mmqu DOC mm
V eight BK.O kg

EN00 CFX5

	CFX5 55IM
Uonnection voltage	QB b≠f BD b=QCC b≠t BDC b~
Rated current	QB b≠P.MJBD b≠D.BJQCC b≠Q.COJBDC b≠C.DMJ
Uooling capacit" BCI U≠t j	BBI U
Ultimate class &H F
Fotal volume LL >
J mbient temperature QMI U≠t DKI U
Refrigerant RMCCa
Refrigerant 'uantit" BB g
Yre' uenc" range V iYiZ BDCC M( z≠t BDOK.L M(z	Bluetoothf B>RZ BDCC M( z≠t BDOK.L M(z
Yre' uenc" band (V iYi) B.D G(z
RY output power V iYiZ OP.PQ dBm (OCB.00b)H	QP.PQ dBm (OCB.00g)+QP.PQ dBm (OCB.00n)+Bluetoothz 00.BK dBmBluetooth >RZ 00.BK dBm
E imensions V S E S ( (including handles)	NBC mmμ DLL mmμ DOC mm
V eight BL kg

	CFX5 75DZ
Uonnection voltage	QB b≠f BD b =QCC b≠t BDC b ~
Rated current	QB b≠P.O JBD b≠D.M JQCC b≠0.Q JBDC b≠C.DN J
Uooling capacit" BCI U≠t j	BBI U
Ultimate class &H F
Fotal volume NL > (DL >f KC >)J mbient temperature QMI Uct DKI U
ReGrigerant RMCCa
ReGrigerant 'uantit" BN g
Yre' uenc" range V iYiZ BDCC M( z,t BDOK.L M( z	Bluetoothf B>RZ BDCC M( z,t BDOK.L M( z
Yre' uenc" band (V iYi) B.D G( z
RY output power V iYiZ QP.PQ dBm (OCB.00b)H	QP.PQ dBm (OCB.00g)H
	QP.PQ dBm (OCB.00n)H
	Bluetoothz 00.BK dBm
	Bluetooth >RZ 00.BK dBm
E imensions V S E S ( (including handles)	OPB mmqu DPL mmqu DNB mm
V eight K0.0 kg

	CFX5 95DZ
Uonnection voltage	QB b≠f BD b =QCC b≠ BDC b ~
Rated current	QB b≠0C.D JBD b≠D.N JQCC b≠0.BB JBDC b≠ C.L Q J
Uooling capacit" BCI Uzt j	BBI U
Ulimate class &H F
Fotal volume PD > (LL >f KP >)
J mbient temperature QMI Uct DKI U
Refrigerant RMCCa
Refrigerant 'uantit" KC g
Yre' uenc" range V iYiZ BDCC M( zzt BDOK.L M( z	Bluetoothf B>R2 BDCC M( zzt BDOK.L M( z
Yre' uenc" band (V iYi) B.D G( z

EN000 CFX5

	CFX5 95DZ
RY output power V iYiZ QP.PQ dBm (OCB.QGb)H	QP.PQ dBm (OCB.QGg)H
	QP.PQ dBm (OCB.QGn)H
	Bluetoothz 00.BK dBm
	Bluetooth >RZ 00.BK dBm
E imensions V S E S ( (including handles)	PMB mmμu LKC mmμu DNB mm
V eight KK.K kg

Hereby, Dometic declares that the radio equipment type UYgL is in compliance with Directive BCQDf L Kf RU. The full text of the EU declaration of conformity is available at the following internet address: documents.dometic.com

Further product information can be accessed via the QR code on the energy label or via eprel.ec.europa.eu.

Fig. 5 on page 5

Depth

WUKL PMBCCQBOCM UYgL KL

WUDL PMBCCQBOCL UYgL DL

WULL PMBCCQBOQC UYgL LL

UYgL LLIM

WUNL PMBCCQBOQQ UYgL NLEh

WUPL PMBCCQBOCN UYgL PLEh

Kühl/ hran. / hiene

I > E L K L D L U PMBCCQBDL D UYgL KL

UYgL DL

I>ELLU PMBCCQBDLL UYgL LL

UYgL LLIM

I >ENLU PMBCC0BDLM UYgL NLEh

I >EPLQCCU PMBCCQBDLN UYgL PLEh

S hnellver/ hl9//-Ce(e/tig9ng/. it

i Y BL PMCCCCCQMM UYgL BL

Remedy for malfunction Possible causes / Remedy suggestion

Remedy for malfunction Possible causes / Remedy suggestion

Remedy for malfunction Possible causes / Remedy suggestion

WUBL PMBCCQBOCO UYgL BL

WUKL PMBCCQBOCM UYgL KL

WUDL PMBCCQBOCL UYgL DL

WULL PMBCCQBOQC UYgL LL

UYgL LLIM

WUNL PMBCCQBOQQ UYgL NLEh

WUPL PMBCCQBOCN UYgL PLEh

Modification of settings

PZS7 Locking/unlocking of the arm

C9bierta 6e) rote i7n
WUBL PMBCCQBOCO UYgL BL
WUKL PMBCCQBOCM UYgL KL
WUDL PMBCCQBOCL UYgL DL
WULL PMBCCQBOQC UYgL LL
		UYgL LLIM
WUNL PMBCCQBOQQ UYgL NLEh
WUPL PMBCCQBOCN	UYgL PLEh
Riel 6e/li: ante ) ara nevera
I >ELKLDLU	PMBCCQBDLD UYgL KL
		UYgL DL
I >ELLU	PMBCCQBDLL UYgL LL
		UYgL LLIM
I >ENLU	PMBCCQBDLM	UYgL NLEh
I >EPLQCCU	PMBCCQBDLN	UYgL PLEh

Denomination NSk of part \$ Model

Kit of (i3a i7n rá) i6a

Panel 6e ontrol X (iGSIY

(igS0□ en la )ágina04

WUBL PMBCCQBOCO UYgL BL

WUKL PMBCCQBOCM UYgL KL

WUDL PMBCCQBOCL UYgL DL

WULL PMBCCQBOQC UYgL LL

UYgL LLIM

WUNL PMBCCQBCQQ UYgL NLEh

WUPL PMBCCQBOCN

UYgL PLEh

Prateleira 6e/li: ante ) ara (rigorí(i o

I > E L K L D L U

	UYgL DL
I>ELLU PMBCCQBDLL UYgL LL
	UYgL LLTM
I>ENLU PMBCCQBDLM UYgL NLEh
I>EPLQCCU PMBCCQBDLN UYgL PLEh
Kit 6e (ixaçno rá) i6a
i Y BL PMCCCCCQMM UYgL BL
i Y KLDL PMCCCBPLPP UYgL KL
	UYgL DL

Co) ert9ra 6i ) rote: ione
WUBL PMBCCQBOCO UYgL BL
WUKL PMBCCQBOCM UYgL KL
WUDL PMBCCQBOCL UYgL DL
WULL PMBCCQBOQC UYgL LL
		UYgL LLIM
WUNL PMBCCQBOQQ UYgL NLEh
WUPL PMBCCQBOCN	UYgL PLEh
S ivolo (rigori(ero)
I >ELKLDLU	PMBCCQBDLD UYgL KL
		UYgL DL
I >ELLU	PMBCCQBDLL UYgL LL
		UYgL LLIM
I >ENLU	PMBCCQBDLM	UYgL NLEh
I >EPLQCCU	PMBCCQBDLN	UYgL PLEh

a bed and breakfast-accommodations

UYgL KL

UYgL DL

a Bed-and-breakfast-pensioner

Cet3ening/) anel X (ig)

(igS01) t /i6e 4

OIG' IG' Q Fare (or be/. a6igel/e

OIG' IG' Q Fare (or be/. a6igel/e

s n6ring a(in6/tillinger

OIG' IG' Q Fare (or be/. a6igel/e

OIG' IG' Q Fare (or be/. a6igel/e

OIG' IG' Q Fare (or be/. a6igel/e

P2 U6be6ring a( (e3l

WUBL PMBCCQBOCO UYgL BL

WUKL PMBCCQBOCM UYgL KL

WUDL PMBCCQBOCL UYgL DL

WULL PMBCCQBOQC UYgL LL

UYgL LLIM

WUNL PMBCCQBOOO UYgL NLEh

WUPL PMBCCQBOCN UYgL PLEh

K11/.39t) latta

I > E L K L D L U

PMBCCQBDLD UYgL KL

UYgL DL

I>ELLU

PMBCCQBDLL UYgL LL

UYgL LLIM

I >ENLU

PMBCCQBDLM UYgL NLEh

I>EPLQCCU

Snabbmontering//at/

Open Mobile Cooling

Use the Mobile Cooling app.

Turn on the Bluetooth signal and connect to the

a UYgL BLH UYgL KLH UYgL DLH UYgL LLH UYgL LLIMZ QC J

a UYgL NLEhH UYgL PLEhZQL J

L. Mount the protective cover back on.

WUBL PMBCCQBOCO UYgL BL

WUKL PMBCCQBOCM UYgL KL

WUDL PMBCCQBOCL UYgL DL

WULL PMBCCQBOQC UYgL LL

UYgL LLIM

WUNL PMBCCQBOQQ UYgL NLEh

WUPL PMBCCQBOCN UYgL PLEh

I > E L K L D L U

PMBCCQBDLD UYgL KL

UYgL DL

I>ELLU

PMBCCQBDLL UYgL LL

UYgL LLIM

Mobile app for cooling

fits all models

For your protection, the device has a fuse inside the plug of the included DC power cord. Do not remove the fused DC plug. Use only the included DC power cord.

Proceed as shown.

Connection to a wall outlet

Never touch plugs or switches with wet hands or if the area where you are standing is wet.

Ask a qualified electrician for advice if necessary.

Proceed as shown.

Download the mobile app for cooling.

Setting the Bluetooth signal and connecting to the app

PZSP4 USC-til. obling (or/) enning/(or/1ning

P, SS Pw0 Fare (or /. a6er

a UYgL BLH UYgL KLH UYgL DLH UYgL LLH UYgL LLIMZ QC J

a UYgL NLEhHUYgL PLEhZQL J

P, SS Pw0 Fare (or /. a6er

P, SS Pw0 Fare (or /. a6er

P4, v(all/ht n6tering

Recycling of packaging ² >ever packaging to recycling as far as possible.

, DO, RSELQ Fare (or at barn blir inne/tengt

0, R2 I' USQ Palovaara

WUBL PMBCCQBOCO UYgL BL

WUKL PMBCCQBOCM UYgL KL

WUDL PMBCCQBOCL UYgL DL

WULL PMBCCQBOQC UYgL LL

UYgL LLIM

Mobile cooling application

WUBL PMBCCQBOCO UYgL BL

WUKL PMBCCQBOCM UYgL KL

WUDL PMBCCQBOCL UYgL DL

WULL PMBCCQBOQC UYgL LL

UYgL LLIM

WUNL PMBCCQBOQQ UYgL NLEh

WUPL PMBCCQBOCN UYgL PLEh

Pro8 a6ni a lo678 . i

2: na : enie Nr . atalogo8 1 Mo6el

	UYgL LLIM
I >ENLU PMBCCQBDLM UYgL NLEh
I >EPLQCCU PMBCCQBDLN UYgL PLEh
Ze/ta8 6o /: 1b. iego 4 ontay9
i Y BL PMCCCCCQMM UYgL BL
i Y KLDL PMCCCBPLPP UYgL KL
	UYgL DL

ontrolaf cert "Tkat"Z

WUBL PMBCCQBOCO UYgL BL

WUKL PMBCCQBOCM UYgL KL

WUDL PMBCCQBOCL UYgL DL

WULL PMBCCQBOQC UYgL LL

UYgL LLIM

WUNL PMBCCQBOQQ UYgL NLEh

WUPL PMBCCQBOCN UYgL PLEh

Plnový/9v hla6nič.1

L1žina nađle6ni i

I >ELKLDLU

PMBCC0BDLD UYgL KL

UYgL DL

I>ELLU

PMBCCQBDLL UYgL LL

UYgL LLIM

I >ENLU

PMBCCQBDLM UYgL NLEh

I > E P L Q C C U

PMBCC0BDLN

WUNL PMBCCQBOQQ	UYgL NLEh
WUPL PMBCCQBOCN	UYgL PLEh

Kli: na vo6ili a : a hla6n3a.

PMBCCQBDLD UYgL KL

UYgL DL

I>ELLU

PMBCCQBDLL UYgL LL

UYgL LLIM

I >ENLU

PMBCCQBDLM UYgL NLEh

I >E P L Q CCU

PMBCCQBDLN

UYgL PLEh

Ko4) let: a br: o (i. /iran3e

i Y BL

Mobile Cooling application

fits all models

Please note that the application may not be available in your country.

This cooling device is suitable for cooling food. The cooling device is also suitable for use in vehicles.

WUDL PMBCCQBOCL UYgL DL

WULL PMBCCQBOQC UYgL LL

UYgL LLIM

WUNL PMBCCQBOQQ UYgL NLEh

WUPL PMBCCQBOCN UYgL PLEh

Drča : a hla6ilno torbo

I > E L K L D L U

PMBCCQBDLD UYgL KL

UYgL DL

I>ELLU

PMBCCQBDLL UYgL LL

UYgL LLIM

I >ENLU

PMBCCQBDLM UYgL NLEh

I >E P L Q CCU

Den94 ire Nrart Mo6el
Car a/B 6e ) rote ție
WUBL PMBCCQBOCO UYgL BL
WUKL PMBCCQBOCM UYgL KL
WUDL PMBCCQBOCL UYgL DL
WULL PMBCCQBOQC UYgL LL
		UYgL LLIM
WUNL PMBCCQBOQQ UYgL NLEh
WUPL PMBCCQBOCN UYgL PLEh
Co4 ) arti4 ent (rigi6er
I >ELKLDLU	PMBCCQBDLD UYgL KL
		UYgL DL
I >ELLU	PMBCCQBDLL UYgL LL
		UYgL LLIM
I >ENLU	PMBCCQBDLM UYgL NLEh
I >EPL0CCU	PMBCCQBDLN UYgL PLEh
Kit 6e (ixare ra) i6B
i Y BL	PMCCCCCQMM UYgL BL
i Y KLDL	PMCCCBPLPP	UYgL KL
		UYgL DL
J plica-ie Mobile Oooling	j	se potrivește tu-turor modelelor

ЗFuHKeI кFEбф
WUBL PMBCCQBOCO UYgL BL
WUKL PMBCCQBOCM UYgL KL
WUDL PMBCCQBOCL UYgL DL
WULL PMBCCQBOQC UYgL LL
	UYgL LLIM
WUNL PMBCCQBOQQ UYgL NLEh
WUPL PMBCCQBOCN UYgL PLEh
„oEHJ кF
I >ELKLDLU	PMBCCQBDLD UYgL KL
	UYgL DL
I >ELLU	PMBCCQBDLL UYgL LL
	UYgL LLIM
I >ENLU	PMBCCQBDLM UYgL NLEh

The 39x29/9: 0; 26о261: 1/9 в: 26г9 89 0вь28в9/: 4ъм; 2ом: /<6во104ов9 м2: ж9 a T26 /6B9 /9 89щ619 89 943м3<91о29H ; 2: д; 98в9щ6 943м3<91о29 /9 ; 2: во8/о1о 02: д0lво (684<ючв9 0: 9в1ом916ч/о ; 26 /604о /9; 2: ж: /6: /9 943м3<91о29) а Д60; <: й 0 ; o4989/6: 89 1: м; : 29132919 в I U 6 I Y a H90120й49 /9 1: м; : 291329197 H9 01ъ; 46 01 Q I U (QI Y) a. /1: r2629/6 Bluetooth 6 V i-Yi φ3/4567 89 40/120<629/: 42: 8 мобб</о; 26<ож: /6: а Сгъв9: м6 д2ъж46 89 /о0: /: a UI B 892: жд9ч49 89 моб6</6 3012ой01в9Н /9; 2. 1: <: фо/ а Подвбж/91: <: /9 40ш/659 a Br29d: /9 o1B929449 89 6316<46 a CF" o 3F CFX5 55IMW Л: дог: /: 29102

VS2 PF60KI H H HI GHkFKopI H eEe" eI KH

„EIOJFEKHIFKFNFKFX

φHrS0I F i KpFI H4F 3

ПФI eE 3F упрFBeI He X фИСОУ

PF3EHi KbFI e I F "el 10KFKF

Подч: 219/olo m: /ю : 68629/о.

H9160/: 1: 89 д9 ; 2: м6/: 1: /9го2:.

H9160/: 1: ▽89 д9 ; 2: м6/: 1: /9 до<3.

ИзбНрFl e I F "eI ю

H9160/: 1: 89 д9 686: 2: 1: ж: <9/оло м: /ю.

Про"яI F I F I F i КройкНКе

Подч: 219/919 0108/001 6<6 /9012049 : 68629/9.

H9160/: 1: 189 д9 3в: <6ч61: 68629/919 01ой/о01 6<6 д9 686: 2: 1: ; 2: д6ш/919 /9012ой49.

H9160/: 1: F89 d9 /9m9<61: 68629/919 0108/001 6<6 d9 686: 2: 1: 0<: дв9ш919 /90120849.

PZSP2 ИзпоE3BFI e I F Cl9etooth H R i-Fi

ИзКегЕяI e I F прНЕожеI НеКо Mobile Cooling

Ох<9жд9ш671 32: д мож: д9 0: 4o/12o<629 6 3; 29в<7в9 ч2: 8 Bluetooth 6<6 V i-Yi 0 ; омощ19 /9 ; 26<ож: /6:H 6/019<629/o /9 ; одход7що 3012ой01во.

. 81: r<: 1: ; 26<ож: /6: lo Mobile Uooling.

HF¡КройкF I F Cl9etooth ¡HrI FEF H ¡вързвFl e ¡прНЕожел НеКо

Ох<9жд9ш671 32: д мож: д9 0: 40/120<629 6 3; 29в<7в9 ч2: 8 Bluetooth. 39 д9 /9; 29в61: 10в9Н 0дво: 1: ох<9жд9ш67 32: д 0 В9ш: 10 Bluetooth 3012ой01во.

У„АЗАНИЕ

а Сдво7в9/: 10 1276в9 д9 0: о0ыщ: 01в6 в ; 26<ож: /6: 10 Mobile Uooling↑9/: в /9012ой461: /9 32: д9. а 39 о0ыщ: 01в7в9/: 10 /9 Bluetooth 0въ28в9/: /:: : /: обход6м9 ; 92о<9.

Д: й01в9й1: 4941о 0<: дв97

фHrS0□ I F ; KpFI HцF P3

HFi KpOikFIFR i-Fi; HrI FEF

Д: й01в9й1: 4941о 0<: дв97

φHrS0 IF;KpFIH₄F P3

PF6oKF i Cl9etooth HR i-Fi

C<:дв9й1: 6/012345661: в мобб6</ою ; 26<ож: /6: 89 ох<9жд9/: . Св: 1одбодъ1 89 Bluetooth 6<6 V >J & 0в: 1в9-4ог91о x<9д6</919 ч9/19 : 0въ289/.

WUBL PMBCCQBOCO UYgL BL

WUKL PMBCCQBOCM UYgL KL

WUDL PMBCCQBOCL UYgL DL

WULL PMBCCQBOQC UYgL LL

UYgL LLIM

WUNL PMBCCQBCQQ UYgL NLEh

WUPL PMBCCQBOCN UYgL PLEh

Kül4 i. 9 li9gal9/

I > E L K L D L U

PMBCC0BDLD UYgL KL

UYgL DL

I>ELLU

PMBCC0BDLL UYgL LL

UYgL LLIM

I >ENLU

ET000 CFX5

Greito30 tvirtini4 o rin. in1/

Programme "Mobile Cooling"

it fits all models
