Monitor 5 - Speaker HERCULES - Free user manual and instructions

Product Type	Bi-amplified 2-way monitoring speaker
Brand	Hercules
Model	Monitor 5
Woofer (bass driver)	5 inches, Kevlar cone, magnetically shielded
Tweeter (treble driver)	1 inch, silk dome, magnetically shielded
Low-frequency (LF) amplification	50 W
High-frequency (HF) amplification	30 W
Total power	80 W
Frequency response	50 Hz – 20 kHz
Signal-to-noise ratio	>95 dB
Input impedance	20 kΩ (balanced), 10 kΩ (unbalanced)
Audio inputs	1 x RCA (unbalanced, -10 dBV), 1 x TRS 6.35 mm (balanced, +4 dBu), 1 x XLR (balanced, +4 dBu)
Settings	Low Freq (-2 dB, 0 dB, +2 dB), High Freq (-2 dB, 0 dB, +2 dB), Low Cutoff (56 Hz, 80 Hz, 100 Hz)
Dimensions (H x W x D)	310 x 218 x 230 mm
Weight	6.83 kg
Power supply	100-120 V ~60 Hz / 220-240 V ~50 Hz
Box contents	2 speakers, 2 power cables, user manual
Recommended positioning	Equilateral triangle with listening position, 1.50 m from walls
Cleaning	Damp cloth, avoid aerosols
Safety	Do not open, keep away from water and heat
Warranty	2 years (EU), 1 year (other countries) according to local legislation
Spare parts and repairability	Not provided, maintenance by manufacturer or authorized representative
Manufacturer	Guillemot Corporation S.A., France
Environmental information	Do not dispose with household waste, WEEE recycling

Frequently Asked Questions - Monitor 5 HERCULES

How to connect the Monitor 5 speakers?

First check the position of the voltage selector (230V or 115V) according to your mains. Connect the power cable to the mains connector (2). Use one of the audio inputs: RCA (unbalanced), TRS (balanced, 6.35 mm jack) or XLR (balanced). Set the volume to minimum, turn on the audio source, then turn on the speaker with the ON/OFF button.

What is the total power of the Monitor 5 speakers?

The total power is 80 W, split into 50 W for low-frequency (LF) amplification and 30 W for high-frequency (HF) amplification.

How to adjust the equalizers (Low Freq, High Freq)?

Use the switches on the back: Low Freq adjusts the bass from -2 dB to +2 dB in steps, High Freq adjusts the treble from -2 dB to +2 dB. The 0 dB position provides a flat frequency response. Adjust according to room acoustics.

What is the ideal positioning for optimal monitoring?

Place the speakers 1.50 m from walls or corners. The listening position and the two speakers should form an equilateral triangle (equal sides, 60° angles). Your ears should be at the level of the top of the woofers. Avoid obstacles between you and the speakers.

Can I use the Monitor 5 speakers with a mixing console?

Yes, thanks to the balanced TRS and XLR inputs, you can directly connect a mixing console. Use a balanced cable for better performance and noise reduction.

How to clean the speakers?

Turn off the speakers before cleaning. Use a damp cloth to wipe the surface. Do not use aerosols or harsh chemicals. Avoid letting liquid inside.

What to do in case of a technical problem?

Contact Hercules Technical Support via https://support.hercules.com. Do not attempt to open the speaker yourself. Support will advise you on the return or repair procedure.

What is the warranty on the Monitor 5 speakers?

The warranty is 2 years in the European Union from delivery, and 1 year in other countries (unless local legislation provides a different period). It covers material and manufacturing defects. Contact support for any claims.

Can I open the speaker to repair it?

No, the speaker contains no user-serviceable parts. Opening may damage internal components and void the warranty. Any maintenance must be carried out by the manufacturer or an authorized representative.

How to dispose of speakers at end of life?

Do not dispose of them with household waste. In the EU, take them to a Waste Electrical and Electronic Equipment (WEEE) collection point for recycling. Outside the EU, follow local legislation.

USER MANUAL Monitor 5 HERCULES

Black hardcover audio monitor with visible speaker and control knobs (no text or symbols on body)

Europe, Middle East

ENGLISH

FRANÇAIS

DEUTSCH

NEDERLANDS

ITALIANO

ESPAÑOL

PORTUGUÊS

РУССКИЙ

ČESTINA

TÜRKÇE

POLSKI

SVENSKA

SUOMI

SLOVENCINA

MAGYAR NYELV

תְרָה

العربيya

North America/

Norteamérica

ENGLISH

FRANÇAIS

ESPAÑOL

Latin America/

América Latina

ENGLISH

ESPAÑOL

PORTUGUÊS

Asia Pacific

日本語

繁體中文

한국어

ENGLISH

CONTENTS

1. INTRODUCTION....2

1.1. Box contents ......2
1.2. Technical specifications .... 2
1.3. Recommendations .... 3

2. INSTALLATION 4

2.1. Positioning Monitor 5 speakers....4
2.2. Overview of front and rear panels....6

3. USING YOUR MONITOR 5 SPEAKERS....7

4. CONSUMER WARRANTY INFORMATION 8

Monitor 5

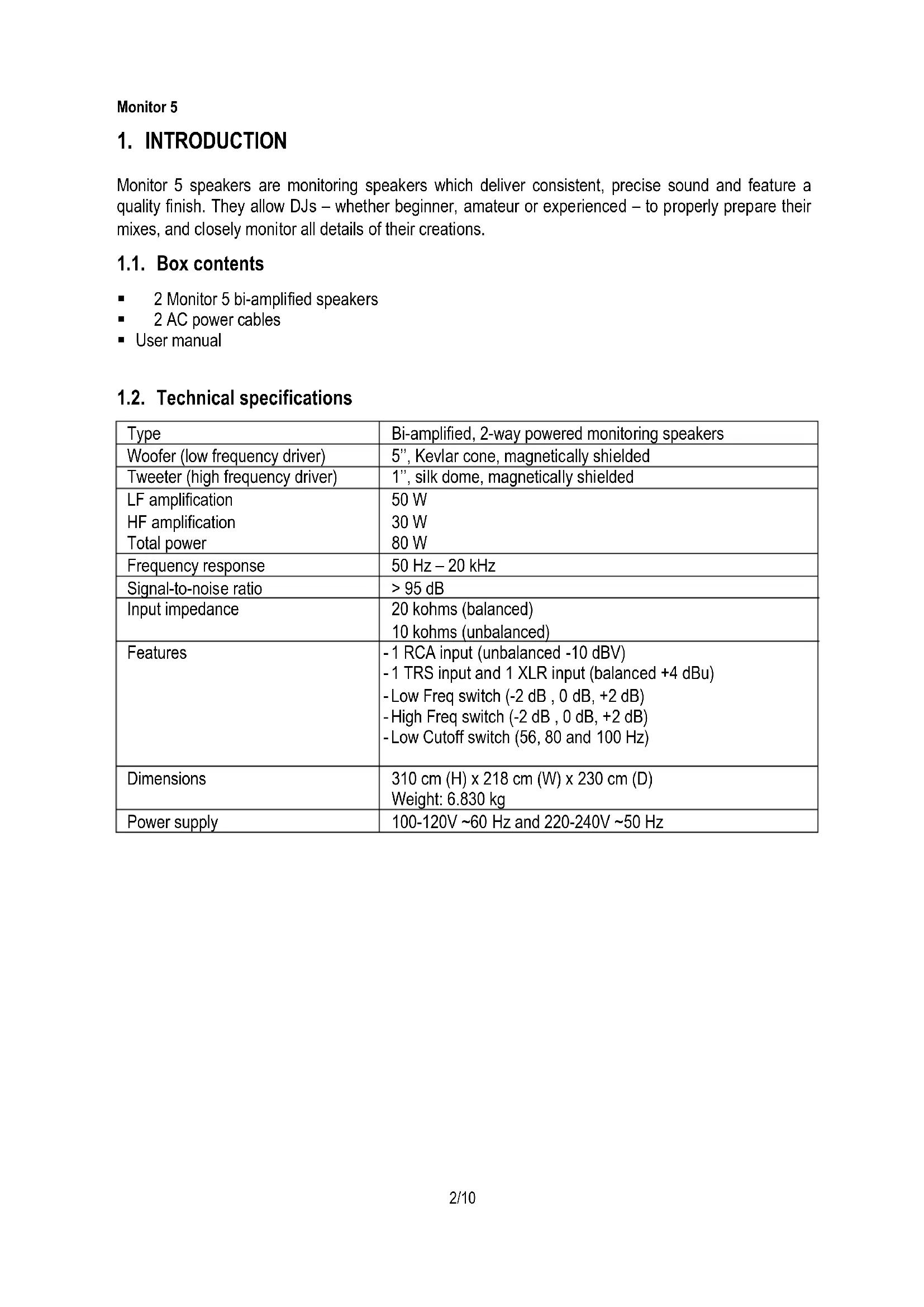

1. INTRODUCTION

Monitor 5 speakers are monitoring speakers which deliver consistent, precise sound and feature a quality finish. They allow DJs – whether beginner, amateur or experienced – to properly prepare their mixes, and closely monitor all details of their creations.

1.1. Box contents

■ 2 Monitor 5 bi-amplified speakers
■ 2 AC power cables
■ User manual

1.2. Technical specifications

Type	Bi-amplified, 2-way powered monitoring speakers
Woofer (low frequency driver)	5", Kevlar cone, magnetically shielded
Tweeter (high frequency driver)	1", silk dome, magnetically shielded
LF amplification	50 W
HF amplification	30 W
Total power	80 W
Frequency response	50 Hz – 20 kHz
Signal-to-noise ratio	>95 dB
Input impedance	20 kohms (balanced)10 kohms (unbalanced)
Features	-1 RCA input (unbalanced -10 dBV)-1 TRS input and 1 XLR input (balanced +4 dBu)-Low Freq switch (-2 dB, 0 dB, +2 dB)-High Freq switch (-2 dB, 0 dB, +2 dB)-Low Cutoff switch (56, 80 and 100 Hz)
Dimensions	310 cm (H) x 218 cm (W) x 230 cm (D)Weight: 6.830 kg
Power supply	100-120V ~60 Hz and 220-240V ~50 Hz

1.3. Recommendations

• Place your speakers on a flat surface, to avoid the risk of the speakers falling.
• Never open up your speakers, as you risk damaging their internal components.
• These speakers are intended for use in a temperate environment.
• To prevent the risk of fire or electrical discharge, keep your speakers away from:
• rain or humidity, as well as all fluids (water, chemical products or any other liquids),
• sources of heat such as heaters, stoves or any other heat-producing devices (including amplifiers),
• direct sunlight.
• Do not expose your speakers to drips or splashes of water.
• Never place any object filled with liquid (a glass, vase...) on your speakers.
• No naked flame sources, such as lighted candles, should be placed on the devices.
• Power off the speakers if you do not plan on using it for an extended period of time.
• Power off the speakers before cleaning. Use a damp cloth and avoid using aerosol cleaners.
• Markings are located on the back of the speakers.
• Replace the accessories respecting the specifications of the manufacturer or its authorized representative.
• This product contains no internal pieces which can be repaired by the user. Maintenance must be carried out by the manufacturer or its authorized representative.
• Attention: At full power, prolonged listening with headphones can result in damage to the user's hearing.

Monitor 5

2. INSTALLATION

2.1. Positioning Monitor 5 speakers

The way in which your speakers are positioned has an effect on the sound that you hear when listening to them. In order to ensure optimal monitoring which will help you to perfect your mixes, it is therefore important that you properly position the Monitor 5 speakers. Here are some tips that you should follow:

• Remove any obstacles, so that there is nothing between you and the speakers.
• The acoustic balance of a room may be negatively impacted by the presence of bulky objects, or by doors and windows.
• If possible, maintain a minimum distance of 1.50 m between your speakers and a wall or a corner of the room. The closer the speakers are positioned to a wall, the more amplified the bass response will be, which you will need to compensate for in your mixes.
• Keep the same distance (lateral and to the rear) in relation to a wall or a corner of the room for all monitoring speakers.

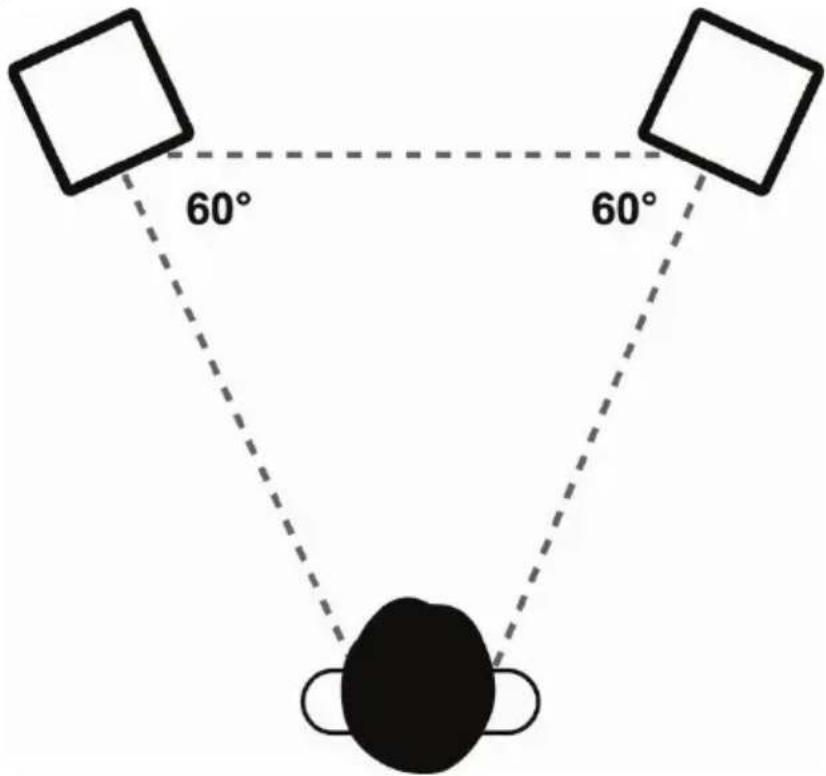

• Ideally, each speaker and the listening position should form an equilateral triangle (equal sides, with three 60^ angles).

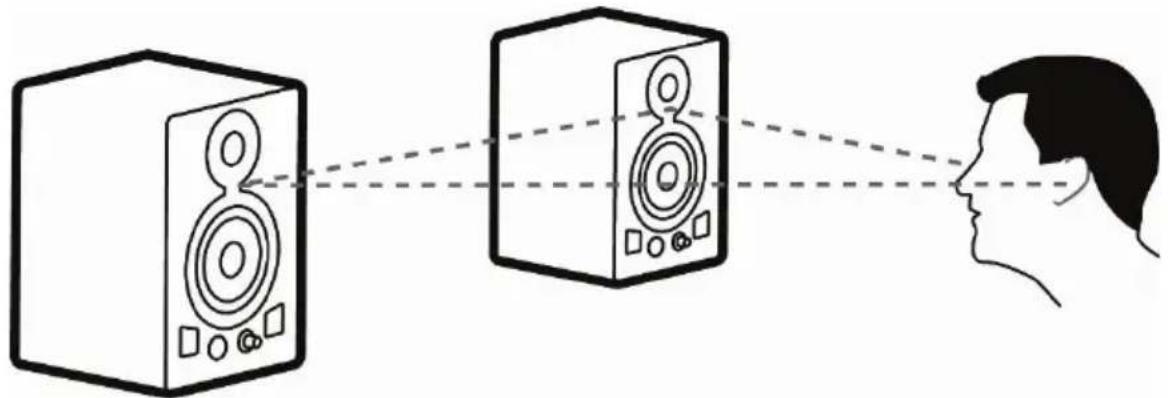

- Make sure to optimize the listening height, the optimal positioning being where the user's ears are at the same level as the tops of the woofers. In a studio setup, in order to minimize any problems due to reflections, we recommend that you elevate your Monitor 5 speakers in relation to your mixing desk or table.

Diagram showing a person's face facing a pair of speakers, with dashed lines indicating distance from speaker to head (no text or symbols present)

Monitor 5

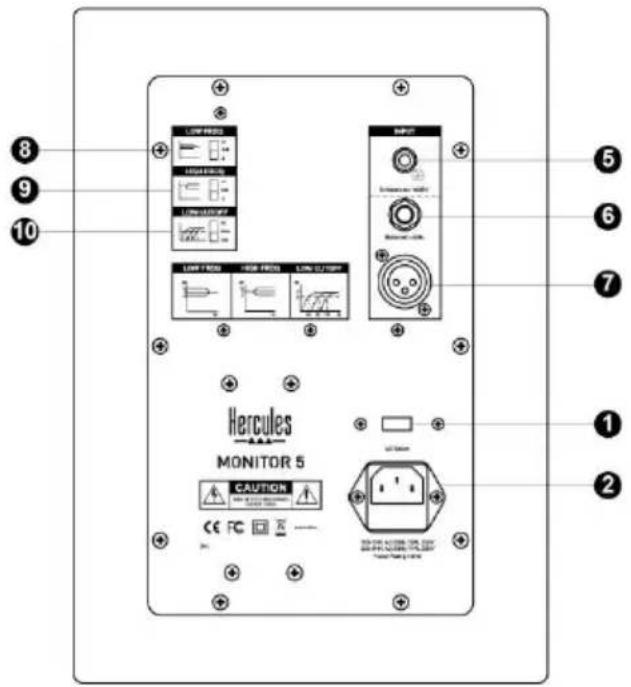

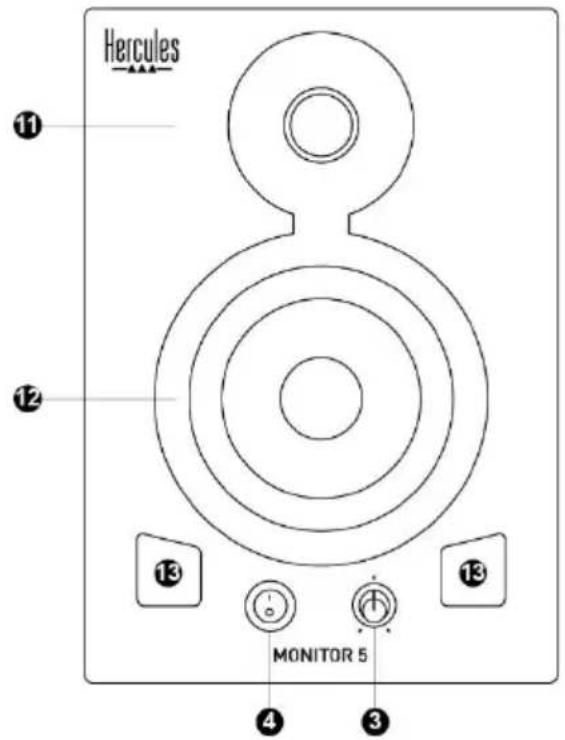

2.2. Overview of front and rear panels

1. Voltage selector

Two possible positions: 230 V for a 220-240 V power supply, or 115 V for a 110-120 V power supply.

2. Power connector

Connect the power cable here.

3. Volume knob and power LED

The LED lights up when the ON/OFF button is set to ON.

4. ON/OFF button

When your audio system (mixing console and speakers) is connected, power on the Monitor 5 speakers last, and power off the Monitor 5 speakers before powering off your audio system.

5. RCA (Cinch) connector for main input

1. TRS connector for balanced input 6.35 mm jack type connector.

7. XLR connector for balanced input

The most frequently used connector with professional equipment and installations, thanks to its electrical and mechanical reliability.

8. Low Freq switch

Lets you adjust the level of the low frequency range. +2 dB: increases the range by 2 dB; 0: uniform frequency response; -2 dB: decreases the range by 2 dB.

9. High Freq switch

Lets you adjust the level of the high frequency range. +2 dB: increases the range by 2 dB; 0: uniform frequency response; -2 dB: decreases the range by 2 dB.

10. Low Cutoff switch

Three available cutoff frequencies for the low-cut filter: 56, 80 and 100 Hz.

11. Tweeter (high frequency driver)

Produces high frequency sounds.

12. Woofer (low frequency driver)

Produces low frequency sounds.

13. Bass reflex ports

Improve the rendering of low frequencies.

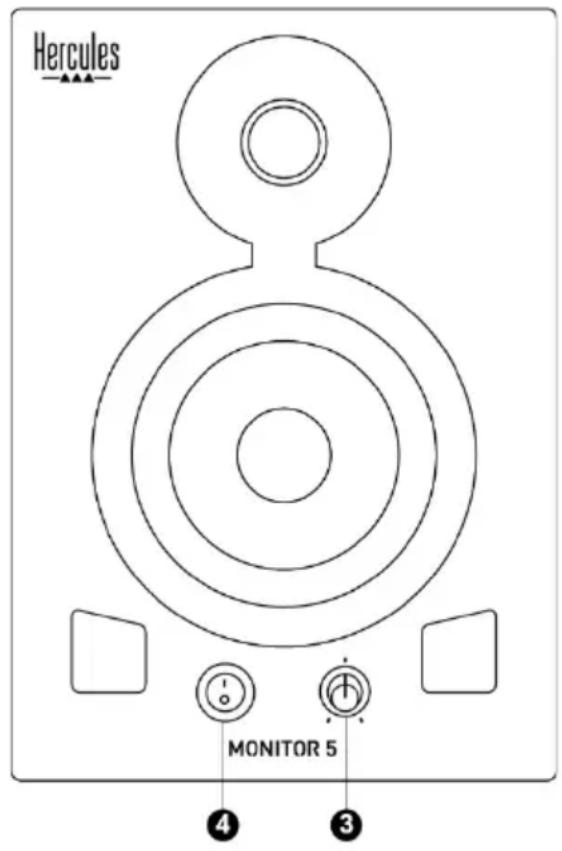

3. USING YOUR MONITOR 5 SPEAKERS

• Before connecting your Monitor 5 speakers, verify the position of the voltage selector (1): 230 V for a 220-240 V power supply, or 115 V for a 110-120 V power supply.
• Make your power connections (2) and audio connections (5, 6 or 7).
• Power on your audio source components, mixers and computer.
• Set the volume on your Monitor 5 speakers to the minimum level, using the volume knob (3), and then power on your Monitor 5 speakers by pressing the ON/OFF button (4): the power LED (3) lights up.

Monitor 5

4. CONSUMER WARRANTY INFORMATION

Worldwide, Guillemot Corporation S.A., whose registered office is located at Place du Granier, B.P. 97143, 35571 Chantepie, France (hereinafter "Guillemot") warrants to the consumer that this Hercules product shall be free from defects in materials and workmanship, for a warranty period which corresponds to the time limit to bring an action for conformity with respect to this product. In the countries of the European Union, this corresponds to a period of two (2) years from delivery of the Hercules product. In other countries, the warranty period corresponds to the time limit to bring an action for conformity with respect to the Hercules product according to applicable laws of the country in which the consumer was domiciled on the date of purchase of the Hercules product (if no such action exists in the corresponding country, then the warranty period shall be one (1) year from the original date of purchase of the Hercules product).

Notwithstanding the above, rechargeable batteries are covered by a warranty period of six (6) months from the date of original purchase.

Should the product appear to be defective during the warranty period, immediately contact Technical Support, who will indicate the procedure to follow. If the defect is confirmed, the product must be returned to its place of purchase (or any other location indicated by Technical Support).

Within the context of this warranty, the consumer's defective product shall, at Technical Support's option, be either replaced or returned to working order. If, during the warranty period, the Hercules product is subject to such reconditioning, any period of at least seven (7) days during which the product is out of use shall be added to the remaining warranty period (this period runs from the date of the consumer's request for intervention or from the date on which the product in question is made available for reconditioning, if the date on which the product is made available for reconditioning is subsequent to the date of the request for intervention). If permitted under applicable law, the full liability of Guillemot and its subsidiaries (including for consequential damages) is limited to the return to working order or the replacement of the Hercules product. If permitted under applicable law, Guillemot disclaims all warranties of merchantability or fitness for a particular purpose.

This warranty shall not apply: (1) if the product has been modified, opened, altered, or has suffered damage as a result of inappropriate or abusive use, negligence, an accident, normal wear, or any other cause unrelated to a material or manufacturing defect (including, but not limited to, combining the Hercules product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product); (2) if the product has been used for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example); (3) in the event of failure to comply with the instructions provided by Technical Support; (4) to software, said software being subject to a specific warranty; (5) to consumables (elements to be replaced over the product's lifespan: disposable batteries, audio headset or headphone ear pads, for example); (6) to accessories (cables, cases, pouches, bags, wrist-straps, for example); (7) if the product was sold at public auction.

This warranty is nontransferable.

The consumer's legal rights with respect to laws applicable to the sale of consumer goods in his or her country are not affected by this warranty.

Additional warranty provisions

During the warranty period, Guillemot shall not provide, in principle, any spare parts, as Technical Support is the only party authorized to open and/or recondition any Hercules product (with the exception of any reconditioning procedures which Technical Support may request that the consumer carry out, by way of written instructions – for example, due to the simplicity and the lack of confidentiality of the reconditioning process – and by providing the consumer with the required spare part(s), where applicable).

Given its innovation cycles and in order to protect its know-how and trade secrets, Guillemot shall not provide, in principle, any reconditioning notification or spare parts for any Hercules product whose warranty period has expired.

In the United States of America and in Canada, this warranty is limited to the product's internal mechanism and external housing. In no event shall Guillemot or its affiliates be held liable to any third party for any consequential or incidental damages resulting from the breach of any express or implied warranties. Some States/Provinces do not allow limitation on how long an implied warranty lasts or exclusion or limitation of liability for consequential or incidental damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from State to State or Province to Province.

Liability

If permitted under applicable law, Guillemot Corporation S.A. (hereinafter "Guillemot") and its subsidiaries disclaim all liability for any damages caused by one or more of the following: (1) the product has been modified, opened or altered; (2) failure to comply with assembly instructions; (3) inappropriate or abusive use, negligence, an accident (an impact, for example); (4) normal wear; (5) the use of the product for any use other than home use, including for professional or commercial purposes (game rooms, training, competitions, for example). If permitted under applicable law, Guillemot and its subsidiaries disclaim all liability for any damages unrelated to a material or manufacturing defect with respect to the product (including, but not limited to, any damages caused directly or indirectly by any software, or by combining the Hercules product with any unsuitable element, including in particular power supplies, rechargeable batteries, chargers, or any other elements not supplied by Guillemot for this product).

Monitor 5

COPYRIGHT

© 2019 Guillemot Corporation S.A. All rights reserved. Hercules® is a registered trademark of Guillemot Corporation S.A. All other trademarks and brand names are hereby acknowledged and are property of their respective owners. Illustrations not binding. Contents, designs and specifications are subject to change without notice and may vary from one country to another. Made in China.

RECOMMANDATION RELATIVE À LA PROTECTION DE L'ENVIRONNEMENT

Symbol of a trash bin with crossed lines and a blank rectangular base (no text or labels)

In the European Union: At the end of its working life, this product should not be disposed of with standard household waste, but rather dropped off at a collection point for the disposal of Waste Electrical and Electronic Equipment (WEEE) for recycling.

This is confirmed by the symbol found on the product, user manual or packaging.

Depending on their characteristics, the materials may be recycled. Through recycling and other forms of processing Waste Electrical and Electronic Equipment, you can make a significant contribution towards helping to protect the environment.

Please contact your local authorities for information on the collection point nearest you.

For all other countries: Please adhere to local recycling laws for electrical and electronic equipment.

Retain this information. Colours and decorations may vary.

Plastic fasteners and adhesives should be removed from the product before it is used.

www.hercules.com

*Applicable to EU and Turkey only

Hercules

TECHNICAL SUPPORT

https://support.hercules.com
