Brand	Metabo
Model	ASC 55 MULTI 8
Product type	Battery charger
Input voltage	230 V ~ (depending on country)
Input frequency	50-60 Hz
Output voltage	12 V - 36 V
Charging current	Up to 4 A (depending on battery)
Typical charging time	30 min to 3 h (depending on capacity)
Compatible battery capacity	1.3 Ah - 10 Ah
Number of Li-Ion cells	3 to 10 cells
Battery type	Li-Ion
Functions	Fast charge, maintenance mode, self-test, fan cooling
Indicators	Control indicator (green), warning indicator (orange)
Protection	Against overheating, short circuit, defective battery
Wall mounting	Possible (support 25 kg)
Power supply	Removable mains cable
Protection class	I
Usage	Indoor use only
Dimensions (approx.)	250 x 150 x 100 mm
Weight (approx.)	1.2 kg
Maintenance	Clean with a dry cloth, do not immerse
Spare parts	Replaceable power cable
Repairability	Repair by specialist only
Warranty	Consult the dealer

Frequently Asked Questions - ASC 55 MULTI 8 METABO

How to charge a battery with the Metabo ASC 55 MULTI 8 charger?

Insert the battery fully into the sliding compartment (2). The control indicator (3) flashes to indicate charging. Once finished, the indicator stays on continuously.

What types of batteries can I charge with this charger?

The charger is compatible with Metabo Li-Ion batteries from 12 V to 36 V, with a capacity of 1.3 Ah to 10 Ah, and from 3 to 10 cells. Never charge non-rechargeable batteries.

What does the orange warning indicator constantly lit mean?

This indicates that the battery is not charging because its temperature is too high or too low. Wait until the battery is between 0 °C and 50 °C, charging will start automatically.

What to do if the warning indicator flashes?

This means the battery is defective or incorrectly inserted. Remove the battery immediately and check its condition. Insert it correctly until it stops.

Can I leave the battery on the charger after charging?

Yes, the charger automatically switches to maintenance mode. The battery remains operational and can be safely left connected.

Is the charger suitable for outdoor use?

No, this charger must be used only indoors, away from moisture. Protect it from rain and splashing water.

How to clean the charger?

Unplug the charger and clean it with a dry cloth. Do not use chemicals and do not immerse it in water.

Can the charger be mounted on the wall?

Yes, use suitable wall plugs and screws (e.g., 4 x 8 mm wall plugs, 4 x 5 x 60 mm screws). The wall must support the weight of the charger with the battery (approx. 25 kg).

What to do in case of smoke or fire?

Disconnect the power cord immediately. Do not open the charger and contact a specialist.

Where can I find spare parts or have my charger repaired?

Contact the Metabo representative. Addresses are available at www.metabo.com. Do not attempt any repairs yourself.

USER MANUAL ASC 55 MULTI 8 METABO

(Vice President Product Engineering & Quality)

*4) Metabowerke GmbH - Metabo-Allee 1 - 72622 Nuertingen, Germany

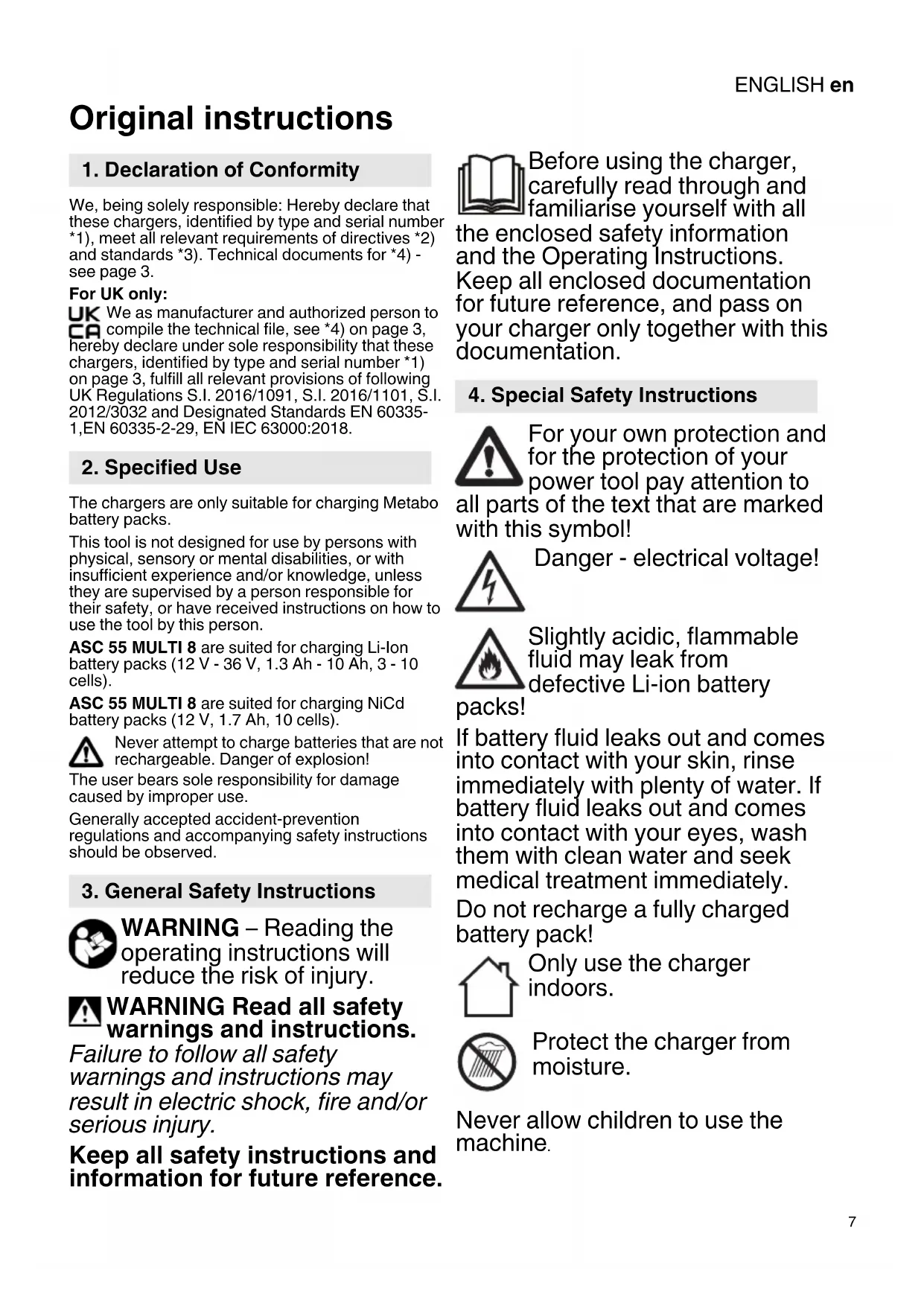

Original instructions

1. Declaration of Conformity

We, being solely responsible: Hereby declare that these chargers, identified by type and serial number *1), meet all relevant requirements of directives *2) and standards *3). Technical documents for *4) - see page 3.

For UK only:

UK We as manufacturer and authorized person to CA compile the technical file, see *4) on page 3, hereby declare under sole responsibility that these chargers, identified by type and serial number *1) on page 3, fulfill all relevant provisions of following UK Regulations S.I. 2016/1091, S.I. 2016/1101, S.I. 2012/3032 and Designated Standards EN 60335-1, EN 60335-2-29, EN IEC 63000:2018.

2. Specified Use

The chargers are only suitable for charging Metabo battery packs.

This tool is not designed for use by persons with physical, sensory or mental disabilities, or with insufficient experience and/or knowledge, unless they are supervised by a person responsible for their safety, or have received instructions on how to use the tool by this person.

ASC 55 MULTI 8 are suited for charging Li-Ion battery packs (12 V - 36 V, 1.3 Ah - 10 Ah, 3 - 10 cells).

ASC 55 MULTI 8 are suited for charging NiCd battery packs (12 V, 1.7 Ah, 10 cells).

Never attempt to charge batteries that are not rechargeable. Danger of explosion!

The user bears sole responsibility for damage caused by improper use.

Generally accepted accident-prevention regulations and accompanying safety instructions should be observed.

3. General Safety Instructions

WARNING – Reading the operating instructions will reduce the risk of injury.

WARNING Read all safety warnings and instructions.

Failure to follow all safety warnings and instructions may result in electric shock, fire and/or serious injury.

Keep all safety instructions and information for future reference.

Before using the charger, carefully read through and familiarise yourself with all the enclosed safety information and the Operating Instructions.

Keep all enclosed documentation for future reference, and pass on your charger only together with this documentation.

4. Special Safety Instructions

For your own protection and for the protection of your power tool pay attention to its of the text that are marked is symbol!

Danger - electrical voltage!

Slightly acidic, flammable fluid may leak from defective Li-ion battery

packs!

If battery fluid leaks out and comes into contact with your skin, rinse immediately with plenty of water. If battery fluid leaks out and comes into contact with your eyes, wash them with clean water and seek medical treatment immediately.

Do not recharge a fully charged battery pack!

Only use the charger indoors.

Protect the charger from moisture.

Never allow children to use the machine.

ENGLISHen

Children should be supervised to ensure that they do not play with the tool.

Keep children away from the battery charger and the working area!

Keep your battery charger out of reach of children!

Pull out the mains plug immediately if the battery charger starts to smoke or flames emerge!

Do not insert objects into the ventilation slots on the battery charger – there is a danger of electric shocks and short circuits!

Do not use faulty battery packs. In areas with high metal dust exposure do not load any battery packs with AIR COOLED chargers (ASC 55 MULTI 8).

5. Overview

See page 2.

1 Battery pack (not in scope of delivery)
2 Sliding seat
3 Operation display
4 Warning display
5 Removable cord
6 Switch

6. Commissioning

Before plugging in, check to see that the rated mains voltage and mains frequency, as specified on the rating label, match your power supply.

Devices such as this one, which generate direct current, may have an effect on basic residual-current circuit breakers. Use type F or better, with a release current of max. 30 mA.

Before commissioning the charger, ensure that the air slots are free. Minimum distance to other objects is 5 cm.

6.1 Self-test

After inserting of mains supply plug the warning display (4) and the operating indicator (3) will shortly light up and the installed fan runs for a few seconds.

6.2 Mounting to a wall

If the charger is to be mounted to a wall, it must be suited to safely carry the weight of the charger including battery pack (approx. 25 kg in total).

Use appropriate fixing material.

7. Use

7.1 Charging battery pack

Push the battery pack completely to the stop on the sliding seat (2).

The operating indicator (3) flashes.

Note: To have the charge level displayed on Li-ion battery packs, first take the battery pack out of the charger and then press the button on the battery pack.

7.2 Conservation charge

Once the charging process has finished, the battery charger automatically switches to conservation mode.

The battery pack can remain in the battery charger and is therefore always ready for use.

The operating display (3) lights up continuously.

8. Fault

8.1 Warning display (4) lights up continuously

Battery pack is not charged. Temperature too high/ too low. When the temperature of the battery pack is between 0^ and 50^ , the charging process begins automatically.

8.2 Warning display (4) flashes

• Battery pack is defective. Remove the battery pack immediately from the charger.
• The battery pack was not pushed correctly onto the sliding seat (2). See section 7.1.

•

9. Repairs

Repairs to the charger must only be carried out by qualified electricians.

If the mains connection cable of this tool is damaged, in order to prevent endangering personnel and property it must be replaced by the

manufacturer, or the Customer Service of the manufacturer, or a similarly qualified person.

Contact your local Metabo representative if you have Metabo chargers requiring repairs. For addresses see www.metabo.com.

10. Environmental Protection

Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories.

Packaging materials must be disposed of according to their labelling in accordance with municipal guidelines. Further information can be found at www.metabo.com in the “Service” section.

Only for EU countries: Never dispose of power tools in your household waste! In accordance with European Guideline 2012/

19/EU on used electronic and electric equipment and its implementation in national legal systems, used power tools must be collected separately and handed in for environmentally compatible recycling.

11. Technical Specifications

See page 3.

U = Voltage ranges of the battery packs

C = Battery pack capacity

I_C = Charging current

t = Charging time

^1) Depending on the residual capacity and the temperature of the battery pack, real charging times may deviate from the specifications.

Recommended ambient temperature when charging: 0 °C to 40 °C

Changes due to technological progress reserved.

Appliance in protection class I

\~ Alternating current
