ACS 15 PlusEU - Battery charger METABO - Free user manual and instructions

Brand	Metabo
Model	ACS 15 PlusEU
Product type	Battery charger
Input voltage	230 V ~ 50 Hz (according to rating plate)
Compatible battery voltage range	NiCd/NiMH: 4.8 V - 18 V; Li-ion: 7.2 V - 18 V; Starter batteries: 6 V or 12 V with adapter 6.27076
Main functions	Automatic charging, self-test, maintenance mode, refresh mode (NiCd/NiMH), charging of starter batteries (with adapter)
Visual indicators	Operation indicator, fault indicator, refresh mode indicator
Integrated fan	Yes, for cooling
Environmental protection	100% recyclable; do not dispose of in household waste
Safety	Overload protection, short-circuit protection, battery fault protection; indoor use only; do not expose to moisture
Maintenance	Clean with a dry cloth; repairs by a specialist
Spare parts	Replaceable power cord (contact customer service)
Manual available in	FR, DA, DE, EL, EN, ES, FI, HU, IT, NL, PL, PT, RU, SV and others
Number of pages	68

Frequently Asked Questions - ACS 15 PlusEU METABO

What types of batteries can the ACS 15 PlusEU charge?

It can charge NiCd and NiMH battery packs (4.8 V - 18 V, 1.25 Ah - 4 Ah) and Li-ion battery packs (7.2 V - 18 V, 1.1 Ah - 3 Ah). With the optional adapter (ref. 6.27076), it can also charge wet vehicle starter batteries 6 V or 12 V (20 Ah - 100 Ah).

How to use the refresh mode?

Insert a NiCd or NiMH battery pack into the slot. Press the refresh mode button (4) until the indicator (5) flashes. The cycle lasts about 8 h for NiMH and 12 h for NiCd. Do not use more than once per month per battery.

What does the fault indicator lit steady mean?

The battery pack is not charging because its temperature is outside the range 0 °C - 50 °C. Place it in an environment at room temperature; charging will start automatically as soon as the temperature is acceptable.

What does the flashing fault indicator mean?

This indicates either a defective battery pack (remove it immediately), a short circuit between the charging contacts (check that no foreign object is present), or for a Li-ion battery: the display button was pressed during charging (remove the battery and press its button outside of charging).

Can I leave the battery on the charger after charging?

Yes, the charger automatically switches to maintenance mode. The operation indicator remains lit steady. The battery remains available at all times. However, do not leave the battery in the unplugged charger, as it could fully discharge and become damaged.

How to charge a Li-ion battery with this device?

Insert the battery into the slot (1) until it stops. Use an adapter if necessary. The operation indicator flashes during charging. Charging stops automatically. To display the charge level, remove the battery and press its button.

Can I charge non-rechargeable batteries?

No, never try to charge non-rechargeable batteries. This presents a danger of explosion.

How to maintain the charger?

Clean it with a dry cloth. Ensure the ventilation slots are clear (minimum distance of 5 cm from other objects). Repairs must only be carried out by an authorized specialist.

What adapter is needed to charge a vehicle starter battery?

The charging adapter 6.27076 (sold separately) is required. It is suitable for 6 V or 12 V wet batteries with a capacity of at least 20 Ah.

How to recycle the charger at end of life?

Do not dispose of it in household waste. In accordance with European directive 2002/96/EC, used electrical appliances must be taken to a separate collection point to be recycled in an environmentally friendly manner.

USER MANUAL ACS 15 PlusEU METABO

2006/95/EG, 2004/108/EG

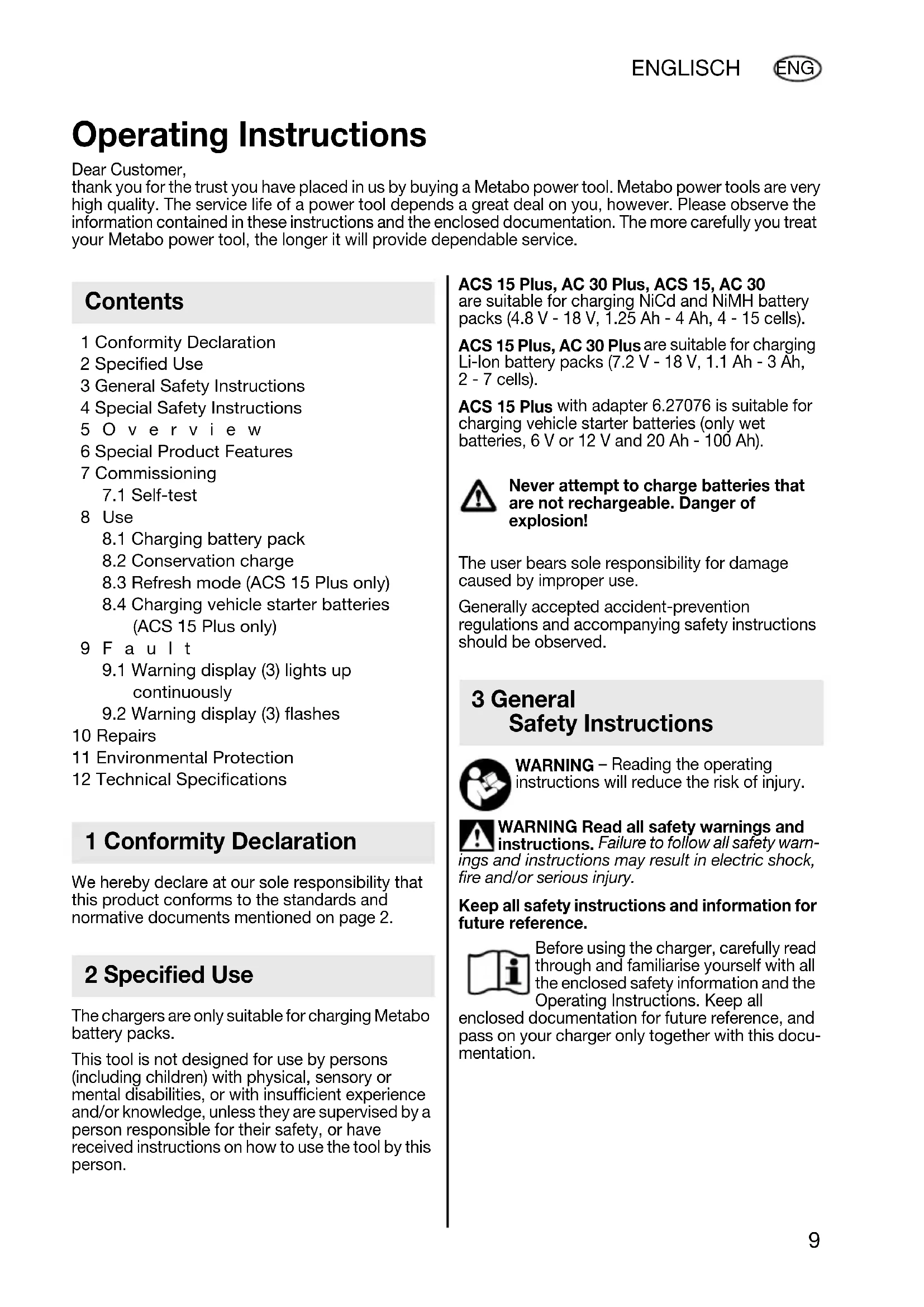

Operating Instructions

Dear Customer,

thank you for the trust you have placed in us by buying a Metabo power tool. Metabo power tools are very high quality. The service life of a power tool depends a great deal on you, however. Please observe the information contained in these instructions and the enclosed documentation. The more carefully you treat your Metabo power tool, the longer it will provide dependable service.

Contents

1 Conformity Declaration
2 Specified Use
3 General Safety Instructions
4 Special Safety Instructions
5 O v e r v i e w
6 Special Product Features
7 Commissioning

7.1 Self-test

8 Use

8.1 Charging battery pack
8.2 Conservation charge
8.3 Refresh mode (ACS 15 Plus only)
8.4 Charging vehicle starter batteries (ACS 15 Plus only)

9 F a u l t

9.1 Warning display (3) lights up continuously
9.2 Warning display (3) flashes

10 Repairs
11 Environmental Protection
12 Technical Specifications

1 Conformity Declaration

We hereby declare at our sole responsibility that this product conforms to the standards and normative documents mentioned on page 2.

2 Specified Use

The chargers are only suitable for charging Metabo battery packs.

This tool is not designed for use by persons (including children) with physical, sensory or mental disabilities, or with insufficient experience and/or knowledge, unless they are supervised by a person responsible for their safety, or have received instructions on how to use the tool by this person.

ACS 15 Plus, AC 30 Plus, ACS 15, AC 30

are suitable for charging NiCd and NiMH battery packs (4.8 V - 18 V, 1.25 Ah - 4 Ah, 4 - 15 cells).

ACS 15 Plus, AC 30 Plus are suitable for charging Li-Ion battery packs (7.2 V - 18 V, 1.1 Ah - 3 Ah, 2 - 7 cells).

ACS 15 Plus with adapter 6.27076 is suitable for charging vehicle starter batteries (only wet batteries, 6V or 12V and 20Ah - 100Ah ).

Never attempt to charge batteries that are not rechargeable. Danger of explosion!

The user bears sole responsibility for damage caused by improper use.

Generally accepted accident-prevention regulations and accompanying safety instructions should be observed.

3 General Safety Instructions

WARNING - Reading the operating instructions will reduce the risk of injury.

WARNING Read all safety warnings and instructions. Failure to follow all safety warnings and instructions may result in electric shock, fire and/or serious injury.

Keep all safety instructions and information for future reference.

Before using the charger, carefully read through and familiarise yourself with all the enclosed safety information and the Operating Instructions. Keep all

enclosed documentation for future reference, and pass on your charger only together with this documentation.

4 Spe c i a l Safety Instructions

For your own protection and for the protection of your charger pay attention to all parts of the text that are marked with this symbol!

Danger - electrical voltage!

Caustic fluid may leak from defective NiCd or NiMH battery packs (30% caustic potash solution)!

Slightly acidic, flammable fluid may leak from defective Li-lon battery packs!

If battery fluid from NiCd, NiMH or Li-lon battery packs leaks out and comes into contact with the skin, rinse the affected area thoroughly with water. If battery fluid leaks out and comes into contact with your eyes, wash them with clean water and seek medical treatment immediately!

Do not recharge a fully charged battery pack! Overcharging damages and shortens the lifespan of the battery pack!

Only use the charger indoors.

Protect the charger from moisture.

Children should be supervised to ensure that they do not play with the tool.

Keep children away from the battery charger and the working area!

Keep your battery charger out of reach of children!

Pull out the mains plug immediately if the battery charger starts to smoke or flames emerge!

Do not insert objects into the ventilation slots on the battery charger - there is a danger of electric shocks and short circuits!

Do not use faulty battery packs.

5 O v e r v i e w

See page 3 (please unfold).

1 Charging compartment
2 Operating indicator
3 Warning display
4 Refresh mode button
5 Refresh mode indicator

6 Special Product Features

• Reduction in charging time with warm AIR COOLED battery packs of up to 50% and the maximum battery temperature during charging by approx. 10^ .
  Lengthening of service life of the AIR COOLED battery packs (mainly NiMH) by up to 50% .
• ACS 15 Plus: refresh mode for NiCd and NiMH battery pack maintenance.
• ACS 15 Plus: can charge vehicle starter batteries in combination with adapter 6.27076 (not included in scope of delivery).

7 Commissioning

Before plugging in, check to see that the rated mains voltage and mains frequency, as stated on the rating label, match with your power supply.

Before commissioning the charger, ensure that the air slots are free. Minimum distance to other objects is 5 cm.

7.1 Self-test

Insert mains supply plug.

ACS 15, AC 30 Plus, AC 30:

the warning display (3) and the operating indicator (2) light up in succession for approx. 1 second; the installed fan runs for approx. 5 seconds.

ACS 15 Plus:

the warning display (3), the operating indicator (2) and the refresh mode indicator (5) light up simultaneously for approx. 1 second; the installed fan runs for approx. 1 second.

8 Use

8.1 Charging battery pack

Insert battery pack up to the stop in the charging compartment (1). If necessary, use an adapter for the battery pack (available as accessory).

A battery pack that is new or has not been used for some time only reaches full capacity after being charged and discharged several times.

The operating indicator (2) flashes.

Note: To have the charge level displayed on Li-lon battery packs (with 14.4 V and 18 V), first take the battery pack out of the charger and then press the button on the battery pack.

8.2 Conservation charge

Once the charging process has finished, the battery charger automatically switches to conservation mode.

The battery pack can remain in the battery charger and is therefore always ready for use. However, never leave the battery pack in a disconnected battery charger because of the possibility of exhaustive discharge and damage to the battery cells.

100%

The operating indicator (2) lights up continuously.

8.3 Refresh mode (ACS 15 Plus only)

The NiCd and NiMH battery packs may discharge naturally by themselves and the cells in the battery pack may assume different charging states. The full power of a battery pack may no longer be available as a result.

If you suspect that the battery is suffering from this effect, you can use refresh mode to restore full battery pack power corresponding to the battery age.

Only for NiCd and NiMH battery packs - not for Li-Ion battery packs and vehicle starter batteries. Use a maximum of once a month

for each battery pack.

1) Insert battery pack up to the stop in the charging compartment (1). If necessary, use an adapter for the battery pack (available as accessory).

2) Press the refresh mode button (4) until the refresh mode indicator (5) flashes.

Refresh mode ends automatically after approx. 8 hours for NiMH battery packs or after approx. 12 hours for NiCd battery packs. The battery pack is then fully charged.

Note: The battery pack can be removed from the charger at any time, thereby interrupting refresh mode.

When the operating indicator (2) lights up continuously, this signals the end of refresh mode. The battery pack can remain in the battery charger and is therefore always ready for use.

8.4 Charging vehicle starter batteries (ACS 15 Plus only)

Only suitable for 6V or 12V wet batteries with a minimum of 20 Ah.

Vehicle starter batteries can be charged in combination with the charging adapter 6.27076 (not included in scope of delivery). Read the directions for use and safety instructions accompanying the charger adapter.

9 F a u l t

9.1 Warning display (3) lights up continuously

Battery pack is not charged. Excessive/Insufficient temperature. When the temperature of the battery pack is between 0^ and 50^ , the charging process begins automatically.

9.2 Warning display (3) flashes

• Battery pack is defective. Remove the battery pack immediately from the charger.
• Short circuit between the charging contacts. Check charging compartment for foreign bodies.
• For Li-Ion battery packs (with 14.4 V and 18 V): During charging, the button for displaying the charge level was pressed. First take the battery pack out of the charger and then press the button on the battery pack.

10 Repairs

Repairs to the charger must only be carried out by qualified electricians.

If the mains connection cable of this tool is damaged, in order to prevent endangering personnel and property it must be replaced by the manufacturer, or the Customer Service of the manufacturer, or a similarly qualified person.

Metabo chargers requiring repairs can be sent to the address on the next to the last page. Please enclose a description of the fault with the power tool.

11 Environmental Protection

Metabo's packaging can be 100% recycled. Worn out chargers and accessories contain considerable amounts of valuable raw and plastic materials, which can be recycled.

These instructions are printed on chlorine-free bleached paper.

Only for EU countries: Never dispose of power tools in your household waste! In accordance with European Directive

2002/96/EC relating to electric and electronic machines and implementation in national law, used electric tools must be collected separately and disposed of in an environmentally friendly manner at recycling centres.

12 Technical Specifications

See page 2.

A = Voltage ranges of the battery packs
B = Charging current
C = Charging time ^1) as a function of the battery pack capacity
D = Charge current with conservation charging

1) Depending on the residual capacity and the temperature of the battery pack, real charging times may deviate from the specifications.

Changes due to technological progress reserved.
