USER MANUAL Eneby IKEA

Turn Speaker On/Off 5

Add Bluetooth device ....5

Play music from external source 5

Use speaker throughout home 5

Attach speaker to a wall or a stand 5

Other Settings 5

Safety and important notice 6

Care Instructions 6

Troubleshooting 7

Technical data 8

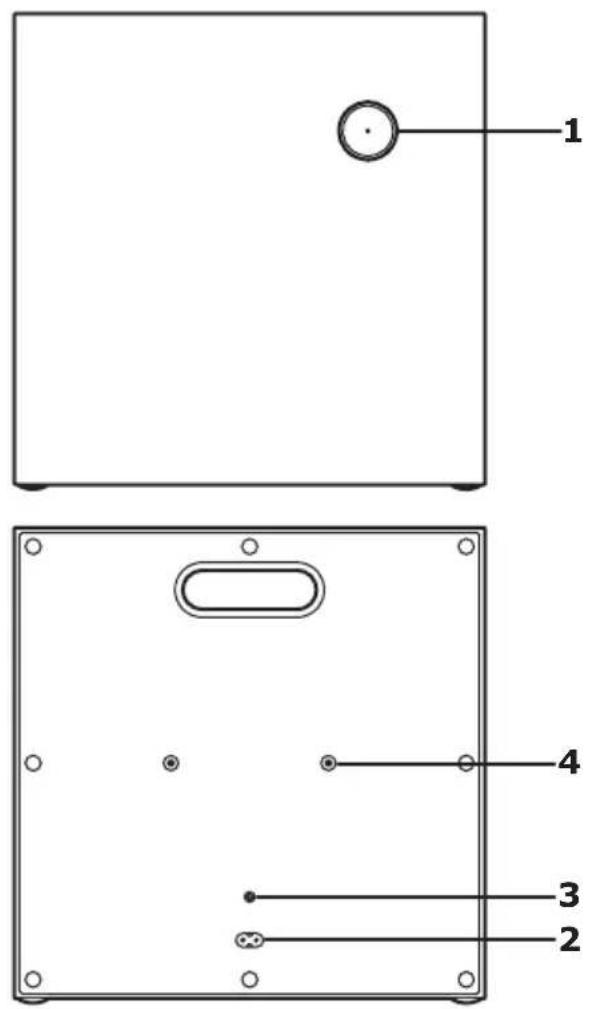

ENEBY 30 (E1730)

Simple line drawing of a rectangular frame with a circular element and a labeled point '1' (no text or symbols beyond the label)

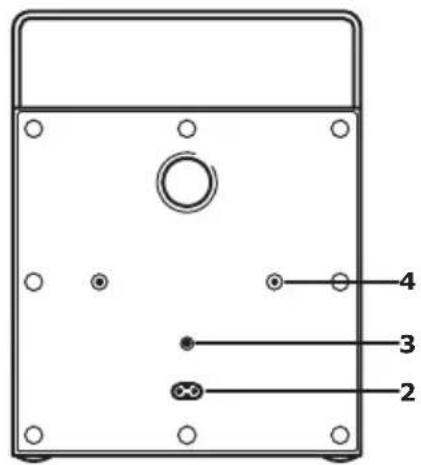

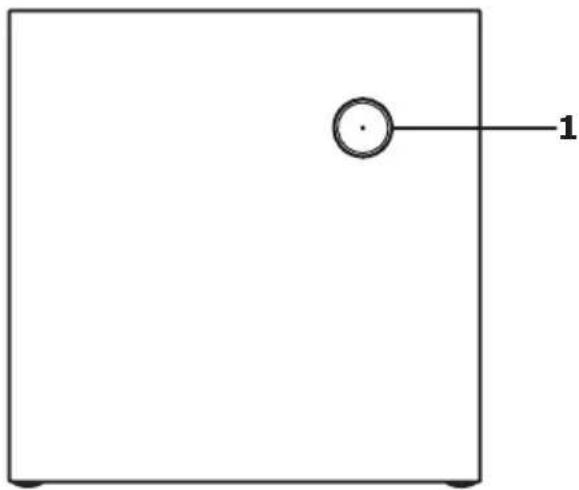

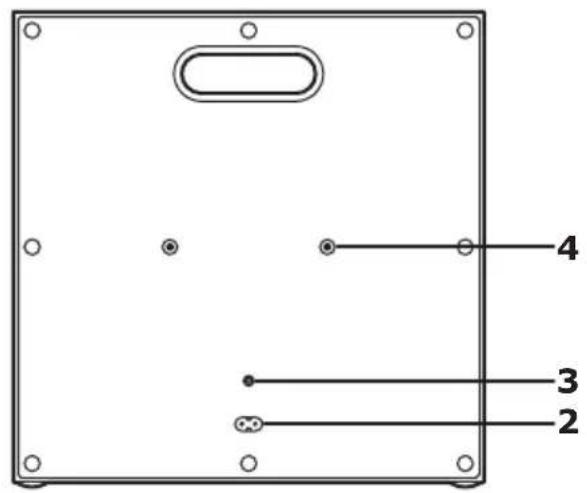

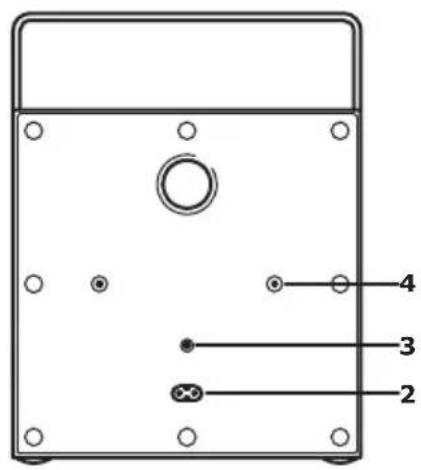

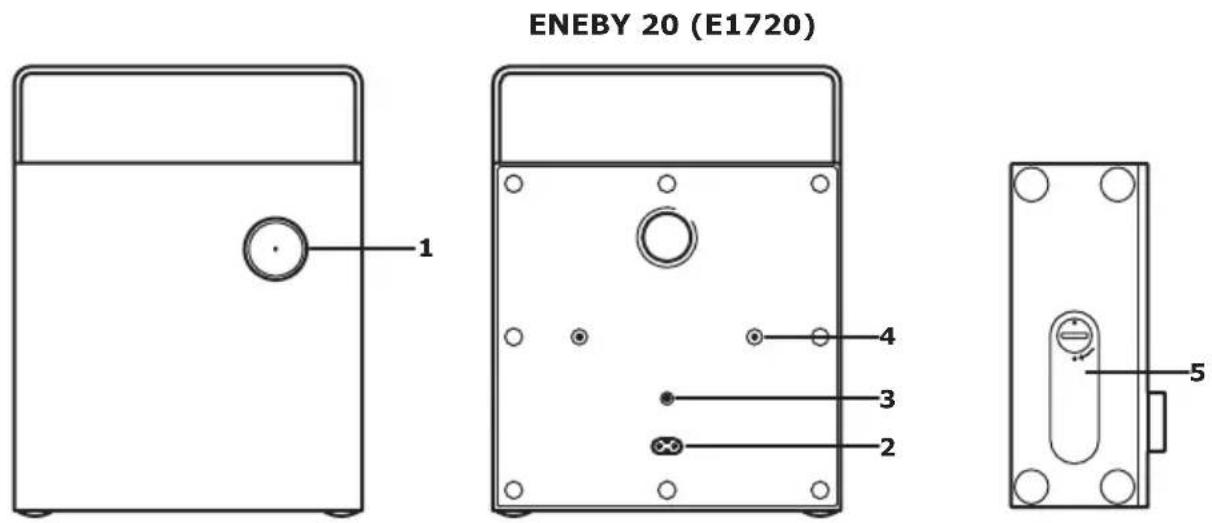

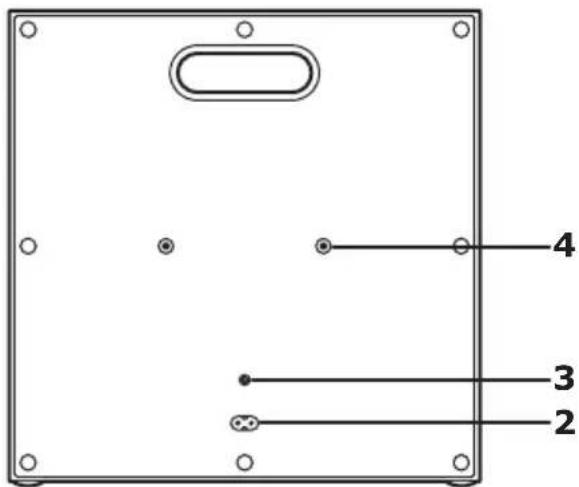

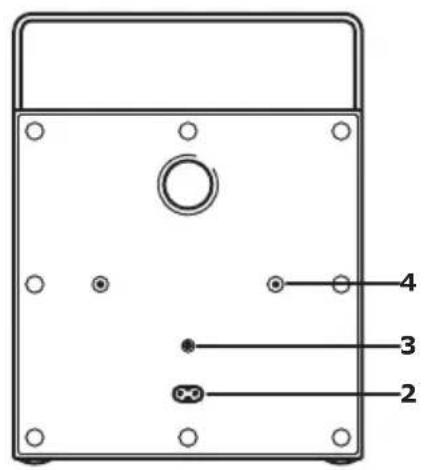

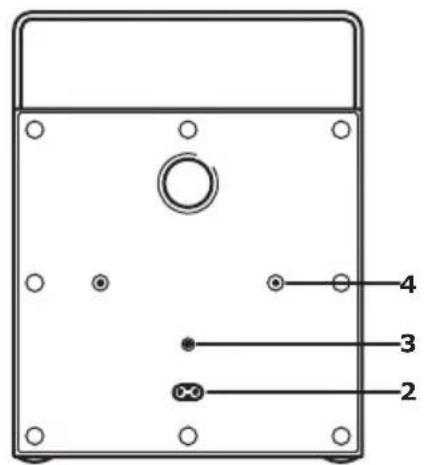

1. Power On/Off/Volume control
2. AC IN
3. AUDIO IN
4. For ENEBY wall mount and ENEBY Stand (sold separately)
5. Battery compartment lid (only on ENEBY 20, sold separately)

4 3 2

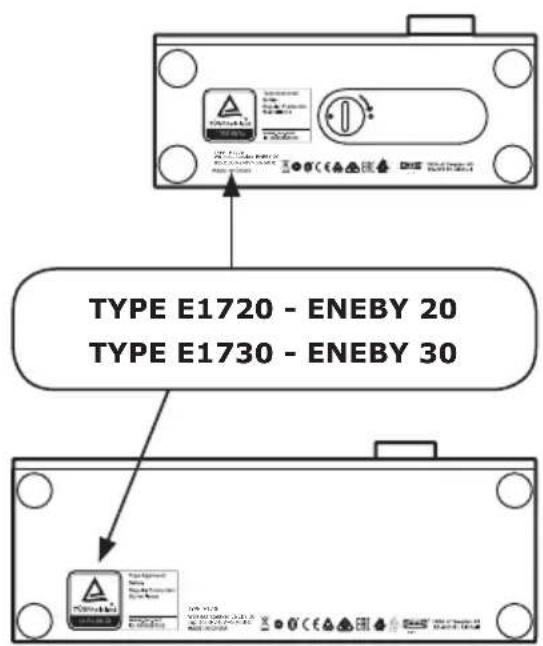

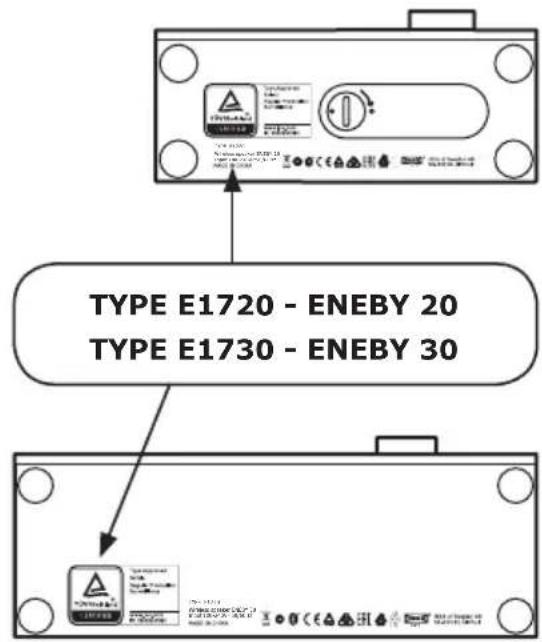

TYPE E1720 - ENEBY 20 TYPE E1730 - ENEBY 30

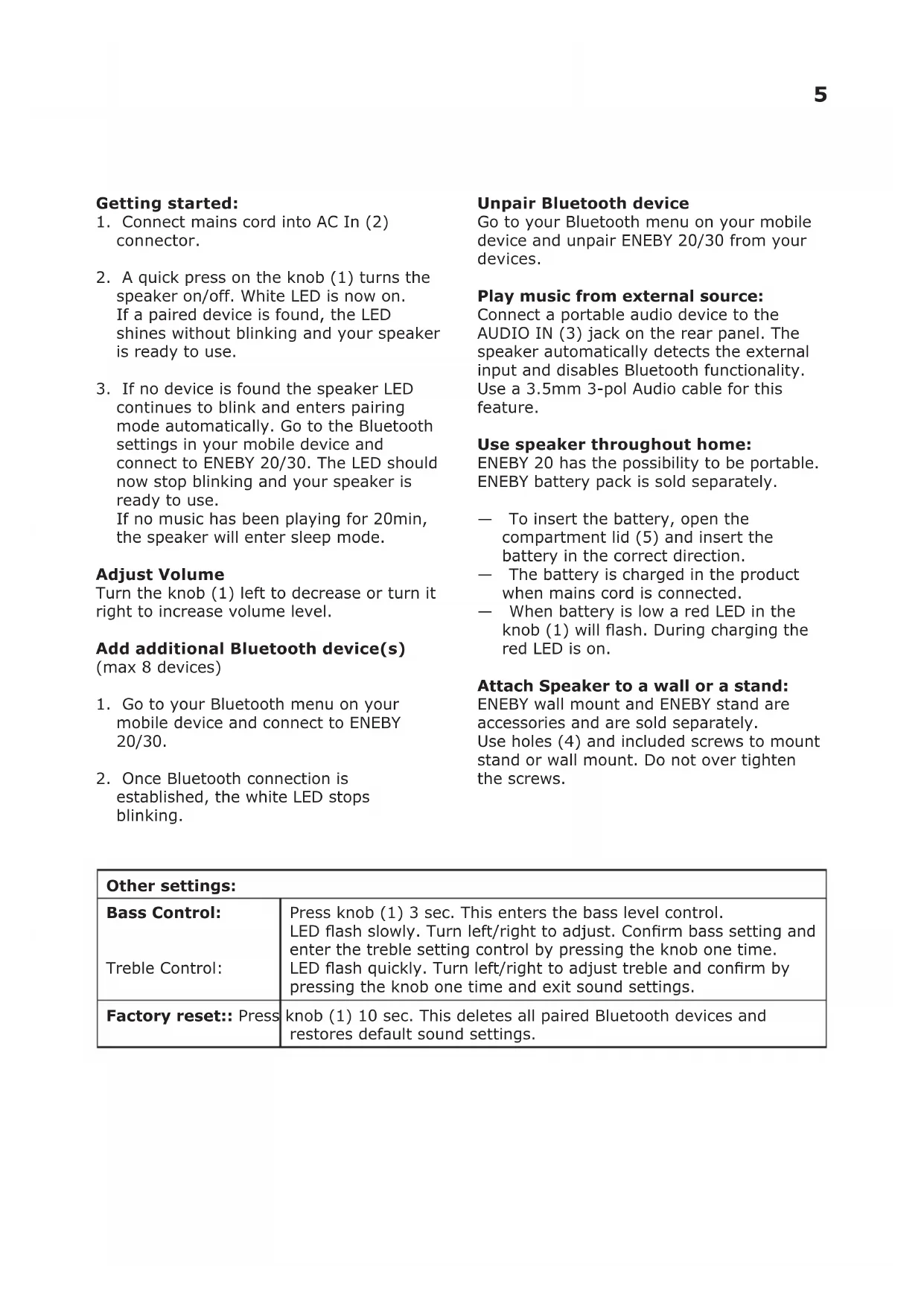

Getting started:

1. Connect mains cord into AC In (2) connector.
2. A quick press on the knob (1) turns the speaker on/off. White LED is now on. If a paired device is found, the LED shines without blinking and your speaker is ready to use.
3. If no device is found the speaker LED continues to blink and enters pairing mode automatically. Go to the Bluetooth settings in your mobile device and connect to ENEBY 20/30. The LED should now stop blinking and your speaker is ready to use.

If no music has been playing for 20min, the speaker will enter sleep mode.

Adjust Volume

Turn the knob (1) left to decrease or turn it right to increase volume level.

Add additional Bluetooth device(s)

(max 8 devices)

1. Go to your Bluetooth menu on your mobile device and connect to ENEBY 20/30.
2. Once Bluetooth connection is established, the white LED stops blinking.

Other settings:
Bass Control:	Press knob (1) 3 sec. This enters the bass level control.LED flash slowly. Turn left/right to adjust. Confirm bass setting and enter the treble setting control by pressing the knob one time.LED flash quickly. Turn left/right to adjust treble and confirm by pressing the knob one time and exit sound settings.
Treble Control:
Factory reset:: Press	knob (1) 10 sec. This deletes all paired Bluetooth devices and restores default sound settings.

Unpair Bluetooth device

Go to your Bluetooth menu on your mobile device and unpair ENEBY 20/30 from your devices.

Play music from external source:

Connect a portable audio device to the AUDIO IN (3) jack on the rear panel. The speaker automatically detects the external input and disables Bluetooth functionality. Use a 3.5mm 3-pol Audio cable for this feature.

Use speaker throughout home:

ENEBY 20 has the possibility to be portable. ENEBY battery pack is sold separately.

— To insert the battery, open the compartment lid (5) and insert the battery in the correct direction.
— The battery is charged in the product when mains cord is connected.
— When battery is low a red LED in the knob (1) will flash. During charging the red LED is on.

Attach Speaker to a wall or a stand:

ENEBY wall mount and ENEBY stand are accessories and are sold separately. Use holes (4) and included screws to mount stand or wall mount. Do not over tighten the screws.

Safety and important notice

WARNING:

— Risk of overheating! Never install the product in a confined space. Always leave a space of at least 5 mm around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the product.
— Never place the product or batteries near open flames or other heat sources, including direct sunlight.
— Only use this product indoors. The apparatus shall not be exposed to dripping or splashing, no objects filled with liquids, such as vases, shall be placed on the apparatus.
— Never place this product on other electrical equipment.
— The mains plug or an appliance coupler is to be used as a disconnect device, the disconnect device shall remain readily operable.
— If the supply cord is damaged, replace it with a new cord set which is type-approved for your country.
— Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or similar.

IMPORTANT!

— The speaker is for indoor use only and can be used in temperatures ranging from 0^ C to 45^ C.
— Do not leave the speaker in direct sunlight or near any heat source, as it may overheat.
— Do not subject the speaker to wet, moist or excessively dusty environments, as this may cause damage.
— The range between the speaker and the receiver is measured in open air.
— Different building materials and placement of the units can affect the wireless connectivity range.
— Too high volume can damage your hearing.
— Do not touch the acoustic components.
— Don not use the product as a shelf or stand.

CARE INSTRUCTIONS

To clean the speaker, wipe with a moist cloth. Never submerge the speaker in water.

NOTE!

Never use abrasive cleaners or chemical solvents as this can damage the product.

PRODUCT SERVICING

Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks.

Manufacturer: IKEA of Sweden AB

Address: Box 702, SE-343 81 ÄLMHULT

Bluetooth®

The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by IKEA is under license. Other trademarks and trade names are those of their respective owners.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Troubleshooting

Problem Tip
Cannot use Bluetooth: Make sure 3.5mm connector is not plugged into AUDIO IN jack on rear panel.
Poor sound quality when playing via Bluetooth:	If Bluetooth reception is poor, move the device closer to the speaker or remove any obstacles between the device and the speaker.Note:Bluetooth reception will normally operate at a distance of up to 6-8m in conditions with an unobstructed path. When objects, furniture or walls are in between, Bluetooth reception will be reduced. When the device is placed in pockets of clothes or in a bag, Bluetooth reception can be reduced.
Poor sound quality when playing via AUDIO IN input:	Make sure your phone, table or other media device is not at maximum volume, if so, turn down the volume.

Technical data

Model Name	ENEBY 20 ENEBY 30
Type number	E1720 E1730
Input	100-240VAC 50-60Hz
Standby Power Consumption	<0.5 W
Rated Power Consumption	39W 40W
Operating temperatures	0°C to 45°C
Operating humidity	0 to 95%RH
Dimensions (mm)	199x199x80(without handle)	299x299x106
Weight	1.5kg(without battery)	3.8kg
Audio In	3.5mm jack
Audio In Input sensitivity	1.65V max
Battery playtime at 50% volume	8-10 Hours N/A
Auto Standby	20 min
Speaker type	mixed mono
Woofer	1 x 3.2" 2 x 4"
Soft dome tweeter	1 x 1"
Amplifier output power	1x15W + 1x5W 2x15W + 1x12W
Frequency range	57 - 20 kHz 48 - 20 kHz
Bluetooth Version	V 4.2
Wireless range in open air	8-10 m
Operating frequency	2.4 - 2.48 GHz
Radio output power	4 dBm 9 dBm
