USER MANUAL CR 18DSL HiKOKI

0000BookCR18DSL.indb10000BookCR18DSL.indb1 2022/02/0216:03:202022/02/0216:03:202 English c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off . Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aff ect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations diff erent from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease.

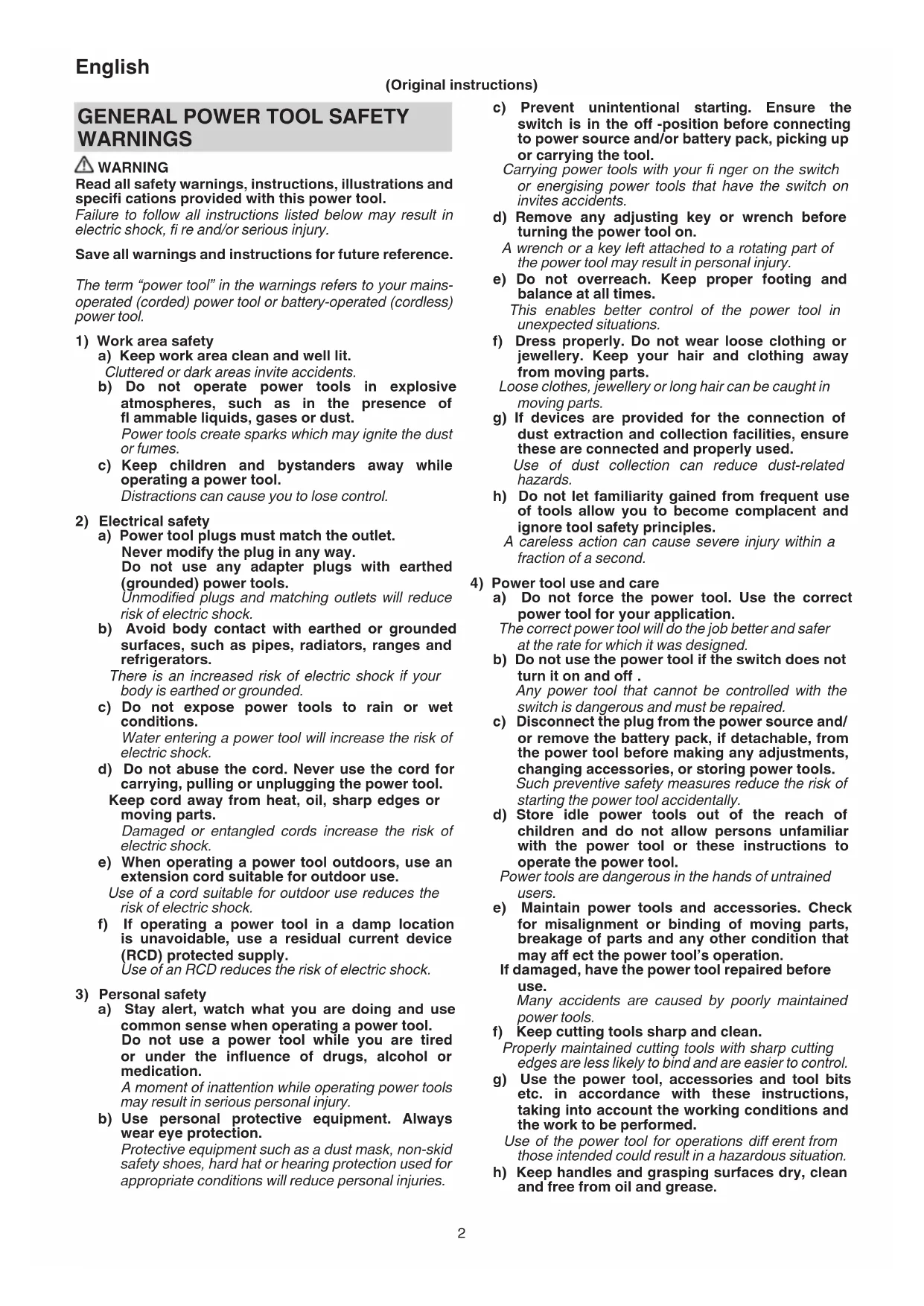

GENERAL POWER TOOL SAFETY

WARNINGS WARNING Read all safety warnings, instructions, illustrations and specifi cations provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains- operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the infl uence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. (Original instructions) 0000BookCR18DSL.indb20000BookCR18DSL.indb2 2022/02/0216:03:212022/02/0216:03:213 English Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specifi ed by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fi re when used with another battery pack. b) Use power tools only with specifi cally designated battery packs. Use of any other battery packs may create a risk of injury and fi re. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fi re. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modifi ed. Damaged or modifi ed batteries may exhibit unpredictable behaviour resulting in fi re, explosion or risk of injury. f) Do not expose a battery pack or tool to fi re or excessive temperature. Exposure to fi re or temperature above 130 °C may cause explosion. g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specifi ed in the instructions. Charging improperly or at temperatures outside the specifi ed range may damage the battery and increase the risk of fi re.

a) Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. PRECAUTION Keep children and infi rm persons away. When not in use, tools should be stored out of reach of children and infi rm persons.

CORDLESS RECIPROCATING SAW

1. Hold the power tool by insulated gripping surfaces,

when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

2. Use clamps or another practical way to secure and

support the workpiece to a stable platform. Holding the workpiece by hand or against your body leaves it unstable and may lead to loss of control.

ADDITIONAL SAFETY WARNINGS

1. Do not allow foreign matter to enter the hole for

connecting the rechargeable battery.

2. Never disassemble the rechargeable battery and

3. Never short-circuit the rechargeable battery.

Shortcircuiting the battery will cause a great electric current and overheat. It results in burn or damage to the battery.

4. Do not dispose of the battery in fi re. If the battery is burnt,

5. Bring the battery to the shop from which it was purchased

as soon as the post-charging battery life becomes too short for practical use. Do not dispose of the exhausted battery.

6. Do not insert object into the air ventilation slots of the

charger. Inserting metal objects or infl ammables into the charger air ventilation slots will result in electrical shock hazard or damaged charger.

7. When using this unit continuously, the unit may overheat,

leading to damage in the motor and switch. Please leave it without using it for approximately 15 minutes.

8. Wear earplugs to protect your ears during operation.

9. Do not touch the blade during or immediately after

operation. The blade becomes very hot during operation and could cause serious burns.

10. Always hold the body handle and front cover of the power

tool fi rmly as shown in Fig. 9 and Fig. 10. Otherwise the counterforce produced may result in inaccurate and even dangerous operation.

11. Remove the battery from tool or place the switch in the

locked or off position before making any adjustments, changing accessories, or storing the tools.

12. Mounting and dismounting the blade

○ Be absolutely sure to keep the switch turned off and the battery removed to prevent any accident. ○ Pull the back of the saw blade two or three times by hand and check that the blade is securely mounted. When pulling the blade, you will know it is properly mounted if it clicks and the lever moves slightly. (Fig. 3) ○ When pulling the saw blade, be absolutely sure to pull it from the back. Pulling other parts of the blade will result in an injury. ○ If the broken saw blade is hidden inside the small slit, hook the broken blade using a tip of another saw blade and take it out. (Fig. 4) ○ After use, blow away sawdust, earth, sand, moisture, etc., with air or brush them away with a brush, etc., to ensure that the blade mount can function smoothly. ○ As shown in Fig. 5, carry out lubrication around the blade holder on a periodic basis by use of cutting fl uid, etc. ○ Continued use of the tool without cleaning and lubricating the area where the saw blade is installed can result in some slack movement of the lever due to accumulated sawdust and chips. Under the circumstances, pull a rubber cap provided on the lever in the direction of an arrow mark as shown in Fig. 5 and remove the rubber cap from the lever. Then, clean up the inside of the blade holder with air and the like and carry out suffi cient lubrication. The rubber cap can be fi tted on if it is pressed fi rmly onto the lever. At this time, make certain that there exists no clearance between the blade holder and the rubber cap, and furthermore ensure that the saw-blade-installed area can function smoothly. ○ Do not use any saw blade with a worn-out blade hole. Otherwise, the saw blade can come off , resulting in personal injury. 0000BookCR18DSL.indb30000BookCR18DSL.indb3 2022/02/0216:03:212022/02/0216:03:214 English

13. When setting the base position, be absolutely sure to

keep the switch turned off and the battery removed to prevent any accident.

14. Make sure that the battery is installed fi rmly. If it is at all

loose it could come off and cause an accident.

15. Do not carry tools with your fi nger on the switch. A

sudden startup can result in an unexpected injury.

16. Be careful not to let sawdust, earth, moisture, etc., enter

the inside of the machine through the plunger section during operation. If sawdust and the like accumulate in the plunger section, always clean it before use.

17. Do not remove the front cover which will cause in an

injury. Be sure to hold the body from the top of the front cover.

18. During use, press the base fi rmly against the workpiece.

19. Select a saw blade of the most appropriate length.

Ideally, the length protruding from the base of the saw blade after su btracting the stroke quantity should be larger than the material. If you cut a large pipe, large block of wood, etc., that exceeds the cutting capacity of a blade; there is a risk that the blade may contact with the inner wall of the pipe, wood, etc., resulting in damage. (Fig. 8)

20. Never apply any unreasonable force to the saw blade

when cutting. Doing so can easily break the blade.

21. The motor can be locked sometimes, depending

on the combination of the material to be cut and the blade. Whenever the motor gets locked, switch it off immediately.

22. Fasten a workpiece fi rmly before operation. (Fig. 9)

23. When cutting metallic materials, use proper machine

oil (turbine oil, etc.). When not using liquid machine oil, apply grease over the workpiece. The service life of the saw blade will be drastically shortened if you don’t use machine oil.

24. Delay the feed speed when cutting the material into

small circular arcs. An unreasonably fast feed may break the blade.

25. Avoid plunge cutting for metallic materials. This can

easily damage the blade.

26. Never pull the switch trigger while the tip of the saw

blade tip is pressed against the material. If you do so, the blade can easily be damaged when it collides with the material.

27. Make absolutely sure that you cut slowly while holding

the body fi rmly. If you apply any unreasonable force to the saw blade during the cutting operation, the blade can easily be damaged.

28. The use of the battery in a cold condition (below

0 degree Centigrade) can sometimes result in the weakened cutting torque and reduced amount of work. This, however, is a temporary phenomenon, and returns to normal when the battery warms up.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor

stops. In such a case, charge it up immediately.

2. If the tool is overloaded, the motor may stop. In this

case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.

3. If the battery is overheated under overload work, the

battery power may stop. In this case, stop using the battery and let the battery cool. After that, you can use it again. Furthermore, please heed the following warning and caution. WARNING In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the

battery. ○ During work make sure that swarf and dust do not fall on the battery. ○ Make sure that any swarf and dust falling on the power tool during work do not collect on the battery. ○ Do not store an unused battery in a location exposed to swarf and dust. ○ Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

2. Do not pierce battery with a sharp object such as a

nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.

3. Do not use an apparently damaged or deformed battery.

4. Do not use the battery in reverse polarity.

5. Do not connect directly to an electrical outlets or car

cigarette lighter sockets.

6. Do not use the battery for a purpose other than those

7. If the battery charging fails to complete even when a

specifi ed recharging time has elapsed, immediately stop further recharging.

8. Do not put or subject the battery to high temperatures or

high pressure such as into a microwave oven, dryer, or high pressure container.

9. Keep away from fi re immediately when leakage or foul

10. Do not use in a location where strong static electricity

11. If there is battery leakage, foul odor, heat generated,

discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.

12. Do not immerse the battery or allow any fl uids to fl ow

inside. Conductive liquid ingress, such as water, can cause damage resulting in fi re or explosion. Store your battery in a cool, dry place, away from combustible and fl ammable items. Corrosive gas atmospheres must be avoided. CAUTION

1. If liquid leaking from the battery gets into your eyes,

do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately. If left untreated, the liquid may cause eye-problems.

2. If liquid leaks onto your skin or clothes, wash well with

clean water such as tap water immediately. There is a possibility that this can cause skin irritation.

3. If you fi nd rust, foul odor, overheating, discolor,

deformation, and/or other irregularities when using the battery for the fi rst time, do not use and return it to your supplier or vendor. WARNING If a conductive foreign matter enters in the terminal of lithium ion battery, the battery may be shorted, causing fi re. When storing the lithium ion battery, obey surely the rules of following contents. ○ Do not place conductive debris, nail and wires such as iron wire and copper wire in the storage case. ○ To prevent shorting from occurring, load the battery in the tool or insert securely the battery cover for storing until the ventilator is not seen. 0000BookCR18DSL.indb40000BookCR18DSL.indb4 2022/02/0216:03:212022/02/0216:03:215 English SYMBOLS WARNING The following show symbols used for the machine. Be sure that you understand their meaning before use. CR18DSL: Cordless Reciprocating Saw To reduce the risk of injury, user must read instruction manual. Only for EU countries Do not dispose of electric tools together with household waste material! In observance of European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. V Rated voltage

No-load speed Switching ON Switching OFF Disconnect the battery Swtich lock Switch unlock Battery capacity Remaining battery indicator switch The battery remaining power is nearly empty. Recharge the battery soonest possible The battery remaining power is a half. The battery remaining power is enough. STANDARD ACCESSORIES In addition to the main unit (1 unit), the package contains the accessories listed on page 165. Standard accessories are subject to change without notice. APPLICATIONS ○ Cutting pipe and angle steel. ○ Cutting various lumbers. ○ Cutting mild steel plates, aluminum plates, and copper plates. ○ Cutting synthetic resins, such as phenol resin and vinyl chloride. SPECIFICATIONS Model CR18DSL Voltage 18 V No-Load Speed 0 – 2100 min

• According to EPTA-Procedure 01/2014 Depending on attached battery. The heaviest weight is measured with BSL36B18. NOTE Due to HiKOKI’s continuing program of research and development, the specifi cations herein are subject to change without prior notice. CHARGING Before using the power tool, charge the battery as follows.

1. Connect the charger’s power cord to the receptacle.

When connecting the plug of the charger to a receptacle, the pilot lamp will blink in red (At 1- second intervals). CAUTION Do not use the electrical cord if damaged. Have it repaired immediately.

2. Insert the battery into the charger.

Firmly insert the battery into the charger as shown in Fig. 2.

When inserting a battery in the charger, charging will commence and the pilot lamp will light continuously in red. When the battery becomes fully recharged, the pilot lamp will blink in red. (At 1-second intervals) (See Table 1) ● Pilot lamp indication The indications of the pilot lamp will be as shown in Table 1, according to the condition of the charger or the rechargeable battery. 0000BookCR18DSL.indb50000BookCR18DSL.indb5 2022/02/0216:03:212022/02/0216:03:216 English Table 1 Indications of the pilot lamp Pilot lamp (red) Before charging Blinks Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds) While charging Lights Lights continuously Charging complete Blinks Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds) Overheat standby Blinks Lights for 1 second. Does not light for 0.5 seconds. (off for 0.5 seconds) Battery overheated. Unable to charge. (Charging will commence when battery cools) Charging impossible Flickers Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds) Malfunction in the battery or the charger

Since the built-in micro computer takes about 3 seconds to confi rm that the battery being charged with charger is taken out, wait for a minimum of 3 seconds before reinserting it to continue charging. If the battery is reinserted within 3 seconds, the battery may not be properly charged.

MOUNTING AND OPERATION

Action Figure Page Removing and inserting the battery

Mounting the blade 3

Maintenance and inspection of saw blade mount

Select a saw blade of the appropriate length

Securing the materials to be cut 9

Remaining battery indicator 11

Check and replacing the carbon brush

Selecting accessories ―

● Regarding the temperatures and charging time of the battery. The temperatures and charging time will become as shown in Table 2. Table 2 Charger Battery UC18YFSL Charging voltage V 14.4 – 18 Weight kg 0.5 Temperatures at which the battery can be recharged 0oC – 50oC Charging time for battery capacity, approx. (At 20oC)

Number of battery cells 4 – 10 NOTE The recharging time may vary according to temperature and power source voltage.

4. Disconnect the charger’s power cord from the

5. Hold the charger fi rmly and pull out the battery.

NOTE Be sure to pull out the battery from the charger after use, and then keep it. CAUTION ○ If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the pilot lamp of the charger lights for 1 second, does not light for 0.5 seconds (off for 0.5 seconds). In such a case, fi rst let the battery cool, then start charging. ○ When the pilot lamp fl ickers (at 0.2-second intervals), check for and take out any foreign objects in the charger’s battery connector. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center. 0000BookCR18DSL.indb60000BookCR18DSL.indb6 2022/02/0216:03:212022/02/0216:03:217 English

To ensure maximum operating effi ciency and results, it is very important to select the appropriate blade best suited to the type and thickness of the material to be cut. The blade number is engraved in the vicinity of the mounting portion of each blade. Select appropriate blades by referring to Table 3-5. Table 3: HCS blades Blade No. Uses Thickness (mm) No. 2 For cutting steel pipe less than 30 mm in diameter

No. 3 For cutting steel pipe less than 30 mm in diameter Below 3.5 No. 4 For cutting and roughing lumber 50 – 70 No. 5 For cutting and roughing lumber Below 30 No. 8 For cutting vinyl chloride pipe less than 100 mm in diameter

For cutting and roughing lumber Below 100 No. 9 For cutting mild steel pipe less than 100 mm in diameter when used with cut off guide

No. 95 For cutting stainless pipe less than 100 mm in diameter Below 2.5 No. 96 For cutting stainless pipe less than 30 mm in diameter Below 2.5 Table 4: Bl-METAL blades Blade No. Uses Thickness (mm) No. 101 For cutting steel and stainless pipes less than 60 mm in outer diameter

No. 102 For cutting steel and stainless pipes less than 100 mm in outer diameter

No. 103 For cutting steel and stainless pipes less than 60 mm in outer diameter

No. 104 For cutting steel and stainless pipes less than 100 mm in outer diameter

No. 107 For cutting steel and stainless pipes less than 60 mm in outer diameter Below 3.5 No. 108 For cutting steel and stainless pipes less than 100 mm in outer diameter Below 3.5 No. 109 For cutting steel and stainless pipes less than 60 mm in outer diameter

No. 110 For cutting steel and stainless pipes less than 100 mm in outer diameter

No. 121 For cutting and roughing lumber 100 No. 131 For cutting and roughing lumber 100 No. 132 For cutting and roughing lumber 100 Table 5: Selection of blades for other materials Material to be cut Material qualitu Thickness (mm) Blade No. Iron plate Mild steel plate 2.5 – 10 No. 2, 101, 102, 103, 104, 109, 110, 131 Below 3.5 No. 3, 107,

CAUTION Be sure to turned off the switch and remove the battery before maintenance and inspection.

1. Inspecting the blade

Continued use of a dull or damaged blade will result in reduced cutting effi ciency and may cause overloading of the motor. Replace the blade with a new one as soon as excessive abrasion is noted.

2. Inspecting the mounting screws

Regularly inspect all mounting screws and ensure that they are properly tightened. Should any of the screws be loose, retighten them immediately. Failure to do so could result in serious hazard.

3. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

4. Inspecting the carbon brushes (Fig. 12)

The motor employs carbon brushes which are consumable parts. Since and excessively worn carbon brush can result in motor trouble, replace the carbon brush with new ones when it becomes worn to or near the “wear limit” ⓐ. In addition, always keep carbon brushes clean and ensure that they slide freely whithin the brush holders. NOTE When replacing the carbon brush with a new one, be sure to use the HiKOKI Carbon Brush Code No. 999068.

5. Replacing carbon brushes (Fig. 12)

Take out the carbon brush by fi rst removing the brush cap and then hooking the protrusion of the carbon brush with a fl at head screw driver, etc. When installing the carbon brush, choose the direction so that the nail ⓑ of the carbon brush agrees with the contact portion ⓒ outside the brush tube. Then push it in with a fi nger. Lastly, install the brush cap. 0000BookCR18DSL.indb70000BookCR18DSL.indb7 2022/02/0216:03:212022/02/0216:03:218 English CAUTION Be absolutely sure to insert the nail of the carbon brush into the contact portion outside the brush tube. (You can insert whichever one of the two nails provided). Caution must be exercised since any error in this operation can result in the deformed nail of the carbon brush and may cause motor trouble at an early stage.

6. Cleaning on the outside

When the power tool is stained, wipe with a soft dry cloth or a cloth moistened with soapy water. Do not use chloric solvents, gasoline or paint thinner, for they melt plastics.

Store the power tool in a place in which the temperature is less than 40°C and out of reach of children. NOTE Storing lithium-ion batteries. Make sure the lithium-ion batteries have been fully charged before storing them. Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, signifi cantly reducing battery usage time or rendering the batteries incapable of holding a charge. However, signifi cantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to fi ve times. If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries. CAUTION In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. Important notice on the batteries for the HiKOKI cordless power tools Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modifi ed (such as disassembly and replacement of cells or other internal parts). GUARANTEE We guarantee HiKOKI Power Tools in accordance with statutory/country specifi c regulation. This guarantee does not cover defects or damage due to misuse, abuse, or normal wear and tear. In case of complaint, please send the Power Tool, undismantled, with the GUARANTEE CERTIFICATE found at the end of this Handling instruction, to a HiKOKI Authorized Service Center. Information concerning airborne noise and vibration The measured values were determined according to EN62841 and declared in accordance with ISO 4871. Measured A-weighted sound power level: 96 dB (A) Measured A-weighted sound pressure level: 85 dB (A) Uncertainty K: 5 dB (A). Wear hearing protection. Vibration total values (triax vector sum) determined according to EN62841. Cutting boards: Vibration emission value a h, B

EC DECLARATION OF CONFORMITY

We declare under our sole responsibility that Cordless Reciprocating Saw, identifi ed by type and specifi c identifi cation code *1), is in conformity with all relevant requirements of the directives *2) and standards *3). Technical fi le at *4) – See below. The European Standard Manager at the representative offi ce in Europe is authorized to compile the technical fi le. The declaration is applicable to the product affi xed CE marking.

A. Nakagawa Corporate Offi cer 0000BookCR18DSL.indb1750000BookCR18DSL.indb175 2022/02/0216:03:422022/02/0216:03:42205 Code No. C99709173 G Printed in China Română
