USER MANUAL C 18DBAL HiKOKI

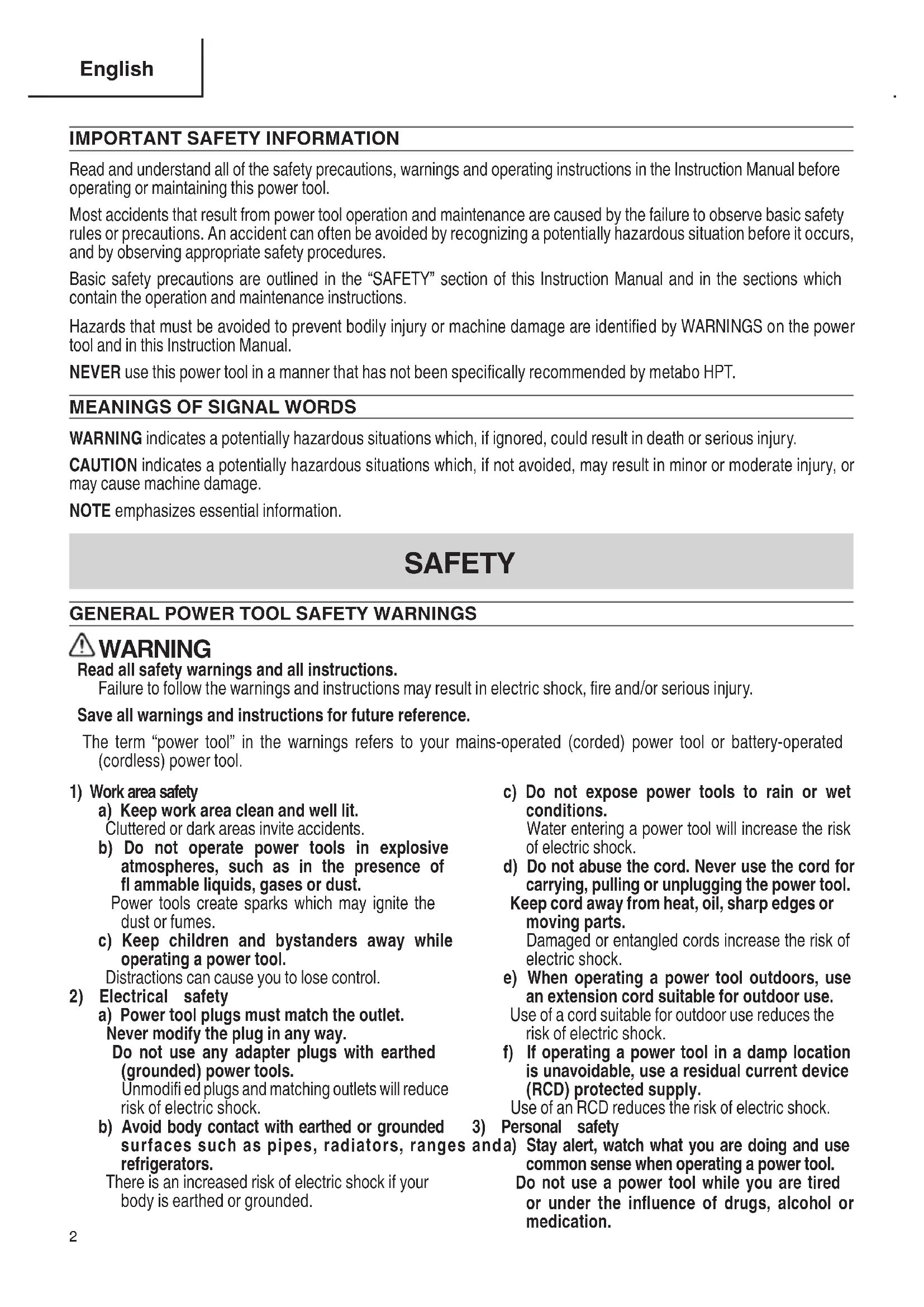

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury. CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage. NOTE emphasizes essential information. SAFETY

GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the infl uence of drugs, alcohol or medication.

English 00BookC18DBALNAmetabo.indb200BookC18DBALNAmetabo.indb2 2021/03/3017:20:552021/03/3017:20:55A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off -position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off . Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aff ect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations diff erent from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specifi ed by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fi re when used with another battery pack. b) Use power tools only with specifi cally designated battery packs. Use of any other battery packs may create a risk of injury and fi re. c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fi re. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

a) Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. – WARNING – To reduce the risk of injury, user must read instruction manual.

English 00BookC18DBALNAmetabo.indb300BookC18DBALNAmetabo.indb3 2021/03/3017:20:562021/03/3017:20:56CIRCULAR SAW SAFETY WARNINGS Cutting procedures a) DANGER: Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade. b) Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece. c) Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece. d) Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable platform. It is important to support the work properly to minimize body exposure, blade binding, or loss of control. e) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting tool may contact hidden wiring. Contact with a “live” wire will also make exposed metal parts of the power tool “live” and could give the operator an electric shock. f) When ripping always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding. g) Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control. h) Never use damaged or incorrect blade washers or bolt. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation. Kickback causes and related warnings – kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator; – when the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator; – if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator. Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below. a) Maintain a fi rm grip with both hands on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken. b) When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding. c) When restarting a saw in the workpiece, centre the saw blade in the kerf and check that saw teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted. d) Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel. e) Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback. f) Blade depth and bevel adjusting locking levers must be tight and secure before making cut. If blade adjustment shifts while cutting, it may cause binding and kickback. g) Use extra caution when sawing into existing walls or other blind areas. The protruding blade may cut objects that can cause kickback. Lower guard function a) Check lower guard for proper closing before each use. Do not operate the saw if lower guard does not move freely and close instantly. Never clamp or tie the lower guard into the open position. If saw is accidentally dropped, lower guard may be bent. Raise the lower guard with the retracting handle and make sure it moves freely and does not touch the blade or any other part, in all angles and depths of cut. b) Check the operation of the lower guard spring. If the guard and the spring are not operating properly, they must be serviced before use. Lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris. c) Lower guard should be retracted manually only for special cuts such as “plunge cuts” and “compound cuts”.

English 00BookC18DBALNAmetabo.indb400BookC18DBALNAmetabo.indb4 2021/03/3017:20:562021/03/3017:20:5610. Do not wipe plastic parts with solvent. Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents. Wipe plastic parts with a soft cloth lightly dampened with soapy water and dried thoroughly.

11. Keep motor air vent clean.

The tool’s motor air vent must be kept clean so that air can freely fl ow at all times. Check for dust build-up frequently.

12. NEVER leave tool running unattended. Turn

power off . Don’t leave tool until it comes to a complete stop.

13. NEVER touch the blade with bare hands after

14. For this mode, the saw blades should be 165 mm.

15. Because the cordless circular saw operates by

battery power, be aware of the fact that it can begin to operate at any time.

16. When working at elevated locations, clear the area of

other people and aware of conditions below you.

17. Do not give a strong shock to the switch panel or

break it. It may lead to a trouble.

WARNING Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. This manual contains important safety and operating

instructions for battery charger Model UC18YSL3 / UC18YFSL.

2. Before using battery charger, read all instructions

and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

3. To reduce risk of injury, charge metabo HPT

rechargeable battery type BSL18 series. Other type of batteries may burst causing personal injury and damage.

4. Use of an attachment not recommended or sold by

the battery charger manufacturer may result in a risk of fi re, electric shock, or injury to persons.

5. To reduce risk of damage to electric plug and cord,

pull by plug when disconnecting battery charger.

6. Make sure cord is located so that it will not be stepped

on, tripped over, or otherwise subjected to damage or stress.

7. An extension cord should not be used unless

absolutely necessary. Use of improper extension cord could result in a risk of fi re and electric shock. Raise lower guard by retracting handle and as soon as blade enters the material, the lower guard must be released. For all other sawing, the lower guard should operate automatically. d) Always observe that the lower guard is covering the blade before placing saw down on bench or fl oor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released.

SPECIFIC SAFETY RULES

1. Never touch moving parts.

Never place your hands, fi ngers or other body parts near the tool’s moving parts.

2. Never operate without all guards in place.

Never operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

Don’t force small tool or attachment to do the job of a heavy-duty tool. Don’t use tool for purpose not intended —for example— don’t use circular saw for cutting tree limbs or logs.

4. Handle tool correctly.

Do not drop or throw the tool.

5. Defi nitions for symbols.

6. Keep all screws, bolts and covers tightly in place.

Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

7. Do not use power tools if the plastic housing or

handle is cracked. Cracks in the tool’s housing or handle can lead to electric shock. Such tools should not be used until repaired.

8. Blades and accessories must be securely

mounted to the tool. Prevent potential injuries to yourself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.

9. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

English 00BookC18DBALNAmetabo.indb500BookC18DBALNAmetabo.indb5 2021/03/3017:20:562021/03/3017:20:56If extension cord must be used make sure: a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger: b. That extension cord is properly wired and in good electrical condition; and c. That wire size is large enough for AC ampere rating of battery charger as specifi ed in Table 1. Table 1

AC Input Rating Amperes* AWG Size of Cord Equal to or greater than but less than Length of Cord, Feet (Meter) 25 (7.5) 50 (15) 100 (30) 150 (45)

Follow these instructions to avoid the risk of injury:

Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.

2. NEVER incinerate the battery, even if it is damaged or

is completely worn out. The battery can explode in a fi re.

3. NEVER short-circuit the battery.

4. NEVER insert any objects into the battery charger’s

air vents. Electric shock or damage to the battery charger may result.

5. NEVER charge outdoors. Keep the battery away

from direct sunlight and use only where there is low humidity and good ventilation.

6. NEVER charge when the temperature is below 14°F

(-10°C) or above 104°F (40°C).

7. NEVER connect two battery chargers together.

8. NEVER insert foreign objects into the hole for the

battery or the battery charger.

9. NEVER use a booster transformer when charging.

10. NEVER use DC power to charge.

11. NEVER store the battery or battery charger in places

where the temperature may reach or exceed 104°F (40°C) such as inside metal box or car.

12. NEVER expose the battery or battery charger to rain

13. ALWAYS operate charger on standard household

electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.

14. ALWAYS wait at least 15 minutes between charges to

avoid overheating the charger.

15. ALWAYS disconnect the power cord from its

receptacle when the charger is not in use.

  • If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the wattage rating by the voltage rating–for example: 1,250 watts = 10 amperes 125 volts

8. Do not operate battery charger with damaged cord or

plug-replace them immediately.

9. Do not operate battery charger if it has received a

sharp blow, been dropped, or otherwise damaged in any way; take it to a qualifi ed serviceman.

10. Do not disassemble battery charger and the battery;

take it to a qualifi ed serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fi re.

11. You must charge the battery before you can use the

12. To reduce risk of electric shock, unplug the charger

from the electrical outlet when not in use, as well as before maintenance or cleaning.

BATTERY CHARGER You must charge the battery before you can use the power tool. Before using the model UC18YSL3 / UC18YFSL battery charger, be sure to read all instructions and cautionary statements on it, the battery and in this manual. CAUTION USE ONLY metabo HPT BATTERY TYPES BSL18

English 00BookC18DBALNAmetabo.indb600BookC18DBALNAmetabo.indb6 2021/03/3017:20:562021/03/3017:20:56CAUTION ON LITHIUM-ION BATTERY To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the motor

stops. In such case, charge it up immediately.

2. If the tool is overloaded, the motor may stop. In this

case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.

3. If the battery is overheated under overload work, the

battery power may stop. In this case, stop using the battery and let the battery cool. After that, you can use it again. Furthermore, please heed the following warning and caution. WARNING In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on the

During work make sure that swarf and dust do not fall on the battery.

Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.

Do not store an unused battery in a location exposed to swarf and dust.

Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

2. Do not pierce battery with a sharp object such as a

nail, strike with a hammer, step on, throw or subject the battery to severe physical shock.

3. Do not use an apparently damaged or deformed

4. Do not use the battery in reverse polarity.

5. Do not connect directly to an electrical outlets or car

cigarette lighter sockets.

6. Do not use the battery for a purpose other than those

7. If the battery charging fails to complete even when a

specifi ed recharging time has elapsed, immediately stop further recharging.

8. Do not put or subject the battery to high temperatures

or high pressure such as into a microwave oven, dryer, or high pressure container.

9. Keep away from fi re immediately when leakage or foul

10. Do not use in a location where strong static electricity

11. If there is battery leakage, foul odor, heat generated,

discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.

12. Do not immerse the battery or allow any fl uids to fl ow

inside. Conductive liquid ingress, such as water, can cause damage resulting in fi re or explosion. Store your battery in a cool, dry place, away from combustible and fl ammable items. Corrosive gas atmospheres must be avoided. CAUTION

1. If liquid leaking from the battery gets into your eyes,

do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately. If left untreated, the liquid may cause eye-problems.

2. If liquid leaks onto your skin or clothes, wash well with

clean water such as tap water immediately. There is a possibility that this can cause skin irritation.

3. If you fi nd rust, foul odor, overheating, discolor,

deformation, and/or other irregularities when using the battery for the fi rst time, do not use and return it to your supplier or vendor. WARNING If an electrically conductive foreign object enters the terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fi re. Please observe the following matters when storing the battery.

Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.

Either install the battery in the power tool or store by securely pressing into the battery cover until the ventilation holes are concealed to prevent short-circuits (See Fig. 1).

English 00BookC18DBALNAmetabo.indb700BookC18DBALNAmetabo.indb7 2021/03/3017:20:562021/03/3017:20:56REGARDING LITHIUM-ION BATTERY TRANSPORTATION When transporting a lithium-ion battery, please observe the following precautions. WARNING Notify the transporting company that a package contains a lithium-ion battery, inform the company of its power output and follow the instructions of the transportation company when arranging transport.

Lithium-ion batteries that exceed a power output of 100 Wh are considered to be in the freight classifi cation of Dangerous Goods and will require special application procedures.

For transportation abroad, you must comply with international law and the rules and regulations of the destination country.

PRECAUTIONS (ONLY WITH UC18YSL3 CHARGER) When an unexpected problem occurs, the data in a USB device connected to this product may be corrupted or lost. Always make sure to back up any data contained in the USB device prior to use with this product. Please be aware that our company accepts absolutely no responsibility for any data stored in a USB device that is corrupted or lost, nor for any damage that may occur to a connected device.

SAVE THESE INSTRUCTIONS

AND OWNERS OF THIS TOOL!

English 00BookC18DBALNAmetabo.indb800BookC18DBALNAmetabo.indb8 2021/03/3017:20:562021/03/3017:20:56FUNCTIONAL DESCRIPTION NOTE The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool. NEVER operate, or attempt any maintenance on the tool unless you have fi rst read and understood all safety instructions contained in this manual. Some illustrations in this Instruction Manual may show details or attachments that diff er from those on your own power tool.

English 00BookC18DBALNAmetabo.indb900BookC18DBALNAmetabo.indb9 2021/03/3017:20:562021/03/3017:20:562. Battery (optional accessories) Battery Latch Ventilation holes Terminals Battery cover <BSL1830C> Ventilation holes Latch Terminals Battery cover Battery <BSL1860> Fig. 3

3. Battery Charger (optional accessories)

English 00BookC18DBALNAmetabo.indb1000BookC18DBALNAmetabo.indb10 2021/03/3017:20:562021/03/3017:20:562. Battery Charger (optional accessories) Model UC18YSL3 UC18YFSL Input power source Single phase: AC 120 V 60 Hz Charging time (At a temperature of 68°F (20°C)) BSL1860 : Approx. 38 min BSL1830C : Approx. 45 min Charging voltage DC 14.4–18 V Charging current DC 8.0 A DC 3.5 A Weight 1.3 lbs. (0.6 kg) 1.1 lbs. (0.5 kg) NOTE: The charging time may vary according to temperature and power source voltage. Electronic control

Overload protection This protection feature cuts off the power to the motor in the event of overloading of motor or a conspicuous reduction in rotational speed during operation. When the overload protection feature has been activated, the motor may stop. In this case, release the tool switch and eliminate causes of overloading. After that you can use it again.

Overheat protection This protection feature cuts off the power to the motor and stops the power tool in the event of overheating of motor during operation. When the overheat protection feature has been activated, the motor may stop. In this case, release the tool switch and cool it down in a few minutes. After that you can use it again.

Rotation speed changeover function (Power mode / Silent mode) (Power mode / Silent mode switch function) Each press of the Mode Selector Switch changes the operating mode. (Fig. 5) Mode selector switch Silent mode indicator lamp Fig. 5 Silent mode reduces maximum motor RPM enabling effi cient work with less noise. The Silent Mode Indicator Lamp lights in Silent mode. When the load increases during Silent mode, the tool will automatically switch to Power mode and revert back to Silent mode when the load decreases. In Power mode, no change is made to Silent mode even when the load decreases. NOTE

To enable mode changes, pull the switch once after installing the battery.

Do not give a strong shock to the switch panel or break it. It may lead to a trouble.

Cutting various types of wood.

REMOVAL AND INSTALLATION METHOD

How to install the battery. Align the battery with the groove in tool handle and slip it into place. Always insert it all the way until it locks in place with a little click, If not, it may accidentally fall out of the tool, causing injury to you or someone around you (Fig. 6).

How to remove the battery. Withdraw battery from the tool handle while pressing the latch (2 pcs) of the battery (Fig. 6). Latch Battery Pull outInsert Push Handle Fig. 6 CHARGING METHOD NOTE Before plugging into the receptacle, make sure the following points.

The power source voltage is stated on the nameplate.

The cord is not damaged. WARNING Do not charge at voltage higher than indicated on the nameplate. If charged at voltage higher than indicated on the nameplate, the charger will burn out.

Connect the charger’s power cord to a receptacle. When the power cord is connected, the charge indicator lamp will blink in red. (At 1-second intervals) <UC18YFSL> Connect the charger’s power cord to a receptacle. When the power cord is connected, the pilot lamp will blink in red. (At 1-second intervals) WARNING Do not use the electrical cord if damaged. Have it repaired immediately.

2. Insert the battery to the battery charger.

Firmly Insert the battery into the battery charger as shown in Fig. 7. <UC18YSL3> Charge indicator lamp Guide rail Battery <UC18YFSL> Charger Battery Pilot lamp Fig. 7

<UC18YSL3> When inserting a battery in the charger, the charge indicator lamp will blink in blue. When the battery becomes fully recharged, the charge indicator lamp will light up in green. (See Table 2-a)

Charge indicator lamp indication The indications of the charge indicator lamp will be as shown in Table 2-a, according to the condition of the battery charger or the battery. <UC18YFSL> When the battery is inserted into the battery charger, charging will commence and the pilot lamp will light in red. (See Table 2-b) NOTE If the pilot lamp does not light or blink in red, pull out the plug from the receptacle and check if the battery is properly mounted. When the battery is fully charged, the pilot lamp will blink in red slowly. (At 1-second intervals) (See Table 2-b)

English 00BookC18DBALNAmetabo.indb1200BookC18DBALNAmetabo.indb12 2021/03/3017:20:572021/03/3017:20:57Table 2-a Indications of the charge indicator lamp Charge indicator lamp (RED / BLUE / GREEN / PURPLE) Before charging Blinks (RED) Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds) Plugged into power source While charging Blinks (BLUE) Lights for 0.5 seconds. Does not light for 1 second. (off for 1 second) Battery capacity at less than 50% Blinks (BLUE) Lights for 1 second. Does not light for

(off for 0.5 seconds) Battery capacity at less than 80% Lights (BLUE) Lights continuously Battery capacity at more than 80% Charging complete Lights (GREEN) Lights continuously (Continuous buzzer sound: about 6 seconds) Overheat standby Blinks (RED) Lights for 0.3 seconds. Does not light for 0.3 seconds. (off for 0.3 seconds) Battery overheated. Unable to charge. (Charging will commence when battery cools) Charging impossible Flickers (PURPLE) Lights for 0.1 seconds. Does not light for 0.1 seconds. (off for 0.1 seconds) (Intermittent buzzer sound: about 2 seconds) Malfunction in the battery or the charger

Pilot lamp indication The indications of the pilot lamp will be as shown in Table 2-b, according to the condition of the charger or the rechargeable battery.

English 00BookC18DBALNAmetabo.indb1300BookC18DBALNAmetabo.indb13 2021/03/3017:20:582021/03/3017:20:58Table 2-b Indications of the pilot lamp Pilot lamp (red) Before charging Blinks Lights for 0.5 seconds. Does not light for

0.5 seconds. (off for 0.5 seconds)

While charging Lights Lights continuously Charging complete Blinks Lights for 0.5 seconds. Does not light for

0.5 seconds. (off for 0.5 seconds)

Overheat standby Blinks Lights for 1 second. Does not light for

0.5 seconds. (off for 0.5 seconds)

Battery overheated. Unable to charge. (Charging will commence when battery cools) Charging impossible Flickers Lights for 0.1 seconds. Does not light for

0.1 seconds. (off for 0.1 seconds)

Malfunction in the battery or the charger (1) Regarding the temperature of the rechargeable battery. The temperatures for rechargeable batteries are as shown in the Table 3, and batteries that have become hot should be cooled for a while before being recharged. Table 3 Rechargeable batteries Temperatures at which the battery can be recharged

32°F–122°F ( 0°C–50°C) (2) Regarding recharging time (At 68°F (20°C)) Table 4 Charging time (UC18YSL3) Charger Battery UC18YSL3 BSL1860 Approx. 38 min Table 5 Charging time (UC18YFSL) Charger Battery UC18YFSL BSL1830C Approx. 45 min NOTE The recharging time may vary according to the ambient temperature.

4. Disconnect battery charger from the receptacle.

CAUTION Do not pull the plug out of the receptacle by pulling on the cord. Make sure to grasp the plug when removing from receptacle to avoid damaging cord.

5. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger. NOTE Be sure to pull out the battery from the battery charger after use, and then keep it. Regarding electric discharge in case of new batteries, etc. As the internal chemical substance of new batteries and batteries that have not been used for an extended period is not activated, the electric discharge might be low when using them the fi rst and second time. This is a temporary phenomenon, and normal time required for recharging will be restored by recharging the batteries 2–3 times. How to make the batteries perform longer (1) Recharge the batteries before they become completely exhausted. When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

English 00BookC18DBALNAmetabo.indb1400BookC18DBALNAmetabo.indb14 2021/03/3017:20:582021/03/3017:20:58(2) Avoid recharging at high temperatures. A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while. CAUTION

When the battery charger has been continuosly used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the pilot lamp of UC18YFSL charger lights for 1 second, does not light for 0.5 seconds (off for 0.5 seconds) or the charge indicator lamp of UC18YSL3 charger lights for 0.3 seconds, does not light for 0.3 seconds (off for 0.3 seconds). In such a case, fi rst let the battery cool, then start charging.

When the charge indicator lamp fl ickers (at 0.2-second intervals), check for and take out any foreign objects in the charger’s battery installation hole. If there are no foreign objects, it is probable that the battery or charger is malfunctioning. Take it to your authorized Service Center.

Prior to use, check the connecting USB cable for any defect or damage. Using a defective or damaged USB cable can cause smoke emission or ignition.

When the product is not being used, cover the USB port with the rubber cover. Buildup of dust etc. in the USB port can cause smoke emission or ignition. NOTE

The time required for charging will be longer when a USB device and battery are being simultaneously charged.

There may be an occasional pause during USB recharging.

When a USB device is not being charged, turn the USB power switch OFF and remove the USB device from the charger. Failure to do so may not only reduce the battery life of a USB device, but may also result in unexpected accidents. (1) Select a charging method Depending on the charge method selected, either the battery is inserted into the charger or the power cord is plugged into an outlet.

Charging a USB device by battery (Fig. 8-a)

Charging a USB device from a electrical outlet (Fig. 8-b)

Charging a USB device and battery from a electrical outlet (Fig. 8-c) abc Fig. 8 (2) Turn the USB power switch ON (Fig. 9) When you turn the USB power switch ON, the USB power indicator lamp will light up. USB power switch USB power indicator lamp Rubber cover USB port USB cable Fig. 9 (3) Connect the USB cable. (Fig. 9) Pull back the rubber cover and fi rmly plug in a commercially available USB cable (appropriate to the device being charged) into the USB port.

When the power cord is not plugged into an outlet and the battery runs out of power, power output will stop and the USB power indicator lamp will shut off .

When the USB power indicator lamp goes out, change the battery or plug the power cord into an electrical outlet. (4) When charging is completed

The USB power indicator lamp will not go out when a USB device has been completely charged. To verify charge status, check the USB device.

Turn the USB power switch OFF and unplug the power cord from the electrical outlet. (Fig. 9)

Remove the battery from the charger and place the rubber cover over the USB port.

English 00BookC18DBALNAmetabo.indb1500BookC18DBALNAmetabo.indb15 2021/03/3017:20:582021/03/3017:20:58PRIOR TO OPERATION CAUTION To avoid serious accident, ensure the switch is in the OFF position, and pull out the battery.

1. Check the work area environment

Check the work area to make sure that it is clear of debris and clutter. Clear the area of unnecessary personnel. Ensure that lighting and ventilation is adequate.

2. Mounting the Saw Blade (Fig. 10)

WARNING If the Hexagonal fl ange bolt is worked using other tools than the provided hex. wrench, excessive tightening and insuffi cient tightening may take place, resulting in injury. (1) Thoroughly remove any sawdust which has accumulated on the spindle, bolt and washers. (2) Apply quality machine oil to the surfaces of washers (B) and (A) which come into contact with the blade. (3) As shown in Fig. 10, one side of the saw blade should be fi tted to the projecting center of washer (A) which matches the blade’s inner diameter, and the other side to the concave side of washer (B). (4) To ensure that the saw blade rotates in the correct direction, make sure the arrow on the saw blade points in the same direction indicated by the arrow on the saw cover. (5) Using the fi ngers, tighten the Hexagonal fl ange bolt securing the saw blade as much as possible. Then press the lock button, lock the spindle, and fully tighten the Hexagonal fl ange bolt with the hex. wrench. Hexagonal fl ange bolt Washer (A) Spindle Washer (B) Concave Saw blade Fig. 10 CAUTION After mounting the saw blade, reconfi rm that the lock button is fi rmly secured in the prescribed position.

3. Dismounting the saw blade

CAUTION Never touch the saw blade immediately after use. The metal is hot and can easily burn your skin. (1) Set the cutting volume at maximum, and place the Circular Saw as shown in Fig. 11. Hex. bar wrench 5 mm Lock lever Loosen Fig. 11 (2) Depress the lock lever, lock the spindle, and remove the Hexagonal fl ange bolt and washer (B) with the hex. bar wrench 5 mm. (3) While holding the lower guard lever to keep the lower guard fully retracted into the saw cover, remove the saw blade (Fig. 12). Lower guard lever Saw cover Saw blade Fig. 12

4. Check performance of lower guard

WARNING Make absolutely sure that the lower guard is not fi xed. Also, check and see if it can move smoothly. If the saw blade is kept exposed, injury can result. The lower guard (refer to Fig. 2) serves to protect your body from coming into contact with the saw blade. Make absolutely certain that the cover smoothly performs to cover the saw blade. If the lower guard should not move smoothly, never use it without repairing it. In such a case, get in touch with the store where you bought the circular saw or the metabo HPT AUTHORIZED SERVICE CENTER for necessary repair.

English 00BookC18DBALNAmetabo.indb1600BookC18DBALNAmetabo.indb16 2021/03/3017:20:582021/03/3017:20:585. Check for proper operation of the brake This circular saw features an electric brake that functions when the switch is released. Before using the circular saw, ensure that the electric brake functions properly. If it does not, bring the tool to a metabo HPT AUTHORIZED SERVICE CENTER.

6. Prepare a wooden work bench (Fig. 13)

Since the saw blade will extend beyond the lower surface of the lumber, place the lumber on a work bench when cutting. If a square block is utilized as a work bench, select level ground to ensure it is properly stabilized. An unstable work bench will result in hazardous operation. BaseLumber Work bench Saw blade Fig. 13 CAUTION To avoid possible accident, always ensure that the portion of lumber remaining after cutting is securely anchored or held in position.

7. Check battery insertion

WARNING If the battery is inserted while the power switch is in the ON position, the power tool will start operating immediately, inviting serious accident. CAUTION Until the battery locks in place with a little click, if not, it may accidentally fall out of the tool causing injury to you or someone around you.

ADJUSTING THE SAW PRIOR TO USE

CAUTION Pull out battery before doing any adjusting.

1. Adjusting the cutting depth (Fig. 14)

WARNING If the lever is loose, injury can result. Tighten it securely after adjustment. To adjust cutting depth, loosen the cutting depth lever and, while holding the base with one hand, move the main body up and down to obtain the prescribed cutting depth. After adjusting to the prescribed cutting depth, tighten the cutting depth lever securely. Cutting depth lever Base Tighten Loosen Fig. 14

2. Adjusting the angle of inclination

WARNING If the wing-nut is loose, injury can result. Tighten it securely after adjustment. You can incline saw blade from -5° to a maximum angle of 45° in relation to the base. As shown in Fig. 15 by loosening the incline lever on the inclined gauge and incline wing-nut, the saw blade may be inclined to a maximum angle of 45° in relation to the base.

Tighten Loosen Fig. 15 To use at an angle of -5°, fi rst loosen the cutting depth lever and minimize the cutting depth of the saw blade. Next, loosen the incline lever and the incline wing-nut, turning the stopper lever in the direction indicated as A (Fig. 16). Tilting the main unit in the direction indicated as B, fasten the unit with the incline lever and incline wing-nut (Fig. 17).

Fig. 17 Always ensure that the wing-nut is thoroughly tightened after making the desired adjustment. NOTE Values of the inclined gauge provided on the base merely serve as a rough guideline. For cutting operation at an inclined precise angle, use the circular saw after adjusting the angle between the base and the saw blade with a protractor, etc.

3. Fine tuning of parallelism

It is possible to fi ne-tune the parallelism of the saw blade to the base using the parallelism adjustment screw. Adjustment has already been made at the time of shipment from the factory. However, in the unlikely event of parallelism being faulty, adjust as follows. (1) Unfasten only the mounting screws of the saw cover hinge portion (Fig. 18).

Fig. 18 (2) Retract the lower guard into the saw cover. (3) Insert wood chip in the rear side of the saw blade base, and mark the position on the base (Fig. 19). Fig. 19 (4) Move the marked wood chip to the front of the base, and turn the parallelism adjustment screw so that the marking corresponds to the base side (Fig. 20). Fig. 20 NOTE After parallelism adjustment, if the saw cover hinge portion is loose, tighten the M5 U-Nut. Do not over tighten the nut as this may result in deformation of the bevel plate.

English 00BookC18DBALNAmetabo.indb1800BookC18DBALNAmetabo.indb18 2021/03/3017:20:592021/03/3017:20:59(5) After adjustment, fasten the mounting screws tightly in place. NOTE Parallelism may be slightly faulty if the cutting depth is adjusted after parallelism adjustment.

4. Adjusting the guide piece

On the circular saw, it is possible to make fi ne adjustment of the fi xing position of the guide piece, where the saw blade and the premarked line are to be aligned. When the saw is shipped from the factory, the linear portion of a front scale on the guide piece is aligned with the central position of the saw blade (Fig. 21). Guide piece Fig. 21 Loosen the fi xed M4 screw on the guide piece, should the fi xing position be wrong, and make necessary adjustment of the position. OPERATION WARNING

Never touch the moving parts.

Never operate the circular saw with the saw blade turned upward or to the side.

Do not fi x and secure the lock-off button. Besides, keep your fi nger off the switch trigger when the circular saw is being carried around. Otherwise, the main body switch can be inadvertently turned ON, resulting in unexpected accidents.

Keep the light ON during cutting operation only. If it is lit ON in other cases, the main body switch can be inadvertently turned ON, resulting in unexpected accidents.

Do not use any abrasive wheels.

Don’t remove circular saw from workpiece during a cut while the saw blade is moving.

Pull out the battery after completing operation.

Do not look directly into the light from the LED light. Continuous and direct exposure to the light from the LED light can injure your eyes.

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. Therefore, if the tool is overloaded, the motor may stop. However, this is not the trouble but the result of protection function. In this case, release the switch of tool and eliminate the causes of overloading.

Before use, check to see if the lock-off button moves smoothly. NOTE Take care not to lock the motor. If the motor is locked, immediately turn the power off . If the motor is locked for a while, the motor or battery may be burnt.

1. Check if saw blade is tightened

While the saw blade is tightened securely for immediate use when it is assembled at the factory, be sure to check it out again for caution’s sake. A bolt can be tightened when it is turned clockwise. Use the provided hex. bar wrench 5 mm to check it out. For further details, refer to the item of [PRIOR TO OPERATION] on Page 16.

2. Check if the lever is tightened

If the lever to adjust cutting depth (Fig. 14) is loose, injury can result. Make sure that it is tightened securely.

3. Operation of switch (Fig. 22)

(switch trigger and light switch) For safe operation of the machine, a “lock-off button” is provided on the side of a handle. If the “switch trigger” is pulled in a state where “lock- off button” is pressed in the direction of the arrow mark, the main switch can be turned ON. After the switch is on, the saw blade will continue to operate as long as you pull on the switch trigger, even if you release the lock-off button. Also, the LED light will remain lit for Always-ON mode as well as during SW interlocked mode.

Each time the mode selector switch is pushed, the operation mode changes. When Silent mode is selected, the Silent mode indicator lamp lights up. Silent mode reduces maximum motor RPM enabling effi cient work with less noise. If the load increases while the motor is operating in Silent mode, it automatically changes to Power mode. Additionally, if the load decreases again, it automatically returns to Silent mode. In Power mode, no change is made to Silent mode even when the load decreases. Mode No-load speed Power 4,100 /min Silent 2,500 /min NOTE

The mode will only change after a battery is installed and the switch is pulled once.

The current mode will be maintained even if the switch is on/off , or the battery is removed/reinserted.

5. About Remaining Battery Indicator

Remaining battery power can be verifi ed by pulling on the switch to make the remaining battery indicator lamp light up red. (Fig. 22) The indicator lamp will change to the lighting mode indicator lamp (green) 10 seconds after the switch is released. The Table 6 shows the state of remaining battery indicator lamp and the battery remaining power. Table 6 State of lamp Battery Remaining Power The battery remaining power is enough. The battery remaining power is a half. The battery remaining power is nearly empty. Re-charge the battery soonest possible. As the remaining battery indicator shows somewhat diff erently depending on ambient temperature and battery characteristics, read it as a reference.

6. How to use the LED light

By pressing the lighting mode switch on the switch panel, the LED light mode changes as Table 7. It is indicated by green lamp. (Fig. 23) Pulling the switch changes the indicator lamp to the remaining battery indicator lamp (red). To prevent the battery power consumption, turn off the LED light frequently. Lighting mode indicator lamp Switch panel Lighting mode switch LED Light Fig. 23

interlocked mode Always-OFF mode Panel display State Always ON (turn off after 2 minutes) Light only SW-ON (Automatically goes out approximately 10 seconds after the switch is released) Always OFF CAUTION Wipe off any dirt or grime attached to the lens of the LED light with a soft cloth, being careful not to scratch the lens. Scratches on the lens of the LED light can result in decreased brightness. NOTE To prevent the battery power consumption caused by forgetting to turn off the LED light, the light goes off automatically in about 2 minutes.

7. Attaching the guide (sold separately)

Slide the guide through the front hole on the side of the base (the cut-off side). Move the guide to the right or left to adjust the cutting position, and tighten the wing-bolt at the front to fasten the guide. Guide Wing-bolt Fig. 24

8. Attaching the long guide (sold separately)

You can cut at a greater degree of parallel angle against the end face of materials than the regular guide. When using the long guide, use the wing-bolts at the front and rear. (1) Normal installation a) Slide the front and rear guide bars through the holes on the base side and move the long guide to the right or left to adjust the cutting position. b) Press the front guide bar against the indicated direction and tighten the front wing-bolt. Then, tighten the rear wing-bolt to fasten the guide bar. c) Lay the front of the long guide along the material to cut. Long guide Front wing-bolt Front guide bar Rear guide bar Rear wing-bolt Fig. 25 (2) Installation to the housing side Use by re-installing the two front and rear guide bars. a) Remove the two screws of the long guide. b) With the protrusions of the long guide pointing downwards, re-attach the two guide bars. Fig. 26

English 00BookC18DBALNAmetabo.indb2100BookC18DBALNAmetabo.indb21 2021/03/3017:21:002021/03/3017:21:009. Attaching the fl uorine plate (sold separately) Firmly fi x to the base with the bolts. Fluorine plate Fig. 27 NOTE

The maximum cutting depth will be 2.5 mm shallower.

Cutting anything other than wood will remove the fl uorine, making the base diffi cult to slide.

The fl uorine coating of the base surface makes it easier to slide, making the motor susceptible to pressure. Do not press too hard on the unit. WARNING When using the guide, avoid inclined cutting that will allow the cut material to be caught between the saw blade and the guide. Doing so may result in injury. Saw blade Guide Lumber Fig. 28 Saw blade Guide Lumber Fig. 29

10. Attaching the dust collection adapter (sold separately)

When connecting with a dust extractor, attach the dust collection adapter to the chip exhaust. When connecting to the dust extractor, a hose with an inside diameter of φ25 mm can be used for the dust extractor. Insert the catch of the dust collection adapter to the front part of the chip exhaust, and fasten the dust collection adapter with the M4 screw that is included with the unit. Dust collection adapter Fig. 30 Fig. 31

11. Cutting procedures

Recheck that the saw blade is securely clamped.

Confi rm that the lever for adjusting the slot depth, the wing-nut for adjusting the angle of inclination. (1) Place the base on the material, then align the premarked line and the saw blade with the notch at the front of the base (Fig. 32). Guide piece 45°

Fig. 33 Cutting line (at 45 degrees) Fig. 34 NOTE When using the saw at the inclination of 45 degrees, use both the marks of on the bevel plate and [45] on the inclined gauge of the base (Fig. 35). What’s more, if it is absolutely essential to use the saw at a precise angle, make adjustment using a protractor, etc.

Bevel plate Inclined gauge Incline lever Fig. 35 (3) Ensure that the switch is turned to the ON position before the saw blade comes in contact with the lumber. The switch is turned ON when the switch trigger is squeezed; and OFF when the switch trigger is released. Moving the saw straight at a constant speed will produce optimum cutting. CAUTION

Before starting to saw, ensure that the saw blade has reached full speed revolution.

Should the saw blade be stopped or made an abnormal noise during operation, turn off the switch immediately.

When fi nished with a job, pull out the battery from the main body.

To avoid abnormal heating of the blade tip or damage to the saw blade, do not twist or apply excessive force to the saw blade when cutting. Let the blade move forward smoothly.

In the situation where the circular saw is continuously operated while replacing the battery with stocked spare batteries one after another, the motor tends to overheat. Therefore, whenever the housing becomes hot, give the saw a break for a while.

Avoid cutting operation in a state where the base bottom is afl oat from the material being cut. Otherwise, the motor can get locked.

English 00BookC18DBALNAmetabo.indb2300BookC18DBALNAmetabo.indb23 2021/03/3017:21:012021/03/3017:21:011. Inspecting the saw blade Continued use of a dull or damaged blade will result in reduced cutting effi ciency and may cause overloading of the motor. Replace the blade with a new one as soon as excessive abrasion is noted. CAUTION If a dull saw blade is used, reactive force is increased during cutting operation. Avoid the use of the dull saw blade without repair.

Loose screws are dangerous. Regularly inspect them and make sure they are tight. CAUTION Using this power tool with loosen, screws is extremely dangerous.

3. Motor unit maintenance

The motor winding is an important part of this tool. Avoid damaging and be careful to avoid contact with cleaning oil or water. After 50 hours of use, clean the motor by blowing into the ventilation holes of the motor housing with dry air from an air gun or other tool (Fig. 36). Dust or particle accumulation in the motor can result in damage.

4. Inspecting and maintaining the lower guard

Always make sure that the lower guard moves smoothly. In the event of any malfunction, immediately repair the lower guard. For cleaning and maintenance, use an air gun or other tool to blow clean the space between the lower guard and gear cover as well as the rotation part of the lower guard with dry air (Fig. 36). Doing so is eff ective for the emission of chips or other particles. Accumulation of chips or other particles around the lower guard may result in malfunction or damage. WARNING To prevent dust inhalation or eye irritation, wear protective safety goggles and a dust mask when using an air gun or other tool to clean the lower guard, ventilation holes or other parts of the product.

MAINTENANCE AND INSPECTION

WARNING Be sure to turn off the switch and pull out the battery before doing any inspection or maintenance. Ensure smooth movement of lower guard Rotation part of the lower guard Housing vent Space between lower guard and gear cover Air gun Fig. 36

5. Clean inside the saw cover

Periodically inspect and clean the saw cover to ensure that there is no accumulation of chips or other particles.

6. Adjusting the base and saw blade to maintain

perpendicularity (Fig. 37) The angle between the base and the saw blade has been adjusted to 90°, however should this perpendicularity be lost for some reason, adjust in the following manner. (1) Loosen the incline lever and incline wing-nut, place the square on the base and against the saw blade to attain a right angle, and lightly tighten the incline lever. Square Adjusting screw Saw blade Incline wing-nut Hex. bar wrench 2.5 mm Incline lever Fig. 37

English 00BookC18DBALNAmetabo.indb2400BookC18DBALNAmetabo.indb24 2021/03/3017:21:022021/03/3017:21:02(2) Using the included 2.5 mm hex. bar wrench, turn the adjusting screw until its tip touches the metal part of the base, and then fi rmly tighten the incline lever and incline wing-nut.

Dust may be removed with a clean rag or a cloth dampened with soapy water. Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

The bearings in this tool have been suffi ciently lubricated with quality lubricating oil, taking into account the expected life of this tool under normal operating conditions. As a result, no further lubrication is necessary.

9. Disposal of the exhausted battery

WARNING Do not dispose of the exhausted battery. The battery may explode if it is incinerated. The battery is recyclable. At the end of it’s useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste offi cials for details in your area for recycling options or proper disposal.

Storing in a place below 104°F (40°C) and out of the reach of children. NOTE Storing lithium-ion batteries Make sure the lithium-ion batteries have been fully charged before storing them. Prolonged storage (3 months or more) of batteries with a low charge may result in performance deterioration, signifi cantly reducing battery usage time or rendering the batteries incapable of holding a charge. However, signifi cantly reduced battery usage time may be recovered by repeatedly charging and using the batteries two to fi ve times. If the battery usage time is extremely short despite repeated charging and use, consider the batteries dead and purchase new batteries.

11. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only genuine replacement parts must be used, all service and repairs must be performed by a metabo HPT AUTHORIZED SERVICE CENTER, ONLY. CAUTION In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. Important notice on the batteries for the metabo HPT cordless power tools Please always use one of our designated genuine batteries. We cannot guarantee the safety and performance of our cordless power tool when used with batteries other than these designated by us, or when the battery is disassembled and modifi ed (such as disassembly and replacement of cells or other internal parts).

  • English 00BookC18DBALNAmetabo.indb2500BookC18DBALNAmetabo.indb25 2021/03/3017:21:022021/03/3017:21:02ACCESSORIES WARNING ALWAYS use Only authorized metabo HPT replacement parts and accessories. Never use replacement parts or accessories which are not intended for use with this tool. Contact metabo HPT if you are not sure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. NOTE Accessories are subject to change without any obligation on the part of the metabo HPT. STANDARD ACCESSORIES C18DBAL (NN) Saw Blade (mounted on tool) p. 1
  • External Dia. Hole Dia. Code No. 6-1/2" (165 mm) 5/8" (15.9 mm) 372983 Hex. bar wrench 5 MM (Code No. 944459) (mounted on tool) p. 1
  • Hex. bar wrench 2.5 MM (Code No. 990666) p. 1
  • Guide (Code No. 302756) Battery, battery charger and battery cover are not contained. OPTIONAL ACCESSORIES SOLD separately p. 1

3. Battery cover (Code No. 329897)

4. Saw Blade Use ... Cutting various types of wood.

External Dia. Hole Dia. No. of teeth Code No. 6-1/2" (165 mm) 5/8" (15.9 mm) 24 Pieces 372983 NOTE Specifi cations are subject to change without any obligation on the part of the metabo HPT.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

Lead from lead-based paints,

Crystalline silica from bricks and cement and other masonry products, and

Arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to fi lter out microscopic particles.
