USER MANUAL U350 BONECO

Read and save these instructions

A7017 Ionic Silver Stick

A250

Valuable information about humidity 24

Items included 24

Overview and part names 25

Indicators on the display 26

Keypad 27

Starting up and switching off 28

The right location 28

Humidity and ultrasonic 30

Saving settings 30

"AUTO" operating mode 30

Controlling humidity 30

Controlling output 30

Comfort functions 31

Switching the heater on and off 31

Fragrance container 31

Timer functions 32

Setting the OFF timer 32

Setting the ON timer 32

Notes on care 33
Care instructions 33
D escaling and cleaning 34
On descending 34
D escaling the appliance 34
Clearing the cleaning message 35
Cleaning the membrane 35
Replacing consumables 36
Replacing the A7017 Ionic Silver Stick 36
Replacement 36
On the A250 37
Preparing the A250 37
On water hardness 37
Replacing the A250 37
Replacement 37

TECHNICAL DATA

Power supply voltage 220 - 240V 50 / 60Hz

Power consumption < 29W^ / < 110W^*

Humidity output 500g / h (2.9 gal/day)*/

For rooms up to 80 m ^2(860 sq ft) / 200 m^3 (2150 sq ft)

Water capacity 5.0 liters (1.32 gallons)

Dimensions L×W×H 308 × 165 × 325 mm (12.0 × 6.5 × 12.8 in)

Weight (empty) 3.3kg 7.3 lbs)

Operation noise level < 35dB (A)

• In operation with preheating

@230V\~50Hz

en

INTRODUCTION

Congratulations on your purchase of the BONECO U350. This high-performance ultrasonic humidifier keeps the humidity at a comfortable level at all times.

The BONECO U350 is designed for convenient, fully automated operation. However, you can adjust all of its features according to your preferences and requirements. This manual shows you how you can create your own comfortable climate.

VALUABLE INFORMATION ABOUT HUMIDITY

The right humidity is very important for our health. Dry room air in winter leads to skin that cracks and itches. It makes your eyes and throat feel dry while significantly affecting physical comfort. Not only does this affect adults, it is especially true for infants, small children and even pets. Dry mucous membranes in winter also make us more prone to colds and other infections.

The BONECO U350 makes these problems a distant memory. Its intelligent automatic controls always keep the humidity at the ideal level, even in large rooms with an area of up to 80 square meters (860 square feet).

Once you've experienced this new level of comfort, you'll never want to go back.

ITEMS INCLUDED
BONECO U350 A7417 "CalcOff

cleaning and
descaling powder

A7017 Ionic Silver Stick

A250

Water hardness test strips

Quick Manual

Safety instructions

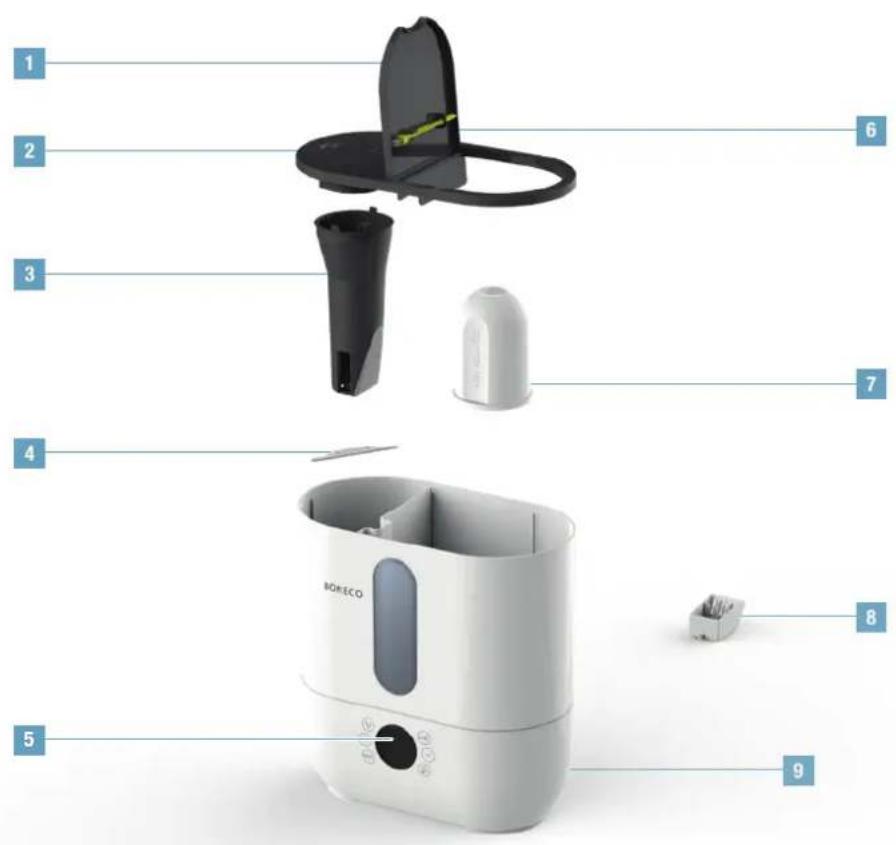

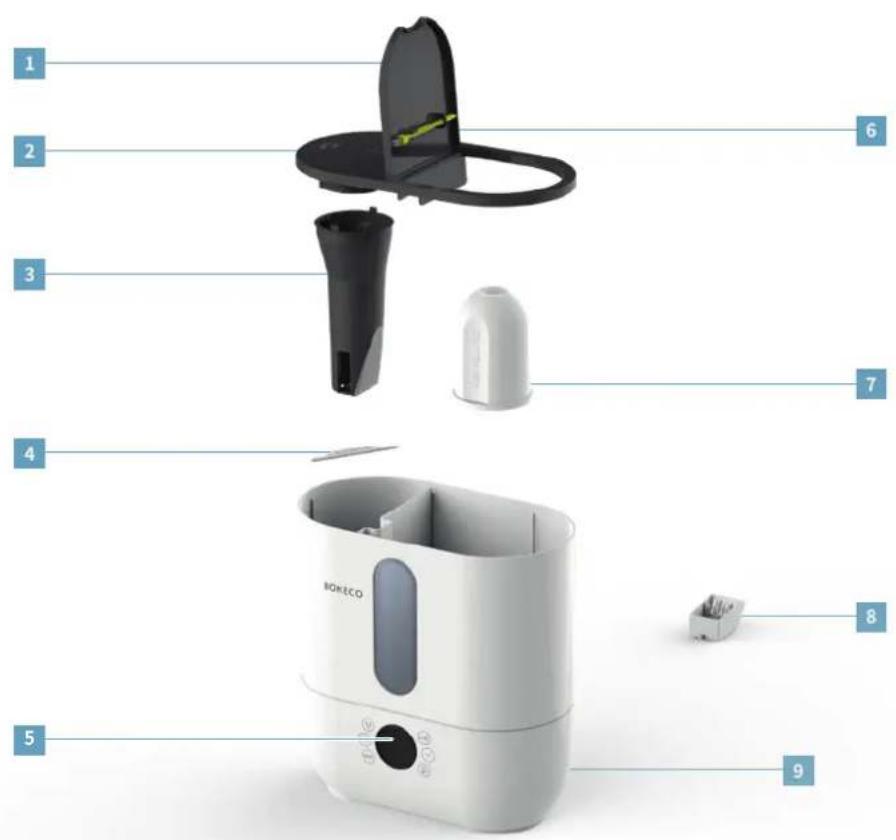

OVERVIEW AND PART NAMES

1 Cover

2 Nozzle
3 Flue
4 A7017 Ionic Sliver Stick
5 Touch Display
6 Cleaning brush
7 A250
8 Fragrance container
9 Power supply

en

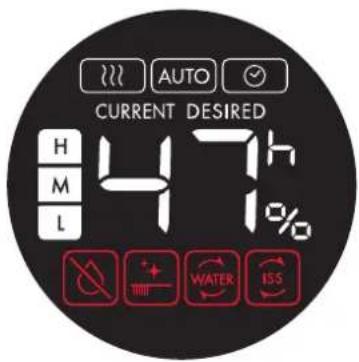

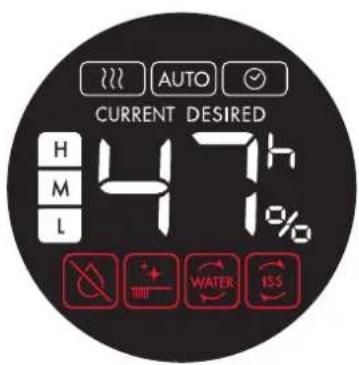

INDICATORS ON THE DISPLAY

Overview of all indicators on the display

Symbol Meaning

47%	Current or desired humidity 32
AUTO	Fully automated operation 32
|||	Heater turned on 33
○	Timer active 34
CURRENT	Value shows the current humidity 32
DESIRED	Value shows the desired humidity 32

Symbol Required action

Refill the water 35

Change the water in the appliance 35

Replace A7017 Ionic Silver Stick 38

Cleaning required 36

KEYPAD

Keypad on the appliance

Button Function

Switching appliance on and off 32

Controlling output 32

"AUTO" operating mode 32

Switch heater on/off 33

Access the timer function 34

Change the humidity 32

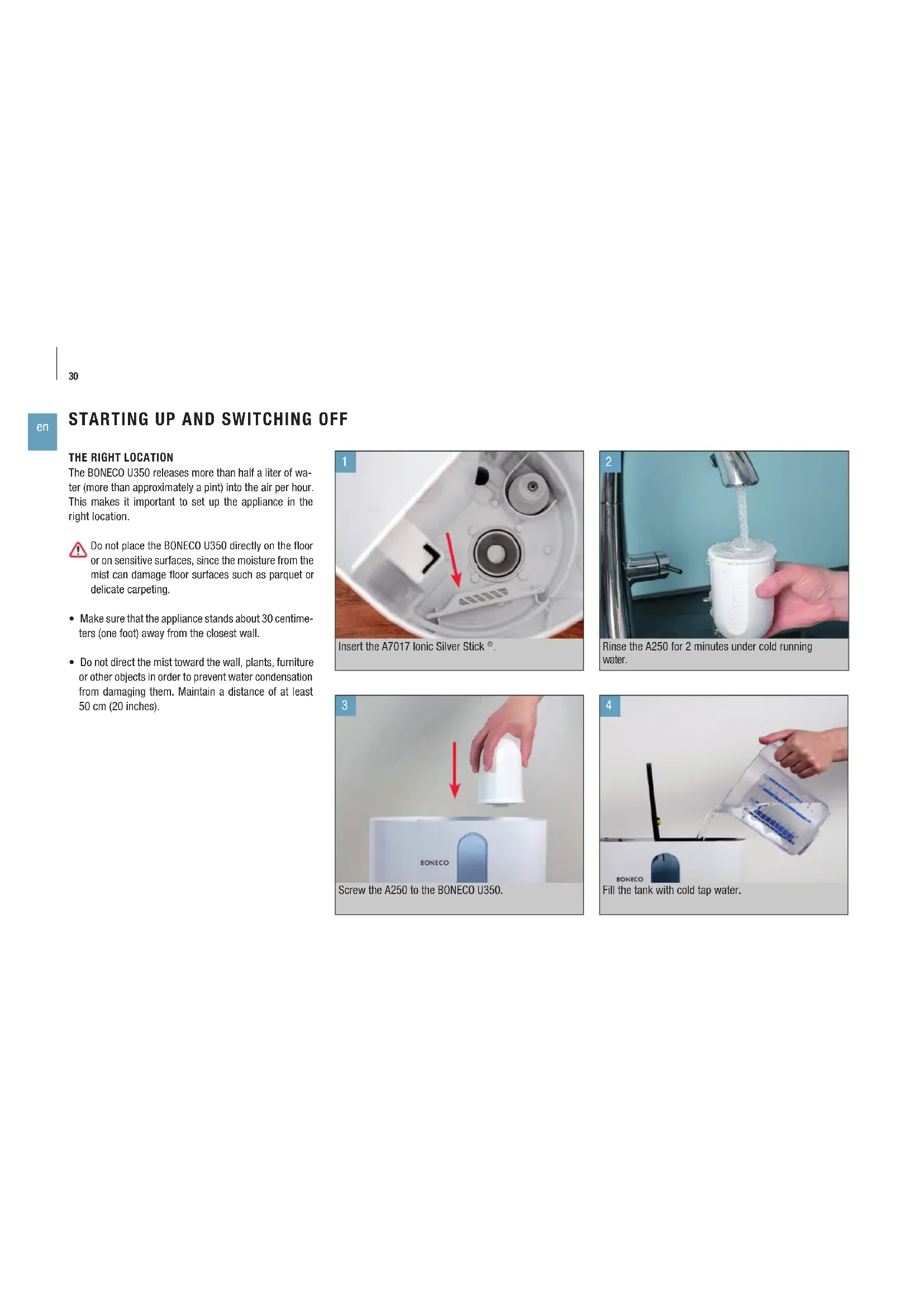

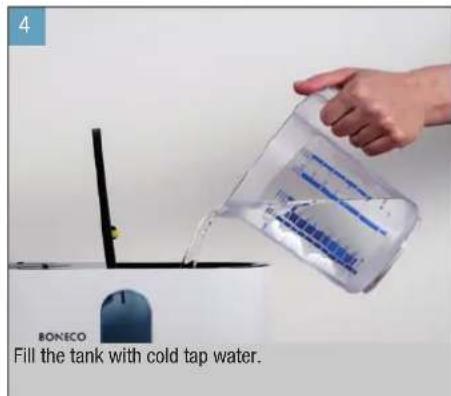

STARTING UP AND SWITCHING OFF

THE RIGHT LOCATION

The BONECO U350 releases more than half a liter of water (more than approximately a pint) into the air per hour. This makes it important to set up the appliance in the right location.

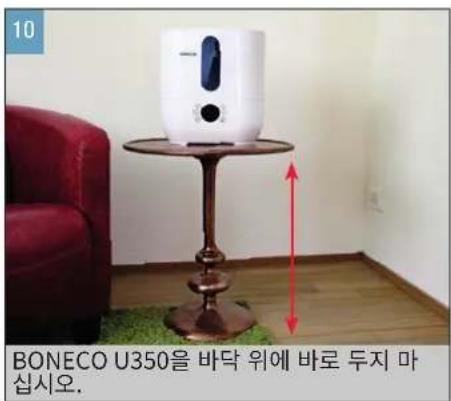

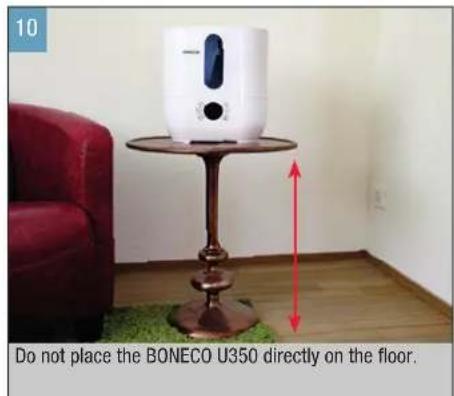

Do not place the BONECO U350 directly on the floor or on sensitive surfaces, since the moisture from the mist can damage floor surfaces such as parquet or delicate carpeting.

Make sure that the appliance stands about 30 centimeters (one foot) away from the closest wall.

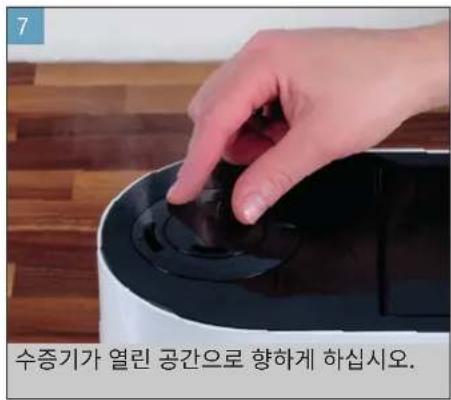

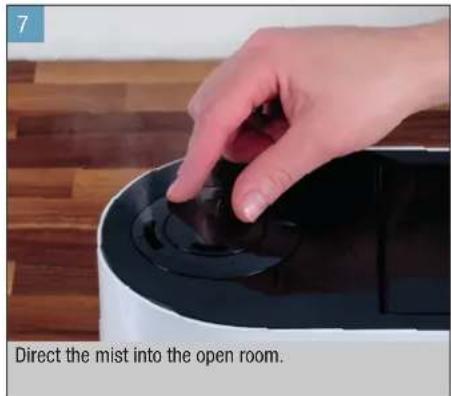

- Do not direct the mist toward the wall, plants, furniture or other objects in order to prevent water condensation from damaging them. Maintain a distance of at least 50 cm (20 inches).

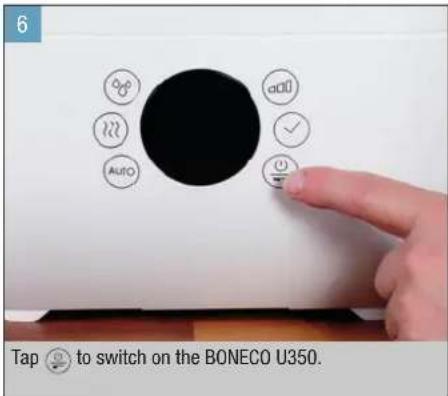

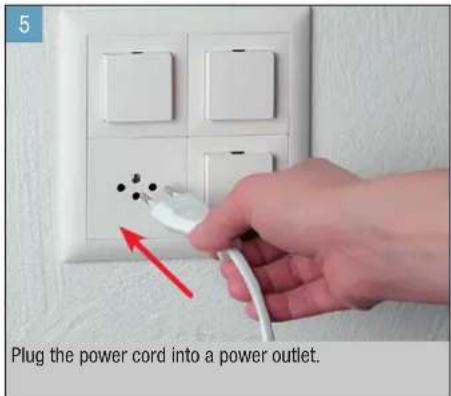

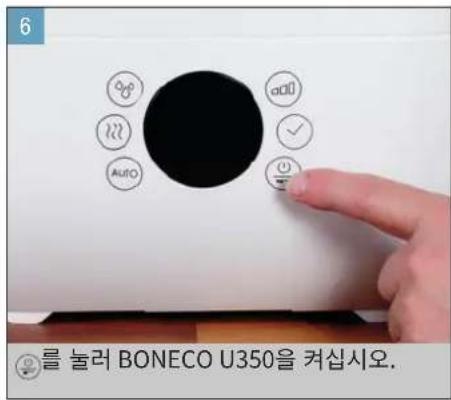

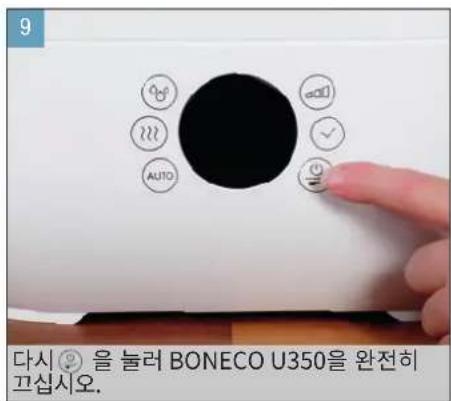

STARTING UP AND SWITCHING OFF

en

HUMIDITY AND ULTRASONIC

SAVING SETTINGS

The BONECO U350 saves the last-used settings when it is switched off. However, if the appliance is disconnected from the power outlet for a few seconds, it will start in the AUTO operating mode.

"AUTO" OPERATING MODE

After switching on, the appliance is in Aupcating mode. The desired relative humidity level (rH) is pre-set to 50% in Aupcating mode. The appliance selects the suitable performance level Low "L" / Medium "M" / High "H" to reach the rH value of 50% as soon as possible.

In Appcating mode, the rH can be modified at any time using the button. If the performance level is mod-ified using the button, the operating mode switches off automatically, and the appliance is in manual operating mode.

The heater can be switched on or off without the appliance exiting operating mode. operating mode also remains active when setting Aetioner.

To return to Appraising mode, tap the symbol once.

The humidity can be set between 30% and 70% . In the "Co" setting (for "Continuous"), the ultrasonic runs regardless of the measured humidity. This means it does not switch off until the tank is empty or the appliance is switched off.

1. Tap the 念 symbol. The current humidity display starts flashing.
2. While the display is flashing, tap the symbol again until the desired humidity is set.

The value is applied after a few seconds. The display stops flashing.

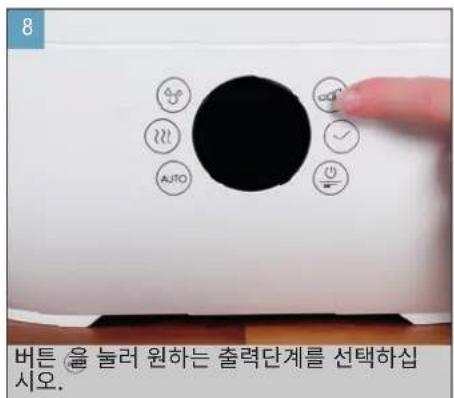

CONTROLLING OUTPUT

1. Tap the symbol multiple times until the desired level appears on the display.

The symbol on the display indicates which of the three levels (low/medium/high) has been selected:

COMFORT FUNCTIONS

SWITCHING THE HEATER ON AND OFF

The BONECO U350 is equipped with a heater that can be turned on and off. It warms the outgoing mist up to approximately 35^ (95^) so that the room temperature stays at a comfortable level.

It takes a few minutes until the heater reaches its full output.

1. Tap the symbol once to switch on or off the heater.

FRAGRANCE CONTAINER

Commercially available scented aromatic substances for humidifiers can be added to the fragrance container on the back of the BONECO U350.

Never add the aromatic substance directly into the water tank or water base; doing so will damage the BONECO U350 and void the warranty!

1. Press down on the fragrance container to unlock the drawer.

1. Sprinkle the cotton wedding in the drawer with the fragrance of your choice.

en

TIMER FUNCTIONS

The timer function lets you determine how long the BONECO U350 should run before it switches off automatically (OFF timer).

Alternatively, you can specify a time for when the appliance should switch on automatically (ON timer). For example, you can use this function to activate the BONECO U350 before you return home, so that when you get back you have the perfect home climate waiting for you.

SETTING THE OFF TIMER

1. Switch on the BONECO U350.

2. Select the desired settings.

3. Tap the symbol multiple times until the desired run time is displayed.

Now the BONECO U350 will run for the specified time and then switch off.

1. To deactivate the OFF timer early, switch the BONECO U350 off and back on as needed.

SETTING THE ON TIMER

1. Switch off the BONECO U350.

2. Tap the symbol multiple times until the desired standby time is displayed.

The BONECO U350 switches on after the defined time and operates with the selected settings.

1. To deactivate the ON timer early, switch the BONECO U350 off and back on as needed.

NOTES ON CARE

CAPEINSTRUCTIONS

The longer the appliance is operated, the more the performance of the A7017 Ionic Silver Stick decreases and scale builds up on the inner parts of the BONECO U350. Stagnant water can also impair cleanliness and lead to unpleasant odors. This means regular maintenance and cleaning is necessary to ensure clean and unimpaired operation.

Recommended cleaning and maintenance intervals vary depending on air quality, water quality and operating time.

Use a soft, damp cloth to clean the exterior.

Always unplug the appliance from the power outlet before cleaning.

Interval Task

Daily Check the water level; add water if necessary

After 1 week without operation Empty and clean the BONECO U350

Every 2 weeks Clean the water base and water tank

Every 2-6 months Replace A250

Annually Replace A7017 Ionic Silver Stick

en

DESCALING AND CLEANING

ON DESCALING

If stubborn limescale deposits form at the bottom of the BONECO U350, the appliance must also be descaled in addition to the cleaning. For this process, use the provided A7417 "CalcOff" descaling agent. You can obtain a refill of the agent from your BONECO specialist dealer.

The appliance must always be unplugged from the power outlet before draining it. Failure to do so can result in electric shock and pose the risk of severe or fatal injury!
Tip the long side of the BONECO U350 towards the sink (with the viewing window facing down). This prevents water from getting into the air outlet and damaging the appliance.

DESCALING THE APPLIANCE

1. Disconnect the BONECO U350 from the power outlet.

1. Empty the water tank.

1. Remove the A250 and the A7017 Ionic Silver Stick

2. Mix 1 bag of Calcoff with 1 liter (1 quart) of water and pour the mixture into the water tank, one half to the left and right each.

1. Wait 30 minutes to allow the solution to take effect.
2. Clean the BONECO U350 with a dish brush.

1. Rinse the inside of the water tank with fresh tap water.
2. Reinsert the A250 and the A7017 Ionic Silver Stick

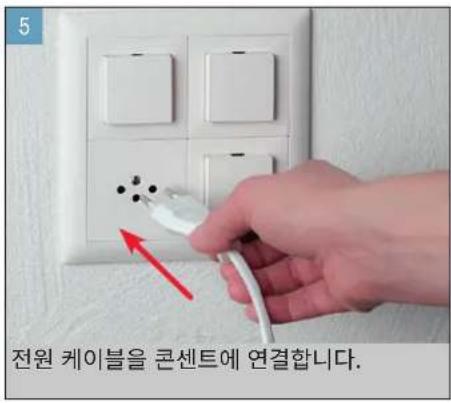

3. Plug the power cord into a power outlet.

CLEARING THE CLEANINGMESSAGE

After completion of cleaning, clear the message pressing the button and holding it for 3 seconds.

CLEANING THE MEMBRANE

Never clean the membrane using sharp objects or aggressive cleaning agents; doing so can damage the BONECO U350 and voids the warranty!

Mineral deposits on the membrane can be removed using the yellow cleaning brush attached to the cover of the BONECO U350.

en

REPLACING CONSUMABLES

REPLACING THE A7017 IONIC SILVER STICK

The A7017 Ionic Silver Stick prevents the growth of bacteria in water, making a vital contribution to health and cleanliness. The A7017 Ionic Silver Stick is subject to wear and has to be replaced regularly.

The appliance must always be unplugged from the power outlet before draining it. Failure to do so can result in electric shock and pose the risk of severe or fatal injury!

Tip the long side of the BONECO U350 towards the sink (with the viewing window facing down). This prevents water from getting into the air outlet and damaging the appliance.

1. Disconnect the BONECO U350 from the power outlet.
2. Empty the water tank.

1. Remove the used A7017 Ionic Silver Stick and dispose of it with your regular household waste.

1. Insert the new A7017 Ionic Silver Stick
2. Put the BONECO U350 back together.
3. Plug the power cord into a power outlet and switch on the appliance.
4. Delete the message for the replacement by pressing the and buttons and holding them for 3 seconds.

REPLACEMENT

You can obtain replacements from your BONECO specialist dealer or our online store at www.boneco.com.

ON THE A250

PREPARED THE A250

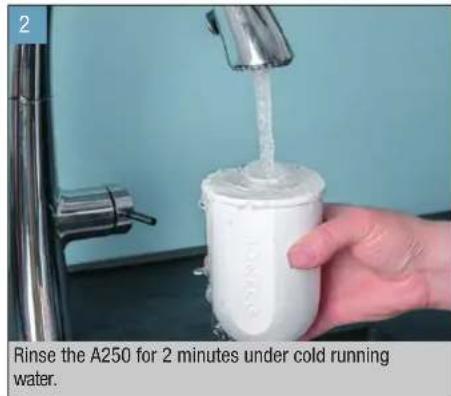

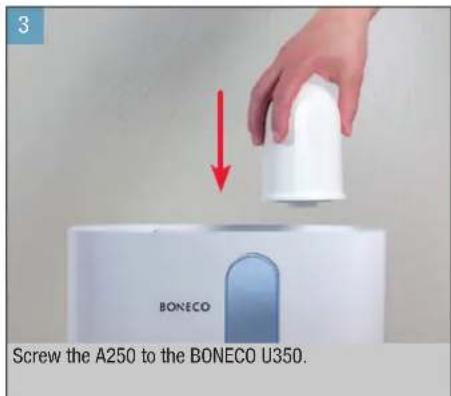

Please observe the accompanying manual for starting up the A250.

ON WATER HARDNESS

The BONECO U350 is supplied with the A250. The granulate contained in it filters the lime out of the tap water so that it is not released into the room air. Hard tap water accelerates saturation of the granulate, making it necessary to replace the A250 earlier.

Dispose of the saturated A250 with your regular household waste.

White dust around the appliance is a sure indication that the A250 is fully worn out.

REPLACING THE A250

The A250 must be replaced every 2 to 6 months. In cases of very hard water, it may have to be replaced sooner. White dust around the appliance is a sure indication that the A250 is fully worn out.

Please observe the accompanying manual for starting up the A250.

The used A250 can be disposed of with your regular household waste.

REPLACEMENT

You can obtain replacements from your BONECO specialist dealer or our online store at www.boneco.com.

MODED'EMPLOI

BONECO U350

SOMMAIRE

Dimensions L × I × H 308 × 165 × 325 mm

Poids a vide 3,3 kg

Niveau sonore < 35 dB(A)

REEMPLACEMENT DES CONSOMMABLES

REPLACER LE BATONNET IONIC SILVER STICK A7017

Ionic Silver Stick A7017

A250

Ionic Silver Stick A7017

A250

Ionic Silver Stick A7017

A250

Ionic Silver Stick A7017

A250

Tiras de teste da dureza da agua

Guiarápido

INDICAÇOES NO DISPLAY

Visao geral de todas as indications no display

Simbolo Significado

A7017 Ionic Silver Stick

A250

MEGFELELO ELHELYEZES

A7017 Ionic Silver Stick

A250

Stalla in OFF-timern 176

Stalla in ON-timern 176

Matt L×B×H 308×165×325mm

Tomvik3,3 kg

Ljudnivávid drift < 35 dB(A)

A7017 Ionic Silver Stick

A250

A7017 Ionic Silver Stick

A250

Indstilling of OFF-timer 212

Indstilling of ON-timer 212

A7017 Ionic Silver Stick

A250

Teststrimmel vandhardshed

Kort manual

AFKALKNING OG RENGORING

OM AFKALKNING

AFKALKNING AF APPARATET

1. Adskil BONECO U350 fra elnettet.

1. Tøm vandbeholderen.

Stille inn PA-tidsuret 230

Informasjon on vedlikehold 231
Vedlikeholdsinformasjon 231
Avkalking og rengjaring 232
Om avkalknng 232
Avkalke apparatuset 232
Slette renjøringsanvising 233
Rengjore membranen 233
Bytte forbruksmaterialie 234
Bytte A7017 Ionic Silver Stick 234
Ny forsyning 234
0m A250 235
Klargjore A250 235
Om vannhardhet 235
Bytte A250 235
Ny forsyning 235

TEKNISKE DATA

Nettspenning 220 - 240V 50 / 60Hz

Effektopptak <29 W* / <110 W/

Lufftukhtighetyse 500 g/h*

A7017 Ionic Silver Stick

A250

Teststripe for vannhardhet

Hurtigveiledning

INFORMASJON OM VEDLIKEHOLD

VEDLIKEHOLDSINFORMASJON

Tuk'saiericessvars3,3kg

Daribas troknsis < 35 dB(A)

* ar uzsildi

^假 ar 230V ,50Hz

IEVADS

Apsveicam ar ierieces BONECO U350 iegadi. Jaudigais gaisa mitrinatajs/aerosola izsidzinatajs nepartraukti uztur gaisa mitrumu patikama limeni.

lerice BONECO U350 ir projekteta vienkarsai, pilnigi automatiskai lietoansai. Taçu visas ipasibas var pielagot jusu velmém un prasibam. Sajia instrukcija ir norades, ka radit mikroklatu savai labsajutai.

LIETDERIGA INFORMACIJA PAR GAISA MITRUMU

Pareizs gaisa mitruma limenis ir butisks musu veselibas uzturesan. Sausa telpas gaisa ietekme ziema adasaesrega un niez. Acis un kakla ir jutama sausuma sajuta, kas leverojami mazina labsajtu. Tas attiecas ne tikai uz pieaugusajiem, bet ari uz zidainiem, maziem berniemi un pat uz majdizniewkiem. Sausa glotada ziema padara musuznemigakus ar pret saauksteanos un citam infekcjiam.

Ar ierici BONECO U350 sis problemas pigeones pagatnei. Tas inteligenta automatak nepartraukti uztur gais mitrumu ideala fimeni - pat lielas telpas, kuru platiba ir fidz 80 kvadratemriem.

Jus vairs nevelesietiesatteikties no jauniegutakomforta.

PIEGADES KOMPLEKTACIJA

BONECO U350 Tirisanas un atkalkosanas

pulveris A7417 "Calc0ff"

A7017 Ionic Silver Stick

A250

Udens ciefibas testa
stremeles

Isai lietoanas instrukcija

Drosibas noradijumi

DALU PÄRSKATS UN NOSAUKUMI

1 Parsegs
2 Sprausla
3 Sucjcaurule
4 A7017 Ionic Sliver Stick
5 Skarienjutigdspleje
6 Birstite
7 A250
8 Smarzvielas Vertne
9 Elektrapgade

IV

INDIKACIJAS DISPLEJ

A7017 Ionic Silver Stick

A250

MootmedP×L×K308×165×325mm

Tuhikaal 3,3 kg

Töörmürä < 35 dB(A)

JUHISED HOOLDAMISEKS

HOOUDIS UINHISED

A7017 Ionic Silver Stick

A250

Testovaci prouzek tvrdosti vody

Strucny námod

BezpečnostníPokyny

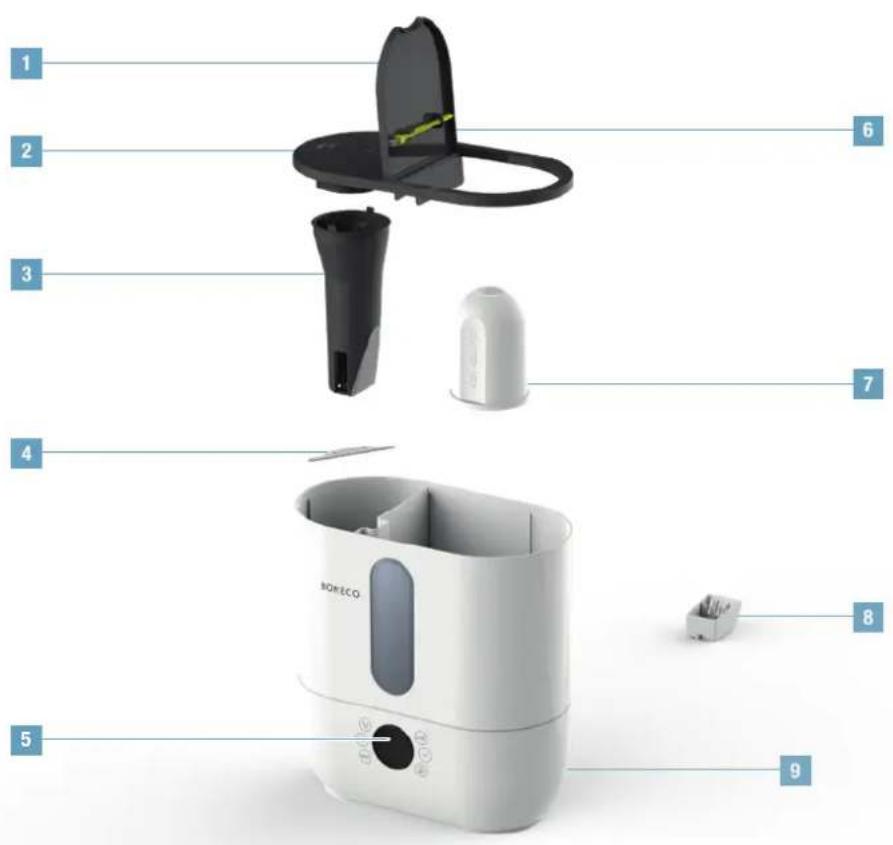

PřEHLED A NÁZVY DILU

1 Kryt

2 Tryska
3 Komin
4 A7017 Ionic Sliver Stick
5 Dotkyov dispej
6 Kartac
7 A250
8 Nadobka na vonne latky
9 Napajeni

CZ

298

UDAJE NA DISPLEJI

Prikon < 29 W / < 110 W*

Vykon zvlhcovania 500 g/h/*

Pre velkost miestosti do 80 m 2 / 200m^3

Objem 5,0 liter

Rozmery D × S × V 308 × 165 × 325 mm

A7017 Ionic Silver Stick

A7017 Ionic Silver Stick

A250

Trakica za ispitivanje tvdoco vode

Brze upute

Sigurnosne napomene

PREGLED INAZIV DIJELOVA

1 Poklippac
2 Miaznica
3 Dimnjak
4 A7017 Ionic Silver Stick
5 Zaslon osjetiv na dodir
6 Cetka
7 A250
8 Spremnik zamiris
9 Opskrba elektricom energijom

INDIKATORI NA ZASLONU

Pregled svih indicatora na zaslunu

Simbol Značenje

47%	Trenutna iliŽeljena vlžnost zraka 356
AUTO	Potpuno automatiski rad 356
	Uklučen grijac 357
	Uklučen timer 358
CURRENT	Vrijednost prikazuje trenutnu vlžnost zraka 356
DESIRED	Vrijednost prikazuje Željenu vlžnost zraka 356

Simbol Potrebna radnja
8

Dolijevanje vode 359
Promjena vode u uredeju 359
Zamjena A7017 Ionic Silver Stick®	362
Potrebno cisćenje 360

PLOCA STIPKAMA

Ploča s tipkama na uredaju

Tipka Funkciajia

Uklucivanje i isklučivanje uredaja 356

Reguliranje snage 356

Naacin rada "AUTO" 356

Uklucivanje i isklucivanje grijaca 357

To oto onoeio toothe tonc 370

Yypaia aepa kai ekveeowntc unepnxw 372

△aotaoεicM×π×Y308×165×325mm

Bapoc (a83o) 3,3 kg

A7017 Ionic Silver Stick

A250

Dokpaotikc taivie OkpnoTNTac vepo

Quick Manual

YnObeicic aaoaieac

ENIISKONHSH KAI ONOMAIA TQN EAPTHMATQN

1 Kαλυμα

2 Στόμι
3 Xoayn
4 A7017 Ionic Silver Stick
5 08ovn aqns
6 Bouptra
7 A250
8 Doxio apuapoc
9 Tpofooboa pejuaoc

gr

ENDEEIEI THN OONH

OLeC oEvEeic ony oovuvonik

Σμβολερηνεια

EXETIKA ME TH KHPOTHTA TOY NEPOY

HarpBIOCTnraeTNONHOI MOUHOCTNuepe3HECKoJIbKO MNHYT.

1.HaxMMTe OINHpaHa CnMBOI 111111111111111111111111111111

EMKOCtB DnAPOMATN3NPYIOUXBEUECTB

B emkoctb dIapomatn3npyloux BueecTB C
obpatHO CTOPHO BONECO U350 MOxHO 3aJNTb
obuHbApomATn3atop Dny yBnaKHTenei Bo3dyxa.

Hn B KOem Cnyae He 3aINBaIte apomatn3atop HENOCpeCDTBEHNO B pe3epByap nra BOdu mnnB NOdoH;3TO npBBeET K nobPexDeHIO BONECO U350 nnpekpaueHIO DeCTBna rapaHTn!

1.BbICTpbHnKaTMHe EMKoCTb DApomATn3npUOuX BeueCTB pa3bNOkpyTe BbDnKHOJTOK.

2.HakanaIte apomatn3npyooee BceCTBO Ha BAHTHYBCTABKY BBIDBHXHOM JOTKE.

ФУHKUH TAYMEPA

Pnnoomou TaMepa Bb MoKTe 3aTaB npoOnJnteIbHocTb paOToB BONECO U350 do ABTomatueCKOrO BbIKIOUeyHRA (TaimepBbIKIOUeyHRA).

Bb MoKTe TaKke 3aDaTb BpEm, Yepe3 KOTOpoe np60p DOnKeH AToMaTHueCKn BKIOuHTbcra (TaHmep BKIOUeHn).NcNoJIb3yIte 3Ty fHyKnHn, HApPmep, INB KJIHOeHn BONECO U350 nepeD BaWIM Bo3BaPauHem, YTO6bK BAWeM npXOdy Doma 6bl KOMΦoPTHbI KNIMAT.

HACTPOIKA TAIIMEPA BbIKIOUeyHn

1.BknoHte BONECO U350.
2. BbIbePeHTe HuyKhble HaCTpoiKn.
3.HeckoJIbko pa3 HaxMnte Ha cMMBON noka He OTo6pa3ntcra HyxHna npOdoNkTeNbHOCT bp60tbl

BONECO U350 6ydt paobatb B TeueHne 3aHaHoro BpeMeHn 3aTEM BkIIOHTCJ.

1. TtobbldeakTNBupOBaT TaMep BbKIOUeyHn npexDeBPemEHNO, BbIKIOHTe BONECO U350,a npn Heo6xoDMOCn CHOBA eRg BkIOHTe.

HACTPOIKA TAIIMEPA BKJIIOYEHN

1. BbIKInOHTe BONECO U350.
   2.HeckoIbko pa3 HaxMnte Ha cHMBOJ noka He oTo6pa3ntcra HyxHoe Bpemr OknuaHn np6opa.

Pnp6op BONECO U350 BKJIOHTcA Hepe3 3aHaHoe Bpemn 6ydt pa6oTaB B COOTBetCTBm C BblbpaHHbIMn HactpoiKaMn.

1. TtO6bI DeakTMBnPOBaT TaHMeP BKNIOHeHH npExKeBpeMeHHo, BKJIOHTe BONECO U350, a npn Heo6xoDMOCTN CHOBA eO BOKIOHTe.

YKA3AHNIOYXOy

VKA3AHM90XOJY

CoBpemHeH 3ΦΦeKTHBnOCTb aHTNb6aKTePnaIbHOro cepe6pHoro cTepxHnIonic Silver Stick A7017 ChNkaETcA, a BHyTpEHHne Detann yBnAaXnITenB EBONCU O350 NOKpbBaOTc n3BecTKOBIM HAIETOM. KpOME TOrO, B pe3yNtATE 3aCTOR BObl MORY 3aRpa3HNbCBAHpyEHNE 3JEMeHTbl npu6opa, a TAKKe NOBNTCBn HENPNrTHBe 3anaxn. No3ToM ypeynpHny xOd 3a PnpOpom nero OOnCTKa - 3TO YcNoBme ero 6cepe6oHn 3KcnIyataun B COOTBETCTBN C CAHNTAPbHMn HOPMAMN.

PekomeHdyemble INTEpBaIbI ONUCTKN IyXoJa 3abNCrT OT KaueCTBa BO3Dyxa N BOJbI, a TaKKe OE pKaTnuecko npdoJNkTeBHOCTn pa60tI.

HapyXHO ONUCTK NcNoB3yTe MmRkyo, BnaxHyO canFETky.

Ipepe KaJdoO ONUCTKo BbHMaTe WTeNcBHyIO BUNKy I3 pO3eTKn.

3310XW×H 308×165×325mm

消 _ 常 3.3kg

JH BONECOU350uMaeHuaTSeRnAaHn.
F.
Ji

A7017 Ionic Silver Stick

A250

登录邮箱：请登录邮箱地址

Quick Manual

安徒将与他主的

初日

默默默默默默默默默默默默默默默默默默默默默默默默默默默默

合云和

整定 言道法

BONECO is a registered trademark of BONECO AG, Switzerland

BONECO AG, Espenstrasse 85, 9443 Widnau, Switzerland
