USER MANUAL AirFresh Clean 300 SOEHNLE

2. Scope of delivery

6. Prior to first use

7. Daily use and operation

8. Cleaning and care

9. Replacing the filter

10. Transport and storage

13. Replacement and wear parts

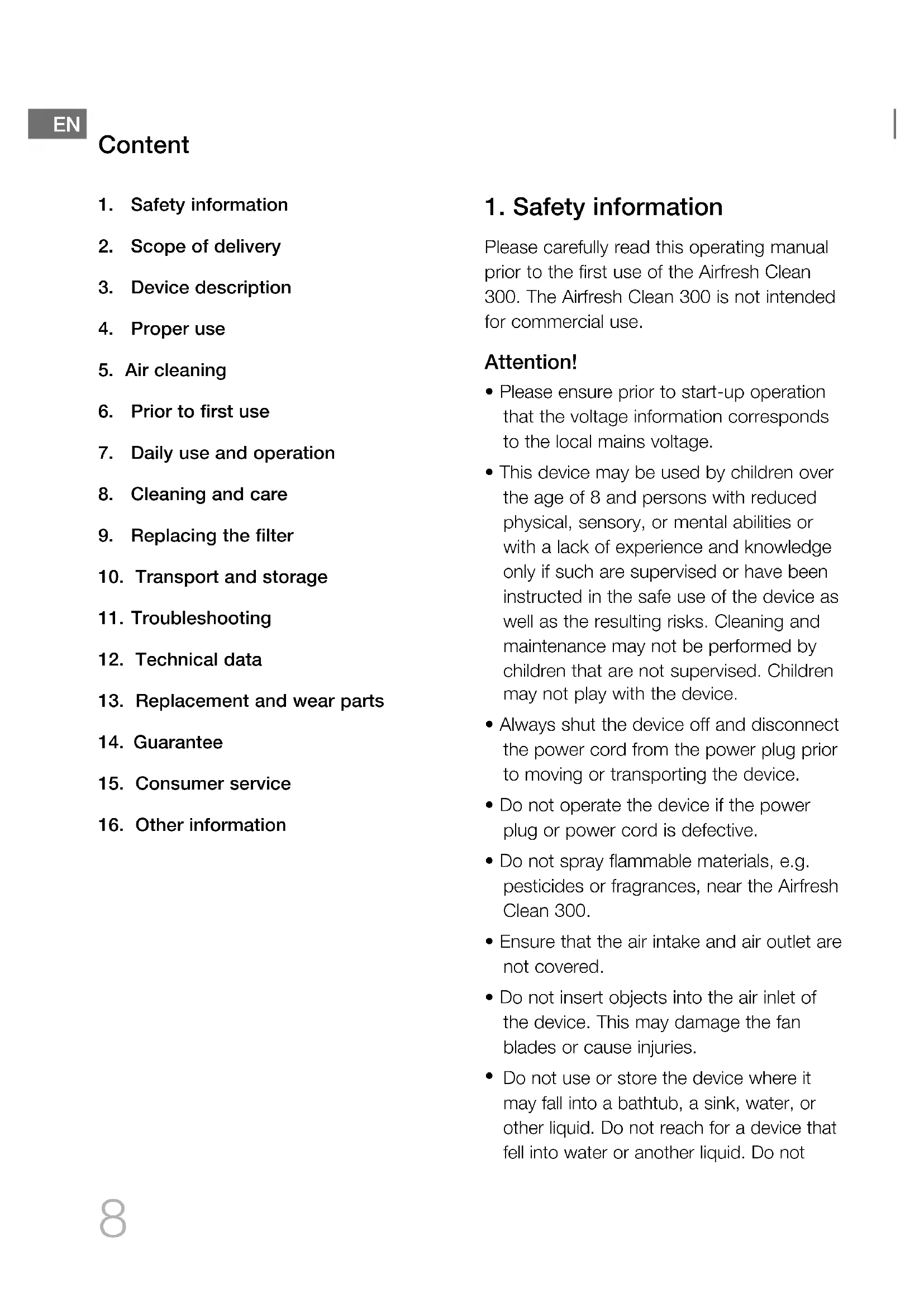

Please carefully read this operating manual prior to the first use of the Airfresh Clean

300. The Airfresh Clean 300 is not intended

for commercial use. Attention!

• Please ensure prior to start-up operation that the voltage information corresponds to the local mains voltage.

• This device may be used by children over the age of 8 and persons with reduced physical, sensory, or mental abilities or with a lack of experience and knowledge only if such are supervised or have been instructed in the safe use of the device as well as the resulting risks. Cleaning and maintenance may not be performed by children that are not supervised. Children may not play with the device.

• Always shut the device off and disconnect the power cord from the power plug prior to moving or transporting the device.

• Do not operate the device if the power plug or power cord is defective.

• Do not spray flammable materials, e.g. pesticides or fragrances, near the Airfresh Clean 300.

• Ensure that the air intake and air outlet are not covered.

• Do not insert objects into the air inlet of the device. This may damage the fan blades or cause injuries.

Do not use or store the device where it may fall into a bathtub, a sink, water, or other liquid. Do not reach for a device that fell into water or another liquid. Do not EN9 reach into the water or another liquid, even if the device is no longer connected to the power outlet at that time. Risk of electric shock in case of moisture when the device is reconnected to the power outlet. Use a dry cloth to wipe moisture off. Do not touch the power plug or device with wet hands. Attention!

• If the power outlet used to operate the Air- fresh Clean 300 is not properly connected, the power plug of the device will get hot. Ensure that you are using a properly con- nected power outlet for the device.

• Do not place any objects on top of the Air- fresh Clean 300 and do not sit on it.

• Use only the original filter by Soehnle, which is specifically suited for this Airfresh Clean 300.

• Do not use the Airfresh Clean 300 after using incense for insect protection or in places with oil residue or chemical vapours or where incense sticks are burnt.

Do not use the Airfresh Clean 300 near heaters, fireplaces, or gas-powered devices.

• Do not stand on the device.

2. Scope of delivery

1 Soehnle Airfresh Clean 300 1 Soehnle combination filter for Airfresh Clean 300 1 Operating manual

The Airfresh Clean 300 is intended exclusively for cleaning room air.

With the Soehnle combination filter you will remove a multitude of unwanted particles and odours from your room air. Micro-organ- isms and viruses are destroyed by adding UV-C light. Prefilter: Captures the first dust and allergen particles EPA filter / activated carbon filter: Captures dust, smoke, pollen, and other allergens. Filters odours from the air. UV-C light: Destroys micro-organisms, e.g. germs, virus- es, bacteria, and mould (e.g. mould toxins)

6. Prior to first use

1. Place the device upright on a solid and

level surface. Keep the device away from walls.

2. To ensure optimum performance of the

device, please ensure that the air inlets and air outlets are not covered.

3. Inspect the power cord to ensure that it is

Connect the power cord to a power outlet. EN10

7. Daily use and operation

Switching on and off Push the ON/OFF switch (J) to switch the Airfresh Clean 300 on or off. Setting the operating time Push the key (G) to set the desired operating time. Select between 2, 4, and 8 hours (H). The device switches off automatically after the time expires. If an operating time is not set (indica- tor light is not on), the Airfresh Clean 300 is in continuous operation. UV-C lamp and night-time mode Push the key (H) once to switch the UV-C lamp inside the Airfresh Clean 300 on (UV-C indicator light is on). Push the key again to activate night- time mode without switching the UV-C lamp off (UV-C indicator light is on, NIGHT indicator light flashes). Push the key (H) again to switch the UV-C lamp off (UV-C indicator light is off, NIGHT indicator light flashes) or switch both off (UV-C indicator light is off, NIGHT indicator light is off). Night-time mode In night-time mode you can operate Airfresh Clean 300 without being bothered by additional light sources. Once you activate the night-time mode, all indicator lights on the device will soon be turned off without the de- vice switching off. All previous settings for operating time and fan speed will remain unchanged. Activation of the night-time mode is indicated by flash- ing of the indicator light before the illu- mination switches off completely. Changing the fan speed Push the key (I) to select the fan speed and thus the desired intensity of air output: Low (I) – Medium (II) – High (III)

8. Cleaning and care

Cleaning the combination filter Regular cleaning of the combination filter (1x month) ensures faultless operation of the Airfresh Clean 300 and greatest possible room air quality. Proceed as follows:

1. Switch the device off prior to cleaning and

disconnect the power plug.

2. Turn the device upside down and place it

on a solid surface (1.1).

3. Open the screw cap on the bottom of the

4. Remove the housing bottom by lifting it

5. Remove the combination filter (1.4) and

clean it. Replace the filter and ensure that it is inserted correctly. Note: The prefilter is attached to the filter with a hook and loop fastener. Clean the prefilter under running water. Ensure that the prefilter is dry before reattaching into the EPA filter. EPA and activated carbon filter should be cleaned only with a vacuum cleaner.

6. Close the device and fasten the screw

cap. Turn the device right side up and place it on a solid surface.

7. Reconnect the power cord to a power

outlet and switch the device on. EN11 Cleaning the housing Clean the housing of Airfresh Clean 300 with a slightly damp cloth.

9. Replacing the filter

The combination filter should be replaced after approx. 4320 operating hours. The FIL- TER RESET indicator flashes automatically on the top of the device after approx. 4320 operating hours. Use only original Soehnle filters! Proceed as follows to change the filter:

1. Switch the device off and disconnect the

2. Open the device as described above in

Chapter 7 and remove the combination

3. Insert the new combination filter into the

housing. Ensure that the new filter unit is inserted correctly.

4. Close the device and fasten the screw

cap. Turn the device right side up and place it on a solid surface.

5. Reconnect the power cord to a power

outlet and switch the device on.

6. Push and hold the ON/OFF switch (J) for

5 seconds. A signal sounds and the filter reset indicator light disappears. The operating time meter is now reset.

10. Transport and storage

Transport WARNING! Always switch the device off before trans- porting it. Always disconnect the power plug from the power outlet. Storage We recommend carefully cleaning your Air- fresh Clean 300 before storing the device. Ensure that all parts are clean and dry prior to storing the device. Store the Airfresh Clean 300 in a cool and dry location.

Switch the device off and disconnect the power plug before performing the following tests. Problem: The device does not work

• Ensure that the Airfresh Clean 300 is con- nected to a power source.

• Ensure that the filter is inserted correctly.

• Ensure that the bottom housing is inserted correctly and close tightly with the screw cap. Problem: Insufficient airflow

• Ensure that the filter is clean. Please clean the filter if it is soiled.

• Ensure that air inlet and air outlet are not blocked or obstructed. Problem: Excessive noise

• Ensure that no foreign objects are located in the fan and remove them if necessary.

• Ensure that the filter is clean. Please clean the filter if it is soiled.

• Ensure that the filter is inserted correctly.

• Ensure that the device is placed securely and evenly on a solid surface. EN12

13. Replacement and wear parts

• 68106 Soehnle filter for Airfresh Clean 300 (prefilter, EPA filter & activated carbon filter) Replacement parts can be ordered directly from us. Please contact our customer service.

Leifheit AG offers a 2 year guarantee for this quality product as of the purchase date (or in case of orders, as of receipt of the goods). Guarantee claims must be asserted within the guarantee period immediately after oc- currence of the defect. The guarantee cov- ers only the nature of the products. The following are excluded from the guarantee:

1. Wear caused by use or other natural

2. Damage caused by improper use or han-

dling (e.g. impact, shock, drop),

3. Damage caused by non-compliance with

these operating instructions. In case of a guarantee claim, Leifheit, at its own dis- cretion, either repairs the defective com- ponents or replaces the product. If a re- pair cannot be performed and an identical product is no longer available in the prod- uct range for the purpose of replacement, you will receive a replacement product of the closest equivalent value. Reimburse- ment of the purchase price is not possible in case of a guarantee claim. This guaran- tee furthermore does not grant any claims for damages. To assert the guarantee, please contact the seller where you have acquired the product and present the de- fective product and the purchase receipt (copy). This guarantee is valid worldwide. Your statutory rights, in particular warranty Room size up to approx. 30 m

Operating environment 5 ~ 40 °C, 20 ~ 80% RH Operating voltage range 220 – 240 V~ alternating current Current frequency 50 / 60Hz Rated output of the system 65 W Dimensions 220 (Ø) x 385 (H) mm Volume 30dB (L), 40dB (M), 55dB (H) Weight 3,4 kg UV light wave length 254 nm UV-C lamp service life approx. 20.000 hours

The product is double insulated and corresponds to protection category 2. EN13 rights, continue to apply and are not limit- ed by this guarantee.

15. Consumer service

Our consumer service is happy to help you in case of questions and comments Germany: Ph.: (0800) 5 34 34 34 International: phone: +49 (0) 26 04 - 97 70 Mo – Fr 8:30 a.m. – 12:00 p.m.

16. Other information

Electromagnetic fields This Soehnle device fulfils all standards and regulations with regard to exposure in elec- tromagnetic fields. Declaration of conformity Leifheit AG herewith declares that this prod- uct is in compliance with the general require- ments and other relevant provisions of appli- cable European directives. Declarations of conformity are available on the homepage: www.soehnle.com. Disposal of used electric devices Please dispose of this product af- ter its service life pursuant to the Waste Electrical and Electronic Equipment Directive 2002/96/EC – WEEE. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste but must be re

turned to a collection point for recycling elec- trical and electronic products. EN14 Table des matières
