USER MANUAL 6902506 WOLFCRAFT

• PLEASE NOTE: Do read all safety & other instructions that have come with the Master cut 2500 and with the power tools you use for work. Failing to observe the safety & other instructions may cause electric shocks, fire and/or severe injuries.
• Do keep the operating instructions for future reference in a safe place.

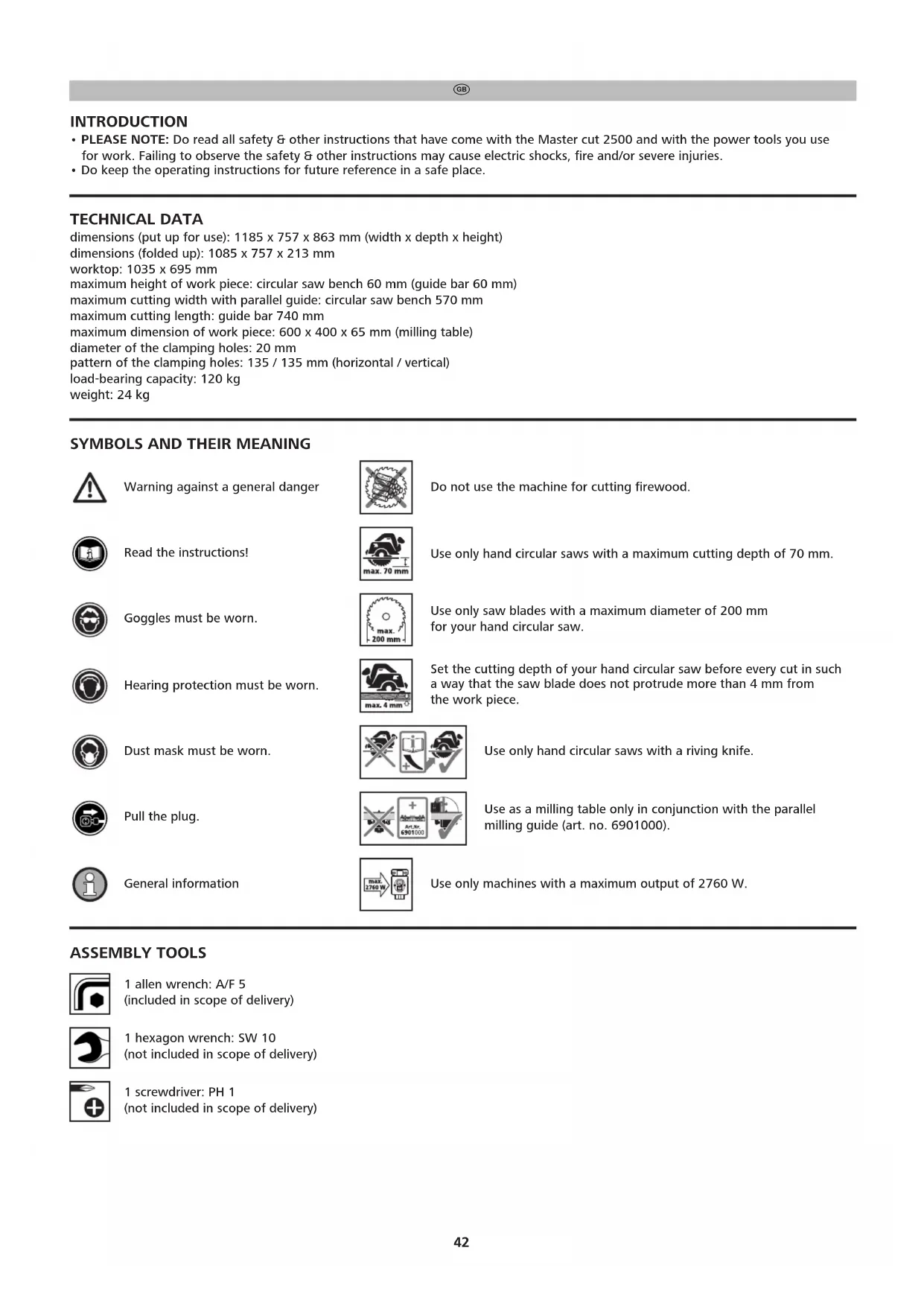

TECHNICAL DATA

dimensions (put up for use): 1185 × 757 × 863 mm (width × depth × height)

dimensions (folded up): 1085 x 757 x 213 mm

worktop: 1035 × 695 ~mm

maximum height of work piece: circular saw bench 60mm (guide bar 60mm )

maximum cutting width with parallel guide: circular saw bench 570 mm

maximum cutting length: guide bar 740 mm

maximum dimension of work piece: 600 × 400 × 65 mm (milling table)

diameter of the clamping holes: 20mm

pattern of the clamping holes: 135 / 135mm (horizontal / vertical)

load-bearing capacity: 120kg

weight: 24kg

SYMBOLS AND THEIR MEANING

Warning against a general danger

Do not use the machine for cutting firewood.

Read the instructions!

Use only hand circular saws with a maximum cutting depth of 70~mm

Goggles must be worn.

Use only saw blades with a maximum diameter of 200mm for your hand circular saw.

Hearing protection must be worn.

Set the cutting depth of your hand circular saw before every cut in such a way that the saw blade does not protrude more than 4mm from the work piece.

Dust mask must be worn.

Use only hand circular saws with a riving knife.

Pull the plug.

Use as a milling table only in conjunction with the parallel milling guide (art. no. 6901000).

General information

Use only machines with a maximum output of 2760 W.

ASSEMBLY TOOLS

1 allen wrench: A/F 5

(included in scope of delivery)

1 hexagon wrench: SW 10

(not included in scope of delivery)

1 screwdriver: PH 1

(not included in scope of delivery)

INTENDED USE

The MASTER cut 2500 is a precision saw table and work station. It is suitable for:

• Mounting a circular hand saw with riving knife on the machine plate with a max. saw blade diameter of 200mm and max. cutting depth of 70mm . Do not use saws with base plate dimensions greater than the maximum values indicated (see Fig. 13).
  The appropriate split insert must be used. This makes it a stationary circular saw bench.
• Use as a circular saw bench for circular hand saws without a riving knife. Only in conjunction with separate riving knife accessory, art. no. 6916000 with a max. saw blade diameter of 160mm and min. cutting width of 2.4mm .
• Use as a circular saw bench for circular hand saws without a riving knife. Only in conjunction with separate riving knife accessory, art. no. 6917000 with saw blade diameters from min. 161 mm to max. 200 mm, a min. cutting width of 2.4 mm and a max. cutting depth of 66 mm.
• Use as a guided circular saw on the guide rail for processing large objects like doors, worktops, etc. The machine plate with the split insert guide rail serves as a guide block for the guide rail here.
• Use as a jigsaw table. The split insert for jigsaw and routers must be used.
• Mounting a litre saw. The litre saw must be securely mounted in the designated slots with the fastening materials supplied.
• Use as a milling table only in conjunction with the parallel milling guide, art. no. 6901000 and for routers with 230V and max. 1800W . Do not use router bits with a diameter exceeding 27mm . The routing machine must not be used in conjunction with the guide rail. The split insert for routers and jigsaws with the spacer rings must be used.
• Use as a working table for machining workpieces (e.g. drilling, sanding, etc.). The workpieces can be securely fastened in the clamping holes in the worktop using the wolfcraft one-hand clamps (art. no. 3036000).
• Observe the manufacturer's safety instructions for the machines used as well as the safety instructions for the machine table.
• When disposing of the MASTER cut 2500, please observe local disposal regulations.

The user is liable for any damage or accidents resulting from improper use.

GENERAL SAFETY INSTRUCTIONS

• Keep your workplace clean and well lit. Poor housekeeping or unlit working areas may result in accidents.
• Do not work with power tools in an explosive ambience, where flammable liquids are kept and where gas or dust occur. Power tools will generate sparks which might ignite the dust or vapours.
• Keep children and other persons off your workplace, while using power tools. When getting distracted you can lose the control over the equipment.
• The plug of the power tool must fit into the socket. The plug must not be tampered with. Do not use adapters together with grounded power tools. Unmodified plugs and matching sockets will reduce the risk of getting an electric shock.
• Keep power tools out of the rain and away from wetness. Water penetrating into a power tool will heighten the risk of getting an electric shock.
• When working with a power tool outside, use only extension cords that are suitable for outdoor use. Using an extension cord that is suitable for outdoor use will reduce the risk of getting an electric shock.
• If it is unavoidable to use a power tool in a wet ambience, use a residual-current circuit-breaker. It will reduce the risk of getting an electric shock.
• Take care of what you do and handle the power tool with care. Never use a power tool, when you feel tired or when you are under the influence of drugs of any kind or alcohol. One moment of inattentiveness while using the power tool can cause severe injuries.
• Do wear suitable personal protective clothing and equipment, such as hearing protection, goggles, dust masks while doing dust-generating jobs as well as protective gloves, when processing rough materials and when changing tools.
• Remove the setting tools or wrenches before switching on the power tool. A tool or wrench attached to a rotating part of the equipment may cause injuries.
• Wear suitable clothes, i.e. no loose garments or jewellery. Keep your hair, clothing and gloves away from rotating parts. Loose garments, jewellery or long hair may be caught by such rotating parts.
  Always use the protective hood with the dust extractor.
• Do not use power tools with a defective switch. A power tool that can no longer be switched on or off is dangerous and needs repairing.
• Keep unused power tools out of the reach of children. Do not allow persons using equipment which they are not familiar with it, or persons who have not read these instructions. Power tools pose a danger, when being used by inexperienced persons.
• Check before starting to work, whether equipment and tools function properly. Never work with damaged or blunt tools.
• Have your power tools only repaired by duly qualified personnel. Demand original spares, so that the safety of the power tool remains ensured.
• Pull the plug from the socket and/or remove the battery pack from the power tools before you change the setting of your equipment or before you replace any components. The unin-entional re-start of a power tool may cause accidents.
• Put up the machine table properly before installing the power tool. The table's safe assembly is vital to prevent it from collapsing.
• Attach the power tool safely to the machine plate before using it. If the power tool gets out of place on the machine plate, you may lose control of it.
• Put the machine table on a firm, plain and horizontal surface. If the machine table can shift or wobble, neither the power tool nor the work piece can be moved safely and steadily.
• Do not overload the machine table and do not use it as ladder or scaffolding. Excess loads or standing on the machine table can shift the table's centre of gravity upwards, so that it may topple over.
• Do not process any other materials than wood or easily machinable plastic. Exception: It is also allowed processing easily machinable metals (e.g. aluminium), but only with the jig-saw and a suitable saw blade

• Loose splinters, chips or similar residues must not be removed by hand from the area close to the running saw blade!

• The machines used must conform to DIN EN 60745-1. Equipment built after 1995 must bear the CE sign.

• Do not merely saw by hand without a guiding aid; use the parallel or the angle guide.
• Saw blades must not be slowed down by pushing from the side after the drive has been deactivated!
• Use the tools for their intended purpose only.
• Use only faultless saw blades; the base body must not be thicker and the width of the set of teeth not narrower than the thickness of the splitting wedge.
• Make regular checks, whether all screws are tightened firmly!
• Never use your workbench in an improper way or for purposes other than intended!
• Remove all objects from the workbench that are not required.
• Do not use the machine for cutting firewood.
• Do not use the machine table for cutting log wood.
• The power tools must only be switched on and off via the safety switch.
• Use only the switch clamp supplied to permanently fix the appliance switch in the „ON“ position.
• Replace damaged gap inserts with new ones.
• Always use a push stick when processing small or narrow work pieces.
• Make sure the eccentric levers for fixing the table legs are closed.
• Make sure before starting to work that the hand-held circular saw, the router or the jigsaw is properly attached to the machine plate and that the machine plate is safely arrested in the notch of the machine table, or that it rests safely on the guide bar.
• Observe the admissible maximum dimensions for the work pieces (see Technical data).
• When not in use, hang the push stick, the split inserts or the angle stop on the screw hooks provided for this purpose.
• Do not use the machine table outdoors in the rain or in damp conditions.

SAFETY INSTRUCTIONS FOR CIRCULAR SAWS

• Apart from these machine-specific safety instructions, do also observe the safety instruc-tions for the hand-held circular saw you work with.
• Only use hand-held circular saws with splitting wedge, with a maximum saw blade diameter of 200mm and a maximum cutting depth of 70mm .
• Use only saws within the above maximum dimensions for the base plate (see Fig. 13).
• Use the circular saw bench only, when the protective hood is properly fixed.
• PLEASE NOTE: Make sure that the saw blade has been installed parallel to the opening in the gap insert and re-align the hand-held circular saw, if necessary.
• Support long work pieces at the removal side, so that they rest in a horizontal position; e.g. with a wolfcraft roller trestle (Art. No. 6119973).
• Avoid overloading the hand-held circular saw.
• Do not use grinding pads.
• Use only recommended brands of saw blades and select them depending on the material to be sawn.
  DANGER: Keep your hands off the sawing area and the saw blade.
• Never reach under the work piece. The protective hood cannot protect you from the saw blade underneath the work piece.
• Adapt the cutting depth to the thickness of the work piece; less than a full tooth height should be visible under the work piece.
• Be always aware that the work piece can be caught by the running saw blade and hit the operator
• A back stroke is the result of using the saw incorrectly and/or for a wrong application. It can be prevented by suitable precautionary measures, as described below.
• Keep the saw firmly with both hands and put your arms in a position, so that you can ab-sorb the back stroke forces. Always stand to the side of the saw blade; never align your body with the saw blade. In the event of a back stroke, the circular saw can jump back-wards, although the operator should be able to master the situation by taking suitable precautionary measures.
• Should the saw blade be jammed or should you interrupt your work, always switch off the saw and keep it steady in the material until the saw blade has come to a standstill. Never try to remove the saw from the work piece or pull it backwards, as long as the saw blade is rotating, as this may result in a back stroke. Find out the reason why the saw blade is jammed and eliminate the cause.
• If you wish to re-start a saw that is still in the work piece, centre the saw blade in the saw gap and check, whether saw teeth might be blocked in the work piece. If the saw blade jams, it may free itself from the work piece or cause a back stroke during the re-start of the saw.
• Support large plates, in order to minimize the risk of a back stroke caused by a jammed saw blade. Large plates may bend under their own weight. Plates must be supported on both sides, both near the saw gap and at the edge.
• Do not use blunt or damaged saw blades. Saw blades with blunt or incorrectly set teeth will increase the friction at the narrow saw gap, cause the saw blade to jam and may result in a back stroke.
• Set and fix the cutting depth and the cutting angle before starting to saw. If the settings change during the sawing, the saw blade may get blocked and cause a back stroke.
  Take extra care when making a „plunge cut“ into an existing wall or other concealed areas. The immersing saw blade may block in concealed objects and cause a back stroke.
• Observe the admissible maximum dimensions for the work pieces (see Technical data).
• Always use the push stick when cutting slashes and joints, since the saw blade is not visible.

SAFETY INFORMATION FOR CIRCULAR SAW BENCHES

• Leave protective covers mounted. Protective covers must be in proper working order and correctly mounted. Loose, damaged or poorly functioning protective covers must be repaired or replaced.
• Always use the saw blade protective cover and the riving knife for separating cuts. The protective cover and other safety devices reduce the risk of injuries for separating cuts where the blade saws through the entire workpiece thickness.
• Caution: The machine table must not be used for cutting joints, making slits or slicing wood during timber handling.
• Caution: Do not process workpieces less than 2mm in thickness.
• Before switching on the power tool, make sure that the saw blade is not touching the protective cover, the riving knife or the workpiece. Accidental contact between these components and the saw blade can result in an unsafe situation.
• Adjust the riving knife as described in these operating instructions. Incorrect spacing, position and alignment may result in the riving knife failing to effectively prevent recoil.
• In order for the riving knife to be able to work, it must act on the workpiece. The riving knife will have no effect for cuts in workpieces that are too short to allow the riving knife to engage. It may not prevent recoil under these conditions.
• Use the appropriate saw blade for the riving knife. In order for the riving knife to work correctly, the saw blade diameter must match the relevant riving knife, the steel blade of the saw blade must be thinner than the riving knife and the tooth width must be greater than the riving knife thickness.
  DANGER: Do not place your fingers or hands near the saw blade or in the sawing area. A moment of inattention or a slip could result in your hand being propelled towards the saw blade and result in serious injuries.
• Feed the workpiece to the saw blade or cutting tool against the direction of rotation only. Feeding the workpiece in the same direction as the saw blade's direction of rotation above the table can result in the workpiece and your hand being drawn into the saw blade.
• Never use the litre stop to feed the workpiece when making longitudinal cuts and never additionally use the parallel stop for longitudinal adjustment when making cross cuts using the litre stop. Simultaneously guiding the workpiece using the parallel stop and the litre stop increases the probability of the saw blade jamming and recoil occurring.
• Always exert the feeding force on the workpiece between the stop rail and saw blade when making longitudinal cuts. Use a push stick if the distance between the stop rail and saw blade is less than 150mm , and a push block if the distance is less than 50mm . These work aids ensure that your hand remains a safe distance from the saw blade.
• Only use the push stick supplied by the manufacturer or another push stick manufactured according to instructions. The push stick ensures sufficient distance between your hand and the saw blade.
• Never use a damaged or partially sawn-off push stick. A damaged push stick can break and result in your hand coming into contact with the saw blade.
• Do not work "freehand". Always use the parallel stop or the metre stop to position and guide the workpiece. "Freehand" means supporting or guiding the workpiece using the hands instead of using a parallel stop or metre stop. Freehand sawing will result in misalignment, jamming and recoil.
• Never reach around or over a rotating saw blade. Reaching for a workpiece can result in unintentional contact with a rotating saw blade.
• Support long and/or wide workpieces at the back and/or side of the saw table to keep them horizontal. Long and/or wide workpieces tend to tilt at the edge of the saw table; this results in loss of control, jamming of the saw blade and recoil.
• Feed the workpiece continuously. Do not bend or turn the workpiece. If the saw blade jams, switch off the power tool, pull out the mains plug and remove the cause of the jam. Jamming of the saw blade on the workpiece can result in recoil or blocking of the engine.
• Do not clear material removed by sawing while the saw is running. Material removed by sawing can settle between the saw blade and stop rail or in the protective cover and can draw your finger into the saw blade when clearing it. Switch off the saw and wait until the saw blade has come to a stop before clearing the material.
• Never stand in a direct line with the saw blade. Always keep on the side of the saw blade with the stop rail. Recoil can cause the workpiece to be flung at high speed towards people standing in front of and in line with the saw blade.
• Never reach over or behind the saw blade to pull or support the workpiece. This can result in unintentional contact with the saw blade or recoil can result in your fingers being drawn into the saw blade.
• Never hold and push the workpiece being sawn against the rotating saw blade. Pushing the workpiece being sawn against the saw blade will result in jamming and recoil.
• Align the stop rail parallel to the saw blade. An unaligned stop rail will push the workpiece against the saw blade and cause recoil.
• Exercise particular care when sawing in non-visible areas of assembled workpieces. The plunging saw blade may be sawing in objects that can cause recoil.
• Support large boards to reduce the risk of recoil due to a jammed saw blade. Large boards can bend under their own weight. Boards must be supported wherever they project past the table surface.
  Exercise particular care when sawing workpieces that are twisted, knotted or warped or that do not have a straight edge for guiding using a metre stop or along a stop rail. A twisted, knotted or warped workpiece is unstable and will result in misalignment of the kerfs with the saw blade, jamming and recoil.
• Never saw several workpieces stacked one on top of each other or one behind the other. The saw blade could catch one or more parts and cause recoil.
• If you want to restart a saw whose blade is stuck in the workpiece, centre the saw blade in the saw gap in such a way that the teeth are not caught in the workpiece. If the saw blade is jammed, it can lift the workpiece and cause recoil when the saw is restarted.
• Keep the saw blades clean, sharp and adequately set. Never use warped saw blades or saw blades with cracked or broken teeth. Sharp and correctly set saw blades reduce jamming, blocking and recoil.

• Switch off the circular saw bench and disconnect it from the mains before removing the table insert, changing the saw blade, adjusting the riving knife or saw blade protective cover and if the machine is going to be left unattended. Precautions help to avoid accidents.

• Never leave the circular saw bench running unattended. Switch off the power tool and wait until it has come to a complete stop before leaving it. An unattended saw is an unchecked hazard.

• Install the circular saw bench in a location that is flat and well lit, where you can stand securely and maintain your balance. The installation location must offer enough space to handle the size of your workpieces. Untidy, unlit work areas and uneven, slippery floors can result in accidents.
• Remove sawdust and shavings under the saw table and/or from the dust extractor at regular intervals. Piled-up sawdust is flammable and can ignite spontaneously.
• Secure the circular saw bench. A circular saw bench that has not been secured property can move or tip over.
• Remove adjusting tools, wood scraps, etc. from the circular saw bench before switching it on. Distractions or possible jams can be dangerous.
• Always use saw blades in the correct size and with the appropriate locating hole (e.g. diamond-shaped or round). Saw blades that are not compatible with the saw's mounting parts will run unsmoothly and result in loss of control.
• Never use damaged or the wrong saw blade mounting materials such as flanges, washers, nuts or bolts. This saw blade mounting material has been designed specifically for your saw, for safe operation and optimum performance.
• Never climb onto the circular saw bench and do not use the circular saw bench as a step stool. Serious injuries can occur if the power tool tips over or if you accidentally come into contact with the saw blade.
• Make sure that the saw blade is mounted in the correct direction of rotation. Do not use grinding wheels or wire brushes with the circular saw bench. Improper mounting of the saw blade or using accessories that are not recommended can result in serious injuries.

SAFETY INSTRUCTIONS FOR JIGSAWS

• Apart from these machine-specific safety instructions, do also observe the safety instruc-tions for the jigsaw you work with.
• Never work with a damaged jigsaw.
• Avoid overloading the jigsaw.
• The jigsaw must not be used in connection with the guide bar.

SAFETY INFORMATION FOR MITRE SAWS

• In addition to this tool-specific safety information, make sure to observe the safety information for the litre saw used.
• Mount the litre saw in accordance with the instructions in these operating instructions.
• Do not work with a damaged litre saw and do not use blunt or damaged saw blades.
• Support long workpieces on the receiving side to prevent dangerous situations caused by uncontrolled tipping over.

PLEASE NOTE: USE THE MILLING TABLE EXCLUSIVELY IN COMBINATION WITH THE PARALLEL MILLING GUIDE (ART. NO. 6901000) SAFETY INSTRUCTIONS FOR ROUTERS

• Apart from these machine-specific safety instructions, do also observe the safety instruc-tions of the router you work with.
• Be always aware that the work piece may unexpectedly get out of control during the mill-ing process and strike back.
• Do not use the machine table for curved work!
  Therefore, carry out the milling work exclusively with the parallel milling guide (which is available as accessory under Art.-No. 6901000), in order to prevent back strokes and to protect your hands from touching the cutter.
• Observe the original operating instructions for the parallel milling guide (Art.-No. 6901000), in order to be able to install it correctly.
• Do not use routers with a rating of more than 1800W and a voltage of more than 230V .
• Do not use cutters with a diameter of more than 27 mm !
• The router must not be used in combination with the guide bar.
• Please observe that the feed must be against the cutter's direction of rotation.
• Select the spacer rings supplied in relation to the size of the milling tool. Safe work requires selecting the smallest possible spacer ring.
• Use only sharp and properly maintained milling tools that have been set in accordance with the tool manufacturer's instructions.
• Observe the data concerning the minimum/maximum speed and the direction of rotation indicated directly on the equipment and tools used, or on their packaging, or as detailed in the operating instructions.
• Please be aware that the improper use of milling tools, of work pieces and of the guiding devices for the work piece may cause dangerous situations.
• Keep your hands off the milling tool, when milling close to the guide.
• If possible, use table pressure shoes in addition to the parallel milling guide while milling.
• Support long work pieces on the removal side, in order to avoid dangerous situations that may be caused by the uncontrolled tilting of the work piece. The support must rest on sta-ble ground and have the same height as the machine table, e.g. the roller trestle (Art. No. 6119973).
• Do only process work pieces that, considering their weight, can be held and advanced safely by one person.
• Choose the correct speed that is appropriate for tool and work piece. Please refer to the operating instructions of your router for the correct speed parameters.
• Observe the admissible maximum dimensions for the work pieces (see Technical data).

SCOPE OF DELIVERY

Take the MASTER cut 2500 out of the cardboard box and check that the contents are complete and all illustrated parts are included (Fig. 1 and Fig. 2).

BASIC ASSEMBLY

Assembly of the table: Place the table on a flat, clean surface (Fig. 3.1). Release the two eccentric levers and fold out the right pair of legs as far as they will go. Then close the two eccentric levers again (Fig. 3.2). Release the four eccentric levers and fold out the left pair of legs as far as they will go. Then close all four eccentric levers again (Fig. 3.3). Place the table on its legs (Fig. 3.4) and if necessary adjust the table by turning the height adjustment (Fig. 3.4).

CAUTION: Take care not to pinch your hands when folding up and unfolding the table or inserting the machine plate.

Safety switch: Mount the safety switch on the machine table as illustrated (Fig. 4).

Protective cover: Mount the individual components of the protective cover (Fig. 5.1). Push the protective cover holder with the guide into the aluminium profile (Fig. 5.2). Position the protective cover over the saw gap in such a way that it covers the front saw gap area. Tighten the handle screw by turning it clockwise (Fig. 5.3).

Angle stop: Mount the angle stop as illustrated (Fig. 6.1 to Fig. 6.4).

Angle stop for guide rail: Mount the long angle stop, the stop slide and the stop guide (Fig. 7.1). Slide the stop slide with the slot into the angle stop and tighten the handle screw by turning it clockwise (Fig. 7.2).

Screw hooks for storage: Unscrew the three holders together (Fig. 8.1), then slide the holders into the guide and position at suitable intervals. Tighten the lock nuts (Fig. 8.2). Place the push stick and/or unnecessary accessory parts on the holders (Fig. 8.3).

Switch clamp: Knot one end of the cord in the hole of the switch clamp and the other end with the corner profile of the table (Fig. 9).

CAUTION: Make sure that the cord is just long enough that the switch clamp will automatically detach from the power tool when the machine plate swivels.

MOUNTING THE CIRCULAR HAND SAW

Note: To mount the circular hand saw for the first time and align the saw blade in parallel, start by attaching the guide rail to the table.

Mounting the guide rail: Start by positioning the right and left plastic holders in the designated holes in the aluminium profile. Place the guide rail on the table parallel to the slot in the worktop and insert the two metal clamps into the rail profile. Now offer up the two clamps to the plastic holders and latch them in. The guide rail will then align exactly. Then tighten the two clamps (Fig. 10.1 and Fig. 10.2).

Removing the machine plate: Raise the split insert slightly at the recess as illustrated to unlock it (Fig. 11.1). Then pull the split insert in the direction of the arrow (Fig. 11.2). Now lift out the split insert (Fig. 11.3).

CAUTION: The split insert for the circular saw bench must always be removed before removing the machine plate!

Now raise the machine plate at the recessed grip (Fig. 11.4). Raising the machine plate detaches it from the four clamping devices and enables it to be removed with both hands (Fig. 11.5). Now insert the split insert again (Fig. 11.6).

Positioning the machine plate on the guide rail: Now position the machine plate from above on the guide in the guide rail as illustrated (Fig. 12).

Suitable circular hand saws: Please refer to Fig. 13 for the maximum dimensions of circular hand saws. Always use circular hand saws with a riving knife, max. saw blade diameter of 200mm and max. cutting depth of 70mm .

Mounting and aligning the circular hand saw

Release the cutting depth lock on the circular hand saw and retract the protective pendulum cover. Now place the circular hand saw on the machine plate. Adjust the cutting depth, leaving sufficient clearance in the slot in the worktop, and tighten the cutting depth lock. Now align the saw blade of the circular hand saw parallel to the guide rail's black rubber lip (Fig. 14.1). Now attach the six side stops in such a way that all side stops are in full contact with the machine base plate. The two rear stops in longitudinal direction act as stops for the circular hand saw in sawing direction to guarantee a firm hold of the circular hand saw when sawing (Fig. 14.2). Then attach the four clamping claws (Fig. 14.3). Remove the mounted circular hand saw with the machine plate and lay it on the table as illustrated (Fig. 14.4). With the cutting depth extended fully, check the distance between the foremost tooth of the saw blade and the front edge of the split insert (Fig. 14.5).

CAUTION: This distance must be less than 20mm . If necessary, the circular hand saw must be realigned in longitudinal direction and the two stops must be readjusted.

Now place the machine plate together with the circular hand saw on the table as illustrated and remove the split insert (Fig. 14.6). Position the machine plate on the front clamping devices. Then lower it onto the table plate with one hand on the recessed grip (Fig. 14.7). Allow the machine plate to engage (Fig. 14.8). Then insert the split insert again (Fig. 14.9).

CAUTION: Check whether the circular hand saw is mounted parallel to the opening in the split insert. If necessary, the circular hand saw must be realigned (Fig. 14.2 and Fig. 14.3).

Using circular hand saws with wide base plates

If the dimension from the centre of the saw blade to the outer edge of the circular hand saw's base plate is wider than 128mm , the two long side stops must be used during mounting. The two side stops illustrated in "Close-up F" simultaneously act as stops for the circular hand saw (Fig. 14.10). Do not use circular hand saws with base plate dimensions greater than the maximum values indicated (Fig. 13).

Connection to the power supply: Insert the connector plug of the circular hand saw into the safety switch and connect an extension cord from the safety switch to the mains power socket (Fig. 15.1). The extension cord is not included in the scope of delivery.

CAUTION: Press the thermostatic switch before operating for the first time. If the power is interrupted due to excess voltage, wait 5 - 10 min. and press the thermostatic switch. The ON switch can then be pressed (Fig. 15.2).

Press the red button (OFF) on the safety switch. Then attach the switch clamp to the circular hand saw (Fig. 15.3). Now press the green button (ON) and check that the saw blade rotates freely in the split insert (Fig. 15.4), then press the red button (OFF) again.

CAUTION: Always pull out the mains plug if the table is not in use or when folding up the table.

The MASTER cut 2500 is now ready for use.

STATIONARY SAWING WITH THE CIRCULAR HAND SAW

CAUTION: Always work with the protective cover and switch on dust extraction at the protective cover.

Sawing with the angle stop

Push the angle stop into the slot (Fig. 16.1). Make sure that the black end of the stop runs as closely as possible under the protective cover so that the cover can be lifted (Fig. 16.2). Now retract the angle stop and rest the workpiece against the angle stop. Switch on the circular hand saw at the safety switch. Push the workpiece at the angle stop towards the circular saw in the direction of the arrow as illustrated (Fig. 16.3) until the blade cuts all the way through the workpiece. Then switch off the circular hand saw using the safety switch.

CAUTION: Always make sure that your hands are kept at a sufficient distance from the rotating saw blade (danger of injury).

Workpieces with heights from min. 15mm to max. 60~mm can be sawn with the angle stop as it is currently mounted. If the workpiece height is less than 15mm , the angle stop guide must be altered (Fig. 16.4 to Fig. 16.7). The angle guide makes it possible to saw workpieces at angles ranging between 0^ and 65^ . Loosen the handle screw, set the required angle and firmly tighten the handle screw again (Fig. 16.8). You can then use the saw as illustrated in Fig. 16.1 to 16.3.

Sawing with the parallel guide

Start by mounting the parallel stop loosely. Insert the parallel stop into the guide with the eccentric levers on the table open. Align the stop parallel with the guide using the scale printed on the guide profile. Close the two eccentric levers and tighten the fastening bolts. Make sure that the parallel stop is aligned parallel with the circular saw blade (Fig. 17.1). The guide of the angle stop must then be mounted at the parallel stop to prevent the workpiece being knocked back during sawing. Please use the illustrated fastening parts on the angle stop for this. Loosely install the two bolts and washers and the square nuts at the parallel stop (Fig. 17.2). Then push the guide as illustrated at the parallel stop into the two square nuts. The end of the guide must not be inserted past the end of the circular saw blade (Fig. 17.3). Tighten both bolts. Release the two eccentric levers and set the required cutting width, making sure that the parallel stop is aligned parallel with the circular saw blade. Then close the two eccentric levers. Now switch on the circular hand saw at the safety switch. Push the workpiece towards the circular saw in the direction of the arrow as illustrated (Fig. 17.4) until the blade cuts all the way through the workpiece. Then switch off the circular hand saw using the safety switch. Always use the push stick included in the scope of delivery for narrow workpieces (Fig. 17.5). The parallel stop can also be mounted on the left of the circular saw blade if necessary. The guide must be offset by one row of holes for this (Fig. 17.6). Refer to Fig. 17.1 to Fig. 17.3 for the necessary mounting steps.

Vertical litre cuts

The circular hand saw must be realigned for vertical litre cuts. Start by removing the split insert (Fig. 18.1). Then raise the machine plate at the recessed grip (Fig. 18.2). Now remove the machine plate (Fig. 18.3). Retract the protective pendulum cover on the circular hand saw and reinsert the split insert as far as it will go (Fig. 18.4). Place the mounted machine plate on the table as illustrated (Fig. 18.5). Loosen the four clamping claws and the four side stops. Set the required litre angle on the circular hand saw. Move the base plate parallel at the two remaining stops in the direction of the arrow (Fig. 18.6). Make sure that the saw blade can rotate freely in the split insert. Then fasten the four side stops and the four clamping claws (Fig. 18.7). Now place the machine plate together with the circular hand saw on the table and remove the split insert. Position the machine plate on the front clamping devices. Then lower it onto the table plate with one hand on the recessed grip. Allow the machine plate to engage and then reinsert the split insert (Fig. 14.6 to Fig. 14.9). The table is now ready for the vertical litre cut (Fig. 18.8). If necessary, the protective cover can be adjusted laterally using the adjusting screw so that the saw blade can turn freely and with sufficient space under the protective cover (Fig. 18.9).

SAWING WITH THE GUIDE BAR

When the hand-held circular saw was initially installed (Fig. 14.1 - 14.8), it was precisely geared to working with the guide bar. Now place the machine plate with the hand-held circu-lar saw thus installed onto the table and exchange the gap insert for stationary sawing against the gap insert for cutting with the guide bar (Fig. 19.1). Put the work piece onto the worktop. Always use the angle guide for the guide bar, if possible (see section on angle cuts). Then install the guide bar with its two holders and the two clamps (Fig. 19.2). Always tighten the two clamps so firmly that the work piece cannot get out of place during the sawing. Place the machine plate with the hand-held circular saw installed on it onto the guidance of the guide bar. Now set the cutting depth of the hand-held circular saw in such a way that the saw blade does not extend more than 4mm underneath the work piece.

WARNING: When cutting narrow work pieces, support the guide bar with work pieces of the same height over the entire table width, so that the guide bar cannot tumble down with the machine plate.

WARNING: The appliance inlet of the hand-held circular saw must be plugged into a mains socket outlet, since the safety switch and the switch clamp must not be used when sawing with the guide bar.

Switch on the hand-held circular saw and move it always parallel along the guide bar (Fig. 19.3). Once the cut has been completed, switch off the hand-held circular saw.

Angle cuts: Put the plastic holder of the angle guide into a borehole on the worktop. Always use the borehole closest to the cutting edge of the guide bar. Shift the loosely assembled guide rails into the groove on the worktop and right up to the angle guide. Now clamp the groove of the guide rail into the profile of the angle guide. Align the work piece together with the angle guide to the guide bar and tighten the knurled screw of the guide rail firmly (Fig. 19.4).

Serial cuts: Install the additional guide slide for serial cuts. Insert the guide slide into the groove of the angle guide and turn the metal stop up to the worktop. Then place the work piece in the desired length against the angle guide and push the guide slide to the end of the work piece. You can now tighten the knurled screw firmly (Fig. 19.5).

SAWING WITH THE JIGSAW

Insert the split insert for jigsaws into the machine plate (Fig. 20.1). Align the jigsaw on the machine plate in such a way that the saw blade runs in the centre of the saw opening. Now mount the jigsaw as illustrated (Fig. 20.2 and Fig. 20.3). Insert the mounted jigsaw with the machine plate into the table and engage in the four holders. Attach the switch clamp to the switch on the jigsaw and insert the connector plug in the safety switch. The table is now ready for use (Fig. 20.4).

MOUNTING A MITRE SAW

Mitre saws may be mounted on the working table using the fastening bolts supplied in the scope of delivery. Place the litre saw in the centre of the table with the mounting holes above the two slots in the table plate.

Next secure the metre saw. To do this, insert the bolts and the small washers through the mounting holes and table plates from above. Fasten it from below using the large washers and nuts (Fig. 21).

CAUTION: The mitre saw must be secured to the table using at least two fastening bolts, four washers and two nuts. The mitre saw must not be used if the mounting holes in your saw do not align with the slots in the table plate.

ADJUSTING THE MACHINE PLATE

The height of the machine plate in the worktop was set in the factory to ensure that the workpiece glides smoothly over the worktop and machine plate area. The height of the machine plate can be adjusted if necessary. For this purpose, loosen the five lock nuts. Align the height of the machine plate using the five adjusting screws until it is flush with the worktop and then tighten the lock nuts again (Fig. 22). Before starting work, always check that the five lock nuts are securely fastened.

SPECIAL ACCESSORIES FOR THE MASTER cut 2500

TWO EXTRA ATTACHABLE RIVING KNIVES, ART. NO. 6916000 AND 6917000

DESIGNED FOR CIRCULAR HAND SAWS WITHOUT A RIVING KNIFE

CAUTION: The special accessories described here are only compatible with the MASTER cut 2500.

NOTE: The following section describes how this special accessory functions and is operated and an illustration is included on page 21.

INTENDED USE

The two riving knives enable the operation of circular hand saws that have no riving knife.

Riving knife 6916000 is designed for circular hand saws with circular saw blades that have a maximum diameter of 160mm and a cutting width between 2.4mm and 2.8mm .

Riving knife 6917000 is designed for circular hand saws with circular saw blades that have a maximum diameter of 200mm , a cutting width between 2.4mm and 2.8mm and a maximum cutting depth of 66mm .

CAUTION: Before using the special accessories, always read the general safety instructions, the safety instructions for circular hand saws and the original instruction manual accompanying the circular hand saw without riving knife.

RIVING KNIVES ART. NO. 6916000 AND 6917000

Riving knife 6916000 includes the following components: 1x riving knife (for a max. circular saw blade diameter of 160mm ), 1x riving knife holder (long version), 1x setting gauge (Fig. A). Riving knife 6917000 includes the following components: 1x riving knife (for a max. circular saw blade diameter of 200mm ), 1x riving knife holder (short version), 1x setting gauge (Fig. B).

CAUTION: The following section describes how the riving knife (art. no. 6916000) for circular hand saws with a max. saw blade diameter of 160mm is assembled and functions. The riving knife (art. no. 6917000) for circular hand saws with a max. saw blade diameter of 200mm is assembled and functions in the same way. However, it is possible to machine workpieces with a max. height of 50mm using this riving knife.

MOUNTING THE CIRCULAR HAND SAW WITHOUT RIVING KNIFE

CAUTION: To mount the circular hand saw for the first time and align the saw blade in parallel, start by aligning and mounting the circular hand saw with the machine plate on the guide rail.

NOTE: Read and follow the instructions in this manual on mounting the guide rail and removing and positioning the machine plate.

Mounting and aligning the circular hand saw

Release the cutting depth lock on the circular hand saw and retract the protective pendulum cover. Now place the circular hand saw on the machine plate. Adjust the cutting depth, leaving sufficient clearance in the slot in the worktop, and tighten the cutting depth lock. Now align the saw blade of the circular hand saw parallel to the guide rail's black rubber lip (Fig. C.1). Now attach the six side stops in such a way that all side stops are in full contact with the machine base plate. The two rear stops in longitudinal direction act as stops for the circular hand saw in sawing direction to guarantee a firm hold of the circular hand saw when sawing (Fig. C.2). Then attach the four clamping claws (Fig. C.3). Remove the mounted circular hand saw with the machine plate and lay it on the table as illustrated (Fig. C.4). With the cutting depth extended fully, check the distance between the foremost tooth of the saw blade and the front edge of the split insert (Fig. C.5).

CAUTION: This distance must be less than 20mm . If necessary, the circular hand saw must be realigned in longitudinal direction and the two stops must be readjusted.

NOTE: If the dimension from the centre of the saw blade to the outer edge of the circular hand saw's base plate is wider than 128mm , the two long side stops must be used during mounting. Read and follow the instructions in this manual on mounting wider base plates for circular hand saws.

ATTACHING RIVING KNIVES

Place the mounted circular hand saw on the table as illustrated (Fig. D.1). Install the locating bolt loosely with the fastening screw. Push this connection as illustrated into the machine plate until the locating slot for the riving knife is visible (Fig. D.2). Insert the riving knife approx. 2cm into the slot on the locating bolt from above (Fig. D.3). Make sure that the riving knife is inserted up to the stop on the machine plate (= vertical direction). Tighten the fastening screw (Fig. D.4).

ALIGNING THE CIRCULAR HAND SAW

Place the mounted circular hand saw on the table as illustrated.

CAUTION: Make sure that the circular saw blade is positioned centrally in relation to the riving knife and aligned parallel in the saw gap.

The front end of the circular hand saw must be aligned with the 0 mark on the base plate of the circular hand saw and the two auxiliary marking lines on the machine plate. The rear end of the circular hand saw must be aligned centrally in relation to the circular saw blade and the riving knife (Fig. D.5).

CAUTION: The circular hand saw must be realigned laterally if the circular saw blade is not aligned centrally in relation to the riving knife.

CAUTION: To insert the machine plate in the table, the riving knife with the locating bolt and the fastening screw must be removed again.

Loosen the fastening screw and pull the riving knife upwards. Then remove the locating bolt with the fastening screw (Fig. D.6).

Adjust the safety distance between the riving knife and circular saw blade using the setting gauge.

Now place the machine plate together with the circular hand saw on the table as illustrated and remove the split insert (Fig. E.1). Position the machine plate on the front clamping devices. Then lower it onto the table plate with one hand on the recessed grip (Fig. E.2). Allow the machine plate to engage (Fig. E.3). Then insert the split insert again (Fig. E.4). Install the locating bolt loosely with the fastening screw. Push this connection as illustrated into the machine plate until the locating slot for the riving knife is visible (Fig. E.5). Insert the riving knife approx. 2cm into the slot on the locating bolt from above (Fig. E.6). Make sure that the riving knife is inserted up to the stop on the machine plate (= vertical direction). Tighten the fastening screw (Fig. E.7). Fit the individual parts to the riving knife as shown in the illustration (Fig. E.8). Tighten the screw and the knurled nut connected to the riving knife and loosely tighten the screw and knurled nut in the front of the housing (Fig. E.9). Now loosen the fastening screw of the locating bolt (Fig. E.10). Slide down the riving knife vertically in relation to the circular saw blade (Fig. E.11).

Slide down the riving knife until at least one circular saw blade tooth reaches the housing of the setting gauge. Now tighten the front knurled nut (Fig. E.12). When the allen screw is tightened, the safety distance between the circular saw blade and the riving knife is adjusted to max. 5 mm (Fig. E.13). Then unscrew the setting gauge from the riving knife (Fig. E.14).

CAUTION: Make sure that the circular saw blade is aligned centrally in relation to the riving knife (Fig. E.14) and that the max. safety distance of 5mm between the circular saw blade and riving knife is maintained (Fig. E.12), otherwise the circular hand saw must be realigned.

CAUTION: Before starting work, always check that the riving knife and fastening parts are securely fastened.

The table is now ready for stationary sawing. Read the instructions on stationary sawing using the circular hand saw.

Cutting depth adjustment

If the cutting depth of the circular hand saw is changed, the height of the riving knife must also be adjusted to guarantee the max. 5mm safety distance to the circular hand saw blade. Start by loosening the riving knife using the allen wrench. Now set the circular hand saw to the required cutting depth. Tighten the cutting depth lock again. Attach and position the setting gauge together with the riving knife as illustrated in Fig. E.5 to E.14.

Vertical litre cuts

The circular hand saw must be realigned laterally for vertical metre cuts. Set the required metre angle on the circular hand saw. Retract the protective pendulum cover on the circular hand saw and position the machine centrally over the saw gap of the machine plate. Release the cutting depth lock on the circular saw and set the machine to the maximum cutting depth. Tighten the cutting depth lock again (Fig. F.1).

CAUTION: Align the circular saw blade parallel in the saw gap. Check the distance between the foremost tooth of the saw blade to the front edge of the saw gap. This distance must be less than 20mm (Fig. F.2).

Now attach the six side stops in such a way that all side stops are in full contact with the machine base plate. The two rear stops in longitudinal direction act as stops for the circular hand saw in sawing direction to guarantee a firm hold of the circular hand saw when sawing. Then attach the four clamping claws (Fig. F.3).

NOTE: If the dimension from the centre of the saw blade to the outer edge of the circular hand saw's base plate is wider than 128mm , the two long side stops must be used during mounting. Read and follow the instructions in this manual on mounting wider base plates for circular hand saws.

ATTACHING RIVING KNIVES

Place the mounted circular hand saw on the table as illustrated (Fig. F.4). Install the locating bolt loosely with the fastening screw. Push this connection as illustrated into the machine plate until the locating slot for the riving knife is visible (Fig. F.5). Insert the riving knife approx. 2cm into the slot on the locating bolt from above (Fig. F.6). Turn the riving knife until it is positioned exactly central in relation to the circular saw blade. Tighten the fastening screw (Fig. F.7).

CAUTION: The circular hand saw must be realigned laterally if the circular saw blade is not aligned centrally in relation to the riving knife.

CAUTION: To insert the machine plate in the table, the riving knife with the locating bolt and the fastening screw must be removed again.

Loosen the fastening screw and pull the riving knife upwards. Then remove the locating bolt with the fastening screw (Fig. F.8).

Adjust the safety distance between the riving knife and circular saw blade using the setting gauge.

Now place the machine plate together with the circular hand saw on the table as illustrated and remove the split insert (Fig. F.9). Position the machine plate on the front clamping devices. Then lower it onto the table plate with one hand on the recessed grip (Fig. F.10). Allow the machine plate to engage (Fig. F.11). Then insert the split insert again (Fig. F.12). Install the locating bolt loosely with the fastening screw. Push this connection as illustrated into the machine plate until the locating slot for the riving knife is visible. Insert the riving knife approx. 2cm into the slot on the locating bolt from above. Turn the riving knife until it is positioned exactly central in relation to the circular saw blade. Tighten the fastening screw (Fig. F.13). Fit the individual parts to the riving knife as shown in the illustration (Fig. F.14). Tighten the screw and the knurled nut connected to the riving knife and loosely tighten the screw and knurled nut in the front of the housing (Fig. F.15). Now loosen the fastening screw of the locating bolt (Fig. F.16). Slide down the riving knife vertically in relation to the circular saw blade (Fig. F.17). Slide down the riving knife until at least one circular saw blade tooth reaches the housing of the setting gauge. Now tighten the front knurled nut (Fig. F.18). When the allen screw is tightened, the safety distance between the circular saw blade and the riving knife is adjusted to max. 5 mm (Fig. F.19). Then unscrew the setting gauge from the riving knife.

CAUTION: Make sure that the circular saw blade is aligned centrally in relation to the riving knife and that the max. safety distance of 5mm between the circular saw blade and riving knife is maintained, otherwise the circular hand saw must be realigned (Fig. F.20).

CAUTION: Before starting work, always check that the riving knife and fastening parts are securely fastened.

The table is now ready for stationary sawing. Read the instructions on stationary sawing using the circular hand saw.

Warranty

Dear hobbyist!

You have purchased a high-quality wolfcraft® appliance, which we know you will enjoy using. wolfcraft® appliances are built to high technical standards, and undergo intensive development and test phases before leaving the factory. Constant controls and regular tests during their manufacture, ensure a high quality standard. Sound technical developments, and reliable quality controls warrant for the right choice of appliance.

We provide a warranty of 10 years from the day of purchase on the wolfcraft® product you acquired, provided it is exclusively used for DIY purposes. The warranty only covers damage to the item purchased, and only such damage that can be attributed to faulty material und poor workmanship. The warranty does not cover defects and damage that must be attributed to improper use or insufficient maintenance. Nor does the warranty cover the usual wear and tear as well as defects and damage, of which the customer has been aware when purchasing the equipment.

Warranty claims can only be asserted by producing the invoice or the till receipt.

The warranty granted by wolfcraft® does not in any way restrict your statutory consumer rights (i.e. contract performance, withdrawal from the contract, price reduction, claims for damages or reimbursement of expenses).

Declaration of Conformity pursuant to Directive 2006/42/EC on Machinery, Annex II A

wolfcraft GmbH in D-56746 Kempenich, Wolff-Str. 1, hereby declares that this product (MASTER cut 2500) conforms

to Directive 2006/42/EC on Machinery.

TUEV Rheinland LGA Products GmbH, Tillystrasse 2, 90431 Nurnberg. BM: 60087567 0001

Conformity with the following standards: DIN EN 60745-1, DIN EN 60745-2-5, DIN EN 60745-2-11

Person authorized to sign the Declaration of Conformity and to compile the technical documentation.

(Management; wolfcraft GmbH)

INTRODUCTION

SAKERHETSFÖRESKRIFTER FÖR KAP- OCH GERINGSSAGAR

SAGE MED FØRINGSSKINNNEN

SPESIALTILBEHOR FOR MASTER cut 2500

TO EKSTRA MONTERBARE SPALTEKILER, ART.NR. 6916000 OG 6917000 FOR BRUK MED HANDSIRKELSAGER UTEN SPALTEKILE

Skjaeredybdejustering

EPTAENEIA ZYNAPMOAOHTH

1 Kλειδi αλεν: SW 5

TEXHUNECKN XAPAKTEPNUCTNKU

Pa3mepn pa3bHa: 1185 x 757 x 863 mm (WnpHx Dbl6OuHa x BcOuHa)

Pa3mepn np6pana: 1085 x 757 x 213 mm

Pa60Tha nlou: 1035 x 695 mm

MaKc.BnCOunHa Ha DetaiJa: HAcToJeH cIpy 60 mm /Boeua 60 mm

MaKcImaJIHa ⅢIpyHnHa Ha np3aHe c npaJIeH BODaY: CIPKyJIpye HIIOT 570 MM

MaKcImaHaIbJxHnHaHa p3aHe:Boedeua740MM

MaKc. pa3Mepn Ha daTaNla: 600 x 400 x 65 mm (Maca Ha dpe3aTa)

Jha6noh Ha OTBOPnTe 3a 3aTgAHe: 20 mm

PacTep Ha OTBOpHTe 3a 3aTgAHe: 135 / 135 mm (XOpN3oHTaJHo/BepTnKaJHo)

Donyctmo HatoBapBaHe: 120 kg

Terno: 24 kg

CNMBOJIN 3HAUHEHNE

PpeDynpexKdEHe 3a o6ua onacnoct

He n3no13BaIte 3a p3aHe Ha IbPbBa 3a OrpeB.

Ipooyete HNCTpykunnte/yka3aHneta!

I3no3BaIte cAmo pbHn UnpKyIpyn C MaKcMajHa dbJb6OuHa Ha p3aHe ot 70 mm.

N3noJI3BaIe cAmo MaWuHn C MaKcMmaJIHa MoUHOCT OT 2760 W.

MHCTPYMEHTN 3A MOHTX

1 WeecTorpamEn KInOu: SW 5 (BKNIOUeH B KOMnIeKTa)

1 WeecToCeHeH KIOU: SW 10 (He E BKNIOUeHa B KOMNJIeKta)

1 OTBeptKa: PH 1 (He E BkIIOUeHa B KOMNJIeKTa)

YNOTPE6A IIO INPEDA3HAUHNE

MASTERcut 2500 e npeuznHa maca 3a npo6oDen TpnoH pa6oTHcTaHcNJa. TRe eoDxOyua 3a:

MOnTakBbpyMaunHHnnaIHa pbyeH zpkyIepc Hox 3a pa3KlnHBaHe c MaKcImaJIeH dNaMeTp bHa peXueHn 200 mm mAkcmmaHa Dbl6oUHa Ha p3aHe 70 mm. N3noJ3BaIte cMo zpkyIepn, YraTo onOpHa IIOua He npBeNnaba nocOeHnTe MaKcImaJIHn pa3Mepn (BX. fnr. 13). Tp8Ba Da ce n3NoJ3Ba CbOTBeTHnA rpa3dEInTe.Io To3n HauH nce Ce nOlyu n CtaunoHape nIkpKylap.
- YIOTpe6a KaTo Maca 3a pbueH zpiKpyJep 6e3 KInn 3a pa3eBnBaHe. CaMo B KOM6HaCnC KInn 3a pa3eBnBaHe KaTO OTdEJIHa npHaJneXHocT KaT. No 6916000 c MaKcImMaJe HdaMeTp bHa peKeuia DaCK 160 mm m MmHImaHa IupnHa Ha p3aHe 2,4 mm.
- YIOTpe6a KaTo Maca 3a pbueH cIpyKpIyRbE 3KJIIN 3a pa3zIeBaHe. CaMo B KOM6nHaunc KJINH 3a pa3zIeBaHe KaTO OTdJIHn HpaJIeXHOCT KaT. N6917000 C MaKcIMaJIHN dJaMaTePrn Ha peKeuNr DnCK OT 161 mm do MaKc. 200 mm, MInHMaJIHa IUnpHa Ha pI3aHe 2,4 mm n MaKcIMaJIHa dbl6OuHn Ha pI3aHe Do 66 mm.
- YnOTope6a KaTo BOdIM pbUeH cIpyKpynap Bbpxy BoeAata 3a o6pa6OTka Ha rOleMn npEMeTn KaTo BpaTn, pa60THn pIoUH n T.H. PnTOBa MaunHHnT pIoT cBOeAata 3uHa Cpa3JeNtEn CnyxN KaTo BOeAa WeHa 3a BOeAata WnHa.
- YIOnTp6a KaTo Maca 3a BepTnKanEn TpnoH. Tp6Ba Da ce N3IOJ3Ba CbOTBeTHnT Pa3JeJIeTe 3a npo6OdHi TpnoHn O6ePfpe3n.
- MoTtAa Ha bTlOu CnIpyIep. BrIOBnAT CnIpyIep Ta ca Ce MOHTnpa CnIpyHO B npEbnHeHrTe npoJbIroBaTu OTBOpu BKJIIOeHIne T B KOMIIeKTA KpeNexHN eJeMeHTn.
- YnOTope6a KaTo Maca 3a 0pe3a cAmo B KOM6bHaucn yCnpopeHeOrpaHnHTe 3a 0pe3a KaT. N6901000 n 3a o6eppe3n C 230 V mAKcHym 1800 W. He n3noJ3BaIte 0pe3epn C dIaMeTpBp OT NOBEe OT 27 mm! Ope3OBaTa MaunHa He Tp6Ba Da CE n3noJ3Ba B KOM6bHaucn C BoDeuata uHa. Tp6Ba Da ce n3noJ3Ba pa3deJIteTt 3a o6eppe3n IN pno6OHN TpOHOIN C noIOKHN Te npCTeHn.
- YnOTope6a KaTo pa6oTHa Maca 3a o6pa6oTKa Ha DetaiNn (Hanp. npo6uBaHe, unaiphiHe n dp.). C NOMOHTa Ha eHOpbUHInTe CTaIIN wolfcraft (KaT. N° 3036000) DetaiNtMe MoarTa ca ce fKcnpat cnypHo C NOMOHTa Ha OTBOPte 3a 3aTgAHe Ha pa6oTHnII pIoT.
- Tp6Ba Da ce cna3BaT daHHnTe Ha npo13BODHnTeI yka3aHnra 3a 6e30nacHOCT 3a n3no13BaHnTe MaunHn, KaKTo u yka3aHnraTa 3a 6e30nacHOCT 3a pa6OTHata Maca.
- Pn n3xBbPnaHe Ha MASTER cut 2500 cna3BaTe MeCTHne pa3npoe6n 3a n3xBbPnaHe Ha oTnabu.

IopTe6HtTeJHocu OTROBOPHOCT 3a UeTn HIOLONYK, Bb3HnKHaJI NcEcdTBHe Ha ynoTe6a He no npedHa3HaueHne.

OBUHCTPYKUN3A BE3ONACHOCT

• PoiDpBkaTe Baata pa6oTHa 06nact YnCTa n Do6pe oCBeTeHa. Be3npaIbKbT INH HeocBteHIne pa6oTHn 06nactn MoarTa Da npEiIN3BVKAT 3IOIOnyKn.
  He n3noI3BaIte eIektpueeckn HNCTpyMeHT BbB B3pNoONaHa Cpea, npn HaJIuYe Ha 3anaJIMn TeHocTn, Ra3OBe nn npaxoo6pa3HN MaTePnaII. EJeKtpueecknte HNCTpyMeHTN OTdJIaRt NCKpn, KOINTo MoRaT Da Bb3PiAmEHT npaxoo6pa3HN MaTePnaII nn napi.
  -Дрьктdeua nIcTpaHnHnIuIa dIaIeue OJeleKtpnueckn INHCTpyMeNT no BpeMe Ha pa6oTa.OTKIOHRAHeTO HbHMaHneTo MoKe da DoBeJe do 3ary6a Ha KOHTpol Bbpxye Jektpnueckn INHCTpyMeNT.
• UeIcJIbT Ha 3apAaHTo yCTpOietBO Ha eIeKTPuueckn HNCTpyMeHT Tpr6Ba Da CbOTBeTCTBa Ha KOHTaKa. B HnKaKbB ClyaH He npomeHne KOHCTpyKUraTa Ha uenceJa. Korato pa6oTnte cbc 3a3eMeHn (3aHyJeH) eIeKTPuueckn HNCTpyMeHTn He n3noJ3BaIte aadantepn 3a uenceJa. N3noJ3BaHeTo Ha opunHaJIH uenceJIu I NOxOJaUN KOHTaKTn HaMaJIraBa PnCKa OT TOKOB yIap.
• PpeIa3BaIte eIeKtpueckn HNCTpyMeHr OT dBxN n BlaRa. IpoHnKbaHeTo Ha BOda B eIeKtpueckn HNCTpyMeHr NOBuaBA onaCHOCTTA OT TKOB ydap
  Korato pa6oTnte c eIeKtpnueckn INHCTpymEnr Ha OTKpnto, n3noI3BaIte camo ydbJnxTeJIHH Ka6JIH, KOITo ca npedHa3NaueHn 3a pa6oTa Ha oTKpnto. I3noI3BaHeTo Ha ydbJnxTeJIeH Ka6eN, npedHa3NaueH 3a pa6oTa Ha oTKpnto, HamaJIbRa pICKa OT TOKOB ydap.
  Korato n3non3baHTo Ha enektpnueckn HnCTpyMeHT BbB BlaxHa CpeHa He MoKe da 6bJe npedotBpaTeHo, n3non3BaIte 3aunTeH pnekbcBaCpeSy yTeey ToK. n3non3BaHTo Ha 3aunTeH npekbcBaCpeSy yTeey ToK HaMaJIraBa pNcKa OT KOKoYdap.
  -БыдTe BнмATEHn, BнмВaHTe KaKBO npaBHTe, NOxoxJaTc c pa3ym KbM pa6oTaTc eNeKtpueckn INHCTpyMeH. He n3NoI3BaHTe eNEKtpueckn INHCTpyMeH, KOraTO cTe yMoPeHN nIIi ce HAmipate noD Bb3deJCTBHeTo Ha yNoIBAuN cpeIcTBa, aIKOXON IIIN MeINKaMeHTN. EINH MOMENT Ha HeBHmAHne ppi I3NoI3BaHeto Ha eNEKtpueckn INHCTpyMeH MOnke da Do BoBeDe Do cepno3HN HapaHaBaHn.
  HocTe nOxOaIuNn PpeIa3Hn CpeCTBa: aHTnfoHn, PpeIa3Hn OUHa, IPOTNBO npaxoBA MaCKa npn pa6OTn, npn KOnTO ce o6pa3yBa npax, 3auNTnPbKaBmI npn O6pa6OTka Ha rpy6n IOBpXHOCTn I npn CMHa Ha IHCTpyMeHTn.
• OTePahHe He HCTpyMeHTte 3a HAcTpoIka IINr RaeyH NJIIOOBe npEdu Da BKNIOHTe ENEKTPueckn HNCTpyMeHT. HNCTpyMeHTnn KIOU, KOITc Ce HAmnpa BBB BpTRAca Ce AcCT Ha HNCTpyMeHTa, MOKe da Ppeu3BnKa HapaHbAHn.
  Hocete noxdoaio o6neKIO. He Hocete uipoko 06neKIO nn HaKNTu. DpbkTe KOCnte cn, 6neKIOTO npKaBnIte Cn daJeue ot DBnxkeunTe ce qactn. Cbo6oHOTo 6neKIO, HAKNTe nn DbIrrte KOCn Moar Ta 6bdaT 3axBaHaTH O T BnXeunTe ce qactn.
  BUNHn3nON3BaIte npedna3nteJcekctpaKTopa 3a npax.
  He n3noJI3BaIte eJektpnueckn HNCTpyMeHT, uHTo IpeBkIOuBaTeE dekeTHe. EJeKtpnueckn IHCTpyMeHT, KOITo He MoKe Da ce BkIOUbA u N3KIOUbA, e onaceH u Tp86Ba da 6bde peMOHTnpaH.
  CbxpnaBaTe eJektpnuecknTe IHCTpyMeHTu, KOtO He n3no3BaTe, n3BbN DoctbNa Ha deua. He no3BoJBaIte Ha Iua da pa6oTAT c eJektpnuecknIHCTpyMeHT, KOtO He ca 3aNo3HaTu C Hero NHe Ca npoyen Te3n IHCTpyKcH. EneKtpnuecknTE IHCTpyMeHTu ca ONaCH, KOraTO ce nol3BArOT Heo6yueHn Iua.

• Ппеди заочье на поверете ддуpeитe и Истсгменте пботг. He paBOTe HNKORA c nobpehen nIMn3xa6ehn INCTpymehtn.
  Bb3naraTe pemOnHa Ha cBoe nEkeTpueckn INHCTpyMeHT cMo Ha KaBauΦnucpaH cneuaJIn3npaH nepcoHa, KaTo ce 3nON3BaT cMo opuHaJIH Pe3epBHN qactN. C ToBa ce rapaHTupa, Ye 6e3oNaChocTTa Ha eJeKeTpueckn INHCTpyMeHT ige 6bJe 3ana3eHa.

• N3BaTe Μεkepa OT KOtAkaTApA /nHn akymylatopa OT eJn.HCTpyMeHT, npei Da HappBte HAcTpOKn nn da CmHnte npHaadNExKHOCTn. HeBOJIHOTo BKNIOUbaHe e npuHa 3a 3NoIOnyKn.

• Pnpa MoHTpate en. HcTpyMeH crNo6eTe npaBnHO MaCata Ha MaunHa. PpaBnHOTo crNo6BaHe e BaXHo 3a npedotbpaTaBAHe Ha naDaHe.
  3akpenTe cnpyho en. nHCTpyMeHT Ha nnota Ha MaunHa, npedn da ro n3no3BaTe. Nb3raHeTo Ha en.nHCTpyMeHT Bbpxy nnot Ha MaunHaTAMoKe da doBepe do 3ary6a Ha KOHTpOJ.
  CnoKeTe MacaTa Ha MaunHaTa Bbpy paBHa N XOpn3OHTaHa NoBbpxHocT. Ako MacaTa Ha MaunHaTa ce nIb3ra nn KNaTH, en.nHCTpymeHT nn DeTaNbT He MoKe da Ce HappaBnaPaPBHOpeHo.
  He npetobapBaIte Macata Ha MaunHaTa H He I3NoJ3BaTe KaTo cTb16a nn CKeJe. IpTeOBapBaHTo nn CToeHTo BbpXy MaCATA Ha MaunHaTa MOKe Da IOBeDe IO N3MeCTBaHe Ha ueHTbpa Ha TeKecTTa n Macata MoKe da Ce obpHe.
• He 6pb60BaIte npyn MaTePnAnIOCBEN IbPBO NnPiactMaCn, KOITo JecHO ce pexaT. U3KIIoueHHe: CaMo C np6oBcH TpnoH n noXOJaN pexKeU nDCKOBe MoT da ce 6pb60BaT N leCHO nOdaBaUcn Ce Ha pra3aHc MeTaIi. (HaNP. aIyMnHi).
  He oTcpanhaBte c pbKa OTHyneHn napyeTa, CTpyKKn nn noo6Hn qactn OT deTaN B 6JIn3OCT do DnHexaTa ce pexeua. qact / HOK, dNCK, fpe3ep!
  -ИЗнOL3BAHHTe MaUNHn Tpa6BaДа OTOBaprHa DIN EN 60745-1.Ypei npOn3BeHeu ot 1995 r.Hacam Tp86BaДa IMaT 3HaK CE.
• He pexkeTe "Ha pbka", t.e. He HappaBnaBaIte DeaJa cMo C pbka, a n3non3BaIte npaJIeH nn bTIOB orpaHnHTeJ.
  Cnei n3KIOUbaHe Ha 3aDbNKBaHcTo, He cnpaTe peKeuTe YaCTn KaTO r npTnCKaTe OT CtpAH!
• IN3noJI3BaIte INHCTpyMeHTe cAmO NO CbUHCKOT OIM PpeHa3HaueHne.
• 3n0n3BaTe cmo 6e3ynpueHn pexeun DnCKOBe; OCHOBHOTo TAno He MoKe da 6bJe no-de6eNo, a 3b6nte da 6bDat no-TECHNOT De6eHHata Ha pa3TBapAun KJInH.
  -Поверяваши рedingболтobete ca Здраво зaterн!
  He n3noI3BaIte HnKOra pa6oTHaTc m Maca HnpoOceNoHaHNo IIN He nO npEHa3NaueHHe!
• OTepaHeTe BCnUKN ppeMEnoT pa6OThaMaCa, KOTo He ca Heo6xOuIMN.
• He n3noJ3BaIte 3a pR3aHe Ha DbPBA 3a orpeB.
  He n3noJI3BaIe Macata Ha MaunHata 3a p3aHe Ha o6bJ IbPBeH MaTepnaJ.
• BkIIOUBAHeTo n I3KJIIOUBAHeTo Ha I3N0J3BaHInTe eJ.NHCTpyMeHTn Da CTAba CaMo Upe3 3aunTHnI pKeKbcBaU.
  3a npoobJnxnteHnO hKcnpaHa npekbcaHa hypeBa Bnozunra „BKNIOyeHO", n3noL3BaIte 3a 6yToHa 3a BKIOUObAhe
  CmeHeTe NOBpeDeHIne BLOXKn C npOdbJIroBaT OTBOP C HOBN.
• Pn 6pa60ka Ha TeCHN DeTaN N3NoJ3BaIe 6yTaU npbT.
  Korato He ro n3no3BaTe, 3aKaueTe 6yTaU npbT Ha npedBnEHHa BnHT.
• YBepTeCe, Ye Tb6HHTe JIOCTOBe 3a 3aKpeNBAHe Ha KpaKaTa Ha Macata ca 3aTBopeHn.
• Ппеби руckeане се уберete, чь рчнятциркулар, ообрфраза пллпюбдгия Тронса Зakрени Вьрху плота Н MaшиннаТа CBлално ИЗИСВаньигая и Ze пOTьн Ha MaшиннаТа сгурно e ФнКспан B OTBopa Ha MaшиннаТа, CBOT. e Логн CTaБИнно Вьрху ВODEДУА.Tа WINA.
  Cn3BaTe MaKcImaHInTe pa3Mepn Ha TeTaNla (BxK TexHnuecknTe xapakTepuCTnK).
• 3n0nl3BaIte pa3nHInTe BLOKKn C npOdbIOBAt OTBOp cMo nO CbOTBEHTO m npEHa3HaueHHe, KaKTo e ONuCAHO rpaΦnHOr Ha BCaKa BLOKKa C npOdbIOBAt OTBop.
  Korato He n3noJIbATE npbYkata 3a n36yTBAHe, pa3dJIteJIITE uIN bIIOBnO rpaHnHTe, 3aKaHTe Hn IpeDbUdeHNTe 3a ceNTa 3aBnHTBaUNCe KyKn 3a CbxpAHeHne.
  He n3no3BaTe MaunHHata Maca Ha OTkpTO BdbXIOBHO BpeMe IIN npn BnaIa.

NHCTPYKUN 3A BE30NACHOCT 3A UPKJARPN

OcBHe T3n CneuHn yka3aHn 3a 6e3oNaCHoc 3a MaunHaTa, HnpeMeHHo Cna3BaIte Te 3n yka3aHn 3a n3noJIbAHn pBueH npKyIrp.
- 3n0nl3BaIte cmo pbyHn CnpkyIapri C pa3Tbapu KInH, MaKc. 200 mm dnaMeTp h a peXeunia Jnct n do MaKc. 70 mm dl6oHHa Ha p3aHe.
- 3n0JI3BaIe CaMo TpnoHb BpaMknTe Ha yInomeHaTte MaKcImaJIHn pa3Mepe Ha oChOBHaTa nIoUa (BIXΦIr.13).
- I3noJ3BaIte HAcToIe UnpKjIpa CAmO CbC 3aUInTeH KaNak, KOITo CbOTBeTCTBa Ha N3NCKBaHnraTa.
BHIMAHNE: IpoBepTe daJIIN peKeIurT dNCK e MOHTnpaH yCnopeIHO Ha OTBopa BbB BIOXKaTa, npn Heo6xOJIMoCT pbHnrt CuPKyIrp Tp8Ba Da ce UENTpIPA OTHOB.
- Побпрат eдьгн детаи OTкьм ctpaHata Ha CBанe, таKa Ye, Te Дд leжat xopu3OHTaJIHo; Hanpimep c onopeh polkoB ctaTb wolfcraft (apt.Nr. 6119973).
- ɪəsərBaɪTe npeToBapBaHe Ha pʌbHŋnɪçpKynIæp.
- He n3noJ3BaIte ⅢnΦOBbYH NDCKOBE.
- INIINBAIte cmo npenopbuaHn pekeu n Hn 36paTBe B 3aBNCIMoCT OT MaTePnana, KOITp8Ba da ce pexe.
- ONACHOCT: He npu6nKabai Te pueTe cn KbM o6NaTt Ha pa3aHe N KbM peKeunr nnck.
He nnaTe npd eTnla. 3auTHnAe Kanak He MoKe Da Bn npednaN O T pexuey dNck.
- HaroTe Te bIb6OuHaTa Ha p3aHe KbM De6eJInHaTa Ha dTaJa. Iod dTaJa Tp86Ba da ce BuxKa no-MaIKo OT nbHnTaBnCOUHa Ha 3b6nte.
- 5bDeTe BnHarI NOIDROBEN 3a TOBA, Ye npi pR3aHe DeTaJIbT MoKe Ja 6bDe 3axBaHaT OT peKeuia Nn Ka 6bDe n3xBpJIe Cpeuy o6cnykBaunmaHHaTa.
- 06paTHnIy yIap e pe3yIITaT OT He npabunHIO nII HnneOxOJaIO n3NoJ3BaHe Ha TpnoHa. ToM MoKe da 6bJe npedotBpaTeH C noOxOJaI npdoXpaHHTeHH MeKn, KaKTo e onNcaHO No-dOJIy.
- DpbkTe TpnoHa 3dpBaO cDbete pue n pamHeTe NoCTaBeT B NOLOXeHne da Morat da NoeMaT cnIInTe Ha o6paTHn yap. CToite BNHarN B cTpaHn OT pexKeunu DNCK, HNKORA He noCTaBnTE TAnoTO CN Ha eHnA JINHnC PexKeunu DNck. Pnp O6paTeH ynapcKyJIpybT MOKe Da OTcKOHN Ha3ad, Ho 06cJyKbaunn nepcoHaN MoKe da OBlaedee cnIInTe Ha o6paTHn yapc NODxOJaUN npedoxpAHntEN MepKn.

Ako pekeuNT DNCK 6LOKpa Nn Bn PpeKbChTe pa6oTa, n3KNIOyTe TpNOHa n O pBxKTE cNOKOHO B MaepnaJa, DOkato pekeuT DNCK Cnpe Da cn DnBKn. HNKora He ONITBAHTe da OCTpaHNTe TpNOHa OT DeTaNa n Da rN3TERIInTe Ha3aD, DOkato pekeuT DNCK Ce DnBKn, INaHe MoKe Da nocneDbA o6paTeH yap. YcTaHOBeTe n OTCTpaHETe npHHaTa 3a 6LOKnpaHTo Ha pekeuT DNCK.
- Ako nckate da nycheTe OTHOBO TpnoHa, KOTo e cnpB B deTaNla, CEHTPpaIe TpnoHa B npouena Ha p3aHe N npOBepTe DaII npexeUIne 3b6n He ca Ce 3aklnHHnB DeTaNla. Ako pexeunr DNCK e 3aklnHEn, ToJ MOKe Da ce N3MbKHe OT DeTaNla NN da npedn3BnKa o6paTe H ydap, KOrATo TpnoHbT 6bJe Pcychat OTHOBO.
- Pioepte rolemnte nloockoctn, 3a da Hamaite pncka ot obpateh yap ot 6loknpal pekeu ndck. Tolme nnoocctmoarat da ce orbHaT noD co6CTBeHOTo cn terNo. IIOCKcTe TpaBa da 6bDaT noInpEnO t DBeTe cTpaHn, KaKTo 6n30do pekeun dNCK n npceena ha pr3aHe, taKa cbIo n no Kpar.
- He n3noI3BaIte Tbnn nn noBpeDeHn peXeun DnCKoBe. PeXeun DnCKoBe C Tbnn nn norpEshO opneHTnpaHn 3b6n npEIN3BnKBAt Ype3 TBbpJe TcHry npoUen Ha pyaHe, nobuWeHO TpneHe, 6nOKpaHe Ha peXeun Dack n o6paTeH ydp.
- Pnpn p3aHe 3aterHHe 3dpAbo HAcTpoKnTe Ha dBn6OuHnHa n Ha bTbJa Ha p3aHe. Ako no BpeMe Ha p3aHe HAcTpoKnTe ce npomeHr, pekeunr DNCK MOKe da Ce 3aklnn nn da nocneBa o6pateh yap.
- 5bnde Oco6eH BHNMaTeHNn np "notbBaun Cpe3OBe" B cIeCTbBaun CTEN nI pyu yAcTbU, KOnTO He Ce BnKdaT. NtBbaunr peKeU dNCK moKe da 6loKnp np praHe B CKpTu o6ekTu da npdu3Bnka o6paTeH yap.
CnazBaIeMaKcImaJIHInTe pa3Mepu Ha DeTaNla (BnX TeXHnueCKInTe xapaKTepeNCTMKN).
- 3a Tpnoh 3a WnIOBE n Tpnoh 3a cyrtn BnHar n3non3BaTe npbKka 3a noDaBaHe, noHeKe NmCTbT He ce BnKda.

INHCTPYKUHN 3A BE30NACHOCT 3A HACTOLHN LIPKUYJAPN

• MoHTnpaTe npedna3HnTe kana. IpeNa3HnTe Kaanu Tp6Ba da cB n3npaBHO cbctoHne n da ca MOHTnpaHn npabnHO. Xla6abN, noBpeHn nn HeyHKnOHpaun npabJHo npedna3Hn Kaanu Tp6Ba da 6bDat pmoHTnpaHn nn CmeneHn.
• 3a OTe3n BnHaru n3NoI3BaIte npEpa3Hna Kaak Ha pexeun Ick N HOKa 3a pa3KlnHbaHe. 3a OTe3n, npN KOnTopekeunr Ick Hnblno npemHaBa np3 De6eHHata Ha deTaN, npEpa3HnT Kaak N dpyrnte npedna3HcBopbKeHHaMaJIbAT pIcKa oT HapaHbAhe.
  BHHMaHHe: N3p3BaHe Ha yI, IbI6aHe Ha yIeI nn pa3dJeHne no MeToDa c npexBbPnHe He ca pa3peHc MaunHHata maca!
  BHHMaHHe: He 6pa6oTBaIe DeTaJIuN, KOnTO ca NO-TbHKn OT 2 mm!
• PnpBn BkIIOUBaHe Ha eIeKtpuueckn HNCTpyMeHc Te yBepeTe, Ye peKeunr DNCK He DOKOCBa IpeJa3Hn KaNAK, HOXa 3a pa3KnHbAe Nn DeTaN. HeyMmJleH KOHTaKT Ha Te3n KOMNoHEtN C DnCKa 3a p3aHe MoKe da DoBeNe do OnaCha CNTyaUIn.
• PerylnpaTe HOxKa 3a pa3KJINHBAHe CbIacHO ONcAHnTo B HactoOTo pBKOBOCTBO 3a yNtpe6a. IpeuHn pa3CTOHN, IO3NmraOpneHTaunMOrat Da ca npuHaTa 3a TOBa, Ye HOXbT 3a pa3KJINHBAHe He npeOTbPaTbRa eEeKTHBO o6paTHn OTKaT.
  3a da MOKe HOKbT 3a pa3KNHBAHe da fYHKcNOHnpa, ToT Tp6Ba Da Bb3eNCTBa Bbpx DeTaNla. Pn pa3pe3n B deTaNn, KOTo ca pKeKaJIeHO Kbcn, 3a da MoKe da Ce nON3Ba HOXbT 3a pa3KNHBAHe, NocJeHNrT e HeepeKtNBen. Pn Te3n ycNoBna O6paTeH OTkAT He MOKe da 6bDe npedOTbPAteH OT HOXa 3a pa3KNHBAHe.
• 3nnon3BaIte noxOaIa 3a HOX a pa3KlnHbAe peXeI dNc. 3a da MOKe HOXbT 3a pa3KlnHbAe da deNCTBa npaBnHO, DnaMeTbpbT Ha pexeIy Ick Tp6Ba Da CbOTBeTCTBa Ha CbOTBeTHy HOX 3a pa3KlnHbAe, OCHOBHraT dNcK Ha peXeIy Ick Tp6Ba Da e NO-TbHbK OT HOX a pa3KlnHbAe IuipHaTa Ha 3b6nte Tp6Ba Da e No-tolma oTde6enHaTa Ha HOX a pa3KlnHbAe.
• ONACHOCT: He noctabraye npbctnte u pbcte cn B 6bn30ct do pexeunia nB oBnaCTTa ha pa3aHTo. EINH MOMENT HeBHnMaHHe nn eDHO n3Ipb3BaHe MoKe da HacOuy pbkata BN KbM peXeUy dNCK n Da DoBeNe DO cepNo3HN HapaHbAHHa
• PódaBaIte DeTajna cmo Cpeu y Nocokata Ha BbptHe Ha peKeunn Dnck nnnpeKeunn HnctpyMeH. POnaBaHeTo Ha deTaiB CbTa Tocoka KaTO Nocokata Ha BbptHe Ha peKeunn Dnck Na MacaTa MoKe Da Do BoBeDe DO TOBa DeTaNbT N BaHaTa pKaDa 6bDat 3axBaHaTN OT peKeunn Dnck.
• PnHaJbXHn pa3pe3n HNKora He n3noJI3BaIte cKocehn OrpaHnHTe 3a noJaBaHe Ha deTaIIa, a npn HAppeHN pa3pe3n Cbc cKocehn OrpaHnHTe HNKora He n3noJI3BaIte dOnbJInTeIHO ycnpedHn OrpaHnHTe 3a HaJIbXHn HAcTpoKa. ENoBpemeHNO BOeHe Ha DetaiJa C yCnpoeHn OrpaHnHTe n cKocehn OrpaHnHTe YBeJIuHaba BepoTHOCtTa, peKeUrt Da 6loKupa I da ce CTurHe Do o6pateH OTkat.
• Pn haJbXHn pa3pe3n BnHaH ynpaxHnBaIte noDaBaaTa cna Bbpxy DeaJa MeKdy OrpaHnHTenHaT a HnHa n peKeu nnck. N3no3BaIte npbka 3a u36yTBaHe, ako pa3ctoHneTo MeKdy orpaHnHTenHaT a HnHa n peKeu nnck e no-MaIKo ot 150 mm, n trpyue 3a u36yTBaHe, ako pa3ctoHneTo e no-MaIKo ot 50 mm. Ndo6Hn nmoUHN pa6OTHn cpeCTBa ce rpnKaT 3a TOBa, BaWata pbka da ocTaHe Ha 6e3onacHO pa3ctoHne O pkeu nnck.
• INON3BaIte cAmo BKNIOueHaTa B KOMNJIeKTA npbUka 3a n36yTBAHe Ha npOn3BOJntEY IIN TaKaBa, KOrTo e npOn3BeDeHa CbrJaCHO IHCTpyKcHnTE. PpUkata 3a n36yTBAHe ce rpnXn 3a DOCTaBHyO pa3cTOrHne MExky PbKaTa n peKeuYn DnCK.
• HnKora He n3noI3BaIte NOpeHa nn 3apra3aHa npbUka 3a n36yTbaHe. NOBpeHa npbUka 3a n36yTbaHe MOKe da ce cuynn I da IOBeDe Do TOBa BaWata pKa Da nonaHne B peKeuia NCK.
• He pa6oTe "cBc cBo6Onn pBue". BnHaru n3non3BaIte ycnpoeHnOrpaHnuIeN nn CkOceHn OrpaHnuIeN, 3a da NoCTABrTe N BoDIne DetaiJa. "CbC cBO6Onn pBue" O3HaHaBa, Da IOnPiPaTe Nm BOIne DetaiJa C pbE BMeTo C yCnpoeHn OrpaHnuIeN nn CkOceHn OrpaHnuIeN. P83aHeTo cbc cBO6Onn Pbue BoDn Do rpeHa opneHTaun, 3akJeUBaHe n o6pateh OTKaT.
• HnKora He 6bpKaIte OKoNo nnn HaBbptTae ce peKeue DnCK. BbPKaHeTo cneJe TaII MoKe da DoBepe Do HeBOJHO DOKOCBaHc Ha BbPTAunCe peKeue DnCK.
• YkpEnBaIte IbIgN I/IIIN IwPOKN DeTaN O3aI N/IIIN CTpaHnUHO Ha MacaTa 3a npo6oJe H TpNO, TaKa Ye Te Da octaHaT XOpN3OHTaHIO. IbIgTe I/IIIN IwPOKN DeTaN IMAT CKIOHnOCTTa Da ce HaKJIaHr PtN Pb6a Ha Macata 3a npo6oJe TpNO; TOBa BODI Do 3aRy6a HA KOHTPOJ, 3aKNeuBaHe Ha pexeue nck n o6paTeH OTKaT.

• PódaBaIte DeTajla paBHOmeHNo. He orbBaIte n He 3aBbPaTaTe DeTajla. Ako peKeIeIaT NcK 6IoKnpa, n3KnIOUeTe eNektpnueckn HnCTpyMeHT, n3BaIeTe 3axpaHbAunu Iencen I otctpAnHe npUnHaTa 3a 6IoKnpoBkata. BIoKnpaHTo Ha peKeIeIa DnCK B pe3yIaT Ha DeTajla MoKe Da IOBepe Do o6paTeH OTKa TIN Do 6IoKnpaHe Ha DBIratela.

• He OTCpaHbAaTe N3P3aHn MaTePnAJI, DOKaTO DNCKbT Ce DBXKn. OTP3aHnT MaTePnAJI MoKe Ja 6Ioknpa MeKdy pexeunn DaNCK IN ORpaHnHTeJIHaTa UINHa INN da Ce 3AkLeuB INpeDna3HnK Kanak IN npN OTcPaHbAHeTo Da IN3DbpNa BAUnTE npbCTN B peKeuJy Dnck. IN3KnUoyete TpnoHa IN3NuKaJaTe, DOKaTO pexeunr DNCK DOCTNR He cBCTOHNHe Ha NOKo, INpeDu DA OTcPaHnTe MaTePnAJa.

• HnKora He 3acTabaTe B npaba Lnnna C pexeunna DNCK. BnHar n cToIe OT Ta3n CTpaHa Ha pexeunna DNCK, OT KOrTo ce Hamnpa Cbto N orpahnHtEnHata uHa. Ppi O6paTeH OTKaT DeTaNbT MoKe da 6bde 3axBbPJIeH C BnCoka CKoOCT KbM LInuTa, KOnto Ce Hamnpa Tnpd N Ha LInHraT C pexeunna DNCK.
• Hnkora He 6bpkaiTe Ha nd nnn 3ad pexeunie nck, 3a da n3BauiTe nll noDnpeTe detaJa. MoKe da ce CTnHe do HeBOJIHO DOKOCBaHe Ha pexeunie nck nll o6paTeH OTKaT MoKe da DOBeDe Do TOBa BauiTe npCTn Da 6bDat n3TerIeHn B pexeunia nck.
• HnKora He npbXte n He HATnCKaTe DeTaNla, KOTo ce pexe, cpeu BbptTnna ce pexee nnck. HATnCKaHe Ha deTaNla, KOTo ce pexe, cpeu pekeu nnck Bodn do 6IoKnpaHe n o6paTeH OTKaT.
• UeHTpnpaIte orpaHnHTeHATA uHa ycnopeHNO Ha pexeunia nck. HeueHTpObaHa orpaHnHTeHb HA HATNcKa dTaIIa cpeu y pekeunia nck i BODn do o6paTeH OTkaT.
  -БьдeTe OcO6eHn PpeIa3IbNb npn py3aHTo B HeBUNMn 6bactn Ha MOHTnpaHn DeTaJI. HABIN3aunrT peKeU dnck MoKe Da ce BpeKe B npeImEtN, KOInTO MOrAT da npeIN3BvKAT o6paTeH OTKaT.
• YkpEnBaIte rolemnte nnou, 3a da hamaIte pIcKa ot o6paTeH OTkaT B pezIyTaT ha 6noknpaupekue nnck. TOnemTe IIOUH MOrat Da ce ObrHaT NOd CO6CTBeHOTo Cn TerNo. IIOUHTe TpIbBa da 6bDat yKpeHn HABcKbDe, KbdeTo Te Ce nOdaBAt N3BbH IOBbPxHOCTTa Ha Macata.
• 6bdeTe oco6eNo npedna3nBn npn p3aHe Ha DetaiN, KOITo ca ycKaHn, HABbp3AHn N3KpNBHeH, INN KOINTO He pa3noJarat c npab pb6, no KOnTo Te Morat Da 6bDaT BODeHn C NOMOuTa Ha CKOCEN ORPAHHTeIN IIN NO PPOBJIKeHne Ha orpaHHTeHa uHa. N3KpNBHe, HABbp3AH nIyycKaH DetaiN e HecTa6uHn IN BoDn Do rpeHNO CEHTPObAHe Ha cyraHa pa3aHe c peXeUdck, 6lOknpaHe n O6paTeH OTkaT.
• HnKora He pexKeTe HnKoJIc NoCTaBEnH eINn Bbpydpyr nn EeIN 3aD pyr dTaIIa. PexKeIIT NCK MoKe Da 3aXBaHe eHa nn NOBeYe cactu n da npEdu3Bnka o6paTeH OTKaT.
• Ako nckate da cnapate oTHOBo TpnoH, uHTo pekeu dNCK ce HAMnpa B deTnla, CEHTnpaTe pekeunna Dnck B npouena 3a p3aHe TaKa, ye pekeuente 3b6n da He ce 3aKaUBaT B deTnla. Ako pekeuT dNcK 6nokpu, ToM MoKe da nobDnHr He DeTnla I da npedn3Bnka O6paTeH OTkA, KOrato TpnoHbT ce cTaptnpa OTHOBO.
• PoiDbPkaItepeKeIte DnCKOBeHcTnOCTPNcDocTaBueH qanpa3.HNKORA He n3noJI3BaTe N3KpNBHeH peKeuDnCKOBe HnIpeKeUdNCKOBe C HanyKaHNn cuyneH 36bn. OCTPnE H aToyeH c npabJeH qanpa3 peKeuDnCKOBe HaMaJIaBAt Do MNHMym 3aKJIeUbaHeto, 6loKnpaHeto n o6paTHn OTkAT.
• N3KIIIOHETe HACToIINHnI ZIpyIepNIO TOKauTeOT 3axpaHbAuaTa MpeXa, IpeN Da OCTpaHNTe PnICTabKaTa Ha MacaTa, Da CMeHHTe peXeUHnI DnCK, DA N3BbPWBATE HAcTPOkN Ha HOXa 3a pa3KJIINHbAHe NIn IpeNpA3Hn KaNk Ha pexueu nck, IN KOraTO MaunHaTa Ce OCTAB6e3 Na3Op. IpeNpA3HnTE MepKn CnyKaT 3a IpeNDoTbPaTBAHe Ha NHUdENTn.
• HnKora He octabTHe hactoHnna cnpkynp da pa60tn 6e3 Ha3Op. N3KnIOueTe eJektpuweckn INCTpyMeHT n He To OCTaBnTe, DOKaTo He DoCTnRHe CbCTOAHnHa NbIeN NOKo. Pa60TeU 6e3 Ha3Op TpnoH npedctTabra HeKOHTPOJnPaHa OnaCHOCT.
• NocTabeTe HactOnHnna cnpKynap Ha MrcTo, Koeto paBHO nO6pe OCBteHo, KbDeTo MoKeTe da CTOnTE CnpypHO n da NOdbpxkate paBHOBeCne. McTOTO Ha NoCTabRHe Tpr6Ba Da npElaRa DoctaTbUHO IpocTpaHCTBO, 3a Da 6opabNTe Do6pe C rOJIeMHHaTa Ha BaUnTe DeTaN. Be3NopraBkbT, HeIO6pe OCBteHaTa pa60tha 30Ha n HepaBHn, Xlb3raBuN IIOObE MoRaT Da DOBeDaT do 3IonoNOLyKn.
• OTePAnBaTe peoBHO CTbProTHHe n npaxa OT p3aHTo NO Macata 3a p3aHe N/INOT CnCTeMaTa 3a npaxOn3CMyKBaHe. HatpynaHnT npax OT p3aHTo e rOpIM N MOKe da Ce Bb3JIaMeHN OT cAmO ce6e cn.
• Ykpenete HaToJIHHa cIpyKyIpa. HnPaBnHo yKpeH eHaToJIe NcIpyKyIpa MoKe da Ce DnNk nn Da ce pneobpHe.
• OTeTpaHHe TE HcTpyMeHTe 3a HacTpoKa, IbPBeHtE OCTaTBuN T.H. OT HaCTOJIHHa UPKyIAp, IpeDu da Ro BKIOUHTe. Pa3ceBaHe nn eBHTyaJHn 6NoKupaHn MOrat da ca onachn.
  BnHaru n3non3BaItepeKeeuDnCKOBc npabunHna pa3Mep u c noxodua OTbOp 3a3xaUaHe (HaNP. pom6oundn nn KpbTn).PeKeu DnCKOB, KOHTO He nacBaT Ha YactTe 3a MOHTaX Ha UnpkyIpa, ce BbptT He6aIahCnpaHO N BoJr Tdo 3ary6a Ha KOHTpOJ.
• HnKora He n3noJI3BaIte NOBpeHn IIN rpeHn MaTePnaJI 3a MOHTaX Ha peKeUd NCKOBe, KaTO HAp. fHaUN, NoJIOxHN 7aIb6N, BnHTOBe IIraIKu. Te3n MaTePnaJI 3a MoHTaX Ha peKeUd NCKOBe ca CneUmaHO KOHCTpyuPaHn 3a BaUnr TpNOH, 3a CNyPHa pa6ota n ONTmuaJIHa MOUHOCT.
• HnKora He ce KaYBaTe Bbpxy HacToHnna ZnpKyIap He n3NoJ3BaTe HaToHnna ZnpKyIap KaTo Ta6ypeTka 3a CTbIbaHe. Morat da Bb3HnKaT cepno3Hn HapaHaBaHHa, aKO eJeKtpuuecknT INCTpyMeHT ce Ipeo6bphe nn aKO nO HeBnMaHne OcbIeCTBNTe KOHTaKT C pexeunn DaCK.
• YBepete ce, ye pekeuT dNcK e MOHTnpaH B npabunHaTa NocKa ha BbptHe. He n3noJI3BaTe dNcKObe 3a IINFOBaHe nn TEleHN c HactOJHH uPKyIp. HenpaBUNHrT MOtAxx Ha pekeu TnCK nnn n3noJ3BaHTo Ha HENpeOpbuaHn PnHaJNeXHOCTm MoKe da Do BoeJe Do cepNo3Hn HapaHBAHn.

YKA3AHN 3A 6E30NACHOCT 3A IPOBOIDN TPNOHN

• OCBEN Te3n CNEUΦuHn 3a MaUNHa yka3AHn 3a 6e3oNaCHocT, cna3BaIe HnpeMeHHo yka3AHnTa 3a 6e3oNaCHocT Ha n3NoJ3BaHn np6OeH TpNOH.
• He pa6oTeTe c noBpeDeH np6oJeH TpnoH.
  -ИЗбгваитпретоварBaHeToHa npo6dHnTpnoH.
• PpO6oHnA r TpnoH He TpR6Ba Da Ce n3No13Ba B KOM6uHaCnA C BoDeUaTa uHa.

NHCTPYKUIM 3A BE30NACHOCT 3A bTIOBNIUPKUYIAPN

• OCBEN Te3n CNEUΦuHn 3a MaunHaTa yKa3aHn 3a 6e3oNaCHOCT HnpeMeHHo cna3BaIe CbIoo yKa3aHnra 3a 6e3oNaCHOCT Ha nIIN3BaHn bTIOB cIpKyJIap.
• MoHTnpaIte bTIOBnA cIpyKUAPe B HAcTOIoTO pkoBOCTBO 3a yNOrpe6a.
• He pa6oTe c noBpehen bIIOB cIupKyIaR n He I3NoJIbBaIe TbII IN IIIOBpeHn peKeUdNCKOBe.
• YkpeneBaiTe bIgnte dTaHn OT cPaHaTa Ha NoemaHe, 3a da npedotbpaTne onacn CNTyaucn B pe3yIaT Ha HeKoHTpOJInpaHO naDaHe.

BHIMAHNE: IN3IOJ3BAIte MACATA 3A ΦPE3OBAHE CAMO B KOMBUNHAU C IAPAJIENH NΦPE3OB BODAU (APT. N° 6901000) YKA3AHN 3A 6E3OJACHOCT 3A OBEPΦPE3A

• OCBEN Te3n yka3aHn 3a 6e3oNaCHocT, cneuΦnHn 3a MaunHa, cna3BaTe HnpeMeHHo yka3aHnTa 3a 6e3oNaCHocT Ha n3no3BaHata o6eppe3a.
  -БыдTe BnHaTи NOIgROBeHn 3a TOBa, Ye npu Фpe3ObaHe DeTaIbT MoKe HeOuaKBAHo Da N3JIe3e N3BbH KOHTpOJ I da NocJIeDBA o6paTeH yap.
• He n3noI3BaIe MaCaTa Ha MaIiHaTa 3a φpe3ObaHe noI dIbra!
  3apaTTOBA N3IbJIHBAIte pa6oTnte C ppe3a, nKJIIOUHTeJIHO cmo C npapJeHHn OpAHuHTeJ, KOITOMOKe da Ce IOnyU KaTO npHaIeXHOCCT KbM MaunHaTa (apr.-Ng. 6901000), 3a da npedeTbpaTnte o6paTHn ydApn, KaKTo n DonnpaHe Ha ppe3ata C pbKa.
  Cn3BaTeOpunHaHATA HcTpyKzna 3a o6CnyXbaHe Ha npalneHnOraHnHTen Ha ppe3a (npoD.N6901000) 3a da ce ocBtceTN KopeKTEN MOHTAX.
  He n3noJ3BaIte o6eppe3n c noBue ot 1800 W n noBue ot 230 V.
  He n3noJ3BaIte fpe3n c dJaMaTeBp noboe ot 27 mm!
  -Φpe3MaunHaTa He Tp6Ba Da ce N3NoJ3Ba CBbp3aHa C B0deuTaA uHa.
  CnabBnTo npaBnIoTo, Ye nOdaBaHeTo Ha IHCTpyMeHt Ta CtaBa cMo CpeUy NocokaTa Ha BbPteHe.
• N36epete DoCTaBeHnTe NoIOXHN PbCTeHN B CbOTHOWeHne C rOJIeMnHaTa Ha φpe3OBaUry NHcTpyMeHT. 3a cnrypHa pa6oTa Tp8Ba Da ce N3NOJ3Ba HAI-MaIKNr NoIOXKeH PbCTeH.
• N3noB3BaIte cAmO octpn fpe30Baun IHCTpyMeHTn, noDsbPkaHn HaCTpoEHn CbflaCHO daHHnTe OT npOn3BOUInTeHa IHCTpyMeHTn.
  Cn3BaIe npn n3noJIbAHInTe ypeu n INHCTpyMeHTn, nOCOeHNte Bbpxy npoNyKta, onaKOBkata nnB pa60HaTa INHCTpyKznn PocOeHN daHH 3a MmH.-/MaKc.ObopOTn n NocOKaTa Ha BbPTeHe.
  BnMaBaiTe, nOrpeuHOTo 3nOJbBaHe Ha ppe30aun HcTpymEnT, dTaJIIn n npncno6leHna HappaBbaHe Ha TaIMA MoKe da DoBeDe do onaCha CITyauin.
  -ДрьхтepbuceTe Далеhe ot Фpe3OBaшин ИСтчмЕТ.
• DOKONKOTo e Bb3MOXHO npn fpe3OBAHe, n3NoJ3BaIe npuTnCKaUng KpaueTa dOnbJIHHTeHNO KbM npapaleHHNOrpaHHHTeHa fpe3ata.
• YkpeneTe Dblnte DeaHn OT CtpaHaTa Ha CHEMaHe, 3a Da npedOTbpaTte OnaChn CNTyaUm NT HeKoHTpOJInpaHO ppeobpuaHe. OnpaTa Tp6Ba Da CTou Cta6uHn Ho Ida NMa CbUaTa BnCOUnHa KaTo Ha MacaTa Ha MaUHHaTa, Hap. OnpoeH polKOB cTaTNB (apt.N. 6119973).
• 06pa6oTbaIe cAmO JeTaJIu, KOITo Bb3 OCHOBa Ha TExHaTa rOIeMnHa Hc TaXHOTo TerNo Tp6Ba Da Moat 6bDaT npUdbpxAHn CnrypHo HAnpaBIABaHOn O pa6OTHK.
  B CbOTBeCTBnC nHCTpyMeHTa n DeTaIa n36epeTe CbOTBeTHnTe o6oPOn. B Pa6oTHaT a HnCTpyKzna Ha BaIaTa o6epfpe3a 1ue HamePte cToHOCHTne Ha o6oPOnTe.
  Cn3BaTe MaKcMaHnHe pa3Mepn Ha DeTaNla (Bnx TexNueeCKx xapaKtepncTNKn).

OKOMПЛЕKTOBKA

Pa3onaKoBaIe KaOHa c MASTER cut 2500 n npOBepTe daJIc sbDbpKa BcUKN qaTn, noKa3aHn Ha fHypata (fNr. 1 n fnr. 2).

OCHOBEH MOHTAXK

MoHTaK Ha Macata: NocTabeMacata Bbpxy paBHa u NcTa OChOBa (fnr. 3.1.). OcBo6oTe DbaTa EKCueHTpHn loCTa n pa3rBHeT da Chata dBOiKa KpaKa do ynop. Cne ToBa 3aTBopeTe OTHO Bo DbaTa EKCueHTpHn loCTa (fnr. 3.2). OcBo6oTe Yetnpite ekCueHTpHn loCTa n pa3rBHeTe JBAta DBOiKa KpaKa do ynop. Cne ToBa 3aTBopeTe OTHO Bo BCuHKu Yetnpin EKCueHTpHn loCTa (fnr. 3.3). NocTabeMacata Bbpxy KpaKaTa (fnr. 3.4) n npn Hxka HactpoTe Macata Upe3 3abbpTaHe Ha MexAHN3Ma 3a peryJInpaHe Ha BnCOUnHaTa (fnr. 3.4).

BHIMAHHE: BHIMaBaiTe da He npITncHe pBuTe cn npu pa3bBaHe n CbBaHe Ha MaCaTa, KaKTo u npu noCTaBHeTo Ha MaunHHn nnIOT.

3aunTeH npeKbcBaU: MoHTnpaIte 3auNTnHn ppeKcbuay KbM pa60HaTa Maca, KaKTo e NokaHa Ho fHnpyata (fur.4).

PpeNa3e Kanak: MoTnpaIte OTeHnTe DeaIIHa npedna3Hna Kanak (fnr. 5.1). BkapaTe IbpxkaHa Ha npedna3Hna Kanak C Boaay a AnyMHNHeBn npoHn (fnr. 5.2). Pa3noJoxe TpeNa3Hna Kanak Hnd npouena 3a p3aHe TaKa, ye Toi da NOKpBa npedhata o6laCT Ha npouena 3a pr3aHe. 3aterhe BnHTa c pbKoXBtKa no YacOBHkoBbata CTpeJIka (fnr. 5.3).

brnoorpanuHnTeI: MoTnpaIte bIIOBna OpauHnHTe, KaKTo e noka3aHo Ha fNpypata (fNpyn 6.1 do 6.4).

brnoB orpaHnHTe 3a BodeaTa uHa: MoHTnpaIte IbIgrrBaTIOB ORpaHnHTeJIHrN rIb3rau n OrpaHnHTeJIHrN BOa4 (fnr.7.1). BkapaTe orpaHnHTeJIHrN pIb3rau C Kne6a B BrnoBna ORpaHnHTe N 3aTeHHe BnHTa C pbKoXBaTKa no YacobHKOBATA cTpeKlka (fnr.7.2).

Kyu c BnHTOBe 3a CbXpaHHe: 3aBnHTe Tpnte OTdJIH NdbPkaa eINH KbM npyr (fnr. 8.1), cIeT OBa BKapaiTe bPkauTe BBB BODaHa n rna p3noJoxTe Ha noDxOJaIO pa3CToHHe. 3aTeHHe 3aOKHTpraTa raKa (fnr. 8.2). BkapaTe npbUkata 3a N36yTbaHe W/nn Henn3No3BaHIne npHaNdxEhOcTn Bbpy Dpbkaa (fnr. 8.3).

Klema 3a BkIOUbaHe: 3aBbpxKeTe eHnHa Kpa Ha UHypa B OTbopa Ha KlemaTa 3a BkIOUbaHe, a npyra - B bIIOBn npoHn Ha Macata (pnr. 9).

BHIMAHNE: BHIMaBaIte 3a TOBa, IHybT d a e cAmO ToJIKOBA IbIbIg, Ye KJIeMaTa 3a BKJIIOUcBaHe npHaKJIaHrHe Ha MaIINHHn IIOI abTomAtuHO da Ce OcBO6oXkDaBa OT eJEnKTpNueckn INHCTpyMeHT.

MOnTaXnIeHTpOBaHe Ha pBcHnI cIupKpyIap

Ocbo6oTe 6IokpOBkata 3a IbIoOuHnHa Ha p3aHe Ha pbHyHn cIpyKnyIepnI npDnKnnppeNa3eH Kanak Ha3a. Cera nocTabepe bynHn cIpyMauHHnIIOr.Hacpoite Dbl60HnHaTa Ha p3aHe cIOCTaBueHc Bc06oHn XODB KJle6a H aTeHte 6IokpOBkata Ha IbIoOuHnHa p3aHe. Cera noOpabHete pexeunq DaCK Ha pbHyHn cIpyKnyIepyopeHcpeUy cepHna rymen eJeMeHT Ha BodeLaaT uHa (fur.C.1). Cera moTHpaIte WeCTe CTpaHnHn OraHnHTeJa E B KOHTAeC ONOPHATA NIOUa Ha MaunHa. DbaTa 3aHNOr paHnHTeJI B HADlbXHa NOCKa ClyXaT KaTO CNIPAuON OraPauNTeHn Ha pbHyHn cIpyKnyIep B NocOKaTa Ha p3aHe, 3a da OcnYprAT cnYpHO NOBeHne Ha pbHyHn cIpyKnyIep np P3aHe (fur.C.2). CneT ToBa MoTHpaIte YeTpIne npxBAta (fur.C.3). B3eMeTe MOHTpAHn PbueH cIpyKnyIep c MaunHHN IIO T IO NOCTabeE Bbpx MaCATA KaKTo e NOKa3Ano Ha fNypata (fur.C.4). Cera npobepe npi HanbJHo N3kapaHa dbl6OuHa Ha p3aHe pa3ctOarHeTo OT Ha-NppeHn 3b6 Ha pexeunq Do npedHn KpaH na Pa3dennTej (fur.C.5).

BHIMAHHE: ToBa pa3ctoHHe Tp6Ba Da e no-MaIko OT 20 mm. Ppi Hxka pBCHNt CnPKyIrp Tp6Ba Da ce cHTPOBa OTHOB B HaJbXHa Nocoka N DbaTa CNpaUOn OrpaHUnTeJI Tp6Ba Da CE HAcTpoT OTHOB.

3A6ELEKKA: Ako pa3mepbT OT cpeaTa Ha pexeunn DaNCK Do BbHUnn Pb6 Ha onOpHaTa NIOUa Ha pbHnIc npkkyIep e no-rotJAMOT 128 mm, npi MoHTaxa Tp8Ba Da ce I3NOJ3BaT DbaTa DJIgN CTpaHUnHn OprAHUnTeJ. 3a CEJIta npOyTeI cIeDaBai Te pa6oTHnTe yka3aHnB HAcToaTO pBKOBoCTBO 3a pa6ota OTHOCHO MOnTaKa Ha No-wnPOKn ONOPHNIIOuPi PpCHN CUPKyIapn.

MOHTAX HA HOX 3A PA3KJINHBAHE

IocTabeTe KaKTo e NOKa3aHo Ha fNrgyPata MoHTnpAHHpaHbueh cNpKpynBbpx My Macata (fNr. D.1). MoHTnpaTe bPkaHa Xla6abo C KpeNEXHn BnHT. IpeMeCTe Ta3n Bp3Ka KaKTo e NOKa3aHo Ha fNrgyPata TOnkOBa HABTpe B MaunHHn PnOT, DOKaTO ce BnIN KaHJIYeTo Ha dBpXaHa 3a HOxA 3a pa3KnHBAhe (fNr. D.2). PbXHeTe OTrope HOxA 3a pa3KnHBAhe Ha OK. 2 cm B KaHJIYeTo Ha dBpXaHa (fNr. D.3). BHIMAbaTe HOXbT 3a pa3KnHBAhe Da e 3abTpTH KbM MaunHHn PnOT Do OrpaHHuTeJ (= BepTuKaHn H3paBHnBaHe). 3aterHeTe KpeNEXHn BnHT (fNr. D.4).

LCHTPOBAHE HA PbHnIaUPKyJAP

NocTaBeTe KaKTo e NOKa3aHo Ha qurypaTa MOHTnpaHn pueh cIpKyIp Bbpx MaCaTa.

BHIMAHNE: Cera npoBepeTe, daI npEeJnT nck Ha cnpKyJpa e cHTpOBAH cnPMA HOka 3a pa3KJIbAHe n yCnpeHOB npoCena 3a p3aHe.

PpeHaTcpaHa Ha pUHnIeKpUyIep6Ba Da e cHTPOBaHa Cnpmo MapKnPOBkata O KbM ONOpHATA IIOuHa H cIpKyIpa N DBeTe NOMOHN MaKpOBoBHy INHHN Bbpxy MaINHHN IIOt. 3aHATA CTpaHa Ha pbHnIe KpUyIep Tp6Ba Da e eHTPOBaHa Cnpmo peKeunI dck n da e NOpaBHeHa c HOx a 3a pa3KInHBAhe (fnr. D.5).

BHIMAHNE: Ako pexeunrT nck Ha zupkyjraPe He e cHTpOBaH cnpmo HOxa 3a pa3KlnHBaHe, pbHnT cnpkynrTp6Ba Da ce cHTpOBA HAOBO CTpaHNUHO.

BHIMAHHE: 3a noCTabHHe Ha MaUHHnI pIOT B MacaTa HOXbT 3a pa3KlnHBAHe C dbpKaHa N KpeNEXHnBnHT Tpr6Ba OTHOBo Da ce DeMOHTnpaT.

Pa3BnTe KpeNexKnHn BnHT n3BaTe HoxKa 3a pa3KnHbAhe Harope. CneT ToBa n3BaTe DpbXaay c KpeNexKnHn BnHT (fHr. D.6).

PerynnpaHe Ha 6e3oNaChTo pa3cTOrHne Ha HOKa 3a pa3KJIINHbAne H pexKeunn DaCk C haCTpOka.

Cera nocTabeMaunHHnnaI 3aedno c pBHyNc npKpynpKaKTo e NOKa3aHO ha fNrypaTa Bbpxy MaCata u N3BaTe pa3deHnTei (fir. E.1). IocTabeMaunHHnnaI 10T Bbpy npEdHnTe fNkCnpauu DbpXaun. Cled ToBa rnoctabete ce hpa BpKa Bbpx y BnBbHaTHnA 3a XbaUaHe Bbpx npOta Ha Macata (fir. E.2). fNkCnpaTe MaunHHnnaI 10T (fir. E.3). Cled ToBa noCTabe Tpa3deHnTei OTHOBo (fir. E.4). MoHTnpaTe DbpXaay Xla6abo C KpeNexHnBnHT. PpeMeCTe Ta3n Bp3ka KaKTo e NOKa3aHO Ha fNrypaTa ToKOBa HABbTp Be M AunHHnnaI 10T, DOkato Ce BNn KaHaueto Ha DbpXaay 3a HOxa 3a pa3KNHBAhe (fir. E.5). PbXhHeT otrope HoXa 3a pa3KnHBAhe Ha OK. 2cm B KaHaueto Ha DbpXaay (fir. E.6). BHmBaaiTe HOXBt 3a pa3KNHBAhe da e 3aBbPTAH KBM MaunHHnnaI 10T DO orpaHnHTe (= BepTNKanHO n3paHBaHe). 3aterhe Te KpeNEXHn BnHT (fir. E.7). MoHTnpaTe NOKa3aHHe Hoxa 3a pa3KNHBAhe (fir. E.8). 3aterhe Te BnHToBe He n Raikne Tc hakTa, KOnto ca CbeHN H C HOxa 3a pa3KNHBAhe; MOHTnpaTe XNa6abo BNHTu Raikata C HakaTka, pa3NoJoxKeHa No-HanpeHn TaIto (fir. E.9). Cer a pa3BnTE KpeNEXHn BnHT Ha DbpXaay (fir. E.10). ByTheTe HOxa 3a pa3KNHBAhe BepTNKAnHO HADOny KbM peKeuian DNCK (fir. E.11). ByTheTe HOxa 3a pa3KNHBAhe KOJIkoTo ce MoKe No-HaOny KbM Hero, DOKato NoNE eINH OT 3b6NeT He pexeuein Dack He BIneE B KOHTAKT C TAILOTO HA WAbHOHa HAcTpoKa. 3aterhe Te pa3NoJoxKeHaT a No-HanpeD raikca C hakTa (fir. E.12). Cled 3atraHe Ha BVNTA C BbTpewen WeCTOCTe Ce HAcTpoBa 6eOonacHo pa3CTOJHne OT MaKc. 5mm OT pexeuein Daick Do HOxa 3a pa3KNHBAhe (fir. E.13). Cled ToBa pa3BnTE BnHToBe He Wa6NoHa 3a HAcTpoKa OT HOxa 3a pa3KNHBAhe (fir. E.14).

BHIMAHNE: PpOBepTe OeBdNbK DaJIH pEKeUaT DnCK Ha ZpKpyIpa e ZHTPOBaH cnpMo HOka 3a pa3KnHBAHe (fur. E.14) n e CNa3eHO 6e3oNaCHOT Pa3CTOHa Hne OT MaKc. 5 mm OT peKeUa IaCK Do HOka 3a pa3KnHBAHe (fur. E.12); B npOTINBEN CnyaH PbHNr TzPkyIap Tpr6Ba Da ce ZHTPOBa HANOBO.

BHIMAHHE: Ppei pa6oTa BnHaTc Ce yBepaBaiTe, Ye HOKbT 3a pa3KlnHbAne I KpeNEXHNTe eJeMeHTn ca 3aTeHaTn do6pe!

Cera Macata e roToBa 3a cTaunOHaPno p3aHe. 3a cTeta npouTeTe pa60THnTE yka3aHn 3a cTaunOHaPNo p3aHe C p6yHn cIpyKpIyAp.

PerynnpaHe Ha nbIb6OuHaTa Ha p3aHe

Pn npomHa Ha dbIb6OuHnHa Ta Ha p3aHe Ha pbHnra cIpyKyIep HOXbT 3a pa3KnHbAe Tp6Ba Da ce peryIpa Ha cbUaTa BnCOunHa, 3a da ce ocInpyu 6e3oNaCHO pa3ctOarHne OMT MAc. 5 mm do pekeunna dNcK Ha cIpyKyIpa. Hain-HanpeD pa3xla6eTe HoKa 3a pa3KnHbAe C nmoouTa Ha WeCTorpaMnHa KIOU. PeryIpaTe JekaHaTa Dbl6OUnHa Ha p3aHe Ha pbHnra cIpyKyIep. 3aTeHHeTe 6lOKIpOBkata 3a Dbl6OuHnHa Ta Ha p3aHe. MoHTnpaTe N no3uOnHpaTe 7a HacTpoJa 3a aedno C HoKa 3a pa3KnHbAe, KaKTo e NOKaHaHO Ha qnr. E.5 do E.14.

BepTKaHn Kocn cpe3OBe

PnBepTnKaJIHnTe KcOc Cpe3OBe pChnTzIpyKJyIrp Tp6Ba Da ce CEHTPOBa HAnBO CTpaHNo. PeryIpaIte JxEaHnHa bbl Ha CKocBaHe Ha pChnIgCpKJyIrp. N3dbpnaTe Ha3aN IOBnKHN IpeDnAeH Kanak Ha pChnIg CnpKJyIrp n cHTpPaIte MaunHaTa Bbpx npouena 3a p3aHe Ha MaunHHnPiOT. Ocbo6oJeTe 6loKnPOBkata 3a Dbl6OuHnHaTa Ha p3aHe Ha pChnIg CnpKJyIrp n cypche Ta do Kpa Ha dl6OuHnHaTa Ha p3aHe. 3aTeHete 6loKnPOBkata 3a Dbl6OuHnHa Ta p3aHe (fur.F.1).

BHIMAHNE: LcHTpnpaTe pekeunn Dnck ycnpedno B npouena 3a p3ahe. PPOBepe Pa3ctoHneTo OT Ha-NpeHnna 3b6 Ha pekeunn Dnck Do npednna Kpa H npouena 3a p3ahe. Toba pa3ctoHne Tp6Ba Da e no-Manko ot 20 mm (fur. F.2).

Cera MOHTnpaIte IeCTTe CtpaHnHr OpAHnHTeJIra Taka, Ye IaTa NOBbpxHOCT Ha BCNUKr IeCT CtpaHnHr OpAHnHTeJIra Da e B KOHTaKT C ONOPHaTAt PIOUa Ha MaunHATA. Dbata 3aHNr OpAHnHTeJIra B HADJbXHa NOCOKa CnyKAT KaTO CnIPAuNOrpaHnHTeJIHa PbYHNA ZINPKyIrp B NOCOKaTa Ha p3aHe, 3a da OcUNpyr TcRpyPBO NOBeDEHne Ha PbYHNA ZINPKyIrp npn pr3aH. CneT TOBa MOHTnpaiTe YETIPNTe PnXPbTA (fNr.F.3).

3A6EJIEXKKA: Ako pa3MepbT OT cpeaTa Ha pexeunu NDC KO BBHUNn PBbHa OnOpHaTa NIOUa Ha pbHnI CypkyIep e No-rotJAMOT 128 mm, npu MoNTaxa TpR6Ba da ce n3NoJ3BaT DbaT aBfNt CtpAHNUHn OrpaHNUHTeJ. 3a CEJTA npOcTe I cJeDaBai Te pa6oTHnTe yka3AHn B HAcToaTO pBkoBOdCTBO 3a pa6oTa OTHOCHO MOHTaxa Ha no-wnPOKn ONOPHNIOOUPNnpu PbCHN CIPKyIapn.

MOHTAX HA HOX 3A PA3KJINHBAHE

IocTabeTe KaKTo e NOKa3aHo Ha nHypata MoHTnpaHn pBueh cNpKyJep Bbpy Macata (fur. F.4). MoHTnpaJIte dBpKaay Xla6abO C KpeNEXKHNA BNT. IpeMeCTe Ta3n Bp3ka KaKTo e NOKa3aHo Ha nHypata ToJIKOba HABTpE B MaUNHHNRAIOT, DOKaTO CE BUNK KAHaJIYeTO Ha DbpKaaya 3a HOxA 3a pa3KInHBAhe (fur. F.5). PbXHeTe OTrope HOxA 3a pa3KInHBAhe Ha OK.2 cm B KaHaJIyeTo Ha DbpKaaya (fur. F.6). 3aBbPTeTe HOxA 3a pa3KInHBAhe, DOkato He ce ueHTpnpa cnprmo peKeuJra DNCK. 3aTeHHe TKepeKHNBAHNT (fur. F.7).

BHIMAHNE: Ako peXeIaT DNCK Ha cIpyKa IpaKJIINBaH cIpyMO HOka 3a pa3KJIINBaHe, pbHnT cIpyKJyIap Tp6Ba Da ce UeHTPOBa HAIHOBO CTpaHNUHO.

BHIMAHHE: 3a noCTabHHe Ha MaUHHn PIIOT B MacaTa HOXbT 3a pa3KInHBaHe C DpbXaHa N KpeNeKHn BnHT Tp6Ba OTHOBo Da ce demOHtnpaT.

Pa3BnIe KpeJenXHnBAHT nI3BaTe Hoxa 3a pa3KnINHbHe Haorope. CneI TOBa I3BaTe DbpXkaC KpeJexHNBAHT (fNr.F.8).

Perylupahe Ha 6e3oNaCHOTo pa3cTOnHHe Ha HOka 3a pa3KJInHbAne H pexKeunn DaCK Csa6JHOHa 3a HacTpoKa.

Cera noctabete MaunnHnn nIOT 3aEINO C pBHyNn UINPKyIep KaKTo e NOKa3aHO Ha fNpyaTa Bbpyx MaCATA IN3BaTe pa3dInTe (fir. F.9). NoCTabeMaunnHnn nIOT Bbpyx npednHa fNkCnpau Dbbxau.CJeT TOBA rnoocTabe c edHa pbKa Bbpxy BnBb6NaHTnHaTa 3a XbaAaHe Bbpyx nIota Ha Macata (fir. F.10). fNkCnpaTe MaunnHnn nIot (fir. F.11). CJeT ToBA noctabete pa3dInTe ITOHO (fir. F.12). MoTHnpaTe Dbbxapa Xna6abo C KpeNexHn BnHT. PpeMeCTe Ta3n Bp3ka KaKTo e NOKa3aHO Ha fNpyaTa TOLKOBa HABbTp E MaunnHnn nIOT, DOKAto CE BnDn KAnu NaHcUte HOXa 3a Pa3KlnHBaHe. PbXhTe otrope HOXa 3a Pa3KlnHBaHe HA OK. 2 cm B KaHaNueTo Ha Dbbpxa. 3aBbPteTe HOXa 3a Pa3KlnHBaHe, DOKAto HE Ce ceHTnpa Cnpmo pExeJn DNCK. 3aterHeTe KpeNexHn BnHT (fir. F.13). MoTHnpaTe NOKa3aHNTe HfNpaTa OTDeHN DeTaN KBM HOXa 3a Pa3KlnHBaHe (fir. F.14). 3aterHeTe BnHToBe He rAknTE c HAKATKa, KOtO ca CbeUNHeH C HOXa 3a Pa3KlnHBaHe; MOHTnpaTe Xna6abo BVnTA HraKATA C HAKATKa, pa3NoLoXeHa NO-HanPei Ha TANOTO (fir. F.15). Cera pa3BnTE KpeNexHn BnHT HA Dbbxapa (fir. F.16). ByTheTe HOXa 3a Pa3KlnHBaHe BEPTNKALHO HADOny KbM peKeusn DaCK (fir. F.17). ByTheTe HOXa 3a Pa3KlnHBaHe KOJIKOto Ce MOKe No-HADOny KbM Hero, DOKAto NOHE eINH OT 3b6Ne He peKeusn DaCK He BJIeze B KOHTA C TANOTO Ha WAbloHa 3a HAcTPOKa. 3aterHeTe pa3NoLooKeHa TNO-HanPei RAAka C HAKATKa (fir. F.18). CJeT aTgAne Ha BVnTA C BbTpeSeH WeCTOCTe CE HAcTPOBa 6eONacHo pa3CTOAHne O T MACK. 5 mm OT peKeusn DaCK Do HOXa 3a Pa3KlnHBaHe (fir. F.19). CJeT ToBA pa3BnTE BVHTOBeTe Ha WAbLOHa 3a HAcTPOKa OT HOXa 3a Pa3KlnHBaHe.

BHIMAHNE: IpoBepe Oue BeHbK DaIIN peKeuIaT DnCK Ha UnpKynpa e cHTpObaH cnPraMo HOka 3a pa3KlnHBaHe n cna3eHO 6e3oNaCHO To pa3cToHHe oT MaKc. 5 mm ot peKeuIaDnCK Do HOka 3a pa3KlnHBaHe, B npOTnBeH CnyaH pbHHaT UnpKynp Tp8Ba Da ce cHTpOba H aHoBO (fir. F.20).

BHIMAHHE: Ipei pa6oTa BnHaIe cy bepaBte, ye HOKbT 3a pa3KnHbAne KpeNEXHNTe eemeHTn ca 3aTeHaTn do6pe!

Cera macata e rotoBa 3a ctaioHapRo 3aHe. 3a cetaTnpooyTepe6oTHNe yka3aHn 3a ctaioHapHO p3aHe CpbHnI npKpJnp.

TapaHcua

Ckbn KJneHTn,

Bne ce cdo6nTe c einn BnCOKokaeCTBeH wolfcraft -npoykt, KOIto ue BNIOCTaBn yDOBOJCTBne npn pa6ota c hero. wolfcraft - npOyKTITE OTROBAPrT H BnCOK TEXHNueCKn CTaNAPrN INpei Da CTNRHaT DO KJIeHTA pEmNHABAT INTEH3NBn pa3pa60TK n TcTOBe. IIO Bpeme Ha cepniHOT npOn3BOCDtBO NOCToAHNITE pOBepkN INepnoDnHn TcTOBe rapaHTnpaT cAndapt OT BnCOKO KaueCTBO.CoINHDHTeTexHNueCKn pa3pa60TK N HAdEckn HAeKdHn KaueCTBeH KOHTPOJ BN rapaHTnpaT cnryphocTTa 3a edha npabuHa nOKynka.

3a 3akynenHa npdyKT Ha wolfcraft Hne Bn daBame rapaunry ot 10 roHN, cHTaHO OT daTAt Ha 3aknyBahe, npu ycnobne, ye ypeBt ce n3noJ3Ba caMo 3a He npocecnoHAnHa yNTope6a. rapaunry Ta oxbaUca camo BpeNu no camn npedm T ha nokynKaTa, I TO cAmO TaKINBA, KOnto ce OCHOBaBAT Ha HekaeeCTBeH N MaTePnaJIu NIn HekaeeCTBeH No POn3BODcTBO. TaN rapaHua He oxbaUa HeNoCTaTBuNN BpeDu, Bb3NHKAHn Nopadn HeHaJNeXHO o6CnyXBaHe NIn LNncsHa No pIpbXka. rapaHuaTHe oxbaUa CbIo N oBuNaHO B3NHKBaIO To n3HOCBaHe Ha MaTePnaJa N ObuauHOTn Pn N3NOJ3BaHe n3HOCBaHe, KaKTo N HeDocTaTbUu N BpeDu, KOnto ca 6NJN IN3BecTHN HA KIneHTA npi cKnIOUbaHeTo Ha DOROBopa.

TapaHOnHHn npTeHcHm MoT a 6bDat NOBdHHaT cAmo pnp npeDctTabRe H naKtypa/okymeHT 3a NOKynka.

PpeoctabhaTa OT wolfcraft rapaun He orpaHnUba Baunte 3aKOHn npaba KaTO nTpe6ntel (npabo Ha nck 3a n3nbHeHne, pa3BaJIHe nn O6Bb, o6e3uTeHne 3a Bpeu nn pa3HoCKn).

Ieknapaun 3a cboTBeCTBne no DnpeKtNa Ha Ebponeckna 2006/42/EO, PnploKeHne IIA

C hactoIeTo Φnma BoJfKpaT Γm6X / FepMaHna - 56746 KEmneHx, BoJf Lpace 1, rapaHTnpa Ye npOyKT (MASTER cut 2500) OTROBapra Ha n3NCKBaHHa TIO DnpeKTHBa 2006/42/EO.

TUEV Rheinland LGA Products GmbH, Tillystrasse 2, 90431 Nürnberg. BM: 60087567 0001

CbOTBeTCTBnE CbC CJeHNHe CTaHdApTn: DIN EN 60745-1, DIN EN 60745-2-5, DIN EN 60745-2-11

He nCnoJb3ObaTb n3dennne Ia KOLKn npOB.

HTaTb NHCtpyKuio/Yka3aHnI

IcnoB3yTe pyHbIe cIpyKJIaRbIe nIbI c rJy6nHOI pe3Kn He 6oJIee 70 MM.

Heo6xoJIMO nCnOJIb3OBA Tb 3aUHTbIe OCHN.

IcnoB3yTe pyHbIe cIpyJIaRbIe nIbI c DnAmTpOM NOIoTHa He 6oJee 200 MM.

Heo6xoJIMO nCnOJb30BaTb 3aunTy cnYxa.

IpeepKaKdoononepauneyperynpyte rny6nHy pe3Kn TAKIM 6b3OM,TO6bl NOJTOHO NJIb BbICTyanaO 3a npeJeBt 3aOTOBKn He 6oJee Yem Ha 4 MM.

Heo6xoDmo HcNoB30BaTb npTOBONBJeByo Macky.

IcnoB3yTeToIbko pyHbIe LpKpyIaRbIe nnbl, OCHaueHHbIe packKnHnBaIOUHM HOXOM.

OTKJIHOUeHne ceTeBOrO uTekepa

NcnoB3OBaHHe B KaueCTBe 0pe3epHoro CToIbKO B coeTaHm C npOdoHBHbIM ynopom 0pe3bl (apT. N6 6901000).

KoIeHOpMaun

IcnoIb3yIte 3eKtpoHCTpyMeHTbI MOUHOCTbIO He 60nee 2760 BT.

HCTpyMeHTbI DnRA MOHTaKa

1 KIOUc cIeCTnRpaHHo rOIOBko: SW 5 (BKIOUeH B KOMIIeKT NoCTABKN)

1raeHbI KIOU : SW 10 (B KOMJIeK TIOCTaBKN He BXOJNT)

1 wypynoBepr: PH 1 (B KOMNJIeK TIOCTaBKn He BXOJNT)

UEJEBOE IPNAMEHEHNE

MASTER cut 2500 - nIbHbI cTol dIy Ipeu3nOHHO pa6OtI n pa6oay INaTΦopMa. OH npedHa3haueH dJI BblOnHeHHaKa3AHbI HIXe Oepaui.

• MoTax k yHOn CUPKyIaRHO HnIbI c KInHom Ha nAHeI MaunHbI npN MaKc. dNaMeTe PnIbHoro noIoTHa 200 MM n MaKc. Tny6nHe pa3pe3a do 70 MM. NcNoJIb3yIte ToJIbKO nIbI, COOTBeTCTByIOUe yKa3aHHbIM MaKcMaJIbHbIM r6apntam onOpHO nlaactINbI (cm. pnc. 13). Heo6xOIMO nCnoJIb3ObaTb COOTBeTCTByIOUe BkJaDbI dIra UeIi. TaKIM o6pa3OM bbl CMOXKe TnlyuHTb HAcToJIbHyIO DnCKOBYIO nIIy.
• IcnoIb3OBAHne B KauceTBe CToJa pyuHOJ cIpyKpUyAepHO JnJIb6e3 KInHa. (VckJIIOHTeJIbHO B COUeTAHN C DOONHITeJIbHOJ PnHaJdJIeXHocTBIO -OTJeJIbHbIM KInHom, apT. N# 6916000, npn MaKcImaJIbHOM dAmMeTpE IIJIbHOrO pIoTOHa 160 MM nIupnHe pa3pe3a MmN.2,4 MM.)
• IcnoIb3OBAHHe B KaueCTBe CToJa DnryuHOu cIpyKUyIaRHO Hnnbl6e3 KInHa. (UckNIOHTeNbHO B COeTaHN C DoONHHTeBHO npHaadJeXHoCTbO -OTdJIbHbIM KInHom, apt. N6917000, npn dnaMeTpax NIIbHOro nIoTHa OT 161 MM do 200 MM, uipnHe pa3pe3a Mm. 2,4 MM n rJy6nHe pa3pe3a MaKc. do 66 MM.)
• IcnoIb3OBAHHe B KaueCTBe ynpabJIeMoN UnpKpyJIaPHO HnJIb Ha HnPaBJIIOUe N nI O6pa60Kn KpyINbIX npEIMTeB, HnPImepDBepei, pa6oUx naHeJeN T. D. PpN 3TOM NaHeJb MaunHb CO BKlaDbIWeM dIyIeN CnyXHT B KaueCTBe caJa3OK dIHa npBaJIyIOSe BklaDbIwa.
• NcnoIb3OBAHnE B KauecTBe CToLa IyIeHHeN 3JeKtpoNo63nKOM. IyIa63nKOB u cpe3 C BepxHM paCNOJoxHeHem UINHdJIe CneDyET npIMeHrB BKlaDbIu Iy IeJI.
• MoNTaX TopeBbIX nIN IN INI INI pE3Kn IOD yrIOM. TopeBaN INIa INIa IINI pe3Kn IOD yrIOM DOJXHa 6bITb HAdexHO 3aKpeJIeHa B IpeDyCMOTpeHHbIX OTBepCTnX C NOMOJIbIO IIpNJraEMORO KpeJExa.
• IVcnoIb3OBAHnE B KauceTBe fpe3epHoro CToJaB C coUeTaHnC npoJoIbHbIM yNopom fpe3bl, apT. N6901000 uIra fpe3 c BepxHM pacnoIOJKeHnEM 7nnHdJIeA C HApJXKeHnEM 230 B MoUHocTBHO He 6Ooe 1800 BT. He IcNoIb3yIte fpe3bl c DnaMeTpOM 6Oee 27 MM. fpe3epHbI cTAHOK HeIb3A INcNoIb3OBAbTB BmecTe C HAnpaBIAIOSeI. IJIaIO63IKOB CO BCTaBHbIM KOJIbCuOM I fpe3 C BepxHM pacnoIOJoxHeHnEM 7nnHdJIeA CneDyET IVcNoIb3OBAbTB BKlaDbII dJIra UeJIi.
• NcnoIb3OBAHnE B KaueCTBe pa6oeryo cTOna IJy o6pa6OTKn dTeaJe (HanpImep, IJIy CbepeHn, IINIOBAAHn U T. .). C nomoUbO CTpy6uHb Wolfcraft, ynpabnEmo OHO npKoAp (apr. No 3036000), o6pa6aTBiBaembIe DeTaIIMoYr 6byh HAdExHo npKpeHbIK pa6oey IOBepxHOCTN Upee3 3axmMbte OTBepTnI.
  Heo6xmo yHtBbTa bHaHbIpeOCTaBnEble npOn3BOuTeJeM, N BbIOJHrTb yKa3AHnNo TExNHKe 6eONacHOCTN, DeCTByIOUne IINcNOJb3yEmbIX MaUNH, a TaKKe yKa3AHnNo TExNHKe 6eONacHOCTN, DeCTBYIOUne IINcTOJa CTAHka.
• Pnp ytnn3aun cToJa MASTER cut 2500 cJeNyTe MeCThBIM HopMaM.

PnHeueeBOM NcNoIb3OBAHmN OTBeTCTBeHHoCTb 3a yUep6 n HeCuaCThBle ClyuAn HecET IOnb3OBATeJIb.

06uye yka3aHnno TeXHnke 6e3oNaCHOCTN

CopeKHe CBoe pa6oOee MeTo B uHcTote, n03a6oTbTeCb o XopoWeM ocBeuHn. BeCnpaOK Nn HeIOCTaTOHoe OCBeUeHne pa6oUero MeTa MOryT npNBecTN K HeuCacTHOMy cNouio.
He nCnoB3yIe 3NeKTPoHCTpyMeHTb BO B3pbIBOONacHOaTMoccepe, CoepKauei Tropoune XnIKoCTn, Ra3bl Nn NpJB. 3NeKTPoHCTpyMeHTb CO3dAOT NCKpbI, KOToPbIE MOrT npuBeCTN K Bo3ropaHIO Nblnn Nn NapOB.
He nCnoB3yIe 3NeKtpoHnCTpyMeHTb I B6Jln3n Deteu IN pyrnx IIOeJ. EcN Bbl CnyauH OTOBJIeueTecB, Bbl MoKeTe NOTepaTb KOHTpoJIb HaI INCHTpymEHTOM.
- Wtencel 3eKtpOHCTpyMeHTa dOJxH eN oDxOuNTb K pOzETke. B wTeCenb HeB3a BHocntb KaKe-n6o N3MeHeHn. He nCnoJIb3yIte aanTepbl npaBoTe c 3a3emJIeMbIMn 3eKtpOHCTpyMeHTamn. PpImeHHe HadIexKaunx wTeCenEn I po3eTOK CHXkAEt ONaCHOCTb NOLyUeHn ydapa TOkOM.
3aunuane 3neKtpnHcTpymEnbI OTdoxNnBlaR. IonaadHe BOdbI B 3JIeKTPoHHCTpyMeHT NOBbiWaeT ONaCHOCTb NOnyueHn ynapa TOKOM.
Pa6oTae 3JIeKTPoHnCTpyMeHTOM IOI OTKpbITbIM He6om, IcNoJb3yTe yDInHnTeJI, IpedHa3HaueHHbe IINI pImuHeHH Ha yInuie. NcNoJb3OBAHHe HAdLeXaUero yDInHnTeJI CHIXKaet OAnCHocTb NOJyuHn Ydapa TOkOM.
- EcnBam Heo6xOIMO pa60TaB c 3neKtpOnHCTpyMeHToM pNIOBbIeHHo BnAaXHoCTN, NcNoJIb3yTe aBTOMaT 3auTHoro OTKIOUeyH. PpIMHeHHe ABTomata 3aUHTHO OTKIOUeyHn CHIXKae TOnaCHOCT bONLyueHn ydapa TOKOM.
- Bybte BHMaTeBbIy, y6eHntcB, yTO BbI DeIcTBye TnpaBnIbHO u Co6IIOaJIte OctOpoxHoCTb npi pa6Ote c 3NeKTPoHnCTpyMeHTOM. He NcNoJIb3yIte 3NeKTPoHnHCTpyMeHTb, ecII BbI yCTaII IN HaxOJnTECb NOd IeNCTBnEM HApKOTUpeCKNX BeueCTB, aIKOrOJIaII JekapCTB. CekYHdHaI HeBHIMaTeIbHOCTb npi 3KCIJIyAtaIIN 3JIeKTPoHnHCTpyMeHTa MOKeT pInBecTI K TIAKeJIbIM TpaBMam.
- NcnoB3oBaTb HndnexKaunne CpeCTBa HnHnBuNyalbHoN 3aunTbI: 3aunTHbIe OUYK, CpeCTBa 3aunTbI cnyxa, pecnnpaTOp (npn BblNOJHeHN pa60T, CB3aHbIX C Bbl6pOcOM 60JIbWoTO KOJUeCTBa IIbIN) n 3aunTHbIe pykABuCbI (npn o6pa6OTke MaTePnaIOB C rpy60I NOBepxHocTBIO IN CMeHE INCHtpyMeHTA).
- PpeD BkIoueHnem 3JekTpO np60pa ydaJIte peryIINPOBOHbE INHctpyMeTbI NII RAeHbE KIOU. HxOJaNcB O BpauaIoUeMc y3Je 3JekTpO np60pa, MoKet nPnBeCTN K TRAKeJIbIM TpaBMam.
Bb6npaTne dIpa60tbI npabnIbHyIO oJekdy. He Hocnte npocToPhyIO oJekdy IIN yKpaWeHn. DepeKnte BOnocbl, oJekdy n nepaATKn B OTdAJIeHNN OT NOpBnKhbIX YAcTe 3JeKtpoHnCTpyMeHTa. PpOcTOHa OJekDa, yKpaWeHn IIN DInHHbIe BOnocbl MOyT 3aNyTaTcB R NOpBnKhbIX y3Jax 3JeKtpoHnCTpyMeHTa.
- IcnoIb3yIte Bcerda 3aunTHbIK KOJlnak npn IcnoIb3ObaHN nbJeOTcoca.
- He nCnoIb3yIte 3neKtpoHcHtpymeHT C HeuCnpaBbIM BbIKNIOaTeJeM. 3neKtpoHcHtpymeHT, KOtOpbI HEnb3A BKIOUHTb IIN BbIKNIOuHTb, npEcdTabJIeT c6oB onaCHOCT b N oNDJEKUT peMOHTy.
XpaHnTe HeNCNoB3yEmbIe 3NeKtpoHCTpyMeHTb BHe DocraMaOcTn DeTei. He No3BOJrTe npMHeTb 3NeKtpoHCTpyMeHTnUaM, He 3HaKombm C Hm NIn He npOHTabWIM HaCTOuee pyKOBoDCTBO. 3NeKtpoHCTpyMeHTbl, NcIOJIb3yeMbIe HeONblTHbIMN IIODbMI, ONaCHbl.

• Ipeep nauanpa6oI npOBepntb pa6oToCnOco6HocTb 6OpdyoBaHn HnCTpyMeHOB. KaTeOpueckn 3aIpeaaetcN CNOJb3OBaTb NOBpeKdEHHb N/wn 3aTyPNeHHb INCTpyMeHT.
• Pemont Baawero 3JektpoHnCTpyMeHa TdoJxeh OcyuEcTBaTc NckIIOHTeBHO KBAINHpOBAHHbIM nepcoHaIOM C nCNoJIb3OBAHNEM ToIbKO opunHaJIbHbIX 3anachbIX Yacte. HndJeKaUee npOBeHeHne peMOHa o6ecNeuBaet coXpaHeHne 6eONacHOCTn 3JektpoHnCTpyMeHa.
• Ipeep hactpoikon np60obn nn 3ameHOn npHaJnxKHOte BbITaCKBaNTe ceTOBOn uTeKeP n3 po3eTKn Hnnn n3 3neKTPoHnCTpyMeHTa. HenpeDnHapeHHoe BKIOUeHne 3neKTPoHnCTpyMeHTa MOKET ABNReTc npuHON dIpaBM.
  Cneinte, T06bI BepCTaK 6bl IpaBnIbHO cO6paH, ToJbKO NOcNE 3TOro HauHaHTe MOHTaK 3JIeKTponHCTpyMeHOB. IpaBnIBa C6OpKa BepCTaka PpHUNIIaHBO BaxHa, T06bl KOHCTpyKUIN PpN EKcIIyatauIN He o6pyuINacb.
  3aKpennte Haedxho 3JeKtpOnHcTpymeHT Ha pa6oey nobepxHOCTn Bepctaka, npexde yem Bbl HaHHeTe KcnIyatauIO. POBBxHocTb 3JeKtpOnHcTpymeHTa Ha pa6oey nobepxHOCTn MOKeT pINBecTu K nOtepe KOHTpOJa 3a pa6oToi.
• YctahabnBaIe BepTak Ha TBepyIO, POBHyIO IROPn3oHTaIbHyIO NOBepxHOCTb. ECIN BepCTAK Kaayetc INI npocKaJIb3bIbAeT, 3aROTOBA He MoXeT 6blbpaBHOMepHO HAdexKHO 6pa6OtaHa.
  He neperpykaite Bepctak n He nCnoIb3yute erok kac IecTHnuy nIeca. Npeperpyka nn CToHne Ha BepCTake MOryt npNBectK CMeueHIO ueHTpa TAgKeCTn CTOla n erO onpOKnDbBaHIO.
  He pa6oTaIe Ha Bepctake C npyHM MaTePnAlaMn, KpOme IpeBecHbI nIerKoo6pa6aTbIaEMo IIaCTMaCbb. NckNoueHne: ToIbKO ecNn Bbl pa6oTaTe lo63NKOM c peKomeHdyEmoI dIra TaKNX MaTePnAIOB IIJIko, 3TO KaCaetc IerKo noiaoUxxCpe3y MeTaNIOB (HanpIMep, aIHomHN).
• Kateropnueckn 3anpeucho ydaJIaTb pyKo B6IIN pa6OtaUcero nIIbHoro DCCKa NOBILIOUeCg OTXOdbI, TaKne KaK OCKOLKN, CTpykKa, IienK.
• IcnoIb3yEmoe 60pOyOBaHne dJxKHO COOTBeTCTBOBaTb cTaHApTAM DIN EN 60745-1 UcToPcTBA c rOda BblNycka 1995 doJXHbI NMeTb 3HaK CE.
• He niiHte " rOIo pyKo", t.e. BblncnIb3yeTe npa6ote npapannelbHbI ynp o nn yrloBoy ynp, a He BeTe Detanb pyKo.
  -Полотно пиьпосл Быкюченя пивoda 3anpeuaetc npITOpmaЖиBaTb npIXKaTHe МпpeДмTeB K 6OKOBО ПOBepxHocTN noIOTHa!
  Heo6xoJIMO uCIOJIb3OBAu INCTpyMeHT ToIbKO B COOTBeTCTBUN Cero Ha3HaYeHHeM.
• NcnoB3OBaTb TOnbKO PnIbHbIe NOIoTHa, HaxoJMaueCBA 6e3yIpneuHOM COCTOHH. Kopnyc NoIOTHa He DoJIKeH 6bITb ToJISe packJIINHBAIOUero HOxA, a WnpHa pa3BOda He DoJIxHa 6bITb MeHbWe TOJIuHHbI HOxA.
• PerynlaHPOKHTpOIpObaTb 3aTJkKByCEX BUNTOB!
  Bepctak Kateropnueckn 3anpeaetcncnoIb3ObaTc HapyuHHe npabJN EKnIyataunn He no Ha3Haeneu!
  HaBepctake He doJXKbI HaxoDITbcra nocToPOHHne npedMeTbl.
  He nCnONb3OBaTb INdEInne IJN KOnK npOB.
• He ncpnoIb3oBaTb pa6oHn cToI onI o6pa6oTKKpyrIoro nIIOMaTePuaAna.
  BkIIOueHne N BbIKIOueHne IcnoIb3yemoro 3JIeKTPoIHCTpyMeHTa DOJXHO OcyuEcTBnTbCra TOLbKO npedoxpaHnTeNbHbIM BbIKIOUaTeJeM.
  -ДяфКациannapaTHORBbIKHouateJBNIOLOXKeHnN«BKn.»ICNOJIb3OBAtTOIbKO npINlaRaembl3axmДЯВKIIHOeHnA.
  -ПоврждэньшелбовВКlaДышполlexKITЗamHe HOBbIM BKlaDышEM.
• Pn 6pa60kTe y3Kxu 3aTOBOK 6b3aTeNbHO N0lb3OBAtbcra TOKOM-TOIkaTeJIeM.
• Y6eIITbCBA TOM, yTo 06a 3KcUeHTpIKOBbIX pbUra dJa 3aKpeJIeHnHOKe CTOla 3aTAYtbl.
• Ppeed nauJom pa6oTb y6eNtBcB TOM, YTO pyHnA zIpyKpIyRpaHnA nnla, fpe3ep nIIN 3JIeKtpOLO63uK HAnEkaUm o6pa30M 3aKpePHeHb Ha pa6ouei NobepxHOCTn BepCTaka. CToJeuHnua BepCTaka DOJXHa BOITn B BbiEMky pa6ooyero cTOna, HAnEKeHo ONIPAcB Ha HApBaBnIOUyIO.
  Co6JIIOdaTb MaKcIMMaJIbHbIe pa3MepeB3aTOBKn (CM. TexHnueckne xapaKTePnCTnKn).
• IcnoIb3OBAtB ueIeBbIe BklaIbIiIN ToJIbKO B COOTBeTCTBn C BblIOJHReMbIM pa6oUHMn OepaCnMn (cm. rpaΦnHeckoe n3o6paXKeHne Ha KaKdOM ueJeBOM BklaIbIe).
• Ecn ToIkaTeBnaJnOuKa, BknaDbIuN dIy IeJI nn yrNoBoY npOp He nCnoB3yOTc, NOBecbTe nx dIy XpaHeHnHa npEynCMTopeHHbIe KpIOK c pe3b6oN.
• He nCnoB3yIe CToI CTaHka BO BpEma DoXJa IIN Bo BnAaXHo CpeIe Ha OTKpbITOM Bo3dyXe.

INPABNIA TEXHNIKBE3ONACHOCTI INPN PABOTE C LIPKPYJPHbIMN NINAMN

Kpome yka3aHbIX paHee npabn TexnKn 6e3oNaChocTn, OTHocAunXcK ONncbIaEMOMy n3dJIIO, o6raTeJIbHO cO6IIOaTb npabnTaTexnKn 6e3oNaChocTn dnn PnpMeHReMbx pyHbIX cIpyKnyrphbx nn.
- INCIOJIb3OBArToIbKOpyHbIEuNpKUJIrpHbIEINJbICpaCKINHHBaIOUIMHOXOM,MaKC.DnAmETPOMINNbHOrO NOIOTHa200MM N MaKC.Ry6HOnPe3a70 MM.
- IcnoIb3OBAbToIbKO IIbIc pa3MepaMn B IpeJeIax YkaaAHHbIX MaKcImaJIbHbIX pa3MepoB OIOPOH NITBI (cm. pnc. 13).
- 3KcNJIyataHPOBaTb HAcToJIbHbIe UINPKyIaRpHbIe NIIJIbToJIbKO cHaIJIeXaUIM O6pa3OM 3aKpeIeHHbIM 3aUHTbIM KOxyxOM.
BHIMAHHE! y6eNTBCB TOM, YTO NIOLOTHO DnCKOBON NINbI paCNOJaraTcN IapaJIeJIbHO OTBepCTNIO UeJIeBOrO BKJaIbIHa. Ecn 3To He TaK, CJeDyET NOBTOPHO OTPeryNIPOBaT NIOJOKeHNE DnCKOBON NINbl.
- POnDepKINBaTb INI NIOINPaTb DIIHHBte 3aROTOBKn CO CTOpOHbI pIneMkn TAKIM o6pa3OM, YTo6bl OHn paCnoJraJIncb Ha Bepctake TropN0HTaJIbHO (Hanp., npn NOMOu npOLIKOBn NOCTabKn wolfcraft, apt. N6119973).
- He donyckaTb neperpy3OK pyHOnДиCKOBOПиЛы.
-ИспользованнышлфовальхIxpyroBЗanpeцно.
- IcnoJb3OBaTb TOJIbKO peKOMeHdyemblie NINbHbIe NOIoTHa, PIO6npa INx B COOTBeCTBmC O6pa6aTbIbAembIM MaTePnaJlOM.
- ONACHOCTb: He np6nkaTbca pykam K o6laTn pacnna H He kacaTbca nIbHoro noJIoTHa.
- He pa3meuatb pykn noj 3arotobky. 3aunTHbIe KOxuyx He cMOKeT 3aunTb pykn OT NnBHO rnooTHa, eCN OH HaxoJrTCN oJ 3arotOBKoJ.
- PerynipoBAtb rny6hny pe3a B COOTBeTcTBn C ToIuHoi 3aROTOBKn. Nna dONKHa BbIXOHTb 3a HxKHO Yo AcTb 3aROTOBKn MeHee Yem Ha NoJIHyIO BbICOTy 3y6a.

• Pn pa6oTe Heo6xOIMO Bcerda 6bItb rToOBbIM K TOMy, YTO NJIbHOe NIOtHO MOKeT 3aXBaNTb 3aROTOBky N OT6pocntb ee K pa6oTaIoUeMy C INHCTpyMeHTOM.
• OТдачаяВлгетсpe3yltbtaTOM He npabuBbHoro n/NnHeHaIeXaUero npimeHEnra Nlbl.ДЯпедOTbpaueHnO rOТdauN cneDyET npHHMaTb ONcaHHbIe HIXe МрblnpedocTOPOXHOCTN.
• UdepKnBaTb Nny O6eHmPykAm. IIOJoxHepeyBbIbpaTaTakIM 6pa3OM, yTO6bI MoXHO 6blNo HaJeXHO BocPnHMaTb Bo3NkaOuue ycNna OTdau. Bcerda pacnoaraTc60ky OT NlbHOro NOIoTHa. OHO HN B Koem Cnyae He DoJHXo HaxOHTbcra HaOnH JINHH cTeLOM. PnOTdaue DnCKOBa Nla MoKeT OTCKOHb Ha3a,I, OHaKO npn Co6lIODeHN npabNil pa6Otbl onepatop B COCTOHN KONTPOIpOBA Tb ycNna OTdau.
  B Cnyae 3aknHbAHn nIbHoro noToHa nn 3aBepWeHn pa6Ot b BbIKHOHT b Nny u ydepXNBaTb HCTpyMeHT B 3aROTOBKe do OCTaHOBKn NJIbHoro NOJOTHa. Hn B KOem cnyae He nbITaTbCn 3BLeCy b Nny u 3aROTOBKn IIN OTBeCTn INCTpyMeHT Ha3a- 3TO MOKe TnpBEcTN K ydpy. Pn 3aknHbAHn Heo6xOIMo onpeJeNTb u yCTpaHNTb npuHNY 3axKaTHN NJIbHOrO NoJIoTHa.
• PeneB BKIOUOHeHem NINbI, HaxoJaeCBy 3aROTOBKe, BbIPOBHrTb NOIOTHO NO CEHTpy npOnnla n y6eNTbcR B TOM, 4TO 3y6bI NINbI He 3aCTPJI IN B 3aROTOBKe. IyCK NINbI C 3aKJIINHNBIM NINlbHbIM NOIOTHom MOKe T pNBecTN K BbICKaKNBaHIO NHCTpyMeHTa N3 3aROTOBKn INI BO3HNKHOBEHNO OTdAHI.
  -Bo n36eKaHne OTaun BCNeCTBnE 3aknnnBaHnna nnbHoro noIOTHa npn 06pa6OKe KpynhOpOpMaTHbIX 3arOtOBok (nnt) Heo6xOIMO Hndexkaumm 06pa3OM NOINpAtpb nx. KpyNHe IINtbl MOrY TporHyTcR NOd DeiCTBnEM CO6CTBeHHORo BEca. PInrTB Heo6xOIMO NoDnnpaTb c O6eHX CTOpOH - KaK B6n3n IpOnnla, TaK u y KpaEB.
• NcnoB3OBAHne 3aTyIeHHbIX w/nn NOBpeKdEHHbIX NJIbHbIX NOToEH 3anpeSeHO. NJIbHbIe IOJIoTHa C 3aTyJIeHHbIMN IIN HeIpaBnJIbHO pa3BeDeHHbIMN 3y6bAMN φOpMnpyOT CInuXkOM y3KN IpnNl, YTO npNuBOJNT K NOBblEHHOMy TpeHIO, 3aKaTNIo NOJIoTHa n OTdaue.
• Pape naHaoP a6oTb 3aФNKCuPoBaTb peryInpoBKn rny6nHbI u yra pe3Kn. IOnbItKa n3MeHeHna peryNpuOBOK BO BpeMa pa6oTb IIJIb MoKet TnpBecn K 3aKJIINHBAHIO NIIJbHOr IOIoTHa N BO3HNKHOBeHIO OTdUH.
  CobnOaTb Oc06yO octopoxKHOCTb Ipr pe3ke «IorpyxHem» cyueCTbyoUnx CTEN I npynx 06eKTOB C orpaHneHHbIM o63Opom. BxoJaee B MaTePnaJI NIIbHoE NOJIOTHO MOXET 6bITb 3a6NkPOBaHO CKpbTbIMN 06eKtAMn (OnaCHOCTb OTdAUN).
• Co6JIHOaTb MaKcIMMaJIbHbIe pa3Mepbl 3aROTOBKn (CM. TexHnueckne XapaKTepncTnKn).
• Pnp npope3ke na3OB n KaHbOK 68aTeNbHO nCnOJIb3yIe TOnKaTeIb, TaK KaN ONoTHO NIIbI HxOJNTcR pN 3TOM BHe BaWero noJIra 3peHna.

HCTPYKUNI NO TEXHNKE BE3ONACHOCTN IJRA HACTOJIbHbIX DnCKOBbIX NIIJ

• BbINOHTHE MOHTAX 3aunTHbIX KOxyXOB. 3aunTHbIe KOxyXIOJHXbI 6bITb npabUNbHO CMOHTnPOBaHbI 6bITb BA6OcHem COCToHHN. PacsaTaHHbIe, NOBpeKdEHHbIe ININ HENpaBUNbHO fYHKUOHpyUOJIne 3aunTHbIe KOxyXHeo6xOJIMO OTpeMOHTnPOBaTb ININ 3aMeHHTb.
  -Дя npoДьньх paCnHOB BCERda nCNoB3yIte 3aUHTbIe KOxUx NIIbHorO NOIOTHa I paCnpHbI KINH.прnpOДьHbIX paCnJIax, KOrJa NIIbHOE NOJIOHO NOJHOCTbIO pOxoIIT CKBO3b DeTAlb, 3aUHTbI KOKUx INpyrIe 3aUHTbIe npICNOC6JIeHn CHNXaOT pNC TpaBM.
  BHIMAHHE! Ha cToJe Ira CTAHka 3aIpeuaeTcBbINOJIHTb 6pa6OTky KAMHn no pa3MeTKe, Bblpe3aTb Na3bl, NIN BBINOJIHTb pa3pe3bl c nobopoTOM Ha 180°.
  BHUMAHNE! 3anpeuetaoc6pa6aTbBaTb DeTaNN TOhBwe 2 MM.
• Ipeed BKJIOUeHHeM 3JIeKTPoHnHCTpyMeHTa y6eIntecb, qTO NIIbHOe NIOIoTHo HE KAcAEcTc 3aIuTHoro KOxkya, paCnOpHOrO KInHa nIIN o6pa6aTBiBaEMoI DeTaIIN. ClyuaHbI KOHTaKT 3Tnx KOMNoHErTOB C NIIbHBIM NIOLOTHOM MOKeT PpIBecTI K ONaCHOI CTyauIN.
• Otperynpyte pacnpbH KINH, KaONcaHO B daHHOM pyKOBOCTBe. HEnpaBnIbHbIe paCCToHnI, noIOKeHne n opHeTaCnMOryT 6bITb npuHNOrTO, YTO pacnpbHKnH He CMOKET aOcEKTNBHO ppeoTbPAHTb o6paTHb yap.
  -Дя npabnIbHOrO nCIOJIb3OBaHn paCnpHOrO KInHa OHdoJKeH KOHTaKtIpOBaTc 6pa6aTbIbAemOn DeTaJIbIO.

Pn paCNIIOBKe 6pa6aTbIAeMbIX DeTaeIe, CInuKOM KOpOTKIX, YTO6bl paCnpHbIK NIN MOr npNtCN HmM B3aQenNEHe, paCnpHbIK KINH He3ΦΦeKTNBHe. B NoO6HbIX YcIOBnX paCnpHbIK KINH He ppeoTBpauaet O6paTHbI yap.
- NcnoIb3yIe Ira pacnOpHoro KInHa COoTBeCTByIOUe nnBHOe NOIOTHO. IJr npaBnBHorO nCOnJIb3OBAHRA paCnOpHoro KInHa DNAmETP NINbHoro NOIOTHa DOJIXeH COOTBeCTBOBaTb paCnOpHOMy KInHy, TeIo NINbHoro NOIOTHa DOJIXHO 6bITb TOHBSe, Yem pacnOpHbIKN, a UINpHa 3y6a - 60JIbSe, Yem ToJIuHa paCnOpHoro KInHa.
- ONACHOCTb! He noDnHocnte naIbcuI pyKn 6IIN3KO K IINbHOMy IIOIoTHy n 3OHe paCnnIOBKn. B cIyuea HeBHNMaTeNbHOCTN IIN COCKaJIb3bIBAHNA 3TO MOKET PnPBecTNI KOHTaKTy pyKn C IINlbHbIM NIOITHom N CTaTb PnPHHO CEpeBe3HbIX TpaBM.
Bede 3arotobky tobko npotnb HnpaBHeHn BpaueHn NlBHoro noToHa npeKyUero nHcTpMeHTa. POna7a3arotobkBn HnpaBHeHn BpaueHn NlBHoro noToHa HaI cToIOM MoKeT npUBeCTN K ToYTO NlBHO eNoItoHO 3aTReHET 3arotobky n pyKn.
- Pnp npoJbHOM pe3e HnKOrda He nCnoJIb3yIte Iny noaun 3arotOBKn yrNoBOn ynp, a npn nonepeHOM pe3c yrIObIM ynopom - npaJIleNbHbN ynp nAytahOBKn dInHb. OndHOpeMeHHoe BeJeHne 3arotOBKn c npaJIleNbHbIM uYrIOBbIM ynpom YBeJIuHbAE T BepoTHOCTb TORU, YTO NIIbHOe NoIOTHO 6ydt 3Xkato INocJeDyET 6paTHbN ydp.
- Pnp npoJbHbIX pe3ax npnlaaIte cnly dny noaun 3arOToBkM MeKdy nJbHbIM NOJTOHM n JInHeKo dN KpennHeu ynopOB. NcnoJb3yIe ToJIkaTeBHyIO naIOUky, eCNI paCCTOAHne MeKdy JINHeKo dN KpeJIeHn yOpOB n JInJBHbIM NOJIoTHOM MeHbWe 150 MM, n ToJIkaTeBHyBI 6LOK, eCNI paCCTOAHne MeHbWe 50 MM. NoO6HbIe npncnocO6JeHn rNo3BOJIaOT NOdepKHNBaT b 6eONaCHOe paCCTOAHne MeKdy pyKO IN JNJbHBIM NOJIOTHOM.
- PnmuHne ToIkaTeBHyIO NaOChy, NoCTabIeMyIO pOn3BODHTeJIeM IIN N3rTOBHeHHyIO B COOTBeCTBNN C Tpe6oBaHnAaM. ToKAtbHaN aNoOcKa I03BOJraT coXpaHrTaDCtAHUIO MEkDy pyKOu IN NIIbHbIM NIOJOTHom.
- HnKorda He nCnoB3yIte NOBpeXdEHHyIO IIN HAIIINeHHyIO ToIkaTeIbHyIO naIOUky. NOBpeXdHnA ToIkaTeIbHaN naIOUKa MOxET CLOMaTbCRA, IN PYKA COpNIkoCHETcC INJIbHbIM IIOLOTHOM.

He pa6oTaIe 6e nCnoB3OBaHn HNCTpyMeHToB. Bcerda nCnoB3yTe npaJIeJbHbY npOp nn yrIOBoY npOp dIy Kcaun N BeDeHn 3aROTOBKn. 6e 3 nCnoB3OBAHn HNCTpyMeHToB> O3Haayet noDepKNaTb N BeCTn 3aROTOBky pyKaMn, BmecTo npaJIeJIbHO rnn yrIOBOrO ynpa. Ppi pa6ote 6e nCnoB3OBaHn HNCTpyMeHToB BO3MOxHO HeBepHOe HAnpABHeHne pe3a, 3aklnHHBaHn u o6paTHbY yap.
- HnKOrda He HnPaBnIe pyKn B CToPOHy BpaUaIOUeOcnnbHoro NoNoTHa. Ecnn NotaTeCb 3a 3arToBko, 3TO MoKeT npNBecr K He npEhAmepEHOMy CoPnIKoCHOBeHNO C BpaUaIOUmCn NbHbIM NOIoTHOM.
- POnDepKnBaIte dnnHbIe n (nn) 11pOKHe 3aROBKn no3aIu (nn) c6Oky OT cTOna TaK, YTO6bl OHHOCTabAINCB B Tropn3oHTaIbHom nOIOKeHH. IInpOKHe n nnHbIe 3aROTBKn MOrY COCKaJIb3bIBaTb C KpaR cTOna NIIJbHOro CTaHka, YTO, B CBOHO uepeDb, npINBoNT K NOTepe KOHTPOJIa, 3aKJIINHbAHNIIO NIIbHOrO NOIoTHa N O6paTHOMy yApy.
3arotOBky cJeIyET BcTn paBHomepHo. He nepern6aIte n He nepekpyuBaIte 3arotOBky. B clyueae 3aklnHbAHn nnbHoro NOIOTHA BbIKIOHTe 3NeKTPoINHCTpyMeH, BblbTe BNIKy n3 po3eKn, a 3aTem yCTpaHIne npNHy 3aklnHbAHn. 3aJIHHBaHHe NJIbHOrO NIOToHa 3arotOBKOJ MOKeT BcTn K O6paTHbIM yApam nN 6IoKIpOBKe 3neKTPoDBrIaTeJI.
- He ydaJIaIte OTnIIeHbI MaTePnaI Bo BpeMa pa6oTb nIIbI. OTnIIeHbI MaTePnaI MoKeT 3acTpA b MeKdy nIIbHbIM NIOJTHOM I JINHeNKO JIg KpeJIeHnY npOB uIN B 3aUHTHom KOxye i npu ydaJIeHm 3aTHyb PnIbCuB B INlbHO E NOJTOHO. BbIKNoHTe nnly nNOOxJNTe, noka nIIbHO e NOJTOHO He octaHOBTcR, npexJe cH ydaJIaTb MaTePnaI.
- HNkorda He BCTabaTe Ha OndHy IINHIO C NINbHbIM NOIOTHom. DePKeNTecb BcERDa B Toi CTopoHE OT NINbHorO NOIOTHa, rHe HaxoDntcra JInHeKa dJa KpePnIeHnry ynpOB. PpN 6bpaTHOM yape 3aROTBaMOXET OTNeTeb C BbICOKO CKOPocTbIO B JIODeH, HxOJaUHXcpepe nnBbHbIM NOIOTHom nHa ONDHOJ INHM C HUM.
HnKOrda He HnPaBIAIte pyKn B CTOpOHy nIIbHoro NOIoTHa, YTO6bl NOITAHyTB NIN NOIDepXaTB 3arOTOBky. 3TO MOKeT npNBecTI K HeIpeHaMepeHHOMy cOnpIKOCHOBeHNIO C NIIbHbIM NOIOTHom. O6paTHbI yIap MOKe TnpIBeCTN K TOMy, YTO NaIbCbl 6yDyT 3aTAYHbI B NIIbHoe NOIOTHO.
- HnKOrda He yIepXnBaIte N He npXnMaIte OTnNnBaEmy 3aROTOBky nonepek BpaauioeOra NNbHoro noNoTHa. DabHeHnHa paCnNnBaEMyIO 3aROTOBky nonepek NnIBHO rnoTbBeTe K 3aknnHBaHmIO o6paTHOMy ydpy.
- BbIcTAbJIte JInHeKy IJN KpeJIeHn yIopOB npaJIeJIbHO K IIbHOMy IOIoTHy. HeBbIpOBHeHHa JInHeKa dIg KpeJIeHn yIopOB npIXKIMaeT 3aROTOBky K IIbHOMy IOIoTHy IN BbIbBAeT OpaTHbI yIap.
- Bydte Oco6eHNO BHMaTeBbI npn pacnInBaHnn HeBnMbIX yactKOB COCTABHbIX 3aROTOBOK. NnIbHOe nIoTHO, BXoJUee B 3aROTOBky, MoKET Bpe3aTcB KAKoN-JIO60 npedMeT IOBNeYb 6paTHbI yap.
- PoiDepKbAte 6oJbWne JnCTbI, YTo6bI CBeCTN K MmHmMy PNCK O6paTHOrO ydapa Ipi3aKJIINHbAHnn NnIbHoro NoIOTHa. BoJbWne JInCTbI MoryT npornbacr noi co6CTBeHHbIM BecOM. JInCTbI DoJIxHbI NMeTb Onopy Be3Je, rKe OH N BixOJrT 3a IpeJeBbl NOBepXHOCTn CTOna.
- 6ydbTe oco6o BHMMATEbHbI npu paCnINIBaHHN NCKPUBHeHHbIX, cyKOBaTbIX INN NOKOPo6NeHHbIX MaTePnaNoB, He IMeIOxPOBHoro Kpa, KOtobI 6bl No3BOJIn NCNOB3OBAbT DnA BeDEHnY rTOBOy ynp INN IInHeKy dNkpenHeHry npOpOB. NCKPUBHeHHbIe CUYKOaTBle INN NOKOPo6NeHHbIe 3arOTOBKn HeHaDeXHbI. Pa6ota c HmN pRnBOUIT K HeBepHO My HappABneHIO npOnIIa C NOMOsbIO NIIbHorO NIOToHa, 3akJIINHBaHHIO n O6paTHOMy ydpy.
- HnKOrda He paCnnIbAaTe cpa3y HeckOJbKO CLOKeHHbIX B CTOnky IIN paCnoJaRaIOUxxCy dpyr 3a Dpyrom 3arOTOBOK. NlNbHoe NoIToHO MoKeT 3axBaNTb Ondy IIN HeckOJbKO YacteN IOBNeYb 6paTHbI yap.
- EcIn Heo6xOuMo 3aNyCTnB nNly, nNlbHoe NOIOTHO KOTOpO 3aKlnHHNO B 3aROTOBKe, ceHTpnpyTe nNlbHoe NOIOTHO B npOnIIe TaKIM o6pa3OM, yTO6bI 3y6bI He cUeINJIncb C MaTePnaJOM 3aROTOBKn. PnI 3aKlnHHBaHN IN NlbHO rO NOIOTHa OHO MoKET NoID6pocNTb 3aROTOBKy. 3To NOBJeT O6paTHbI yAp npN IOBTOPHom 3aNyCke nNbl.
- DepKNTe NINbHbIe NOToHa B uHCTOe. INx 3y6bIaONXHbI 6bITb OCTpbl I npaBnIbHO pa3BeHe. HIKoRda He nCNoB3yTe N30rHyTbe NINbHbIe NOIoTHa INNIOIoTHa C TpeCHyBWMN INN CIOMaHHbIMN 3y6bMaM. 3aTOUeHHbIe NINbHbIe NOIoTHa C npaBnIBHO pa3BeDEHHbIMN 3y6bMaN ppeoTbpaAiaOT 3aKNHnBaHne, 6LOknpoBaHne n o6paThb yap.
- BbIKIIOHTe HaToIbHyIO DnCKOByIO NIIy I OTKIOHTe ee ot CeT, IpexXde Yem CHMaTb CMeHHyO qACTb, MeHrTb NIIbHOe NOIOTHO, IN3MeHrTb HAcTPOIN PaCnOPHOro KInHa INN 3aUNTHORO KOkYxA INIBHO rNOJTOHA INN OCTABJIATb MaUNHy 6e3 HAD30pa. Mepbl npedoctoPOXHOCTn NOMORAOT IN36ExKaTb HeCuaCTbIX CNyaeB.
- HNKoRda He octaBnIte HaCTOJIbHyIO nDCKOBy IO NIVy BKIOUeHHo 6e3 npncMoTpa. BbIKIOUHTe 3JeKTPoHnCTpyMeHT I He octaBnIte ero 6e3 npcMoTpa do ero NOHOr OCTaHOBKn. HenpeHaMepeHHo OCTaBHeHHa BKIOUeHHo NIIa RaBlaTeCn ICTOuHnKOM HEKOHToPOnIPnyEmoONaCHOCTN.
- UctahabnBaTe HaCTOJIbHyIO nIckOByIO nIly Ha IIOCKoH N XopoIo OCBeUeHHo NOBepxHOCTn TaK, YTO6bl Bam 6blNo ydoHo cTOrMbN yIepXNBaTb paBHObecne. B MeCTe ycTaHOBKn DOJIXHO IMeTBcR DOCTaTOUHoe KOJIueCTBO npoctpaHCTBa dIpynpemMeMo pa60tbc3arOTobkam. BeCnpraDOK, HeOCBeUeHHbE IN HEPOBHbIe pa6Oue 3OHbI MOrY T pINBEcTN K HeCuaCTHBIM CnyaM.
PeryIpaHno ydaJnTe dpeBeChbte onnKn n dpBeChHyo nbIb n3-nod cTOna n (nn) y3na oTCoc a nbIn. CkaJIINBaIOUaCRAdpeBeChra nbIb ORHeONaCHA u MOKeT CaMOBOcIIaMeHITcR.
Haekno 3akpenite HactoIbHyIO nckobyo nnly. HeaekHO 3akpenHnHnA HaTcIbHn DnCKOBa nnla MoKet nepeMeaTaBCrnn ONpOKuDbIBaTbcra.
- Ppeep BkIIOueHnem HAcToBbHOn DnCKOBoN NIIbI ydaJInte BCE peryInpOBOuHbIe INCTpyMeHTbl, dpeBeCHbIe OTXoDbI n T. d. OTKIOHeHHaIN BO3MOxHbIe 3aKlnHHBaHH MOrYt 6bITb ONaChbl.
Bcerda nncnbl3ynte nllbHbIe noIOTHa npabunbHoro pa3Mepa C COOTBeCTByIOUM OTBepCTmE dI Kpeneka (Hanpnmep, pom60bnHno nn KpyrNo fOpMbI). NlNbHbIe noIOnTHa, KOtOpBie He COOTBeCTBYOT yCTpoiCTBaM dI KpenneHn IINbl, 6dyT pa6oTaTb HEPABHomepHO, YTO npuBeTeK NOtepe KOHTPOJI.
- HnKorda He nCnoB3yIe NOBpeXdHbIe NnH HeCOoTBcTByIOUe KpeNXbIe npCnOC6HeHn NnHBHX NnOTeH, HnPmep fNaHcbl, Wai6bl, BnHTbl NnraKn. DaHbIe KpeNXbIe npCnOC6HeHn NnHBHX NnOToTe H 6bln CneuaJIbHO pa3pa60TaHbI dIaBaWe nnbl, Iy e HaJeXHoN EKcNpyaTuIN OONMaJIbHO IpON3BOIDTeJIbHOCTN.
- HnKOrda He BCTaBaTe Ha HAcToBHyO DnCKOBYIO NnIy H He IcNoB3yIe ee B KaYeCTBe NOdMoCTKOB. 3TO MOKeT PnHBecTN K cepE3HbIM TpaBMam pnp OnpOKuDlbAHmNJIeKTponHCTpyMeHTa NnI pnp CnyaHOM KOHTaKTe C NnIbHBIM NoIoTHOM.
- Y6eHITcB, yTO NINbHOe NOIOTHO yCTaHOHeBO B BepHom HApBaJIeHN DnIXKeHNA. C HAcToNbHOJ nCKOBoN nIOJHO He CIEyET NcIOnb3OBAtB WInΦOBAJBHbIe DNCKN I PNOBOIOHyBe IeTKn. HenpaBnIBHa yCTaHOBKa NINbHOrO nIOJTHa INI NCIOB3OBAHHe HE peKOMeHNIOBAHHbIX pINHaNDexKHOCTe MoKTe IpNBecTN K cepBe3HbIM TpaBMam.

ПРавиJA TEXHИКИ Б3ОПАСHОCTИ ПРИ PABOTE C ЗЛЕКТРОЛБ3ИКAMN

Kpome daHHbIX npaBnI TexHKn 6e3oNaCHOCTN, OTHOcUHXcK ONcBIAEMOMy n3JeJIIO, o6raTeNbHO co6JIIOaTb npaBnA TeHKn 6e3oNaCHOCTN dIg npmHeMeBIX neEKeTPOJIO63NKOB.
- KaTeROpUeCKn 3aIpeuaeTcra pa6oTaTb c NOBpeXeHHbIM 3JIeKToPoIo63NKOM.
- He donyckaTb neperpy3kn 3JneKtpoio63nka.
-3NeKtpoNo63nKn 3anpeaaetc nCnoB30BaTb B COeTaHm C HanpaBIAIOse.

HCTPYKUNI NO BE3ONACHOCTN IJRA TOPUEBbIX NIN I INI JPNPE3KNIOYrIOM

• POMMIO cneuaIbHbIX IHCTpyKcIINo 6e3onacHocTN, cIeNyTe TaXKe IHCTpyKcIaM dJI npIMHeMbIX TopceBbIX NIIbI INIJI DJIpe3KNIOyIOM.
• MoHTpyuTe TOpueBbI nnbln nnbln dIpe3Kn noD yrIOM B COOTBeTCTBm C INHcTpkyuMaM, npNBeDeHHbIMN B DaHHOM pyKOBoIDCTBe.
  He nCnoB3yIte noBpeXeHHbIe TopcEbIe NnblI nnnblI dIpe3Kn npd yrnom. He nCnoB3yIte Tynble nn nobpeXeHHbIe NnblHbe NoIOTHa.
• POnepKnBaIte DInHHbIe 3aToOBKn Ha BbIXoHoi CTOpOHe, YTO6bl IpeDOrBpaTnTB ONaChbIe CnTyauN IN3-3a INx HeKOHTpOJIpyEmoT NaDeHnA.

BHIMAHNE: IICNOJIb3OBATb KAK ΦPE3EPOBOUHbI CTOJI TOJIbKO B KOMJIJEKTE C NAPAJJIeJIbHbIM YNOPOM APT. 6901000

ПРABИАТEXHИКиBE3ОПACHEСТИ ПИРAPБОTEСФPE3AMNCBEPXHIMPACNOJOXKEHHEMИHCTPYMEHTA

Kpome daHHbix npabn TLexHKn 6e3oNaChocTn, OTHocAunxCr K ONcBbAemomy n3deJIIO, 6a3aTeJbHO co6JIOdaTb npabnna TeHXKn 6e3oNaChocTn dIg fpe3 C BepxHm paCNOJoxKeHEm IHCTpyMeHTa.
- Heo6xOIMBOcerda 6bITb rOTOBbIM K TOMy, yTO BO BpEMaΦpe3epoBaHnA 3aROTOBka MOKeT HEOXINaHHO BbIITN I3-IOJ KOHTPOJI N ydpntb onepaTopa.
Pa6oyn cTOn 3anpeaetc nCIOJb3ObaT dny DyroBOrO fpe3epOBaHn!
-Bo n36eKaHHe BO3HKnHOBeHn OToaun N KOHTaK Ta pyKn C ppe3oN npOBOuNb ppe3epoBOUHbpe 60tBTOJbKO c HcNoJIb3OBaHHeM npaJIeJIbHorO ppe3epoBOUHOrO ynpa (apr. N 6901000), BxOJaIeR O KOMNKeT npHaJdIeXHocTei.
CobnDb npabna MoTaxa npapnnelbHoro 6901000),npBBeHHbE pyKOBOCTBE no KcNpyTaU.
He nCnoJb3ObaTb fpe3epoBOHbI INHCTpyMeHT MOUHocTBIO Bblwe 1800 Bt HnpanjKeHNem NITaHn6OJe 230B.
He nCnoB3OBaTb ppe3epoBOHyn IHCTpyMeHT C dNaMeTpom 6OJee 27 MM!
- Ppe3epoBOHyO MaunHy 3anpeaetcNcNoB3OBaTb B coTeaHn C HanpaBIAIOuei.
- Iopau donxHa ocuieCTBnTbC ToIbKO npoTNb HapnbHeHb BpaueHn Fpe3bl.
- Pio60b BxOaunB KOMnIeK TIOCTABKN BKlaHbIX KOJIeU DOnJKeH OcyuEcTBJIaTcB C COOTBeTCTBUN C pa3Mepom φpe3epoBOOHOrO INCTpymEHTa. Be3oNaChA N HaeXHa Pa6To a ObecneYBaETC pN nCIOJb3OBaHN HaIMHeBJeR 13 BO3MOXHBIX KOJIeU.
- NcnoB3oBaTb ToIbKO 3aToueHHbe, 06CnyKeHHbIe IOTpeRyJInpOBAHHbIE COJIacHO INHCTpyKUm m npOn3BOuNTeJIa Φpe3epoBOuHbIe INCHtpymEtbl.
- PnE KcNpyataunn O60pyoBAnHn INHCTpyMeHTa CO6HObaTb MNHmAlbHyO N MaKcMmaIbHyO YactOTy BpaueHn, a TaKxHe HapBaJIeHne BpaueHn (yKa3aHO Ha 3deJInn, yNaKOBKe nIN B pyKOBoDCTBe NO EKcNpyataunn).
CneyET NOMHHTb, YTO HnnpabNtBHOe NcnoJb3ObaHHe 0pe3epoBOHOro IHCTpyMeHa, 3aROTOBOK n npncnoc6JIeHn IJI BedeHHN 3aROTOBKN MOKeT PnBECTN K BO3HNKHOBeHNO ONaChbIX CNTaU.
- Pnpfpe3epoBaHm B6n3n ynpa He np6nkaTb pykK fpe3epoBOCHOMy nHCTpyMeHTy.
BoBpe3epoBaHnno Bo3MOxHocTn BdoNolHeHne KnapaJIeIbHOMyynopyNCIOJb3OBAt npIXHMhble KOIOKn.
-Bo n36exaHne onaChbix cnTuayn C HeKoHTpoNpyEmBIM OnpOKnDbIBaHNEM ObecneuTb NOINpHaHne IINHHbIX 3arOTOBKa Hc TOpOHe npMeKN. Onopa DoJXhbl 6bItb CtaBnIbHOH N IMeTb BbICOTy, paBHyIO Bbcote pa6OeRo CTOnla (HaNP., INCNOlb30BaTb polIKOBYIO NOCTabKy c apT. No 6119973).
- 06pa6aTbIbTaToJIbKO 3aROTOBKN, pa3Mep N Macca KOToPbIX No3BOJIAHOT OcyUeCTBnA Tb 6e3OnaChoe yJepeKaHne n BeDeHne INx OndHM YeJIOBekOM.
- Pio6bnpaTb cactoty BpaueHnB COOTBETCTBn C nHCTpyMeHToM n 3aTOBko. ToHbIe daHHbIe OTHCnTeJbHO qACTObl BpaueHn MOxHn HaHTN B pyKOoDCTBE NO kCnJIyatauIm fpe3bl C BEPHIM paCNOJOKeHEm NHCTpyMeHtA.
- Co6JIIOdaTb MaKcIMaJIbHbIe pa3Mepebl 3aROTOBOK (CM. TexHnueckne xapaKTePnCTnKn).

KOMNJIeKT NOCTABKN

I3BleKeTe cToI MASTER cut 2500 n3 Kopo6Kn n npoBepbTe HauHne Bcex nocTaBnEmbix detae, yKa3aHHbx Ha pucyHKax (pnc. 1 n pnc. 2).

BA3OBbIM MOHTAX

C6opka cTona: PaCIOLOXKITE cTOn Ha pOBHON YIcTOn IOBepxHOCTn (pnc. 3.1). Ocna6bTe o6a EKCsEHTPNIKOBbIX pbUar a n pa3DINHBTE npabyo napy HOke Do ynpora. No 3ABepeHHn npNXMnTe o6a EKCsEHTPNIKOBbIX pbUar a (pnc. 3.2). Ocna6bTe yeTBpe EKCsEHTPNIKOBbIX pbUar a n pa3DbNbTe neByIO npay HOke Do ynpora. No 3ABepeHHn CHOba pNXMnTe BCE YeTBpe EKCsEHTPNIKOBbIX pbUar a (pnc. 3.3). NocTabBe cToI Ha HOKKn (pnc. 3.4). Ecn Tpe6yeTc, ycTaHOBnTe erO B Heo6xoJIMoe NOLOXKeHne C NOMOUBIO peryIINPOBKN BbICOTbl (pnc. 3.4).

BHIMAHHE! CneIte 3a Tem, yTo6bI He 3aueMeNTb pyKn npn cKnaDbBaHn n paKnaDbBaHn CToJa n npn yCTaHOBKe naHeJI MaunHbl.

PpeoxpaHtBbBbBbIKIOaTeIb: YcTaHOBITe PpeoxpaHtBbBbIKIOaTeIb Ha CToJIe CTaHKa, KaK NOKa3aHO Ha pncyHKe (pnc. 4).

3aunTHbIKoJnKa: BbINOHNTe MoHTaXk OTdeJIbHbIX DeTaNe 3aunTHoro KoJnaka (pnc. 5.1). BCTaBtke KPOHHTeH 3aunTHoro KOJnaka C NOMOuHnHaPabNIOUeB AAnOMHneBbI PNOHInb (pnc. 5.2). YcTaHOBnTe 3aunTHbIKoJnAK Ha npope3b DnA nIIbI TaK, yTO6bl OH 3aKpbBaIe ee nepdHiIOU qACTb. NObepHnTe BnH C pyKoTko No YacOBoi CTpeJIke (pnc. 5.3).

YrnoBOn ynp: YcTaHOBnTe yrnoBoynop, KaN oKa3aHo Ha pncyHkax (pnc.6.1-6.4).

YrnoBn ynop nHa npabnaoee: YcTaHOBnte dnnHbI yroBOyynop, pernynpyeMbI ynp n HappaBnaOyUy npopa (pnc. 7.1). BCTaBte perynpyeMbI ynp c na30m B yrloBOyynop. 3akpenTe erO c nmoosBnHTa c pykortko, 3akpyTbE ro no hacoboi cTpeke (pnc. 7.2).

KpOK c pe3b60I IxpaHEnH: OTBHTnTE Tprn DepKaTeJIa (pnc. 8.1), a 3aTeM BCTaBtpe DepKaTeIN B HAnpaBIAIOUyIO u yCTaHOBnTE IN Ha COOTBeTCTByIOUeM pacCToHnn. 3aTAHnTE KOHTPraIKy (pnc. 8.2). PpIKpeNITe ToJkaTeIbHyIO NaOChy I (IIIN) HeHyXhble DOONHInTeJIbHbIe pnpHaIeXHocTN K depKaTeJIIO (pnc. 8.3).

Klemma DnB KIOHcH: PnBxTe OINH KOHeu, Hypa K OTBepCTIO KJIeMMbI IIN BKIOUeHn, a pyro - K yroIKOBMy npoHIO CTona (pnc. 9).

BHIMAHNE! Y6eInTeCb, YTO UHyp TaKoI dINHbI, YTO KJIeMMA IINB KJIIOueHnA BtOMaTnueCKN OTJeJIeTcR OT 3JKeKTPoINHCTpyMeHTa npn paKaUBaHHn nAHeI MauHHbI.

MOHTAX PUYHOI LHPKUJARPHOINJIbI

Yka3aHHe: IJIpeBHOHaJIbHOU yCTAHOBKN pyHNO UINKpyIrpHO NIIbI INapaJIeNBHO BbIPABHBHnRA IIbHO NOJIOHA HcTOnE ChauJa Heo6XoDMO yCTaHOBt b HapBaJIIOUyIO.

MoTax Hapabnloe: UcTaHOBnTe ChauaI npaBbI n IeBbI nIaCTNKOBbl depKaTeIb B OTBepCTN, npedyCMTopeHHbIe B aHOMNHOBm npoHne. BctABte HapablaIOUyO npaAIIeBHO na3y B pa6oye nAHeIN cTOna I BBeINTE DBA MeTALNIueCKNX 3aKIMAb NpOoHb HapabJIouSe. Tenepb CdbNbTe n npxKMnTe o6a 3aKIMa K nIaCTNKOBMy depKaTeHb. B 3OT MOMHT HapabJIOOaTouHO 3aHIMaeT npaBnBHo nIoXKeHne. 3aTeM 3aTnHtE o6a 3aKIMa (pnc. 10.1 n 10.2).

Chatne nane Maunhbl: Chaayana noHNMTe BknaBbIu Iy Iue Nn B na3y, KaNOKaHa Ho Ha pucyHke, TTo6bl pa36loKnpoBaTb nane (pnc. 11.1). 3aTe M bItraHnte BknaBbIu Iy Iue Nn B HappaBHeHH, yka3aHHom cTrePKoN (pnc. 11.2). N3BleKeNTe BknaBbIu Iy Iue Nn (pnc. 11.3).

BHIMAHNE! BknaIbI Wn IaIeHn HAcToNbHO nDCKOBo Nnbl DoJXeH 6bTb ydaHeH Do CHrTH NaHeJI MaINHbI.

Tenepb noHmnte naHeIb MaunHbI 3a npopez nIra 3axbata (pnc. 11.4).PnnoBempe naHeIi MaunHbI OTKpenJIOTc qTeblpe 3aKIMa, I ee MoXHO CHyTB DByM pykAmn (pnc. 11.5). Tenepb CHOBA BCTaBte BKlaDbIu dIra uen (pnc. 11.6).

YcTaHOBka nanei MaunHbHa HapabJIOyU: HaTe naHeIb MaunHb CBepxHa HapabJIOuNe, KaK NOKa3aHO Ha pncyHke (pnc. 12).

DocynbIe IINoB3OBaHn pyhble upknyarhbe nIb: MaKcMaJIbHBe ra6apntbIOCTynbIX dN INoB3OBAHn pyhbx UPKyIARhix nIcm. Ha pnc. 13. NcnoB3yTe TOnkO pyhble upknyarhbe nIb c KInHom. MAcC. DnaMeTp nIbHoro noIoTHa 200 MM, MaKc. rJy6Ha pa3pe3a do 70 MM.

MoHTaK N BbIPaBHHBaHne pyHOn cIpyKpIyRHOH nJIbI.

Ocna6bTe cTOnop rny6nHbI pa3pe3a pyHoi znpKyIpaHO nnbln oTTAHnTE OTKnHIO 3aunTHBI KOJIaK. Tenepb yCTaHOBte pyHyIO UINPKyIpaHyIO nnly Ha naHeIb MaunHbI. YCTAHOBte rny6nHy pe3a C DOCTAOHTbIM KOINueCTBOM CBO6OHDHO XODA B Na3y CToneHHuI 3aTAHnTE cTOnop rny6nHbI pa3pe3a. Tenepb nIbHoe nIoTOHO pyHoi znpKyIpaHO nnbln CLEdyET BIPOBHATb napJIeNBo HePOH neIHOBo KpOMKe HApBaJIIOUe (PNC.14.1).YCTAHOBte 60KOBbIX yNOPob TaKIM O6pa3OM, YTO6bl BCE 6OKOBBe yOpbl NO BcE NIIouaDN KONTAKTNPOBaI IN ONOPHO nlaCTNHO MaunHbI. DBA 3aDHNX npdoJbHbIX yNopaC LyXkATB KaueCTBe cTOnop BO ZnpKyIpaHO nnblb HApBaJIeHN pacNNIOBKn I ObecneuBAOT ee 6eONacHYO octAHOBky (PNC.14.2). DaJeee yCTaHOBte YeTbIpe 3aKIMNbIE NaKN (PNC.14.3). CHMnITE MOHTnpyeMy IO npKyIpaHO nnly C naHeIbMoAmHBi I NOMeCTNe TX Ha cTOL, KAK NOKa3aHO Ha pncyHke (PNC.14.4). PnOBepbTe Tenepb IIpi MaKcMaJIbHO BbCTABJIeHN OH rny6nHE pe3a pacCTOJHHe OT NepeDeHero 3y6a dNCKOBo NNbl do nepeHero kpar BkNaabIwa dIe ue (PNC.14.5).

BHIMAHNE! 3To pacctoHHe NOJXHO COCTABJIb Mehwe 20 MM. Pn Heo6xOIMOCn UPKyIphA H Nla MoKet 6bTb 3aHOBO BbIPOBHeHa B IPOdoJBHom HAnpaBHeHN. Pn 3Tom Dba CTOnopa DOJXHb 6bTb yCTaHOBeHb B HOBM NOLOXKeHN.

YctaHOBnTe pyHyIO cIpyKpIpyHyo nIy C NaHeJIbO MaunHbHa CToI, KaK NOKa3aHO Ha pCsyHke, u ydaJIte BkJaDbIu Ira IeIN (pnc. 14.6). HaeHbTe naHeJIb MaunHbHa nepeDHH depXaTeJb C 3axmHbIM KpenJeHHem. 3aTeM oHO npKo BCTaBbTe IN B npopezI dIg 3axBaTaHa cToJIeUHnue (pnc. 14.7). BBeJIte naHeJIb MaunHbI B naz (pnc. 14.8). 3aTeM cHOBA BcTaBbTe BkJaDbIu Ira IeIN (pnc. 14.9).

BHIMAHNE! Y6eINTEcB, YTO NOIOTHO DnCKOBON NIIbI yCTaHOBNeHO npaJIeNBHO OTBepCTNO BO BKlaDbIe DIAI UeJN. B cnyae Heo6xOdUMocTn 3aHOBO BBipOBHnTe UnpKyIpyHIO nIy (pnc. 14.2 n pnc. 14.3).

IcnoB3oBaHHe pyHbIX cnpkyIepHyix nC npOKMn ONOpHbIMn IINTaM

EcHn pacToHHe oT cepeINbI nInbHoro noIoTHa do BHeHrero KpaonopHO nnITbI pyHOn zuPKyIrpHO nnbl60JIbe 128 MM, To npu MoHTaKe IcNoJb3yIOCTra Da IInHHbIX 6OKOBbIX ynpa. Pn ETOm Dba 6okOBbIX ynpa Ha npObo6Hom ueTeXe F OndHOBpEmHo JABJIOTc TcONOpAMn dna cIpKpyIrpHO nnbl (pnc. 14.10). NcnoJb3yUte ToJbKO pyHbIe zuPKyIrpHbIe nnbl, COOTBeTCTByIOUne yKa3aHHbIM MaKcImaJIbHbIM ra6apntam onOpHO nnactnbl (pnc. 13).

IopKIOUeHne K 3NEKTPoINTaHNO: BCTaBtE wTeNcEInbHyO BNkY pyuHO NpKpyrHO NIIb BYpeDOxpaHTeHBHbIByIKIOuAtel, a yDNIHnTEJIbHbI Ka6eIb, ndyun ot ppeOxpaHTeJIbHO BbIKIOuAteJI, -B wTeNcEInbHyO po3eTK (pnc.15.1). YdNIHnTEJIbHbI Ka6eIb He BXODIT B KOMPJIeKT NOCTaBKn.

BHIMAHNE! Npeed nepBOHaJIbHbIM BBOIDOM B3KcIIyatauHO HAXMITE aBTOMaTneCKn TENIOBoB bIKIOaTeIb. B cnyae OTKIOUeHIN NITAHN NO pPUNHE PpeBbIeHIN DOYNCTUMORo HApXKeHn HAXMITE aBTOMaTneCKn TENIOBOB bIKIOUaTeIb nOcIe 5-10 MNHT OxKnDaHn. NocIe 3TORO MOKHO HAXKaTb nepeKIOUaTeIb BKIOUOEHN (pnc. 15.2).

HaxmTe KpaHyo KhoNky (BblKJL.) Ha npedoxpahntbHOM BblKIOuOaTeJe. 3aTe pnpKpeNTe KJIEMMa dIg BKIOueHnKpyHOI npKyIpaHOn nIe (pnc. 15.3). HaxmTe 3eJeHyo KhoNky (BKJL.) n npOBepbTe, CBO6OJHO IIN DBNXKeTcI NJIbHOE NOIOTHO BO BklaDbIe dIyIeI (pnc. 15.4), nocIe Yero ChOba HaxmTe KpaHyo KhoNky (BblKJL.).

BHIMAHNE!Kak npabnlo, npu HeNCNoIb3OBAHm nll cKnlaDbIBaHHn CToJa Heo6xOJMo I3BJIeKaTb WTeNCEJbHyIO BnKy.

CTOI MASTER cut 2500 roTob ka6oTe.

CTAUHOHAPHOE PACINJINBAHNE C NOMOUIPO PYHON LIPKUYARPHO INJIbI

BHIMAHNE! Bcerda pa6oTaIe C 3aunTHbIM KOJINaKOM IN NcNoJIb3yIte Nblncoc dJyJaIeHn IblINB 3aunTHOM KOJINaKe.

PacnunBaHne cyrNoBbIM ynOpom

BBeIte yrnoBoy npOp B HnpaBnaHouyO (pnc. 16.1). CneIte 3a TeM, YTO6bI ChehB KoHeu yNopa npoxoJn KaK MoKHO 6nHex K 3aunTHOMy KOInaky, YTO6bI oEcnueHb ero noDbem (pnc. 16.2). OTTAnHE TgIOBOy yNop Ha3ad n NIOXkTe Ha Hero O6pa6aTbBAeMyIO deTalb. BKIOUHTe pyHyIO cnpKyIaRpyHIO nnIc NMOUbIO KNOKN Ha IpeOxpaHntBJHom BIKIOHaTeNe. DnuraTe O6pa6aTbBAeMyIO DeTalb NO rTOLOBOMy yNopy B OTMeueHHOM CTpeKoH HApBaJIeHN K NIOtHy dNCKOBn NIIbl, KAK NOKa3aHO Ha pncYHke, (pnc. 16.3), noka OH a He 6yDet NoJIHoCTbIO paCnnneHa. 3aTeM BIKIOHTe pyHyIO cnpKyIaRpyHIO nnly C NOMOsbIO npEOxpaHNTbHor BO BIKIOuaTeJIa.

BHIMAHNE! Bcerda Cneinte 3a Tem, yTo6bI o6e pyKn HaxoDnncb Ha DocTaTOUHOM paCtOHa NIOJTHa DnCKOBON nJIbI (onachocTb TpaBMnpoBaHH).

B Tekyuem CoToTHMOnTaKa yIIOBOrO yNopa MoXHO paCnJIINBaTb 3aROTOBKn BlicOTOn OT 15 Do 60 MM. EcIn BBICota 3aROTOBKn Hxke 15 MM, HanpaBIAUoYIO yIIOBOrO yNopa Heo6xoIMNo nepeyctaHOBtB (pnc. 16.4-16.7). C NOMOsbIO yIIOBOrO yNopa MoXHO paCnJIINBaTb O6pa6BaMbEble DeTAn IOYLOm 0-65°.ДЯ 3TOrO ocIa6bTe BnHT C pyKoTkoJ, yCTaHOBtTe Tpe6yeMbI yOrn I CHOba 3aTAHNTe BnHT (pnc. 16.8). Daane ocUeCTBnTe paCnJIINBaHne, KaK nOKa3aHO Ha pnc. 16.1-16.3.

PacnInBaHHe c npapJIeIbHbIM yIopom

CchaIa Cbo6oHNO yCTAHOBIne napalneIbHbN ynop, KaK nok3aHO Ha pncyHke. BcTaBte npapalneIbHbN ynp O HnpaBnaOuyo Ha CTone C DByMRAOTKpbITbIMN 3KcUeHTpIKOBbIMN pbYarMaN. BblPOBHNrTe npapalneIbHbN ynp C nOMoubIO uKaJIb, HAnceHHo HA HnpanBaIIHOuI npOuINb. PnIXMMTE o6a 3KcUeHTpIKOBbIX pbYarA N 3aTnHtE KpeNXHbIE BnHTb. Y6dntecb, TTo npapalneIbHbN ynp BBCTABIne npapalneIbHO noIoTHy dNCKOBOn nnbl (pnc.17.1). 3aTe m HnpanBaIIHOuOyO cJeDyET nepeCyTAHOBNT C yRIOBO rynopa H na papalneIbHbN, YTO6bl npedotBpatntb OTdau np pacnnnoBKe 3aroTOBKn. NcNoJb3yIe dnn 3TOrO n3o6paXeHHble KpeNXHbIE Detanl yrLOBOrO ynpoa. Cbo6oHNO 3akpeNiTE o6a BNHTa C DBymra NOKlaDOHyBMn 5aH6amN KBAdpAThBe raKNHa npapalneIbHom ynpoe (pnc.17.2). 3aTe m Cdbnblte HnpanBaIIHOuOyO h npapalneIbHom ynpoe B DBe KBaPaTHbX raKN, Ka nOKa3aHO Ha pncyHke. KoHeu HnpanBaIIHOuSe MoXet 6bl To npOp aDobedeH Do KOHa nOToTHa NDCKOBo IINbl (pnc.17.3). 3aTnHtne 06a BnHTa. Oclabte 3KcUeHTpIKOBbIE pbYarN yctAHOBtse JxemaMyO xinpye3a. O63aTeNbHO y6dntecb B Tom, TTo npapalneIbHbN ynpop BBCTABIne npapalneIbHO noIoTHy dNCKOBOn nnbl. 3aTe m npexMMte o6a 3KcUeHTpIKOBbIX pbYarA. BkIOChte pyHyO UPKyIaPHyIO nnly C nOMoUbIO npEOxPAHtEbnHO BO bIKIOUaTeJa. DInraTe o6paBaTBaEMyO deTaN B OTMeueHHom cTpeNKoH HnpanBaIIHm K noToHry HO NaCnuHke, (pnc.17.4), noka o6paBaTBaEMa DeTaN He 6ydtet NoLHOCTbO paCnIeHa. 3aTe M BkIOUHTe pyHyO zIpKyIaPHyIO nnly C nOMoUbIO npEOxPAHtEbnHO BO bIKIOUaTeJa. PnO b6oTke y3Knx DeTaN eOB3aTeNbHO nCnObl3yIte TOnkAteNbHyIO naOnky U3 KOMnNEkTA NOCTBKN (pnc.17.5). PnI Heo6xOIMOCTN npapalneIbHbN ynpO moKHO taKke yCTAHOBtB CLEBa OT noToHa DNCKOBOn nnbl. DInr 3TOrO npapalbaIOuaqdoJXHa 6bl CDBNHytA Ho ODNHP TaD TBepCTNI (pnc.17.6). Heo6xoDMble warn no yCTAHOBKe I3o6paXeHbl Ha pnc.17-17.3.

BepTKaJIbHbIe pa3pe3bI co CKOCOM

Дя Вертукалього PACинлваньг co ckocom Heo6xOIMO n3MeHntb noIoxKeHne pyHoi zuPKyIpyHoi nIbI. ChaJaI CHIMITE BkIaIbI dI yIe (pnc. 18.1). 3aTe mIoHNMITE naHJIb MaunHbI 3a npopez nIra 3axBaT (pnc. 18.2). CHIMITE naHJIb MaunHbI (pnc. 18.3). OTAHHTe OTKINHO 3aunTHbI KOJIaK pyHoi zuPKyIpyHoi nIIbI nBCTaBbTe BkIaNbI dIy IeIe Ido yNopa (pnc. 18.4). PACnoIOXnTE yCTaHaBnBaemyo nAHeJb MaunHbI Ha CTole, Ka NOKa3aHO Ha pucyHke (pnc. 18.5). Ocna6bTe Yetbipe 3axmmbix NaIKu n Yeblpe 60Kobblx yNopa. YCTaHOBte Ha pyHoi zuPKyIpyHoi nIIe Tpe6yEmbY yRoi cKOca.CmeNTe onOpHy oIITy napalnlbHo K DByM OCTaBImCRA CTOpopam B HApPabLeHH, yKa3aHHOM CTpeJIko (pnc. 18.6). O63aTeJIbHO y6eINTecB CBO6OHDHom XOe NINbHoro NOLOTHA BO BklaDbIe DnI IeIe. 3aTe M3aTnHtE YoIbe 60KOBblE yNopa nYeblpe 3axHMblE IanKn (pnc. 18.7). YctaHOBte pyHyIO UpiKUPLPHyIO NILy C NaHeJbIO MaunHbI Ha CTOn I ydaJIte BklaDbI dIy IeIe. HAdeHBe NaHJIb MaunHbI Ha nepeDHI DEpxAteJIb C 3aXIMMbIM KpeJIleHMe. 3aTe MOnHO pyKoB BCTaBbTe IN B npopez nIra 3axBaT aHa CTOLEWNIe. BBeDIne NaHJIb MaunHbI B na3bl I cHOBA BCTaBbTe BklaDbI Wd Ie Ie (pnc. 14.6-14.9). Tenepb CTOn rOTOB K BeptNKaJIbHOMy yrloBOMy pe3y (pnc. 18.8). Pn Hoe6xOIMOCr 3auINTHBI KOJIaK MOXHO nepemeCTnB C NOMOu bpoPerynipoBOOHOro BVHTa B NopepeHOM HAnpaBleHnn TaK, YTO6bl NIIbHOE NIONTO HO CBO6OHO BpaJauIOcb Ha DoCTaTOCHOM paCCTOHRNIM IOI 3auINTHbIM KOJInakom (pnc. 18.9).

PACINJ CHANPABJIIOUeI

IepBnHbIMoHTaxpyHOnznpKylapHOnPiNbI(pCynKn14.1-14.8)6blTOHQBbINHeDNpa60tbcHaNPaBnIOeunHO. PnBbINOHN3TOrO ycNoBN HeOBxOJIMOyIPOXHTbCTOJeWnUc CMOHTnPOBaHHo pyHOn cIpKpYlRnHO nnHO Ha CTOLN 3AmEHNTbIeNEBOB BkLaBbIu DNCTAUHOAPHO pACnIIaUeBbIM BkLaDbIeM DN PAcNIIaC HApPABLIOe WnHO (pnc.19.1). YIOXHTb3aOTOBkyHa pa6OHy CTQNLNOBcBAbTyrIbOBoy npDnHApPABLIOe (cm.pa3dEan PaCNl NODyrLOm).Pocne3TOrO CMOHTnPOBaTB HApPABLIOUc DByMa DEPKaTeJMMu OBeHMN cTp6UHNAMn (pnc.19.2).O6e cTpy6uHbBCERda 3aTARIBaTB HaCTOJIbKO, YTO6bI 3aOTOBKa He CMeuaIacb PnO6pa6OTKe n3 pa6Oey No3uNN. UCTaHOBTb CTOEHNuCy CO CMOHTnPOBaHHo pyHOn dNCKOBONu HAnPabLAIOUy uINHbI. OTpeyIInPoBaTgLy6hNy pe3a DnCKOBONu TAKIM 06pa3OM, YTO6bl NJIbHOe NOJIoTHo BbIXOJNLO C HIXKHei CTOpOHbN He 3aOTOBKN He 60Jee Yem Ha 4 MM.

BHIMAHNE! npn 6pb6tke y3knx 3arotOBok HappaBIAIOyO C 3arotOBkAMN OINHaKOBo BBICToB Heo6xOIMO NOpnpaTb no Bcen shnpHe ctoJa. B npotNBHom cnlyae BO3MOXHO ONpOKNbIBaHne HanpaBIAIOe co CToneWHuei

BHIMAHNE! npnbopHbI WTekep pyHOB uRkpyraepHO nnBbI DOJXeH 6bITb NOKIOueH K CeTeBOMy WTeNCBHO My pa3beMy. PpeOxpaHHTeHbI BblKIOUaTeJIb N 3axm IIN BKLIOUeHn 3aPeuaetc INCNOJB30BaTb npI paCNIJIe C HappaBIAUoJe.

BkIIOHTb pyHyIO cIpyKJIpyHIO nIy. Bo BpMa pa6OtBi BCerDa BcTeN nIy npaIIeNbHO HapPaBnIoUe (pnc. 19.3).
No 3aBepeHnn paCnIIa BblKnIOHTb pyHyIO nckOByIO nIy.

PacnI noJ yrnom: nlaactKOBbI depXaTeJIy rIOBoro yNopa BCTaBnT B OTBepCTne pa6oery cToJa. Heo6xOIMo Bcerda nCnoIb3OBaTb 6JnxKaJWee OTBepCTne K KpOMKe pe3a HApabLHOSe. CBo6OJHo CMOHTnpoBaHHyo HApabLHOU yNopa npOdBnHyTB n3y pa6oery cToJa do yrIOBoro yNopa. 3axaTb na3 HApabLHOSe yNopa B npOfJle yrIOBoro yNopa. BbipOBHtB 3aTOBky BmecTe C rIOBbIM yNopom NO HApabLHOSe. PocNe 3TORO 3aTHyTB BNHT C pyKoATrKoH npapabLHOSe yNopa (pnc. 19.4).

CepnHbI paCnnI: IJI cepHrOro paCnIIa Heo6xOIMMO CMOHTnpOBaT bdoONJIHTeBHyI 3AMOK yNopa. IJI 3TORO BBcTNI 3AMOK yNopa B Na3 yrIOBOrO yNopa I NOBepHyT MeTaJIuueckn yNop Do pa6Oero cToJa. PpNJIOXtB 3aRTOBky HxKHO nnHbIK yrIOBOmy yNopy. B 3aKIOUeHne cMeCTntb 3aMOK yNopa K KOHcy 3aRTOBKn I 3aTHyTB BNHT C pyKOATKoi (pnc. 19.5).

PACINNJIBAHNE C NOMOJIbIO JIO63NKA

YctaHOBnTE BknaDbI WII IeIN IJIIO63Nka B naHeIb MaunHbI (pnc. 20.1). BbyPOBnIte NOLOXKeHne Io63Nka Ha naneiMaunHbI TaKIM o6pa3OM, YTO6bl NJIbHoE NOIOTHO IPOXODINO NO CEHTpy OTBepCTNA IINbIy. UcTaHOBnTe IO63NK, KAK NOKa3Ha HO pncyHke (pnc. 20.2 n 20.3). CMOHTnpOBaHHbI IO63NK YcTaHOBnTE BMeCTe C naHeIbIO MaunHbI HA CTOJ N BCTaBBTe INx B YeTbipe DePxAteJI. POnKIOHnTE KJEMMY IIN BKNIOUeHnK BbIKIOUaTeJIIO IO63Nka, a WTeNCeJIbHyIO BUNKy - K npEOxPAHnTeNBOMy BbIKIOUaTeJIIO. CToI rTOB K NcNOJB3OBaHHIO IO63Nka (pnc. 20.4).

MOHTAX TOPUEBOI INILBI ININILBI DJIPE3KNIOYUFLOM

C nOmoIbBxOJIuINX B KOMIIeK TIOCTaBKN KpeNexHbIX BNHTOB Bbl MOKeTe yCTaHOBtB Ha CTOJIe TOPcEBlI NIIblI INIIblI Dnpe3Kn IOnIyIOM. IOnMeCTte TOUeByIO NIny NInN PnIy Dnpe3Kn IOnIy YrIOM NOcePeDInHe CTOnla TAK, YTOblMOHTaxHbIe OTBepCTnOKa3aIINCb HAd IDbMy IPOJOlbHbIMn Na3AmN.

3aKpeNTe Nnny. DnA 3TOrO npOnyCTnte CBepxu Hepe3 MOHTaxHbIe OTBepCTna I NnTbI CTOna BNHTbI, NOdNOXNB NOd Hnx MaNyo NOdklaOchHyo Wai6y.Tyro 3akpyTne raIKn CHN3y, NOdNOXNB NOd HNX 60JIbWne NOdKnadoOhbIe Wai6bl (pnc.21).

BHIMAHHE! TopeBaI nIIa IIINIIa IJIpe3Kn IOJ yRJIOM DOJIXHa 6bITb 3aKpeJIeHa Ha CTOJIe NO MeHbWe MEpe DByM KpeENEXKbIMN BHTAMn, YTeBIPbMg IaIbAMn IyBMy rAIkAMn. EcII MoHTaXHbIe OTBepCTnI INJIbI He COOTBeTCTBYET UJIaM B CToJIeUHInCe, To TOpEByIO NIIy IINI INIy IJIa pe3Kn IOJ yRlOM HJIb3r IcNOJIb3OBaTb.

PERYJINPOBKA PAHEJIIMALINHBI

BbICota naneMaunHbHa pa6oey nIaCTnHe yCTaHOBLeHa Ha 3aBOe-13ROTOBtJe TaKIM o6pa3OM, YTO6bl ObScneHTbCKoJIbXKeHHe O6pa6aTbBaemO DeTaIIN NO IIOUaIaPa6oey nIaCTnHbI N aHEIn MaunHbI. Pn HEO6xoDMOCn MOxHOOTpeyJIpOBaTb BbICOTy IIITb MaunHbI. IINr 3TOrO Ocna6Be TnKoHTprAeK. 3aTe MByIPOBHnTe NaHeNb MaunHbI BMeCTe Cpa6oey nIaCTnHO C NOMOsbIO pAnr peYJIpOBoOHybIX BNHTOB IN CHOba 3aTaNITE KOHTprAeKn (pnc. 22). NepeD BbIIOJIHeHEm IIO6bIXpa60BcERda npOBepaTe, 3aTHyTb IINr PAHbKOHTprAeK.

CNEUHAJIbHbIE INPUHADJEKHOCTNДЛЯ MASTER cut 2500 ДВА ДОПОЛНITEЛьнБИX MOHTINPYEMbIX PACNOPHbIX KJIINA, APT. № 6916000 И 6917000 ДЛЯ ИСПОЛЗOBAHЯ РУHОДЦКУЛРHOЛ ПИЛы BE3 PACNOPHOrO KJIINA

BHIMAHNE! Yka3aHbIe 3neCb cneuaIbHbIe npHaJIeXHOCTn MOxHO nCIOJIb3OBAbI NCKIIIOHTeIbHO co CTJOM MASTER cut 2500.

YKA3AHNE: Pa6oTa n o6cnykubHne 3Tnx cneuaJIbHbIX npHaIeJXHocTe 6yJeT onucaHa daJe e n npouIIIOCTpnpObaHa NaHHa co ctp. 21.

UEJIIEBOE IPIPIMHEHNE

O6a paCnOpHbIX KINHa N03BOJIAOT NCNOB3OBA Tb pyHyIO CIPKpyIpyIy 6e3 KInHa.

PacnpHbKIN 6916000 npedHa3NaueH dIy nCnoJb3OBaHn pyHbIX uNpKUJIrpHbIX nII C noJIoTHAmn DnaMeTpom do 160 MM mIupinHO pe3a ot 2,4do 2,8 MM.

Pacnpn6917000 npedHa3NaeH nIcnoB3OBaHn pyhbx upkyIrpHbIX nI c noIoTHAMn dnaMeTpom do 200 MM, uipHHo pe3a ot 2,4 do 2,8 MM n MaKcMaJIbHO rJy6HIO npOnla 66 MM.

BHIMAHNE! PnncnoB3OBAHn CneuaNBbHx npnaHdNExKHOe6aTeNbHO co6JIOaJIte Oe 6oUe NHCpyKuIN NO TexHKe 6e3ONaChOCIn, INCTpyKuIN PO 6e3ONaChOCIn, KacaIOuCeC pyHbX cIpyKyIpaHbIX nII, uYka3aHnOprrHaHbHO INCTpyKuIN NO 3Kcnnyatauyn pyHOn cIpyKyIpaH0 nnbl6e KlnHa.

KJIINHbA, APT. N° 6916000 H 6917000

KlnH, apT. N9 6916000, BKJIOaET CLENYOUINE KOMNoHEbTI: 1 KInH (IJIY IINJBHbIX IONOTEH C MaKcMaJIbHBIM dNaAMTpOM do 160 MM), 1epKaTeNB KInHa (DINHHbI), 1yCTaHOBOUHbIKaJIb6p (pnc. A).

KlnH, apT. N6 6917000, BKJIOaET cIeNyIOUne KOMNoHEtbl: 1 KInH (IJI INMbIX NOLOTeH C MaKcMaJIbHbIM dNaMeTpom do 200 MM), 1 dePkaTeNb KInHa (KOpOTkn), 1 yctahOBOHbIK KaII6p (pnc. B).

BHIMAHHE! DaIee onncaHa yctaHbKa KInHa apr. No 6916000 dIy pyHbIX cIpyKpIyIepHbIX nIIc MaKcMaJIbHbIM dIaMeTpom IIOToHa 160 MM u pa6Ota C Hm. YcTaHOBka KInHa apr. No 6917000 dIy pyHbIX cIpyKpIyIepHbIX nIIc MaKcMaJIbHbIM DnAmETpOM IIOToHa 200 MM u pa6Ota C Hm OcyUeCTBJIeTcra TaKIM JKe o6pa3OM. OdHaKO pRi NcNoJIb3OBAHHN 3TOI KInHa BO3MOxHa o6pa6OTKa DeTaeJY BICOTOn Do 50 MM.

MOHTAX PUYHON LUPKUYARPHO NINbI BE3 PACNOPHO KINIHA

BHIMAHNE! IJI npBOHaJIbHOY cTaHOBKn pyHOn cIpyKUJIrpHOI II NJIb I napaJIeNbHO BbIPaBHbHAHN IIINbHO NOIOTHA cnPKyJIpaHnIIc NaHEJbIO MaunHbI DOJXHa 6bITb YCTaHOBJIeHa H BbIPOBHeHa Ha HApBaJIIOUeI.

YKA3AHNE:ДЯ MONTaKa HapBaJIHOUe, ChrTna YcTaHOBKn NaHeN MaUnHb CneNyTe yKa3aHnM DaHHOro pyKOBoDCTBa NO 3KcNlyaTaUIN.

MOnTaX N BbipaBnBaHne pyHOn znpKpyrphoN nJIbI

Ocnabte cTOnop rnybHb pa3pea pyHoi znpkyarpoHn nIbI OTTAHNEOTKINTHBI KOJIaK. Teepb yCTAHOBTe pyHyIO npkynpHryo nnly Ha naHeIb MaunHbI. YcTAHOBnTe rny6nHy pea CdoCTaTOHbIM KOJueCTBOM CBO6OHorO XOA B Na3y

CTOJIeSHHcIbI 3aTAHHTe CTOnOp rIy6HbI pa3pe3a. TeNepb NIIbHOe NOIOTHO pyuHOI cIpyKJyIpaHOH IINbI CJeDyET BbIPOBHrTb npaJIJIeBHo UeHPO HpEHHoB KpOMKe HAnPabJIIOUeI (PNC.C.1). YCTaHOBtue 60KOBbIX yNopOB TaKIM O6pa3OM, QTO6bl BCE 60KOBbIe yNopBI NO BcE NIIoUdN KOHTaKTnPoBaIcONOpHOI pIacTHHO MAsHbI. Dba 3aDHNX npOdoJIbHbIX yNopa ClykAT B KaueCTBe CTOnOpOB UcPKyIpaHPO HINBI B HApPaBLeHN paCINIOBKn dIra ObecneHHe ee 6e3OanOH octaHOBKn (PNC.C.2).

3aTeM yCTaHOBITE YeTbIpe 3aXIMMbIe IaIKN (pnc. C.3). ChIMnTE yCTaHOBJIeHNHyIO pyHyIO UINKpyIrpHyIO NIny C NaHeJIbIO MaUNHbI IN NOMeCTHTE IN HA CTOn, KaK NOKa3aHO Ha pucyHKe (pnc. C.4). PPOBepBe TeNepb IpN MAKcIMaJIbHO BbICTABHeHHo Tny6HHe pe3a pacCTOHHne OT nepEDHero 3y6a cIPKyJrPHOH nIIbI do nepeHero KpaB BKlaDbIwa dIra IeJI (pnc. C.5).

BHIMAHNE! 3To pacctoHnE DOJXHO COCTABJIb MehBwe 20 MM. Pn Heo6xoDMOCn CUPKynrpaHn Nla MoKet 6bItb 3aHOBO BbipOBHeHa B npOdoJbHom HapBaJIeHN. Pn 3TOM Dba CTOnopa DoJXHb 6bItb yCTaHOBJeHb I BOHOM NOLOXKeHN.

YKA3AHNE: Ecnn pacctoHne OT cepeHHbI NnBHorO NOIOTHa Do BHeuHrero KpaonOpHO nnTbpyHoOnpKyJrphOHnNbl 60JIbwe 128 MM, To nPm MoHTaxe IcNoIb3yOTc Dba IINHHbIX 6OKOBbIX ynpa. CneynTe yKa3aHnM daHOro pyKOBOCTBa nEKnIyataunn dIra MOHTaXa pyHbIX cNpKyJrphBix nII C wIpOKIMn ONOpHbIMn PInTAMn.

MOHTAX KJIINHA

Iomecnte Ha cTole cMOHTnpOBaHHyU cIpKyIpyHIO nIy, KaN oKa3aHO ha pucyHke(pnc. D.1). UcTaHOte KpeENKbI cTeJKeH bIKpeENKbI BnHT, He 3aTARBAHX. CdBIRaTE HX, Ka NOKa3aHO Ha pucyHke, Ha naHEJI MaUNHbI, NOKa He cTaHET BUnHn PAACnopHorO KInHa (pnc. D.2). BCTabTe KINH npIMepHO Ha 2 cm cbepxBy n3 KpeENKhoro cTeJHK (pnc. D.3). CneJITe 3a Tem, YTO6bl KINH 6bl IOBepHyT Do yNopa B NaHeB MaUNHbI (T.e. UTO6bl OH 6bl YcTAHOJIeBepTKKaJIbHO). 3aTAHNTe KpeENKbI BnHT (pnc. D.4).

BbIPABHINBAHNE PYHON LNPKUYAPHOI NJIbl

IomeCTte Ha cToI CMOHTnIOBaHnHyU nIPKpyIpyHny KAK nOKa3aHO Ha pucyHke.

BHIMAHNE! PpOBepbTe, OtUeHTPnpoBaHO IIN NOIOTHO DnCKOBoI NIIbl OTHOCuTEJbHO paCnOpHOrO KInHa I paCnoJaRaETcR JIN OHO npaJIJIeBHO B pOpe3N dIra NIIbl.

BbipOBHnTe nepeHIO CTOpOHy pyHOn cIpyKyIaPHO nnbl, yCTaHOBB ee BPOBeH C OTMeTKo 工 _ 0 ^ Ha onOPHO nactHe nIbl I o6eIMN BCnOMORAteJIbHbIM NINHmM MapKnpoBKn Ha naHeIn MaunHbI. 3aHra CTopoHa nIbl DOJXHa paCnOlaRaTbcra nO eHTpy nIoTHa dNCKOBn nnbln paCnOpHOrO KlnHa (pnc.D.5).

BHIMAHNE! EcnnoTOHO DnCKOBn Hne yctaHOBnHO nO cHTpy KInHa, pyHyIO CnpKyJIpyHyIO NIIy Heo6xOIMO BbipOBHr3aHOBO.

BHIMAHHE! UTo6bI yCTaHOBt TbHaHeIb MaHINbI Ha CTOnI, Heo6XoIMO dEmOHInpOBaTb paCnOpHbI KJIIN BMeCTe C KpeNekHBIM CTepXHem I KpeNekHBIM BNHTOM.

Ocna6bTe KpeJekHbI BnHT n NotaHnTe paCnOpHbI KJIiH BBepX. 3aTeM dEmoHTnpyTe KpeJekHbI CTePKeHb N KpeJekHbI BnHT (pnc. D.6).

PeryIINPOBka 6e3oNacHO rpoacToHnM MeKdy KInHom nNoIoTHOM dNcKOBo nHbC NOMOsbO yCTaHOBOUHO KAINbpa YctaHOBtpe pyHyu c npKyIpyHIO nly C naHeJbIO MaunHbI Ha cTOL, KaK NOKa3aHO Ha pncyHKe, u ydaJIte BklaDbIldna UeJi (pnc. E.1). HadeHbTe NaHeJb MaunHbI Ha nepeHnI depKateJIb C 3axmHbIM KpeJIeHNEM. 3aTe mOnHO pyKoB BCTabBe Tx Bnpope3n Ira 3axBaTaHa cToJeUHnue (pnc. E.2). BBeJte naHeJb MaunHbI B na3 (pnc. E.3). 3aTe M ChOBa BCTabBe BKlaDbI DnA UeJi (pnc. E.4). YctaHOBtne KpeexHbI cTeXeHbN KpeexHbI BNT, He 3aTgNBaR INX. CdbraTe INX, KaK NOka3aHO Ha pncyHKe, Ha naHeJMaunHbI, noka He cTaHET BnDeH n3 dJa PaCnOpHOrO KInHa (pnc. E.5). BCTabBe KInn npImepHo Ha 2 cm CBepxy B na3 KpeexHoro cTeXHn (pnc. E.6). CTeJnte 3a TeM, YTO6bl KInN NobEPHT do yNopa B naHeJb MaunHbI (T. e. YTO6bl OH 6bl YCTaHOBHeBepTKaJIbHO). 3aTaNHe TKepeXHbI BNT (pnc. E.7). OcyueCTBnE Ha KInne MOHTAX qacteY, yKa3aHHbx HA pncyHKe (pnc.E.8). Tyro 3aTaNHe TBeHT n raIKy C hAKaTko, coeJIneHHbIe C KInHOm, A BNHT n raIKy C hAKaTko, haxOJaUneCrapeJn Kopnyca, coeJInHte, He 3aTgNBaR (pnc. E.9). Tenepb ocna6bTe 3axmHOBn BTKpeexHoro cTeXhry (pnc..10). NpeMeecTte KInN BepTKaJIbHO BnH3 K noLoTHy DNCKOBn Pnbl (pnc. E.11). DBrVaIte KInN BnH3 Do tex nop, noka No kpaIHe Mepe ODNH 3y6 noLOTHa DNCKOBn Pnbl He yIpTeCB KopNy cYCTaHOBOUHO KAIN6pa. 3aTaNHe TpeENHO raiky C hakATKO (pnc. E.12).

Pocne 3aTgBnHn BnHTc BHyTpEHm UeCTnRpaHHKOM MeKdy KInHom N NOJIOTHom DnCKOBOn IINbly yctHaBnBaTeCA MaKcImaJIbHoe 6eONaCHOe pacCToAHne 5 MM (pnc. E.13). 3aTeM OTBnHTnte yCTaHOBOhny KaJIb6p OT KInHa (pnc. E.14).

BHIMAHNE! PpOBepbTe eue pa3, yCTaHOBJIeHO JIN NOJIoTH OIOCKOBoI NIIbl NO CEHTpy KInHa (pnc. E.14) n co6JIIOeHO JIN MaKcMaJIbHoe 6e3oNaChoe pacCToRHe 5 MM MExJy KInHOM I NIOToHOM NIIbl (pnc. E.12). B npOTnBHom cIyuae 3aHOBO BBIPOBHJIte pyuHyIO CnpKUJIrpHyIO NIIJy.

BHIMAHNE! Npeed BbINOJIHeHnem IIO6bx pa60Bcerda npOBepaTe, npOuHO JIN 3aTHybKIn H KpeNEXHbIe DeTaJI.

CTOI rTOB K cTaUHOHPO paCNIIOBKe. IpoQTnTe DOnONHITeJIbHO yKa3AHN O CTAUHOHpHOM paCNIINBAHN C nOMOuBo pyHOU cIpyKnyAHPoH NoIbl.

N3MeHeHnve rny6nHb pa3pe3a

PnH3MeHeHHrIy6bHb pa3pe3a pyHOn cIpyKpIyIepHO HneO6xOIMo 3MeHHTb BbICOTy yCTaHOBKn KInHa, YTO6bl O6cneuTb MaKcImaJIbHOe 6e3onacHOe pacCTOAHNE 5 MM MeKdy KINHom N NOLOTHOM NIIb. ChaJala OCLABte KINN C NOMObu WeCTurpaHHoro KIOUa. YCTaHOBNTe Tpe6yEmyIO rIy6bHy pa3pe3a pyHOn cIpyKpIyIepHO NIIb. 3aTaNITE CTONOP rIy6bHb pa3pe3a. PnPKpENITe yCTaHOBOUHb KaINbpc KINHom n pacNOLOXKe IN B COOTBETCBn C pnc.E.5-E.14.

BepTKKaIbHbIe pa3pe3bl co cKOCOM

Дя Вертукальогорасилваня co cKOCOM Heo6xOIMO I3MeHHTb 6OKOBoe NOLOXKeHne pyuHoi zuPKyIapHOn nIIbl. YcTaHOBnTe Ha pyuHoi zuPKyIapHOn nIIne Tpe6yeMbI yrOI cKocA. OToDBINbTe OTKnIHbTe OTKnIHbTb KoJIaK pyuHoi zuPKyIapHOn nIIbl Ha3aI N yCTaHOBtme MaunHy no ceHTpy B npope3b ДЯ пИБы Ha naHeiMaunHy. Oclabte CTonop rIy6bHb pa3pe3a pyuHoi zuPKyIapHOn nIIbl nYCTaHOBtme nIIly Ha noNHy rIy6bHy pa3pe3a. 3aTAHTE CTonop rIy6bHb pa3pe3a (pnc.F.1).

BHIMAHNE! BbipOBHnTe NOIOTHO DnCKOBOI NIIbI napAnneJIbHO npope3n IJrnnI. IpOBepbTe pacCToHHe O T MaKcMaJIbHO BblBHyTOBnpe3y6ua nIoTHa DnCKOBOI NIIbI do nepeHNe KpOMKn npope3n IJrnnI. 3To pacCToHHe DOJXHO COCTABJIb MehJe 20 MM (Pnc.F.2).

YctaHOBtTe 60KOBbIX yNOPoB TaKIM o6pa3OM, YTO6bl BCE 60KOBbIe yNOPb IIO BCEI PLOUaDN KONTAKTIPOBaIN C ONOPHOI pNactHNO MaunHbI. DBa 3aDHNX npOdoJIbHbIX yNopa CnyXaT B KaueCTBe CTONOpOB cIpKyJpHOI NIIbI B HApPabJeHH paCnIOBKn dIy oecneuehen ee 6e3onacHoi octaHOBKn. DaIee yCTaHOBtE YeTbIpe 3axmMbIe IaIKn (pnc. F.3).

YKA3AHHE: EcnPi pacctoHHe OTe CpeEnHbI NnHbHO rnoNoToHa Do BHeHrero KpaonOpHoi nPiNbI pyHoOnpKyIrpHoi nNbl60JIbe 128 MM, To npi MoHTaKe IcNoB3yOITc Da bIINHbIX 6OKOBx ynpa. CneNyTe yKa3aHm DaHHoro pyKOBOCTBaNO EKnIpyatauIM dJa MOHTaKa pyHbIX cPkyIrpHbIX nnC uipOKIMn ONOpHbIMn PInTAMn.

MOHTAKKJINHA

IomeTHe Ha cToI cMOHTnPOBaHHyU cNpKJyRHyU Nny, KaK nOKa3aHO Ha pucyHke (pnc. F.4). UcTaHOBtne KpeEnKbI cTeXeHb I KpeEnKbI BnHT, He 3aTnBAA nx. CdBnAte nx, KaK nOKa3aHO Ha pucyHke, Ha naHeu MaunHbI, NOKa He cTaHET BuDen Hn3 JnPaacnpHorO KInHa (pnc. F.5). BCTabBe TKNn npImepHo Ha 2 cm cbepx By n3 KpeEnKhoro cTeXeHn (pnc. F.6). NOBopaunBaIte KInn, NOKa OH He 6yDet paONaratbocr ToHNO NO CEHTpy No OTHOeHNIO K NOLOTHy DnCKOBOn NIIbl. 3aTnHtne KpeEnKbI BnHT (pnc. F.7).

BHIMAHNE! Ecnn noIOTHO nCKOBoi nnbl He yCTaHOBneHo NO ueHTpy KInHa, pyHyIO cIpKyIpaHyIO nnly Heo6xoIIMO BbIPOBHrTb 3aHOBO.

BHIMAHNE! UTo6bI yCTaHOBt bNaHeIb MaUHb Ha CTOn, Heo6XoIMO dEmOHtnPoBaTb paCnOpHbI KInH BmecTe C KpeNeKhbIM CTepxHem N KpeNeKhbIM BNHTOM.

Ocna6bTe KpeNexHbI BnHT n notraHnTe paCnOpHbI KInH BBepx. 3aTeM demoHTnpyTe KpeNexHbI CtepKeHb N KpeNexHbI BnHT (Pnc.F.8).

PeryIINPOBka 6e3oNacHO paccToHnM MeKdy KInHOM IIOLOTHOM dNCKOBON IIbIc NOMOUBy UCTAHOBQHORKaJIbpa YctaHOBNTpepyHyU cNaHeJbMOaunHbHa CTOL, KAK NOKa3aHO Ha PNCYHKe, u ydaJIte BknaIbIldIe JIeJI (pnc.F.9).HaJeHbTe NaHeJB MaunHbHa NepeDnI depXaTeJIb C 3axMMbIM KpeIeHMEM.3aTeM OHO pyKO BCTABBe TxB INBpope3II
IJIra 3axBaTaHa CToneuHnue (pnc.F.10).BBeIte NaHeJb MaunHb B na3 (pnc.F.11).3aTeM CHOBa BCTABBe BKnaDbIldIe JIeJI (pnc.F.12).YCTaHOBNTe KpeENKhBI cTepKebn KpeENKhBI BNHT, He 3aTARBAI INCIBaIte IN, KAK NOKa3aHO Ha PNCYHKe,
Ha NaHeJIM MaunHbI, NOKA He cTAHet BVdEHN PA3 DIAI PaCNOPHO R KLIHA BCTABBe KlinN PnIMePHo HA 2 cm CBepxBy B na3 KpeENKHO
CTepKHN. IOBopauHBaIte KInH, NOKA OH He 6yDet paCNOarabTCrTOHNO NO CEHTpy NO OTHOseHHIO K NOIoTHy DNCKOBON IIbl.
3aTaNTE KpeENKhBI BNHT (pnc.F.13).OcyueCTBHe Hc KInHE MOHTaX qAteTey, yka3aHHbx HA pncyHKe (pnc.F.14).Tyro 3aTaNITE
BnHT n RaKy C hakATKO, CoeHHHeBc E KInHOM, a BnHT n raKy C hakATKO, HaxOJaUNec CnepeDN KOpNyCa, coeHNITe, He
3aTaNBAIR (pnc.F.15).Teepb ocNAbTe 3axHMBO BNHT KpeENKHO cTepKHN (pnc.F.16).PiPeMeCTNe KInH BEPTUKaJIbHO BnIH3
K noIoTHy DNCKOBON IIbl (pnc.F.17).DBrAite KInH BnH Do Tex nop, NOKA No KpaHne Mepe Odn 3y6 NOIoTHa DNCKOBON IIbl
He ynpetcB Kopnyc yCTaHOBOUHOro KaJIbpa. 3aTaNITE nepeDHIIO raKy c HakaTkoi (pnc.F.18).PiocNe 3aTAYBaHNy BnHTa
CBHYTpEHMM WeCTNRpaHHNKOM MEXdy KInHOM IIOLOTHOM DNCKOBON IIbl yCTaHaBJIbAEcR MaKcMaJIbHOE 6e3oNaCHOe
pacToHnne 5 MM (pnc.F.19).3aTeM OTBNHTte yCTaHOBOUHBI KaJIb6p OT KInHa.

BHIMAHNE! PpOBepbTe eue pa3, yCTaHOBHeO JIN NOJIoTH OuPKyIaRHO NIIbI NO CEHTpy KJIIna H co6JIIOeHO JIN MaKcIMaJIbHoe 6e3oNaChOE paccToHHe 5 MM MeKdy KJIInOM I IOIoTHOM NIIbI (pnc. F.20). B IpOTnBHom cIyae 3aHOBO BbIpOBHraTe pyHyIO uPKyIaRHyIO NIIy.

BHIMAHNE! NpeD BbINOJIHeHMe IIO6bIX pa60T BcERda npOBepaIe, npOuHO JIN 3aTMybIKJIN H KpeJeKhbIe DeTaJI.

CToI rTOB K cTaunOHpHnObKe. IpoHTte DOnoHInTeJbHO yKa3aHnO C TaUNoHApHOM paCNINIBAHN C NOMOIO pyHou nPKyIpaHn Pnbl.

TapaHTna

Ybaxaembln nokynateJIb!

Bb npno6peHn BbcOKokauecTBHeHoe n3dene pnpmbI wolfcraft, pa6ota c KOTOpBM IOCTaBNT Bam yDobOBctBne. PpOdyKuiae wolfcraft COOTBeTCTByET BbcOKIM TexHnueckm CtaHapTam n nepei nocTyIeHNEM B npOdaJy npoxoJr dInTehbl nyTb pa3pa60kN u TectnpoBaHnA. PeryIaHoe TcTnPoBaHnE N KOHTpOJB BO Bpemc cepHOro npOn3BOJcTBA oBeCneUBAIOr TBicOKoe KaueCTBO npOduKuIN.

Cpok rapaHTn Ha npno6peTHeHb Bam npoTykT wolfcraft coctabIeT 10 let CO nHn NOKyKn npu ycNobn erO kcnnyataun ncklouHTeBHO B 6bITOBx cIeJX. FapaHTn paocptpaHreTc TOnbKO Ha HeoCTaTK CaMOro npedMeTa NOKyKN, Bb3BaHHbe IdeKekTAM MaepnaJa I npoN3BOcTBA. FapaHTn HE DeiCTBye T OTHoWeHN DeKekTOB HEOCTaKOB, BO3HKUHX BCJeDCTBHe HnpaBnBJHON 3KcNlyataun nn HeHaJIeKaUero TexHnueCKoro 06ClyXnBaHn npodykTa. Kpome 3Toro, rapaHTn He paocptpaHreTc Ha o6bUHb N3Hoc, a TaKke Ha DeKekTbI n HeoCTaTK, 3BeCThBi e NOKyNaTeJIIO npu 3akJIooHeHn DoROBopa KynII-npOdaXn.

TapaHTnHbIe Tpe6oBaHnMOryT npeBbAByTBcN CKJIOHTeJIbHO pN HAIINCH CteTa/KaccBOrO YeKa.

TapaHTn, npedocTabIeMaJ wolfcraft, He orpaHnUBaET Baun 3aKoHHbIe npaba Notpe6nteJI (npabo Tpe6oBaT bblOnHeHn IOROBopa, npabo Ha ODHocToPOHHN OTka3 OT BbIOJIHeHn DOROBopa, npabo Tpe6oBaT cHKeHn NOKynHOu CNeJeCTBne 0bHapyKeHHbIX HeOcTaKOB, npabo Tpe6oBaT Bo3MeueHn yuepe6a nn 3aTpA).

3aBJIeHne o COOTBeTCTBn TOBapa no EG - dIpeKInBe o Maunhax 2006/42/Ebponeckoro coo6ueCTBa, npJIOXeHne II A.

Hactoamm fmpa wlfcraft Gmb H D-56746 Kempenich, Wolff Str. 1, FepmaHn, 3aBnEeT, TTo 3TO npOyKT (MASTER cut 2500) OTBeueAeT dpeKtnBe 2006/42/Ebponeckoro coo6uectBa.

TUEV Rheinland LGA Products GmbH, Tillystrasse 2, 90431 Nurnberg. BM: 60087567 0001

COOTBeTCTBye TcIeIyUoIIM HOpMaM:DIN EN 60745-1,DIN EN 60745-2-5,DIN EN 60745-2-11

[e-mail]

ATR SBD MH MT

wolfcraft GmbH

Hauffgasse 3-5

1110 Wien

Tel. [phone] - 0

Fax [phone]

[e-mail]

F ⑧

wolfcraft s.a.r.l.

1 rue d'Aurion

F-93 113 Rosny sous Bois Cedex

F

Telephone [phone]

(correspondence in English)

E

wolfcraft Espana S.L.

Unipersonal

C/ Alcalde Angel Arroyo N^g 10, 2^ ,oficina 3

28904 Getafe (Madrid)

Telefono 0034-902197119

Fax [phone]

[e-mail]

HU

Dinocoop Kft.

Radvany utca 24

1118 Budapest XI.

Telefon: [phone]

Telefax: 0036-1-319-3066

[e-mail]

P

Aquemofer - Imp. Exp., Lda.

Estrada Nacional n°. 10 Km 107,08

Porto Alto

2135-407 SAMORA CORREIA

Tel.: [phone]

Fax.: [phone]

[e-mail]

PUA L LV EBY

P.H.U."ADA"

Tomasz Drazkiewicz

ul. Gorkiego 61/9

92-519 Lódz

Telefon: [phone]

Telefax: 0048-42-6725491

[e-mail]

1

Craftools Ltd.

12 Bayit Va Gan Str.

IL-59417 Bat Yam

Israel

[e-mail]

QR CY

Mavrofidopoulos S.A

Technical and Commercial Company

12, Papastratou & Asklipiou, Str.

18545 Piraeus

Telefon: [phone]

Telefax: 0030-2104137692

[e-mail]

HR

Manal d.o.o.

Velimira Skorpika 1 a

10090 Zagreb

Telefon: [phone]

Telefax: 00385-1-3466412

[e-mail]

RO MD

Steinel Distribution s.r.l.

Parc Industrial Metrom Str. Carpatilor nr. 60

RO-500269 Brasov

Telefon: [phone]

Telefax: [phone]

[e-mail]

AL

SLAV GmbH

Tzar Osvoboditel 331

9000 Varna

Telefon: [phone]

Telefax: 00 359-52-739073

[e-mail]

SRD MN

Mi-lumen d.o.o.

Dositejeva 176

36000 Kraljevo

Telefon: [phone]

Telefax: 00381-36-312867

[e-mail]

ALB

EIG Sh.p.k.

Frigoriferi Metalik

Rr. Siri Kora

4000 Tirana

Telefon: [phone]

Telefax: 00355 4 259501

[e-mail]

RUS

Centroinstrument

12351 Moskau

Molodogwardskaja Ul.61

Tel.: [phone]

Fax: [phone]

Centroinstrument-Ural

We reserve the right for technical modifications

POn3BODHTbOCTaBnT3aCo6oI npaBOHaTexHnueckne H3MeHeHn

wolfcraft GmbH

Wolff-Str. 1

D-56746 Kempenich

Germany

www.wolfcraft.com
