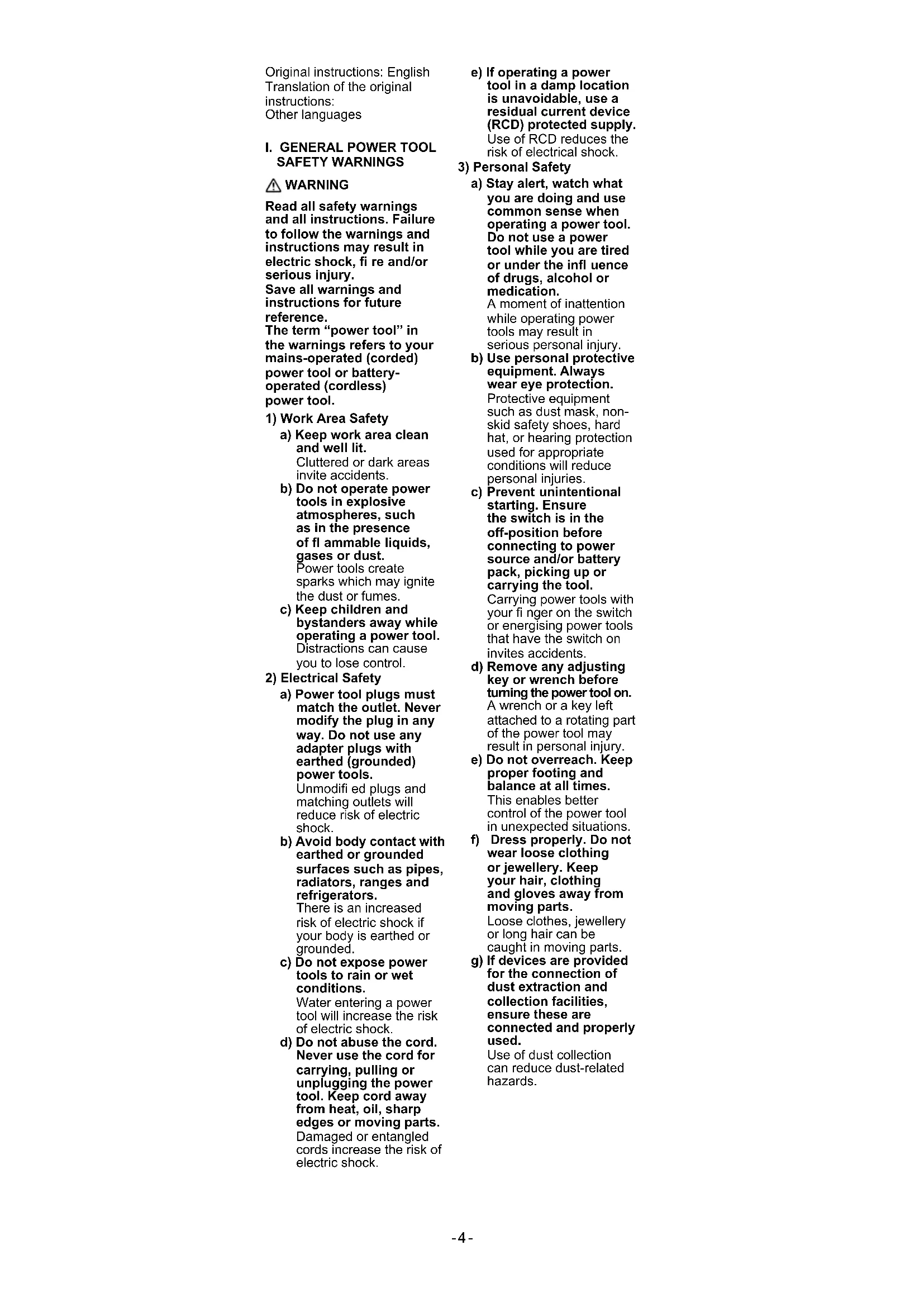

SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of fl ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodifi ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of RCD reduces the risk of electrical shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the infl uence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non- skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. EY37C3001EN.indd1EY37C3001EN.indd1 2017/02/0711:04:592017/02/0711:04:59- 5 -

4) Power Tool Use and Care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Hold power tools by insulated gripping surfaces when performing an operation where the power tool may contact hidden wiring. Contact with a “live” wire will make exposed metal parts of the tool “live” and shock the operator.

5) Battery Tool Use and Care

a) Recharge only with the charger specifi ed by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fi re when used with another battery pack. b) Use power tools only with specifi cally designated battery packs. Use of any other battery packs may create a risk of injury and fi re. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fi re. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, fl ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

a) Have your power tool serviced by a qualifi ed repair person using only identical replacement parts. This will ensure that the safety of power tool is maintained.

SAVE THESE INSTRUCTIONS This manual contains important safety instructions for battery charger and battery pack.

2. Before using battery

charger, read all instructions and cautionary markings on battery charger, battery pack.

3. The charger and battery

pack are specifi cally designed to work together. Do not attempt to charge any other cordless tool or battery pack with this charger. Do not attempt to charge the battery pack with any other charger.

4. Do not expose charger and

battery pack to rain or snow or use in damp location.

5. Use of an attachment not

recommended may result in a risk of fi re, electric shock, or injury to persons.

6. Do not abuse cord. Never

carry charger by cord or yank it to disconnect from outlet. Keep cord away from heat, oil and sharp edges.

7. An extension cord should

8. Do not operate charger

with damaged cord or plug; take it to a qualifi ed service personnel to replace them.

9. Do not operate charger if it

has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a qualifi ed service personnel.

10. Do not attempt to

disassemble charger and battery pack, take it to a qualifi ed service personnel when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fi re.

11. To reduce risk of electric

shock, unplug charger from outlet before attempting any maintenance or cleaning.

12. Make sure cord is located

so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.

13. Do not store battery pack

in locations where the temperature may reach or exceed 50 °C (112 °F) (such as metal tool shed, or a car in the summer), which can lead to deterioration of the storage battery.

14. Do not incinerate the

battery pack. It can be explode in a fi re.

15. The charger is designed

to operate on standard household electrical power only. Charge only on the voltage indicated on the nameplate. Do not attempt to use it on any other voltage !

16. Charge the battery pack in

a well ventilated place, do not cover the charger and battery pack with a cloth, etc., while charging.

17. Do not short the battery

pack. A battery short can cause a large current fl ow, over heating and burns.

18. The appliance is not

intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

19. Children should be

supervised to ensure that they do not play with the appliance.

1) To reduce risk of damaging

the electric plug and cord, pull by plug rather than cord when disconnecting charger.

2) Do not charge battery pack

when the temperature is BELOW 0 °C (32 °F) or ABOVE 40 °C (104 °F).

3) Do not abuse cord. Never

carry charger by cord or yank it to disconnect from outlet. Keep cord away from heat, oil and sharp edges.

4) NOTE: If the supply cord of

this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required.

5) The appliance is not a

portable luminaire for children usage.

6) Children shall not play with

the appliance. Symbol Meaning To reduce the risk of injury, user must read and understand instruction manual. For indoor use only. Do not look directly into the LED light beam. Do not touch front or back of LED panel during or immediately after use. WARNING LED lights create heat whilst in use. Heat may be trapped and cause an accident.

• Do not cover this unit with cloth or paper during use.

• Do not use any other battery pack besides as shown in the Specifi cations. EY37C3001EN.indd3EY37C3001EN.indd3 2017/02/0711:05:012017/02/0711:05:01- 7 - CAUTION

1. This unit is not waterproof.

• Do not use it in damp or wet locations.

• Do not wash it in water.

• Keep it in a safe, dry, and clean area when it is not in use.

3. Do not disassemble this

unit. Servicing should be performed by an authorized service center.

4. The light source contained

in this luminaire shall only be replaced by the manufacturer or his agent or a similar qualifi ed person.

5. Do not throw the battery

pack into a fi re. This can cause an explosion.

6. Do not look into the LED

light and do not allow the lights to contact the eyes directly. If the LED lights contact the eye continuously, it may result in injuries to the eyes. WARNING

• Do not use this unit to do work that may expose the battery pack to chips and/ or dust.

• Do not use this unit in places with corrosive gases.

• Do not use other than the Panasonic battery packs that are designed for use with this rechargeable tool.

• Do not carry or store the battery pack in the same container as nails or similar metal objects.

• Do not dispose of the battery pack in a fi re, or expose it to excessive heat.

• Do not drive the likes of nails into the battery pack, subject it to shocks, dismantle it, or attempt to modify it.

• Do not allow metal objects to touch the battery pack terminals.

• Do not charge the battery pack in a high- temperature location, such as next to a fi re or in direct sunlight. Otherwise, the battery may overheat, catch fi re, or explode.

• Never use other than the dedicated charger to charge the battery pack. Otherwise, the battery may leak, overheat, or explode.

• After removing the battery pack from the tool or the charger, always reattach the pack cover. Otherwise, the battery contacts could be shorted, leading to a risk of fi re.

• When the Battery pack Has Deteriorated, Replace It with a New One. Continued use of a damaged battery pack may result in heat generation, ignition or battery rupture.

Attaching or Removing Battery pack

1. Attaching: [Fig.1]

Align the highlighted marker points and attach battery pack.

• Slide the battery pack until it locks into position.

2. Removing: [Fig.2]

Push the button and slide the battery pack forward. CAUTION Do not use the 28.8V battery pack. It cannot be attached properly and may fall out.

Example of use [Fig.3]

1. Attach the battery pack to

2. Adjustment the handle and

LED light angle.: [Fig.4] CAUTION Do not open and close or rotate this unit for more than its range of motion.

3. Press the switch once to

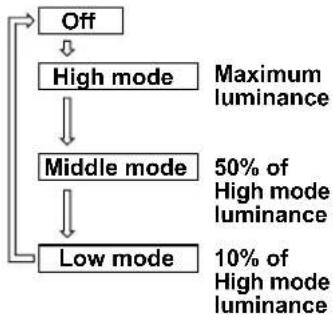

turn on LED light. Each times press the switch, the power turns from high to mid, from mid to low, from low to off. Off

Middle mode Low mode NOTE: To turn off the LED light immediately, hold down the switch for a while. Maximum luminance 50% of High mode luminance 10% of High mode luminance

• When in “Low mode”, the LED light does not dim further. It only blinks. (2) LED overheat prevention function When the temperature around the LED element becomes high, the LED light switches to “Low mode” to prevent the main unit from malfunctioning, or from shortening the LED element life. (3) Overheat prevention function When the battery pack temperature becomes high, the LED light switches to “Low mode” to prevent the battery pack from malfunctioning. How to use the hook Pull the hook out of the storage space in the handle.[Fig.5] WARNING Do not use the hook at a location where it cannot be fully locked in position.

• The unit could fall down and cause an injury. CAUTION When hanging at a high location, use a rope to secure the unit so that it will not fall down.

• The unit could fall down and cause an injury. Read the instruction manual of the charger to charge the battery pack, and how to handle battery pack. [Battery pack] For Appropriate Use of Battery Pack

• The rechargeable batteries have a limited life.

• For optimum battery life, store the Li-ion battery pack following use without charging it. For safe use

• The battery pack is designed to be installed by proceeding two steps for safety. Make sure the battery pack is installed properly to the main unit before use.

• If the battery pack is not connected fi rmly when the switch is switched on, the overheat warning function and over-discharge prevention function will be effectived that safety operation is not possible, and the main unit will not operate normally. Connect the battery pack into the unit of the tool until the red or yellow label disappears. (There should be no more than a 15 °C difference between the temperatures of the battery and the charging location.) [Battery charger] Charging CAUTION

1) If the temperature of

the battery pack falls approximately below −10 °C (14 °F), charging will automatically stop to prevent degradation of the battery.

2) The ambient temperature

range is between 0 °C (32 °F) and 40 °C (104 °F). If the battery pack is used when the battery temperature is below 0 °C (32 °F), the tool may fail to function properly.

3) Use the charger at

temperatures between 0 °C and 40°C, and charge the battery at a temperature similar to that of the battery itself.

4) When charging a cool

battery pack (below 0°C (32 °F)) in a warm place, leave the battery pack at the place and wait for more than one hour to warm up the battery to the level of the ambient temperature.

5) Cool down the charger

when charging more than two battery packs consecutively.

6) Do not insert your fi ngers

into contact hole, when holding charger or any other occasions.

7) To prevent the risk of fi re

or damage to the battery charger.

• Do not cover vent holes on the charger and the battery pack.

• Unplug the charger when not in use. NOTE: Your battery pack is not fully charged at the time of purchase. Be sure to charge the battery before use.

• To make any adjustments, changing accessory, or storing this unit, remove battery pack from this unit.

• To clean this unit, wipe with a dry, soft cloth. WARNING The battery pack must be removed from this unit before it is scrapped. EY37C3001EN.indd5EY37C3001EN.indd5 2016/12/2610:41:402016/12/2610:41:40- 9 -

• See the Specifi cation. Battery charger

• For inquiries please contact an authorized dealer. NOTE: Battery pack and charger are not included in this kit. Information for Users on Collection and Disposal of Old Equipment and used Batteries These symbols on the products, packaging, and/ or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2012/19/EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. [For business users in the European Union] If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. [Information on Disposal in other Countries outside the European Union] These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

VIII. SPECIFICATIONS

NOTE : Weight is indicated by 0.01 k

[Main unit] Model No. EY37C3 Voltage DC 14.4 V / DC18 V / DC 21.6 V Luminous fl ux 1500 lm Illuminance 3000 lx (Front, at a distance of 40 cm) Maximum projected area

Range of the mounting height

(main unit only) Battery pack Li-ion battery pack EY9L45 EY9L47 EY9L51 EY9L52 EY9L53 EY9L54 EY9L62 NOTE : This chart may include models that are not available in your area. Please refer to the latest general catalogue.

HINWEIS : Weight is indicated by 0.01 k

REMARQUE : Weight is indicated by 0.01 k
