USER MANUAL HM5107WH BRAUN

Illustration of a Bruan MultiMix 5 electric hand mixer with a stand mixer (no text or symbols on the device itself)

Type 4645

Deutsch 6
English 10
Français 14
Español 18
Português 22
Italiano 26
Nederlands 30
Dansk 34
Norsk 37
Svenska 40
Suomi 43
Polski 46
Český 50
Slovenský 54
Magyar 58
Hrvatski 62
Slovenski 66
Türkçe 70
Română (RO/MD) 73
Ελληνικά 77
Қазақша 81
Русский 85
Українська 90

De'Longhi Braun Household GmbH

BRAUN MultiMix 5 ① ② ③ ④ ⑤ ⑥a ⑦ ⑧ ⑨* ⑩* ⑪* *certain models only

	4...8°C
max.	500 g 500	g 500g5	500 g 1000	g600 g 7
Min.					5	5	4
	1-9	1-turbo 1	-turbo 1-turbo 5-turbo 1-turbo 1-turbo

B 1 2 2 1 on off

C 11 11a 11b 11c 11d

		Parmesan
	1cm	1cm
max.	300 g 2	00 g 200 g30 g			4x20 g	200 g	300 g350 g
sec.	15 20-25 5-820 5-8					12-15	15-22 20-25
	turbo turbo turbo			1	7	5	5+ turbo5 sec	5+ turbo5 sec

Illustration of a fuel pump with attached plug and plug connector, alongside two warning symbols: one showing a hand holding a cloth, the other a cross symbol (no text or labels)

Illustration of various electrical components including wires, meters, a cup, and a washing machine (no text or labels)

Illustration of a funnel, lid, and drain with no visible text or symbols

Deutsch

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy your new Braun appliance.

Before use

Please read instructions carefully and completely before using the appliance.

Caution

• The blades are very sharp! To avoid injuries, please handle blades with utmost care.
• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  • Children shall not play with the appliance.
• This appliance shall not be used by children.
• Children shall be kept away from the appliance and its mains cord.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Always switch off and unplug the appliance when it is left unattended and before

assembling, disassembling, cleaning and storing.

• This appliance is designed for household use only and for processing normal household quantities.
• Keep hands, hair, clothing, as well as spatulas and other utensils away from whisks and dough hooks operation to prevent personal injury. Do not contact moving parts during operation.
• Before plugging into a socket, check whether your voltage corresponds with the voltage printed on the bottom of the appliance.
• Please clean all parts before first use or as required, following the instructions in the Care and Cleaning section.

Parts an Accessories

1 Speed selector
2 Ejection button
3 On/off switch (I = on, 0 = off)
4 Motor part
5 Outlets for whisks / dough hooks
6 Outlet for Hand blender attachment / chopper attachment a Slider
7 Dough hooks
8 Whisks
9 Hand blender attachment
10 Beaker
11 Chopper attachment
a Chopper lid (with gear box)
b Blade
c Chopper bowl
d Anti-slip ring

Unpacking

Take the unit out of the carton. Remove all pieces of the packing. Remove any possibly extant labels on the unit (do not remove the rating plate).

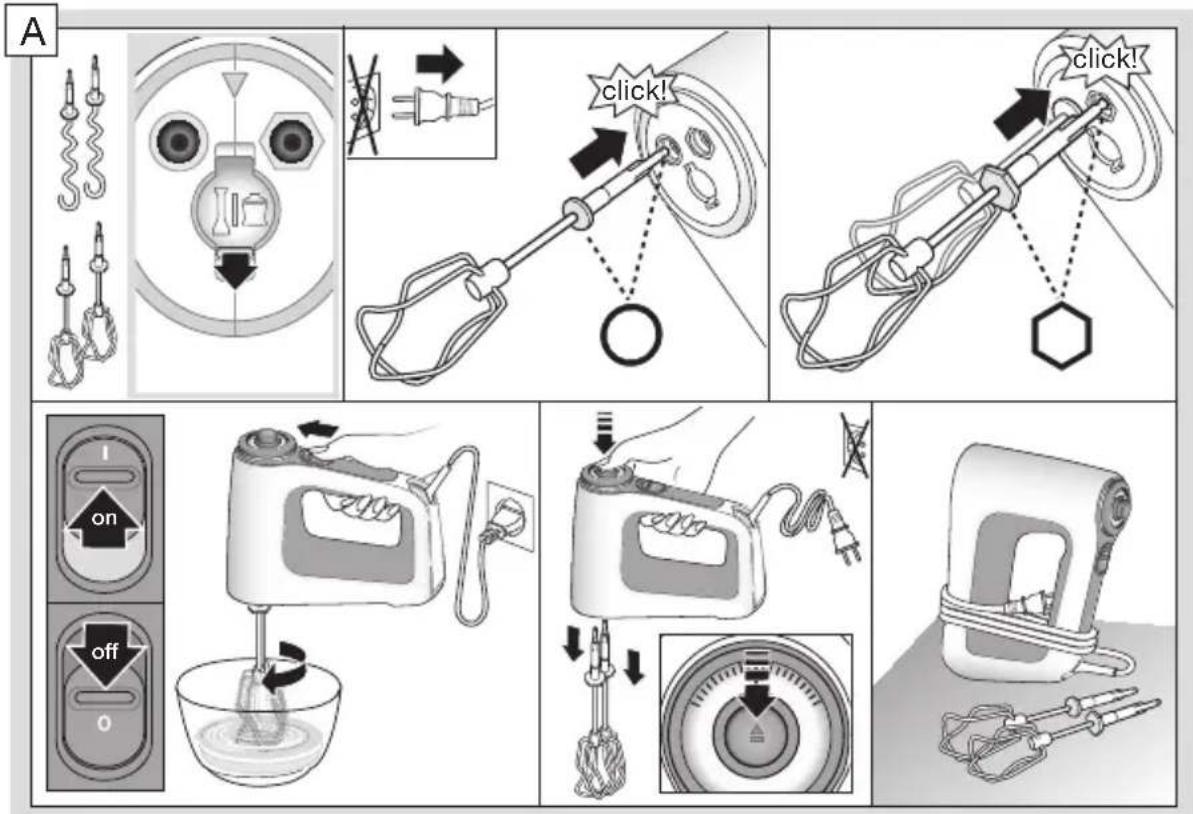

Using the Hand Mixer (A)

The dough hooks are perfectly suited for kneading yeast dough, pasta dough, pastries, as well as for mixing heavy minced meat doughs. Use the whisks for mixing cake mixtures, sponges and mashed potatoes, as well as for whipping cream (minimum 100 ml cream), egg whites and creamy ingredients.

Refer to the Processing Guide A for maximum quantities, recommended times and speeds.

Assembly and Operation

• Position the slider (6a) as illustrated and insert the dough hooks (7) or whisks (8).
• Put the ingredients into a bowl.
• Depending on the application, select speed (1 ... turbo) by turning the speed selector (1). To avoid splashing always start with a low speed setting, and then slowly increase the speed while operating.
• Slide the on/off switch (3) forth and back to turn the appliance on and off.
• After use, unplug the appliance and eject the dough hooks or whisks by pressing the ejection button (2).

Tips for best results

• To obtain optimum results when making cake mixtures etc. all ingredients should have the same temperature. Butter, eggs, etc. should be removed from the refrigerator some time before they are being used.
• Whipped cream has more volume, if the cream is well chilled before being whipped.
• Mashed potatoes will become more creamy, if all ingredients are being used as hot as possible (e.g. potatoes immediately after boiling).

Recipe Example: Cake mixture

200 g butter or margarine

200 g sugar

7 g vanilla sugar

4 eggs

500 g plain flour

1 pinch salt
15 g baking powder
250 ml milk

- Put butter or margarine, sugar and vanilla sugar into the bowl. Start slowly and speed up to turbo mixing.

• Add eggs and continue mixing until a creamy consistency is reached. Start slowly and speed up to turbo mixing.
• Add the rest of the ingredients and mix from medium to maximum speed until everything is even.

Recipe Example: Yeast dough

500 g plain flour

7 g dried yeast

80 g sugar

1 egg

1 pinch salt

250 ml lukewarm milk

100 g butter or Margarine

• Put flour and dried yeast into the bowl. Add the rest of the ingredients.
• Choose medium speed and knead to a smooth dough.

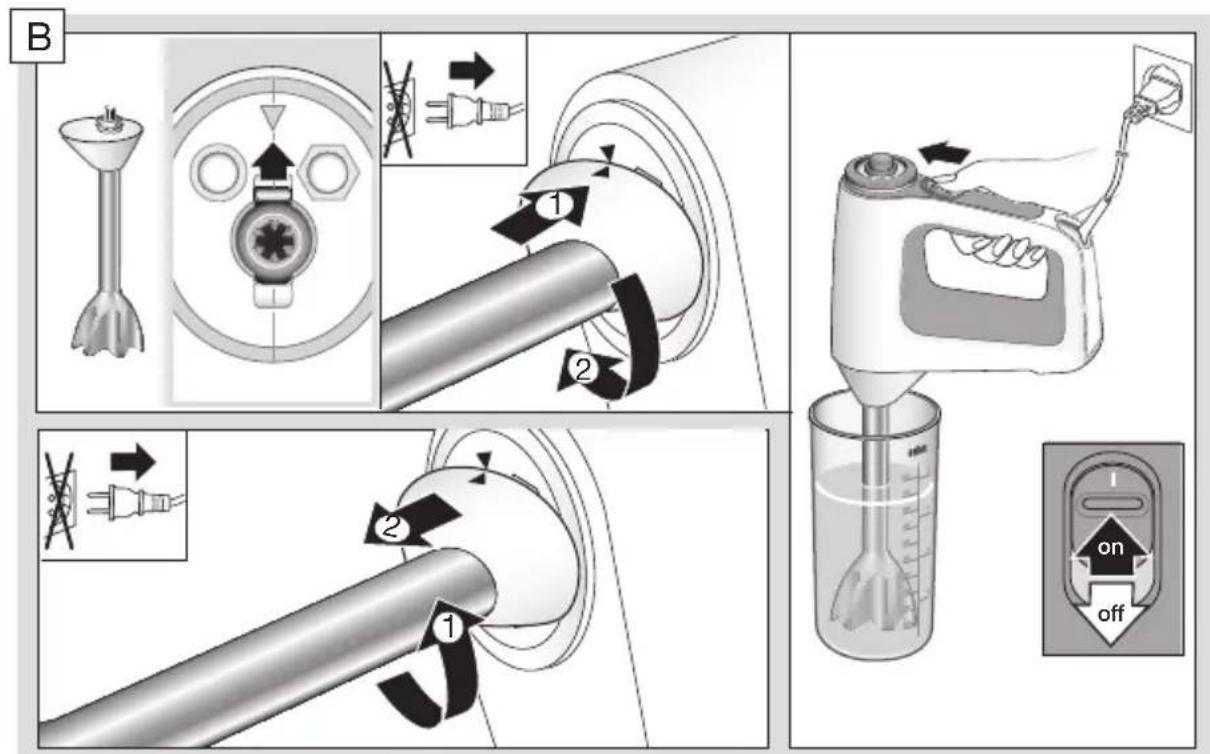

Hand Blender Attachment (B)

The hand blender attachment blends and mixes fast and easily. Use it to make sauces, soups, smoothies, mayonnaise, dietary and baby food.

Assembly and Operation

• Position the slider (6a) as illustrated. Insert the hand blender attachment (9) into the opening so that the marking on the hand blender attachment aligns with the marking on the motor part. Then turn the hand blender attachment 90^ clockwise, until it locks.
• Insert the hand blender attachment vertically into the vessel, before switching on the appliance. The hand blender may not be immersed more than 2/3 of the shaft.
• For fastest and finest blending results use the turbo speed setting.
• Slide the on/off switch to the front and hold it in the position as long as you operate the hand blender attachment.
• When blending directly in the saucepan while cooking, remove the pan from the stove first to protect your hand blender attachment from overheating.
• To turn off the appliance, release the on/off switch, before taking the shaft out of the vessel, then unplug.
• To remove the hand blender attachment turn it 90^ anti-clockwise and pull it off.

Caution

- The beaker (10) may be used only with the hand blender attachment for

processing smaller quantities. It should not be used with the whisks.

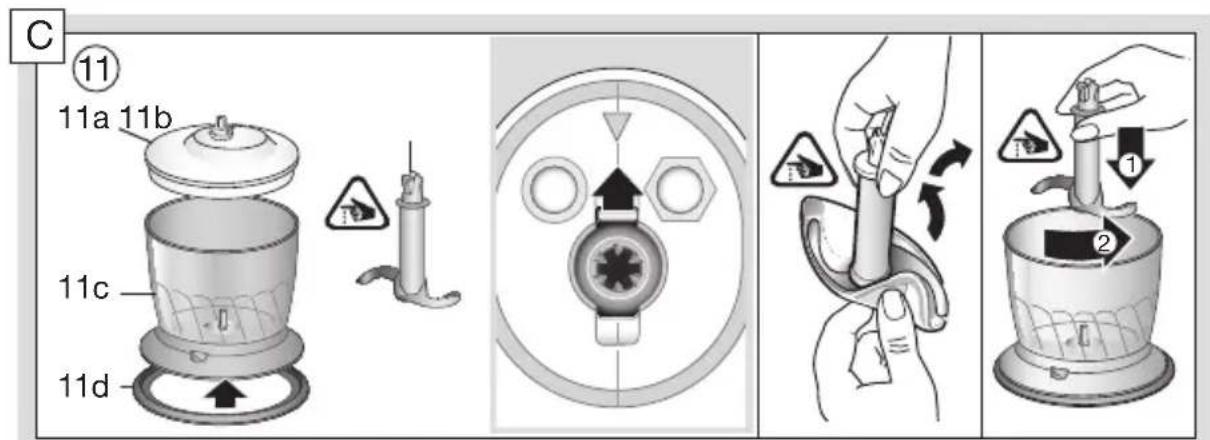

Chopper Attachment (C)

The chopper attachment is perfectly suited for chopping meat, cheese, onions, herbs, garlic, carrots, walnuts, hazelnuts, almonds etc.

Refer to the Processing Guide C for maximum quantities, recommended times and speeds.

Before Use

• When chopping cooked food, allow it to cool down for a few minutes before putting it into the chopper bowl.
• Pre-cut meat, cheese, onions, garlic, carrots (see table on page 5), remove stalks from herbs, un-shell nuts and remove bones, tendons and gristle from meat.
• Always make sure that the anti-slip ring (11d) is attached to the bowl.

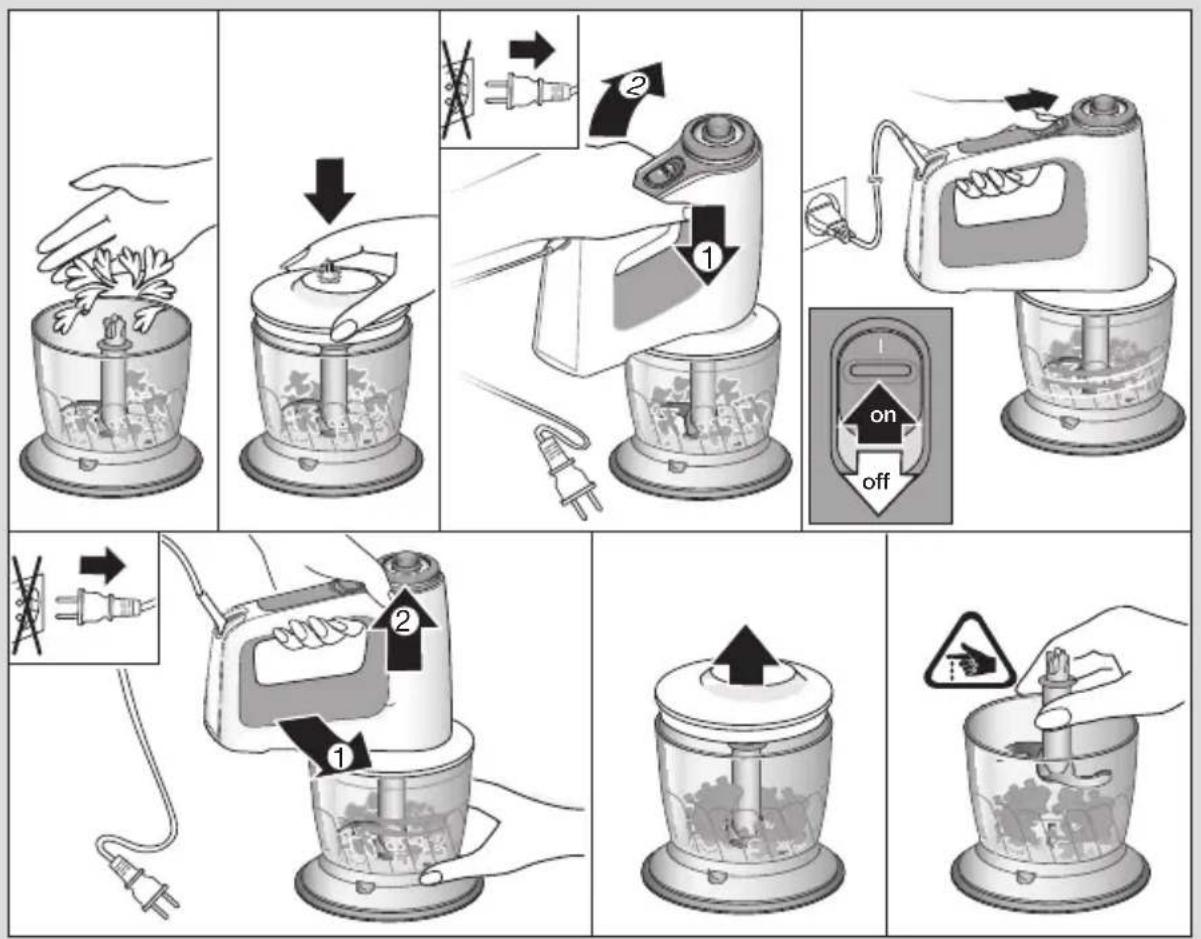

Assembly and Operation

• Carefully remove the plastic cover from the blade (11b). The blade is very sharp! Always hold it by the upper plastic part.
• Place the blade on the center pin of the chopper bowl. Press it down and give it a turn so it locks into place.
• Fill the chopper with food and put on the lid (11a)
• Position the slider (6a) as illustrated and insert the pin of the chopper lid into it, so that the marking on the chopper lid aligns with the marking on the motor part. Then turn the motor part 90^ clockwise, until it locks.
• Slide the on/off switch to the front and hold it in the on position as long as you operate your chopper attachment.
• Turn the appliance off by releasing the on/off switch and unplug it, before you start disassembling.
• To remove the motor part hold the chopper attachment with one hand, turn the motor part 90^ anti-clockwise and lift it off.
• Remove the blade insert with a slight turn, then pull it off before you remove the processed food from the chopper bowl.

Caution

- Do not chop extremely hard food, such as ice cubes, nutmeg, coffee beans or grains.

Recipe Example: Vanilla-Honey-Prunes (as a pancake stuffing or spread):

250 g Prunes

350 g Creamy honey

• Fill the chopper bowl with prunes and pour creamy honey over them.
• Let it rest for 24 hours in refrigerator at 3^ .
• Add 200 ml water (vanilla-flavoured).
• Chop 1,5 seconds at Turbo speed.

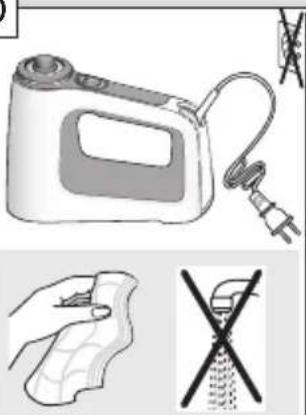

Care and Cleaning (D)

• Unplug the appliance before cleaning.
• The motor part (4) should be cleaned with a damp cloth only. Do not immerse it in water or hold it under running water.
• The hand blender attachment (9) and the chopper lid (11a) can only be cleaned under running water. Do not immerse them in water.

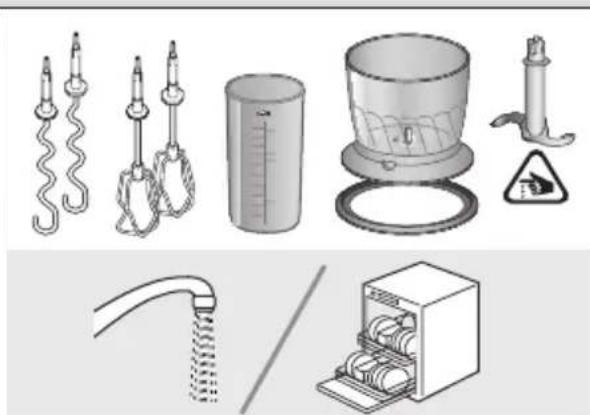

• All other parts can be cleaned in the dishwasher. Do not use abrasive cleaners that could scratch the surface.
• When processing foods with high pigment content (e.g. carrots), the accessories may become discolored. Wipe these parts with vegetable oil before cleaning them.

Both the design specifications and these user instructions are subject to change without notice.

Please do not dispose of the product in the household waste at the end of its useful life.

Materials and accessories coming into contact with food conform to EEC regulation 1935/2004.

For UK Only

Guarantee Information

All Braun Household products carry a minimum guarantee period of two years. The rights and benefits under this guarantee are additional to your statutory rights which are not affected.

Please keep your receipt as this will form the basis of your guarantee.

In the unlikely event of a breakdown you have access to professional help from our team simply by calling:

02392 392333

For service in the Republic of Ireland please call:

012475471

Braun Household undertakes within the specified period to repair or replace any part of the appliance, free of charge (with the exception of any glass or porcelain-ware incorporated in the product) found to be defective provided that;

• We are promptly informed of the defect.
• The product is used and maintained in accordance with the User Instructions.
• The appliance has not been altered in any way or subjected to misuse or repair by a person other than an authorised service agent for Braun Household.
• No rights are given under this guarantee to a person acquiring the appliance second hand or for commercial or communal use.
• Any repaired or replaced appliance will be guaranteed on these terms for the unexpired portion of the guarantee.
• The need for repair has not been caused by insufficient aftercare or cleaning: or damage caused by the chemical or electrochemical effects of water.

Under no circumstances shall the application of this guarantee give rise to the complete replacement of the appliance or entitle the consumer to damages.

Braun Household, New Lane, Havant, Hampshire PO9 2NH

www.braunhousehold.co.uk

Thank You for choosing Braun. We are confident that you will get excellent service from this product.

TO IMPROVE YOUR EXPERIENCE

Register now at www.braunhousehold.co.uk

By registering we may send you from time to time details on exclusive offers, promotions, recipes and inside tips.
