ERGB86 - Beard trimmer PANASONIC - Free user manual and instructions

Product type	Beard trimmer
Brand	Panasonic
Model	ER-GB86
Power supply	Rechargeable (built-in Ni-MH battery) and mains operation (AC adapter RE9-86)
Voltage	Automatic conversion (see adapter plate)
Charging time	Approx. 1 hour
Runtime	Approx. 50 minutes (dry use, 20-30°C)
Blades	Fixed blade and moving blade in steel. Replacement part number: WER9620
Cutting height adjustment	From 1 mm to 30 mm with 3 combs (A: 1-10 mm, B: 11-20 mm, C: 21-30 mm) + fine adjustment with dial
Included accessories	Combs A, B, C, close shave attachment (model ER-GB96), cleaning brush, oil, travel pouch
Usage	Dry use only (do not use with foam or wet beard)
Cleaning	Washable under water (unplug before), brushing, lubrication after each use
Recommended lubricant	Panasonic WES003P
Blade lifespan	Approx. 3 years (depending on frequency of use)
Battery lifespan	Approx. 3 years (monthly charge)
Safety	Automatic shut-off in case of overload, use by children >8 years under supervision, do not immerse adapter
Charging temperature	0°C to 35°C
Weight	Approx. 200 g (estimated)
Dimensions	Approx. 18 x 5 x 4 cm (estimated)
Warranty	2 years (according to retailer)
Country of manufacture	Japan (Panasonic brand)

Frequently Asked Questions - ERGB86 PANASONIC

How long does it take to charge the Panasonic ER-GB86 trimmer?

Full charging takes about 1 hour. A light indicator shows when charging is complete.

What is the runtime of the trimmer after a full charge?

The runtime is approximately 50 minutes in dry use at room temperature (20-30°C).

Can I use the trimmer while charging?

Yes, you can use the trimmer plugged into the mains (AC operation) even if the battery is low, but it is recommended to charge for at least 1 minute first.

How to clean the trimmer blade?

After each use, remove the blade and rinse it under running water. Use the provided brush to remove hairs. Dry thoroughly before reassembling. Apply one drop of oil to the blades before and after use.

When should the blade be replaced?

Replace the blade if cutting efficiency decreases despite regular maintenance. The estimated lifespan is about 3 years for 5 minutes of use, 10 times per month. The replacement blade part number is WER9620.

Is the trimmer washable under water?

Yes, the main body and blade can be rinsed under running water. Make sure to unplug the adapter before cleaning. Do not immerse the adapter.

What to do if the trimmer doesn't charge?

Check that the appliance plug is fully inserted and the adapter is plugged in. Ensure the ambient temperature is between 0°C and 35°C. If the indicator does not light up, contact an authorized service center.

Can I use the trimmer with shaving foam?

No, the trimmer is designed for dry use only. Using it with foam or a wet beard can reduce performance and clog the blades.

How to adjust the cutting height?

Attach the desired comb (A: 1-10 mm, B: 11-20 mm, C: 21-30 mm) then turn the dial to fine-tune the height. The marks on the comb indicate the approximate height.

Where can I buy spare parts?

Spare parts (blade WER9620, lubricant WES003P) are available from your retailer or an authorized Panasonic service center.

USER MANUAL ERGB86 PANASONIC

Operating Instructions

(Household) AC/Rechargeable Beard Trimmer

Model No. ER-GB96/ER-GB86

English 3

Deutsch 19

Français 37

Italiano 55

Nederlands 71

Espanol 87

Dansk 103

Portugués 119

Norsk 135

Svenska 151

Suomi 167

Polski 183

Cesky 199

Slovensky 215

Magyar 231

Româna 249

Türkce 265

Panasonic

Operating Instructions

(Household) AC/Rechargeable Beard Trimmer

Model No. ER-GB96/ER-GB86

Contents

Safety precautions 6

Intended use 9

Parts identification 10

Charging 10

How to use. 11

Cleaning 14

Troubleshooting. 16

Blade life. 17

Battery life. 17

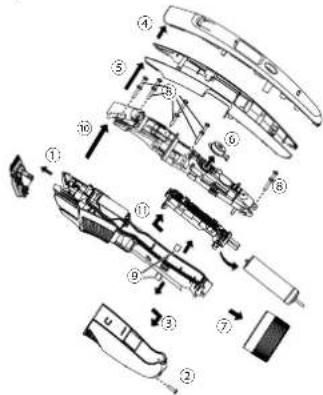

Removing the built-in rechargeable battery....17

Specifications 18

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

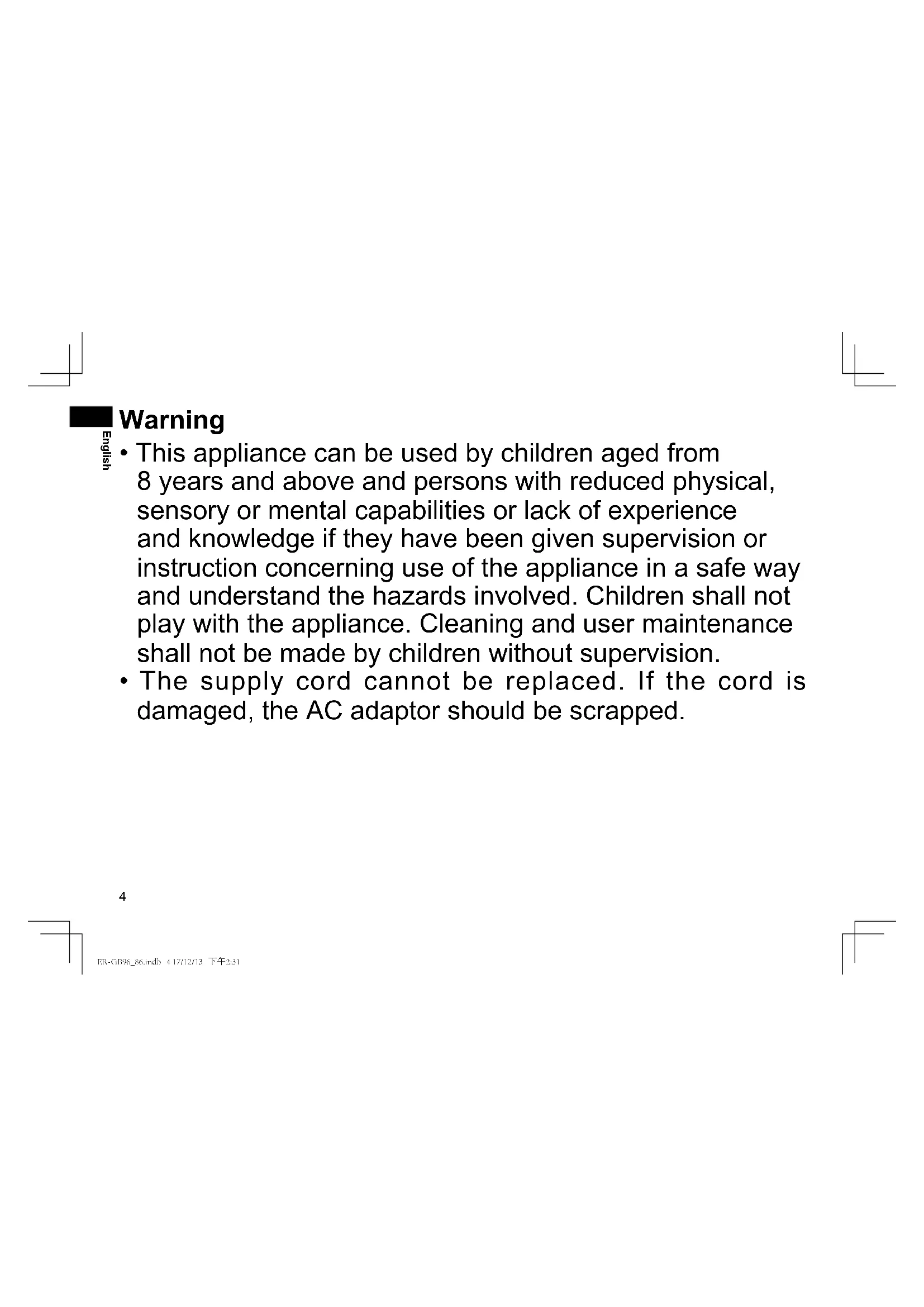

Warning

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• The supply cord cannot be replaced. If the cord is damaged, the AC adaptor should be scrapped.

• The following symbol means suitable for cleaning under an open water tap.

• Do not clean with water when the AC adaptor is attached.
• Do not use anything other than the supplied AC adaptor for this product.

Also, do not use any other product with the supplied AC adaptor. (See page 10.)

• The following symbol indicates that a specific detachable power supply unit is required for connecting the electrical appliance to the supply mains. The type reference of power supply unit is marked near the symbol.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, and damage to property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

DANGER

Denotes a potential hazard that will result in serious injury or death.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe types of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

WARNING

This product

This product has a built-in rechargeable battery. Do not throw into flame or heat.

• Doing so may cause fluid leak, overheating, or explosion.

Do not modify or repair.

• Doing so may cause fire, electric shock, or injury.

• Contact an authorized service centre for repair (battery change, etc.).

Never disassemble except when disposing of the product.

• Doing so may cause fire, electric shock, or injury.

In case of an abnormality or malfunction

Immediately stop using and remove the adaptor if there is an abnormality or malfunction.

• Failure to do so may cause fire, electric shock, or injury.

• The main unit or AC adaptor is deformed or abnormally hot.

• The main unit or AC adaptor smells of burning.

• There is abnormal sound during use or charging of the main unit or AC adaptor.

• Immediately request inspection or repair at an authorized service centre.

Power supply

Do not connect or disconnect the adaptor to a household outlet with a wet hand.

• Doing so may cause electric shock or injury.

WARNING

Do not immerse the AC adaptor in water or wash it with water.

Do not place the AC adaptor over or near a water-filled sink or bathtub.

Never use the appliance if the AC adaptor is damaged or if the power plug fits loosely in a household outlet.

Do not damage or modify, or forcefully bend, pull, or twist the cord.

Also, do not place anything heavy on or pinch the cord.

• Doing so may cause electric shock or fire due to a short circuit.

Do not use in a way exceeding the rating of the household outlet or the wiring.

• Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the AC adaptor.

Fully insert the adaptor.

• Failure to do so may cause fire or electric shock.

Always unplug the adaptor from the household outlet when cleaning.

• Failure to do so may cause electric shock or injury.

Regularly clean the power plug and the appliance plug to prevent dust from accumulating.

• Failure to do so may cause fire due to insulation failure caused by humidity.

Disconnect the adaptor and wipe with a dry cloth.

eventing accidents

Do not store within the reach of children or infants. Do not let them use it.

• Putting the blade, the cleaning brush and/or oil container in the mouth may cause accidents or injury.

If the oil is consumed accidentally, do not induce vomiting. Please drink a large amount of water, and contact a physician.

If the oil comes into contact with eyes, immediately wash thoroughly with running water, and contact a physician.

• Failure to do so may result in physical problems.

CAUTION

Detecting the skin

Do not press the blade strongly against your skin or lips.

Do not use this product for any purpose other than trimming beard.

Do not directly apply the blades on ears or rough skin (such as swellings, injuries and blemishes).

• Doing so may cause injury to ears or uneven skin.

CAUTION

Check that the blades are not damaged or deformed before use.

• Failure to do so may cause skin injury.

Note the following precautions

Do not allow metal objects or trash to adhere to the power plug or the appliance plug.

• Doing so may cause electric shock or fire due to a short circuit.

Do not drop it or expose it to shock.

• Doing so may cause injury.

Do not wrap the cord around the adaptor when storing.

• Doing so may cause the wire in the cord to break with the load, and may cause fire due to short circuit.

Disconnect the adaptor from the household outlet when not using.

• Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

Disconnect the adaptor or the appliance plug by holding onto the adaptor or the appliance plug instead of the cord.

• Failure to do so may cause electric shock or injury.

Handling of the removed battery when disposing

DANGER

• The rechargeable battery is exclusively for use with this appliance. Do not use the battery with other products.
• Do not charge the battery after it has been removed from the product.
• Do not throw into fire or apply heat.
• Do not solder, disassemble, or modify the battery.
• Do not let the positive and negative terminals of the battery get in contact with each other through metallic objects.
• Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins.
• Never peel off the tube.
• Doing so may cause fluid leak, overheating, or explosion.

The battery contains alkaline fluid. If it comes in contact with the eyes, do not rub the eyes, and thoroughly rinse with clean water, such as tap water.

• Failure to do so may cause loss of vision. Consult a physician immediately.

WARNING

After removing the rechargeable battery, do not keep it within reach of children and infants.

• The battery will harm the body if accidentally swallowed.

If this happens, consult a physician immediately.

The battery contains alkaline fluid. If it comes in contact with the skin or clothes, rinse off with clean water, such as tap water.

• Failure to do so may cause skin injury.

Intended use

• Be sure to mount the attachment after each use. Otherwise, infants may remove the blade and accidentally swallow it, or the blade may be deformed.
• Apply the oil to the blade before and after each use. (See page 15.)

Failure to apply the oil may cause the following problems.
- The appliance has become blunt.
- Shorter operating time.
- Louder sound.
The appliance may become warm during operation and/or charging. This is normal.
Clean the housing only with a soft cloth slightly dampened with tap water or soapy tap water. Do not use thinner, benzine, alcohol or other chemicals.
Before using an attachment, check that it has been installed correctly. Failure to do so may cause hair to be cut too short.
Store the appliance in a place with low humidity after use.
The appliance should not be used on animals.

Parts identification

A Main body

① Water inlet
② Trimming height indication mark
③ Dial (Height adjustment control)
④ Power switch
⑤ Charge status lamp
⑥ Appliance socket

Blade

⑦ Cleaning lever
⑧ Movingblade
⑨ Stationaryblade
念 Mounting hook

Comb attachment[1] (1 mm to 10 mm)
Comb attachment [B] (11 mm to 20 mm)
Comb attachment[2] (21 mm to 30 mm)

Detail trimming

attachment ER-GB96

AC adaptor (RE9-86)

(The shape of the power plug differs depending on the area.)

Adaptor
⑫ Power plug
③ Cord
④ Appliance plug

Accessories

Cleaning brush
Oil
Travel pouch

Charging

• Turn the appliance off.

1 Connect the appliance plug to the appliance socket.
2 Plug in the adaptor into a household outlet.

• Check that the charge status lamp glows.
• Charging is completed after approx. 1 hour.

3 Disconnect the adaptor when the charge status lamp stops glowing.

(for safety and to reduce energy usage)

• If you remove and reinsert the appliance plug while charging, the charge status lamp glows and turns off after approximately 5 seconds.

Notes

To keep charging the battery will not affect battery performance.
- If there is noise from the radio or other sources while using or charging the product, move to a different location to use the product.
- When the appliance is not used for 6 months or more, the battery will weaken (leak battery fluid, etc.). Fully charge the battery once every 6 months.
- You can charge the battery before it is completely discharged. However, it is recommended to charge when the battery is completely discharged. The battery life depends strongly on factors such as how it is used and stored.

Recommended ambient temperature for charging is 0 - 35^ Battery performance may decrease or charging time changes under extremely low or high temperatures.
- A full charge supplies enough power for approximately 50 minutes of use. (Based on dry using at 20 - 30^ .) The operating time may differ depending on the frequency of use.
- When charging the appliance for the first time or when it has not been in use for more than 6 months, the charging time may change or the charge status lamp may not glow for a few minutes or the operating time may shorten. Please charge it for more than 8 hours in such cases.

AC operation

If you connect the AC adaptor to the appliance in the same way as for charging, and turn on the power, you can use it.

• If the remaining battery is too low, the blades may move slowly or stop, even with the AC operation. In this case, charge the battery for 1 minute or more.
• The battery will be discharged, even with the AC operation.

How to use

• Turn the appliance off.
• Apply the oil to the blade before and after each use. (See page 15.)
• Do not use with shaving foam applied or when the beard is wet. A wet beard may stick to the skin or bunch up, making it difficult to trim.
  Before trimming, comb your moustache with a comb.
• The appliance may not operate in an ambient temperature lower than approximately 0^ C .

1 Mount the desired attachment and adjust the trimming height as needed. (See page 12.)
It can also be used without the attachment.
(Trimming height: approx. 0.5mm )
2 Press the power switch to turn on the power.

Removing and mounting the attachments

Take care not to injure hands, etc., with the blade when removing or mounting the attachment.

Mounting the attachment Mount the attachment to the main body until it clicks.
If the attachment is not attached correctly, it may shift and end up cutting too much during use.

Removing the attachment

Hold the main body securely and remove the attachment from the main body.

Comb attachment

Actual hair length will be a little longer than the height you set. Setting of 10.5 mm or 20.5 mm is unavailable.
- Hair trimmings may collect inside the attachment when a large volume of beard is cut, so discard hair trimmings after each use.

How to use the comb attachment

Mount the desired attachment and turn the dial and adjust the trimming height indication mark to the desired height.

Comb attachment [A]

Indicator 1·2	3	4·5·
Trimming height (mm) (estimate)	1	1.5 2	2.5	3 3	5 4	4.6	5 5	5

Indicator 6 - 7	8	9 - 10
Trimming height (mm) (estimate)	6	6.5 7	7.5	8.8	5 9	9.5	10

Comb attachment [B]

Indicator 11·12	13·14	15·
Trimming height (mm) (estimate)	11	11.5	12	12.5	13	13.5	14	14.5	15	15.5

Indicator 16	17	18	19	20
Trimming height (mm) (estimate)	16	16.5	17	17.5	18	18.5	19	19.5

Comb attachment [g]

Indicator 21	22	23	24	25
Trimming height (mm) (estimate)	21	21.5	22	22.5	23	23.5	24	24.5	25

Indicator 26	27	28	29	30
Trimming height (mm) (estimate)	26	26.5	27	27.5	28	28.5	29	29.5

• Trimming to an even length
• Holding the appliance with the power switch facing outwards, trim by bringing the blade in contact with the skin and moving the appliance against the flow of the beard.

Detail trimming attachment ER-GB96

• The trimming height cannot be adjusted.
  How to use the detail trimming attachment

Slide the detail trimming attachment to switch the position of the blade to be exposed depending on the location to cut.

Trim the beard in tight sections or to detailed form

Move the blade along the skin to trim.

Without the attachment

(Trimming height: approx. 0.5mm )

The appliance cannot trim hair to lengths less than 0.5mm

Trimming the downy hair

Holding the appliance with the power switch facing outwards, trim by bringing the blade in contact with the skin.

Design precise lines

1 Place the blade at a right angle on the edge of where you want to make a precise line.
2 Move the blade away and down from the area you want to leave, and cut the remaining beard.
Above and below lips

Holding the appliance with the power switch at the bottom, cut across a line with the blade at a 90^ angle to the skin.

Full beard
Holding the appliance with the power switch at the bottom, and keeping the blade at a 90^ angle to the direction of the hairs, trim and shape your beard as desired.
Ends of moustache

Holding the appliance with the power switch facing outside, trim gradually from the ends by bringing the blade in contact with the skin.

Cleaning

• Clean the main body, blade and the attachment after each use. (If not cleaned, the motion will become poor and the sharpness will worsen.)
• Turn the appliance off.
• Remove the main body from the AC adaptor.

With water

To remove light dirt To ren

1. Remove the attachment and turn the appliance on.
2. Run water down the water inlet at the front of the main body, rinse thoroughly for approximately 20 seconds, and then turn the appliance off.

move heavy dirt

1. Remove the attachment and blade.
2. Clean the appliance, the blade and the attachments with running water.

• Be careful not to hit the main body on the sink or any other object while draining the water. Failure to do so may cause malfunction.

• Rinse with water and shake up and down several times to remove the water.

• Wipe off the water with a towel and let it dry naturally.

• It will dry faster with the blade removed.
• Apply the oil to the blade after drying. (See this page.)
• Attach the attachment and blade to the appliance.

With the brush

1. Remove the attachment and blade.
2. Brush off any hair trimmings from the main body and from around the blade.

1. Brush any hair trimmings out from between the stationary blade and the moving blade while pressing down the cleaning lever to raise the moving blade.
2. Apply the oil to the blade. (See this page.)
3. Attach the attachment and blade to the appliance.

Lubrication

• Apply the oil to the blade before and after each use.

1 Remove the blade. (See page 16.)
Apply a drop of the oil to each indicated point.
3 Attach the blade to the main body, turn on the power and allow to run for approximately 5 seconds.

Replacement parts

Replacement part is available at your dealer or Service Centre.

Replacement part for ER-GB96/ER-GB86	Blade WER9620
	Lubrication oil WES003P

• Do not use any blade other than the one dedicated as it may cause defect in performance.
  We recommend Panasonic lubrication oil WES003P.

Removing the blade

Hold the main body with the switch facing upward and push the blade with your thumb while catching the blade in your other hand.

Remounting the blade

Fit the mounting hook (B) into the blade mounting (A) on the appliance and then push in until you hear a click.

Troubleshooting

Problem Action

The appliance has become blunt.

The operating time is short.

The appliance stopped working.

The appliance cannot be charged.

Until problems are solved, please follow each procedure as follows:

1. Charge the appliance. (See page 10.)
2. Clean the blade and apply oil. (See pages 14 and 15.)
3. Replace the blade. (See this page.)
4. Have the battery replaced by an authorized service centre.

Charge the battery for approximately 8 hours

continuously to rejuvenate it. If few uses remain even after

charging, the battery has reached the end of its life. (Fluid may be leaking due to degradation at the end of battery life.)
Contact an authorized service centre for repair.
Insert the appliance plug into the main body firmly and make sure the charge status lamp glows.
Charge within the recommended charging temperature of 0^ to 35^ .

Problem Action

Makes a loud sound.

Apply oil. (See pag
Confirm that the blade is properly attached.

If the problems still cannot be solved, contact the store where you purchased the unit or a service centre authorized by Panasonic for repair.

Blade life

Blade life varies according to the frequency and period of use of the appliance.

For example, the blade life is approximately 3 years when using the appliance for 5 minutes 10 times a month. Replace the blades if cutting efficiency reduces substantially despite proper maintenance.

Battery life

Battery life will vary according to the frequency and length of use. If the battery is charged once a month, the service life will be approximately 3 years.

If the operating time is significantly shorter even after a full charge, the battery has reached the end of its life.

Removing the built-in rechargeable battery

Remove the built-in rechargeable battery before disposing of the appliance.

The battery must be disposed of safely.

Please make sure that the battery is disposed of at an officially designated location if there is one.

This figure must only be used when disposing of the appliance, and must not be used to repair it. If you dismantle the appliance yourself, it will no longer be waterproof, which may cause it to malfunction.

• Remove the appliance from the AC adaptor.
• Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.
• Perform Steps ① to ⑪, and then lift the battery to remove it.
• Take care not to short-circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.

For environmental protection and recycling of materials This appliance contains a Nickel-Metal Hydride battery. Please make sure that the battery is disposed of at an officially designated location if there is one.

Specifications

Power source	See the name plate on the AC adaptor. (Automatic voltage conversion)
Motor voltage 1.2 V	---
Charging time Approx. 1 hour
Airborne Acoustical Noise	65 (dB(A) re 1 pW)

This product is intended for household use only.

Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol) This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Panasonic

Bedienungsanleitung

N°modello ER-GB96/ER-GB86

Indices

Identification of dele. 110

Opladning. 110

Sadan bruges den 111

Rengoring. 114

Feijfinding 116

Bladets levetid 117

Batteriets levetid. 117

• Rengør ikke klipperen, på AC-adaptoren er tilsluttet el-nettet.
• BBrug/DD: BBrug/DD is a new, yet unexplored, tool for the development of a new, yet unexplored, tool for the development of a new, yet unexplored, tool for the development of a new, yet unexplored, tool for the development of a new, yet unexplored, tool for the development of a new, yet unexplored, tool for the development of a new, yet unexplored, tool for the development of a new, yet unexplored, tool for the development of a new, yet unexplored,

Identification of dele

Apparats krop

Detaile-trimmingsaggregate ER-GB96

For at fjerne let snavs For

fjerne meget snavs

Modellr. ER-GB96/ER-GB86

Innhold

Forholdsrregler 138

Anbefalt bruk 141

Reservedel for ER-GB96/ER-GB86	Blad WER9620
	Smøreolje WE5003P

Modellr. ER-GB96/ER-GB86

Inneháll

Sakerhetsforeskrifter 154

Avsedd anvandning 157

Delidentification 158

Laddning. 158

Anvandning. 159

Rengoring. 162

Felsökning 164

Bladets livslangd. 165

Model c. ER-GB96/ER-GB86

Obsah

C.Modelu ER-GB96/ER-GB86

Obsah

Prevadzkovc as je kratky.

• Accessory pleptene [B]

Indicator	11	*	12	*	13	*	14	*	15	*
Lunginea de tuns (mm) (estimate)	11	11.5	12	12.5	13	13.5	14	14.5	15	15.5

Indicator	16	*	17	*	18	*	19	*	20
Lunginea de tuns (mm) (estimate)	16	16,5	17	17,5	18	18,5	19	19,5	20

Accesorlu pleptene [8]

Indicator 21·22	23	24·25	25	26	27	28	29	30
Lunginea de tuns (mm) (estimare)	21	21,5	22	22,5	23	23,5	24	24,5

Indicator 26·27·28
Lunginea de tuns (mm) (estimare)	26	26.5	27	27.5	28	28.5	29	29.5

Tuns la lungime egalä

Model No. ER-GB96/ER-GB86

Içindekiler

Panasonic Wanbao Appliances Beauty and Living (Guangzhou) Co., Ltd.
33, Wanbao North Street, Wanbao Industry Zone, Zhongcun, Panyu District, Guangzhou City, Guangdong Province, China

YETKILI TEMSILCI

Ithalatci Firma:

Tesan Iletisim A.Ş.

Cobançese Meh. Bilge Sok. No:17

34196 Yenibosna- Istanbul

Tel: [phone] Faks: 0212 454 60 20

www.tesan.com.tr

URUNUN KULLANIM OMRU 7YILDIR

© Panasonic Corporation 2017

EN,GE,FR,IT,DU,SP,DA,PT,NW,SW,FI,PL,CZ,SK,HU,RO,TK

Printed in China

ER9700GB961503 Y1217-0
