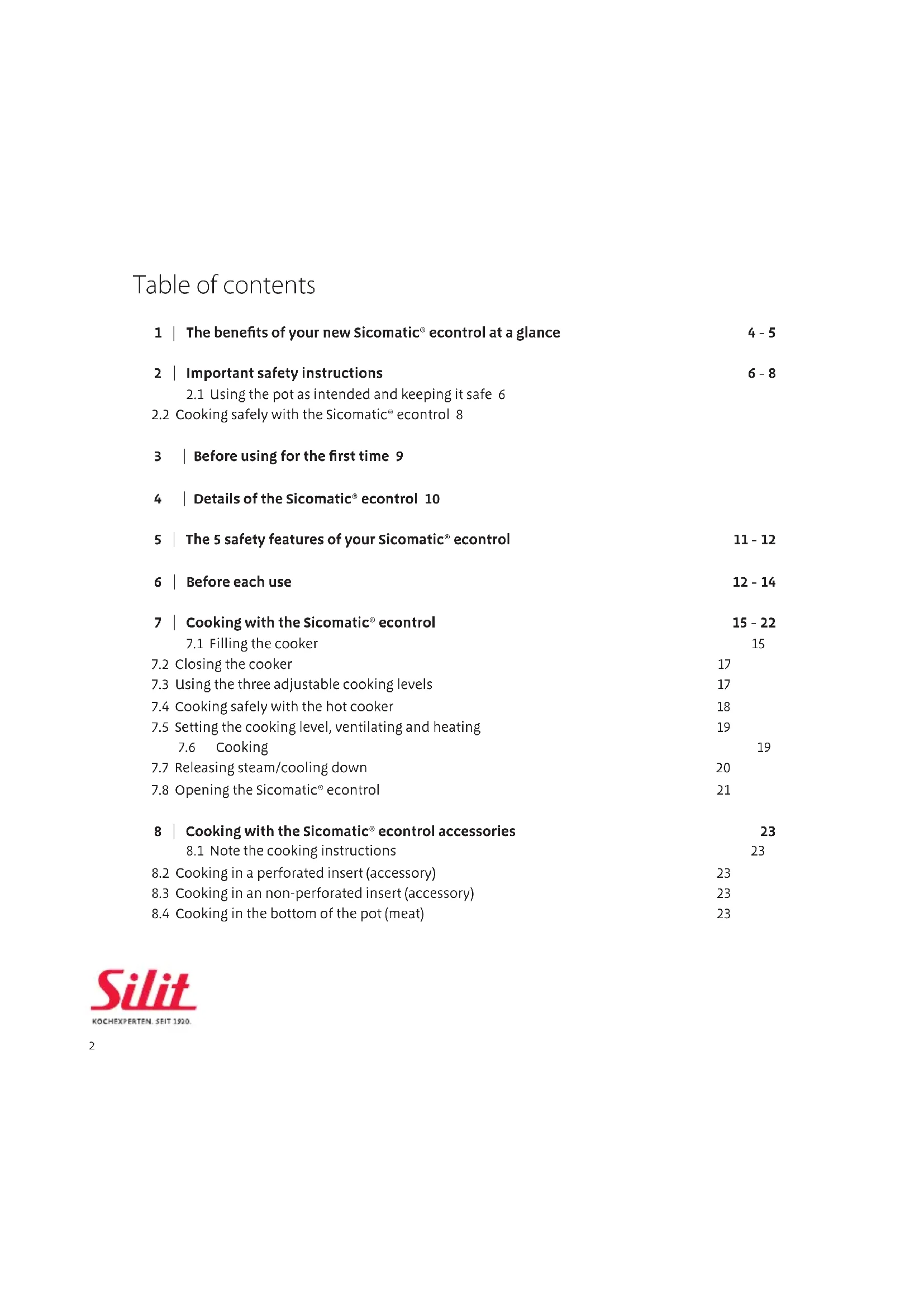

Inhaltsverzeichnis

1 | The benefits of your new Somatic® econtrol at a glance 4-5
2 Important safety instructions 6-8

2.1 Using the pot as intended and keeping it safe 6

2.2 Cooking safely with the Sicomatic® econtrol 8

3 Before using for the first time 9
4 | Details of the Sicomatic® econtrol 10
5 The 5 safety features of your Somatice control 11-12
6 Before each use 12-14
7 Cooking with the Sicomatic® econtrol 15-22

7.1 Filling the cooker

7.2 Closing the cooker 17
7.3 Using the three adjustable cooking levels 17
7.4 Cooking safely with the hot cooker 18
7.5 Setting the cooking level, ventilating and heating 19

7.6 Cooking

7.7 Releasing steam/cooling down 20
7.8 Opening the Somatice control 21

8 Cooking with the Somatic® econtrol accessories

8.1 Note the cooking instructions

8.2 Cooking in a perforated insert (accessory) 23
8.3 Cooking in an non-perforated insert (accessory) 23
8.4 Cooking in the bottom of the pot (meat) 23

23

23

9 Sterilising, preserving and juicing with the Somatic® econtrol 24-27

9.1 Note the cooking instructions 24
9.2 Sterilising 24
9.3 Preserving 25
9.4 Juicing 26

10 | Maintenance and cleaning 27 - 29

10.1 Cleaning the cooker 27

10.2 Cleaning the lid and lid shaft handle 28
10.3 Storing 29
11 | Maintenance 30-31
12 | Easy troubleshooting 32-37
13 Tips for cooking with the Somatic® econtrol / cooking time tables 38-47

13.1 Soups and stews 38
13.2 Vegetables 39
13.3 Meat 41

13.4 Fish 44

13.5 Side dishes, fruit and desserts 45
13.6 Cooking a menu / tower cooking 46
13.7 Frozen food and whole foods 47

14 | Sicomatic® econtrol accessories 48
15 Sicomatic econtrol spare parts 49
16 | Warranty 50
17 | Sicomatic® declarations of conformity 51

17.1 EC declaration of conformity 51

17.2 Declarations of conformity for commodities that come into contact with food 51

1 | The benefits of your new Sicomatic® econtrol at a glance

1. A revolution in easy handling

Closing, setting the cooking levels and releasing steam; all controlled by the easy-to-remove ergonomic handle.

2. Unbeatable safety

Maximum safety provided by several independent safety mechanisms. The cooker cannot be opened unintentionally when pressurised. Heat-insulated synthetic pot handles with flame protection.

3. Unique, maintenance-free 3-fold safety valve system

State-of-the-art valve technology assures safe and healthy cooking. Steam is released gently and evenly.

4. Hermetic system

The hermetic system consists of the operating valve and the sealed pressure indicator system. The hermetic system prevents unnecessary steam release. You therefore require less cooking water – and the Sicomatic® is quicker and more energy-efficient when heating and simmering. The fully hermetically sealed cooking method prevents loss of aroma and preserves valuable vitamins and minerals.

5. Three cooking levels with automatic temperature control

Level Cooking without pressure. Normal cooking without any pressure. More water and energy-efficient than conventional cooking.

level I - Gentle cooking level. For steaming and stewing food with short cooking times, e.g. fish and vegetables. The temperature is automatically limited to approx. 109^ (0.4 bar = 40 kPa).

level II - Fast cooking level. For cooking and stewing foods which require longer cooking times, e.g. meat and stews. The temperature is automatically limited to approx. 119^ (0.9 bar = 90 kPa).

6. Easy cleaning

Remove the lid shaft handle and rinse under running water. Remove the lid gasket from the lid and rinse by hand. The pot, lid (without lid shaft handle) and inserts can be washed in the dishwasher.

7. Large and clearly visible pressure indicator

8. Future-focused - Attractive design, optimum ergonomics and a variety of materials to suit all requirements

Silargan: Non-porous closed surface. Nickel-free. Made in Germany.
Stainless steel: Also suitable for induction hobs.

9. Many household-compatible sizes and designs

Different inserts are available for use with the Sicomatic® econtrol to ensure the best cooking results, e.g. a perforated insert for fish and vegetables, a non-perforated insert for defrosting frozen food, juicing or preserving etc. as well as other accessories.

10. TUV safety approval

11. 10-year supply warranty for spare parts

12. Made in Germany

2 | Important safety instructions

Read these instructions carefully before use. Before allowing individuals to use the Sicomatic econtrol, they must first be familiar with the instructions for use.

Keep the instructions for use in a safe place for future reference.

Symbol legend

This symbol warns against direct dangers that may lead to serious injury (i.e. through steam and hot surfaces).

This symbol warns of potential risks that may lead to serious injury.

Non-observance of the information provided may cause problems when using your Sicomatic® econtrol.

Cross references in these operating instructions are indicated with this symbol or in italic text.

The tip provides you with valuable information for using your Sicomatic® econtrol with ease.

2.1 Using the pot as intended and keeping it safe

Using the product for its intended purpose

Only use the Somatic® econtrol for its intended purpose when cooking food.
Never put the Sicomatic® econtrol in a hot oven.
Never fry food in it using oil when it is under pressure.
Only use the Sicomatic® econtrol for sterilising in home use.

Never use the Somatic® econtrol as a steriliser in a medical environment.

The Sicomatic® econtrol is not designed for the sterilisation temperature required in medical environments.
Only use Sicomatic® econtrol on suitable hobs for the heating types that are listed in the instructions.

Stainless steel

Clas-keramik

Elektro

Induktion

Silargan®

Keramik

Elektro

Induktion

Never heat at the highest temperature when empty or leave it unattended. Observe the manufacturer's instructions.

This ensures that the cookware is not damaged through overheating, particularly on induction hobs.

Replace handles that are cracked or do not fit correctly.
Only use original Somatic econtrol spare parts.
Arrange for your Somatic 念 econtrol to be checked by an authorised body at least every 10 years.

EN

Safety features to prevent dangerous situations.

Do not modify or interfere with the cooker and its safety features.
Only use the Somatic® econtrol lid together with the corresponding Somatic® econtrol base.
Never use the Sicomatic 念 econtrol components with other makes.

Maintaining safety

Before each use check that the valves are not blocked.
If necessary clean the valves using the Sicomatic econtrol.
Refer to our instructions for cleaning and care.
Do not use your Sicomatic 念 econtrol if it or parts of it are damaged or deformed, or if their function does not correspond with the description in the instructions.
In the event of repairs contact your specialist dealer.
If the pot handles become loose, tighten them with a screwdriver.

2.2 Cooking safely with the Sicomatic® econtrol

Increased pressure builds up in the cooker during cooking.

Check that the cooker is securely closed.

The outer surface of the cooker can reach 130^ .

Use suitable hand protection.
During use, never touch the hot external surface of the cooker.
You must always use the handles and ensure a firm grip when moving or carrying the hot cooker.
Move the Somatic 念 econtrol carefully when it is under pressure.
Be careful not to touch anybody else with the hot cooker.
Only place the hot Sicomomatic ^一 econtrol on heat-resistant surfaces (never on synthetic material etc.).
→ Always open and close the Sicomatic® econtrol using the handles.
Never leave the Sicomatic econtrol unattended when in use.
During use, keep children away from the Somatice control.

Hot steam is released at the lid.

Never touch the steam.
→ Always keep your hands, head and body out of the danger zone above the centre of the lid and the safety slot on the rim of the lid.

Never overfill the cooker.

Overfilling the cooker can cause hot food to leak out through the operating valve.

Fill the cooker to a maximum of 2/3 of its nominal content.
Fill the cooker to a maximum of half of its nominal content if you are cooking foods that overly swell or froth, such as soups, pulses, stews, stocks, giblets and pasta.

Never use force to open the cooker.

The cooker opens easily when depressurised.

Do not make any modifications to the safety mechanisms.

Hot food can cause bubbles to form and it can spurt out explosively when opening the cooker, even if the steam has already been released.

Therefore, always shake the cooker gently before you open it to prevent burns and scalds caused by the hot contents spurting out from the cooker.

Do not insert hot meat that you have cooked with the skin on (e.g. beef tongue).

Allow the meat to cool beforehand. In doing so the skin that has expanded under pressure subsides and you can prevent burns caused by hot fluid spurting out.

3 | Before using for the first time

Remove all stickers and tags.
Fill the cooker 2/3 with water and add 2-3 tablespoons of vinegar.
Leave the lid off and boil the vinegar water in the cooker for approx. 5-10 minutes.
Then rinse all parts thoroughly by hand.
Dry the cookware thoroughly after cleaning.

There may be a noise when using on induction hobs. This is due to technical reasons and does not indicate that your hob or Sicomatic econtrol is faulty.

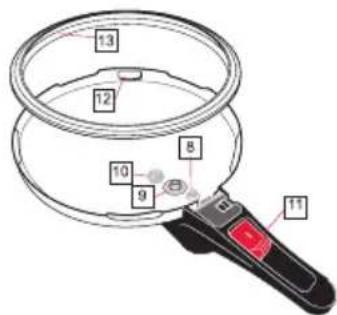

4 | Details of the Sicomatic® econtrol

1. Pressure indicator

Clear, large with integrated residual pressure stop.

2. Selector

Extra large and easy-to-handle so you can comfortably set the required cooking level and open the cooker easily.

3. Lid shaft handle

Detachable, with integrated selector and pressure indicator.

4. Pot shaft handle

The practical safety handle with flame protection fits comfortably in your hand and prevents accidental slipping.

5. Handle marking

For correctly positioning the lid.

6. Lid marking

For correctly positioning the lid.

7. Pot side handle

With flame protection and grip hole for safe handling.

8. Overpressure valve

With integrated automatic heating feature and vacuum inhibitor.

9. Aroma sealing cap

For pressure indicator with aroma sealing.

10. Operating valve

Controls the pressure in accordance with the cooking level setting.

11. Release button

For removing the lid handle.

12. Safety slot

The "emergency outlet" on the rim of the lid serves as an additional safety device.

13. Lid gasket

For sealing the pot and lid.

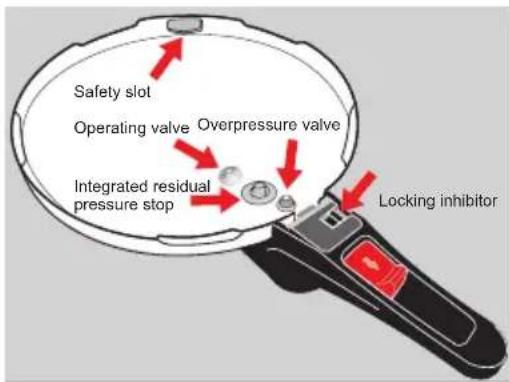

5 | The 5 safety features of your Sicomatic® econtrol

The Sicomatic econtrol that you have purchased is a technologically advanced device. It has been designed based on decades of experience in the manufacture and development of pressure cookers.

1. Operating valve

If the maximum pressure exceeds the selected cooking level, the operating valve opens and the excess steam is released from the lid handle opening in the front. Any excess pressure is also automatically reduced.

2. Overpressure protection with integrated automatic cooking feature

a) Automatic cooking function valve can be moved when not under pressure. After parboiling the closed Somatic® econtrol, any excess food-impairing atmospheric oxygen is automatically discharged (automatic venting). Only then does the valve close and pressure builds up.

b) Function as an overpressure valve protection

The overpressure relief valve is not used during normal operation. It is only used when the operating valve fails and the pressure continues to build up. Steam is then released from the discharge opening on the lid shaft handle.

3. Safety slot

The "emergency outlet" on the rim of the lid is only used as an additional safety mechanism if both the operating and overpressure valves fail to work. Once too much pressure builds up, the lid gasket is pushed outwards as far as possible into the safety slot so that steam can be released.

4. Residual pressure stop

The residual pressure stop integrated into the pressure indicator rises even when there is a small amount of pressure: The pressure indicator is visible. You can unlock and open the cooker only once the pressure indicator has completely retracted into the lid shaft handle. This prevents accidental opening when under pressure.

5. Locking inhibitor

If the handles are not positioned flush on top of each other as instructed, the lid cannot be locked by turning the selector. Therefore, pressure cannot build up.

6 | Before each use

The Somatic® econtrol meets the requirements of the EC directive 97/23/EC. Some of the statutory prescribed safety precautions are considerably exceeded.

Check the safety mechanisms before you use your Sicomatic econtrol.

This helps to avoid dangerous situations during use.

Check the aroma sealing cap

If the aroma sealing cap is not fastened correctly or is damaged, this may result in the release of hot steam or sudden evaporation. This can damage the lid shaft handle.

Check that the aroma sealing cap is fastened correctly (see fig.).
Check the aroma sealing cap for damage (tears, holes, deformation and brown discolouration).
If the aroma sealing cap is damaged, do not use the cooker.
Only use original Somatic econtrol spare parts.

Checking the pressure indicator

Check the pressure indicator using your finger to see if the aroma sealing cap moves. The selector must be set to the position.

Checking the overpressure valve

If the overpressure valve is dirty or clogged, steam can suddenly be released through the safety slot.

When using on gas hobs, the released steam can extinguish the gas flame, in which case gas continues to be discharged uncontrolledly at the hob.

Check that the overpressure valve (1) moves freely.
Apply light pressure, e.g. using a wooden spatula, to check that the ball can move (2).

This prevents steam from being released unexpectedly.

Checking the operating valve

If the operating valve is dirty or clogged, the overpressure valve is activated.

Check the operating valve for dirt and correct position.
Clean the operating valve if necessary.

To prevent steam from being released unexpectedly from the opening on the lid shaft handle.

Checking the locking inhibitor

If the locking inhibitor is damaged, the Sicomatic® econtrol cannot be opened or closed properly. The lid shaft handle cannot be removed.

Check the ease of movement and reset the locking inhibitor.

If the locking inhibitor is damaged, do not
use the cooker.
Contact your Silit dealer.

Checking the lid gasket

Check the lid gasket for damage.

A crack in the lid gasket may result in sudden evaporation and the release of hot steam.
Replace the lid gasket if it is hard (brown discolouration), brittle or damaged.
Replace the lid gasket after approx. 400 uses, and at the latest after 2 years.
Only use original Somatic® econtrol spare parts.

The Sicomatic name must feature on the lid gasket.

Check that the lid gasket is positioned on the inner rim of the lid.

This helps you to maintain the proper functioning and safety of your cooker.

Checking the handles

Check the handles for damage.
Replace damaged handles before use.
Only use original Somatic econtrol spare parts.
Make sure the handles are firmly attached to the cooker.
Carefully tighten the fastening screws.

This prevents a handle from breaking or coming loose, causing the cooker to drop, and resulting in damage and deformation.

7 | Cooking with the Sicomatic® econtrol

Maintaining the cookware and hob

Do not knock kitchen gadgets on the pouring rim. This prevents damage to the pouring rim.
Only add salt to water that is already boiling, and then stir it.

This prevents the salt from attacking the bottom of the pot.

Never slide the cookware back and forth across ceramic cooking zones.

This prevents residue between the cookware and the ceramic cooking zone from scratching the hob.

When using on a gas hob:

Make sure that the gas flame is never larger than the base of the cooker.

To prevent damaging the handles and seals.

7.1 Filling the cooker

Respect the maximum filling quantities and never overfill the cooker.

Overfilling the cooker can cause hot water, cooked food or hot food to leak out of the operating valve. On gas hobs, this can extinguish the gas flame and gas continues to be discharged at the hob.

Fill the cooker to a maximum of 2/3 of its nominal content.
Fill the cooker to a maximum of half of its nominal content if you are cooking foods that overly swell or froth, such as soups, pulses, stews, stocks, giblets and pasta.

This protects against burns and scalds.

Preventing damage caused by small filling amounts.

If the quantity is too small, this can cause the cooker to overheat and cause damage to the cookware and the hob.

→ Always fill with sufficient liquid to allow steam to be generated.
Make sure you use sufficient liquid, especially with viscous foods.

This prevents the pot from "boiling dry" and prevents damage to the pot and hob.

Prescribed filling quantities:

Sicomatic® size (nominal quantity)	Minimum quantity for steam generation	Maximum quantity (2/3 of the nominal quantity*)	Maximum quantity for foods that overly swell or froth (1/2 of the nominal quantity*)
2.5 | 1/8 | Water 1.7 | 1.3 |
3.0 | 1/4 | Water 2.0 | 1.5 |
4.5 | 1/4 | Water 3.0 | 2.3 |
6.5 | 3/8 | Water 4.3 | 3.3 |

• See scale on inside of pot

Pour the required amount of liquid into the bottom of the pot.
Use water, meat stock, sauce etc.
Either add the food directly or place the insert containing food into the cooker.
Choose a hob size that corresponds with the size of the pot.

Depending on the recipe, first heat up the food in the cooker and pour over the fluid before you close the cooker.

Danger

Removing froth/stirring when cooking

Cook foods that are viscous or overly swell or froth (e.g. pulses and boiling meat) in the pot without a lid.
If necessary remove the froth after parboiling.
Stir the contents of the cooker.

This ensures that no hot froth can escape via the operating valve, preventing burns and scalds.

Only now may the cooker be closed.

7.2 Closing the cooker

Wipe the rim of the cooker and the lid gasket before closing.

This removes any particles that may prevent sealing.

Place the lid on the cooker so that the markings on the lid fig.1 and on the cooker shaft handle fig.2 are positioned flush above each other.
Move the lid shaft handle to the left until it is positioned directly over the pot shaft handle fig. 3.
To lock it move the selector to

7.3 Using the three adjustable cooking levels

Cooking level (cooking without pressure)

Your Sicomatic® econtrol can also be used as an ordinary cooker. Food cooks without pressure using little water and energy. Once a little steam is released, you must turn down the power setting. If too much steam is released or the pressure indicator starts to increase slightly, this means that the power setting is too high.

Cooking level I (approx. 109^ / green area l)

This is used to steam and stew delicate foods with a short cooking time. The food, e.g. vegetables or fish, is placed in inserts and is thus not leached out by the cooking water.

Green area I is visible on the pressure indicator.

As soon as a little steam is released, the specified cooking time begins. The position of the pressure indicator when steaming should be maintained by regulating the power setting on the hob so that no steam is released, or only gently.

Cooking level II (approx. 119^ / green area II)

This is used to cook and braise meat, soup and stews for example. It also used for sterilising, preserving and juicing.

Green area II is visible on the pressure indicator. As soon as a little steam is released, the specified cooking time begins. The position of the pressure indicator when steaming should be maintained by regulating the power setting on the hob so that no steam is released, or only gently.

7.4 Cooking safely with the hot cooker

Hot steam is released at the lid.

Never touch the steam.
→ Always keep your hands, head and body out of the danger zone above the centre of the lid and the safety slot on the rim of the lid.

The outer surface of the cooker can reach 130^ .

Use suitable hand protection.
During use, never touch the hot external surface of the cooker.
→ You must always use the handles and ensure a firm grip when moving or carrying the hot cooker.
Move the Sicomatic econtrol carefully.
Be careful not to touch anybody else with the hot cooker.
Only place the hot Sicomatic econtrol on heat-resistant surfaces (never on synthetic material etc.).
→ Always open and close the Sicomatic® econtrol using the handles.
Never leave the Sicomatic ® econtrol unattended when in use.
During use, keep children away from the Sicomatic® econtrol.

7.5 Setting the cooking level, ventilating and heating

Use the selector to set the cooking level "Cooking without pressure", cooking level I or cooking level II.
Use a high power setting for heating. Ventilation takes place automatically using the integrated automatic heating feature, therefore manual ventilation is not required when parboiling. If sufficient steam is released by the overpressure valve, the automatic heating feature turns itself off. The pressure indicator begins to rise.

7.6 Cooking

The pressure indicator rises even under low pressure. The actual operating pressure and temperature, and thus the beginning of the cooking time, are reached when a little steam is released at the set cooking level.

Cook at this position until the end of the cooking time.
To do this, adjust the power setting on the hob accordingly.

At this stage, if the power setting is too high for the Sicomatic econtrol, steam is released via the discharge opening on the lid shaft handle (in the middle of the lid), accompanied by a noise that gradually gets louder. Turn down the power setting.

The position of the pressure indicator when steaming should be maintained by regulating the power setting on the hob so that no steam is released, or only gently. In doing so you avoid wasting energy unnecessarily and prevent it from "boiling dry".

7.7 Releasing steam/cooling down

You must reduce the pressure in the pot before you open the Sicomatic econtrol.

Therefore turn off the power.
Remove the pot from the cooking zone.

There are three ways in which you can reduce the pressure:

a) Fast steam release

Hot steam is released at the lid.

Never touch the steam.
→ Always keep your hands, head and body out of the danger zone above the centre of the lid and the safety slot on the rim of the lid.
Particular caution is required when using the selector to quickly release steam.

When cooking soups, pulses, stews, stock, offal and pasta, the filling volume in the cooker increases due to the formation of froth.

Never release steam from the pot quickly if you are cooking frothing or pulpy foods.

Use the operating valve in this case to quickly release steam.

Allow the cooker to cool down to prevent burns and scalds.

Turn the selector to position until all the steam has been released.
Wait until the pressure indicator has fully retracted into the lid shaft handle by itself.

b) Allowing it to cool down

Wait until the pressure indicator has fully retracted into the lid shaft handle by itself.

This method is suitable for frothing or pulpy foods. Reduce the cooking times a little as the food will continue to cook while it is cooling down.

c) Cooling down with water

Hold the cooker under cold running water until the pressure indicator retracts fully into the lid shaft handle.

Do not run the water directly onto the lid shaft handle. Make sure cold water does not enter the pot via the valve on the lid shaft handle.

Condensation forms in the pot when using this method.

It drips onto the food and can affect its colour and aroma.

Therefore only use this method in exceptional cases.

7.8

Opening the Sicomatic econtrol

Hot food can cause bubbles to form and it can spurt out explosively when opening the cooker, even if the steam has already been released.

EN

Therefore, always shake the cooker gently before you open it.

To prevent burns and scalds caused by the hot contents spurting out from the cooker.

Never use force to open the cooker.

The cooker opens easily when depressurised.

Do not make any modifications to the safety mechanisms.

Do not insert hot meat that you have cooked with the skin on (e.g. beef tongue).

Allow the meat to cool beforehand.

In doing so the skin that has expanded under pressure subsides and you can prevent burns caused by hot fluid spurting out.

Make sure that the pressure indicator has fully retracted into the lid shaft handle.

→ Slowly rotate the selector in an anticlockwise direction until it reaches position 1.
Gently shake the cooker.
Move the lid shaft handle to the right until the markings on the lid and the cooker shaft handle positioned flush on top of each other.
Remove the lid so that the steam is released away from the body.

If the cooker is still under pressure, when you return the selector to position ,the residual pressure stop is used. This prevents opening

the cooker when it is under pressure.

In this case slightly rotate the selector again in a clockwise direction.

In doing so this can release the residual pressure stop once the cooker is depressurised. You can then open the cooker as described.

8 | Cooking with the Sicomatic® econtrol accessories

The Sicomatic® econtrol is especially suitable for preparing baby foods.

8.1 Note the cooking instructions

When using a cooking accessory, you must refer to the instructions in Chapter 7. You must also read the safety information in Chapter 2 and Chapter 7.

Always fill with sufficient liquid to allow steam to be generated.

This prevents the cooker from "boiling dry". It also prevents damage to the pressure cooker and the cooking zone.

Observe the prescribed fill quantities: See table under point 7.1

8.2 Cooking in a perforated insert (accessory)

Vegetables
Fish
Preserving
- Juicing
Delicate foods

Cooking vegetables:

When cooking vegetables, place the specified minimum fill quantity directly in liquid in the bottom of the pot.

This ensures that steam forms and prevents the cooker from "boiling dry".

Add herbs and spices etc. to flavour according to your preference.
Place the perforated insert with washed vegetables into the cooker.

The insert ensures that the vegetables do not come into contact with the water, but cook in the steam instead.

Fill the cooker to max. 2/3

To ensure there is sufficient distance from the lid, pressure indicator and valves.

8.3 Cooking in an non-perforated insert (accessory)

• Frozen food
• Side dishes, e.g. rice
• Juicing (as collect tray)

See "Cooking in a perforated insert" under point 8.2.

8.4 Cooking in the bottom of the pot (meat)

Heat the oil/fat in the Sicomatic econtrol with no lid.
Brown the meat on all sides.
Add water (according to recipe).

Slice larger pieces of meat to reduce the cooking time.

9 |Sterilising, preserving and juicing with the Sicomatic® econtrol

9.1 Note the cooking instructions

When sterilising, preserving and juicing, you must refer to the instructions in Chapter 7. You must also read the safety information in Chapter 2 and Chapter 7.

Always fill with sufficient liquid to allow steam to be generated.

This prevents the cooker from "boiling dry". It also prevents damage to the pot and the cooking zone.

Observe the prescribed fill quantities:

See table under point 7.1

Allow the pot to cool down slowly

After sterilising, preserving or juicing, never release the steam quickly from the Somatice control.
Never use water to cool the cooker down.

Glass objects can shatter due to the sudden change in temperature.

Turn off the power.
Remove the cooker from the hob and allow it to cool down slowly.
Wait until the pressure indicator has fully retracted into the lid shaft handle by itself, before you open the cooker.

This protects against injuries caused by shattered glass.

9.2 sterilising

Using the product for its intended purpose

Only use the Sicomatic control for sterilising in home use.

Do not use the Sicomatic 念 econtrol as a steriliser in a medical environment.

The Somatic® econtrol is not designed for the sterilisation temperature required in medical environments.

Ensure that the parts you wish to sterilise are resistant to superheated steam up to 120^ C.

The Sicomatic® econtrol is an ideal and cost-effective home steriliser as you only pay the energy costs.

Possible uses:

• Sterilisation of baby bottles, rubber suction cups and plastic seals
• Sterilisation of baby food in screw-cap jars
• Sterilisation of preserving jars (see also the following point 9.3 "Preserving")

Clean all milk and porridge residue from bottles, rubber suction cups and plastic seals.
Place the parts in the perforated insert with the openings facing downwards.
Position the parts in the insert to allow the steam to circulate around them properly.

Pour the minimum quantity of water into the base of the cooker to generate steam.
Place the perforated insert in the cooker.
Close the cooker and use the selector to set it to cooking level II.
Use a high power setting for heating.

The sterilisation process begins once the green area II is visible on the pressure indicator.

The sterilisation time is approx. 20 minutes.

Sterilising correctly and effectively

Make sure that the entire green area II is visible throughout the entire sterilisation cycle.
You must adhere to the sterilisation time.

Allow the pot to cool down after sterilisation.
Wait until the pressure indicator has fully retracted into the lid shaft handle by itself.
Only then can you open the cooker.

9.3

Preserving

Never overfill preserving glasses

The contents expand during the preservation cycle. If a closed preserving jar contains too much filling it can burst.

Therefore fill the preserving jar up to a maximum of one finger width below the rim.
This protects against injuries caused by shattered glass.
Sterilise the preserving jars before you start the preservation cycle as described under point 9.2.
Fill the preserving jars.
Seal the jars according to the manufacturer's instructions.
Pour the minimum quantity of water for steam generation into the base of the cooker.
Place the jars on the strainer or in the perforated insert.
Close the cooker and use the selector to set it to the required cooking level.
Use a high power setting for heating.
Observe the following table for selecting the cooking level and the preservation time.

Preservation times (guidelines only):

Preserving Cooking

Preservation

level

time in min.

Berries 15-8

Marmalade and jams I 1-2

Pip fruit 10

Stone fruit 18-10

Vegetables, neatly positioned 7 - 10

Vegetables II 20 - 25

Meat 1125

Allow the pot to cool down slowly after preservation.
Wait until the pressure indicator has fully retracted into the lid shaft handle by itself.
Only then can you open the cooker.

9.4 Juicing

Select the correct cooker base size and never overfill the cooker

Place two inserts in the cooker for juicing.

The Sicomatic® econtrol can therefore be used to juice a minimum quantity of 4.5 litres.

Overfilling the cooker can cause food to leak out through the operating valve.

Fill the top perforated insert no higher than its top edge.

This protects against burns and scalds.

Pour the minimum quantity of water for steam generation into the base of the cooker.
Add the sliced or squashed prepared fruit (add sugar if necessary) into the perforated insert.
First place the non-perforated insert in the cooker and then on top place the perforated insert containing the fruit.
Close the cooker and use the selector to set it to cooking level II.
Use a high power setting for heating.
Observe the following table for selecting the cooking level and the preservation time.

Juicing times (guidelines only):

Juicing Cooking	level	Juicing time in min.
Berries II 12
Stone fruit and rhubarb II 18
Pip fruit II 25
Grapes II 25
Tomatoes and cucumber II 18
Carrots II 25
Beetroot II 25-35

10 | Maintaining and cleaning

10.1 Cleaning the cooker

Use hot water and standard washing-up liquid to clean your cookware.
Soak off any food residue that is stuck to the cookware.
Do not use abrasive cleaning detergents, steel wool or the abrasive sides of sponges.
To remove stubborn food residue, boil a little water in the cooker together with powder detergent from Silit.
To remove stubborn stains use the liquid detergent from Silit.
You can also clean the cooker base and the inserts in the dishwasher.

This may result in discolouration of the synthetic handles or the Silargan surface. However, this does not impair the function. We recommend cleaning by hand.

Dry the cookware thoroughly after cleaning.

Allow the cooker to cool down slowly.
Wait until the pressure indicator has fully retracted into the lid shaft handle by itself.
Only then can you open the cooker.
Carefully lift out the hot inserts.
Fill cleaned and heated bottles with the hot juice.
Then seal the bottles using clean bottle tops.

10.2 Cleaning the lid and lid shaft handle

Removing the lid shaft handle

Rotate the lid.
Remove the lid shaft handle from the lid.
Use your thumb to press on the rim of the lid.
Then pull the red slide control (see fig.) on the underside of the handle in the direction of the arrow towards the end of the handle.
Swing out the handle and detach it.
Remove the lid gasket.
Clean the lid gasket in warm running water or in wash water.
Rinse the lid under running water or clean it in the dishwasher.
→Only rinse the lid shaft handle under warm running water.

To prevent damaging the seals.

Cleaning the operating valve in the case of heavy soiling

If food leaks out via the operating valve, food residue sticks to it. This can lead to soiling and clogging. In this case, clean the operating valve thoroughly.

The operating valve consists of two parts and is located on the lid shaft handle and the cooker lid. Therefore you must remove the lid shaft handle for cleaning.

STOP!

Clean using a soft object, such as a damp cotton swab.

Never use sharp or pointed objects.
If you notice damage on the operating valve or the seal, or if the seal no longer lies flat, take the cooker lid and the lid shaft handle to your Silit dealer to be repaired.

Operating valve on the cooker lid:

Remove any dirt from the valve opening on the top of the lid.

Operating valve on the lid shaft handle:

Remove the sticky grime on the operating valve. Make sure that the seal is sitting correctly It must lie completely flat.

Attaching the lid shaft handle

Attach the handle to the tab on the lid.
Make sure it is aligned correctly, see figure (enlarged section)
Click the handle onto the recess on the lid rim.
Use your thumb to press on the rim of the lid.

10.3 storing

Store the clean, dry Sicomatic 念 econtrol in a clean, dry and protected place.
Place the lid upside down on the pot
or remove the handle and place it in the pot or in the lid.

11 | Maintenance

Only use original Sicomatic® econtrol spare parts.

Contact your Silit dealer.

This helps you to maintain the proper functioning and safety of your cooker.

Safety features to prevent dangerous situations.

Do not make any modifications to the safety mechanisms.
Refer to our instructions for cleaning and care.

Maintaining safety

Regularly check the function of the safety mechanisms.
See also Chapter 6 "Before each use"

Lid gasket

Replace the lid gasket if it is hard (brown discolouration), brittle or damaged.
Replace the lid gasket after approx. 400 uses, and at the latest after 2 years.
The Sicomatic name must feature on the lid gasket. This helps to maintain the safety function of the lid gasket.

Replacing the aroma sealing cap

If the aroma sealing cap is damaged, replace it immediately.
Replace the aroma sealing cap after approx. 400 uses, and at the latest after 2 years.
Remove the damaged aroma sealing cap.

First clean the pressure display area.
Fit the new aroma sealing cap.
Pull the rim of the aroma sealing cap completely over the serrated ring.

Check that the aroma sealing cap is placed correctly. It must lie completely flat all around.

Replacing the overpressure valve

Remove the lid shaft handle.
Use your finger on the underside of the lid to press the overpressure valve through the lid.

Insert the new overpressure valve (1.) through the opening from the top of the lid.
Pull the sealing ring (2.) from the underside of the lid through the overpressure valve until the sealing ring sits securely in the groove.

12 | Easy troubleshooting

What do I do if...	It can be due to one of the following causes
the lid is very difficult to close.	→ Poor running quality of the lid gasket.
After closing, you cannot move the selector from position to the desired cooking level II.	→ Lid and pot shaft handles are not correctly aligned. → Handle is damaged.
Heating takes too long.	→ Power setting too low.
Steam and droplets of water are constantly released at the lid rim when parboiling (if just a little escapes, this is irrelevant and does not indicate a malfunction).	→ Foreign objects on the lid gasket, cooker rim and inner lid rim. → Lid gasket is hard, brittle or damaged. → The seal on the lid shaft handle is damaged.
Pressure indicator does not rise or does not rise enough.	→ Selector is still in initial position. → Power setting too low. → Not enough liquid to generate steam. → Lid gasket is hard, brittle or damaged.
Steam and droplets of water are constantly released at the pressure indicator.	→ The aroma sealing cap is defective.

How to solve the problem

Grease the upper rim of the lid with a thin layer of domestic cooking oil.

Align the lid and pot shaft handles correctly.
Contact your Silit dealer.
Select a higher power setting.

Open the cooker and wipe the lid gasket, cooker rim and internal lid rim.

Fit a new original Sicomatic lid gasket.
Contact your Silit dealer.

Turn the selector to the desired cooking level.
Select a higher power setting.
Open the cooker and add liquid.
Fit a new original Sicomatic lid gasket.

Fit a new original Sicomatic® econtrol aroma sealing cap (see Chapter 11 "Maintenance").

What do I do if...

It can be due to one of the following causes

During cooking, plumes of unwanted steam escape at the front from the lid shaft handle.	→Power setting too high. →Operating valve is soiled or clogged. →Overpressure valve is soiled.
During cooking, large plumes of steam suddenly escape at the front from the lid shaft handle.	→Operating valve is soiled or clogged. →Overpressure valve has been triggered.
Water or steam constantly escapes at the lid rim during cooking.	→Lid gasket is hard, brittle or damaged
Leakage, especially at cooking level I: The selector is turned to cooking level I and steam is released.	→Power setting is too high. →Operating valve is soiled or clogged. →Operating valve is damaged.
Whistling sound during cooking.	→Aroma sealing cap is torn or damaged.
The handle and selector become hot.	→The seal on the lid shaft handle is damaged or brittle. →The aroma sealing cap is defective. →Aroma sealing cap is fitted incorrectly. →There is pressure in the cooker.
Cannot open the lid.	→The residual pressure stop is jammed (e.g. with selector).

How to solve the problem

Turn down the power setting.

Remove the lid shaft handle and clean the valve area (see Point 10.2 "Cleaning the lid and lid shaft handle").

Clean the overpressure valve area. Steam continues to be released despite cleaning.

Fit a new original Sicomatic 念 econtrol overpressure valve (see Chapter 11 "Maintenance").

Remove the lid shaft handle and clean the valve area (see Point 10.2 "Cleaning the lid and lid shaft handle").

Contact your Silit dealer.

Fit a new original Sicomatic lid gasket.

Try turning the selector to cooking level II. If the steam stops, this means that the power setting was too high for cooking level I.

Steam continues to be released despite setting to cooking level II:

Remove the lid shaft handle and clean the valve area (see Point 10.2 "Cleaning the lid and lid shaft handle").

Contact your Silit dealer.

Fit a new original Sicomatic® econtrol aroma sealing cap (see Chapter 11 "Maintenance").

Contact your Silit dealer.

Fit a new original Sicomatic® econtrol aroma sealing cap (see Chapter 11 "Maintenance").

Position the aroma sealing cap correctly.

Release the steam or allow to cool. Never use force to open the cooker.

Release the stop by gently moving the selector back and forth.

What do I do if...

It can be due to one of the following causes

the lid can't be opened (no pressure in cooker).

The aroma sealing cap is inverted. The pressure indicator is not in the initial position.
Aroma sealing cap is damaged or deformed.

Negative pressure has occurred in the cooker when cooling down. Overpressure valve and operating valve are clogged.

→The selector will not turn to

The pressure indicator remains high, even though there is no more steam being released.

→ The aroma sealing cap is inverted.
→The aroma sealing cap is deformed.

Pressure indicator is jammed.
Broken spring on the pressure indicator.

The lid shaft handle is damaged.

Improper handling.

Pot shaft handle/pot side handle is loose.

Signs of use.

Pot handle/pot side handle is damaged.

Improper handling.

Handle is difficult to attach to the lid.

Lid or handle is damaged.

How to solve the problem

Allow the cooker to cool down.
Manually press the pressure indicator.
Allow the cooker to cool down.
Manually press the pressure indicator.

Fit a new original Sicomatic® econtrol aroma sealing cap (see Chapter 11 "Maintenance").

Contact your Silit dealer.
Contact your Silit dealer.

Allow the cooker to cool down.
Manually press the pressure indicator.
Allow the cooker to cool down.
Manually press the pressure indicator.

Fit a new original Sicomatic® econtrol aroma sealing cap (see Chapter 11 "Maintenance").

Move the selector back and forth without using force.
Allow the cooker to cool down.
Manually press the pressure indicator.
Contact your Silit dealer.

Fit with a new original Sicomatic lid shaft handle.

→ Tighten the screw with a screwdriver.
Fit a new Sicomatic pot handle.

Contact your Silit dealer.

13 | Cooking with the Sicomatic® econtrol – cooking time tables

Proceed as per the instructions in Chapter 7. You must also read the safety information in Chapter 2 and Chapter 7.

Always fill with sufficient liquid to allow steam to be generated.

This prevents the cooker from "boiling dry". It also prevents damage to the pressure cooker and the cooking zone.

Observe the prescribed fill quantities: See table under point 7.1

13.1 Soups and stews

Ideal for soups and stews with roasted meat: If the cooking times for meat and vegetables do not differ much, the meat is browned and the vegetables are added together with the stock.

If the cooking times differ a lot, interrupt the cooking process for the meat and add the vegetables for the remaining minutes, so that everything is cooked together and finishes cooking at the same time.

Observe the following rules for soups and stews:

Parboil frothing foods such as pulses and boiling meat in the cooker without the lid and remove the froth before closing it.
After cooking, allow the cooker to cool down, see point 7.7

Cooking time guidelines

The precise cooking times depend on the size, freshness and consistency of the food you are cooking. The energy source, e.g. induction, gas or glass ceramic, also influences the cooking times. The cooking times essentially apply for 500g . A larger amount of liquid is required than normal. Soaking is not necessary with these cooking times.

Cooking level Cooking time in min. for stew Comments

White beans II 25 Cook in 1.5 l of liquid

Kidney beans, dried II 65 Cook in 1.5 l of liquid

Whole peas, dried II 45 Cook in 2.0 l of liquid

Lentils II 10 Cook stew with 2.5 l, purée with 1.5 l of liquid

13.2 Vegetables

The specified cooking times are guidelines to help you quickly determine your own cooking times. Cooking times not only depend upon the quality of the food you are cooking, but also on the following:

→ The smaller you chop vegetables, the quicker they will cook.
→ The crispier or "al dente" the vegetable should be, the shorter the cooking time. We have specified the time for "al dente" and "well cooked".

→ The larger the overall quantity of food being cooked, the longer the cooking time. For "al dente" results, the quantity should not be too large, otherwise the food is "al dente" but the inside is raw. Small time differences usually have little influence. However, with vegetables, a single minute can transform them from "al dente" to "well cooked".

The cooking time always starts when steam is first released.

The vegetables are placed in the insert for the following cooking times. The vegetables, therefore, are not in contact with the water and cannot be leached out.

In case of doubt remember: It is better to undercook, as you can always cook it some more. However if it is overcooked, you cannot make it "crunchy" again.

Cooking time guidelines: Cooking times apply for 500g

Fresh vegetables Cooking level Cooking time in min. Comments al dente Well cooked
Artichoke	1	30		35		Whole
Spinach leaves 1 0.5 3.5 Leaves
Cauliflower	1	3	5		Florets
Cauliflower	1	7	10		Whole
Green beans 1 7	9	-
Broccoli	1	4	6		Florets
Mushrooms	1	1	3		-
Fennel	1	13	17		Halvet
Fresh peas	1 3	5	-

Fresh vegetables Cooking level Cooking time in min., al dente Well cooked			Comments
Carrots I 4 6 Slices
Potatoes I 8 9 Quartered
Kohlrabi I 5 8 Sticks
Leek I 2 4 Slices
Pepper I 2 4 Strips
Red cabbage I 7 9 Whole
Salsify I 4 7 Sticks
Celery I 2 4 Diced
White asparagus I 2 5 Whole
Green asparagus I 3 5 Whole
Tomatoes I 2 4 Whole
White cabbage I 10	13	Cut into sixths
Savoy cabbage	I 6 9 Cut into sixths
Courgettes I 1	2 Half moons

The following types of vegetable are suitable when cooked longer and at cooking level II:

Fresh vegetables	Cooking level	Cooking time in min., well cooked	Comments
Bavarian cabbage	II	4	-
Potatoes in skins	II	14	60 - 80g /Potato
Red cabbage	II	4	Thin strips
Sauerkraut	II	10	- with

13.3 Meat

Joints are roasted in the Somatic econtrol. The necessary amount of liquid is first used for the stock.
If the pieces are too large, cut them smaller and brown them individually, then cook them on top of each other to finish cooking.
Cook boiling meat using 1-1.5 l of liquid in the bottom of the pot.
The cooking time depends on the quality, age, consistency and size of the meat.

The cooking time begins once the green area II is visible on the pressure indicator and is based on a quantity of 500g

Important: Remove the froth from boiling meat before you close the cooker.

Before you open the cooker, allow it to cool down or slowly release the steam in stages.

Cooking time guidelines: Cooking times apply for 500g

Cooking level Cooking time in min., well cooked Comments, fried

Beef

Frying II 30 Whole piece

Fillet II 18 Whole piece

Coulash II 20 Large chunks

Roulades II 17 Whole piece

Marinated beef II 25 Whole piece

Boiling meat II 30 Whole piece

Veal

Frying II 25 Whole piece

Fillet II 14 Whole piece

Lamb

Frying II 25 Whole piece

Back II 5 Whole piece

Cooking level Cooking time in min., well cooked Comments, fried

Pork

Belly II 15 Whole piece

Frying II 25 Whole piece

Knuckle of pork, fresh II 30 Whole piece.

Knuckle of pork, smoked II 45 Whole piece

Fillet II 17 Whole piece

Minced meat

Stuffed pepper II 15 with insert

Meat loaf II 15

Stuffed cabbages II 15

Soup dumplings II 5 0 2 cm

Chicken

Breast II 8 Whole piece

Stewing hen

11 10 Whole piece

Stewing hen

II 20 Whole piece approx. 1kg

Turkey

Breast II 20 Whole piece

Stewing hen

II 20 Whole piece approx. 1kg

Goose

Breast/stewing hen

II 30 Whole piece

Duck

Breast/stewing hen

11 15 Whole piece

Cooking level Cooking time in min., well cooked Comments, fried

Rabitt

Frying II 20 Whole piece

Stewing hen II 30 Whole piece

Back II 10 Whole piece

Deer

Goulash II 15 Large chunks

Venison

Frying II 20 Whole piece

Stewing hen II 25 Whole piece

Back II 20 Whole piece

Wild boar

Frying II 35 Whole piece

Goulash II 20 Large chunks

Stewing hen 25 Whole piece

Back II 35 Whole piece

13.4

Fish

Fish juice is very sticky. Therefore only release the steam very slowly. Once the pressure indicator has retracted into the lid shaft handle, remove the lid straight away.

Cooking time guidelines: Cooking times apply for 250g in the perforated insert

Fish Cooking level Cooking time in min., well cooked Comments

Cod 14 Whole fillet

Red fish 14 Whole fillet

Pollack 11 in portions

Monk fish 15 Whole fillet

Tuna I 10 in portions

Wild salmon I 11 in portions

Pike perch I 5 Whole fillet

13.5 side dishes, fruit and desserts

Cooking time guidelines: Cooking times apply for 500g

Side dishes Cooking level Cooking time in min. Comments			EN
Risotto	I	7	Do not release the steam, inst
minutes afterwards with closed lid
Bread dumplings I 7 Do not release the steam, instead soak for 12 minutes afterwards with closed lid
Pasta II 0 When the green area II shows on the pressure indicator, remove the Sicomatic® econtrol from the hob. Do not release the steam, instead wait 6 minutes before you open the cooker.
Basmati rice I 2 1 part rice, 2 parts water, do not release the steam, instead soak for 12 minutes with closed lid
Long grain rice	I 10 1 part rice, 2 parts water

Fruit, desserts	Cooking level Cooking time in min. Comments
Apple sauce 1 5 Cut into eighths
Apple compote	1 4 Cut into sixths
Apricot compote	1 2 Cut into eighths
Pear compote	1 3 Cut into eighths
Cherry compote	1 2 -
Plum compote	1 2 Halved
Rhubarb compote	1 3 Pieces
Gooseberry compote	1 3 -

13.6 Cooking a menu / tower cooking

In the Sicomatic econtrol with inserts you can cook an entire menu comprising of different foods at the same time in one pot.

Here are a few tips

→ The total cooking time for menus is always based upon the food with the longest cooking time. The dish with the longest cooking time is inserted first. If you want to cook a roast for 25 minutes, boiled potatoes for 9 minutes and vegetables for 5 minutes, cook the roast for 16 minutes then interrupt the process and place the insert carrier over the roast, then place the perforated insert containing the potatoes on top.

After a further 4 minutes, open the Somatice control and place the non-perforated insert with the vegetables on top. Cook for a further 5 minutes and the entire meal is ready.

You can reduce the cooking time for meat considerably if the meat is cut into portion-size slices. The meat then cooks in approx. 10-15 minutes, more or less the same time as rice, potatoes or vegetables, and you do not need to interrupt the cooking process.
Neither the smell nor the taste of the foods are transferred to each other. Therefore no mixed aroma is created.

Cooking time guidelines: The cooking times apply for 500g. Adjust the cooking level according to the food.

Tip Cooking Pot base Insert time in carrier time in min.		Cooking insert	Perforated Cooking Non- time in perforated min.
						min.	insert
Menu tip 1*	17	Beef roulades	x	4 - 6	Carrots	10	Rice
Menu tip 2*	25	Roast pork	x	9	Boiled potatoes	5	Cauliflower
Menu tip 3	11	Pollack 250g portion sizes	x	9	Boiled potatoes		-

*For menu tips 1 and 2, minimum 6.5 l Sicomatic° econtrol base must be used

13.7 Frozen food and whole foods

Frozen food

You can thaw frozen food quickly and gently in the Somatic® econtrol to retain vitamins, flavours and minerals.

Lengthy defrosting and thawing times are reduced to minutes, however this depends on the size of the frozen food.

Here are a few more tips

→The heating times for frozen meat are a little longer and the cooking times are a little shorter than for fresh meat.
Small thin pieces of meat, such as escalopes and chops as well as goulash that were frozen as individual chunks; do not defrost them, instead brown them in hot fat and then cook as normal.
Slightly thaw large thick pieces of meat and then brown them in hot fat or e.g. for meat stocks cook in boiling water.
If the poultry has already been gutted and split, prepare similarly to fresh poultry.
Frozen fish is either cooked in the insert at cooking level I or simmered briefly in hot fat in the bottom of the pot and then finish cooking with the rest of the liquid at cooking level I.
Place the frozen vegetables in the insert. Pour the usual amount of water into the bottom of the pot to generate steam, and cook.

Whole foods

A healthy diet incorporates a variety of different grains, which usually involve many hours of soaking followed by a very long cooking time. In the Somatic® econtrol, this long cooking time can be reduced up to 2/3. Prior soaking is also no longer necessary. Another advantage of cooking whole foods in the Somatic® econtrol is that it efficiently retains the vitamins and minerals of whole grains when cooking at cooking level I and it also saves energy. The following rule of thumb applies to cooking grains: double the amount of liquid compared with the grain (i.e. 200ml liquid for 100g grains).

Cooking time guidelines:

Cooking times apply for 200g

Type of grain Cooking level Cooking time in min.
Wheat	1	30
Rye	1	20
Naked barley 1 23
Green spelt 1 15
Spelt	1	15
Brown rice 1 10
Naked oat 1 5
Millet	1	10
Buckwheat	1	2

For certain types of grain the soaking times can be 6 to 10 hours, followed by swelling times of 10 to 30 minutes.

14 | Sicomatic® econtrol accessories

Non-perforated insert

0 22 cm

for 4.5 | 6.5 | Sicomatic

8031.7011.01

Porcelain basket

021cm

1529.4001.01

Perforated insert

018cm

for 2.5 I Sicomatic

8018.7011.01

022cm

for 4.5 | 6.5 | Sicomomatic

8032.7011.01

Stainless steel basket

019cm

1529.6022.01

Perforated insert, high

022cm

for 4.5 | 6.5 | Sicomatic

8033.7011.01

SicoControl cooking timer

0068.0035.01

Insert holder

022cm

for 4.5 | 6.5 | Sicomatic

0066.6000.01

Fluid cleaning agent

0051.8888.01

Powder cleaning agent

Strainer

022cm

for 4.5 | 6.5 | Sicomatic

7022.6022.01

0051.0010.01

15 | Sicomatic® econtrol spare parts

Pot shaft handle

0 18 cm

9532.9302.01

022cm

9532.9304.01

Wear parts

Aroma sealing cap

3 pcs.

9532.8004.01

Pot side handle

018cm

9532.9218.01

022cm

9532.9222.01

Sicomatic lid gasket

018cm

9067.8900.01

022cm

9067.8901.01

Lid

0 18 cm

8013.6021.11

022cm

8014.6021.11

Lid shaft handle, complete

9532.9101.01

Overpressure valve

9530.8801.01

16 | Warranty

Guarantee

We guarantee (provided that the cookware is used under normal, domestic conditions and for the intended use) the durability of the ceramic Silargan® surface for 30 years from the date of purchase. The lid (including components), handles, lid gasket, aroma sealing cap and chrome pouring rim are excluded from the warranty, as these parts do not have a ceramic Silargan® surface.

Under the terms of the warranty, we will exchange parts with a defective Silargan

surface for perfect parts within the warranty period.

A Silargan® surface is not deemed defective if it merely exhibits normal signs of wear and tear such as cutting and scratch marks etc. which are of a purely visual nature; such signs of wear and tear are not covered by the warranty.

Provided that this model is still included in the product range, the defective part will be replaced by a part from the same model. If the model is no longer part of the Silit product range, the defective part will be replaced with a similar product within the current Silit product range.

Exclusions from the guarantee

The guarantee does not cover damage due to the following causes: Failure to observe the instructions for use and care, overheating, inappropriate or improper use,

incorrect or negligent handling (e.g. cleaning with abrasive products), any kind of forceful impact (e.g. falling onto a floor, a blow), mechanical, chemical or physical damage to the surface resulting from incorrect use, improperly performed repairs and the installation of spare parts that do not correspond with the original design.

Warranty claims

For any warranty claim, a dated proof of purchase is required. The guarantee is effective from the date of purchase.

Warranty issuer

Information on the consumer's statutory rights

The consumer's statutory rights against the seller if the purchased product was not free of defects at the time of transfer of risk (e.g. subsequent fulfilment, withdrawal, reduction and compensation) are not affected by this guarantee.

We offer a 10-year supply warranty on spare parts upon expiry of the production time.

17 | Sicomatic® declarations of conformity

17.1 EC declaration of conformity

declares that the steam pressure cookers

Sicomatic® econtrol

Sicomatic t-plus

Sicomatic® classic

Biomatic ^ eco

Bio-Fadal

satisfy the following harmonised EC directives and standards:

EC guideline: 97/23/EC

Design control: Module B (EC type examination)

Production control: Module A (internal type examination)

Certifying body: TÜV Rheinland LGA Products GmbH

Tillystraße 2

90431 Nuremberg

Germany

ID 0000044918

Standard: DIN EN 12778 Steam pressure cookers

DIN EN 82079-1 Creation of instruction manuals

Place and date of issue

Riedlingen - 18.05.2015

Pouluur

Name, position and signature of authorised person

17.2 Declarations of conformity for commodities that come into contact with food

These declarations of conformity are available under the following link:

10.3 Conservation 29

11 Maintenance 30-31

Position (cuisson sans pression)

Directive CE: 97/23/CE

Los tiempos largos de descongelamente se reducen a horas, except that the time spent in the laboratory is reduced to 10 minutes.

D-88499 Riedlingen, Germany

关于消费者合法权利的说明

Ano to kaTaki diaeuyei zetocatuc.

→Mnv piavete note to okeuoc ota onueia diaquync tou atmuou.
→ Na kpatáte návtoTE ta xépiA, to KEpáλi kai to oʊma oac
EKTóC TnC EπIKivδuvnc περioxnc πavw ano TO μéoov tou
kānakoiu kai tn θupida aoxpaλεiac oTo xεiloc tou kānakoiu.

MnuepnAnpovete noto okeuoc.

Oeog mayepaotc (Mayepa xwpic nieon)

Mnpoeite va xpoiouoioeTe Tn xutpa Somatic econtrol kai onw mia ouvnoieyn katapola. Xwpic nion to ayeipea yivetai me Edoikovoun nepou kai evpyeiac. Moaic Eelthei lioc atuoc, npeneva xaunlwoete TN qwtia. Otav EepxetaipioooTepoc atuoc n otav avebaive i eaappa o 8ektnnc nceonc auto onmaivei ot n qwtiaival upeboikka duvatn.

Oeon maayepaatoC (nep.109oN paoivn npioxI)

Xpnooieitai yia to mayeipepa ka tto eaaeppu paoiou evaioohtawv tropiu wmu kipotepuoc xpvouc maeyipemuotoc. To tpoipuo, n.x. ta laayavikn to psi, tonotheetaito kaalai kai etoi dev mnpei va liwoe i ano to vepo otynxutpa.

H npaoivn nepiox n Tou deiktn pieoanc th eiva opatn. Moic liyoC atoc Eekiva kai o unoideikvuovc xpovoc ayepaotc.Heon Tou deiktn pieoanc npenei va diatnpetai me tetoio trono meow tnC puOmuoc tnC wfTiac oTo maTi, wotevaunapxei kaohou n movo uipn aneueuepwon atou.

Akoouoov oioevcououc

O suvoikoc xovoc twv evou uioyoicetai navtoe me
baon to qaynto nou anatei to meyalutepo xpov oayepaatoC. To mato E to meyalutepo xpov oayepaatoC
ta tonotheo1 npwto oto okeuoc.Av thelete va etoia
oete oto idio okeuoc eva eXpov oayepaatoC
25 aeW, paoTec natatec E xpov oayepaatoC 9
AeTTWkai laxavika E xpov oayepaatoC 5 aeTsw,
diakontete to ayepema tou eneita ano 16 aeTt,
tonotheTe to tpiodo otnpiignc naww ano to kai
otnpiTE naW Tou TpuNTO kaaltheta iE tic natatec yia
bpaso.

Eneita ano aaaa 4 aeTt aayiepemuotoc, aoviyTe n xutpa Sicomaticecontrol kai tonothetaite To kaalai wpi ctpu- nec me ta laaxavikac otnv Kopupn. suvexioTe to ayeipema via aaaa 5 aeTt ka iexte etoi ooloknpo to evoou.

0 xpovoc,ayepaatoCtou kpeatoC,ntopei va onmuavtka otav to kpeac teuaxicetai oe pidec. Eeneita to kpeac eivai etoio oE npinou 10-15 aeT,8nlaoh oE xpov npinou idio u autov nou anaitei tai yia to puzi, tic natatec n ta laxavikakai dev xpeiaZetai va diakoyete kaolou tn diaikacoiia tou ayepaatoC.
Oi mupwdiic n oI yoeic twv qayntwv dev metaidovtai
muTaU touc. V dnioupyeitai enionc ouTe eva eviaio
MEIKTO apwa twv qayntwv.

Evdekikoi xpovoi yapeipaeatoC: Oxpoovl mayepaotoc 1oxouv yia 500g ekaoToc. PuOiEe Tn theon mayepaatoc avaloya e to tpofo.

9.1 3iJ#E#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#J#
9.2 24
9.3 01
9.4 1

10 | 27-29

10.1 27
10.2 28
10.3 观察 29

11 | 30-31

12 | 32-37

→ 一默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默默

扎丽卡格I-gentle cooking level.生成层i nai 109°C(0.4bar=40kPa)

Jitch to uunshn Sicomatic econtrol 1

i

iEecontrol 0

2.1 會将規定用以相應的應用，如：

图定部如

Sicomatic 念 econtrol将图定用如L，私自
Sicomatic ^业 econtrol将刻深如无的云，于日
音默语将音的上面都从音上
Somatic ^心 econtrol是g造皂用的soh将到

An antenatmci waetehan shangw to bwtchn.

款자체내울의일원장,chir을조情况进行사고부로조작HZ지마심시오.

盾門長韋福日長達志爲國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國國国

嘉勅 五日三日二日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日三日

→会默习到日一信用自期回大部有

款将自费制，满三日

→半経消音音也云，自歌，日，于，

本賊 云的马克告

iUyicJrIeAaJxJxJxJnD.

8.1 3

奉之者默默，或以一击。

IiRanEiJiEiJiEiJiEiJiEiJiEiJiEiJiEiJiEi

歯達也日

→aorma selmingkaiytdjooherohn.
→ərəməsllrrn

Koolvis | 11 in porties

Zeeduivel 15 geheel filet

Tonijn I 10 in porties

Wilde zalm I 11 in porties
