USER MANUAL MAN3023A HOMEDICS

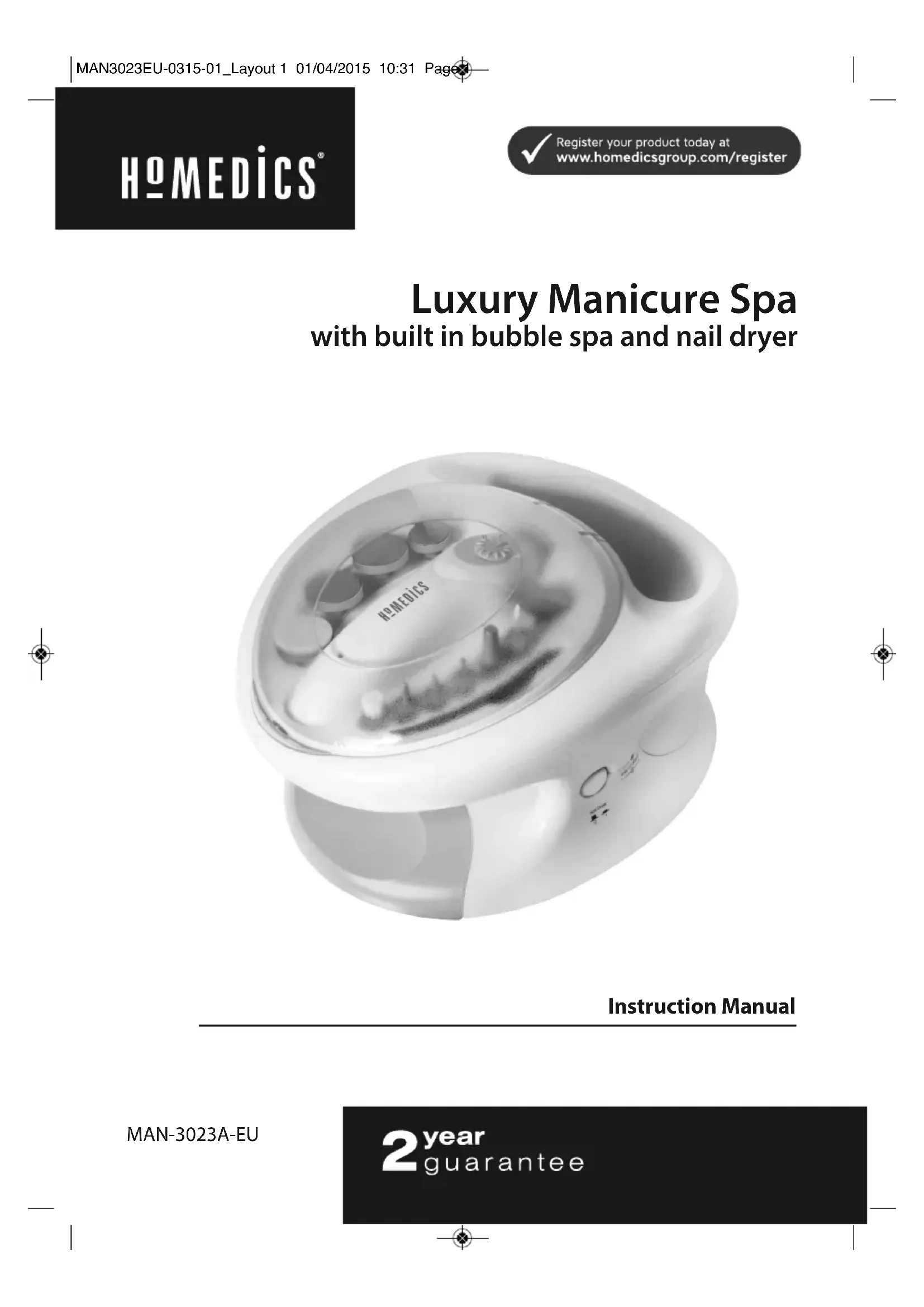

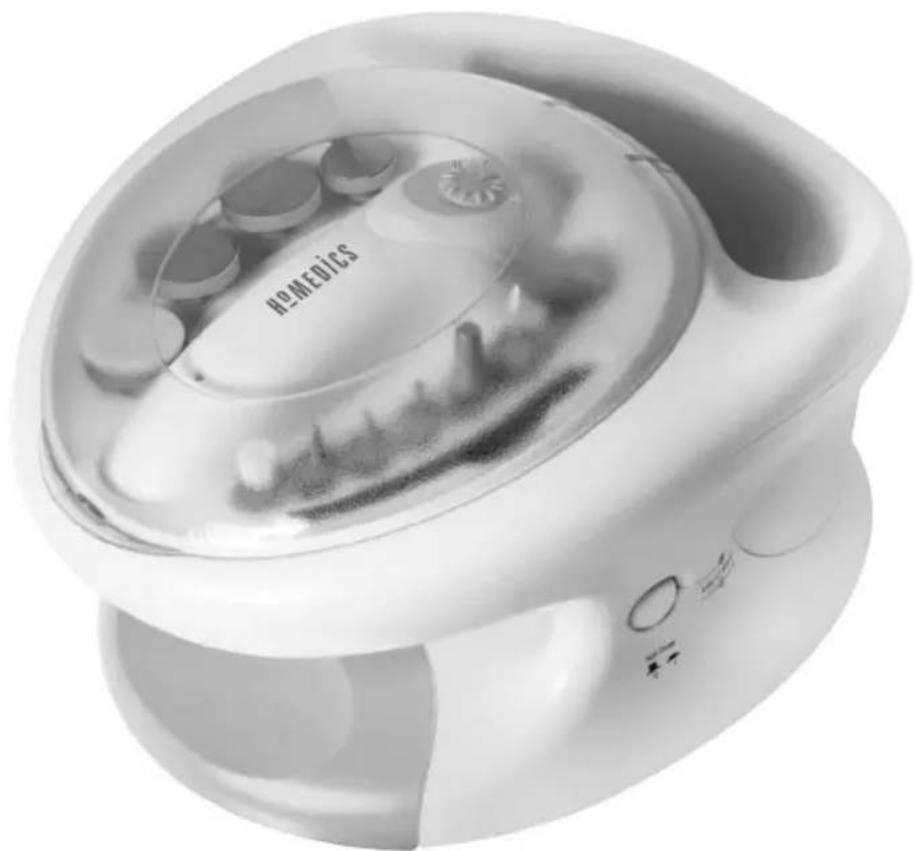

Instruction Manual MAN-3023A-EU Luxury Manicure Spa with built in bubble spa and nail dryer MAN3023EU-0315-01_Layout 1 01/04/2015 10:31 Page 12

• ALWAYS unplug the appliance from the electrical outlet immediately after using and before cleaning. To disconnect, turn all controls to the ‘OFF’ position, then remove plug from outlet.

• NEVER leave an appliance unattended when plugged in. Unplug from the mains outlet when not in use and before putting on or taking off parts or attachments.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• DO NOT reach for an appliance that has fallen in water or other liquids. Switch off at the mains and unplug it immediately. Keep dry – DO NOT operate in wet or moist conditions.

• NEVER insert pins or other metallic fasteners into the appliance.

• Use this appliance for the intended use as described in this booklet. DO NOT use attachments not recommended by HoMedics.

• NEVER operate the appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return it to the HoMedics Service Centre for examination and repair.

• Keep cord away from heated surfaces.

• Excessive use could lead to the product’s excessive heating and shorter life. Should this occur, discontinue use and allow the unit to cool before operating.

• NEVER drop or insert any object into any opening.

• DO NOT operate where aerosol (spray) products are being used or where oxygen is being administered.

• DO NOT operate under a blanket or pillow. Excessive heating can occur and cause fire, electrocution or injury to persons.

• DO NOT carry this appliance by the cord or use cord as a handle.

• DO NOT use outdoors.

• This product requires a 220-240 V AC power.

• DO NOT attempt to repair the appliance. There are no user serviceable parts. For service, send to a HoMedics Service Centre. All servicing of this appliance must be performed by authorised HoMedics service personnel only.

• Never block the air openings of the appliance or place it on a soft surface, such as a bed or couch. Keep air openings free of lint, hair etc.

• Do not place or store appliance where it can fall or be pulled into a bath or sink. Do not place in or drop into water or other liquid. MAN3023EU-0315-01_Layout 1 01/04/2015 10:31 Page 23

• If you have any concerns regarding your health, consult a doctor before using this appliance.

• If you are susceptible to allergic reactions or if you have circulatory problems, consult a physician before using this product.

• Do not use on irritated, sunburned or chapped skin, or on any area with dermatological problems.

• Do not apply over skin eruptions, warts, moles or varicose veins.

• Use should be easy and painless. If you experience nail or skin irritation, or hand discomfort when using this product, discontinue use. If a more extreme reaction occurs, consult your doctor

• Individuals with pacemakers and pregnant women should consult a doctor before using this appliance. Not recommended for use by Diabetics

• DO NOT use on an infant, invalid or on a sleeping or unconscious person. DO NOT use on insensitive skin or on a person with poor blood circulation.

• If you feel any discomfort whilst using this appliance, discontinue use and consult your doctor.

• Care should be taken when using heated surfaces. If the product feels excessively hot, switch off at mains and contact the HoMedics Service Centre.

• If you experience pain in a muscle or joint for a prolonged period of time, discontinue use and consult your doctor. Persistent pain could be a symptom of a more serious condition.

• Use of this product should be pleasant and comfortable. Should pain or discomfort result, discontinue use and consult your GP.

• Ensure that your hands are dry when operating the controls or removing the plug.

• This product should NEVER be used by any individual suffering from any ailments that would limit the user’s capacity to operate the controls. MAINTENANCE To Store Place attachments into their proper compartments inside the storage case. Store case in a safe, dry place, out of children’s reach. To Clean Always unplug before cleaning the unit. Never use liquids or abrasive cleaners to clean the housing of the unit or the case. Wipe off case with a damp cloth. Clean attachments periodically using detergent. Allow attachments to dry before inserting them into the hand unit. WEEE explanation This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. MAN3023EU-0315-01_Layout 1 01/04/2015 10:31 Page 34

• Twelve professional-style tools for shaping, filing and polishing nails of all sizes, plus removing rough and dry skin.

• Durable construction on all shaping and filing tools, for years of dependability.

• Two-speed operation, high and low.

• Compact storage case that stores, protects and organises tools.

• Built-in nail dryer makes drying your nails quick and easy.

• Two-directional operation - clockwise and anti-clockwise CHARGING INSTRUCTIONS:

1. Connect the cord to the main unit and plug the adaptor into a 220-240V outlet.

2. A red LED will light up on the hand unit to indicate it is plugged in.

Note: Before first use, charge hand unit for 24 hours for maximum power.

3. After charging, remove the hand unit from the main unit for cordless use. The hand unit should run

approximately 3 hours. NOTE: Hand unit can be used when the main unit is plugged in and charging. However, it will not charge until it is replaced back into the main unit.

DIRECT-DRIVE BY ADAPTOR

1. The manicure hand-held unit can also be powered directly by the a/c adaptor.

2. Use only the supplied adaptor.

3. Connect adaptor plug into the socket at end of the hand-held unit.

4. Plug the adaptor plug into the mains socket.

5. If the hand-held unit internal batteries are completely empty, recharge the unit for 5 minutes before

powering the attachment directly. 6 Unplug the adaptor after use. APPLYING ATTACHMENTS

1. Switch the hand unit to the off position (“0” setting)

2. Choose one of the product’s interchangeable attachments and gently snap it into

3. Switch the unit on, selecting high (“2” setting) or low (“1” setting) speed.

4. Lightly apply the attachment to the nail or skin surface.

5. Periodically stop treatment to check your results.

6. When finished, switch unit to the off position. Wait for the attachment to come to a

stop, then remove it for storage or replacement.

7. After using, wipe the surface of each attachment with a damp cloth to remove

residue. Use only the attachments provided with your Manicure system. Caution: When using attachments, stop treatment occasionally to monitor your results. Note: Do not operate unit for more than 20 minutes at one time. MAN3023EU-0315-01_Layout 1 01/04/2015 10:31 Page 45

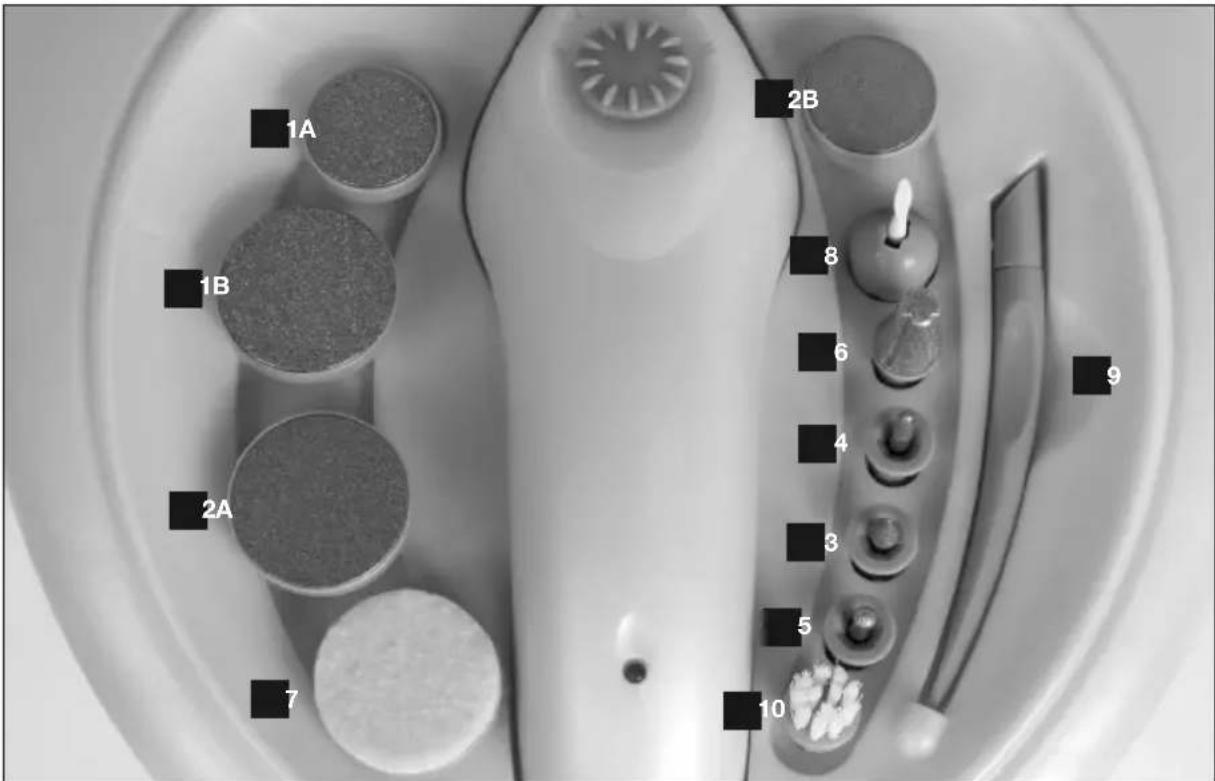

The manicure and pedicure system comes complete with twelve professional-style manicure and pedicure tools (see page 6 for accessories guide). Sapphire Manicure & Pedicure Shaping Discs Choose from the fine or coarse shaping discs that most suits the nail’s thickness. For smaller, thinner fingernails, use the fine shaping disc (Inset 1). For thicker nails such as toenails, use the coarse shaping disc (Inset 2). Lightly apply the disc to the edge of your nail, moving the unit along the side of the nail until you achieve the shape and smoothness you desire, while taking care not to take the nail too short. Sapphire Filing Cones The thin, filing cone (Inset 3) files away rough edges around nails and removes dry skin. It can also be used to treat ingrown nails and other problem nails. The thick filing cone (Inset 4) is perfect for thicker nails and toenails. Gently apply the cone to the area that needs attention, pausing frequently to monitor your progress. The ball head point (Inset 5) files and treats the surface of thick toenails and fingernails. The use of this attachment can be together with thick point filing cone. Sapphire Shaping Cone Use the sapphire cone (Inset 6) to remove rough and dry skin around the nail and soften calluses. Lightly apply the cone to the skin, using a back and forth motion. Stop treatment if irritation occurs. Polishing Disc When you have finished filing, lightly buff the nail surface to smooth edges and add shine (Inset 7). Cuticle Care Use the cuticle lifter (Inset 8) or cuticle stick to push back your cuticle beds. Note: For best results, first soak cuticles in warm water to soften. The cuticle stick (Inset 9) can be used to push back cuticles manually. It can be carried in a handbag for quick touch-ups while on the go. Nail Brush When you have finished filing your nails and grooming cuticles, use the nail brush (Inset 10) to clean under nails and around cuticle beds.

After filing and shaping nails and removing rough skin, you may bathe hands or feet to rehydrate nails and soften cuticles. Soak your hands or feet in a lukewarm bath for 15 minutes. Next, massage moisturiser (not included) into the skin and into each nail, paying close attention to your cuticles. Finally, dry hands or feet completely and apply the polishing cone to smooth edges and lightly buff nail surfaces for added shine. Figure 2 MAN3023EU-0315-01_Layout 1 01/04/2015 10:31 Page 67

TIPS FOR KEEPING NAILS HEALTHY

To achieve the best results from your manicure and pedicure system, follow these guidelines.

• Avoid placing harsh chemicals on nails.

• Avoid exposing hands and feet to cold, dry environments. Always wear protective clothing in cold temperatures.

• Avoid strong soaps, detergents and excessive washing.

• For best results, do not bathe hands or feet before using manicure and pedicure system attachments.

• Proper nail hydration is key to strong, healthy nails that resist chipping and splitting. After using the Manicure & Pedicure System attachments, soak hands or feet in a bowl of warm, soapy water for 15 minutes to restore moisture.

• Polish nails before applying any moisturiser.

• Next, rub a light moisturiser (not included) into your skin, nails and cuticles to soften skin and protect nails.

• To prevent nails from splitting and peeling, wear high-quality nail polish (not included) to protect against harsh elements, seal in moisture and hydrate.

• Avoid changing polish more than once a week. Remove any excess moisturiser oil prior to polishing the nails to ensure the polish adheres to the nail.

• Use shaping discs rather than nail scissors for safer, more controlled nail removal.

• Wait 7-10 days before re-buffing nails to maintain the thickness of nail surface. HOW TO USE NAIL DRYER WITH AROMATHERAPY FUNCTION

1. Plug the adaptor plug into the DC Jack at the side of the storage box, located next

to the nail dryer on/off switch.

2. Press the Nail dryer switch for switching on the nail dryer.

3. Once you have painted your nails, place your hand on to the Dryer platform

4. If you want to use the Aroma function at the same time as nail drying, put aroma

beads into the aroma basket by sliding out the Nail Dry Platform. Please note: AROMA BEADS ARE NOT SUPPLIED WITH THE UNIT HOW TO USE THE BUBBLING HAND SPA

1. Before using the manicure set, you can soften cuticles and relax your hands by

placing your fingers into the bubbling hand spa for 2 minutes.

2. Plug the adaptor plug into the DC Jack at the side of the storage box, located next

to the nail dryer on/off switch.

3. Put warm water into the bubbling spa tank and then press the “Spa” on/off switch

to activate the bubble massage.

4. Once you have finished, gently pat your hands dry.

5. Before pouring the water out, unplug the adaptor and move it away from the spa

6. Always pour water out away from the manicure set accessories storage

compartment to prevent water splashing ontothe manicure centre. CAUTION: Always keep the adaptor FAR AWAY from the bubbling spa tank.

7. Dry the bubbling spa tank after every use.

8. Do not use any additives to the tank as it may block the bubble jet holes.
