USER MANUAL PRP 400 B1 PARKSIDE

Translation of the original instructions

NL BE

Regenton pomp

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR DE

Areas of Application 17

General Description. 18

Scope of Delivery. 18

Overview. 18

Functional description 18

Technical Data. 18

Performance data. 19

Notes on Safety 19

Explanation of symbols 19

General notes on safety 19

Operational start-up 22

Assembly 22

Immersing the pump 22

Mains connection. 23

Operation 23

Adjusting the float switch 23

Switching on and off 23

Maintenance/ Cleaning/

Storage. 24

General cleaning instructions. 24

Cleaning the filter. 24

Flushing the pump. 24

Storage. 24

Waste Disposal and

Environmental Protection 25

Replacement parts/Accessories..25

Troubleshooting 26

Guarantee 27

Repair Service. 28

Service-Center. 28

Importer 28

Translation of the original EC declaration of conformity ....150

Exploded Drawing 161

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

In some cases, residual amounts of water may therefore be present on or in the device or in hose lines. This is not a flaw or a defect and is no cause for concern.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Areas of Application

The rain barrel pump is designed for pumping water from a rain barrel or rain collection tank. It is particularly suitable for garden irrigation. The device is designed exclusively for the supply of clarified water and rain water up to a temperature of max. 35^

Any other use that is not expressly permitted in this instruction manual (e.g. supply of food, salt water, motor fuels, chemical products or water with abrasive substances) may result in damage to the device and pose a serious hazard to the user.

The device is not suitable for continuous operation. Continuous operation will shor

GB MT

ten its service life and void the warranty. This device is not suitable for commercial use. The warranty is void in the case of commercial use.

The operator or user is responsible for any accidents or personal injury and/or material damage to third parties or their property.

The manufacturer is not liable for damage caused by improper use or incorrect operation.

General Description

An illustration of the most important functional components can be found on the fold-out pages.

Scope of Delivery

Carefully unpack the appliance and check that it is complete. Dispose of the packaging material correctly.

Water Barrel Pump
- 2x Aluminium pipe
- Flexible pipe
- 5x Sealing ring
Pipe holder
- Plastic hook with screw and wing nut
- Connector
- Adapter
- Instructional manual

Overview

Pump

1 Float switch
2 Carrying handle
3 Pump housing
4 Suction foot
5 Cable
6 Fastening

Accessories

7 Plastic hook
8 Wing nut
9 Screw
10 Connector
11 Adapter
12 Pipe holder
13 Small sealing ring
14 Medium-sized sealing ring
15 Large sealing ring
16 Shut-off valve
17 Flexible pipe
18 Screw sleeve
19 Lower/Upper aluminium pipe
20 Screw sleeves

A 21 Pressure connection
C 22 Filter cover
C 23 Filter

Functional description

The pump is equipped with a float switch that automatically switches the pump on or off depending on the water level.

In case of overload, the pump is switched off by the built-in thermal protection switch.

After cooling down, the motor starts up again by itself.

A height-adjustable plastic hook on the aluminium pipe can be hooked into the rain barrel and enables convenient water extraction via a water hose. The shut-off valve has the function of a water tap.

Technical Data

Water Barrel Pump.. PRP 400 B1

Input voltage (U) 230 V~; 50 Hz

Power consumption (P) 400 W

Safety class

Degree of protection.. IPX8

Max. discharge rate

(Qmax)...........approx. 4000 l/h

Max. discharge head (Hmax) 13 m
Max. depth of immersion .7 m
Max. foreign body size.. 3 mm
Max. water temperature (Tmax) 35^ Mains cable .10 m

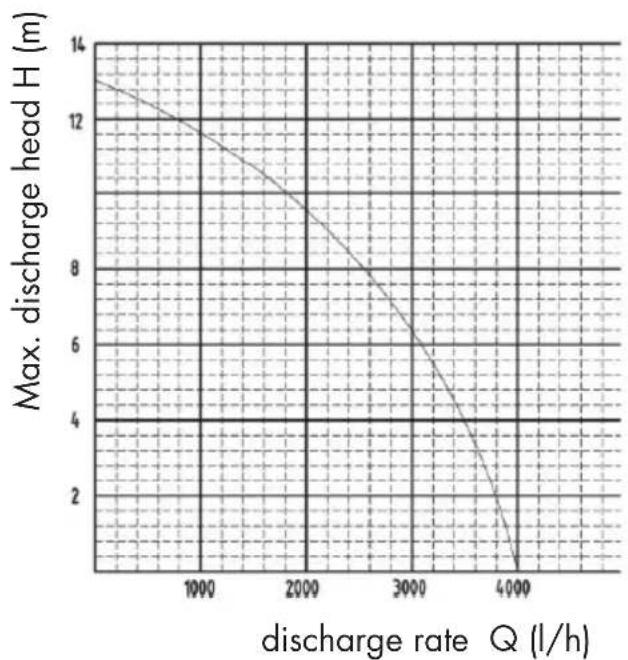

Performance data

Notes on Safety

Follow all safety instructions when using the machine.

Explanation of symbols Symbols on the device

Before beginning work, familiarise yourself thoroughly with all the operating elements, particularly with how they function and operate. Ask a specialist if necessary. and follow the operat ing instructions provided for the device!

Do not use for pure sand water!

7 m Max. immersion depth

Open and close the shut-off valve

Attention: Remove the plug from the socket as soon as the power lead is damaged or cut.

Electric appliances should not be disposed of in the domestic garbage.

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Hazard symbol with information on the prevention of personal injury caused by electric shock.

Remove the mains plug!

Help symbols with information on improving tool handling.

General notes on safety

Working with the equipment:

Caution: to avoid accidents and injuries:

• This device can be used by children aged 8 years and up as well as individuals with reduced physical, sensory or mental abilities or a lack of experience and knowledge if they are supervised or

have been instructed in the safe use of the device and understand the resulting hazards. Children must never play with the device. Cleaning and user maintenance must not be carried out by children if they are not supervised.

• Wear sturdy footwear to protect against electric shock.
• Should there be people in the water, do not operate the equipment. Risk of electric shock!
  Take appropriate measures to keep children away from the equipment whilst it is running. There is a risk of injury!
• Do not use the equipment in the vicinity of flammable liquids or gases. Non-observance will result in a risk of fire or explosion.
• The transfer of aggressive, abrasive (grinding effect), corrosive, combustible (e.g. motor fuels) or explosive liquids, salt water, cleaning agents and foodstuffs is not permitted. The temperature of the liquid being transported must not exceed 35^ .
• Store the equipment in a dry place and out of reach of children.

Caution! To avoid damage to the equipment and any possible person injury resulting from this:

• Do not work with damaged or incomplete equipment, or with equipment that has been converted without the approval of the manufacturer. Before initial

operation, have a specialist check that the required electrical protection measures are in place.

Monitor the equipment during operation (particularly in residential spaces, in order to detect automatic switching off or dry running of the pumps in time. Regularly check the function of the float switch (see chapter "Operational start-up"). Non-observance will invalidate all guarantee and liability claims.
- The pump is not suitable for continuous operation (e.g. for water features in garden ponds). Check the equipment regularly for correct functioning.
- Note that the lubricants used in the equipment may cause damage or contamination if they escape. Do not use the pump in garden ponds with fish stocks or valuable plants.
- Do not carry or fix the equipment by the cable or pressure line.
- Protect the equipment from frost and from running dry.
- Use only original accessories and do not carry out conversion work on the equipment.
- Please read the notes in the operating instructions on the topic of "Maintenance and Cleaning" and "Storage". Any measures above and beyond these, particularly opening the equipment, are to be carried out by an electrician. In the case of repairs, always contact our service centre.

Electrical safety:

Caution: to avoid accidents and injuries from electric shocks:

If there are people in the water, the device must not be operated. Risk of electric shock!
After installation, the mains plug must be freely accessible when the equipment is in operation.
Before operating your new pump, have a specialist check:

The earthing, the protective multiple earthing; the residual current circuit breaking must be compliant with the safety regulations of the energy supply company and function without fault,
- The protection of the electrical plug connections from the wet.
If there is a risk of flooding, fix the plug connections in an area that is safe from flooding. Risk of electric shock.
- Ensure that the mains voltage matches the specifications on the rating plate.
The electrical installation shall be according to national wiring rules.
- Connect the appliance only to a power socket with a residual current circuit breaker of rated residual current no more than 30mA ; fuse min. 6 ampere.
- Check the device, power connection cable and plug for damage before each use. Defective mains connection cables must not be repaired. They must

be replaced wit new ones. Ensurer that damage to your device is repaired by an authorised specialist.

If the connection cable of this device is damaged, it must be replaced by the manufacturer or their customer service or by a similarly qualified person in order to avoid hazards.
- Do not use the mains connection cable to pull the plug out of the socket. Protect the mains connection cable from heat, oil and sharp edges.
- Use only extension cables that are splash-proof and designed for outdoor use. Always roll out the cable drum completely before use. Check the extension cable for damage.
- Remove the plug from the mains socket before carrying out work on the device, if there is a leak in the water system, during work breaks and when not in use.
- Mains connection cables must not have a cross-section that is smaller than those of rubber hoses with the designation H07RN8-F. The cable length must total 10m . The wire cross section of the extension cable must be at least 2.5mm^2 .
- Protect mains cables and electrical connections from moisture. Make sure that mains connection cables and electrical connections are located in a flood-proof area.

Operational start-up

Assembly

Fitting the lower aluminium pipe

1. Insert the large sealing ring (15) into the adapter (11) of the pressure connection.

2. Screw the adapter (11) to the pressure connection (21) of the pump.

3. Clip the pipe holder (12) with the middle holder to the aluminium pipe. The mounting rail of the pipe holder (12) must point downwards.

4. Insert one of the two medium-sized sealing rings (14) into the screw sleeve (20).

5. Place an aluminium pipe (19) onto the adapter (11) and screw it with the screw sleeve (20).

1. Push the pipe holder (12) onto the aluminium pipe downwards until it engages in the recess on the device.

Fitting the upper aluminium pipe

1. Connect the lower and upper aluminium pipe (19) using the connector (10). Place one of the small sealing rings (13) between the connector (10) at the two screw sleeves (18).

Fitting the plastic hook

1 Loosen the wing nut (8) on the plastic hook (7) .
2. Remove the screw (9) from the plastic handle.
3. Clip the plastic hook (7) onto the upper aluminium pipe (19).
4. Fix the plastic hook (7) with the screw (9) and wing nut (8).

Fitting the flexible pipe

1. Insert the medium-sized sealing ring (14) into the screw sleeve (20).
2. Push the flexible pipe (17) onto the upper aluminium pipe (19) and screw it with the screw sleeve (20).

Immersing the pump

Be careful not to hold or hang the unit by the mains connection cable. There is a risk of electric shock due to damaged mains connection cables.

When immersing the pump, make sure that the shut-off valve(16) is open to ensure that the pump is vented.

• Use the plastic hook (7) or attach a rope to the pump's carrying handle (2) to immerse or raise the pump. Never hang the unit directly from the bent pipe or water hose.
• You can adjust the height of the plastic hook after loosening the wing nut (8). This way you can hang the pump in a rain barrel without it touching the ground and sucking in possible sediment.
• When the water level is low, you can also place the pump in the rain barrel. The shut-off valve must protrude over the edge of the container.

Beware of dirt and sand accumulating at the bottom of the barrel over time, which could damage the pump.

We recommend placing the pump on a brick.

Mains connection

The pump you have purchased is already equipped with a safety plug. The pump is intended for connection to an earthed socket with residual current circuit breaker (RCCB) with 230V 50Hz .

Operation

Adjusting the float switch

1

Automatic operation

The on or off switching point of the float switch (1) can be adjusted continuously.

1. Disconnect the cable (5) of the float switch (1) from the fastening, if necessary (6).
2. Press the cable (5) in the desired position into the fastening (6).

Check the float switch (1). It must be positioned so that it can rise and fall freely. The switching point height "On" and the switching point height "Off" must be easily reached.

There is a risk of dry running if the cable (5) of the float switch is chosen too long, especially if the cable (5) is not hooked into the fastening (6).

2

Manual operation

The pump runs continuously in manual operation.

Position the float switch (1), as shown, directly vertically in the fastening (6).

Switching on and off

1. Open the shut-off valve (16). Turn in + direction
   Use the shut-off valve to regulate the amount of water that flows into the connected water hose.
2. Fully immerse the pump.
3. Insert the mains plug in the socket. The pump starts immediately.
4. To switch off, pull the plug out of the socket. The pump switches off.

If the water level is too low, the float switch will automatically switch off the pump.

Supervise the appliance while it is in operation in order to be immediately aware if the automatic cut-out operates or the pump runs dry, to limit any damage to a minimum.

Maintenance/ Cleaning/ Storage

Clean and maintain your equipment regularly. This will guarantee its performance and long durability.

Ask our service centre to carry out any work that is not described in these instructions. Use only original parts. There is a risk of injury!

Pull out the power plug before every maintenance operation. There is a risk of electrocution or of injury from moving parts.

General cleaning instructions

• Clean the pump with clean water after each use.
• Remove any fluff and fibrous particles that may have become trapped on and under the pump housing (3) with a water jet.
  Clean the float switch (1) and the suction foot (4) of deposits with clear water.

Cleaning the filter

The pump has a removable filter in the suction foot that protects it from contamination. Depending on the degree of contamination of the water, it should be checked occasionally and cleaned if necessary:

1. Unplug the mains plug.
2. Turn the filter cover (22) a 14 turn clockwise.
3. Remove the filter cover (22).
4. Clean the filter (23) under running water.
5. Install the filter (23) and filter cover (22) in reverse order.

The pump must not be operated with the filter (23).

Flushing the pump

After pumping heavily polluted water, the pump must be flushed to prevent deposits in the pump.

• Pump lukewarm water (max. 35^ ) until the pumped water is clear.

Storage

• Clean the pump before storage.
• Store the appliance in a dry, frost-free place, and where children cannot gain access to it.
• When the pump is not to be used for a longer period, it must be thoroughly cleaned after its last use, and before it is next used. Otherwise there may be problems in starting the pump, caused by deposits and residues.

Space-saving storage

1. Dismantle the flexible pipe (17) and the upper aluminium pipe (19).
   2 Clip the flexible pipe (17) and the upper aluminium pipe (19) right and left into the pipe holder (12).

Keep the sealing rings (13/14) in a safe place.

All other measures, particularly opening the pump must be carried out by a qualified electrician. Always contact the Service Centre if repairs are needed.

Waste Disposal and Environmental Protection

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Electric appliances should not be disposed of in the domestic garbage.

Hand the tool in at a recycling centre. The plastics and metal parts can be separated and recycled. Ask your Service Center about this. Defective units returned to us will be disposed of for free.

Replacement parts/ Accessories

Spare parts and accessories can be obtained at www.grizzlytools.shop

If you have issues ordering, please use the contact form.

If you have any other questions, contact the "Service-Center" (see page 28).

7 Plastic	hook	91105969
10	Connector
11 Adapter
13-15 5x Sealing ring
17 Flexible pipe
19 2x Aluminium pipe

Troubleshooting

Faults Causes Remedies
Pump does not start	Mains voltage is not applied	Check plug socket, cable, line and plug, where appropriate, have repaired through electrical specialist
	Float switch (1) does not switch C	Check the position of the float switch
Pumps has no discharge	Water level too low during com-missioning	Immerse pump deeper
	Thermal protection switch has switched off	Wait until the motor switches on again after cooling down Pull out the mains plug and clean the suction foot/impeller
	Filter cover (22) / Filter (23) blocked	Clean the filter cover/filter
Pump oper-a- ting but not pumping	Pressure line closed	Open the shut-off valve (16) on the distrib- utor or other taps, nozzles, etc.
Flow rate insufficient	Pump performance reduced due to heavy dirt contamination or abrasive water impurities	Pull out the mains plug and clean the pump, replace consumable parts if necessary (see "Cleaning, maintenance and storage")
	Float switch (1) cannot sink Check	the position of the float switch
	Filter cover (22) / Filter (23) blocked	Clean the filter cover/filter
	Pumping capacity reduced due to very dirty and abrasive ad-mixtures of water	Pull out the mains plug and clean the pump, replace consumable parts if necessary (see "Cleaning, maintenance and storage")
Pump switch- es off after a short period	Motor contactor disconnects the pumps because of water pollu- tion that is too severe	Pull out the mains plug and clean.
	Water temperature too high, mo- tor contactor breaks	Note maximum water temperature of 35°C!

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase.

In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace - at our choice - the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. backflow stop, sealing ring) or to cover damage to breakable parts (e.g. switches). This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

In particular, there is no warranty claim when pumping abrasive materials (sand, stones) or aggressive liquids, as this may damage seals, impeller, motor or other parts.

Caution: The rain barrel pump is not suitable as a continuous running pump (e.g. for streams or pond fountains). The warranty claim will expire in case of misuse.

The warranty claim will also become void if the rain barrel pump is used without a baseplate or in the event of damage caused by holding or hanging on to the mains connection cable. The rain barrel pump must not run dry or be exposed to frost.

Processing in Case of Guarantee

To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and identification number (IAN 383515_2107) ready as proof of purchase for all enquiries.

• Please find the item number on the rating plate.

• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IAN 383515 2107

MT Assistenza Malta Tel.: [phone]

E-Mail: [e-mail]

IAN 383515_2107

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Pooblasceni serviser:

Tel.: [phone]

E-Mail: [e-mail]

(Birotehnika, Hodošček Renata s.p., Lendavska ULICA 23, 9000 Murska Sobota)

Garancijski list

Translation of the original EC declaration of conformity
We hereby confirm that the Water Barrel Pump model PRP 400 B1 Serial number 000001 - 023000 conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2014/30/EU • 2011/65/EU* • (EU) 2015/863
In order to guarantee consistency, the following harmonised standards as well as natio- nal standards and stipulations have been applied:
EN 60335-1:2012+A11+A13+A1+A14+A2 • EN 60335-2-41:2003+A1+A2 EN 62233:2008 • EN ISO 12100:2010 • EN 55014-1:2017+A11 • EN 55014-2:2015 EN IEC 61000-3-2:2019 • EN 61000-3-3:2013+A1 • EN IEC 63000:2018
This declaration of conformity (21)** is issued under the sole responsibility of the ma- nufacturer:
CE Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim Germany 10.12.2021	Christian Frank Documentation Representative

• The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
  ** The last two digits of the year in which the CE marking was affixed.
