| Product type | Cordless rotary hammer |
| Brand | Metabo |
| Model | BHA 36 LTX Compact |
| Power supply | 36 V Li-Ion battery pack |
| Chuck type | SDS-plus |
| Operating modes | Drilling, hammer drilling |
| No-load speed | Approx. 0-1200 rpm (variable) |
| Max impact rate | Approx. 0-4600 bpm |
| Impact energy | Approx. 2 J |
| Max drilling capacity (concrete) | Approx. 24 mm |
| Max drilling capacity (steel) | Approx. 13 mm |
| Max drilling capacity (wood) | Approx. 30 mm |
| Weight (with smallest battery pack) | Approx. 3.2 kg |
| Length | Approx. 330 mm |
| Included accessories | VibraTech side handle, depth stop, carrying strap |
| Safety | Metabo S-automatic safety clutch, overload and temperature protection |
| Maintenance and cleaning | Clean air vents regularly |
| Spare parts and repairability | Repairs by specialist; parts available at www.metabo.com |
| General information | Intended use: hammer drilling in concrete/stone, drilling without hammer in metal/wood, screwdriving |
Frequently Asked Questions - BHA 36 LTX Compact METABO
User questions about BHA 36 LTX Compact METABO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hammer in PDF format for free! Find your manual BHA 36 LTX Compact - METABO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BHA 36 LTX Compact by METABO.
USER MANUAL BHA 36 LTX Compact METABO
BHA 18 LT/LTX
BHA 36 LTX Compact
(D) Originalbetriebsanleitung...... 5
ENG Original instructions.... 10
⑤ Notice originale.... 15
NL Oorspronkelijke gebruiksaanwijzing... 20
IT Istruzioni originali.... 25
ES Manual original 31
PT Manual original 36
SV Bruksanvisning i original.... 41
FIN Alkuperäiset ohjeet.... 46
No Original bruksanvisning 51
① Original brugsanvisning.... 56
POL Instrukcja oryginalna 61
EL Πρωτότυπο οδηγιών χρήσης ...... 67
HU Eredeti használati utasítás.... 73
RU Оригинальное руководство по эксплуатации . 78
170 27 0100 - 0311
 | BHA 18 LT BHA 18 LT/LTX | BHA 36 LTX Compact | ||
 | U | V | 18 36 | |
| Ah Ah | 2,6 1,5 | |||
 | m kg (lbs) | 3,2 (7.1) | 3,0 (6.6) | |
 | n1 | ../min 0 | -1100 0 - 1200 | |
 | SDS Plus | √ | √ | |
 | ø max. mm (in) | 18 ( ^23/_32 ) 18 ( | ^23/_32 | |
| s max. ../min | 4900 | 5000 | ||
| W | J | 0 - 1,8 | 0 - 1,8 | |
 | ø max. mm (in) | 22 ( ^7/_8 ) 22 ( | ^7/_8 | |
 | ø max. mm (in) | 10 ( ^3/_8 ) 10 ( | ^3/_8 | |
| ah,HD/Kh,HD | m/s ^2 | 12 / 1,5 | 12 / 1,5 | |
 | LpA / KpA | dB (A) | 87 / 3 | 87 / 3 |
| LWA/ KWA | dB (A) | 98 / 3 | 98 / 3 | |
CE
EN 60745
2006/42/EG, 2004/108/EG
Volker Siegle
Director Product Engineering & Quality
Responsible Person for Documentation
© 2011 Metabowerke GmbH, 72622 Nürtingen, Germany
ASC 15 (BHA 18 LT, BHA 18 LT/LTX, BHA 36 LTX Compact)
ASC 30 (BHA 18 LT, BHA 18 LT/LTX)
B
8 V 3,0 Ah 6.25455 Li-Power Extreme
18 V 2,6 Ah 6.25457 Li-Power Plus
36 V 1,5 Ah 6.25453 Li-Power
D
E

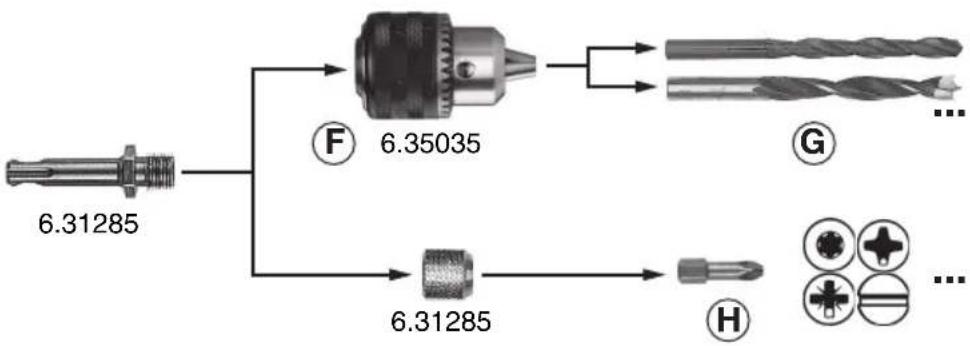

I
6.31800
4


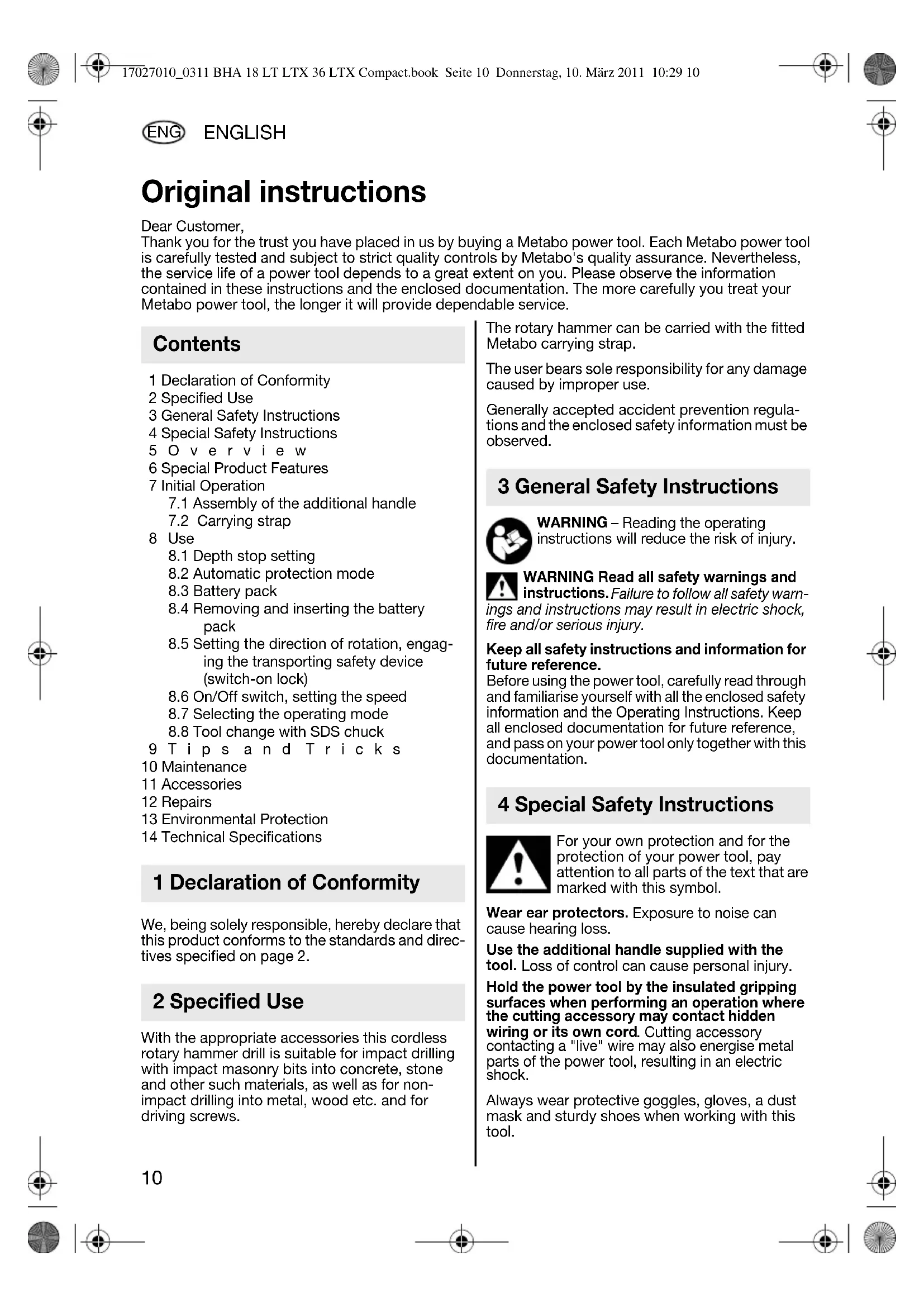

Dear Customer,
Thank you for the trust you have placed in us by buying a Metabo power tool. Each Metabo power tool is carefully tested and subject to strict quality controls by Metabo's quality assurance. Nevertheless, the service life of a power tool depends to a great extent on you. Please observe the information contained in these instructions and the enclosed documentation. The more carefully you treat your Metabo power tool, the longer it will provide dependable service.
Contents
1 Declaration of Conformity
2 Specified Use
3 General Safety Instructions
4 Special Safety Instructions
5 Overview
6 Special Product Features
7 Initial Operation
7.1 Assembly of the additional handle
7.2 Carrying strap
8 Use
8.1 Depth stop setting
8.2 Automatic protection mode
8.3 Battery pack
8.4 Removing and inserting the battery pack
8.5 Setting the direction of rotation, engaging the transporting safety device (switch-on lock)
8.6 On/Off switch, setting the speed
8.7 Selecting the operating mode
8.8 Tool change with SDS chuck
9 Tips and Tricks
10 Maintenance
11 Accessories
12 Repairs
13 Environmental Protection
14 Technical Specifications
1 Declaration of Conformity
We, being solely responsible, hereby declare that this product conforms to the standards and directives specified on page 2.
2 Specified Use
With the appropriate accessories this cordless rotary hammer drill is suitable for impact drilling with impact masonry bits into concrete, stone and other such materials, as well as for non-impact drilling into metal, wood etc. and for driving screws.
The rotary hammer can be carried with the fitted Metabo carrying strap.
The user bears sole responsibility for any damage caused by improper use.
Generally accepted accident prevention regulations and the enclosed safety information must be observed.
3 General Safety Instructions
WARNING – Reading the operating instructions will reduce the risk of injury.
WARNING Read all safety warnings and instructions. Failure to follow all safety warn-
ings and instructions may result in electric shock, fire and/or serious injury.
Keep all safety instructions and information for future reference.
Before using the power tool, carefully read through and familiarise yourself with all the enclosed safety information and the Operating Instructions. Keep all enclosed documentation for future reference, and pass on your power tool only together with this documentation.
4 Special Safety Instructions
For your own protection and for the protection of your power tool, pay attention to all parts of the text that are marked with this symbol.
Wear ear protectors. Exposure to noise can cause hearing loss.
Use the additional handle supplied with the tool. Loss of control can cause personal injury.
Hold the power tool by the insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may also energise metal parts of the power tool, resulting in an electric shock.
Always wear protective goggles, gloves, a dust mask and sturdy shoes when working with this tool.
ENGLISH
ENG
Ensure that the spot where you wish to work is free of power cables, gas lines or water pipes (e.g. using a metal detector).
Secure small workpieces, e.g. by clamping in place with screw clamps.
Work only with the additional handle correctly installed.
Always hold the machine with both hands using the handles provided, stand securely and concentrate.
A damaged or cracked additional handle must be replaced. Never operate a machine with a defective additional handle.
Metabo Sautomatic safety clutch. When the safety clutch responds, switch off the machine immediately!
Do not touch the rotating tool!
Remove chips and similar material only with the machine at a standstill.
Caution must be exercised when driving screws into hard materials (driving screws with metric or imperial threads into steel)! The screw head may break or a high reverse torque may build up on the handle.
Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful. Contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders.
Certain kinds of dust are classified as carcinogenic such as oak and beech dust especially in conjunction with additives for wood conditioning (chromate, wood preservative). Material containing asbestos must only be treated by specialists.
- Where the use of a dust extraction device is possible it shall be used.
- The work place must be well ventilated.
- The use of a dust mask of filter class P2 is recommended.
Follow national requirements for the materials you want to work with.
Protect battery packs from water and moisture!
Do not expose battery packs to naked flame!
Do not use faulty or deformed battery packs! Do not open battery packs!
Do not touch or short-circuit battery packs!
Slightly acidic, flammable fluid may leak from defective Li-ion battery packs!
If battery fluid leaks out and comes into contact with your skin, rinse immediately with plenty of water. If battery fluid leaks
out and comes into contact with your eyes, wash
them with clean water and seek medical attention immediately.
Remove the battery pack from the machine before any adjustments, conversions or servicing are performed.
Before fitting the battery pack, make sure that the machine is switched off.

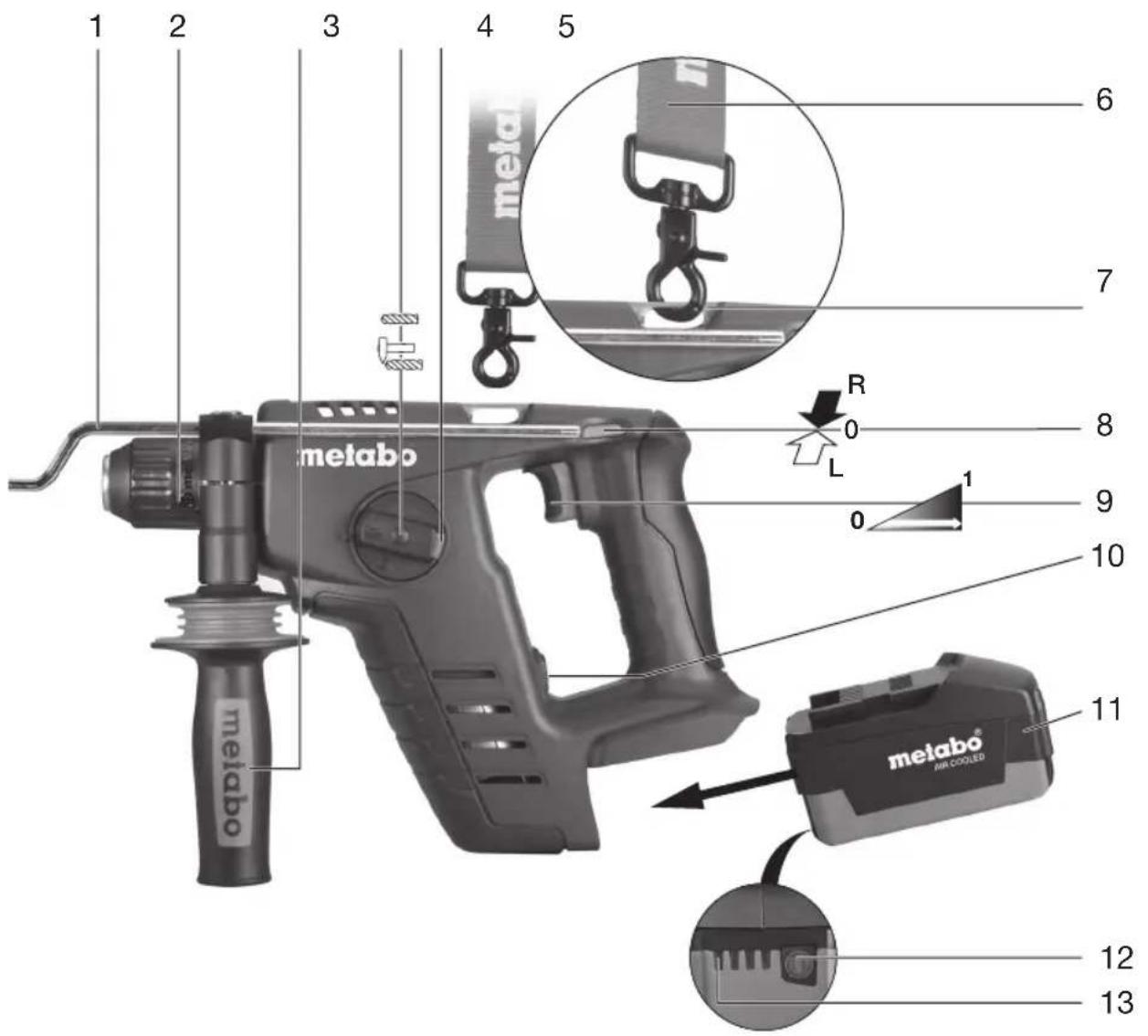

5 Overview
See page 3 (please unfold).
1 Depth stop
2 Toollock
3 Additional handle (Metabo VibraTech)
4 Switch button
5 L o c k
6 Carrying strap
7 Eyelet for securing the carrying strap
8 Rotation selector switch (direction of rotation setting, transporting safety device)
9 Trigger
10 Button for battery pack release
11 Battery pack
12 Capacity indicator button
13 Capacity and signal indicator
6 Special Product Features
- Carrying strap for safe work on scaffolding
- Comfortable to use thanks to rubber-coated handles and trigger
- Metabo VibraTech (MVT) handle: reduced vibrations. Handle can be pivoted 360^ to ensure optimum hold for every application
• High performance with a light weight and perfect ergonomics
- Optimised centre of gravity
- Metabo S-automatic safety clutch: If the tool jams or catches, the power supply to the motor is restricted. Due to the strong force which can arise, always hold the machine with both hands using the handles provided, stand securely and concentrate.
- Electronic overload protector with integral temperature monitor protects the machine and the battery pack.
ENG
ENGLISH
7 Initial Operation
7.1 Assembly of the additional handle
For safety reasons, always use the additional handle (3) supplied.
Open the clamping ring by turning the additional handle (3) anticlockwise. Push the additional handle onto the collar of the machine. Insert the depth stop (1). Securely tighten the additional handle at the angle required for the application.
7.2 Carrying strap
If necessary, hang the hook on the Metabo carrying strap (6) on the eyelet (7). Set the carrying strap (6) to the desired length.
Carrying:
To prevent unintentional start-up, move the rotation selector switch (8) to centre post-transporting safety device).
Never carry with a tool inserted.

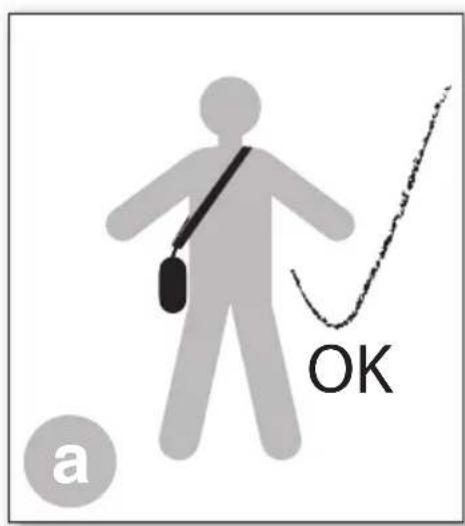

The machine must only be carried with the Metabo carrying strap (6) across chest and
back (illustration a, page 3). Hold the machine steady.

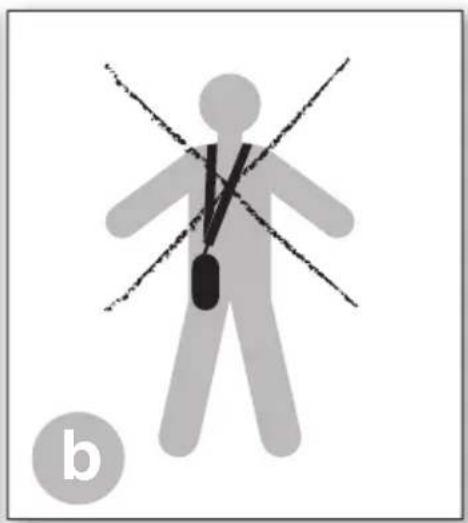

The machine must NOT be carried with the carrying strap (6) around your neck (illustration b, page 3).
8 Use
8.1 Depth Stop Setting
Release the additional handle (17). Set depth stop (1) to the desired drilling depth and retighten additional handle.
8.2 Automatic protection mode
If the machine switches off automatically, the machine electronics have activated auto-
matic protection mode. A warning signal sounds (continuous beeping). The beeping stops after a maximum of 30 seconds or when the trigger is released (9).
Causes and remedies:
- Battery pack almost flat (the electronics prevent the battery pack from discharging totally and avoid irreparable damage).
If one LED is flashing (13), the battery pack is almost flat. If necessary, press the (12) button and check the LEDs (13) to see the charge level. If the battery pack is almost flat, it must be recharged.
- Long continuous overloading of the machine will activate the temperature cut-out
Leave the machine or battery pack to cool.
Note: If the battery pack feels very warm, the pack will cool more quickly in your "AIR COOLED" charger.
Note: The machine will cool more quickly if you operate it at idling speed.
- If the current is too high (for example, if the machine seizes continuously for long periods), the machine switches off.
Switch off the machine at the trigger (9). Then continue working as normal. Try to prevent the machine from seizing.
8.3 Battery pack
Charge the battery pack before use (11).
If performance diminishes, recharge the battery pack.
The ideal storage temperature is between 10^ C and 40^ C.
"Li-Power" li-ion battery packs have a capacity and signal indicator: (13)
- Press the button (12), the LEDs indicate the charge level.
- If one LED is flashing, the battery pack is almost flat and must be recharged.
8.4 Removing and inserting the battery pack
Removal:
Press the battery pack release button (10) and pull out the battery pack (11) from the back.
Inserting:
Slide in the battery pack (11) until it engages.
8.5 Setting the direction of rotation, engaging the transporting safety device (switch-on lock)
Do not activate the rotation selector switch (8) unless the motor has completely bed!
Set the rotation selector switch (8).
See page 3 (please unfold).
R = Clockwise setting
L = Counter-clockwise setting
0 = Middle position: transportation safety device
(Switch-on lock) set
ENGLISH
ENG
8.6 On/Off switch, setting the speed
Switching on, speed: press the trigger (9). The speed can be changed by pressing in the trigger.
Switching off: release the trigger (9).
8.7 Operating mode selection
Do not activate the switch button (4) unless the motor has completely ped!
Select the desired operating mode by turning the switch button (4). To turn, push in the lock (5).
Drilling
Hammer drilling
Avoid levering with the machine when a drill bit is fitted.
8.8 Tool change with SDS chuck
Before fitting, clean tool shank and apply special grease (accessories order no.
6.31800)! Use only SDS-plus tools.
Inserting the tool:
Turn the tool while inserting until it locks into place. The tool is locked automatically.

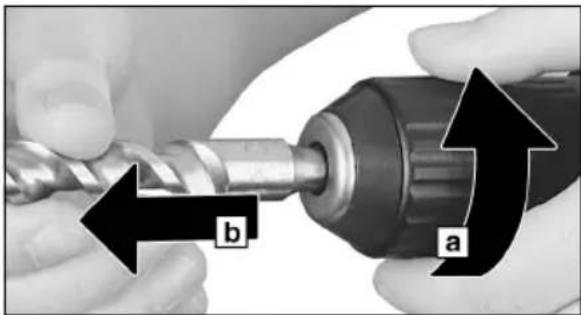

Removing the tool:
9 Tips and Tricks
Only moderate pressure is required for hammer drilling. Applying a high degree of pressure does not increase performance.
When drilling deep holes, remove the drill bit periodically from the hole to remove dust.
When drilling in tiles and other brittle materials: Set the operating mode to "Drilling".
10 Maintenance
The vent slots of the machine should be cleaned periodically.
11 Accessories
Use only genuine Metabo accessories.
If you need any accessories, check with your dealer.
The dealer needs to know the exact model designation of your power tool in order to select the correct accessory.
See page 4.
AChargers
B Battery packs with different capacities. Use battery packs only with voltage suitable for your power tool.
C Metabo carrying strap
D Tools with SDS-Plus shank
E Connecting piece
F G e a r e d c h u c k
G Twist drills for metal and wood
H Screwdriver bit
I Special grease (for lubricating the tool shanks)
For a complete range of accessories, see www.metabo.com or the main catalogue.
12 Repairs
Repairs to electrical tools must be carried out by qualified electricians ONLY!
If you have Metabo electrical tools that require repairs, please contact your Metabo service centre. For addresses see www.metabo.com.
You can download spare parts lists from www.metabo.com.
13 Environmental Protection
Metabo's packaging can be 100% recycled.
Scrap power tools and accessories contain large amounts of valuable resources and plastics that can be recycled.
These instructions are printed on chlorine-free bleached paper.
ENG
ENGLISH
Battery packs must not be disposed of with regular waste. Return faulty or used battery packs to your Metabo dealer!
Do not allow battery packs to come into contact with water!
Only for EU countries: Never dispose of power tools in your household waste! In accordance with European Guideline
2002/96/EC on used electronic and electric equipment and its implementation in national legal systems, used power tools must be collected separately and handed in for environmentally compatible recycling.
Before disposal, discharge the battery pack in the power tool. Prevent the contacts from short-circuiting (e.g. by protecting them with adhesive tape).
14 Technical Specifications
Explanatory notes on the information on page 2.
Changes due to technological progress reserved.
U = Voltage of battery pack
Ah = capacity of the battery pack
m = (with smallest battery i pack)
n_1 = no-load speed
dia. max. = maximum solid drill diameter
s_max. = maximum impact rate
W = single impact force
Vibration total value (vector sum of three directions) determined in accordance with EN 60745:
a_h, HD = vibration emission value (hammer drilling into concrete)
K_h,HD = uncertainty (vibration)
The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It is also suitable for a provisional estimate of the vibratory load.
The specified vibration level applies to the main applications of the power tool. If the power tool is used for other applications, however, and with different tools, or maintenance is insufficient, the vibration level can deviate. This can considerably increase the vibratory load over the entire working period.
For an accurate estimate of the vibratory load, times in which the machine is switched off, or when it is running but not actually in use, should also be taken into consideration. This can considerably reduce the vibratory load over the entire working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: service the tool and the accessories, keep hands warm, organise work patterns.
Typical A-weighted sound levels:
L_pA = sound pressure level
L_WA = acoustic power level
K_pA, K_WA = uncertainty (noise level)
During operation the noise level can exceed 80 dB(A).
Wear ear protectors!
Measured values determined in conformity with EN 60745.
The technical specifications quoted are subject to tolerances (in compliance with the relevant valid standards).
g h t
Notice originale
Cher client,
Close-up of hands using a drill bit to adjust a drill bit, labeled with arrows (a and b) indicating direction or movement.natural_image
Close-up of hands using a drill bit to adjust a drill bit, labeled with arrows (a and b) indicating direction or movement.natural_image
Close-up of hands using a drill bit to adjust a drill bit, labeled with arrows (a and b) indicating direction or movement.natural_image
Close-up of hands using a drill bit to adjust a drill bit, labeled with arrows (a and b) indicating direction or movement.natural_image
Close-up of hands using a drill bit to adjust a drill bit, labeled with arrows (a and b) indicating direction or movement.natural_image
Close-up of hands using a drill bit to adjust a drill bit, labeled with arrows (a and b) indicating direction or movement (no text beyond labels)natural_image
Close-up of hands using a drill bit to adjust a drill bit, labeled with arrows (a and b) indicating direction or movement.a_h, HD = Vibrationsemission (hammerboring i beton)
K_h,HD = Usikkerhed (vibration)
