| Product type | Rotary hammer |
| Brand | Metabo |
| Model | DH52MEY |
| Motor | Brushless |
| Power supply | Mains, 120 V ~ 60 Hz, single-phase |
| Drilling capacity (bit) | 52 mm (2-1/16 in) |

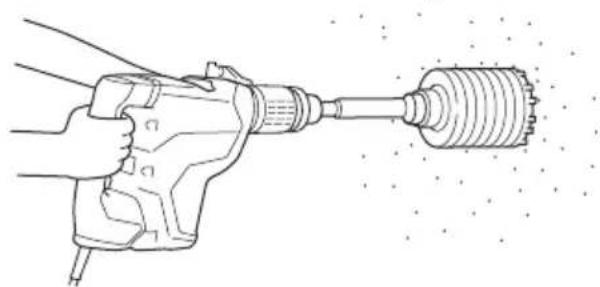

| Drilling capacity (core bit) | 160 mm (6-1/4 in) |
| No-load speed | 110 – 260/min |
| Full load impact rate | 1,000 – 2,200/min |
| Weight | 11.5 kg (25.3 lbs) |
| Functions | Rotation + percussion, percussion only |
| Speed selector | Electronic, 4 positions (110, 160, 210, 260/min) |
| Chuck type | SDS max |
| Side handle | Yes, included |

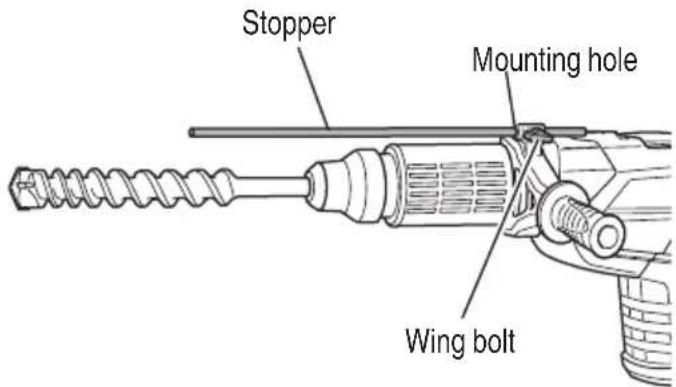

| Depth gauge | Included |
| Continuous operation button | Yes (in percussion mode) |
| Double insulation | Yes |
| Electronic protection | Against overheating, overload, and voltage drop |
| Lubrication | Hammer grease A (supplied), replacement every 6 months |
| Standard accessories | Plastic case, side handle, depth gauge, grease A |

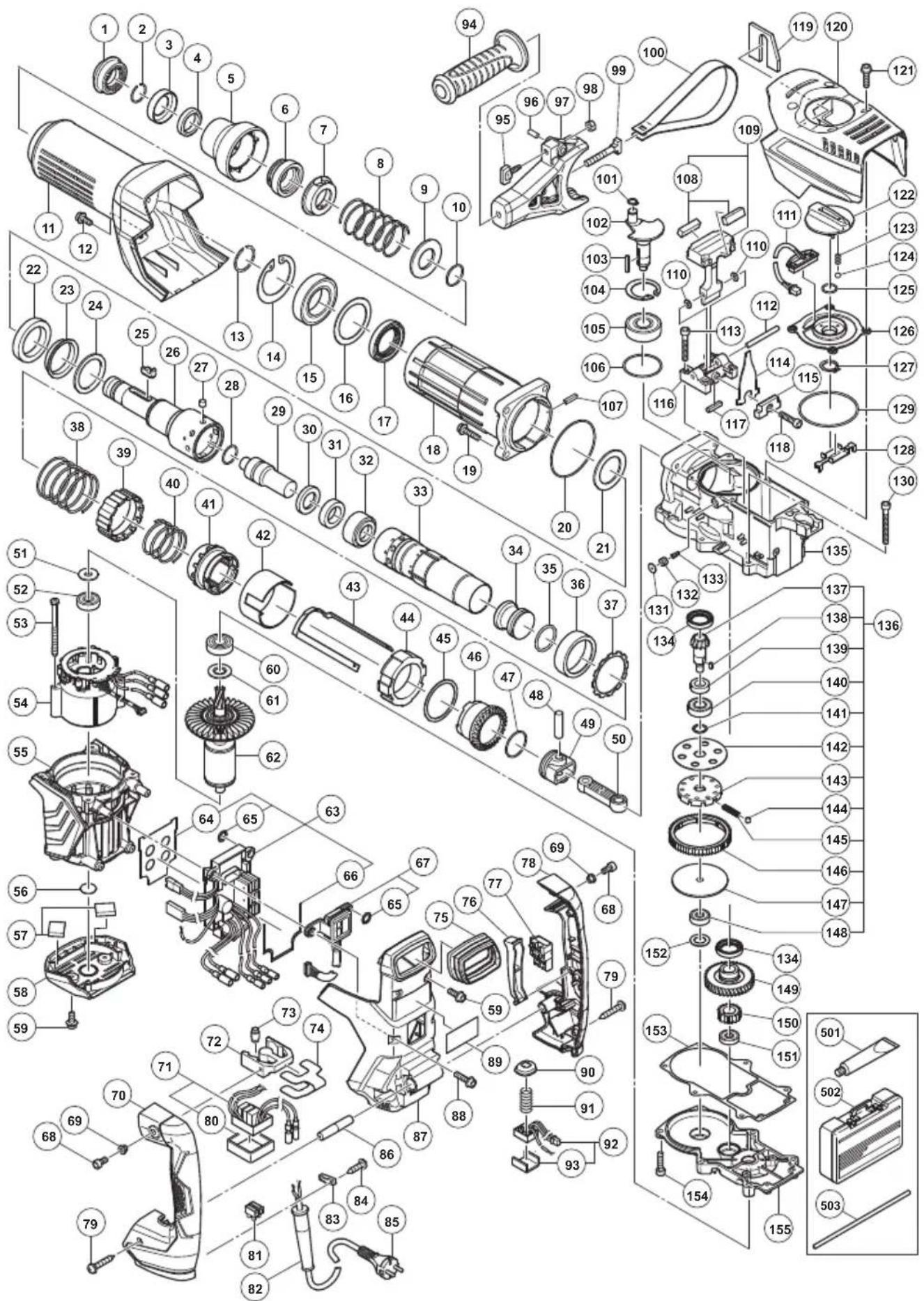

| Spare parts | Available from Metabo HPT authorized service |
| Repairability | By authorized service center only, original parts required |
| Safety | Wear hearing protection, safety glasses, use side handle |
| User manual | Included, 56 pages, available for download |
Frequently Asked Questions - DH52MEY METABO

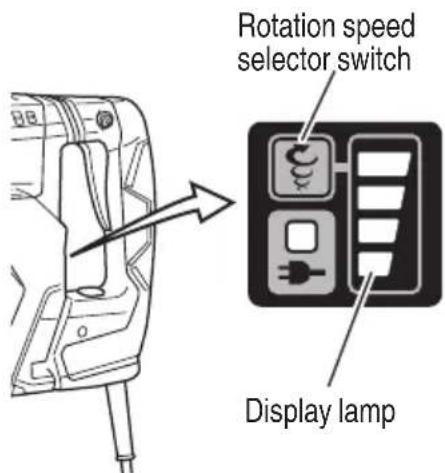

How to change the rotation speed on the Metabo DH52MEY?
The speed is adjusted using the rotation speed selector on the handle. Press it to switch between 4 speeds: 110, 160, 210, and 260 rpm. The change must be made with the motor stopped. The display indicator shows the selected speed.

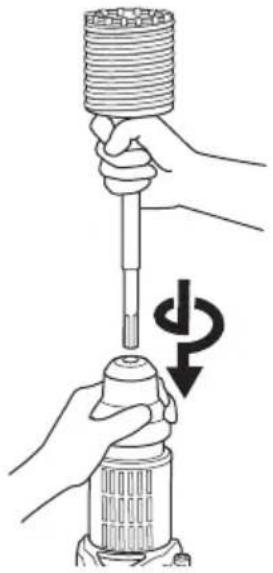

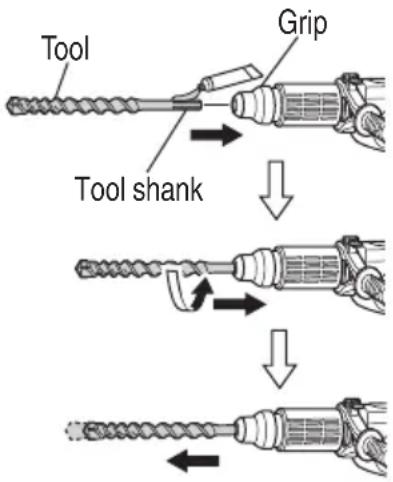

How to insert a drill bit into the SDS max chuck?
Clean and grease the bit shank with the supplied grease. Insert it into the hole until it stops, then pull back the sliding sleeve while slightly turning the bit until it engages. Release the sleeve and check that it is locked by pulling on it.

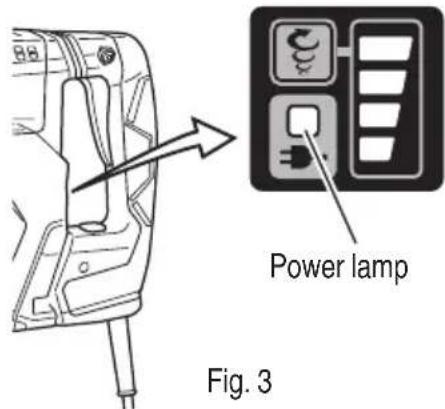

What to do if the display indicator flashes?
Flashing indicates an anomaly. Refer to table 2 of the manual: if flashing is slow, the tool is overheating (let it cool for 15-30 min); if fast, there is an overload (release the pressure); if alternating with a fixed bar, check the supply voltage. Press the speed selector to reset.

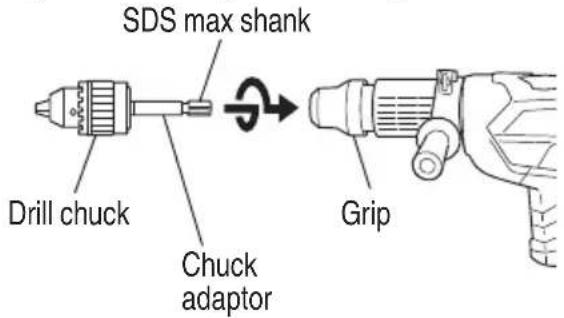

Can the hammer be used in rotation-only mode?

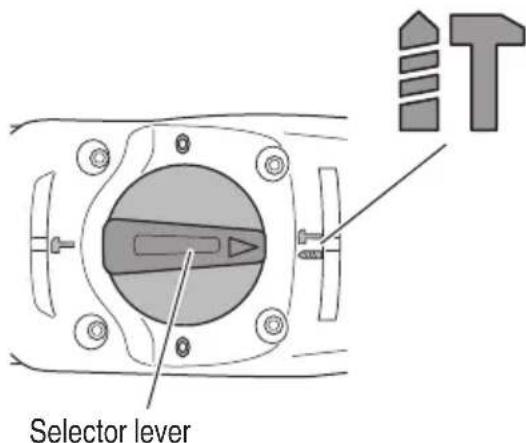

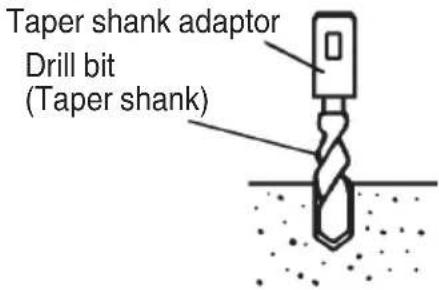

Yes, by installing a drill chuck and chuck adapter (optional accessories). Set the selector to the 'rotation + percussion' position. This allows drilling metal or wood with standard drill bits.
How to maintain the Metabo DH52MEY?
After each use, clean the tool with a soft cloth slightly dampened with soapy water. Do not use solvents. Regularly check the tightness of screws. The grease must be replaced every 6 months by an authorized service center. The motor vents must remain clean.
What accessories are available for this hammer?

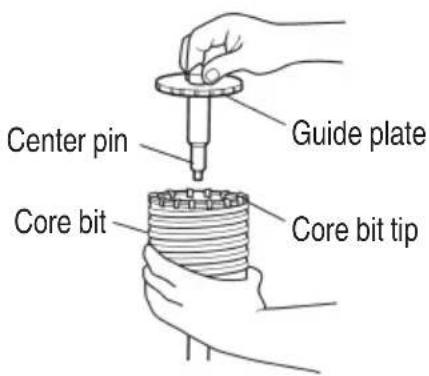

Accessories include: SDS max bits from 16 to 40 mm, core bits from 50 to 125 mm, cold chisel, bushing driver, tamping tool, 13 mm drill chuck, SDS plus adapter, and chemical anchor connection. All are sold separately.

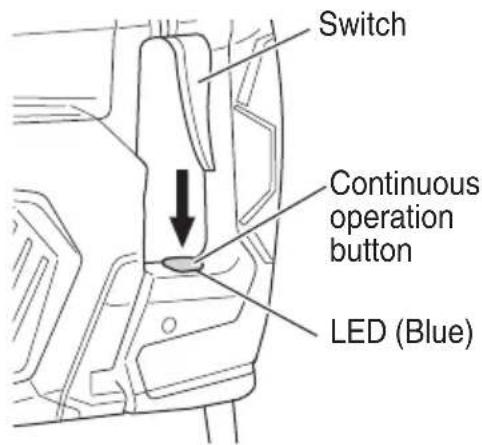

How to use the continuous operation button?
In percussion mode only, press the continuous operation button (the blue LED lights up). The tool continues to run even after releasing the switch. To stop it, press the button again or the switch.

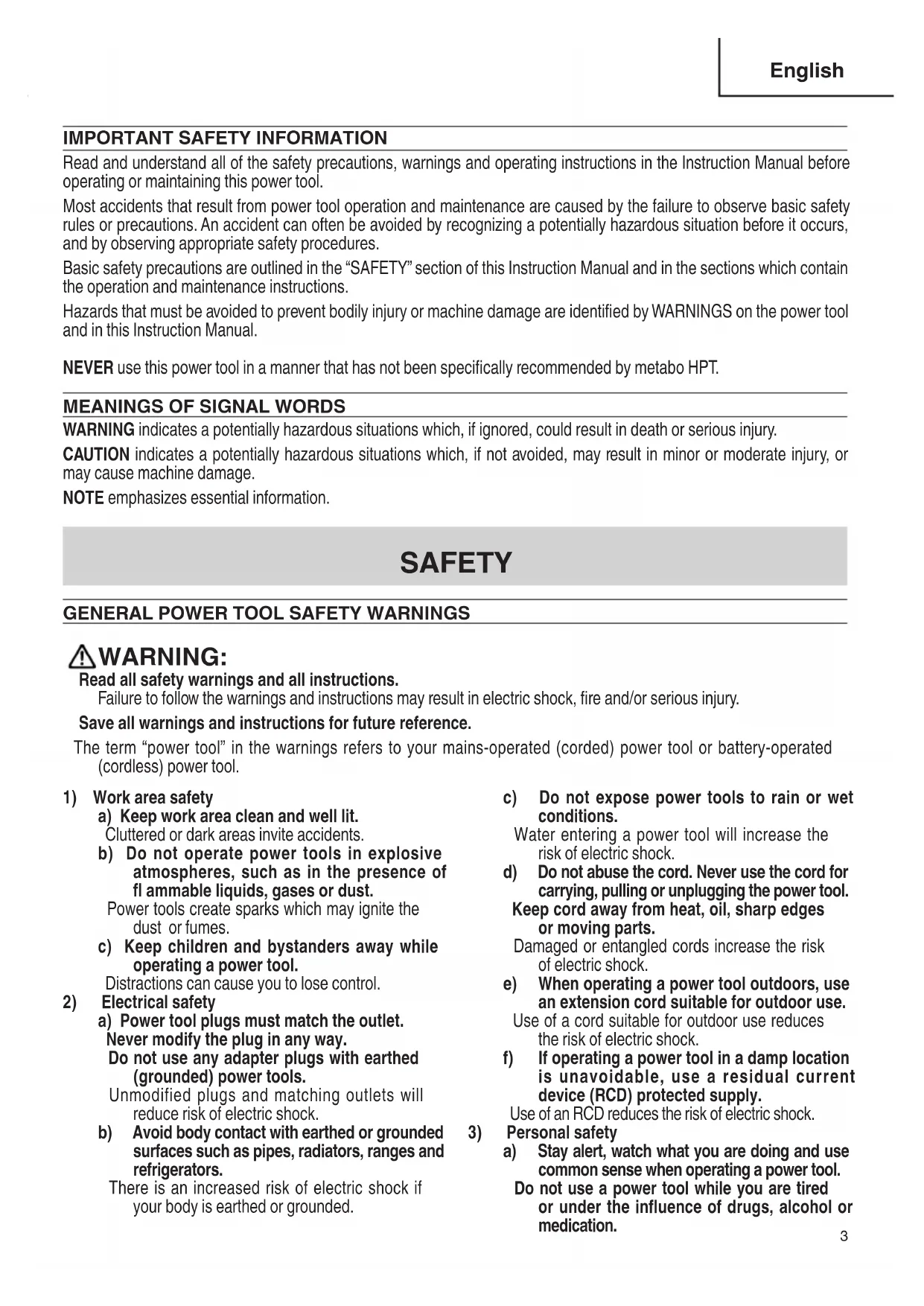

What is the essential safety procedure before each use?
Always wear safety glasses and hearing protection. Use the supplied side handle and hold the tool firmly with both hands. Check that there are no hidden electrical cables in the wall. Do not wear gloves made of material that could get caught.
How to replace the hammer grease?
The grease must be replaced every 6 months of use. Have this operation performed by an authorized Metabo HPT service center. Use exclusively hammer grease A (ref. 981840 or 308471). Do not attempt to do it yourself.
What to do in case of bit jamming?
If the bit jams, the tool may kick back. Hold it firmly. Release the switch and unplug the tool. Reverse the rotation direction (if possible) or use a wrench to manually free the bit. Check that the bit is not damaged.
