USER MANUAL Advanced Grass Cut 36 Li BOSCH

Warning: Keep a safe distance

to the product when operat- ing.

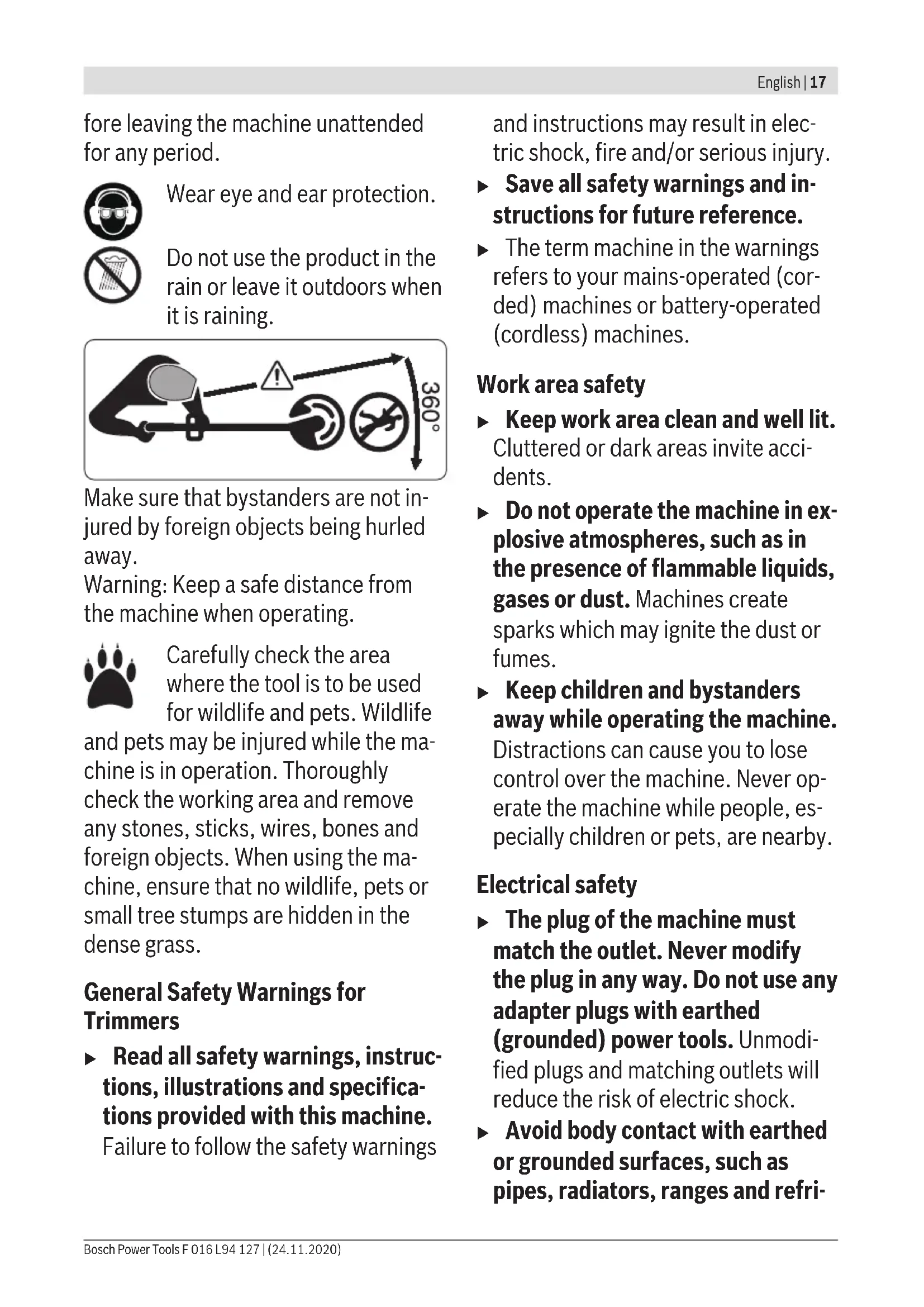

a.c. Not applicable. d.c. Remove battery before ad- justing or cleaning, and be- F 016 L94 127 | (24.11.2020) Bosch Power ToolsEnglish | 17 fore leaving the machine unattended for any period. Wear eye and ear protection. Do not use the product in the rain or leave it outdoors when it is raining. Make sure that bystanders are not in- jured by foreign objects being hurled away.

Warning: Keep a safe distance from

the machine when operating. Carefully check the area where the tool is to be used for wildlife and pets. Wildlife and pets may be injured while the ma- chine is in operation. Thoroughly check the working area and remove any stones, sticks, wires, bones and foreign objects. When using the ma- chine, ensure that no wildlife, pets or small tree stumps are hidden in the dense grass. General Safety Warnings for Trimmers u Read all safety warnings, instruc- tions, illustrations and specifica- tions provided with this machine. Failure to follow the safety warnings and instructions may result in elec- tric shock, fire and/or serious injury. u Save all safety warnings and in- structions for future reference. u The term machine in the warnings refers to your mains-operated (cor- ded) machines or battery-operated (cordless) machines. Work area safety u Keep work area clean and well lit. Cluttered or dark areas invite acci- dents. u Do not operate the machine in ex- plosive atmospheres, such as in the presence of flammable liquids, gases or dust. Machines create sparks which may ignite the dust or fumes. u Keep children and bystanders away while operating the machine. Distractions can cause you to lose control over the machine. Never op- erate the machine while people, es- pecially children or pets, are nearby. Electrical safety u The plug of the machine must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodi- fied plugs and matching outlets will reduce the risk of electric shock. u Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refri- Bosch Power Tools F 016 L94 127 | (24.11.2020)18 | English gerators. There is an increased risk of electric shock if your body is earthed or grounded. u Do not expose the machine to rain or wet conditions. Penetration of water in the machine increases the risk of an electric shock. u Never use the cord for carrying, hanging up or unplugging the ma- chine. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords in- crease the risk of electric shock. u When operating a machine out- doors, use an extension cord suit- able for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. u When operating the machine in damp environments is unavoid- able, use a residual current device (RCD). The use of a residual current device (RCD) reduces the risk of electric shock. Personal safety u Stay alert, watch what you are do- ing and use common sense when operating the machine. Do not use a machine while you are tired or under the influence of drugs, alco- hol or medication. A moment of in- attention while operating the ma- chine may result in serious personal injury. u Wear safety equipment. Always wear eye protection. Wearing safety equipment such as dusk mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. u Prevent unintentional starting. En- sure the switch is in the off‑posi- tion before connecting to power source and/or battery, picking up or carrying the machine. Carrying machines with your finger on the switch or plugging in machines that have the switch on invites accidents. u Remove any adjusting key or span- ner before turning the machine on. A spanner or a key left attached to a rotating part of the machine may res- ult in personal injury. u Avoid abnormal body posture. Provide for a secure stance and keep your balance at all times; never run. This enables better con- trol of the machine in unexpected situations. u Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from mov- ing parts. Loose clothes, jewellery or long hair can be caught in moving parts. Always wear sturdy footwear and long trousers when operating the machine. u If devices are provided for the con- nection of dust extraction and col- lection facilities, ensure these are connected and properly used. Use F 016 L94 127 | (24.11.2020) Bosch Power ToolsEnglish | 19 of dust collection can reduce dust- related hazards. u Do not assume a false sense of se- curity and disregard the safety regulations for machines, even if familiar with the machine through multiple use. A careless action can cause severe injury within a fraction of a second. Use and Handling of the Machine u Do not force the machine. Use the correct machine for your applica- tion. The correct machine will do the job better and safer at the rate for which it was designed. u Do not use the machine if the switch does not turn it on and off. Any machine that cannot be con- trolled with the switch is dangerous and must be repaired. u Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the machine before making any adjustments, changing accessor- ies, or storing machines. Such pre- ventive safety measures reduce the risk of starting the machine accident- ally. u Store idle machines out of the reach of children. Do not allow persons unfamiliar with the ma- chine or these instructions to op- erate the machine. Trimmers are dangerous in the hands of untrained users. u Maintain trimmers with care. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the operation of the ma- chine. Have damaged parts re- paired before using the machine. Many accidents are caused by poorly maintained machines. u Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. u Use the machine, accessories, ap- plication tools, etc. according to these instructions. Take the work- ing conditions and the work to be performed into account. Use of ma- chines for operations different from those intended could result in a haz- ardous situation. u Keep handles and grasping sur- faces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the ma- chine in unexpected situations. Battery tool use and care Remove the battery pack – whenever the machine is left by the user – before clearing a blockage – before checking, cleaning or work- ing on the machine Bosch Power Tools F 016 L94 127 | (24.11.2020)20 | English – after striking a foreign object to in- spect the machine for damage – if the machine starts to vibrate ab- normally, for immediately check u Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. u Use power tools only with specific- ally designated battery packs.Use of any other battery packs may cre- ate a risk of injury and fire. u When battery pack is not in use, keep it away from other metal ob- jects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connec- tion from one terminal to another. Shorting the battery terminals to- gether may cause burns or a fire. u Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accident- ally occurs, flush with water. If li- quid contacts eyes, additionally seek medical help.Liquid ejected from the battery may cause irritation or burns. u Do not use a battery pack or tool that is damaged or modified. Dam- aged or modified batteries may ex- hibit unpredictable behaviour result- ing in fire, explosion or risk of injury. u Do not expose a battery pack or tool to fire or excessive temperat- ure. Exposure to fire or temperature above 130°C may cause explosion. u Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instruc- tions.Charging improperly or at tem- peratures outside the specified range may damage the battery and increase the risk of fire. Service u Have your machine serviced by a qualified repair person using only identical replacement parts. This ensures that the safety of your ma- chine is maintained. u Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. Safety Notes for Garden Tool Operation u The operator must use the product in accordance with the regulations. The local conditions must be taken into account. When working, pay atten- tion to other people, especially to children. u Never allow children, persons with physical, sensory or mental limita- tions or a lack of experience and/or knowledge and/or people unfamiliar with these instructions to use the F 016 L94 127 | (24.11.2020) Bosch Power ToolsEnglish | 21 product. Local regulations may re- strict the age of the operator. u Children should be supervised to en- sure that they do not play with the product. Application u When working with the machine, always hold it firmly with both hands and provide for a secure stance. The garden tool is guided more secure with both hands. u Always wait until the machine has come to a complete stop before plac- ing it down. u Never operate the machine with a defective protection guard/cover or without safety device. Ensure that these are properly mounted. Never use the garden tool when incomplete or after unauthorised changes. u Never operate the machine if the cord is damaged or worn. u Never replace non-metallic cutting elements with metal cutting ele- ments. u Never repair the garden tool yourself unless you are qualified to do so. u Other persons and animals should remain or be kept a suitable distance away when using the garden tool. The operator is responsible for third parties in the work area. u Wait until the cutting head has com- pletely stopped before touching it. The cutting head continues to rotate after the trimmer is switched off; a rotating cutting head can cause in- jury. u Work only in daylight or in good arti- ficial light. u Avoid operating the trimmer in bad weather conditions especially when there is a risk of lightning. u Operating the trimmer in wet grass decreases the efficiency of perform- ance. u When transporting, switch the ma- chine off and remove the battery. u Always ensure a safe working posi- tion when working with the trimmer. Always keep your hands and feet at a safe distance from rotating parts. u Keep the balance all the time while trimming to prevent falling over. u Take care when placing product on floor, as it may become a trip hazard. u Remove the battery before replacing the spool. u Inspect and maintain the trimmer regularly. u Always wear gloves when cleaning product or replacing cutting means. u Be careful of injuries from the blade used for cutting the cutting line. After feeding cutting line, always re- turn the trimmer to a horizontal working position before switching on. Switch the machine off and remove the battery. – whenever you leave the machine unattended for any period of time – before replacing the cutting line Bosch Power Tools F 016 L94 127 | (24.11.2020)22 | English – before cleaning or working on the trimmer – before storing the trimmer u Store the product in a secure, dry place out of the reach of children. Do not place other objects on top of the product. u Do not use the garden tool as a walk- ing stick. Recommendations for Optimal Handling of the Battery Pack u Do not open the battery. There is a risk of short-circuiting. Protect the battery against heat (e.g., against continu- ous intense sunlight), fire, water, and moisture. There is a risk of explosion. u In case of damage and improper use of the battery pack, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system. u Only use the battery with products from the manufacturer. This is the only way in which you can protect the battery against dangerous over- load. u The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat. u Do not short-circuit the battery. There is a risk of explosion. u Occasionally clean the venting slots of the battery using a soft, clean and dry brush. Safety Warnings for Battery Chargers Read all safety warnings and all instructions. Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury. Save all safety warnings and instruc- tions for future reference. u Use the battery charger only when you fully understand and can per- form all functions without limitation, or have received appropriate instruc- tions. u Never allow children, persons with physical, sensory or mental limita- tions or a lack of experience and/or knowledge and/or people unfamiliar with these instructions to use the battery charger. Local regulations may restrict the age of the operator. u Supervise children at all times. This will ensure that children do not play with the battery charger. u Charge only Bosch lithium-ion bat- teries with a capacity above 1.3 Ah (with at least 10 rechargeable bat- tery cells). The battery voltage must match the battery charging voltage of the charger. Do not charge non-re- chargeable batteries. Otherwise F 016 L94 127 | (24.11.2020) Bosch Power ToolsEnglish | 23 there is a danger of fire and explo- sion. Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an elec- tric shock. u Keep the charger clean. Dirt poses a risk of electric shock. u Always check the charger, cable and plug before use. Stop using the charger if you discover any damage. Do not open the charger yourself, and have it repaired only by a qualified specialist using only original replacement parts. Dam- aged chargers, cables and plugs in- crease the risk of electric shock. u Do not operate the charger on an easily ignited surface (e.g. paper, textiles, etc.) or in a flammable en- vironment. There is a risk of fire due to the charger heating up during op- eration. u Do not cover the ventilation slots of the battery charger. Otherwise, the battery charger can overheat and no longer operate properly. u For increased electrical safety, we recommend using a residual current device with a max. tripping current of 30 mA. Before using, always check your residual current device. Symbols The following symbols are important for reading and under- standing the original instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the product in a better and safer manner. Symbol Meaning Wear protective gloves Movement direction Reaction direction Weight Switching On Switching Off Permitted action Prohibited action CLICK! Audible noise Accessories/Spare parts Intended Use The garden tool is intended for domestic use, for trimming grass, weeds and nettles. It is designed for trimming grass growing on slopes, under obstacles and lawn edges that can- not be reached by the lawn mower. The garden tool is not designed for use as a brush cutter. The garden tool is not in- tended for commercial or industrial use. Deliver scope (see figure A) Carefully remove the machine from its packaging and check if the following parts are complete: – Grass trimmer – Handle – Protection guard – Operating instructions When parts are missing or damaged, please contact your dealer. ** country specific Product Features (see figureA) The numbering of the product features refers to the illustra- tion of the product on the graphics pages. (1) Lock-off button for On/Off switch (2) On/Off switch (3) Connector (4) Adjustable handle Bosch Power Tools F 016 L94 127 | (24.11.2020)24 | English (5) Screw for mounting handle (6) Nut for mounting handle (7) Protection guard (8) Plant protector (9) Screw for mounting protection guard (10) Battery

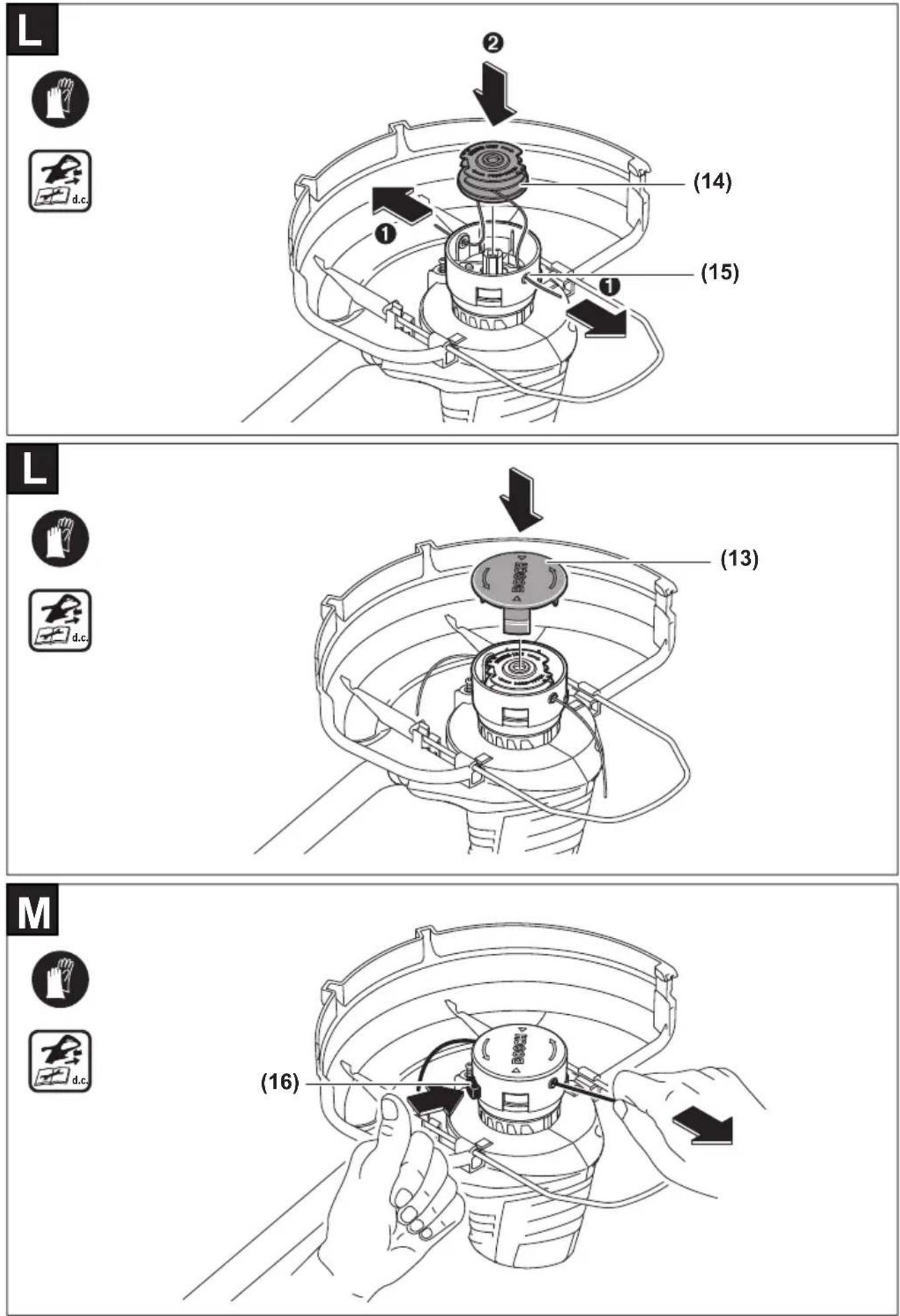

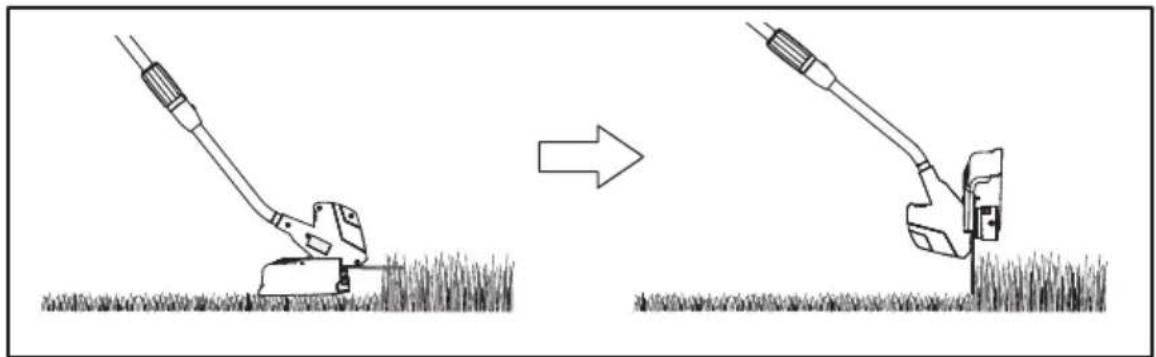

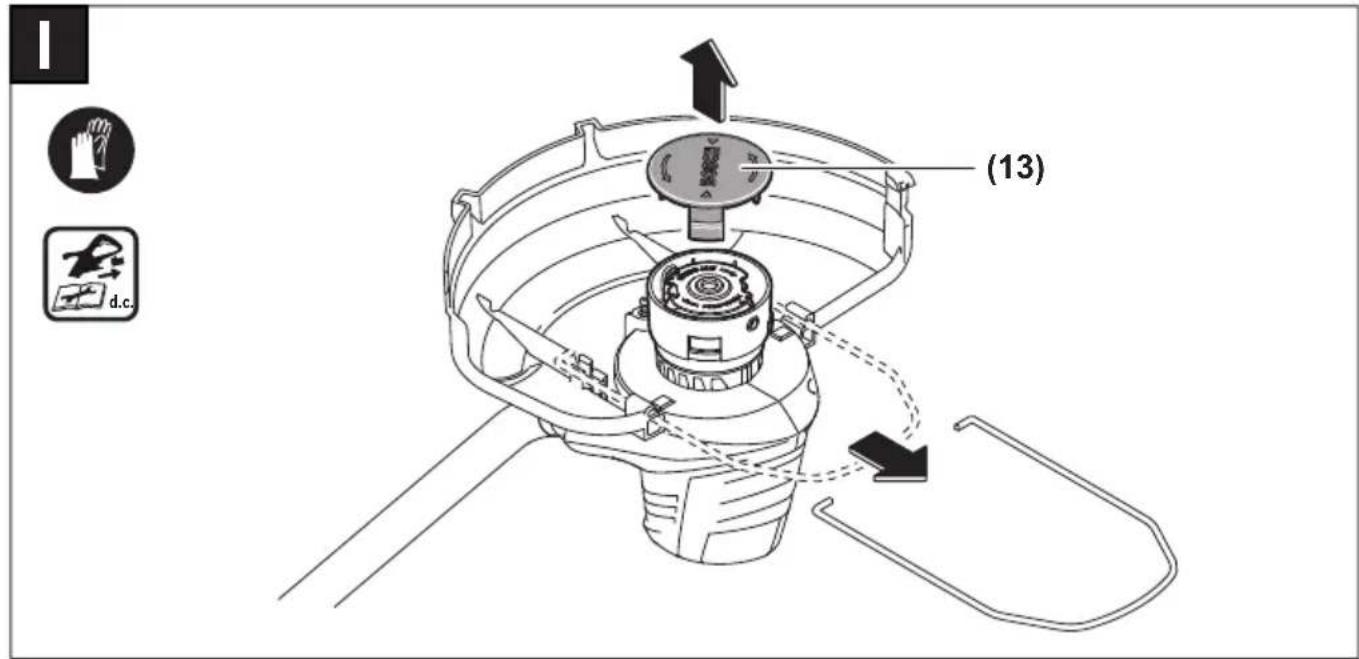

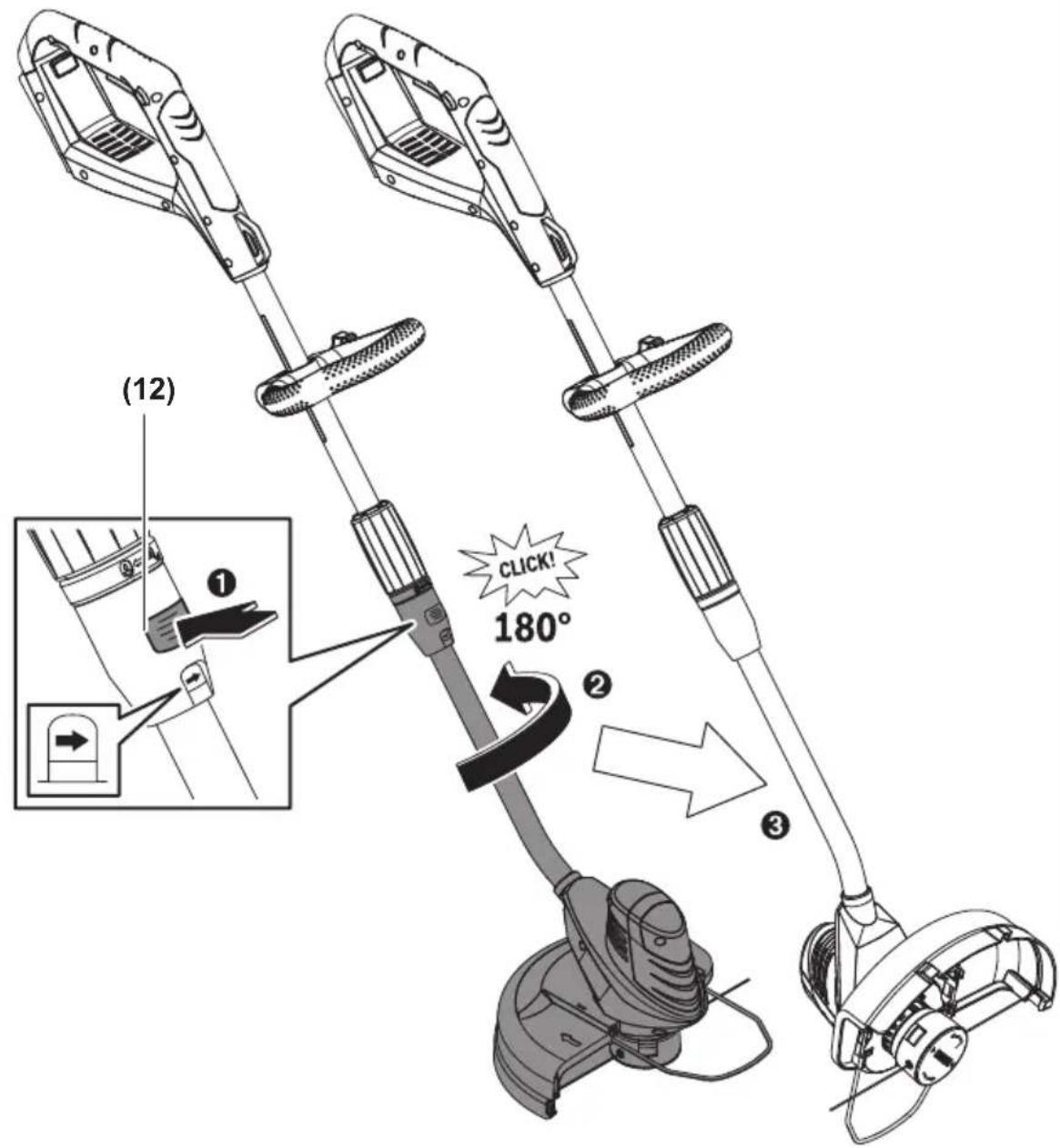

(12) Lawn trimming/edge cutting button (13) Spool cover (14) Spool (15) Hole for line guiding (16) Line-feed button

Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range. Technical Data Lawn trimmer/Edge cutter AdvancedGrassCut 36 Article number 3 600 H78 N.. Rated voltage V 36 No-load speed min

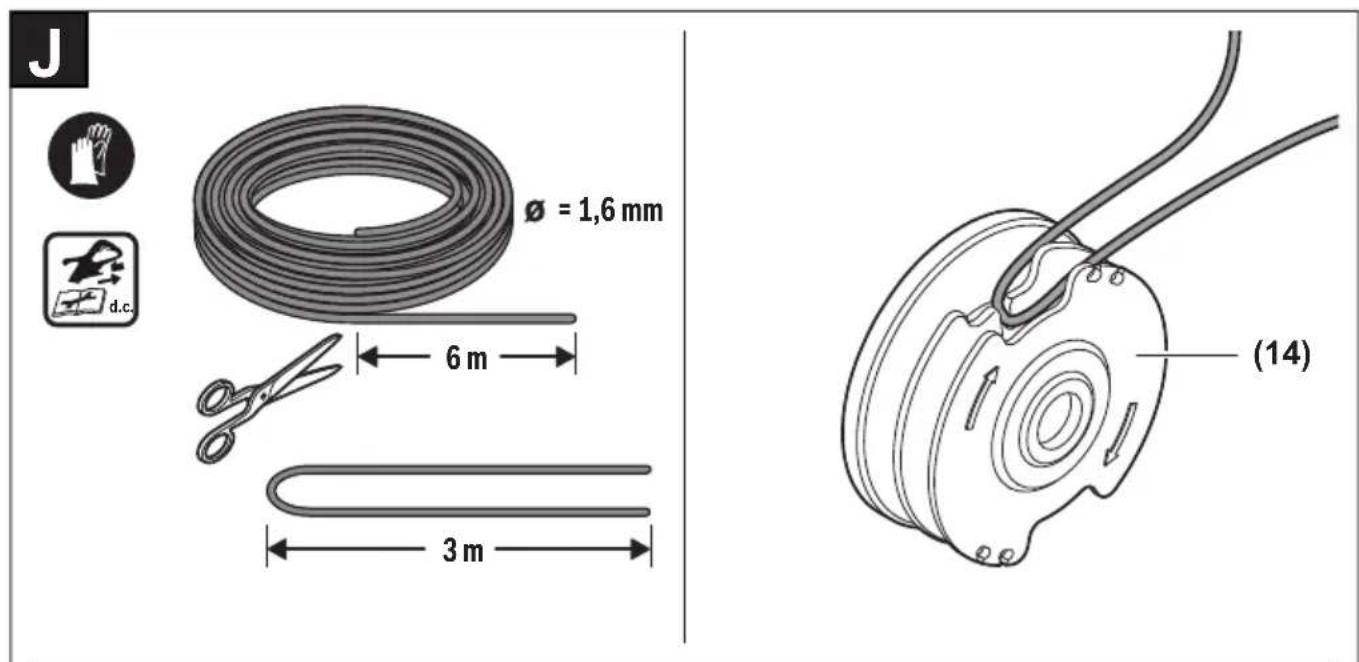

7500 − 8300 Adjustable handle ● Cutting line diameter mm 1.6 Cutting diameter cm 30 Cutting spool capacity m 4.0 Weight according to EPTA‑Procedure 01:2014

– without battery kg 2.9 – with battery kg 4.1 Serial number see type plate on mower Recommended ambient temperature during charging °C +10... +35 Permitted ambient temperature during operation

and storage °C -20... +50 Battery type GBA 36V... 1.3Ah, 2.0Ah, 2.5Ah, 2.6Ah, 4.0Ah A) Depends on battery in use B) Limited performance at temperatures <0°C Charger AL 3620 CV AL 3640 CV AL 36V-20 Charging current A 2.0 4.0 2.0 Charging period (battery discharged) – Battery with 1.3Ah min 55 45 − – Battery with 2.0Ah min 70 45 65 – Battery with 2.6Ah min 65 95 − – Battery with 4.0Ah min 80 140 125 Weight according to EPTA‑Procedure 01:2014 kg 0.55 0.55 0.55 Protection class / II / II / II Noise/Vibration Information 3 600 H78 N.. Noise emission values determined according to EN 50636-2-91. F 016 L94 127 | (24.11.2020) Bosch Power ToolsEnglish | 25 3 600 H78 N.. Typically the A-weighted noise levels of the product are: – Sound pressure level dB(A)

– Uncertainty K dB = 3.0 Vibration total values ah (triax vector sum) and uncertainty K determined according to EN 50636-2-91 – Vibration emission value a

= 2.0 – Uncertainty K m/s

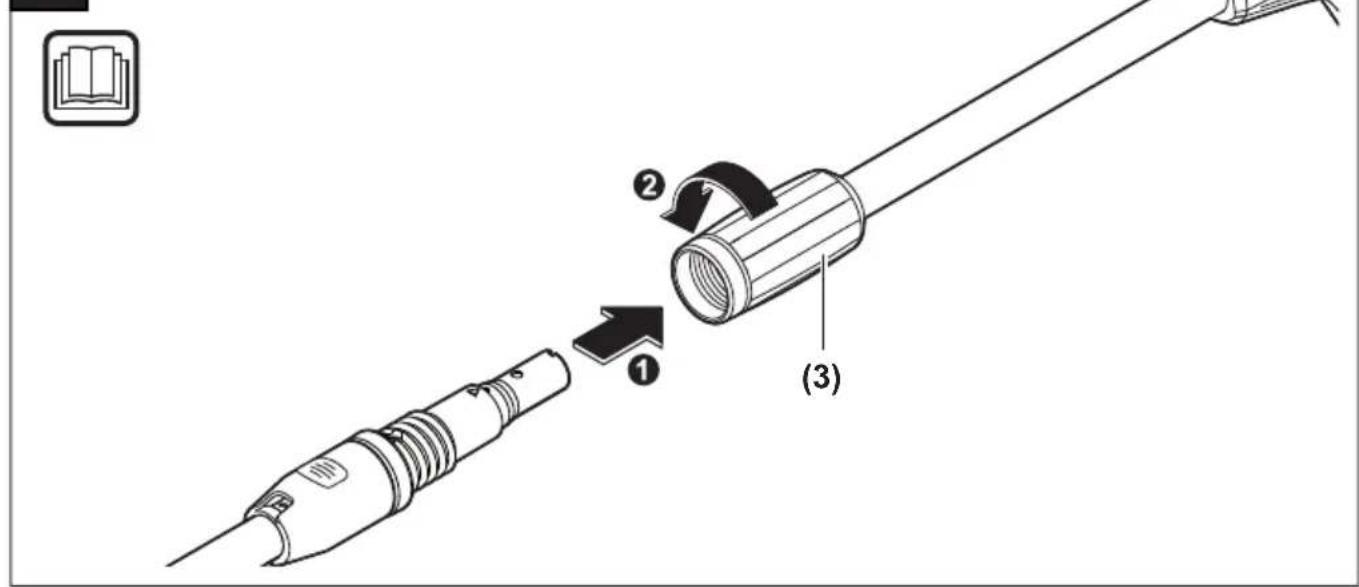

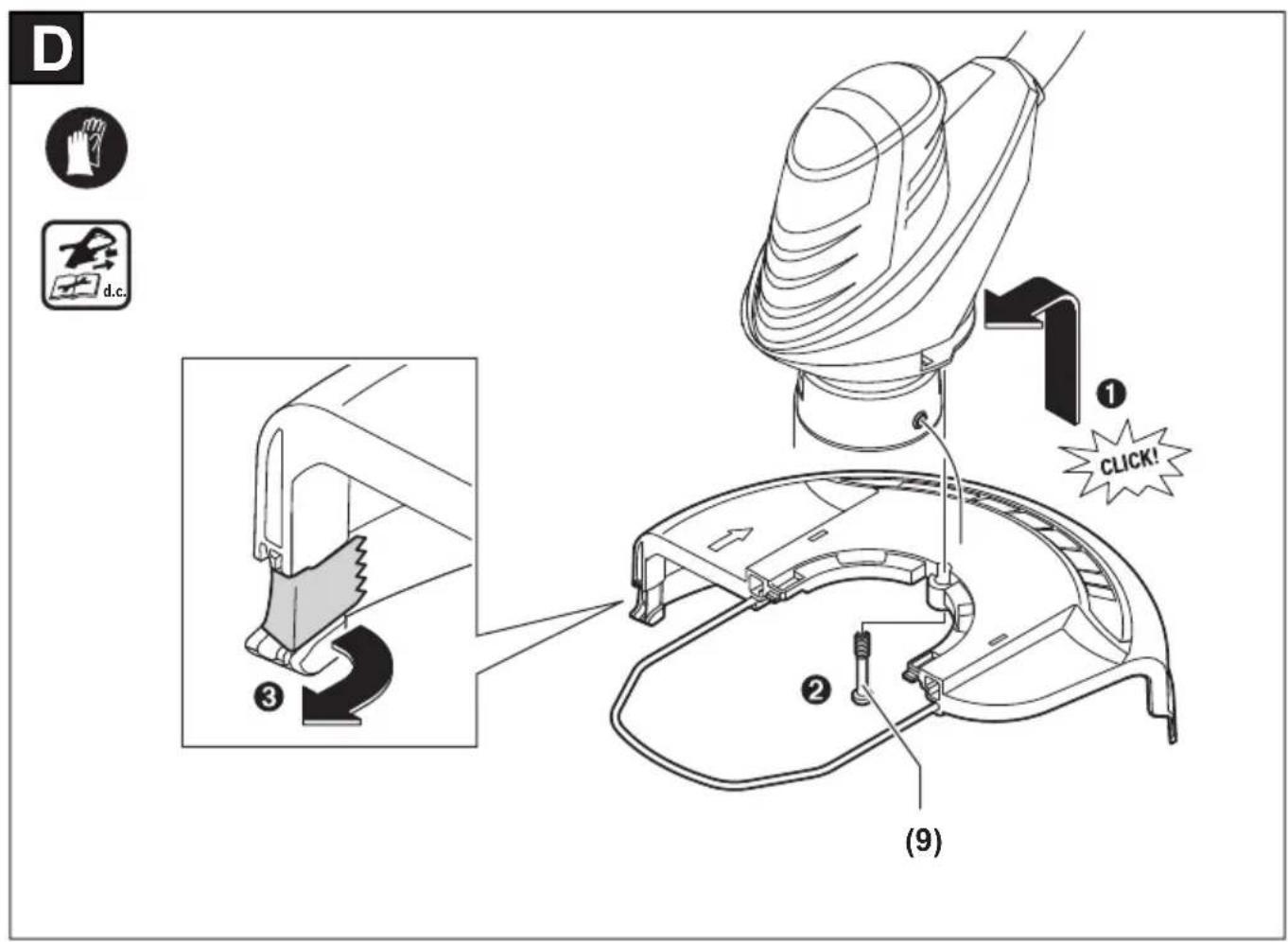

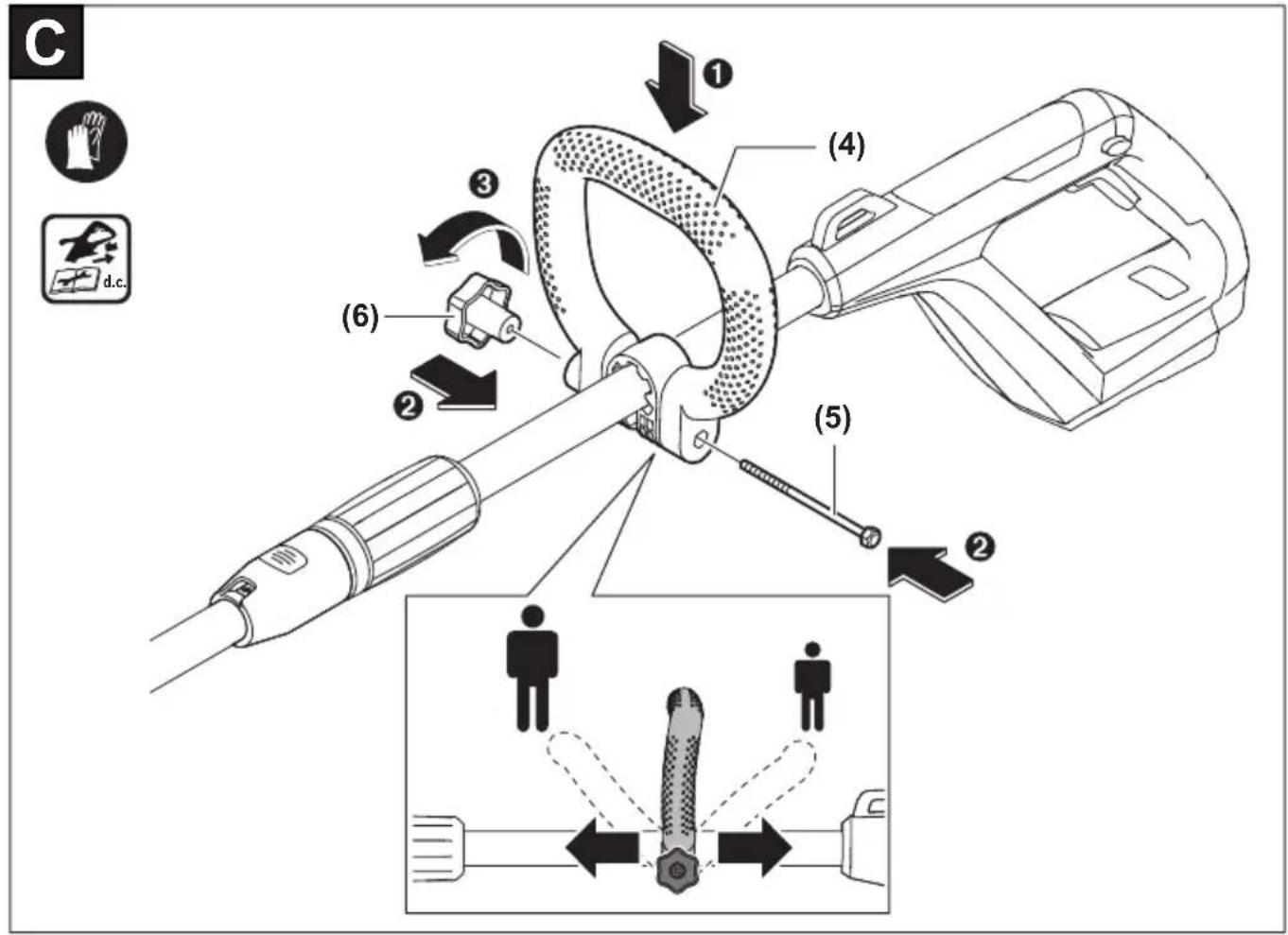

= 1.0 Assembly u Caution: Switch the garden tool off and pull the mains plug before performing any maintenance. Mounting the shaft (see figureB) Connect the two trimmer parts flush with each other and se- cure them by screwing on the connector(3). Ensure both trimmer parts are fitted properly mounted and locked. Mounting and adjusting the handle (see Fig. C) Mount the handle using the screw (5) and the nut (6). The handle (4) can be set to different positions. To change the adjustment, loosen the nut (6) a little and move the handle to the desired position. Retighten the nut (6) again. Mounting the protection guard (see figure D) Position the protection guard (7) on the trimmer head and fasten it with the provided screw (9). Switching on u Caution: Switch garden tool off and remove battery from machine before adjusting or cleaning. u The cutting line continues to rotate for a few seconds after the trimmer is switched off. Allow the motor/cut- ting line to stop rotating before switching on again. u Do not briefly switch off and on again several times in a row. u Only use Bosch approved cutting elements. Cutting performance will vary with different cutting elements. Charging the Battery The battery is equipped with temperature monitoring that al- lows charging only in the temperature range between 0 °C and 35 °C. In this manner, a high battery service life is achieved. Note: The battery is supplied partially charged. To ensure full battery capacity, completely charge the battery in the battery charger before using for the first time. The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not cause damage to the battery. The “Electronic Cell Protection (ECP)” protects the lithium- ion battery against deep discharging. When the battery is empty, the product is switched off by means of a protective circuit: The product no longer operates. Do not continue to press the On/Off switch after an auto- matic shut-off of the product. The battery could become damaged. Observe the notes for disposal of the battery. Inserting/removing the battery (see figureE) Note: Using unsuitable batteries can lead to malfunctions or damage the machine. Insert the charged battery (10). Ensure the battery is inser- ted correctly. To remove the battery (10) from the machine, press the bat- tery unlocking button and pull the battery out. Charging Procedure The charging procedure starts as soon as the mains plug of the charger is plugged into a socket outlet and the battery (10) is inserted onto the charger (11). Due to the intelligent charging method, the charging condi- tion of the battery is automatically detected and the battery is charged with the optimum charging current, depending on battery temperature and voltage. This gives longer life to the battery and always leaves it fully charged when kept in the charger for storage. Meaning of the indication elements on the charger (AL 3620 CV/AL 3640 CV/AL 36V-20) Rapid-charging Procedure The rapid-charging procedure is indicated by flashing of the green battery charge indicator. Indication element of the battery: During the charging procedure, the three green LEDs light up one after the other and briefly go out. The battery is fully charged when the three green LEDs light up continuously. The three LEDs go out again approx. 5minutes after the battery has been fully charged. Note: The rapid-charging procedure is only possible when the battery temperature is within the allowable charging temperature range, see section “Technical Data”. Battery charged Continuous lighting of the green LED indic- ator indicates that the battery is fully charged. Bosch Power Tools F 016 L94 127 | (24.11.2020)26 | English Additionally, a signal tone sounds for approx. 2seconds, which acoustically indicates that the battery is fully charged. Afterwards, the battery can be removed for immediate use. When the battery is not inserted, continuous lighting of the LED indicator indicates that the mains plug is inserted in the socket outlet and that the battery charger is ready for opera- tion. Battery Temperature below 0°C or above 45°C Continuous lighting of the red LED indicator indicates that the temperature of the battery is not within the allowable charging temperature range, see section “Technical Data”. As soon as the allowable charging temperature range is reached, the battery charger automatically switches to rapid charging. When the battery is not within the allowable temperature range, the red battery LED lights up when inserting the bat- tery into the battery charger. No Charging Procedure Possible If a different malfunction of the charging pro- cedure is present, this will be indicated through flashing of the red LED indicator. The charging procedure cannot be started and the battery cannot be charged (see section Troubleshooting). Charging Advice With continuous or several repetitive charging cycles without interruption, the charger can warm up. This is not meaning- ful and does not indicate a technical defect of the battery charger. A significantly reduced working period after charging indic- ates that the battery is used and must be replaced. Observe the notes for disposal. Battery Cooling (Active Air Cooling) The fan control integrated into the charger monitors the tem- perature of the inserted battery. When the battery temperat- ure is above 30 °C, a fan cools down the battery to the op- timal charging temperature. The fan generates a ventilation sound when switched on. If the fan is not running, the battery temperature is within the optimum charge-temperature range or the fan is defective. In this case, the charging time of the battery might be exten- ded. Operation Switching On and Off (see figure F) To switch on, firstly press the lock-off button (1). Then press the On/Off switch (2) and keep it pressed. To switch off, release the On/Off switch (2). Lawn trimming/Edge cutting Press button (12). Turn the bottom part of the trimmer by 180° to position the trimmer head either for lawn trimming or edge cutting. Release button (12) so that the turning mechanism engages. Lawn trimming Move the trimmer left and right, keeping it well away from the body. Cut higher grass in steps. (seefigureG) Edge cutting Guide the trimmer along the edge of the lawn. Avoid contact with solid surfaces or walls to prevent rapid wear of the cut- ting line. (seefigureH) Cutting around trees and bushes For better control, use the plant protector (8). Carefully cut around trees and bushes so that they do not come into con- tact with the cutting line. Plants can die if you damage the bark. Dismounting the spool, winding up the cutting line and mounting the spool (see figures I bis L) u Remove the battery before replacing the spool. Press both latches of the spool cover together and remove the spool cover (13). Afterwards, remove the empty spool (14). Cut off approx. 6.0 m line from the refill roll. Fold the line in half, so that it has a length of 2 x 3 m. Attach the line centre to the nose on the spool and wind up the line - one end in each spool compartment - uniformly distributed and taut. Slide both ends of the cutting line through the holes for line guiding (15) in the trimmer head and mount the spool back into the trimmer head. Affix the spool by mounting the spool cover (13). Line Feeding (see figure M) Semi-automatic Line Feeding The trimmer is equipped with a semi-automatic feeding sys- tem. The system feeds 10mm of the line with every press of the on/off switch (2). Manual Line Feeding Press the line-feed button (16), and pull the cutting line out to the desired length. Troubleshooting d.c. F 016 L94 127 | (24.11.2020) Bosch Power ToolsEnglish | 27 Lawn Trimmer/Lawn Edge Trimmer Problem Possible Cause Corrective Action Motor refuses to start Battery discharged Recharge battery Battery too hot/cold Allow to cool/warm Garden tool functions intermittently On/Off switch defective Contact Bosch customer service agent Internal wiring of garden tool defective Contact Bosch customer service agent Garden product la- bours Grass too high Cut in stages Garden tool does not cut Cutting line too short/broken off Manually feed cutting line Spool empty Replace line spool Cutting line can no longer be fed Line inside the spool entangled Inspect the spool, rewind if necessary Spool empty Refill line spool Cutting line retracts into spool Cutting line too short/broken off Remove spool – rethread line (see figures J − L) Cutting line breaks fre- quently Line inside the spool entangled Remove spool – rewind line (see figures J − L) Trimmer used incorrectly Only trim with the tip of the line, avoid stones, walls and other hard objects. Feed the line regu- larly to maintain full cutting diameter. Heavy vibrations Cutting line broken Cutting system damaged Grass between spool housing and line-feed but- ton Grass in hole for line feed Pull out cutting line with manual feed (see figure

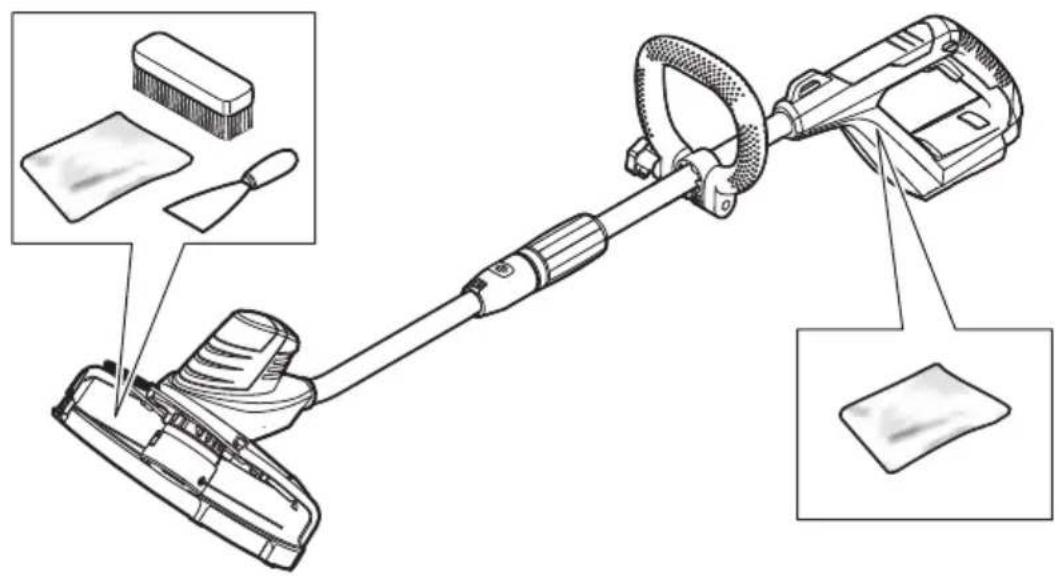

Contact Bosch customer service agent Disassemble spool cover and remove grass Remove grass from hole for line feed Battery and charger Problem Possible Cause Corrective Action Flashing red battery charge indicator No charging procedure possible Battery not (properly) inserted Properly insert battery in charger Battery contacts contaminated Clean the battery contacts (e. g. by inserting and removing the battery several times) or replace the battery Battery defective Replace the battery Battery charge indicat- ors do not light up Mains plug of battery charger not plugged in (properly) Insert mains plug (fully) into the socket outlet Socket outlet, mains cable or battery charger de- fective Check the mains voltage; have the battery char- ger checked by an authorised after-sales service agent for Bosch power tools Maintenance and Service Maintenance, Cleaning and Storage u Before any work on the garden product itself (e.g. maintenance, tool change, etc.) as well as during transport and storage, remove the battery from the garden product. There is danger of injury when uninten- tionally actuating the On/Off switch. u For safe and proper working, always keep the product clean. Do not place other objects on the garden product. To ensure safe and efficient operation, always keep the product and the ventilation slots clean. Never spray the product with water. Never immerse the product in water. Store the product in a secure, dry place, out of the reach of children. Do not place other objects on the product. Keep all nuts, bolts and screws tight to ensure safe working with the product. Inspect the product and replace worn or damaged parts for safety. Ensure replacement parts fitted are Bosch-approved. Bosch Power Tools F 016 L94 127 | (24.11.2020)28 | Français Battery Maintenance Use the following procedures to enable optimum usage of the battery: – Protect the battery against moisture and water. – Store the machine and battery only within a temperature range between –20°C and 50°C . As an example, do not leave the battery in the car in summer. – It is recommended that the battery is not stored within the product but stored separately. – Do not leave the battery in the product in direct sunlight. – The ideal storage condition for the battery is 5°C. – Occasionally clean the venting slots of the battery using a soft, clean and dry brush. A significantly reduced working period after charging indic- ates that the battery is used and must be replaced. After-Sales Service and Application Service Our after-sales service responds to your questions concern- ing maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com The Bosch product use advice team will be happy to help you with any questions about our products and their accessor- ies. In all correspondence and spare parts orders, please always include the 10‑digit article number given on the nameplate of the product. Great Britain Robert Bosch Ltd. (B.S.C.) P.O. Box 98 Broadwater Park North Orbital Road Denham Uxbridge UB 9 5HJ At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: (0344) 7360109 E-Mail: boschservicecentre@bosch.com You can find further service addresses at: www.bosch-pt.com/serviceaddresses Transport The contained lithium-ion batteries are subject to the Dan- gerous Goods Legislation requirements. The batteries are suitable for road-transport by the user without further re- strictions. When shipping by third parties (e.g.: by air transport or for- warding agency), special requirements on packaging and la- belling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is re- quired. Dispatch battery packs only when the housing is undam- aged. Tape or mask off open contacts and pack up the bat- tery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more de- tailed national regulations. Disposal The product, batteries, accessories and pack- aging should be sorted for environmental- friendly recycling. Do not dispose of the product and batteries/re- chargeable batteries into household waste! Only for EU countries: According to the European Guideline 2012/19/EU, products that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/ batteries, must be collected separately and disposed of in an environmentally correct manner. Battery packs/batteries: Li-ion: Please observe the notes in the section on transport (see "Transport", page28). UK Importer: Robert Bosch Ltd. Broadwater Park North Orbital Road Uxbridge UB9 5HJ Français Consignes de sécurité Attention! Lire avec attention toutes les instructions qui suivent. Se familiariser avec les éléments de commande et l’utilisation appro- priée de l’outil de jardin. Conserver les instructions d’utilisation à un en- droit sûr pour pouvoir les consulter ultérieurement. Explication des symboles se trouvant sur l’outil de jardin Indications générales sur d’éventuels dangers. Lire soigneuse- ment ces instruc- tions d’utilisation. F 016 L94 127 | (24.11.2020) Bosch Power ToolsFrançais | 29 Prendre les précautions né- cessaires pour que les per- sonnes se trouvant à proximi- té ne risquent pas d’être blessées par des projections provenant de l’outil.

= 2,0 – Incertitude K m/s

= 2,0 – Incerteza K m/s

= 2,0 – Usikkerhet K m/s

= 2,0 – Tolerans K m/s

= 2,0 – Incertitudine K m/s

www.bosch-pt.com/serviceaddresses

= 2,0 – Negotovost K m/s

EU Declaration of Conformity We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regu- lations listed below and are in conformity with the following stan- dards. Lawn Trimmer/Lawn Ed- ge Trimmer Article number
