Gear-driven eccentric sander

RO 150 FEQ

492160, 493974

fulfills all the relevant provisions of the following UK Regulations:

S.I. 2008/1597
S.I. 2016/1091
S.I. 2012/3032

Supply of Machinery (Safety) Regulations 2008
Electromagnetic Compatibility Regulations 2016
Restriction of the Use of Certain Hazardous Substances in Electrical

and Electronic Equipment Regulations 2012

and are manufactured in accordance with the following designated standards:

BSEN62841-1:2015
BSEN62841-2-4:2014
BSEN55014-1:2017
BSEN55014-2:2015
BS EN IEC 61000-3-2:2019
BSEN61000-3-3:2013
BS EN IEC 63000:2018

11 in the specified serial number range (S-Nr.) from 400000000 - 49999999

Place and date of declaration: Wendlingen, 15.04.2021

Signed on behalf of and in name of Festool GmbH

i.v. Q. Borel'dt

Ralf Brandt

Head of Productconformity

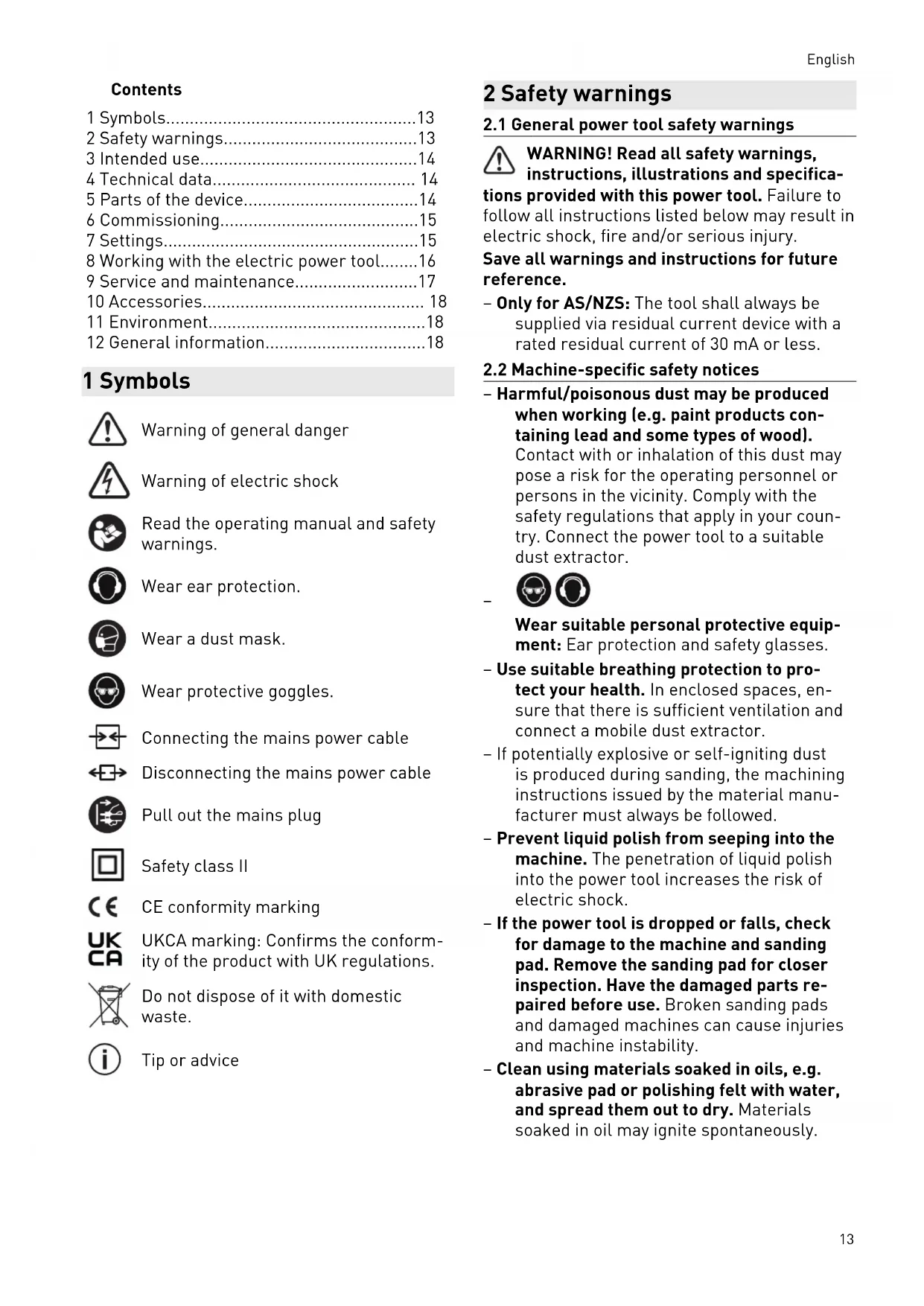

Inhaltsverzeichnis

1 Symbols. 13
2 Safety warnings. 13
3 Intended use. 14
4 Technical data. 14
5 Parts of the device. 14
6 Commissioning. 15
7 Settings. 15
8 Working with the electric power tool. 16
9 Service and maintenance. 17
10 Accessories. 18
11 Environment. 18
12 General information. 18

1 Symbols

Warning of general danger

Warning of electric shock

Read the operating manual and safety warnings.

Wear ear protection.

Wear a dust mask.

Wear protective goggles.

Connecting the mains power cable

Disconnecting the mains power cable

Pull out the mains plug.

Safety class II

CE conformity marking

UKCA marking: Confirms the conformity of the product with UK regulations.

Do not dispose of it with domestic waste.

Tip or advice

2 Safety warnings

2.1 General power tool safety warnings

WARNING! Read all safety warnings, instructions, illustrations and specifica

tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

• Only for AS/NZS: The tool shall always be supplied via residual current device with a rated residual current of 30mA or less.

2.2 Machine-specific safety notices

• Harmful/poisonous dust may be produced when working (e.g. paint products containing lead and some types of wood). Contact with or inhalation of this dust may pose a risk for the operating personnel or persons in the vicinity. Comply with the safety regulations that apply in your country. Connect the power tool to a suitable dust extractor.

Wear suitable personal protective equipment: Ear protection and safety glasses.

• Use suitable breathing protection to protect your health. In enclosed spaces, ensure that there is sufficient ventilation and connect a mobile dust extractor.
• If potentially explosive or self-igniting dust is produced during sanding, the machining instructions issued by the material manufacturer must always be followed.
• Prevent liquid polish from seeping into the machine. The penetration of liquid polish into the power tool increases the risk of electric shock.
• If the power tool is dropped or falls, check for damage to the machine and sanding pad. Remove the sanding pad for closer inspection. Have the damaged parts repaired before use. Broken sanding pads and damaged machines can cause injuries and machine instability.
• Clean using materials soaked in oils, e.g. abrasive pad or polishing felt with water, and spread them out to dry. Materials soaked in oil may ignite spontaneously.

2.3 Mixed dust containing metal and sanding of damp surfaces

With mixed dust containing metal (such as dust resulting from paint sanding in the automotive field) and when sanding damp surfaces, the following measures must be observed for reasons of safety:

• Install an upstream residual-current circuit breaker (RCD, PRCD).
• Connect the machine to a suitable dust extractor.
• Regularly vacuum the motor housing of the machine to remove dust deposits.

-We protective goggles.

2.4 Emission levels

Noise emissions created while working with the power tool may damage your hearing.

Always use ear protection.

Vibration emission level a_h (vector sum for three directions) and uncertainty K measured in accordance with EN 62841:

a_h [m / s^2] K [m / s^2]

Fine sanding 5.0 2.0

Coarse sanding 5.0 2.0

Polishing 6.5 2.0

The specified emission levels (vibration, noise)
- are used to compare machines.
- They are also used for making preliminary estimates regarding vibration and noise load during operation.
- They represent the primary applications of the power tool.

CAUTION

The emission values may deviate from the specified values. This is dependent on how the tool is used and the type of workpiece being machined.

Assess the actual load during the entire operating cycle.
Depending on the actual load, suitable protective measures must be defined in order to protect the operator.

3 Intended use

The sanders are designed for sanding wood, plastic, composite, paint/varnish, filler and similar materials as directed. With mixed dust containing metal (such as dust resulting from paint sanding in the automotive industry) and when sanding damp surfaces, special safety instructions must be followed. The sanders are not intended to be suitable for grinding bare metal. Material containing asbestos cannot be processed.

The user is liable for improper or non-intended use.

4 Technical data

Geared eccentric sander	RO 150 FEQ
Power 720 W
Eccentric motion speed 3300–6800 rpm
ROTEX rotary motion speed	320–660 rpm
Sanding stroke 5.0 mm
FastFix sanding pad	Dia. 150 mm
Weight	2.3 kg

5 Parts of the device

[1-1] Extractor connector
[1-2] Speed control
[1-3] Motor housing
[1-4] On/off switch
[1-5] Selector switch
[1-6] Gear head
[1-7] Sanding pad
[1-8] Spindle stop

The specified illustrations appear at the beginning of the Operating Instructions.

6 Commissioning

WARNING

Unauthorised voltage or frequency. Risk of accidents

The mains voltage and the frequency of the power source must correspond to the specifications on the name plate.
In North America, only Festool machines with the voltage specifications 120V / 60Hz may be used.

CAUTION

Heating of the plug it connection if the bayonet fitting is not completely locked.

Risk of burns

Before switching on the power tool, make sure that the bayonet fitting at the mains cable is closed fully and locked.

For connecting and detaching the mains power cable, see figure [2].

6.1 Switching on/off

The switch [1-4] serves as an on/off switch (I = ON, 0 = OFF).

The on/off switch can only be actuated if the selector switch [1-5] is locked in place.
In case of a power failure or if the mains connector is removed, move the on/off switch immediately to the Off position. This prevents uncontrolled restarting.

7 Settings

WARNING

Risk of injury, electric shock

Always disconnect the mains plug from the socket before performing any work on the machine.

7.1 Electronics

The power tool features full-wave electronics with the following properties:

Smooth start-up

The electronically controlled smooth start-up function ensures that the power tool starts up smoothly. The limited starting current ensures

that even standard household fuses are not triggered.

Speed control

You can use the adjusting wheel [1-2] to continuously adjust the speed within the speed range (see Section 4). This enables the sanding speed to be optimally adjusted to suit the material you are working on.

Constant speed

The motor speed is electronically kept constant. This ensures a uniform cutting speed even when under load.

Temperature cut-out

The power supply is restricted and the speed reduced if the motor exceeds a certain temperature. The power tool continues operating at reduced power to allow the ventilator to cool the motor quickly. The power tool starts up again automatically once the motor has cooled sufficiently.

7.2 Setting the sanding motion

Two different sanding motions can be set using the selector switch [1-5].

The switchover can only be performed when the sanding pad is stationary, as the selector switch is locked during operation.

Fine sanding - eccentric motion

This position is selected for sanding with low output for a scratch-free surface (fine sanding).

Coarse sanding, polishing - ROTEX rotary motion

The Rotex rotary motion is a combination of rotary and eccentric motions. This position is selected for sanding with high output (coarse

sanding] and polishing.

7.3 Changing the sanding/polishing pad

Choice of sanding pads

The power tool can be fitted with three sanding pads of different hardnesses depending on the surface to be sanded.

Hard: Coarse sanding on surfaces, sanding at edges.

Soft: Universal use for coarse and fine sanding for flat and curved surfaces.

Supersoft: Fine sanding on formed parts, curves, radii. Do not use on edges!

English

Assembly

The FastFix system enables toolless sanding pad replacement:

• Move the selector switch [1-5] to the right to ROTEX rotary motion.

CAUTION! Only use the spindle stop when the drive spindle is stationary. Do not switch on the motor when the spindle stop is pressed.

• Press and hold the spindle stop [1-8] and unscrew the sanding pad [1-7] from the spindle (right-hand thread).
• Press and hold the spindle stop [1-8] and screw on the new sanding pad [1-7] (the rubber sleeve [3-2] must be correctly fitted).

7.4 Attaching sanding accessories using StickFix

The required StickFix sandpaper and StickFix sanding vlies can be attached quickly and simply to the StickFix sanding pad.

• Affix the self-adhesive sanding accessory to the sanding pad [1-7].

Risk of injury! In the case of a weakening, an adhesive effect of the sanding access to change the sanding pad.

7.5 Attaching polishing accessories

To avoid damage, PoliStick polishing accessories (sponges, felts, sheepskin) may only be used on the special polishing pad, which is fitted on the machine instead of a sanding pad. Like the StickFix sanding accessories, the Poli- Stick polishing accessory is simply pressed onto the polishing pad and removed again after use.

7.6 Dust extraction [4]

WARNING

Heath hazard posed by dust

Always work with an extractor.
Comply with national regulations.

At the extractor connector [4-1], a Festool mobile dust extractor with an extraction hose diameter of 27mm can be connected.

Recommendation: Use an antistatic extractor hose. This helps reduce the electric charge.

Extraction adapter

The extraction adapter [4-3] can be removed for polishing.

Removing the extraction adapter

Press the locking button [4-2] and pull off the extraction adapter backwards.

Fitting the extraction adapter

• To reattach the extraction adapter, insert it and push it towards the sanding pad until the locking button clicks into place.

7.7 Edge protector [5]

The edge protector [5-1] stops the outer edge of the sanding pad from coming into contact with a surface (e.g. when sanding along a wall or a window), preventing machine kickback.

Assembly

Slide the edge protector onto the machine until it clicks into place (see figure [5]).

8 Working with the electric power tool

WARNING

Risk of injury

Always secure the workpiece in such a manner that it cannot move while being machined.

Before starting

• Do not overload the machine by pressing with excessive force! The best sanding results are achieved with moderate application pressure. The sanding performance and quality are mainly dependent on the selection of the correct abrasive.
• Hold the machine with two hands - one on the motor housing [1-3] and one on the gear head [1-6] - to ensure safe guidance.
• The pad foam becomes brittle due to ageing. Before working, check the pad foam for wear.

i Tables A and B show the recommended settings for different sanding and polishing jobs.

8.1 Table A - Sanding

Coarse sanding Fine sanding
Clear coat, filler, priming material	x 5 - 6 Soft x 1 - 3 Ultra-soft
Clear coat, paint x 4 - 6 Hard x 3 - 6 Hard
Wood, veneered surface	x 5 - 6 Hard x 3 - 6 Soft
Plastic x x 2 - 6 Soft x 1 - 4 Soft
Steel, copper, aluminium	x 6 Soft x 3 - 6 Soft

8.2 Table B - Polishing

	Polishing	Sealing	Polishing to a high-gloss finish
Varnish	6	3	4 - 6
	Pad Coarse/fine	Felt Soft	Sheepskin
	Polishing paste Hard wax		-
Plastic	6	3	6
	Felt Hard	Felt Soft	Sheepskin
	Polishing paste Hard wax		-

9 Service and maintenance

WARNING

Risk of injury, electric shock

Always pull the mains plug from the socket before performing any servicing and maintenance work.
- All maintenance and repair work which requires the motor housing to be opened should always be carried out by an authorised service workshop.

Customer service and repairs must only be carried out by the manufacturer or service workshops. You must only use original Festool spare parts.

Further information: www.festool.co.uk/service

To ensure constant air circulation, always keep the cooling air openings in the motor housing clean and free of blockages.

The tool is equipped with special self-disconnecting carbon brushes. If they wear out, the power supply is disconnected automatically and the tool stops.

9.1 Sanding pad brake

The rubber sleeve [3-2] prevents uncontrolled turning of the sanding pad in the event of eccentric motion (fine sanding). As the collar wears out over the course of time, it must be replaced with a new one if the braking effect is decreasing.

10 Accessories

Only use original Festool sanding and polishing pads. Low-quality sanding and polishing pads may cause serious machine imbalance that decreases the quality of the working results and increases machine wear.

You can find the PO numbers for accessories and tools under www.festool.co.uk.

10.1 Fitting the auxiliary handle [5]

The auxiliary handle [5-3] can be screwed onto either the right or left of the gear head.

10.2 Ball grip [5]

The ball grip [5-2] (available as an accessory depending on the model) enables effortless polishing and sanding during sustained work.

Push the ball grip onto the guide slot [5-4] of the power tool until it clicks into place.

11 Environment

Do not dispose of the device in the household waste! Recycle devices, accessories and packaging. Observe appli-national regulations.

In accordance with the European Directive on waste electrical and electronic equipment and implementation in national law, used electrical devices must be collected separately and handled in for environmentally friendly recycling.

Information on the collection points can be viewed at www.festool.com/environment.

Information on critical materials:

www.festool.co.uk/reach

12 General information

Imported into the UK by

Festool UK Ltd

1 Anglo Saxon Way

Bury St Edmunds

IP30 9XH

Great Britain
