USER MANUAL RS 100 CQ FESTOOL
de EG-Konformitätserklärung. Wir erklären in alleiniger Verantwortung, dass dieses Produkt allen ein-schlägigen Bestimmungen der folgenden Richtlinien einschließlich ihrer Änderungen entspricht und mit den folgenden Normen übereinstimmt:
en EC-Declaration of Conformity. We declare under our sole responsibility that this product is in conformity with all relevant provisions of the following directives including their amendments and complies with the following standards:
fr CE-Déclaration de conformité communautaire. Nous déclarons sous notre propre responsabilité que ce produit est conforme aux normes ou documents de normalisation suivants:
es CE-Declaración de conformidad. Declaramos bajo nuestra exclusiva responsabilidad que este producto corresponde a las siguientes normas o documentos normalizados:
it CE-Dichiarazione di conformità. Dichiariamo sotto la nostra esclusiva responsabilità che il presente prodotto e conforme alle norme e ai documenti normativi seguenti:
nl EG-conformiteitsverklaring. Wij verklaren op eigen verantwoordelijkheid dat dit produkt voldoet aan de volgende normen of normatieve documenten:
SV EG-konformitetsförklaring. Vi förklarar i eget ansvar, att denna produkt stämmer överens med följande normer och normativa dokument:
fi EY-standardinmukaisuusvakuutus. Va-kuutamme yksinvastuullisina, etta tuote on seuraavien standardien ja normatiivisten ohjeiden mukainen:
da EF-konformitetserklæring Vi erklærer at have alene ansvaret for, at dette produkt er i overensstemmelse med de følgende normer eller normative dokumenter:
nb CE-Konformitetserklæring Vi erklærer på eget ansvar at dette produktet er i overensstemmelse med følgende normer eller normative dokumenter:
Ralf Brandt Head of Standardization & Approbation
| Power 520 W | |
| Speed 6300 min | -1 |
| Working strokes 12600 min | -1 |
| Sanding stroke 5.0 mm | |
| Sanding shoe 115 x 221 mm | |
| Weight according to | |
| EPTA-Procedure 01:2014 3 kg | |
The specified illustrations can be found at the beginning of the operating instructions.
Symbols
Warning of general danger
Wear a dust mask!
protective goggles!
Read the Operating Instructions/Notes!
Wear ear protection!
Do not throw in the household waste!
☐ Protection class II
1 Intended use
As specified, the machines are designed for sanding wood, plastic, metal, stone, composite materials, paint/varnish, filler and similar materials. Materials containing asbestos must not be processed.
For reasons of electrical safety the machine must not be damp nor operated in a humid environment. The machine may only be used for dry sanding.
The user is liable for damage and injury resulting from incorrect usage!
2 Safety instructions
2.1 General Safety
WARNING! Read all safety warnings, in- tions, illustrations and specifi cations pro- with this power tool. Failure to follow the ings and instructions may result in electric k, fi re and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
2.2 Tool-specific safety rules
Always wear protective goggles because of possible dangers when sanding.
- The manufacturer's handling and processing instructions must be observed without fail if explosive or self-igniting dusts are likely to occur during sanding.
- Harmful/toxic dusts can occur during your work (e.g. lead-containing paint, some types of wood and metal). Contact with these dusts, especially inhaling them, can represent a hazard for operating personnel or persons in the vicinity. Comply with the safety regulations that apply in your country. Connect the electric power tool to a suitable extraction system.
To protect your health, wear a P2 protective mask.
- Only for AS/NZS: The tool shall always be supplied via residual current device with a rated residual current of 30 mA or less.
2.3 Noise and vibration information
The typical values determined in accordance with EN 62841 (see EU Declaration of Conformity) are: Sound-pressure level 82 dB(A) Sound-power level 93 dB(A) Measuring uncertainty allowance K = 3 dB
Wear ear protection!
Overall vibration levels (vector sum for three directions) measured in accordance with EN 62841 (see EU Declaration of Conformity):
Vibration emission level
| (3 directions) | a_h = 5.6 m/s^2 |
| Uncertainty | K = 1.5 m/s^2 |
The specified emissions values (vibration, noise) – are used to compare machines.
- They are also used for making preliminary estimates regarding vibration and noise loads during operation.
- They represent the primary applications of the power tool.
CAUTION
emissions during actual use of the power tool can differ from the declared values depending on the ways in which the tool is used especially what kind of workpiece is processed.
- Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
3 Power supply and start-up
The mains voltage must correspond to the specification on the rating plate.

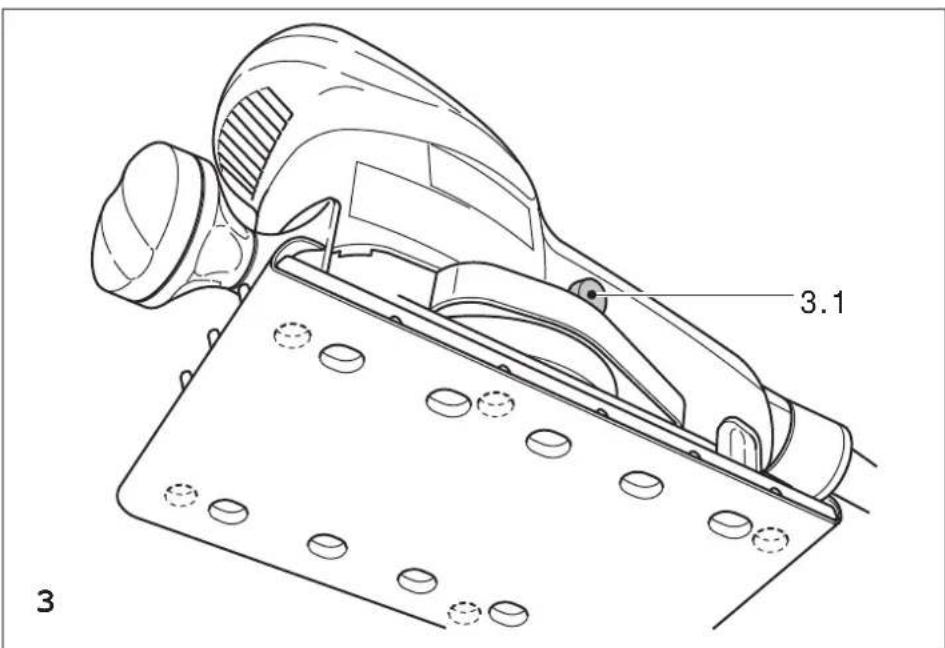

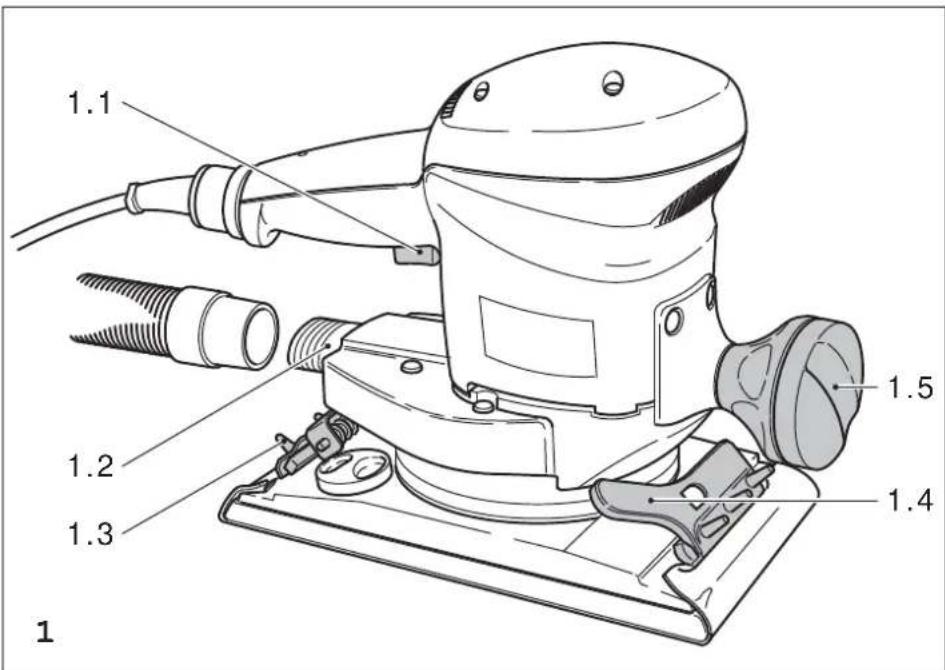

Switch (1.1) serves as an On/Off switch (I = On / 0 = Off). It may be latched with the locking knob on the side (3.1) for continuous operation. Pressing the switch again releases the lock.
Always switch the machine off before connecting or disconnecting the mains lead!
CAUTION
Heating of the Plug it connection if bayonet fi tting is not completely locked Risk of burns
- Before switching on the power tool, make sure that the bayonet fi tting at the mains cable is closed fully and locked.

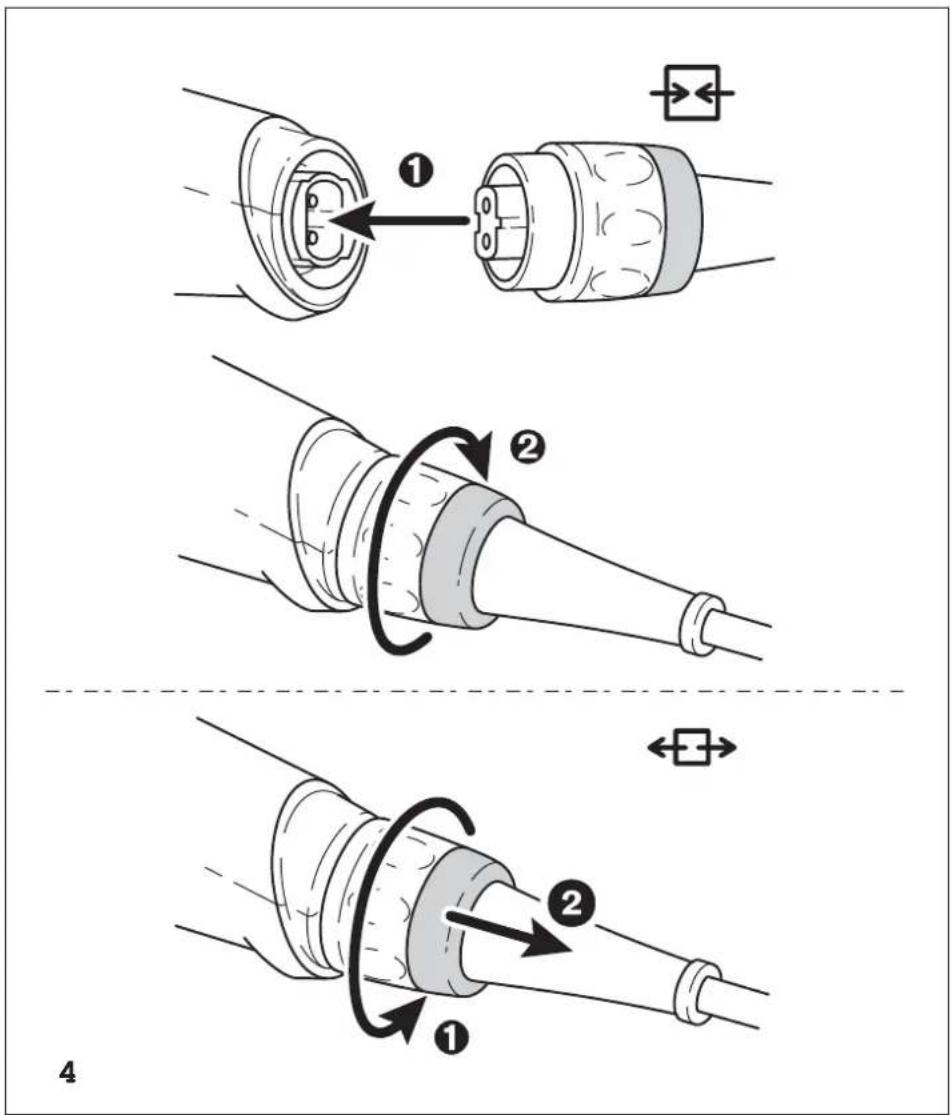

See Fig. 4 for connection and disconnection of the power cable.
4
Machine settings
Always remove the power supply plug from the socket before carrying out any work on the machine.
4.1
Dust extraction
Always connect the machine to a dust extractor. Dust extractors prevent large accumulations of dust in the air in the working environment and dirt collecting at the workplace.
You can connect a Festool extractor with an extractor hose diameter of 27 mm to the extractor connector (1.2).
Sanding dust is extracted through the extraction channels in the sanding pad directly to the material removal point.

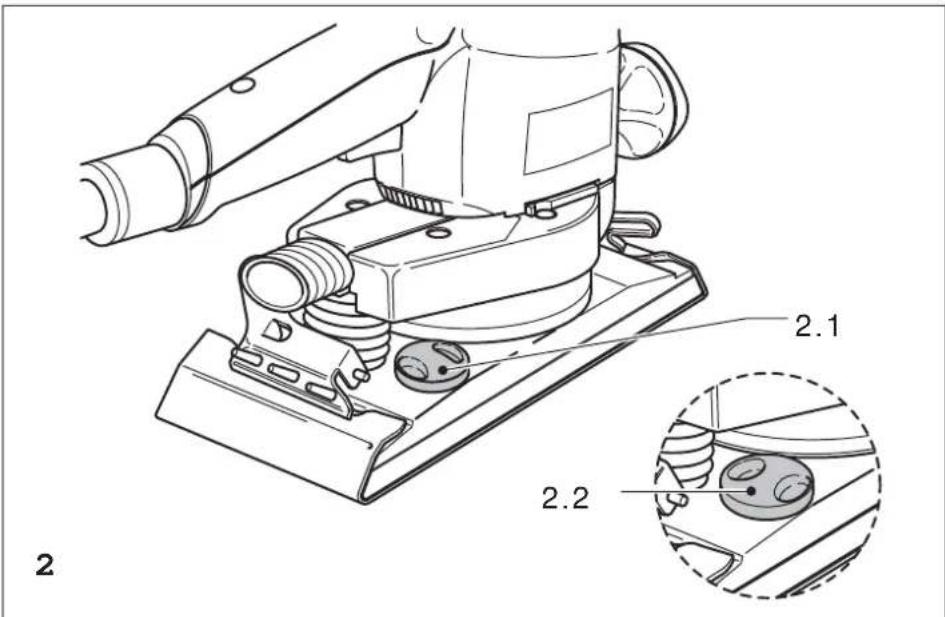

Opening the bypass (2.1/2.2) to allow air to enter prevents the machine from sticking to fl at surfaces when processing workpieces. The further you open the bypass, the more air is drawn in.
4.2
Attaching sanding material
Always use original Festool sanding materials!
Stickfi x abrasives
The appropriate Stickfix sanding paper and Stickfi x sanding felt can be fastened quickly and easily onto the Stickfi x sanding pad.
The self-adhesive sanding material is simply pressed onto the sanding base and held safely in place by the Stickfi x sanding base velcro surface. After use, the StickFix sandpaper is simply pulled off.
Abrasives to clamp
Festool offers perforated abrasives to clamp.
Unperforated abrasives can be perforated with the „Lochfi x“ (accessory).
- Before affixing any abrasives, attach a Stickfix abrasive sheet to the sanding pad fi rst so that the adhesive coating on the Stickfi x sanding pad is not damaged. - Secure an abrasive sheet in place using the two clamping devices (1.3/1.4). Press the levers to release the clamping devices.
Once clamped in position, make sure the abrasive paper is taut and sits fl at on the sanding pad.
4.3
Auxiliary handle
The auxiliary handle (1.5) can be attached for tasks where the front edge of the sanding pad sands up to edges.
5 Instructions on application
Never overload the tool by using too much pressure! The best sanding results are achieved when applying moderate pressure. The sanding performance and quality depend mainly on the choice of the right sanding material.
Metalworking
The following precautions are to be taken when processing metals for safety reasons:
- Pre-connect a residual current circuit-breaker (FI, PRCD).
- Connect the machine to a suitable dust extractor.
- Clean tool regularly of dust accumulations in the motor housing.
Wear protective goggles.
Customer service and repair. Only through manufacturer or service workshops: Please find the nearest address at:: www.festool.com/Service
Use only original Festool spare parts! Order No. at: www.festool.com/Service
6 Accessories
The accessory and tool order number can be found in your Festool catalogue or on the Internet under "www.festool.com".
7 Maintenance and care
Always remove the power supply plug from the socket before carrying out any work on the machine.
The cool air openings in the motor casing must always be kept clean and unobstructed to ensure air circulation.
All maintenance and repair work which requires the motor casing to be opened may only be carried out by an authorised service centre.
The tool is fitted with special motor brushes with an automatic cut-out. When the brushes become worn the power supply is shut off automatically and the tool comes to a standstill.
8 Environment
Do not throw the power tool in your household waste! Dispose of machines, accessories and packaging at an environmentally-responsible recycling centre. Observe the valid national regulations.
EU only: In accordance with European Directive on waste electrical and electronic equipment and implementation in national law, used electric power tools must be collected separately and handed in for environmentally friendly recycling.
Information on REACH:
www.festool.com/reach
