USER MANUAL Accu MultiTalent QuickStart AFMT12QSL Fein

OBJ_BUCH-0000000247-001.book Page 2 Friday, January 29, 2016 11:32 AM3

OBJ_BUCH-0000000247-001.book Page 3 Friday, January 29, 2016 11:32 AM4

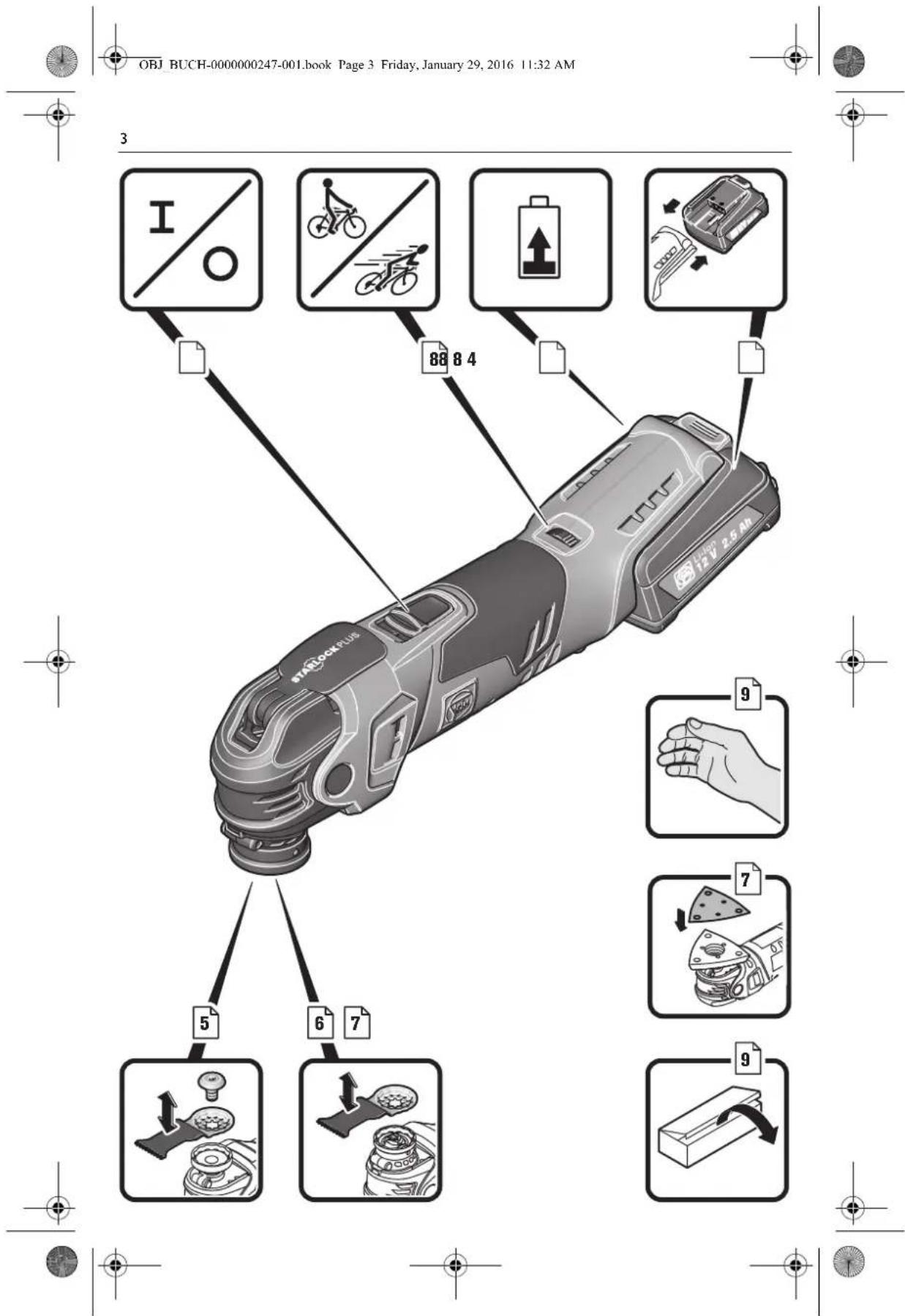

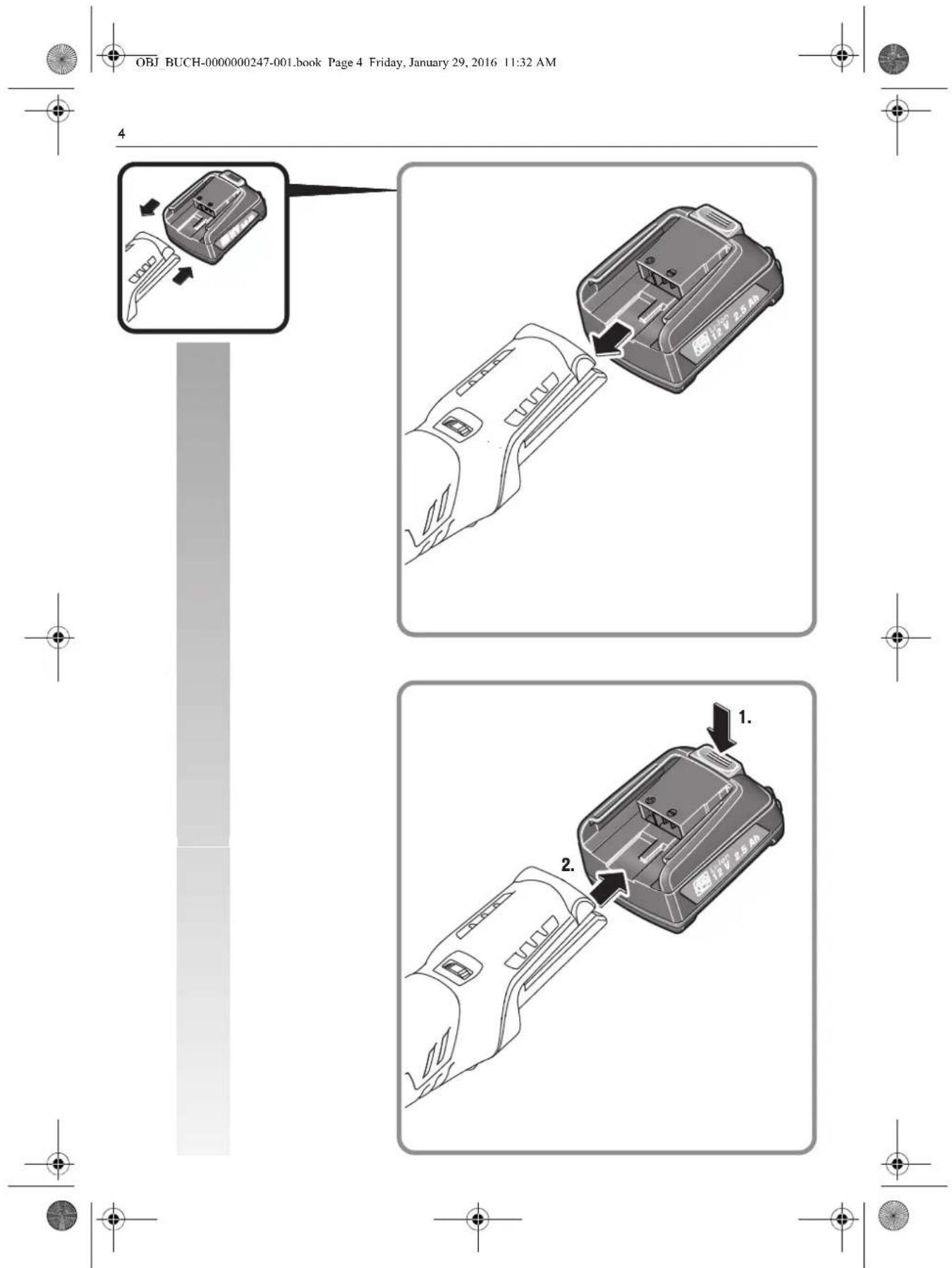

OBJ_BUCH-0000000247-001.book Page 4 Friday, January 29, 2016 11:32 AM5

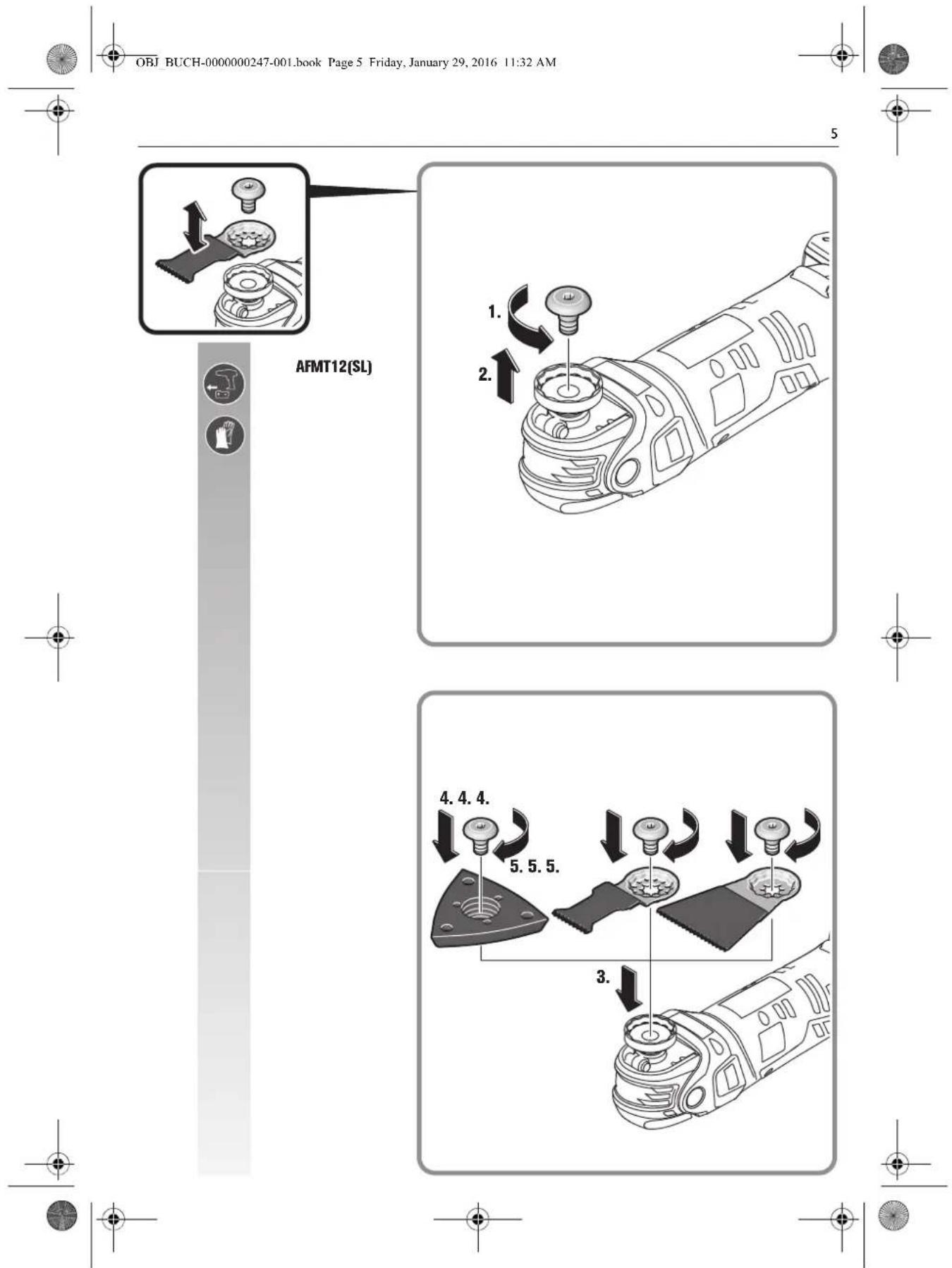

AFMT12(SL) OBJ_BUCH-0000000247-001.book Page 5 Friday, January 29, 2016 11:32 AM6

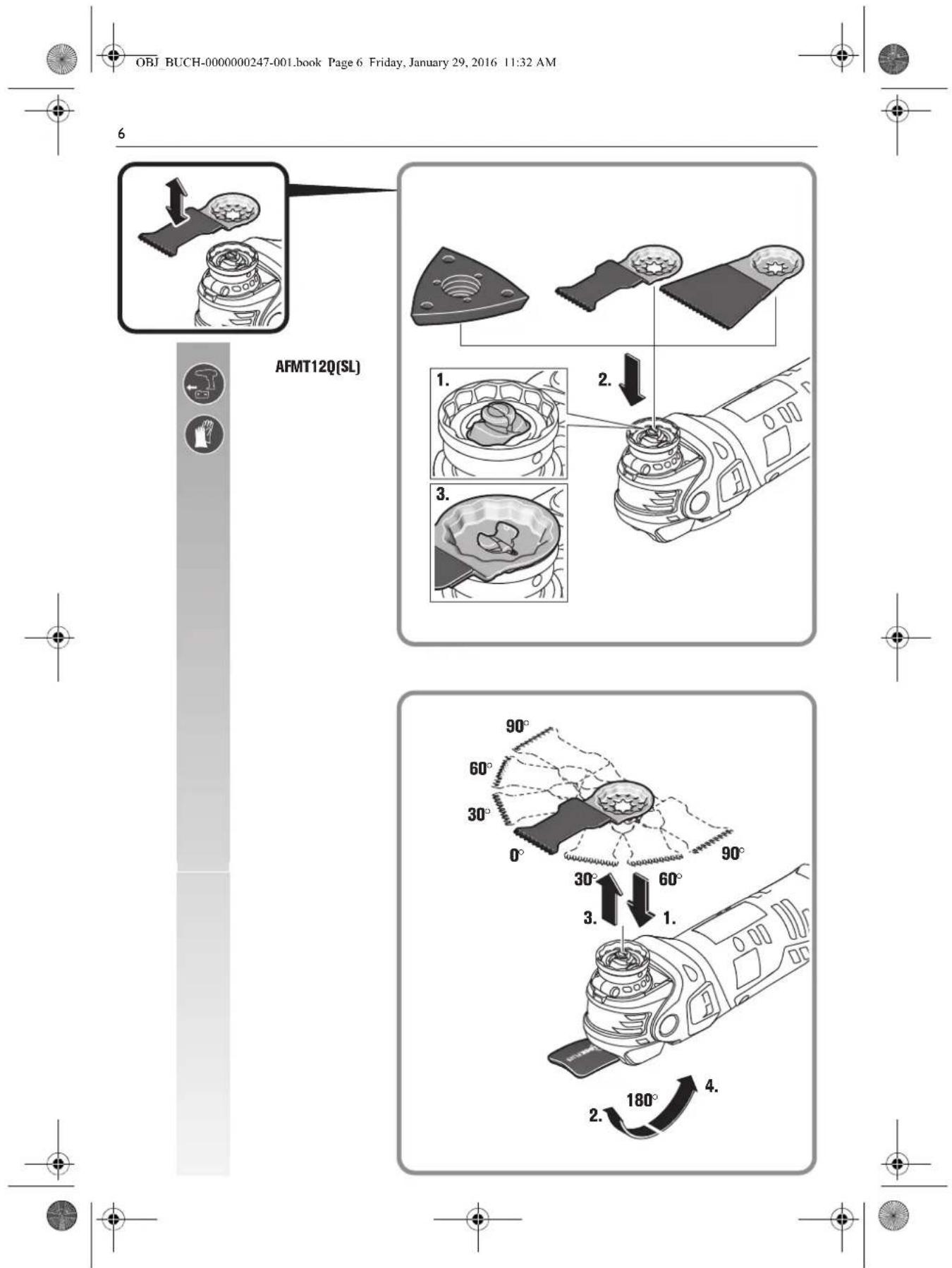

AFMT12Q(SL) OBJ_BUCH-0000000247-001.book Page 6 Friday, January 29, 2016 11:32 AM7 180°

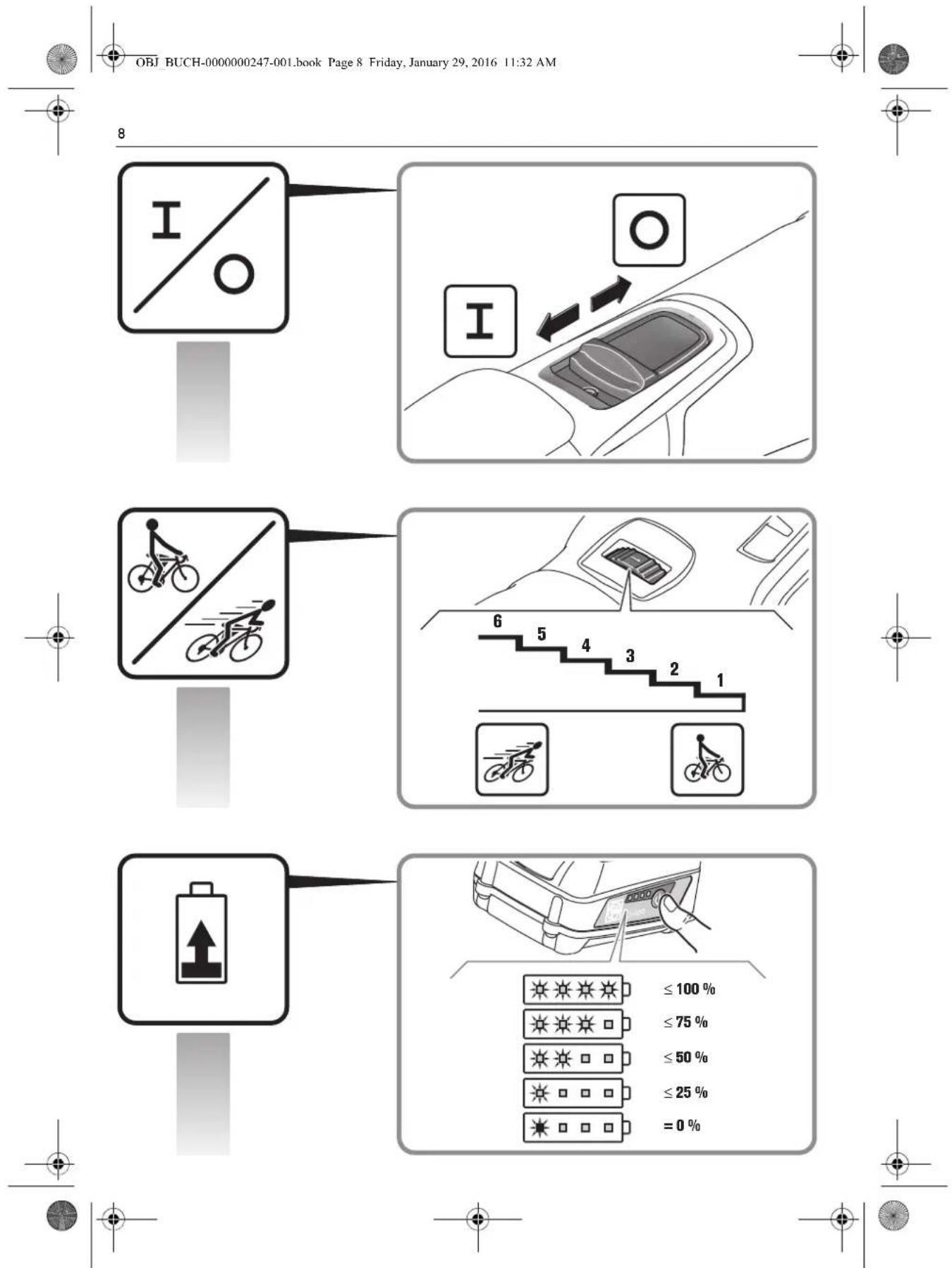

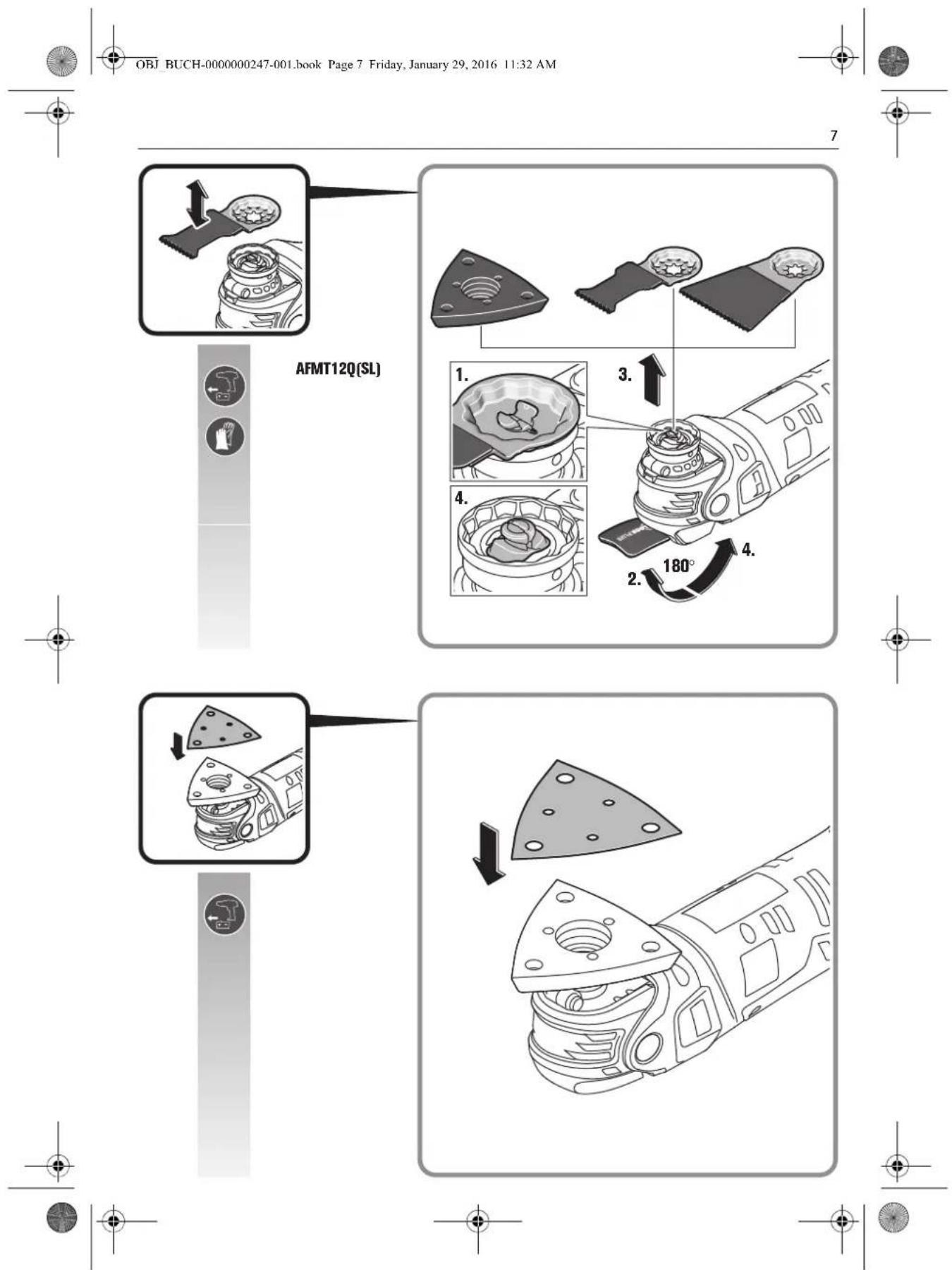

AFMT12Q(SL) OBJ_BUCH-0000000247-001.book Page 7 Friday, January 29, 2016 11:32 AM8 ≤ 100 % ≤ 75 % ≤ 50 % ≤ 25 % = 0 %

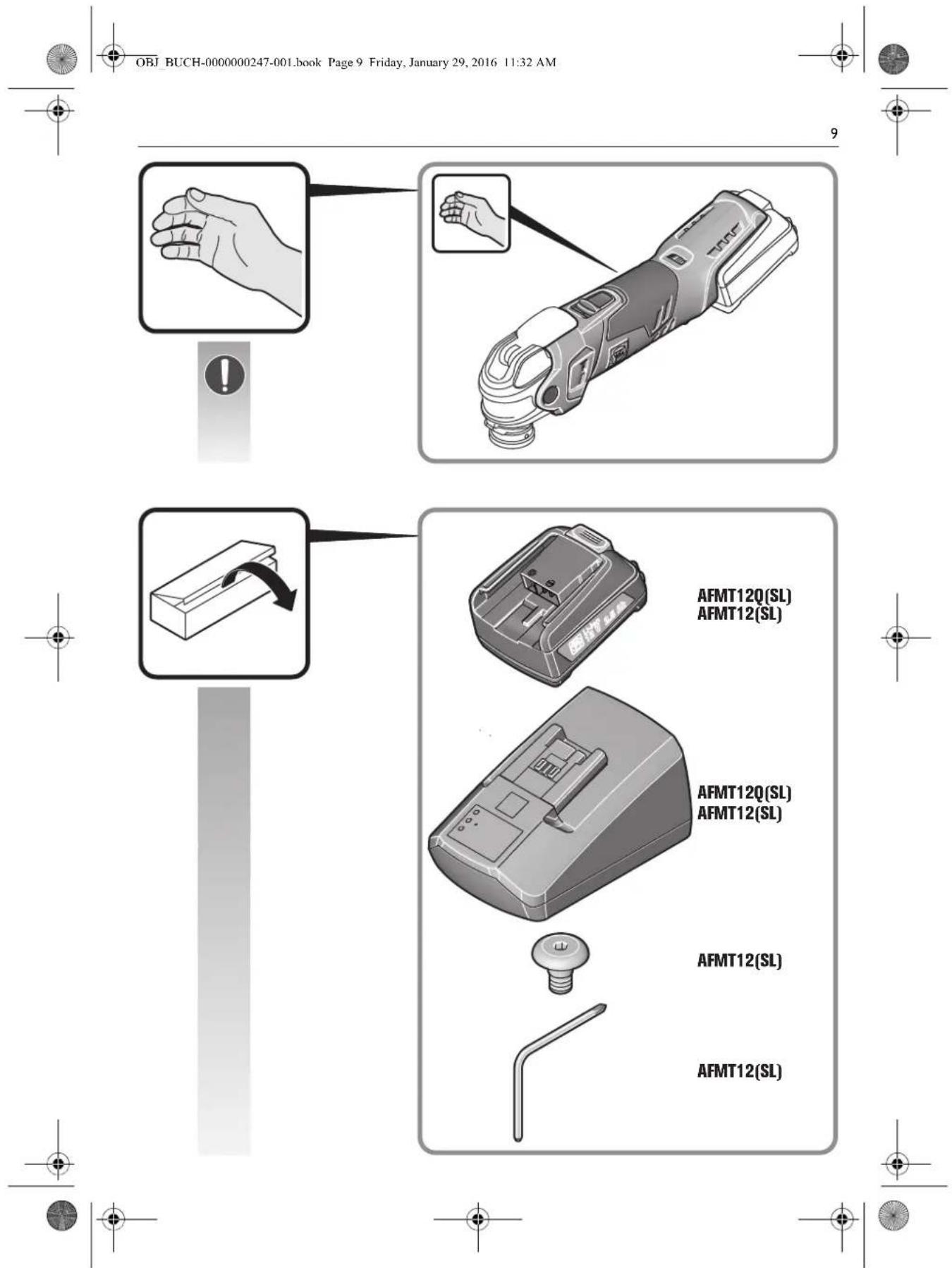

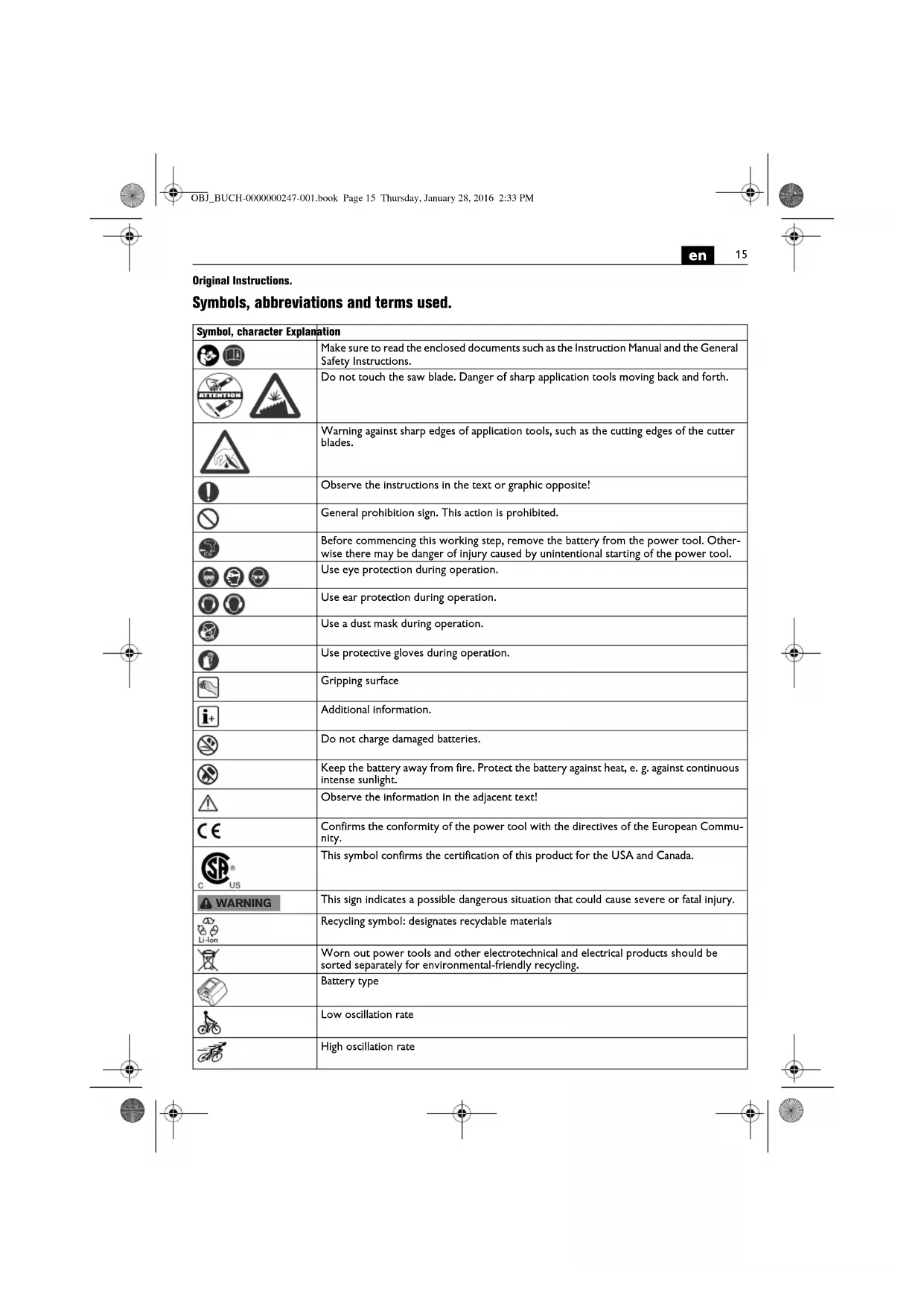

Original Instructions. Symbols, abbreviations and terms used. Symbol, character Explanation Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions. Do not touch the saw blade. Danger of sharp application tools moving back and forth. Warning against sharp edges of application tools, such as the cutting edges of the cutter blades. Observe the instructions in the text or graphic opposite! General prohibition sign. This action is prohibited. Before commencing this working step, remove the battery from the power tool. Other- wise there may be danger of injury caused by unintentional starting of the power tool. Use eye protection during operation. Use ear protection during operation. Use a dust mask during operation. Use protective gloves during operation. Gripping surface Additional information. Do not charge damaged batteries. Keep the battery away from fire. Protect the battery against heat, e. g. against continuous intense sunlight. Observe the information in the adjacent text! Confirms the conformity of the power tool with the directives of the European Commu- nity. This symbol confirms the certification of this product for the USA and Canada. This sign indicates a possible dangerous situation that could cause severe or fatal injury. Recycling symbol: designates recyclable materials Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling. Battery type Low oscillation rate High oscillation rate WARNING OBJ_BUCH-0000000247-001.book Page 15 Thursday, January 28, 2016 2:33 PM16

For your safety. Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. Do not use this power tool before you have thor- oughly read and completely understood this Instruction Manual and the enclosed “General Safety Instructions” (document number 3 41 30 054 06 1). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold. Please also observe the relevant national industrial safety regulations. Intended use of the power tool: Hand-guided oscillator for sanding small surfaces, corners and edges, for sawing thin parts of steel sheet, wood and plastic, for scraping, polishing, rasping, cutting and sepa- rating without water in weather-protected environ- ments, using the application tools and accessories recommended by FEIN. Special safety instructions. Hold the power tool by the insulated gripping surfaces when performing operations where the application tool could contact hidden wires. Contact with a “live” wire will also make exposed metal parts of the power tool “live” and shock the operator. Use clamps or another practical way to secure and sup- port the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control. Do not use accessories which are not specifically designed and recommended by the power tool manufac- turer. Safe operation is not ensured merely because an accessory fits your power tool. Grasp the power tool in such a safe manner that your body never comes into contact with the application tool, especially while working with application tools such as saw blades or other blades pointed toward the grasping range. Touching sharp tips or cutting edges can lead to injuries. Wear personal protective equipment. Depending on appli- cation, use face shield, safety goggles or safety glasses. Where appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your opera- tion. Prolonged exposure to high intensity noise may cause hearing loss. Do not direct the power tool against yourself, other per- sons or animals. Danger of injury from sharp or hot application tools. Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective. Adhesive labels are recommended. Clean the ventilation openings on the power tool at regu- lar intervals using non-metal tools. The blower of the motor draws dust into the housing. An excessive accu- mulation of metallic dust can cause an electrical hazard. Use and handling of the battery (battery pack). To avoid hazardous situations such as burns, fire, explo- sion, skin injuries, and other injuries when handling the battery, observe the following instructions: Batteries must not be disassembled, opened or reduced in size. Do not subject batteries to mechanical impact or shock. Hazardous vapours and fluid can escape in case of damage and improper use of the battery. The vapours can irritate the respiratory system. Liquid ejected from the battery may cause skin irritations or burns. Character Unit of measure- ment, international Unit of measure- ment, national Explanation U VVRated voltage f Hz Hz Frequency

, rpm, r/min /min Rated oscillation rate ° ° Oscillation angle kg kg Weight according to EPTA-Procedure 01

dB dB Sound pressure level

pCpeak dB dB Peak sound pressure level K... Uncertainty m/s

Basic and derived units of measurement from the international system of units SI. WARNING OBJ_BUCH-0000000247-001.book Page 16 Thursday, January 28, 2016 2:33 PM17

When battery fluid from a damaged battery has come into contact with objects close by, check the respective com- ponents, clean them or replace them as required. Keep the battery away from heat and fire. Do not store the battery in direct sunlight. Do not remove the battery from its original packaging until it is going to be used. Before any work on the machine itself, remove the bat- tery from the power tool. If the power tool accidentally starts, there is danger of injury. Remove the battery only when the power tool is switched off. Keep the battery away from children. Keep the battery clean and protect it against moisture and water. Clean contaminated battery terminals and power tool connections with a dry, clean cloth. Use only intact original FEIN batteries that are intended for your power tool. When working with and charging incorrect, damaged, repaired or reconditioned batteries, imitations or other brands, there is danger of fire and/or explosion. Follow the safety warnings in the operating instructions of the battery charger. Handling hazardous dusts For work procedures with this power tool where mate- rial is removed, dusts develop that can be hazardous to one’s health. Contact with or inhaling some dust types, e. g. asbestos and asbestos-containing materials, lead-containing coat- ings, metal, some wood types, minerals, silicate particles from materials containing stone, paint solvents, wood preservatives, antifouling paints for vessels, can trigger allergic reactions to the operator or bystanders and/or lead to respiratory infections, cancer, birth defects or other reproductive harm. The risk from inhaling dusts depends on the exposition. Use dust extraction matched appropriately for the developing dust, as well as personal protective equipment and provide for good ventilation of the workplace. Leave the processing of asbestos-contain- ing materials to specialists. Wood and light-metal dust, hot mixtures of grinding dust and chemical materials can self-ignite under unfavourable conditions or cause an explosion. Avoid sparking in the direction of the dust collector as well as overheating of the power tool and the materials being sanded, empty the dust collector/container in time, observe the material manufac- turer’s working instructions, as well as the relevant regula- tions in your country for the materials being worked. Hand/arm vibrations The vibration emission level given in this information sheet has been measured in accordance with a standard- ised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the opera- tor from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns. Emission values for vibration Operating Instructions. Do not use accessories not specifically intended and recommended for this power tool by FEIN. The use of non- original FEIN accessories can lead to overheating of the power tool and destroy it. Possible overloading of the vibration damping with especially heavy accessories! When using the large round sanding plate (No. 63806195210, Ø115 mm) or the cleaning kit for tile joints (No. 63719011220), the damping system can be subject to overload due to the heavy weight of the acces- sories. This becomes apparent through unpleasant and very intense vibration of the machine. Corrective action: Reduce the speed of the machine to electronic level 2. Due to the then possibly reduced working progress, the machine is only suitable to a limited extent for above mentioned accessories. Guide the power tool toward the work piece only when switched on. The application tool can be offset in 30° steps and fas- tened in the most favourable working position. Changing the tool (AFMT12(SL)) (see page 5). Screw the clamping bolt in to the stop. Changing the tool (AFMT12Q(SL)) (see pages 6/7). Do not switch the power tool on while the clamping lever is open. Otherwise there is danger of crushes or contusions to the hand and fingers. Do not actuate the clamping lever while the power tool is running. Otherwise there is danger of injury. Vibration Classification of FEIN application tools according to vibration class Weighted acceleration* VC0 < 2,5 m/s

• These values are based on a work cycle consisting of no-load and full-load operation of the same duration. For information on the vibration class assigned to the application tool, please see the enclosed data sheet 3 41 30 443 06 0. OBJ_BUCH-0000000247-001.book Page 17 Thursday, January 28, 2016 2:33 PM18

Do not reach into the area of the clamping jaws. Otherwise there is danger of crushes or contusions to the fingers. Do not operate the power tool with with open clamp- ing jaws and without an application tool! This could damage the power tool. When the clamping jaws are open before the appli- cation tool is inserted, pivot the clamping lever toward the front and then back again. The clamping jaws are closed now. The application tool can be inserted. Handling the battery. Operate and charge the battery only within the battery operating-temperature range of 0°C – 45°C (32°F – 113°F). At the beginning of the charging procedure, the battery temperature must be within the battery operat- ing-temperature range. The real percentage of the battery charge condition is only indicated when the power tool motor is stopped. The electronics automatically switch off the motor prior to the battery being deep discharged. Notes on sanding. Press the power tool with the sanding sheet briefly and firmly against a flat surface and briefly switch the power tool on. This provides for good adhesion and prevents premature wear. When only one tip or corner of the sanding sheet is worn, it can be removed again and reattached turned by 120°. Work with the entire surface of the sanding plate, not only with the edge or tip. When sanding with small triangle sanding plates, select a high oscillating frequency (electronics level 4– 6); when sanding with the round sanding plate and the large trian- gle sanding plate, select a moderate oscillating frequency (max. electronics level 4). Sand with continuous motion applying moderate pres- sure. Applying excessive pressure does not increase the rate of removal, it only wears off the sanding sheet faster. Notes on sawing. Select a high oscillating frequency. Round saw blades can be released and clamped offset again, to allow for uni- form wearing off. Notes on scraping. Select a moderate to high oscillating frequency. Repair and customer service. When working metal under extreme operat- ing conditions, it is possible for conductive dust to settle in the interior of the power tool. Blow out the interior of the power tool via the ventila- tion slots frequently with dry and oil-free compressed air. For storage of the power tool, remove the application tool, shut the clamping lever, and then press in the fasten- ing element. The current spare parts list for this power tool can be found in the Internet at www.fein.com. AFMT12(SL): For storage of the power tool, remove the application tool and screw the clamping bolt in to the stop. If required, you can change the following parts yourself: Clamping bolt (AFMT12(SL)), application tools Warranty and liability. The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer’s warranty declaration. The delivery scope of your power tool may include only a part of the accessories described or shown in this Instruction Manual. Declaration of conformity. FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual. Technical documents at: C. & E. Fein GmbH, C-DB_IA, D-73529 Schwäbisch Gmünd Environmental protection, disposal. Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling. Dispose of batteries only when discharged. For batteries that are not completely discharged, insulate the terminals with tape as a protective measure against short-circuiting. LED indica- tor Meaning Activity 1 – 4 green LED Percentage of charge condi- tion Operation Continu- ous red light Battery is almost empty Charge battery Red flash- ing light Battery is not ready for operation Bring the battery into the battery operating- temperature range, then charge OBJ_BUCH-0000000247-001.book Page 18 Thursday, January 28, 2016 2:33 PM19

OBJ_BUCH-0000000247-001.book Page 63 Thursday, January 28, 2016 2:33 PM64

OBJ_BUCH-0000000247-001.book Page 106 Thursday, January 28, 2016 2:33 PM107

аккумулятор OBJ_BUCH-0000000247-001.book Page 108 Thursday, January 28, 2016 2:33 PM109

OBJ_BUCH-0000000247-001.book Page 118 Thursday, January 28, 2016 2:33 PM119

OBJ_BUCH-0000000247-001.book Page 119 Thursday, January 28, 2016 2:33 PM120

OBJ_BUCH-0000000247-001.book Page 122 Thursday, January 28, 2016 2:33 PM123

OBJ_BUCH-0000000247-001.book Page 126 Thursday, January 28, 2016 2:33 PM127

OBJ_BUCH-0000000247-001.book Page 130 Thursday, January 28, 2016 2:33 PM131

OBJ_DOKU-0000006558-001.fm Page 133 Friday, January 29, 2016 8:41 AM134

OBJ_DOKU-0000006558-001.fm Page 135 Friday, January 29, 2016 8:41 AM136

OBJ_BUCH-0000000247-001.book Page 137 Thursday, January 28, 2016 2:33 PM138

OBJ_BUCH-0000000247-001.book Page 139 Thursday, January 28, 2016 2:33 PM140

OBJ_BUCH-0000000247-001.book Page 141 Thursday, January 28, 2016 2:33 PM142

OBJ_BUCH-0000000247-001.book Page 144 Thursday, January 28, 2016 2:33 PM145

OBJ_BUCH-0000000247-001.book Page 146 Thursday, January 28, 2016 2:33 PM147

OBJ_DOKU-0000006561-001.fm Page 148 Wednesday, February 3, 2016 1:02 PM149

OBJ_BUCH-0000000247-001.book Page 149 Thursday, January 28, 2016 2:33 PM150

OBJ_BUCH-0000000247-001.book Page 150 Thursday, January 28, 2016 2:33 PM151

OBJ_BUCH-0000000247-001.book Page 153 Thursday, January 28, 2016 2:33 PM154

OBJ_BUCH-0000000247-001.book Page 154 Thursday, January 28, 2016 2:33 PM155

OBJ_BUCH-0000000247-001.book Page 155 Thursday, January 28, 2016 2:33 PM156

OBJ_DOKU-0000006563-001.fm Page 156 Wednesday, February 3, 2016 1:24 PM157

OBJ_BUCH-0000000247-001.book Page 157 Thursday, January 28, 2016 2:33 PM158

,V ,mm ,A ,kg ,s ,m ,dB ,°C ,N ,Hz ,W m/s
