| Product type | Compression cooler (Fridge) |
| Brand | DOMETIC |
| Model | BordBar CDF11 |
| Gross volume | 10.5 litres |
| Supply voltage | 12/24 V DC |
| Max. power consumption | 30 W |
| Temperature range | +10 °C to -18 °C |
| Climate class | N |
| Dimensions (L x W x H) | 540 x 235 x 358 mm |
| Weight | 9 kg |
| Refrigerant | R134a |
| Battery protector | Integrated, 3 modes (LOW, MED, HIGH) |
| Interior lighting | LED |
| Compartments | Refrigerator and freezer |
| Vehicle mounting | Seat belt loop |
| Included accessories | 12/24 V cable, shoulder strap |
| Fuse | T8A 32 V, replaceable |
| Reparability | Repair by qualified personnel only |
| Maintenance | Cleaning with damp cloth, regular defrosting |
| Safety | Protection against reverse polarity and short circuits |
Frequently Asked Questions - BordBar CDF11 DOMETIC
User questions about BordBar CDF11 DOMETIC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Refrigerator in PDF format for free! Find your manual BordBar CDF11 - DOMETIC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BordBar CDF11 by DOMETIC.
USER MANUAL BordBar CDF11 DOMETIC
Please read this operating manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this operating manual must be handed over to the user along with it.
The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.
Contents
1 Explanation of symbols 21
2 Safety instructions 22
3 Intended use 24
4 Scope of delivery 24
5 Technical description 25
6 Operation 27
7 Cleaning and maintenance 32
8 Troubleshooting 33
9 Disposal 33
10 Technical data 34
1 Explanation of symbols
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair the function of the product.
NOTE
Supplementary information for operating the product.
Action: This symbol indicates that action is required on your part. The required action is described step-by-step.
This symbol describes the result of an action.
fig. 1 5, page 3: This refers to an element in an illustration. In this case, item 5 in figure 1 on page 3.

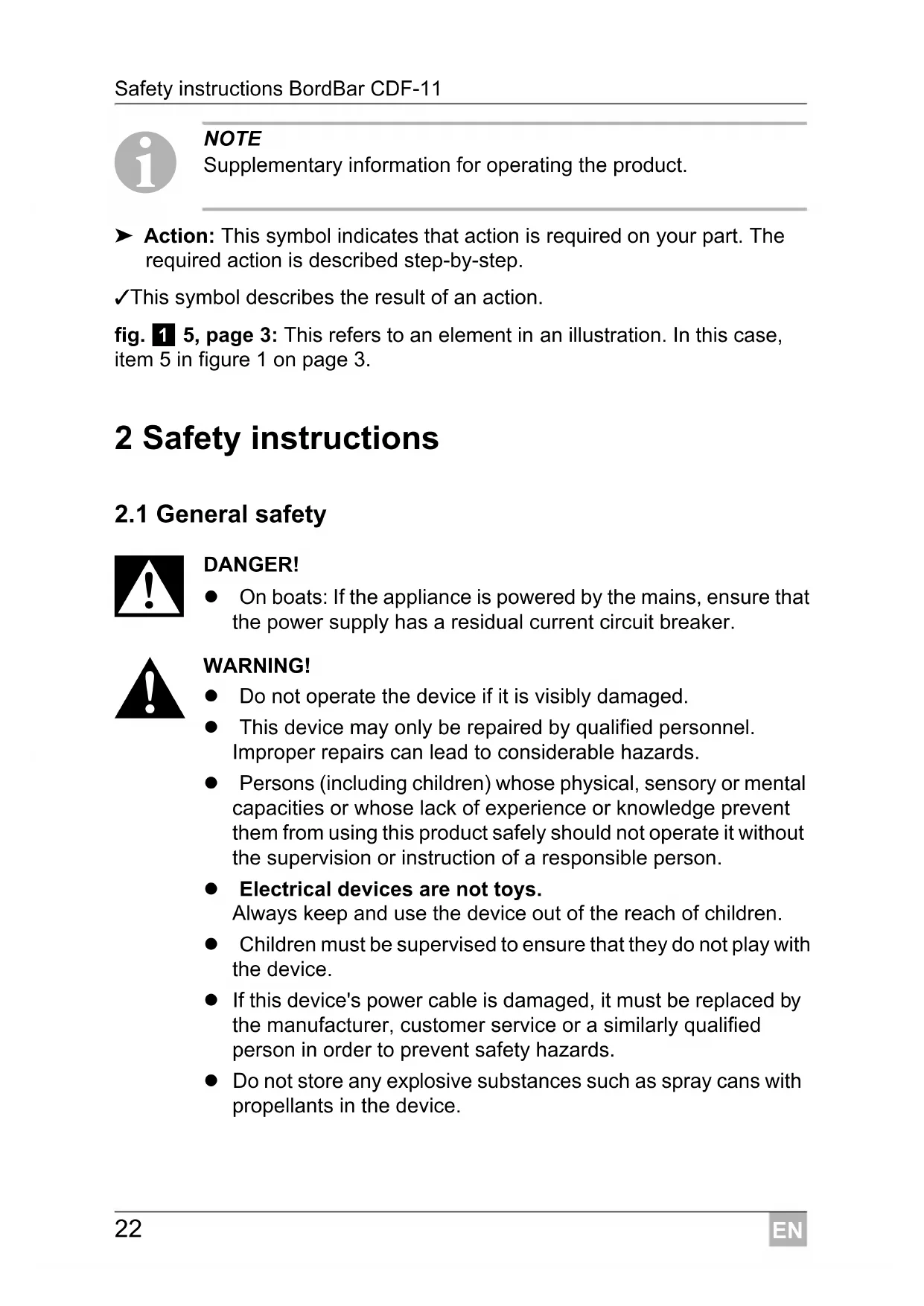

2 Safety instructions
2.1 General safety
DANGER!
- On boats: If the appliance is powered by the mains, ensure that the power supply has a residual current circuit breaker.
WARNING!
- Do not operate the device if it is visibly damaged.
- This device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.
- Persons (including children) whose physical, sensory or mental capacities or whose lack of experience or knowledge prevent them from using this product safely should not operate it without the supervision or instruction of a responsible person.
- Electrical devices are not toys. Always keep and use the device out of the reach of children.
Children must be supervised to ensure that they do not play with the device. - If this device's power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.
- Do not store any explosive substances such as spray cans with propellants in the device.
CAUTION!
- Disconnect the device from the mains
- before cleaning and maintenance
- a f t e r u s e
- Food may only be stored in its original packaging or in suitable containers.
NOTICE!
- Only connect the device to a DC plug socket in the vehicle (e. g. cigarette lighter) with the DC cable.
- Check that the voltage specification on the type plate corresponds to that of the energy supply.
- The cooling device is not suitable for transporting caustic materials or materials containing solvents.
- Never pull the plug out of the socket by the cable.
- Disconnect the cooler and other power consuming devices from the battery before connecting the quick charging device.
- Disconnect the cooler or switch it off when you turn off the engine. Otherwise you may discharge the battery.
2.2 Operating the device safely
DANGER!
- Do not touch exposed cables with your bare hands.
CAUTION!
- Before starting the device, ensure that the power supply line and the plug are dry.
NOTICE!
- Do not use electrical devices inside the cooler unless they are recommended by the manufacturer for the purpose.
-
Do not place the device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).
-
Danger of overheating!
Ensure at all times that there is sufficient ventilation so that the heat that arises during operation does not build up. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.
- Ensure that the ventilation slots are not covered.
- Do not fill the inner container with ice or fluid.
- Never immerse the device in water.
- Protect the device and the cable against heat and moisture.
3 Intended use
The cooler CDF-11 (item no. 9105100007) is suitable for cooling and freezing foodstuffs.
The device has been designed for use with a 12/24 V= on-board power supply socket of a car (cigarette lighter) or caravan.
The appliance may also be used for camping use. The appliance shall not be exposed to rain.
NOTE
To operate the device using a 220-240 V~ mains supply, we recommend using a WAECO rectifier (accessory).
CAUTION! Health hazard!
Please check if the cooling capacity of the device is suitable for storing the food or medicine you wish to cool.
4 Scope of delivery
Cooling device
- Connection cable for 12/24V = = connection
- Carry strap
5 Technical description
The cooler can chill products, keep them cool as well as freeze them. A maintenance-free refrigerant circuit with compressor provides the cooling.
The cooler is suitable for mobile use.
When used in vehicles the cooler can be secured with the seat belt.
An integrated battery monitor can be set to protect your vehicle battery from discharging to dangerously low levels (see chapter "Using the battery monitor" on page 30).
If an error occurs within the interior electronics, the cooling can be kept by using an emergency switch.
5.1 Description of the device
Position in fig. 1, page 3
Item Description
1 Control panel
2 Cup holder
3 Fixing position for seat belt
4 Interior LED light
5 Cooling compartment
6 Freezer compartment
7 Lock
8 Skid proof pad
9 Handles
10 Carry strap
11 Connection socket
12 Emergency switch
5.2 Operating and display elements
Control panel (fig. 2, page 3)
Item Description Explanation
1 On/Off button Switches the cooler on or off when the button is pressed for between one and two seconds
2 POWER Status indication
LED lights up green Compressor is on; preset temperature isn't reached yet
LED lights up orange Preset temperature is reached
LED flashes orange Insufficient voltage
3 ERROR LED flashes red Device is switched on but
not ready for operation
4 SET Selects the input mode
- Set Temperature
- Set temperature unit (Celsius or Fahrenheit)
- Set battery monitor
5 Display Shows the temperature inside the cooling compartment
The first three digits of the four-digit display show the temperature, the fourth digit shows the temperature unit (^ or ^ F)
In case of an error the display shows the error message "Err1" or "Err2".
6 + Press once to increase the value
7 - Press once to decrease the value
6 Operation
The device is equipped with an interior LED light which remains on whenever power is connected. The power consumption of this LED light is extremely low and insignificant compared to the overall power consumption of the device.
6.1 Before initial use
NOTE
Before starting your new cooling device for the first time, you should clean it inside and outside with a damp cloth for hygienic reasons (please also refer to the chapter "Cleaning and maintenance" on page 32).
6.2 Energy saving tips
- Choose a well ventilated installation location which is protected against direct sunlight.
- Allow warm food to cool down first before placing it in the device to keep cool.
- Do not open the cooling device more often than necessary.
- Do not leave the lid open for longer than necessary.
- Defrost the cooler once a layer of ice forms.
- Avoid unnecessary low temperatures.
6.3 Locking the cooler
Close the lid.
Press the lock (fig. 17, page 3) down until it snaps in audibly.
6.4 Connecting to a cigarette lighter
NOTE
If you connect the device to the cigarette lighter of your vehicle, remember that the ignition must be turned on to supply the device with power.
6.5 Securing the cooler in the vehicle
Open the lid of the cooler.
Place the seat belt into the fixing position (fig. 1 3, page 3) of the cooler.
Close the lid.
Fasten the seat belt and tighten it.
6.6 Switching-on the cooler
NOTICE! Danger of damaging the device!
- Ensure at all times that there is sufficient ventilation so that the heat that generated during operation can dissipate. Ensure that the ventilation slots are not covered. Make sure that the device is sufficiently far away from walls and other objects so that the air can circulate.
- Ensure that the only those objects are placed in the cooler that are intended to be cooled at the selected temperature.
- Disconnect the cooler and other consumer units from the battery before you connect the battery to a quick charging device. Overvoltage can damage the electronics of the device.
The cooler can be operated with 12V or 24V = .
For safety reasons the cooler is equipped with an electronic system to prevent polarity reversal. This protects the cooler against short-circuiting when connecting to a battery.
Place the cooler on a firm foundation.
Make sure that the ventilation slots are not covered and that the heated air can dissipate.
Connect the 12 / 24V connection cable to the cigarette lighter or an 12 / 24V socket in your vehicle.
NOTE
During normal operation the emergency switch (fig. 12, page 3) has to be set to the "Normal" position.
Press the "ON/OFF" button (fig. 2 1, page 3) for three seconds.
The "POWER" LED (fig. 2, page 3) lights up green.
When the cooler reaches the preset temperature, the LED lights up orange.
The display (fig. 2 5, page 3) switches on and shows the current cooling temperature.
✓The cooler starts cooling the interior.
6.7 Setting the temperature
Press the "SET" button (fig. 2 4, page 3) once.
Use the "+" (fig. 2 6, page 3) and "-" (fig. 2 7, page 3) buttons to select the cooling temperature.
- The cooling temperature appears in the display for a few seconds. The display flashes several times and then the current temperature is displayed again.
6.8 Selecting the temperature units
You can switch the temperature display between Celsius and Fahrenheit. This is how to do it:
Switch on the cooler.
Press the "SET" button (fig. 2 4, page 3) twice.
Use the "+" (fig. 2 6, page 3) and "-" (fig. 2 7, page 3) buttons to select Celsius or Fahrenheit.
- The selected temperature units then appear in the display for a few seconds. The display flashes several times before it returns to the current temperature.
6.9 Using the battery monitor
NOTICE! Danger of damage!
When switched off by the battery monitor, the battery will no longer be fully charged. Avoid starting repeatedly or operating current consumers without longer charging phases. Ensure that the battery is recharged.
The device is equipped with a multi-level battery monitor that protects your vehicle battery against excessive discharging when the device is connected to the on-board 12/24 V supply.
If the cooler is operated when the vehicle ignition is switched off, the cooler switches off automatically as soon as the supply voltage falls below a set level. The cooler will switch back on once the battery has been recharged to the restart voltage level.
NOTE
When switched off by the battery monitor due to low voltage the display (fig. 2 5, page 3) goes blank and the "POWER" LED (fig. 2 2, page 3) flashes orange.
In "HIGH" mode, the battery monitor responds faster than at the levels "LOW" and "MED" (see the following table).
| Battery monitor mode LOW MED HIGH | |||
| Switch-off voltage at 12 V | 10.1 V | 11.4 V | 11.8 V |
| Restart voltage at 12 V | 11.1 V | 12.2 V | 12.6 V |
| Switch-off voltage at 24 V | 21.5 V | 24.1 V | 24.6 V |
| Restart voltage at 24 V | 23.0 V | 25.3 V | 26.2 V |
This is how to select the battery monitor mode:
Switch on the cooler.
Press the "SET" button (fig. 2 4, page 3) three times.
Use the "+" (fig. 2 6, page 3) and "-" (fig. 2 7, page 3) buttons to select the battery monitor mode.
The selected mode then appears in the display for a few seconds. The display flashes several times before it returns to the current temperature.
NOTE
When the cooler is supplied by the starter battery, select the battery monitor mode "HIGH". If the cooler is connected to a supply battery, the battery monitor mode "LOW" will suffice.
If you wish to operate the cooler from the AC mains, set the battery monitor to the "LOW" position.
6.10 Using the emergency switch
The device is equipped with an emergency switch. Thus you can keep cooling if an error occurs within the interior electronics.
NOTE
During normal operation the emergency switch (fig. 12, page 3) has to be set to the "Normal" position.
If the interior electronics fail: Slide the emergency switch to the "Emergency" position.
6.11 Switching off the cooler
Empty the cooler.
Switch the cooler off: Press the "ON/OFF" button (fig. 2 1, page 3) for three seconds.
Pull out the connection cable.
If you do not want to use the cooler for a longer period of time:
Leave the cover slightly open. This prevents odour build-up.
6.12 Defrosting the cooler
Humidity can form frost in the interior of the cooling device or on the vaporiser. This reduces the cooling capacity. Defrost the device in good time to avoid this.
NOTICE! Danger of damaging the device!
Never use hard or pointed tools to remove ice or to loosen objects which have frozen in place.
To defrost the cooler, proceed as follows:
Take out the contents of the cooling device.
If necessary, place them in another cooling device to keep them cool.
Switch off the device.
Leave the cover open.
Wipe off the defrosted water.
6.13 Replacing the plug fuse (12/24 V)
Pull the adapter sleeve (fig. 3 4, page 4) off of the plug.
Unscrew the screw (fig. 3 5, page 4) out of the upper half of the housing (fig. 3 6, page 4).
Carefully raise the upper half of the housing from the lower (fig. 3 1, page 4) half.
Take out the contact pin (fig. 3 3, page 4).
Replace the defective fuse (fig. 3 2, page 4) with a new one that has the same rating (T8A 32V).
Re-assemble the plug in the reverse order.
7 Cleaning and maintenance
WARNING!
Always disconnect the device from the mains before you clean and service it.
NOTICE! Risk of damage
- Never clean the cooler under running water or in dish water.
- Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.
Occasionally clean the device interior and exterior with a damp cloth.
Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged.
8 Troubleshooting
| Fault Possible cause Suggested remedy | ||
| Device does not function,“POWER” LED does not glow. | There is no voltage present in the 12/24 V socket (cigarette lighter) in your vehicle. | The ignition must be switched on in most vehicles to apply current to the cigarette lighter. |
| The device does not cool (plug is inserted,“POWER” LED is lit). | Defective compressor. | This can only be repaired by an authorised customer repair agent. |
| The device does not cool (plug is inserted,“POWER” LED flashes, the display is blank). | The voltage present in the 12/24 V socket is too low. | Check the battery and charge if necessary. Check the wiring and connections. |
| When operating from the 12/24 V socket (cigarette lighter):The ignition is on and the device is not working and the “POWER” LED is not lit.Pull the plug out of the socket and make the following checks. | The cigarette lighter socket is dirty. This results in a poor electrical contact. | If the plug of your cooler becomes very warm in the cigarette lighter socket, either the lighter socket must be cleaned or the plug has not been assembled correctly. |
| The fuse of the 12/24 V plug has blown. | Replace the fuse (5 A) in the cigarette lighter plug, see chapter “Replacing the plug fuse (12/24 V)” on page 32. | |
| The vehicle fuse has blown. | Replace the vehicle’s 12/24 V socket fuse (usually 15 A). Please refer to your vehicle’s operating manual. | |
| “ERROR” LED flashes and the display shows “ERR1” or “ERR2”. | Device is defective. This can only be repaired by an authorised customer repair agent. | |
9 Disposal
Place the packaging material in the appropriate recycling waste bins wherever possible.
If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.
10 Technical data
| BordBar CDF-11 | |
| Item no.: 9105100007 | |
| Gross capacity: 10.5 litres | |
| Connection voltage: 12/24 V== | |
| Power consumption: max. 30 W | |
| Climate class: N | |
| Cooling capacity: +10 °C to -18 °C | |
| Dimensions: 540 x 235 x 358 mm | |
| Weight: 9 kg | |
| Operating temperature range: 18 °C to 43 °C | |
| Testing/certification: | € 4 |
NOTE
At ambient temperatures above 32^ (90°F) the minimum temperature cannot be achieved.
The coolant circuit contains R134a.
5 Description technique
6.7 Indstilling at temperatures
Tryk en gang på tasten „SET" (fig. 2 4, side 3).
6.7 Stille inn temperature
Trykk på knappen «SET» (fig. 2 4, side 3) en gang.
Whenever you want to use a geleira in the case of a currente, consider using the "LOW" rule.
6.10 IcnoIb3ObaHne abapnHoro BbIKIOUaTeJIa
Прибор оснашен abариньим bblкючatelem. C erо помоцью можно OCTаВИТь B DeICTBIM OXлajдeHne B Cnyuae BO3нIKHOBEHnA C6OЯ BO BHy-ТрЕнHeJ эЛeКТрОнke.
YKA3AHNE
B HopMaJIbHOM peXnme abapnHbI BbIKNoaTeIb (pnc. 1 12, cTp. 3)doJKeH haoNTbcra B noJooKeHmN «Normal».
B cnyuae BbIXOda n3 cTPOBHyTpEHNHe 3JIeKTPoHnKn: YcTaHOBnTe aBa-pnHbI BbIKIOuAteJb B noJOnKeHne «Emergency».
6.11 BbIKIoueHne XoIoJNbHnKa
OnopoxHnTe XOJIOJIbHNK.
BbIKHIOHTe XoIOnIINbHNK: HaxMNTe BbIKHIOHTeJIb (pnc. 2 1, ctp. 3) Ha TPN CEkyHDbI.
BbITaHnTe coeHNHTeNbHbI WTeKepe.
EcnBbHe 6yTe dIITeJIbHOe BpemnIOb30BaTbcxOJIOUNHkOM:
OctabTe KpbIky CnErKa OTKpbITOn. 3To npEDoTbpaUaet o6pa3OBaHne 3anaxOB.
6.12 OTTaBbHne xOJOpNJIbHnKa
Bnara n3 Bo3dyxa MoKeT BbIpaTaH Na IcnapTeJIe NJIu B KaMepe XoIoDInbHnka B BVne CHEROBoI Shy6bl, KOTopaYMeHbIaEt XoIoOnpOn3BOIDInTeJbHOCTb.
CBoeBpeMeHNo OTTaNBAIte np6Op.
BHIMAHHE! Onachocmb noepejdeHu npu6opa!
IIO BO3MOXHOCTN, BbIKnIbIBaIte yNaKOBOUHbI MaTePnaI B MyCop, NOJExKaunBTopuHOn nepepa6oTke.
EcnBbI OKOHaTeIbHO BbIBOAnTE npOdyKT n3 3KcNpyaTauHn,TO
NoIyHTe INΦopMaunIO B 6nJkaMseM ceHTpe NO BTOpUHOn
nepepaBOTke nIN B TOPROB O CETNO COOTBeTCTBYUx
npedncaHnx no yTuIn3aun.
10 TexHnueckne daHHbIe
Ovladaci panel (obr. 2, strane 3)
Dometic Australia Pty. Ltd.
1 John Duncan Court
Varsity Lakes QLD 4227
+61755076000
+61755076001
Mail: sales@dometic-waeco.com.au
AUSTRIA
Dometic Austria GmbH
The Gateway 25 Canton Road,
Tsim Sha Tsui · Kowloon
Hong Kong
+852 24611386
+852 24665553
Mail: info@dometic-waeco.com.hk
ITALY
Domatic Italy S.r.l.
Via Virgilio, 3
I-47100 Forli
+390543754901
+390543756631
Mail: info@dometic.it
NORWAY
Domatic Norway AS
Skolmar 24
N-3232 Sandefjord
+4733428450
+4733428459
Mail: firmapost@waeco.no
POLAND
Dometic Poland Sp. z o.o.
Ul. Puławska 435A
02-801 Warszawa
Poland
+48224143200
+48224143201
Mail: info@dometic.pl
RUSSIA
Domatic RUS LLC
Komsomolskaya square 6-1
107140 Moscow
Russia
+74957807939
+74959165653
Mail: info@dometic.ru
SLOVAKIA
Domatic Slovakia s.r.o.
Tehelná 8
SK-98601 Filakovo
+421474319107
+421474319166
Mail: info@dometic.sk
SPAIN
Dometic Spain S.L.
Avda. Sierra del Guadarrama, 16
E-28691 Villanueva de la Canada
Madrid
+34 902 111 042
+34900100245
Mail: info@dometic.es
SWEDEN
Dometic Scandinavia AB
Gustaf Melins gata 7
Dometic Switzerland AG
Riedackerstrasse 7a
CH-8153 Rümlang (Zürich)
+41448187171
+41448187191
Mail: info@dometic-waeco.ch
TAIWAN
WAECO Impex Ltd.
Taipei Office
2 FL-3 · No. 56 Tunhua South Rd, Sec 2
Taipei 106, Taiwan
+886227014090
+886227060119
Mail: marketing@dometic-waeco.com.tw
UNITED KINGDOM
Domatic UK Ltd.
Dometic House The Brewery
Blandford St. Mary
Dorset DT11 9LS
+448446260133
+448446260143
Mail: sales@dometic.co.uk
UNITED ARAB STATES
Dometic Middle East FZCO
P.O.Box 17860
S-D 6, Jebel Ali Freezone
Dubai, United Arab Emirates
+97148833858
+97148833868
Mail: info@dometic.ae
UNITED STATES OF AMERICA
Dometic Marine Division
2000 N. Andrews Ave. Extension
Pompano Beach, FL 33069 USA
+19549732477
+19549794414
Mail: marinesales@domesticusa.com
