Product Type	Electric Hair Clipper
Brand	Panasonic
Model	ERCA70
Dimensions	6.7 cm × 2.5 cm × 9.2 cm
Weight	145 g
Power Supply	Built-in rechargeable Ni-MH battery, AC adapter (RE9-36)
Motor Voltage	1.2 V DC
Charging Time	8 hours
Battery Life	Approximately 40 minutes of continuous operation
Noise Level	55 dB(A)
Included Accessories	Combs 3/6, 9/12, 15/18, 20/30/40, 50/60/70 mm; natural cut attachment; point cut attachment; thinning attachment; oil; cleaning brush
Main Functions	Hair cutting with or without comb, natural cut, thinning, mains operation
Care and Cleaning	Washable under running water (handheld part), brushing, regular oiling of blades
Safety	Instructions: do not use on animals, keep blade away from skin, unplug before cleaning, do not use if cord is damaged
Spare Parts and Repairability	Replaceable blades (life approx. 2 years), battery not replaceable by user (removal for recycling)
General Information	Indoor use only, charging temperature 5°C to 35°C, do not charge longer than 48 hours

Frequently Asked Questions - ERCA70 PANASONIC

How to charge the ERCA70 clipper?

Set the switch to 0-CHARGE, connect the power cord to the clipper, then plug the AC adapter into an outlet. The charge indicator lights up. Charging takes 8 hours. Unplug after charging is complete.

How long does the battery last after a full charge?

A full charge provides approximately 40 minutes of continuous operation.

How to adjust the cutting height?

Use the supplied cutting combs (e.g., 3/6 mm, 9/12 mm, etc.). Slide the comb onto the clipper until it clicks. The cut hair length will be slightly longer than the height indicated on the comb.

Can the clipper be used while plugged into mains if the battery is low?

Yes, you can use the clipper on mains by plugging in the AC adapter as for charging and setting the switch to 1. If it does not work, set to 0-CHARGE for 1 minute, then switch back to 1.

How to clean the clipper?

The clipper is washable under running water: rinse the handheld part, shake gently, wipe off droplets and let dry on a towel. You can also use the cleaning brush to remove hair, pressing the cleaning lever to lift the movable blade. After cleaning, apply a few drops of oil at the indicated points.

How to maintain the blade?

Before each use, apply oil to the points indicated by arrows (see diagram). Clean the blade regularly with the brush or under running water. If cutting performance decreases despite maintenance, replace the blade (life approx. 2 years with 20 minutes of use twice a month).

How to change the blade?

Set the switch to 0-CHARGE. Hold the clipper with the Panasonic logo facing up, push the blade with your thumb while catching it with your other hand. To reattach, fit the mounting hook into the clipper and push until it clicks.

What is the battery life?

The Ni-MH battery lasts about 3 years if charged about 3 times per month. Even if not used, recharge it at least every 6 months to preserve its life.

Is the clipper suitable for cutting animal hair?

No, the clipper is strictly for cutting human hair. Do not use it on animals.

How to recycle the clipper at end of life?

Remove the built-in rechargeable battery following instructions (fully discharge, unplug adapter, do not short-circuit terminals). Take it to a collection point for used batteries and electrical appliances as per regulations.

USER MANUAL ERCA70 PANASONIC

Operating Instructions AC/Rechargeable Hair Clipper Model No. ER-CA70/ER-CA35

English 2	Dansk 38	Česky 74
Deutsch 8	Português 44	Slovensky 80
François 14	Norsk 50	Magyar 86
Italiano 20	Svenska 56	Română 93
Nederlands 26	Suomi 62	Türkce 99
Espanol 32	Polski 68

Before operating this unit, please read these instructions completely.

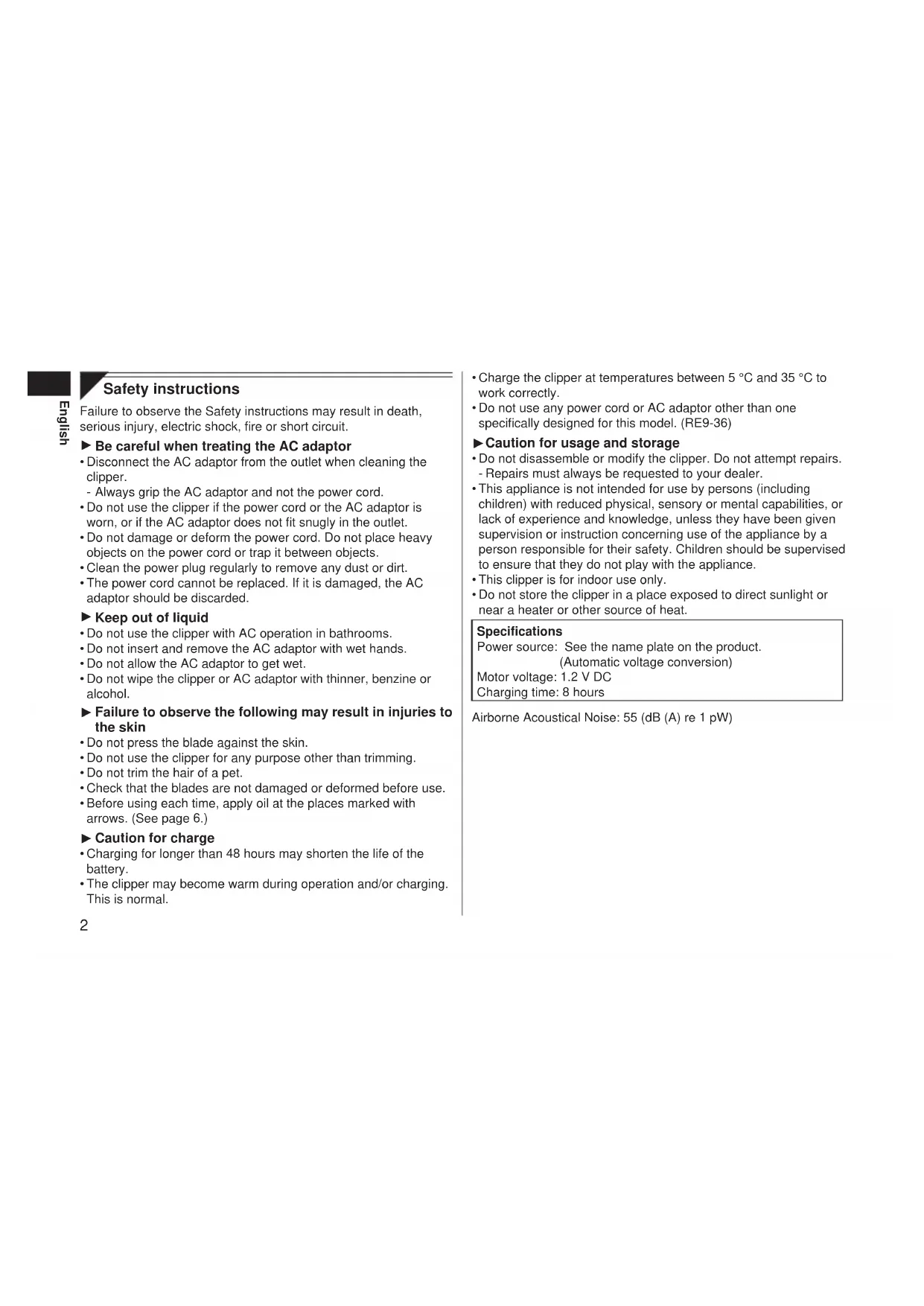

Safety instructions

Failure to observe the Safety instructions may result in death, serious injury, electric shock, fire or short circuit.

Be careful when treating the AC adaptor

• Disconnect the AC adaptor from the outlet when cleaning the clipper.
• Always grip the AC adaptor and not the power cord.
• Do not use the clipper if the power cord or the AC adaptor is worn, or if the AC adaptor does not fit snugly in the outlet.
• Do not damage or deform the power cord. Do not place heavy objects on the power cord or trap it between objects.
• Clean the power plug regularly to remove any dust or dirt.
• The power cord cannot be replaced. If it is damaged, the AC adaptor should be discarded.

- Keep out of liquid

• Do not use the clipper with AC operation in bathrooms.
• Do not insert and remove the AC adaptor with wet hands.
• Do not allow the AC adaptor to get wet.
• Do not wipe the clipper or AC adaptor with thinner, benzine or alcohol.

Failure to observe the following may result in injuries to the skin

• Do not press the blade against the skin.
• Do not use the clipper for any purpose other than trimming.
• Do not trim the hair of a pet.
• Check that the blades are not damaged or deformed before use.
  Before using each time, apply oil at the places marked with arrows. (See page 6.)

Caution for charge

• Charging for longer than 48 hours may shorten the life of the battery.

• The clipper may become warm during operation and/or charging. This is normal.

• Charge the clipper at temperatures between 5^ and 35^ to work correctly.

• Do not use any power cord or AC adaptor other than one specifically designed for this model. (RE9-36)

Caution for usage and storage

• Do not disassemble or modify the clipper. Do not attempt repairs.
• Repairs must always be requested to your dealer.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• This clipper is for indoor use only.
• Do not store the clipper in a place exposed to direct sunlight or near a heater or other source of heat.

Specifications

Power source: See the name plate on the product. (Automatic voltage conversion)

Motor voltage: 1.2 V DC

Charging time: 8 hours

Airborne Acoustical Noise: 55 (dB (A) re 1 pW)

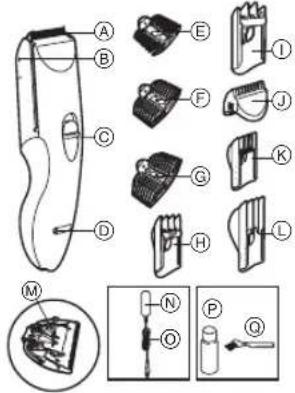

Parts identification

A Blade
⑥ Attachment mounting
Switch
Charging indicator lamp
E 3/6mm comb attachment
(9/12mm comb attachment
⑥ 15/18mm comb attachment
Natural cutting attachment
① Point cutting attachment
① Thinning (1/3) attachment
20/30/40mm comb attachment
50/60/70mm comb attachment
M Lever for cleaning
AC adaptor (RE9-36)
Power cord
P Oil
Cleaning brush

Attachments ER-CA70 ER-CA35
3/6mm comb attachment	✓	✓
9/12mm comb attachment	✓	✓
15/18mm comb attachment -	✓
Natural cutting attachment	✓	-
Point cutting attachment	✓	-
Thinning (1/3) attachment	✓	-
20/30/40mm comb attachment	✓	✓
50/60/70mm comb attachment -	✓

Chalde

Charging

1. Set the switch to "0-CHARGE", and insert the power cord into the clipper.

2. Connect the AC adaptor into an outlet. The charging indicator lamp will light up.

3. Disconnect the AC adaptor from an outlet when charging is completed.

The charging time is 8 hours.
- 1 full charge will provide approximately 40 minutes of continuous operation.

Inserting the attachment

20/30/40mm, 50/60/70mm comb attachments
1. Adjust the attachment to the desired trimming height by sliding it until it clicks while the switch is in

"0-CHARGE".

• Set the attachment to the correct position. Otherwise you cannot set the switch to "1".
  Actual hair length will be a little longer than the height you set.

English

1. Select the

cutting heights indicated on the insides and sides of the attachments.

1. Mount the

attachment to the clipper as illustrated.

1. Remove the

attachment from the clipper.

Natural cutting attachment and Point cutting attachment

These attachments allow thinning of hair by cutting from the inner side. Hair volume is reduced, and hair tips are trimmed at various lengths to leave a natural look.

Natural cutting attachment:

Desirable hair lengths are 30mm - 70mm (hair lengths shorter than 30mm may be too short to cut in some situations.)

Point cutting attachment:

Desirable hair lengths are less than 30mm (for cutting sideburns and around the ears.)

36mm comb attachments

1. Insert the attachment over the trimming blades until it clicks as illustrated.

2. To remove the attachment, push both sides while pulling the attachment.

Cut

Cutting your hair

1 Cut hair to the correct height by moving the clipper back against the flow of the hair.

• Do not use the clipper in an inverted position. This can cut hair too deeply.

Trimming with no attachments

Cutting without an attachment will trim hair length to 1 mm or less.

1. Cut hair by placing the clipper head directly on the scalp.

AC operation

If you connect the AC adaptor to the clipper in the same way as for charging, and set the switch to "1", you can use it even if the battery capacity is low.

• If the clipper does not operate, set the switch to "0·CHARGE", wait about 1 minute and then set it back to "1".
• Be careful not to discharge the battery completely with the switch left in "1". It results in shortening the battery life.

Care

Blade maintenance

The following is the symbol for a washable clipper. The symbol means the hand-held part may be cleaned under water.

Mounting and removal of the blade

1. Hold the clipper with the "Panasonic" mark facing upward and push the blade with your thumb while catching the blade in your other hand.

• Be sure to set the switch to "0·CHARGE" before you remove the blade.

2. To remount the blade, fit the mounting hook into the blade mounting on the clipper and push in until it clicks.

English

Blade life

Blade life will vary according to the frequency and length of use. It is expected to be about 2 years when using the clipper twice a month for 20 minutes each time. If cutting efficiency is reduced despite proper maintenance, change the blades.

Battery life

Battery life will vary according to the frequency and length of use. If the batteries are charged 3 times a month, the service life will be approximately 3 years.

• It is recommended that the clipper be recharged at least every 6 months even when not in regular use because the charge will drain from the batteries and their service life may be shortened.

Cleaning the blade

If washing in water Warning - Detach the hand held part from the power cord before cleaning it in water.

1. Rinse off any hairs sticking to the blade and any hairs inside the clipper.

2. Shake the clipper 4 or 5 times gently, wipe off any water drops from the clipper and blade, and then let it dry onto a towel with the "Washable" indicator facing upward.

If cleaning with brush

1. Brush off any hairs from the clipper and from around the blade.

2. Remove the blade and brush off the hairs from the blade edge.

3. Brush the hairs out from between the fixed blade and the moving blade while pressing down on the lever for cleaning to raise the moving blade.

After cleaning the blade with water or brush

1. Apply a few drops of the oil to the points indicated by the arrows.
2. Remount the blade on the clipper.
3. Apply the oil to the clipper after use. Otherwise the blades may become dull, make abnormal noises, or becomes hot and lead to the deterioration of cutting performance.

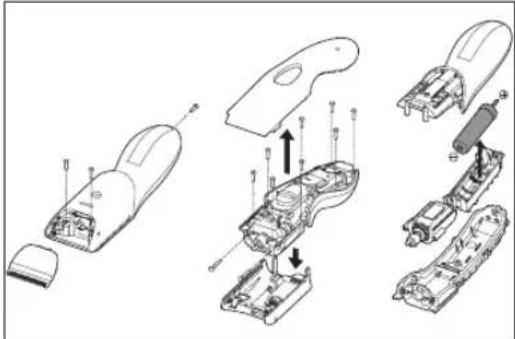

Removing the built-in rechargeable battery

Remove the battery as illustrated.

1.Disconnect the clipper from the AC adaptor when removing the battery.
2. Fully discharge the battery.
3.Be careful not to short the + and - terminals of the battery after removing it.

Important notice regarding environmental protection

The built-in rechargeable Nickel-Metal Hydride battery contains substances that may be environmentally harmful. Please remove the battery before discarding your clipper.

For environmental protection and recycling of materials

This clipper contains a Nickel-Metal Hydride battery. Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for

further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Sicherheitshinweise

▶Sabots de 20/30/40 mm, 50/60/70 mm

Identification of dele

A Blad
Holder til aggregator
Kontakt
Opladningsindikatorlampe
E 3 / 6mm aggregate
F 9/12 mm aggregate
⑥ 15/18 mm aggregate
Aggregat til naturlig klipning
① Aggregat til puntklipining
Udtyndingsaggregat (1/3)
(20/30/40 mm aggregate)
50/60/70 mm aggregate
Rengoringshandtag
AC-adaptor (RE9-36)
Elledning
(1) Olie
Rengoringsbørste

Aggregater ER-CA70 ER-CA35
3/6 mm aggregate	✓	✓
9/12 mm aggregate	✓	✓
15/18 mm aggregate -	✓
Aggregat til naturlig klipning	✓	-
Aggregat til punktklipning	✓	-
Udtyndingsaggregat (1/3)	✓	-
20/30/40 mm aggregate	✓	✓
50/60/70 mm aggregate -	✓

Oblad

Opladning

3/6 mm, 9/12 mm 15/18 mm aggregator

Acessórios pente 20/30/40mm, 50/60/70mm

Sette inn tilbehoret

20/30/40mm, 50/60/70mm kamtilbehør

Końcowski 20/30/40 mm, 50/60/70 mm
