USER MANUAL Always With You CHICCO

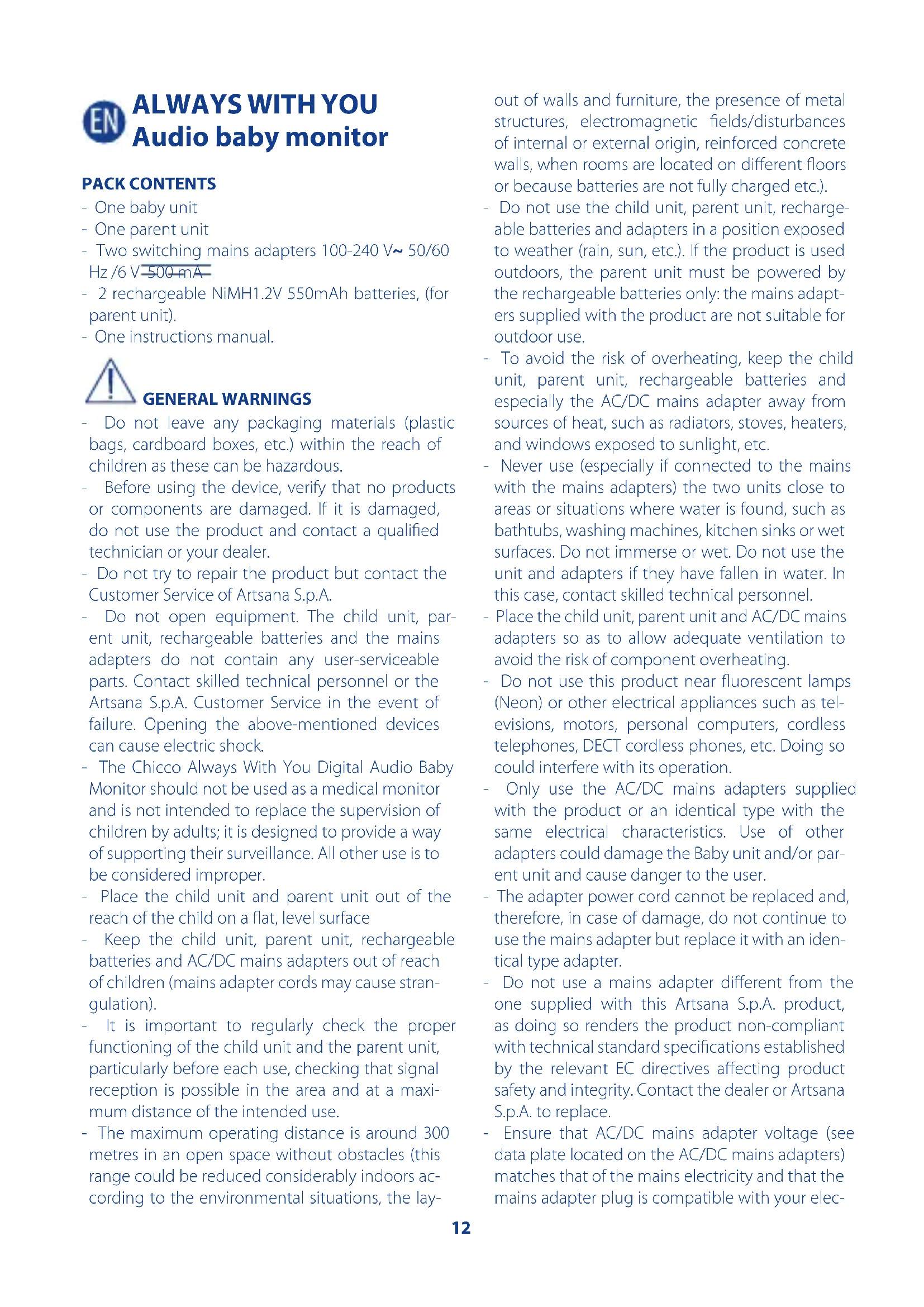

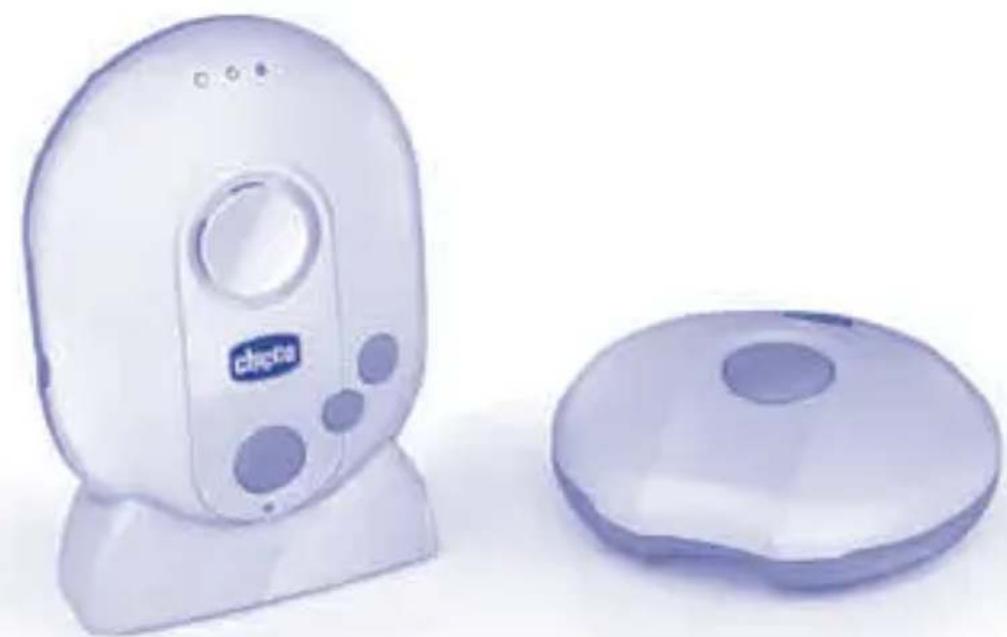

Audio baby monitor PACK CONTENTS - One baby unit - One parent unit - Two switching mains adapters 100-240 V~ 50/60 Hz /6 V 500 mA - 2 rechargeable NiMH1.2V 550mAh batteries, (for parent unit). - One instructions manual. GENERAL WARNINGS - Do not leave any packaging materials (plastic bags, cardboard boxes, etc.) within the reach of children as these can be hazardous. - Before using the device, verify that no products or components are damaged. If it is damaged, do not use the product and contact a qualied technician or your dealer. - Do not try to repair the product but contact the Customer Service of Artsana S.p.A. - Do not open equipment. The child unit, par- ent unit, rechargeable batteries and the mains adapters do not contain any user-serviceable parts. Contact skilled technical personnel or the Artsana S.p.A. Customer Service in the event of failure. Opening the above-mentioned devices can cause electric shock. - The Chicco Always With You Digital Audio Baby Monitor should not be used as a medical monitor and is not intended to replace the supervision of children by adults; it is designed to provide a way of supporting their surveillance. All other use is to be considered improper. - Place the child unit and parent unit out of the reach of the child on a at, level surface - Keep the child unit, parent unit, rechargeable batteries and AC/DC mains adapters out of reach of children (mains adapter cords may cause stran- gulation). - It is important to regularly check the proper functioning of the child unit and the parent unit, particularly before each use, checking that signal reception is possible in the area and at a maxi- mum distance of the intended use. - The maximum operating distance is around 300 metres in an open space without obstacles (this range could be reduced considerably indoors ac- cording to the environmental situations, the lay- out of walls and furniture, the presence of metal structures, electromagnetic elds/disturbances of internal or external origin, reinforced concrete walls, when rooms are located on dierent oors or because batteries are not fully charged etc.). - Do not use the child unit, parent unit, recharge- able batteries and adapters in a position exposed to weather (rain, sun, etc.). If the product is used outdoors, the parent unit must be powered by the rechargeable batteries only: the mains adapt- ers supplied with the product are not suitable for outdoor use. - To avoid the risk of overheating, keep the child unit, parent unit, rechargeable batteries and especially the AC/DC mains adapter away from sources of heat, such as radiators, stoves, heaters, and windows exposed to sunlight, etc. - Never use (especially if connected to the mains with the mains adapters) the two units close to areas or situations where water is found, such as bathtubs, washing machines, kitchen sinks or wet surfaces. Do not immerse or wet. Do not use the unit and adapters if they have fallen in water. In this case, contact skilled technical personnel. - Place the child unit, parent unit and AC/DC mains adapters so as to allow adequate ventilation to avoid the risk of component overheating. - Do not use this product near uorescent lamps (Neon) or other electrical appliances such as tel- evisions, motors, personal computers, cordless telephones, DECT cordless phones, etc. Doing so could interfere with its operation. - Only use the AC/DC mains adapters supplied with the product or an identical type with the same electrical characteristics. Use of other adapters could damage the Baby unit and/or par- ent unit and cause danger to the user. - The adapter power cord cannot be replaced and, therefore, in case of damage, do not continue to use the mains adapter but replace it with an iden- tical type adapter. - Do not use a mains adapter dierent from the one supplied with this Artsana S.p.A. product, as doing so renders the product non-compliant with technical standard specications established by the relevant EC directives aecting product safety and integrity. Contact the dealer or Artsana S.p.A. to replace. - Ensure that AC/DC mains adapter voltage (see data plate located on the AC/DC mains adapters) matches that of the mains electricity and that the mains adapter plug is compatible with your elec-13 trical system sockets. - Connect the AC/DC mains adapters to easily ac- cessible power sockets which are, however, out of reach of children. Position AC/DC mains adapter cords so as to prevent the cord from being walked on, from getting caught in items placed upon or against them, or from being accessible to the child and therefore constituting a risk (trip- ping, choking). - The AC/DC mains adapters, child unit and the par- ent unit may be become hot to the touch when in use. This is normal. - Always disconnect the AC/DC mains adapters from the power socket when the product is not in use. - The rechargeable batteries must always be re- placed by adults only and with other recharge- able batteries having the same characteristics as those indicated in these instructions. WARNING!

3. Power and link indicator light:

(a) Steady green: linked with parent unit (b) Flashing green: absence of or loss of link with parent unit. (c) OFF: child unit o.

1. Power supply with 2 rechargeable NiMH 550

3. Volume adjustment buttons (3a and 3b)

4. 3 LED level indicator for sounds emitted by the

5. Power, link indicator and battery status light:

(a) Steady green: linked with child unit (b) Flashing green: absence of or loss of link with baby unit (c) OFF: Parent unit o (d) Steady red: rechargeable batteries almost at (e) Flashing red: charging of rechargeable batteries in progress via mains adapter (1) (f) OFF: Rechargeable batteries charged

6. Built-in loudspeaker for sound reproduction of

sounds emitted by the child. This performs the following additional functions at the same time: a) Absence of or loss of link between child and par- ent unit signal function: approx. 5 seconds after the power and link indicator light (5) starts to ash green, you will hear a beep every 2 seconds. As soon as the link with the child unit is restored, the signal switches o and the power and link indica- tor light (5) will light up steady green. b) Rechargeable batteries almost at signal func- tion: You will hear 1 beep every 2 seconds and the Power, link indicator and rechargeable bat- tery status light (5) will change to steady red. When the rechargeable NiMH batteries start to charge, the beep is deactivated and the re- chargeable battery status signal light (5) starts to ash red until charging is completed.

7. Rechargeable NiMH battery compartment clos-

8. Power supply connector and/or rechargeable

NiMH battery charging.

9. 2 550 mAh NiMH batteries (supplied) with ac-

knowledgement contacts rechargeable via switching mains adapter 100-240V ~ 50/60Hz /6V 500mA (1).

2. Description of features

- insert the mains adapter jack (1) in the power connector (4) under the unit. - insert the mains adapter plug in an easily acces- sible power socket. Warnings - Periodically inspect mains adapters (1). If the power cord or plastic parts show signs of dam- age, do not use them and contact a qualied technician. - Do not leave mains adapters (1) plugged into the outlet when devices are not in use and/or not connected to the mains adapters (1).14

2.1.2 Modes of use - Switching on and Adjust-

ment. The child unit must be placed at about

1 - 1.5 metres from the child, on a at, level surface

making sure to direct the microphone (5) toward the child.

Warning: the transmitter, mains adapter and its

power cord must be kept out of reach of children. - Child unit on/o switch (2). Press this button for about 3 seconds and the child unit will switch on. Do not press for too long, oth- erwise the child unit may not switch on. Press this button (2) again for about 3 seconds and the child unit will switch o.

WARNING. The rechargeable batteries should only be charged via the mains adapter (1) supplied and can be performed both if the parent unit is switched on and if the parent unit is o. If the unit is powered by the mains adapter (1) or to charge the rechargeable NiMH batteries: - insert the mains adapter jack (1) in the power connector (8) on the side of the unit. - insert the mains adapter plug in an easily acces- sible power socket. Warnings - Periodically inspect mains adapters (1). If the power cord or plastic parts show signs of dam- age, do not use them and contact a qualied technician. - Do not leave mains adapters (1) plugged into the outlet when devices are not in use and/or not connected to the mains adapters (1)

2.2.2 Modes of use - Switching on and Adjust-

ment - The button (2) is the On/O button. Press the On/O button (2) for about 3 seconds and the parent unit will switch on. Do not press for too long, otherwise the parent unit may not switch on. Press this button (2) again for about 3 seconds and the parent unit will switch o. - Loudspeaker volume adjustment buttons + and - (3a-3b). Press the button (3a) corresponding to the symbol “+” once to increase volume by one level. Press the button (3b) corresponding to the symbol “-” once to decrease volume by one level. The unit oers 10 volume setting levels. The default level is 5. A beep will be heard each time volume is in- creased or decreased by a level. When volume reaches maximum or minimum level, 3 consecu- tive beeps will be heard. The device stores the volume level selected during previous use in its memory, even after it has been switched o and switched back on.

2.2.3 Luminous and acoustic operating status

indicators - The power, link and battery status indicator light (5) provides 6 dierent pieces of information: - Indication that the device is on and properly con- nected to Baby unit: - the indicator light (5) will light up steady green. - Indication of loss or absence of link with the par- ent unit during operation: - the indicator light (5) starts to ash green and after about 5 seconds you will hear a beep every 2 seconds. - As soon as the link is restored, the beep will switch o and the indicator light (5) will light up steady green. NB: when the parent unit switches on, it searches for the channel to link with the child unit; therefore the indicator light (5) will ash green until a link is established. - Indication of device o: the indicator light (5) will switch o. - Indication of rechargeable batteries (9) almost at: the indicator light (5) lights up steady red and, at the same time, a beep every 2seconds is heard. If you want to continue using the device, it is ad- visable to charge the rechargeable batteries (9) otherwise the device will stop working. Charge the rechargeable batteries (9) by connecting the mains adapter (1) to the parent unit power and charging connector (8). When charging starts, the beep will switch o. - Indication of rechargeable batteries (9) charging: at the start of charging the indicator light (5) will light up red and begin to ash. Leave the battery to charge until the indicator light (5) switches o. The parent unit can still be used to monitor sounds made by the child while the rechargeable battery is charging, but the time required to reach full charge will be longer. - Indication of rechargeable battery charged: the indicator light (5) will switch o.15 - 3 LED level indicator for sounds emitted by the child (4): They light up indicating 3 levels of sound intensity detected by the child unit microphone (5). They allow parents to monitor sounds emitted by the child even when the parent unit (6) loudspeak- er volume is switched o. : the rst LED lights up if sounds emit- ted by the child are of a relatively low intensity. : the rst and second LED light up if sounds emitted by the child are of a medium intensity. : the rst, second and third LED light up if sounds emitted by the child are of a relatively high intensity. Warning! After switching the parent unit on, always make sure that the child unit is on. After switching on the unit, always check that reception of the transmitted signal is possible at the distance and/or in the areas within where it has been set. It is advisable to carry out a test with the help of a family member from the room where the child unit has been placed, moving si- multaneously with the parent unit in areas where it has been set, to verify correct reception of the transmitted signal.

3. Fitting and replacing the rechargeable bat-

teries in the parent unit. Warnings: These steps must be done only by an adult.

Warning: RECOMMENDATIONS FOR

BATTERY USE - Use only rechargeable NiMH batteries for the code 20256300100 parent unit. - Always remove the rechargeable batteries when at and/or when you will not be using the prod- uct for an extended period of time. This prevents at batteries from leaking the liquid they contain and damaging the parent unit and/or objects nearby. - Do not short-circuit the battery poles. NB: if the duration of rechargeable batteries sup- plied with the parent unit is reduced excessively, they have run out and therefore must be replaced (this is to be considered normal because recharge- able batteries run out over time). - The rechargeable batteries supplied with the parent unit must be recharged using the mains adapter (1) supplied only (code 20256300200). - Do not attempt to recharge non-rechargeable batteries: they may explode. - This product is not designed to work with lithium batteries.

WARNING: improper use may create

hazardous conditions. - Never leave at rechargeable batteries in the par- ent unit. Recharge immediately (or replace if run out) as they could leak corrosive and/or danger- ous liquids. - If the batteries should leak liquid, adequately pro- tect hands and replace the batteries immediately, taking care to thoroughly clean the battery com- partment and anything else touched by the liq- uid. Wash your hands thoroughly when nished. Do not mix batteries of dierent brands or types and at batteries with new ones. - Insert the 3x1.2 V, NiMh, 550 mAh, AAA recharge- able batteries (included) in the parent unit, mak- ing sure that the insertion polarity is as indicated in the battery compartment. - Remove rechargeable batteries from the product before disposing of it. - Do not leave rechargeable batteries and/or any tools for their removal within the reach of chil- dren. - Do not dispose of rechargeable batteries in re or throw them away carelessly or in the house- hold waste. - Recycle used batteries in accordance with ap- plicable laws. - In case of prolonged non-use of the product, al- ways remove the batteries.

3.1 Fitting the rechargeable batteries sup-

plied in the parent unit. Upon purchase, the rechargeable batteries (9) in the parent unit are kept separately in the product packaging. Carefully remove the rechargeable batteries (9) from their packaging. Remove the battery compartment closing panel (7), placing your nger near the top groove and gently pulling the panel outward (g.1). Insert two

1.2 V rechargeable NiMH batteries, respecting the

proper insertion polarity as indicated in the battery16 compartment. Reposition the rechargeable bat- tery compartment closing panel (7), rst inserting the lower panel hooks in their battery compart- ment housing and gently pushing the panel to- ward the product (g.2).

3.2 Replacing the rechargeable batteries sup-

plied in the parent unit. If the duration of the rechargeable batteries sup- plied with the parent unit is reduced excessively, they have run out and therefore must be replaced (this is to be considered normal because recharge- able batteries run out over time). Remove the rechargeable battery compartment closing panel (7), placing your nger near the top groove and gently pulling the panel outward (g.1). Remove the rechargeable batteries (9) that have run out and replace with other recharge- able batteries that are identical to those supplied with the product: NiMh 1.2V, 550 mAh (code 20256300100 to be requested directly from Art- sana S.p.A.) respecting the proper insertion polarity as indicated in the battery compartment. Reposition the rechargeable battery compartment closing panel (7), rst inserting the lower panel hooks in their battery compartment housing and gently pushing the panel toward the product (g.2). TECHNICAL DATA - Voice transmission via DECT digital technology system. - Outdoor operating range of 300 metres* without obstacles. *The maximum operating range is about 300 me- tres in an open space with no obstacles and with fully charged batteries (the range, however, could be reduced substantially within a home, depend- ing on particular environmental conditions, layout of walls and furniture in the home and the pres- ence of metallic structures, external and internal interference/electromagnetic elds, concrete walls or between rooms on dierent oors or because batteries are not fully charged etc.). Baby unit External power supply: via 100-240 V~ 50/60 Hz /6 V 500 mA switching mains adapter Transmission: - Transmission frequency band: 1880-1900 MHz - Signal strength: 250mW max Made in China Parent Unit Power: Internal: 2 rechargeable NiMH 550 mAh batteries External: via 100-240 V~ 50/60 Hz /6 V 500 mA switching mains adapter Recharge the NiMH batteries via 100-240 V~ 50/60 Hz /6 V 500 mA switching mains adapter Reception: - Transmission frequency band: 1880-1900 MHz. - Signal strength: 250 mW max. Made in China Mains adapter Mod. S003IV0600050 INPUT: 100-240V ~ 50/60Hz 150mA OUTPUT: 6V 500mA Plug polarity: Made in China NiMH battery Rated capacity: 550mAh (0.66 Wh). Nominal voltage: 1.2V. The NiMH batteries give the best performance when used at normal room temperature (20°C±5°C) Made in China SYMBOLS KEY Monophase alternate current Direct current For indoor use only Class II - double insulation equip- ment Complies with relevant EC directives as amended WARNING. Read the instructions for use17

THIS PRODUCT COMPLIES WITH

EU DIRECTIVE 2012/19/EC. The crossed bin symbol on the ap- pliance indicates that the product, at the end of its life, must be disposed of separately from domestic waste, either by taking it to a separate waste disposal site for electric and electronic appliances or by return- ing it to your dealer when you buy another similar appliance. The user is responsible for taking the ap- pliance to a special waste disposal site at the end of its life. If the disused appliance is collected cor- rectly as separate waste, it can be recycled, treated and disposed of ecologically; this avoids a negative impact on both the environment and health, and contributes towards the recycling of the product’s materials. For further information regarding the waste disposal services available, contact your lo- cal waste disposal agency or the shop where you bought the appliance.

CONFORMITY WITH EU DIREC-

TIVE 2006/66/EC as amended. The crossed bin symbol on the bat- tery or its packaging, means that the batteries, at the end of their life, should be disposed of separately from the municipal waste stream via designated collection facilities appoint- ed by the government or the local authorities, or otherwise returned to the dealer when purchasing new equivalent rechargeable or non-rechargeable batteries. Chemical symbols (Hg for mercury, Cd for cadmium, Pb for lead) printed beneath the crossed-out wheeled bin symbol indicate the type of substance contained in the battery. The user is responsible for taking the batteries to special waste disposal sites at the end of their life to allow for their processing and recycling. The correct disposal of your old toy will help prevent potential negative consequences for the environment and human health and favour the recycling of the materials of which the product is made. Improper disposal of the product by the user may harm the environment and human health. For further information regarding the waste disposal services available, contact your lo- cal waste disposal agency or the shop where you bought the appliance.

DECLARATION OF COMPLIANCE

Artsana S.p.A. hereby declares that this product complies with all the essential requirements and the other provisions indicated in EU Directive 1999/5/EC (electromagnetic compatibility). A copy of the complete Declaration of Compliance can be consulted at: www.chicco.com – Products Section In accordance with the European Commission Decision N°2000/299/EC dated 06/04/2000, the frequency band used by this product has been harmonized for all EU Countries and therefore this is a Class 1 product which can be used in all Euro- pean Community Countries. ARTSANA S.p.A. reserves the right to change infor- mation provided in this manual at any time and without notice. The reproduction, transmission, transcription or translation into another language, of any part and in any form of this manual is strictly prohibited without prior written consent from ARTSANA S.p.A. WARRANTY The product is guaranteed against any conformity defect in normal conditions of use as provided for by the instructions for use. The warranty shall not therefore apply in the case of damages caused by improper use, wear or ac- cidental events. For the duration of warranty on conformity defects please refer to the specic provisions of national laws applicable in the country of purchase, where provided18
