Features	Details
Dryer type	Condenser dryer
Capacity	5 kg
Energy class	B
Dimensions (HxWxD)	85 x 60 x 60 cm
Weight	35 kg
Noise level	65 dB
Drying programs	Multiple automatic and manual programs
Additional features	Moisture detection, lint filter
Maintenance	Regular cleaning of the filter and water tank
Safety	Overheat protection system
Warranty	2 years

Frequently Asked Questions - CDR05E Ardo

The Ardo CDR05E dryer won\u0027t start, what should I do?

Check that the appliance is properly plugged in and that the outlet is working. Also make sure the door is properly closed and the start button is pressed.

My Ardo CDR05E dryer makes noise during operation, is this normal?

Some noise is normal, but if the noise is excessive, check that the dryer is level and that nothing is blocking the drum.

Why is my laundry still damp after the drying cycle?

The lint filter may be clogged. Clean it before each use. Also check that the selected drying program is appropriate for the type of laundry.

Error messages appear on the screen, what should I do?

Consult the user manual to identify the error code. Most error codes indicate a specific problem that can be resolved with simple steps.

How do I maintain my Ardo CDR05E dryer?

Regularly clean the lint filter and water tank (if applicable). Also make sure to check the exhaust ducts to avoid any blockages.

Can the Ardo CDR05E dryer be used for all types of fabrics?

Always check the care label on your clothes. Some delicate fabrics may not be suitable for the dryer.

The Ardo CDR05E dryer consumes a lot of energy, what can I do?

Make sure not to overload the appliance and choose appropriate drying programs. Using low temperature programs can also reduce energy consumption.

What should I do if the water does not drain properly from the tank?

Check that the tank is properly installed and that there is no blockage in the drain hose. Clean the tank to remove any buildup.

How do I set the drying parameters on the Ardo CDR05E dryer?

Use the control panel to select the desired drying program based on the type of laundry and the desired moisture level.

USER MANUAL CDR05E Ardo

Illustration of three white washing machines on a blue background, no text or symbols present

Gentile Cliente,

Labeled diagram of a washing machine showing internal components and airflow direction

ACCESSORI OPTIONAL

3D rendering of a white industrial fan or vent with a circular vent and ventilation grille (no text or symbols visible)

Illustration of a hand holding a small object with blue directional arrows indicating rotation (no text or symbols)

COLLEGAMENTO ALL'IMPIANTO ELETTRICO

Hand holding a plug inserted into an electrical socket, with a blue symbol and number 4 visible (no text or symbols on the plug itself)

Illustration of a hand pressing down on a device panel with blue directional arrows indicating motion (no text or symbols)

Diagram of a washing machine with blue tubing connecting to a fan inside, showing airflow direction (no text or symbols)

Mechanical component diagram showing a bracket with mounting holes and a blue directional arrow (no text or symbols)

Illustration of a hand using a pipette to clean or inspect the lid of a rectangular object (no text or symbols visible)

Interior view of a device showing a ventilation grille and fan, with a blue upward arrow indicating direction (no text or symbols)

Diagram of a mechanical component with internal blades and blue arrows indicating direction (no text or symbols)

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

Interior view of a vehicle air conditioner unit with blue directional arrow indicating airflow or movement (no text or symbols)

Illustration of a hand holding a showerhead emitting heat from a vertical cylindrical device, with blue arrows indicating motion (no text or symbols)

Illustration of a hand spraying water onto a rack with arrows indicating motion (no text or symbols)

INDIVIDUAZIONE GUASTI

Thank you for choosing our product.

Please read these instructions carefully before connecting and using the appliance.

Knowledge of the operating principles will help guarantee correct and safe use of the appliance.

This instruction booklet contains the technical characteristics of the drier and is full of useful information regarding its operation, all designed to help you get the best out of your appliance.

If the appliance is sold or handed over for use by others, remember to give the new user the instruction booklet.

CONTENTS

NOTES AND ADVICE FOR THE USER 11-12

• Technical information 11

DESCRIPTION OF THE APPLIANCE 13

• Optional accessories 13

INSTALLING THE APPLIANCE 13-14 • Installation

• Levelling the drier 14
- Connecting to the mains supply 14
- Changing the door opening direction 14

USING THE DRIER 15-16

• Description of the control panel 15
- Recommendations prior to drying 15

• Programme table

• How to dry 16
• Precautions for fabrics

MAINTENANCE 17-18

- Draining the condensation reservoir 17

• Cleaning and maintenance
• Troubleshooting
  • Resolving problems
  17 18 18

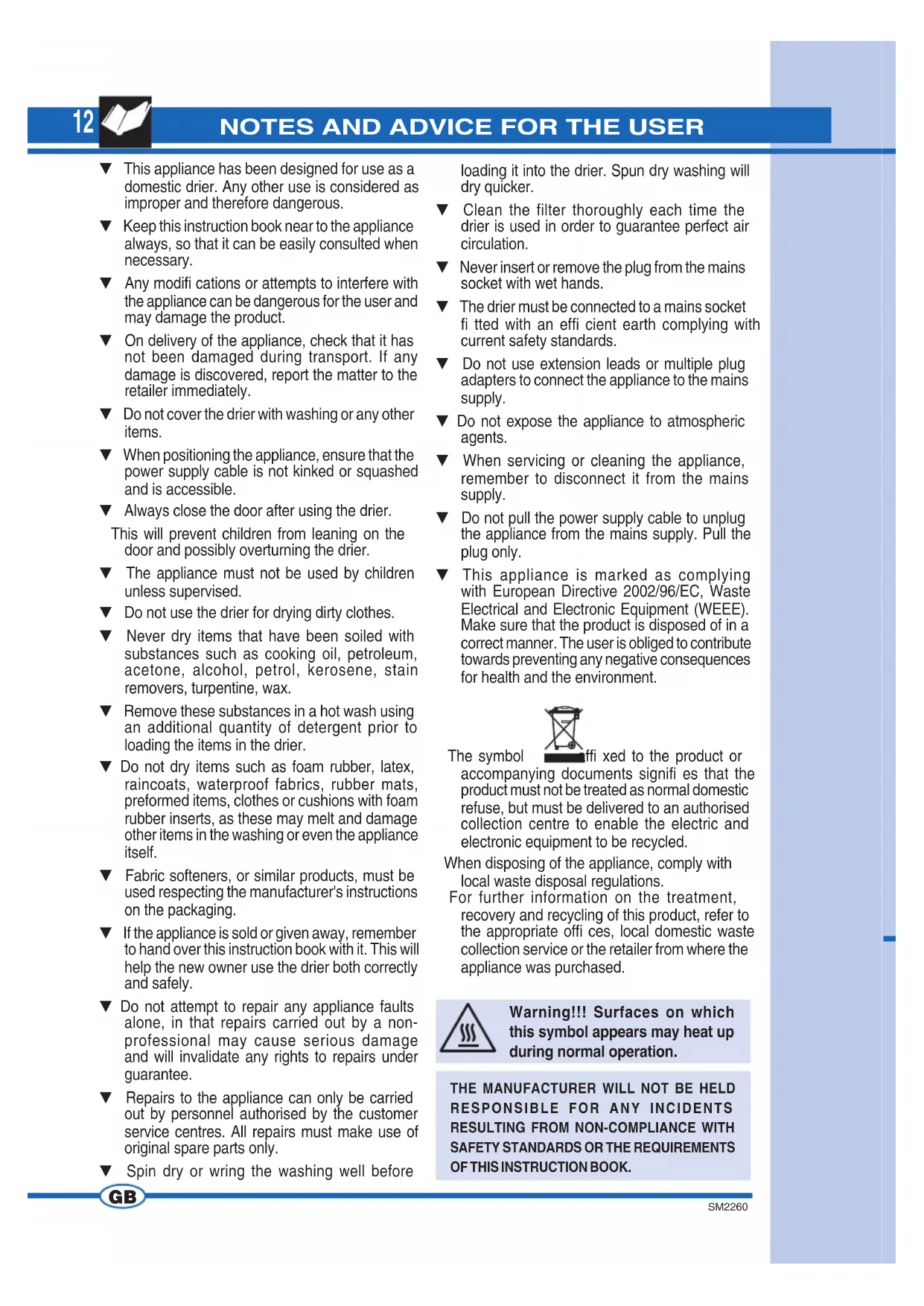

NOTES AND ADVICE FOR THE USER

TECHNICAL DATA

Dimensions:	Width cm.:	59.5
	Height cm.:	85.0
	Depth cm.:	60.4
Max. capacity		5,0 kg dry
Power rating		see characteristics plate
Voltage		see characteristics plate

MODEL: ..... SERIAL NUMBER: ..... DATE OF PURCHASE: ....

This appliance has been designed for use as a domestic drier. Any other use is considered as improper and therefore dangerous.
- Keep this instruction book near to the appliance always, so that it can be easily consulted when necessary.
▼ Any modifications or attempts to interfere with the appliance can be dangerous for the user and may damage the product.
On delivery of the appliance, check that it has not been damaged during transport. If any damage is discovered, report the matter to the retailer immediately.
▼ Do not cover the drier with washing or any other items.
When positioning the appliance, ensure that the power supply cable is not kinked or squashed and is accessible.
▼ Always close the door after using the drier. This will prevent children from leaning on the door and possibly overturning the drier.
▼ The appliance must not be used by children unless supervised.
▼ Do not use the drier for drying dirty clothes.
▼ Never dry items that have been soiled with substances such as cooking oil, petroleum, acetone, alcohol, petrol, kerosene, stain removers, turpentine, wax.
▼ Remove these substances in a hot wash using an additional quantity of detergent prior to loading the items in the drier.
Do not dry items such as foam rubber, latex, raincoats, waterproof fabrics, rubber mats, preformed items, clothes or cushions with foam rubber inserts, as these may melt and damage other items in the washing or even the appliance itself.
▼ Fabric softeners, or similar products, must be used respecting the manufacturer's instructions on the packaging.
If the appliance is sold or given away, remember to hand over this instruction book with it. This will help the new owner use the drier both correctly and safely.
Do not attempt to repair any appliance faults alone, in that repairs carried out by a non-professional may cause serious damage and will invalidate any rights to repairs under guarantee.
▼ Repairs to the appliance can only be carried out by personnel authorised by the customer service centres. All repairs must make use of original spare parts only.
▼ Spin dry or wring the washing well before

loading it into the drier. Spun dry washing will dry quicker.

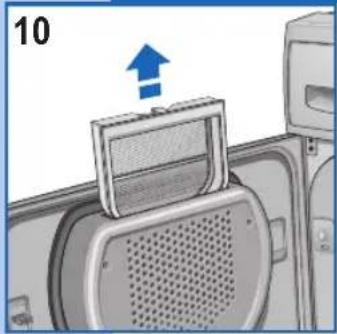

√ Clean the filter thoroughly each time the drier is used in order to guarantee perfect air circulation.
▼ Never insert or remove the plug from the mains socket with wet hands.
The drier must be connected to a mains socket fitted with an efficient earth complying with current safety standards.
Do not use extension leads or multiple plug adapters to connect the appliance to the mains supply.
▼ Do not expose the appliance to atmospheric agents.
When servicing or cleaning the appliance, remember to disconnect it from the mains supply.
Do not pull the power supply cable to unplug the appliance from the mains supply. Pull the plug only.
This appliance is marked as complying with European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). Make sure that the product is disposed of in a correct manner. The user is obliged to contribute towards preventing any negative consequences for health and the environment.

The symbol affi xed to the product or accompanying documents signifi es that the product must not be treated as normal domestic refuse, but must be delivered to an authorised collection centre to enable the electric and electronic equipment to be recycled.

When disposing of the appliance, comply with local waste disposal regulations.

For further information on the treatment, recovery and recycling of this product, refer to the appropriate offi ces, local domestic waste collection service or the retailer from where the appliance was purchased.

Warning!!! Surfaces on which this symbol appears may heat up during normal operation.

THE MANUFACTURER WILL NOT BE HELD RESPONSIBLE FOR ANY INCIDENTS RESULTING FROM NON-COMPLIANCE WITH SAFETY STANDARDS OR THE REQUIREMENTS OF THIS INSTRUCTION BOOK.

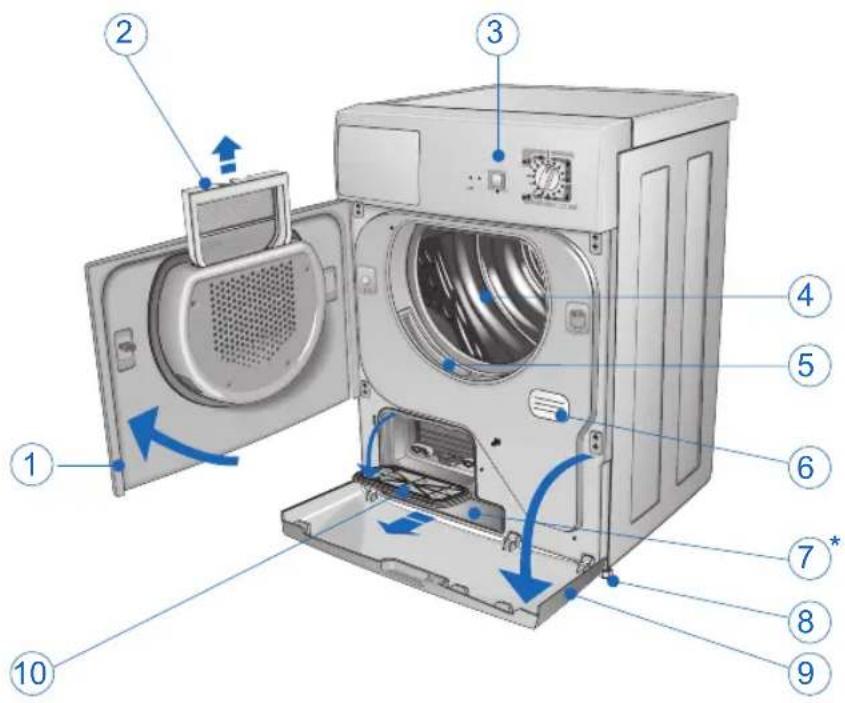

DESCRIPTION OF THE APPLIANCE

1 Drum door.
2 Drum door filter.
3 Control panel.
4 Drier drum.
5 Drum mouth fi Iter.

6 Rating plate.
7 Lower condensation water reservoir*.
8 Adjustable feet
9 Condenser door.
10 Lower door.

Labeled diagram of a washing machine showing internal components and airflow direction

OPTIONAL ACCESSORIES

The retailer can provide an accessory to enable the drier to be mounted on top of a front - loading washing machine, thus saving space. The installer will inform you of the appliance model for which this option is possible.

INSTALLING THE APPLIANCE

INSTALLATION

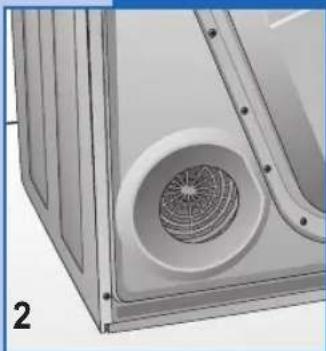

Close-up of a white industrial air duct with a circular vent and ventilation grille (no text or symbols visible)

▼ Installation must be carried out by qualified personnel in line with the instructions supplied by the manufacturer. Incorrect installation may result in damage and/or injury.
▼ Do not install the drier in rooms subject to freezing temperatures. Freezing temperatures could damage the electronics.
▼ Position the drier in a well-ventilated room.
▼ Do not cover the ventilation hole on the back (fig. 2) and do not place the drier on thick carpet.
▼ Clean the inside of the drying drum using a damp cloth to remove any dust deposits.

LEVELLING THE DRIER

Adjustable feet. Place the drier upright so that it rests firmly on all four feet. Level the drier by adjusting the feet as follows:

▼ Lift the drier slightly.
▼ Adjust the feet to the correct height (fi g. 3).
▼ Lower the drier.

NB. A badly levelled appliance may cause damage to the bearings and lead to their premature wear. This drier does not need to be anchored to the floor.

Illustration of a hand holding a small object near a cabinet, with blue curved arrows indicating rotation or movement (no text or symbols)

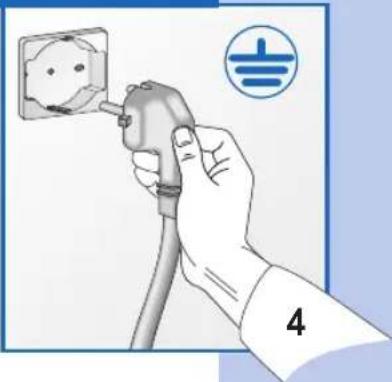

CONNECTING TO THE MAINS SUPPLY

▼ Make sure that the voltage indicated on the identification plate attached to the back of the appliance corresponds to that of the mains supply.
All cut-outs, electric wiring and mains sockets must have a rating such that enables them to support the maximum load indicated on the identification plate.
▼ Once the appliance has been installed, it must be connected to the mains supply through a single-pole switch.
The mains supply to which the appliance is connected must be fitted with an earthing system. If this is not the case, the manufacturer will not be held liable for any incidents that may occur (fi g. 4).
If the power supply cable is damaged in any way, contact the appropriate specialised customer technical service centre.
The drier must not be connected to the mains supply using indirect methods such as extension leads or multiple adapters.
▼ Position the appliance so that the power supply cable is easily accessible for disconnection when the need arises.

Hand holding a plug inserted into an electrical socket, with a blue symbol and number 4 visible (no text or symbols on the diagram itself)

Important: On completion of the drying cycle, disconnect the appliance from the mains supply to prevent young children from operating the drier.

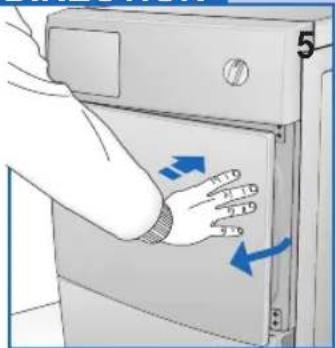

OPENING THE DOOR AND CHANGING THE OPENING DIRECTION

▼ Press the right side of the door (fig. 7) to open it. If the door has been reversed, press the left side.

Illustration of a hand pressing down on a device panel with blue arrows indicating motion (no text or symbols)

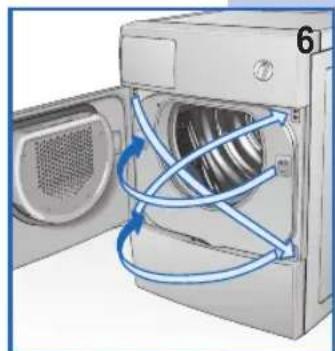

The direction of the drum door opening can be modified according to needs (fig. 8).

- N.B.: This operation must only be carried out by a qualified technician. Contact the customer service centre.

Diagram of a washing machine with blue tubing connecting the door and fan (no text or symbols)

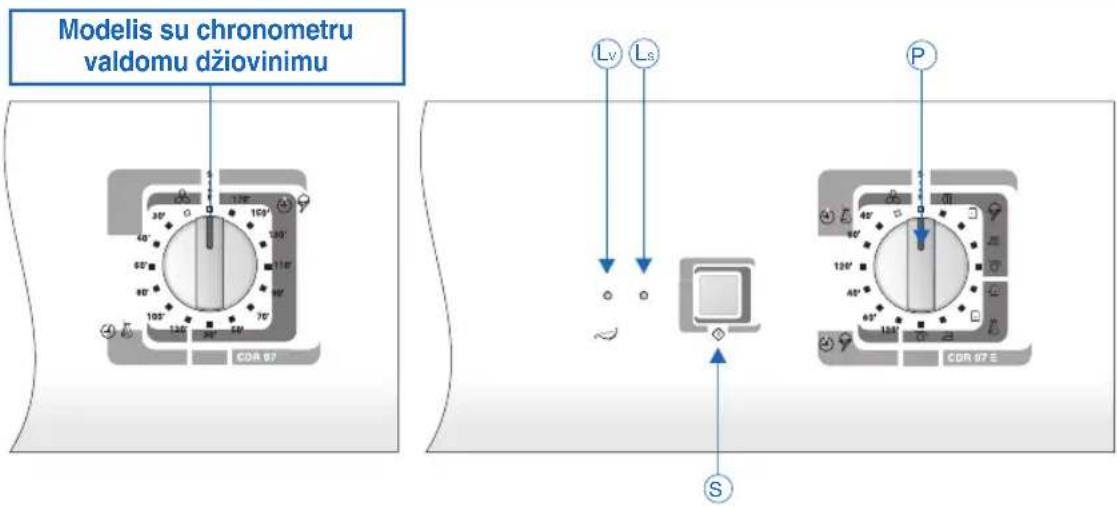

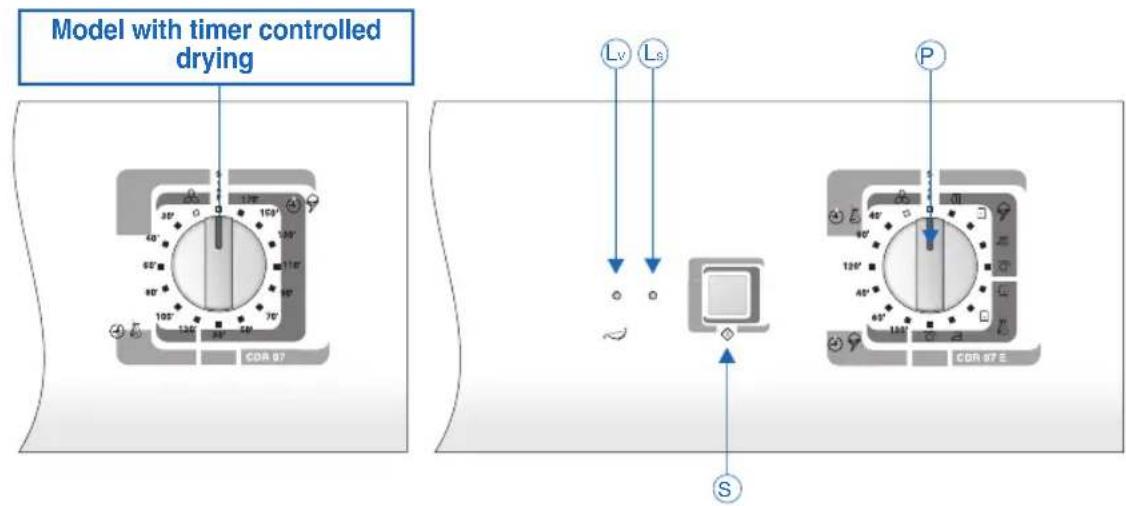

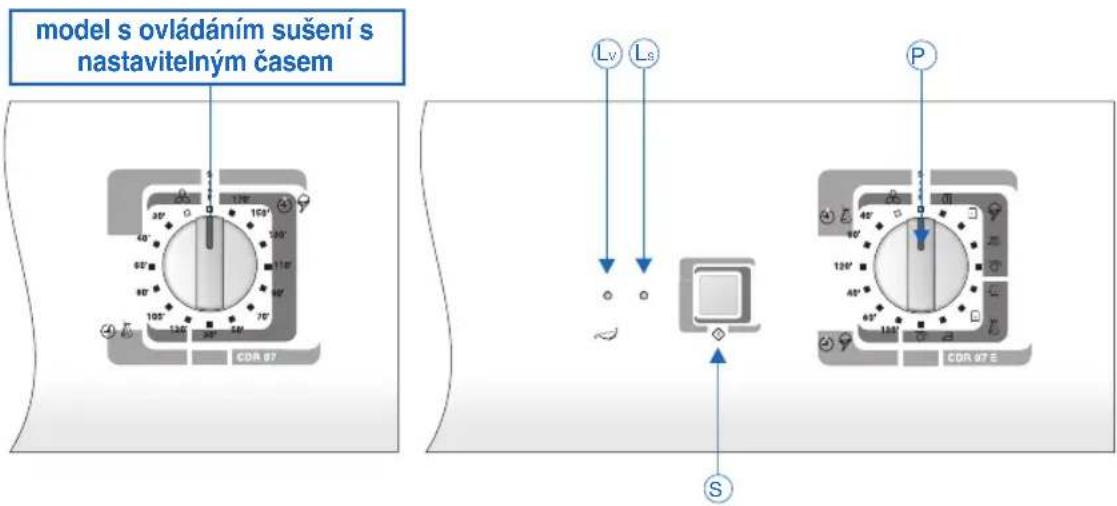

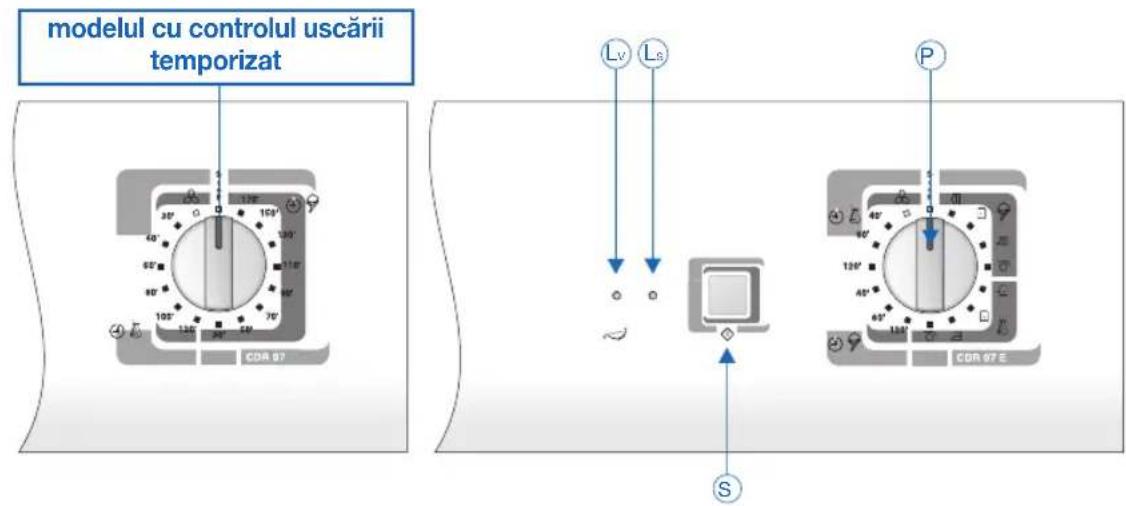

DESCRIPTION OF THE CONTROL PANEL.

Model with timer controlled drying Lv Ls P S

7

P. Programmer knob. Used to select the required programmes according to the types of fabrics and their specific needs. If, for any reason, you want to change the programme or add more washing to the load during the drying cycle, simply place the programmer knob in the "STOP" position. Then re-position the knob on the required program and press the "START" button.

NB. Warning!! Only use this function if strictly necessary and then only if the programme to reset has been running for less than 3 minutes.

S. Start Button. Press this button to start the

programmed drying cycle.

Ls. Start Led. Off indicates the "STOP" position. On fixed indicates the cycle is running. Fast fl ashing indicates the set programme is ready to start. Slow fl ashing indicates the end of the drying programme.

Lv. Reservoir full alarm Led. A flashing light indicates that the reservoir is full and needs to be emptied (the drying cycle stops). After the container has been replaced, a fixed light indicates that the function is restarting. Light off indicates that the alarm has been reset (the cycle restarts).

RECOMMENDATIONS PRIOR TO DRYING

SORTING THE WASHING

Before drying the washing, spin it at the recommended rpm for the type of load. Spinning at maximum rpm will result in up to a 35% saving in energy. The higher the spin speed, the better the drying result. Using a softener in the wash cycle will improve drying and save time. Before drying the washing in the drier, check the items to make sure they can be machine dried. Refer to the clothing care symbols on the labels.

If the label has no drying symbol, proceed as follows:

▼ White/coloured washing and crease-proof washing can be dried at normal temperature using the appropriate drying programme.

▼ Delicate washing, acrylics for example, must always be dried at low temperature.

General advice:

Jersey often shrinks, not only in the wash but also during drying.

Pure linen.

▼ Only dry garments with specific drying instructions on label, otherwise, the fabric could roughen.

In order to avoid staining, never dry dark coloured washing together with light coloured washing.

PROGRAMME TABLE

ELECTRONIC DAMPNESS CONTROL PROGRAMMES

	Resistant	Max 5.0 kg.	Extra dry Wardrobe dry		Iron damp Very damp
	Delicates	Max 2.5 kg.
TIMED PROGRAMMES
[AGTY]	Resistant	Max 5.0 kg.	min. 120 - 60	min. 120 - 60	min. 60 - 40	min. 60 - 40
	Delicates	Max 2.5 kg.
	20 min.

PROGRAMMES FOR DRIERS WITH TIMED DRYING CONTROL

Fabric type\Damp +/-		Extra dry	Wardrobe dry	Iron damp	Very damp
	Max 5.0 kg.	*130 min.**110 min.	*110 min.** 90 min.	* 90 min.** 70 min.	* 70 min.** 50 min.
	Max 2.5 kg.	*110 min.** 90 min.	* 90 min.** 70 min.	* 70 min.** 50 min.	* 50 min.** 30 min.
	Max 2.5 kg.	* 80 min.** 60 min.	* 60 min.** 40 min.	* 40 min.** 30 min.	———
	20 min.

* Drying time necessary after spinning at 800 rpm.
** Drying time necessary after spinning at 1000 rpm.

HOW TO DRY

1) Load the washing in the drum and close the door.
2) With dry hands, insert the plug in the mains socket.
3) Position the programmer knob on Stop to reset any previous programmes, then rotate it to the ideal programme for the type of fabric, the amount loaded in the drum and the required degree of drying (see Programme Table).
4) Press the START button to start the drying cycle.

5) At the end of the drying cycle, signalled by the fl ashing start led, return the selector to the STOP position.
6) Open the drum door and remove the washing.
7) Re-close the door.
8) With dry hands, remove the plug from the mains socket.

PRECAUTIONS FOR FABRIC TYPES

In the case of doubt as to the type of fabric, read the label on the item itself.

Almost all items that can be machine dried have this information specified on the label.

To avoid static electricity being generated in the items, add a conditioner to the rinse cycle of the washing machine.

Remove synthetic materials from the drum immediately to prevent them from creasing.

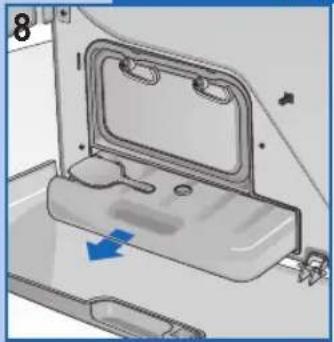

DRAINING THE CONDENSATION WATER RESERVOIR

Mechanical component diagram showing a bracket with mounting holes and a blue directional arrow (no text or symbols)

The condensation is collected in the reservoir (fi g. 8). The reservoir must be emptied after each drying cycle.

To empty the reservoir, proceed as follows:

▼ Remove the reservoir from the drier (Fig. 8).

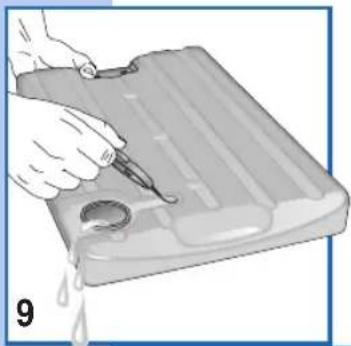

Illustration of a hand using a dropper to clean liquid from a container (no text or symbols)

▼ Empty the reservoir. The drain hole is located on the top right (fig. 9).
▼ After emptying, replace the container in its housing making sure it is properly seated.
If the reservoir is not emptied or it fills up excessively during a drying cycle, the condensation reservoir warning light will fl ash and the drier will stop. If this happens, proceed as described above.
▼ To restart the programme, press the Start button (fi g. 7).

CLEANING AND MAINTENANCE

Interior view of a computer monitor with a blue upward arrow indicating a component (no text or symbols present)

Disconnect the drier from the mains supply before cleaning. It is important to clean the drier after each drying cycle in order to save in drying time and consequently save energy.

1. Door fl uff fi lter (fi g. 10).

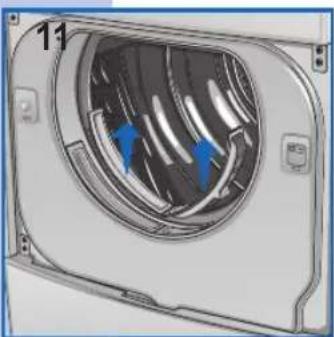

2. Fluff filter in the loading aperture (fig. 11).
3. Condenser (fi g. 12).
   ▼ Remove the filter by pulling upwards and then clean it (fig. 10).

Diagram of a mechanical component with internal blades and blue arrows indicating direction (no text or symbols)

It is also possible to remove the two fluff filters from the door opening and clean them (fi g. 11).

NB. The presence of fl uff in the fi lter is not the result of the drying procedure. The fl uff comes from the fi bres of fabrics damaged or unthreaded during the wash and, above all, as a result of wear.

The filters can be cleaned by simply placing them under hot running water.

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

▼ The condenser should be cleaned two or three times a year (fig. 12/15).

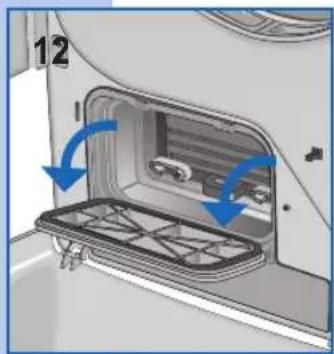

▼ Open the door, rotate the lever to the vertical position and remove the cover (fig. 12).

CLEANING AND MAINTENANCE

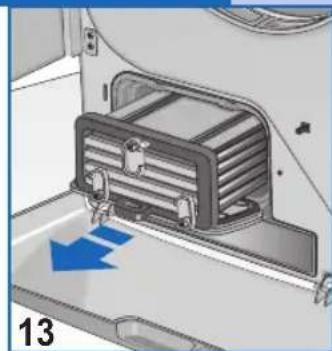

▼ Rotate the 3 levers to the vertical position and remove the condenser (fig. 13).

Interior view of a vehicle air conditioner unit with blue directional arrow indicating airflow (no text or symbols)

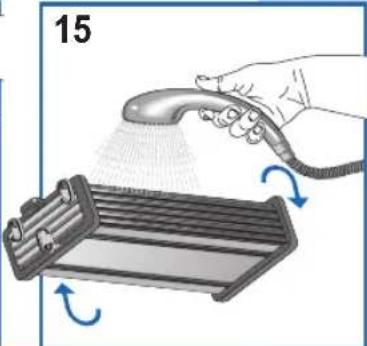

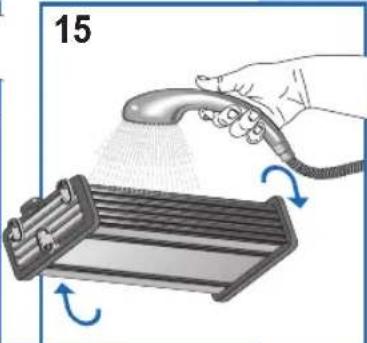

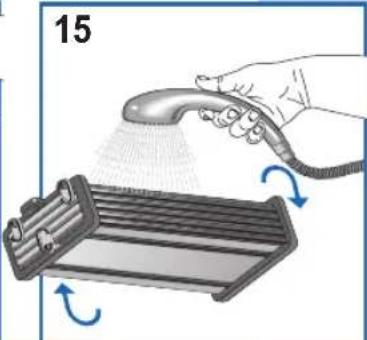

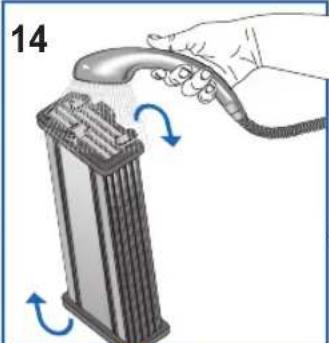

▼ Wash the front, back and sides of the condenser, aiming the jet of water as shown (fi g.14/15).

To dry the condenser thoroughly, place it on its side on a towel.

When the condenser is dry, replace it following the same procedure in reverse order.

Illustration of a hand holding a showerhead spraying water onto a cylindrical object with blue arrows indicating motion (no text or symbols)

Illustration of a hand spraying a spray gun over a rack with arrows indicating motion (no text or symbols)

TROUBLESHOOTING

All electric appliances may break-down at some time.

Remember to call a qualified technician in these cases. However, many problems can be resolved without the need for external intervention.

Important: If a fault occurs, disconnect the appliance from the mains supply immediately. Before calling the customer service centre, check the points listed below.

RESOLVING PROBLEMS

If the drier doesn't start

- Check that:

1) The appliance is plugged into the mains supply.

2) The mains socket is working correctly: 2a) The fuse has not blown. (Check by plugging in another appliance such as a table lamp and see if that works)

2b) All the instructions in the manual have been followed.

If the drier doesn't start

- Check that:

1) The door is closed properly
2) The start button has been pressed.

The washing does not dry

- Check that:

1) The air exhaust aperture is not blocked.
2) The filter is not blocked. (Remember that when the door is opened, the internal parts of the drier and the washing may be very hot).

If, after all these checks have been carried out, the appliance still does not work, inform the nearest customer service centre. When contacting the service centre, inform them of the appliance model, serial number and type of fault. This information will help the service centre operator in procuring the necessary spare parts, thus guaranteeing a speedy and efficient repair.

Verehrter Kunde,

Labeled diagram of a washing machine showing internal components and airflow direction

OPTIONALES ZUBEHÖR

Close-up of a white industrial air duct with a circular vent and flanged side panel (no text or symbols visible)

Illustration of a hand holding a small object with blue directional arrows indicating rotation (no text or symbols)

Hand holding a plug inserted into an electrical socket, with a blue symbol and number 4 visible (no text or symbols on the plug itself)

Illustration of a hand pressing down on a device panel with blue arrows indicating motion (no text or symbols)

Diagram of a washing machine with blue tubing connecting the door and fan (no text or symbols)

Mechanical component diagram showing a bracket with mounting holes and a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a dropper to clean liquid from a container (no text or symbols)

Diagram of a device interior with a blue upward arrow indicating motion or direction (no text or symbols present)

Diagram of a mechanical component with internal blades and blue arrows indicating direction (no text or symbols)

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

Interior view of a vehicle showing a mounted air vent or fan assembly with a blue arrow indicating direction (no text or symbols present)

Illustration of a hand holding a showerhead emitting heat from a vertical cylindrical device, with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying a hairdryer onto a rack with motion arrows indicating rotation (no text or symbols)

STORUNGSSUCHE

Labeled diagram of a washing machine showing internal components and parts numbered 1 to 10

ACCESSOIRES EN OPTION

Close-up of a white industrial fan or vent with a circular grille and mounting holes (no text or symbols visible)

Illustration of a hand holding a small object near a door, with blue arrows indicating rotation or movement (no text or symbols)

BRANCHEMENT À L'INSTALLATION ÉLECTRIQUE

Hand holding a plug with an electrical socket, no text or symbols visible

Illustration of a hand pressing down on a device panel with blue arrows indicating motion (no text or symbols)

Diagram of a washing machine with blue airflow lines indicating internal circulation (no text or symbols)

DESCRIPTION DU TABLEAU DES COMMANDES

Mechanical component diagram showing a bracket with mounting holes and a blue directional arrow (no text or symbols)

Illustration of a hand using a dropper to clean liquid from a container (no text or symbols)

Diagram of a device interior with a blue upward arrow indicating motion or direction (no text or symbols present)

Diagram of a mechanical component with internal blades and blue arrows indicating direction (no text or symbols)

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

Interior view of a vehicle showing a mounted air vent with a blue arrow indicating direction (no text or symbols)

Illustration of a hand holding a handheld device next to a vertical cylindrical device with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying water onto a rack with arrows indicating motion (no text or symbols)

DIAGNOSTIC DE PANNES

Diagram of a washing machine with numbered parts and directional arrows indicating internal components

3D rendering of a white industrial fan or vent with a circular grille and mounting brackets (no text or symbols visible)

Hand holding a small object with blue directional arrows indicating rotation or movement (no text or symbols)

Hand holding a plug inserted into an electrical socket, with a blue symbol and number 4 visible (no text or symbols on the plug itself)

Illustration of a hand pressing down on a device panel with blue arrows indicating motion (no text or symbols)

Diagram of a washing machine with blue tubing connecting the door and fan (no text or symbols)

DESCRIPCION DEL TABLERO DE CONTROL

Lv Ls P S COR 07 E

7

Mechanical component diagram showing a bracket with mounting holes and a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a dropper to apply liquid into a container (no text or symbols visible)

Diagram of a device interior with a blue upward arrow indicating motion or direction (no text or symbols)

Diagram of a device interior showing airflow or ventilation through a circular duct (no text or symbols)

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

Interior view of a washing machine with a blue arrow indicating a component (no text or symbols present)

Illustration of a hand holding a tool next to a cylindrical device with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying a spray gun onto a rack with motion arrows indicating rotation (no text or symbols)

Labeled diagram of a washing machine showing internal components and airflow direction

ACESSÓRIOS DE OPÇÃO

3D rendering of a mechanical ventilation unit with a circular vent and side brackets (no text or symbols visible)

Illustration of a hand holding a small object near a kitchen appliance, with blue arrows indicating rotation (no text or symbols)

Illustration of a hand holding an electrical outlet plug with a medical cross symbol (no text or labels)

Illustration of a hand pressing down on a device panel with blue directional arrows indicating motion (no text or symbols)

Diagram of a washing machine with fan blades and internal components, showing blue curved arrows indicating flow or circulation (no text or symbols)

Lv Ls P S COR 07 E

7

Mechanical component diagram showing a bracket with mounting holes and a blue directional arrow (no text or symbols)

Illustration of a hand using a dropper to clean or paint the lid of a rectangular container (no text or symbols visible)

Diagram of a device interior with a blue upward arrow indicating direction (no text or symbols)

Diagram of a mechanical component with internal airflow or heat exchange, showing blue arrows indicating direction (no text or symbols present)

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

Interior view of a vehicle air conditioner unit with blue directional arrow indicating airflow or movement (no text or symbols)

Illustration of a hand using a spray gun to clean a cylindrical object with blue motion arrows (no text or symbols)

Illustration of a hand spraying a spray gun over a rack with blue motion arrows (no text or symbols)

DETECÇÃO DE AVARIAS

ESCHRIJVING VAN HET APPARAAT 53

- Optionele accessoires 53

STALLATIE VAN DE MACHINE 53-54

• Installatie 53

BESCHRIJVING VAN HET APPARAAT

1 Deur trommel.
2 Deurfi Iter trommel.
3 Bedieningspaneel.
4 Trommel wasdroger.
5 Filter opening trommel.

Diagram of a washing machine with numbered parts and directional arrows indicating internal components

OPTIONELE ACCESSOIRES

3D rendering of a white industrial fan or vent with a circular grille and mounting brackets (no text or symbols visible)

Illustration of a hand holding a tool near a refrigerator with blue directional arrows indicating rotation (no text or symbols)

AANSLUITEN OP HET ELEKTRICITEITSNET

Hand holding a plug inserted into an electrical socket, with a symbol (no text or labels)

Illustration of a hand pressing down on a device panel with blue arrows indicating motion (no text or symbols)

Diagram of a washing machine with blue airflow lines indicating internal circulation (no text or symbols)

BESCHRIJVING VAN HET BEDIENINGSPANEEL

	Witte en bonte was	Max 5.0 kg.	Extra droog	Kastdroog	Strijkdroog Zeer vochtig
	Fijne was	Max 2.5 kg.

TIJDPROGRAMMA'S

Witte en bonte was	Max 5.0 kg.	min. 120 - 60	min. 120 - 60	min. 60 - 40	min. 60 - 40
Fijne was	Max 2.5 kg.

20 min.

PROGRAMMA'S VOOR TIJDGESTUURDE WASDROGER

Textielsoort\Vochtig +/-	Extra droog	Kastdroog	Strikdro og	Zeer vochtig
Max 5.0 kg.	*130 min.**110 min.	*110 min.** 90 min.	*190 min.** 70 min.	* 70 min.** 50 min.
Max 2.5 kg.	*110 min.** 90 min.	* 90 min.** 70 min.	* 70 min.** 50 min.	* 50 min.** 30 min.
Max 2.5 kg.	* 80 min.** 60 min.	* 60 min.** 40 min.	* 40 min.** 30 min.	— — — ——
20 min.

Mechanical component diagram showing a bracket with mounting holes and a blue directional arrow (no text or symbols)

Illustration of a hand using a dropper to apply liquid into a container (no text or symbols visible)

Interior view of a computer monitor with a blue upward arrow indicating a component (no text or symbols present)

Diagram of a device interior showing airflow or ventilation through a circular duct (no text or symbols)

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

Interior view of a vehicle showing a mounted air vent with a blue arrow indicating direction (no text or symbols)

Illustration of a hand holding a handheld device next to a cylindrical device with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying water onto a rack with arrows indicating motion (no text or symbols)

OPSPOREN VAN STORINGEN

INSTALACJA MASZYNY 61-62

- Instalacja 61

Labeled diagram of a washing machine showing internal components and airflow direction

AKCESORIA OPCJONALNE

3D rendering of a white industrial fan or vent with a circular grille and mounting brackets (no text or symbols visible)

Hand holding a small object near a cabinet, with blue curved arrows indicating rotation or movement (no text or symbols)

Illustration of a hand holding a plug with an electrical socket, no text or symbols present

Illustration of a hand pressing down on a device panel with blue arrows indicating motion (no text or symbols)

Diagram of a washing machine with blue arrows indicating airflow or circulation around the door (no text or symbols present)

OPIS PANELU STEROWANIA

Lv Ls P S COR 07 E

7

Mechanical component diagram showing a bracket with mounting holes and a blue directional arrow (no text or symbols)

Illustration of a hand using a dropper to clean or paint the lid of a rectangular container (no text or symbols visible)

Diagram of a device interior with a blue upward arrow indicating direction (no text or symbols)

Diagram of a device interior with blue arrows indicating flow or movement, no visible text or symbols

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

Interior view of a vehicle air conditioner unit with a blue arrow indicating airflow direction (no text or symbols)

Illustration of a hand holding a handheld tool next to a cylindrical device with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying a hairdryer onto a rack with blue motion arrows (no text or symbols)

WYSZUKIWANIE USTEREK

Labeled diagram of a washing machine showing internal components and airflow direction

VOLITELNÉ PŘÍSLUŠENSTVÍ

3D rendering of a mechanical ventilation unit with a circular vent and flanges (no text or symbols visible)

Illustration of a hand holding a small object with blue directional arrows indicating rotation (no text or symbols)

PŘIPOJENÍ K ELEKTRICKÉMU SYSTÉMU

Hand holding a plug with an electrical socket, no text or symbols visible

Illustration of a hand pressing down on a device panel with blue directional arrows indicating motion (no text or symbols)

Diagram of a washing machine with blue airflow lines indicating internal components (no text or symbols)

POPIS OVLÁDACÍHO PANELU

Mechanical component diagram showing a bracket with mounting holes and a blue directional arrow (no text or symbols)

Shromažduje se v nádobce (obr. 8).

Illustration of a hand using a dropper to clean or paint the lid of a rectangular container (no text or symbols visible)

Diagram of a device interior with a blue upward arrow indicating direction (no text or symbols)

Diagram of a device interior with blue arrows indicating flow or movement, no readable text or symbols present

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

ČISTENÍ A ÚDRŽBA

Interior view of a vehicle showing a mounted air vent with a blue arrow indicating direction (no text or symbols)

Illustration of a hand holding a spray gun with blue arrows indicating motion, next to a cylindrical device (no text or symbols)

Illustration of a hand spraying a spray gun onto a rack with motion arrows indicating rotation (no text or symbols)

URČOVÁNÍ ZÁVAD

Diagram of a washing machine with numbered parts and directional arrows indicating internal components

DOPLNKOVÉ PRÍSLUŠENSTVO

3D rendering of a white industrial fan or vent with a circular grille and mounting brackets (no text or symbols visible)

Illustration of a hand holding a small object with blue arrows indicating rotation or movement (no text or symbols)

ZAPOJENIE K ELEKTRICKEJ SIETI

Illustration of a hand holding an electrical outlet plug with a symbol (no text or labels)

Illustration of a hand pressing down on a device panel with blue arrows indicating motion (no text or symbols)

Diagram of a washing machine with blue airflow lines indicating internal components (no text or symbols)

POPIS OVLÁDACIEHO PANELA

Mechanical component diagram showing a bracket with mounting holes and a blue directional arrow (no text or symbols)

Illustration of a hand using a dropper to clean or paint the lid of a rectangular container (no text or symbols visible)

Diagram of a device interior with a blue upward arrow indicating direction (no text or symbols)

Diagram of a device interior with blue arrows indicating flow or movement, no readable text or symbols present

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

ČISTENIE A ÚDRŽBA

Interior view of a vehicle showing a mounted air vent with a blue arrow indicating direction (no text or symbols)

Illustration of a hand holding a spray gun with blue arrows indicating motion, next to a cylindrical device (no text or symbols)

Illustration of a hand spraying a hairdryer onto a rack with motion arrows indicating rotation (no text or symbols)

VYHL'ADÁVANIE PORÚCH

Diagram of a washing machine with numbered parts and directional arrows indicating internal components

VÁLASZTHATÓ TARTOZÉKOK

3D rendering of a white industrial fan or vent with a circular grille and mounting brackets (no text or symbols visible)

Illustration of a hand holding a small object with blue directional arrows indicating rotation (no text or symbols)

CSATLAKOZTATÁS AZ ELEKTROMOS HÁLÓZATRA

Hand holding a plug with an electrical socket, no text or symbols visible

Illustration of a hand pressing down on a device panel with blue arrows indicating motion (no text or symbols)

Diagram of a washing machine with blue airflow lines indicating internal components (no text or symbols)

A KEZELÓPANEL LEÍRÁSA

Mechanical component diagram showing a bracket with mounting holes and a blue directional arrow (no text or symbols)

Illustration of a hand using a pipette to clean or inspect the internal components of a rectangular container (no text or symbols visible)

Interior view of a computer room with a monitor and ventilation grille, showing a blue upward arrow (no text or symbols)

Diagram of a device casing with internal fan and blue arrows indicating flow or movement (no text or symbols)

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

Interior view of a vehicle showing a mounted air vent with a blue arrow indicating direction (no text or symbols)

Illustration of a hand holding a spray gun with blue arrows indicating motion, next to a cylindrical device (no text or symbols)

Illustration of a hand spraying a hairdryer onto a rack with motion arrows indicating rotation (no text or symbols)

HIBAKERESÉS

Labeled diagram of a washing machine showing internal components and airflow direction

PASIRENKAMI PRIEDAI

3D rendering of a white industrial fan or vent with a circular grille and mounting brackets (no text or symbols visible)

Illustration of a hand holding a small object near a cabinet, with blue curved arrows indicating rotation or movement (no text or symbols)

JUNGIMAS J ELEKTROS TINKLA

Illustration of a hand holding an electrical outlet plug with a symbol (no text or labels)

Illustration of a hand pressing down on a device panel with blue arrows indicating motion (no text or symbols)

Diagram of a washing machine with blue arrows indicating airflow or circulation around the door (no text or symbols present)

VALDYMO SKYDELIO APRAŠYMAS

Modelis su chronometru valdomu džiovinimu Lv Ls P S

7

Mechanical component diagram showing a bracket with mounting holes and a blue directional arrow (no text or symbols)

Susikondensaves vanduo surenkamas i rezervuarą (8 pav.).

Illustration of a hand using a dropper to clean or paint the lid of a rectangular container (no text or symbols visible)

Diagram of a device interior with a blue upward arrow indicating direction (no text or symbols)

Diagram of a device interior with blue arrows indicating flow or movement, no readable text or symbols present

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

Interior view of a vehicle air conditioner unit with blue directional arrow indicating airflow or movement (no text or symbols)

Illustration of a hand holding a handheld device next to a vertical cylindrical device with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying liquid onto a rack with arrows indicating motion (no text or symbols)

GEDIMU NUSTATYMAS

Visi elektros prietaisai kartais gali gesti.

Diagram of a washing machine with numbered parts and directional arrows indicating internal components

ДОДАТНА ОПРЕМА

3D rendering of a white industrial fan or vent with a circular grille and mounting brackets (no text or symbols visible)

Illustration of a hand holding a small object near a cabinet, with blue arrows indicating rotation (no text or symbols)

ПРИКЉУЧИВАЊЕ НА ИЗВОР НАПАЈАЊА

Hand holding a plug inserted into an electrical socket, with a symbol indicating battery (no text or labels present)

Illustration of a hand pressing down on a device panel with blue arrows indicating motion (no text or symbols)

Diagram of a washing machine with blue airflow lines indicating internal components (no text or symbols)

ОПИС КОМАНДНЕ ТАБЛЕ

Mechanical component diagram showing a bracket with mounting holes and a blue directional arrow (no text or symbols)

Illustration of a hand using a dropper to clean or paint the lid of a rectangular container (no text or symbols visible)

Diagram of a device interior with a blue upward arrow indicating direction (no text or symbols)

Diagram of a device interior with blue arrows indicating flow or movement, no readable text or symbols present

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

Interior view of a vehicle showing a mounted air vent with a blue arrow indicating direction (no text or symbols)

Illustration of a hand holding a handheld device next to a cylindrical device with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying a hairdryer onto a device with blue motion arrows (no text or symbols)

ПРОНАЛАЖЕЊЕ ГРЕШАКА

Labeled diagram of a washing machine showing internal components and airflow direction

ДОДАТКОВІ ПРИСТРОЇ

3D rendering of a white industrial fan or vent with a circular grille and mounting holes (no text or symbols visible)

Illustration of a hand holding a small object with blue directional arrows indicating rotation or movement (no text or symbols)

Hand holding a plug with an outlet socket, no text or symbols visible

Illustration of a hand pressing down on a device panel with blue directional arrows indicating motion (no text or symbols)

Diagram of a washing machine with blue tubing and arrows indicating airflow direction (no text or symbols)

Lv Ls P S COR 07 E

7

Mechanical component diagram showing a bracket with mounting holes and a blue directional arrow (no text or symbols)

Illustration of a hand using a pipette to clean or inspect the internal components of a rectangular object (no text or symbols visible)

Interior view of a computer room with a monitor and ventilation grille, showing a blue upward arrow (no text or symbols)

Diagram of a mechanical component with internal blades and blue arrows indicating direction (no text or symbols)

Interior view of a car showing a door panel with blue arrows indicating direction (no text or symbols)

Interior view of a vehicle showing a mounted air vent with a blue arrow indicating direction (no text or symbols)

Illustration of a hand holding a handheld device next to a cylindrical device with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying a spray gun onto a rack with blue motion arrows (no text or symbols)

Labeled diagram of a washing machine showing internal components and airflow direction

ACCESORII OPTIONALE

3D rendering of a white industrial fan or vent with a circular grille and mounting brackets (no text or symbols visible)

Illustration of a hand holding a small object near a cabinet, with blue arrows indicating rotation (no text or symbols)

BRANŞAREA LA INSTALATIA ELECTRICĂ

Hand holding a plug inserted into an electrical socket, with a blue symbol and number 4 visible (no text or symbols on the diagram itself)

MODIFICAREA SENSULUI DE DESCHIDERE A UŞII

Illustration of a hand pressing down on a device panel with blue directional arrows indicating motion (no text or symbols)

Diagram of a washing machine with fan blades and internal components, showing blue curved arrows indicating flow or circulation (no text or symbols)

DESCRIEREA PANOULUI DE CONTROL

PROGRAME PENTRU USCĂTOR CU CONTROLUL USCĂRII TEMPORIZAT

Tipul de material\Umed +/-	+Super uscat	+Uscat de pus în dulap	+Umed pentru călcat	+Foarte umedo
Max 5.0 kg.	*130 min.**110 min.	*110 min.** 90 min.	* 90 min.** 70 min.	* 70 min.** 50 min.
Max 2.5 kg.	*110 min.** 90 min.	* 90 min.** 70 min.	* 70 min.** 50 min.	* 50 min.** 30 min.
Max 2.5 kg.	* 80 min.** 60 min.	* 60 min.** 40 min.	* 40 min.** 30 min.	— — — —— — — — —
20 min.

Mechanical component diagram showing a bracket with mounting holes and a blue directional arrow (no text or symbols)

Illustration of a hand using a dropper to clean or paint the lid of a rectangular container (no text or symbols visible)

Diagram of a device interior with a blue upward arrow indicating direction (no text or symbols)

Diagram of a device casing with internal fan and blue arrows indicating direction (no text or symbols)

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

Interior view of a vehicle showing a mounted air vent with a blue arrow indicating direction (no text or symbols)

Illustration of a hand holding a spray gun with blue arrows indicating motion, next to a cylindrical device (no text or symbols)

Illustration of a hand spraying a hairdryer onto a rack with motion arrows indicating rotation (no text or symbols)

DETECTAREA DEFECTIUNILOR

Labeled diagram of a washing machine showing internal components and parts numbered 1 to 10

3D rendering of a white industrial fan or vent with a circular grille and mounting holes (no text or symbols visible)

Illustration of a hand holding a device with blue directional arrows indicating rotation (no text or symbols)

Hand holding a plug inserted into an electrical socket, with a symbol (no text or labels)

Illustration of a hand pressing down on a device panel with blue directional arrows indicating motion (no text or symbols)

Diagram of a washing machine with blue airflow lines indicating internal circulation (no text or symbols)

Mechanical component diagram showing a bracket with mounting holes and a blue directional arrow (no text or symbols)

Illustration of a hand using a dropper to clean or paint the lid of a rectangular container (no text or symbols visible)

Diagram of a device interior with a blue upward arrow indicating direction (no text or symbols)

Diagram of a device interior with blue arrows indicating flow or movement, no visible text or symbols

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

Interior view of a vehicle showing a mounted air vent with a blue arrow indicating direction (no text or symbols)

Illustration of a hand holding a tool next to a cylindrical device with blue rotation arrows (no text or symbols)

Illustration of a hand spraying a spray gun onto a rack with motion arrows indicating rotation (no text or symbols)
