Features	Details
Device type	Clothes dryer
Drying capacity	7 kg
Drying type	Condensation
Energy class	B
Noise level	65 dB
Dimensions (HxWxD)	85 x 60 x 60 cm
Weight	37 kg
Drying programs	Various programs adapted to textiles
Additional features	Moisture detection, delayed start
Maintenance	Regular cleaning of the lint filter
Safety	Overheat protection, child lock
Warranty	2 years

Frequently Asked Questions - CDR07SU Ardo

Why won\u0027t my Ardo CDR07SU dryer start?

Check that the device is properly plugged in and that the outlet is working. Also make sure the door is properly closed, as the dryer won\u0027t start if the door is open.

My Ardo CDR07SU dryer isn\u0027t heating.

Check if the lint filter is clean and not clogged. A clogged filter can prevent heating. Also ensure the water tank is empty and the drain hose is not blocked.

How do I clean the lint filter on my Ardo CDR07SU dryer?

The lint filter is usually located at the front of the device. Open the panel, remove the filter, then clean it under warm water to remove lint residues. Make sure it is completely dry before putting it back in place.

My Ardo CDR07SU dryer is making an unusual noise.

Check if foreign objects have gotten into the drum. If the noise persists, it may indicate a problem with the bearings or the motor. It is recommended to contact a professional for diagnosis.

The drying cycle is taking too long.

Make sure the lint filter is clean and the load is not too large. Overloading can slow down the drying process. Also check that the device is properly ventilated.

Can I use the Ardo CDR07SU dryer for all types of fabrics?

Check the clothing labels before putting them in the dryer. Some fabrics, like wool or silk items, can be damaged by the heat of the dryer.

How do I reset my Ardo CDR07SU dryer?

To reset the device, unplug it for a few minutes, then plug it back in. This can help resolve some operational issues.

What should I do if the water tank is full?

Empty the water tank and make sure it is properly put back in place. If the tank fills up quickly, check if the drain hose is blocked.

USER MANUAL CDR07SU Ardo

Illustration of three white washing machines on a blue background, no text or symbols present

Gentile Cliente,

Labeled diagram of a washing machine showing internal components and directional arrows indicating movement or flow.

ACCESSORI OPTIONAL

Close-up of a white industrial air duct with a circular vent and ventilation grille (no text or symbols visible)

Illustration of a hand holding a small object with blue directional arrows indicating rotation (no text or symbols)

COLLEGAMENTO ALL'IMPIANTO ELETTRICO

Hand holding a plug inserted into an electrical socket, with a symbol (no text or labels)

Mechanical assembly diagram showing a pipe connection with a blue arrow indicating direction (no text or symbols)

Technical illustration of a mechanical component with internal channels and a blue arrow indicating direction (no text or symbols)

APERTURA E MODIFICA ROTAZIONE PORTA

Illustration of a hand pressing down on a device panel with blue arrows indicating force or movement (no text or symbols)

Diagram of a washing machine with blue tubing connecting the door to the interior (no text or symbols)

Diagram of a washing machine with blue arrows indicating air circulation or mechanical components (no text or symbols)

Hand placing a button into a device component (no text or symbols visible)

Mechanical assembly diagram showing a metal bracket with mounting holes and a numbered label (12), no text or symbols present.

Diagram of a device with a blue arrow pointing upward, showing a component with a mesh cover (no text or symbols)

Diagram of a mechanical component with internal blades and blue arrows indicating direction (no text or symbols)

Interior view of a vehicle showing a door opening with a tray and blue arrows indicating motion (no text or symbols)

Interior view of a vehicle air conditioner unit with blue directional arrow indicating airflow (no text or symbols)

Illustration of a hand holding a handheld device next to a cylindrical device with blue arrows indicating rotation (no text or symbols)

Illustration of a hand using a spray gun to spread liquid onto a rack with arrows indicating motion (no text or symbols)

Thank you for choosing our product.

Please read these instructions carefully before connecting and using the appliance.

Knowledge of the operating principles will help guarantee correct and safe use of the appliance.

This instruction booklet contains the technical characteristics of the drier and is full of useful information regarding its operation, all designed to help you get the best out of your appliance.

If the appliance is sold or handed over for use by others, remember to give the new user the instruction booklet.

CONTENTS

OTES AND ADVICE FOR THE USER 13-14

• Technical information 13

DESCRIPTION OF THE APPLIANCE 15

- Optional accessories 15

INSTALLING

THE

APPLIANCE

15-17

- Installation 15

• Levelling the drier 16
- Connecting to the mains supply 16
- Connecting the condensation drain to the drainage system. 16

- Changing the door opening direction 17

USING THE DRIER

• Precautions for fabrics 17
- Recommendations prior to drying 17
• Description of the control panel 18
- Programme 19
• How to dry 19

MAINTENANCE

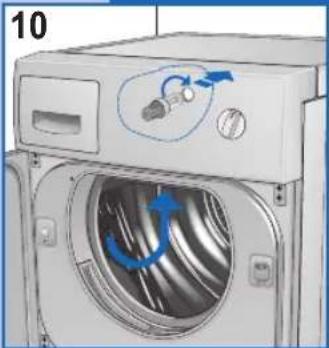

• Internal light 19

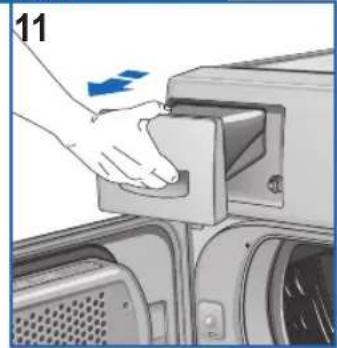

• Draining the condensation reservoir 20
• Cleaning and maintenance 20-21
• Troubleshooting 21

• Resolving problems

21

NOTES AND ADVICE FOR THE USER

TECHNICAL DATA

Dimensions:	Width cm.:	59.5
	Height cm.:	85.0
	Depth cm.:	60.4
Max. capacity		7 kg dry
Power rating		see characteristics plate
Voltage		see characteristics plate

MODEL: ..... SERIAL NUMBER: ..... DATE OF PURCHASE: ....

14

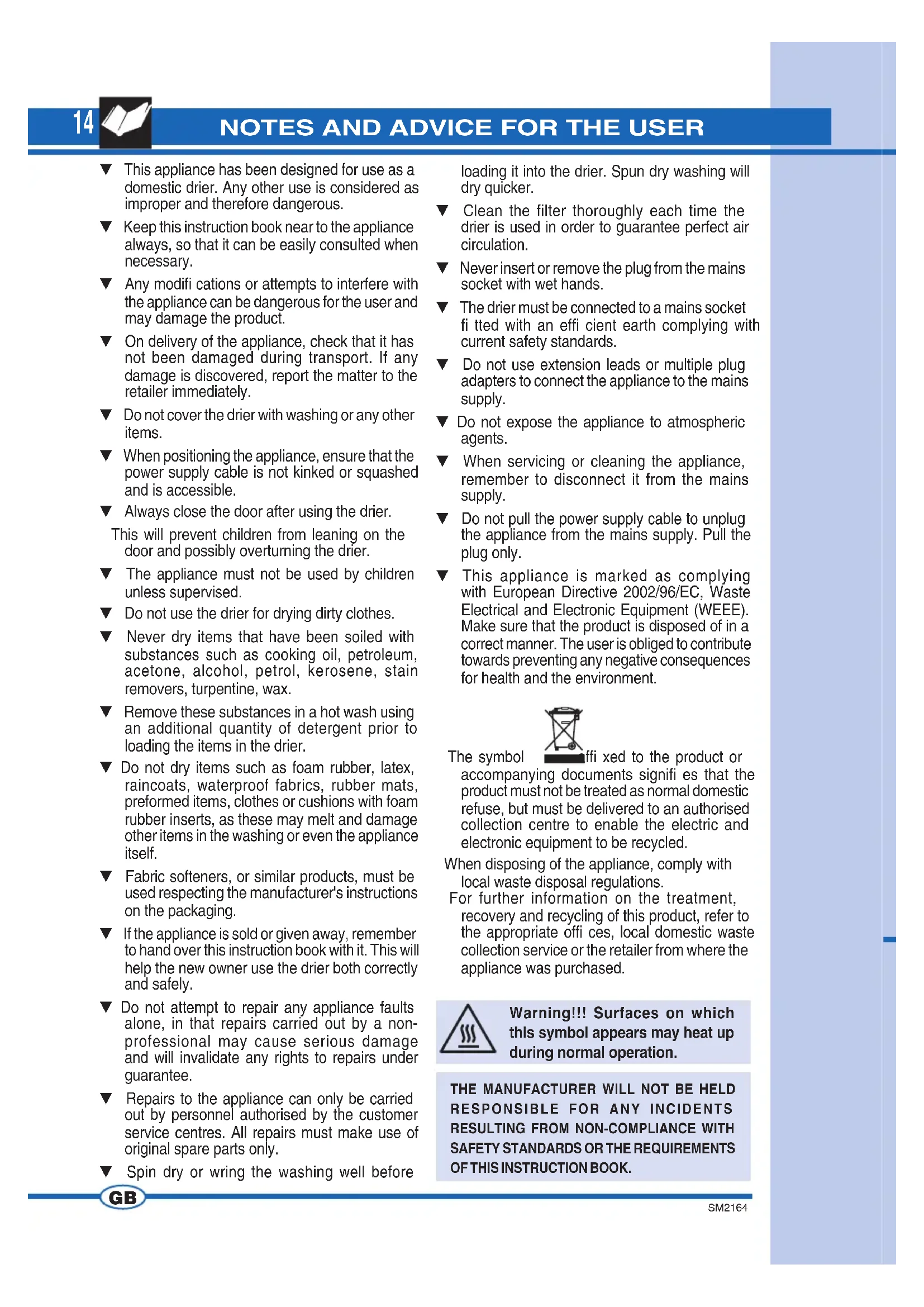

NOTES AND ADVICE FOR THE USER

This appliance has been designed for use as a domestic drier. Any other use is considered as improper and therefore dangerous.
- Keep this instruction book near to the appliance always, so that it can be easily consulted when necessary.
▼ Any modifications or attempts to interfere with the appliance can be dangerous for the user and may damage the product.
On delivery of the appliance, check that it has not been damaged during transport. If any damage is discovered, report the matter to the retailer immediately.
▼ Do not cover the drier with washing or any other items.
When positioning the appliance, ensure that the power supply cable is not kinked or squashed and is accessible.
▼ Always close the door after using the drier. This will prevent children from leaning on the door and possibly overturning the drier.
▼ The appliance must not be used by children unless supervised.
▼ Do not use the drier for drying dirty clothes.
▼ Never dry items that have been soiled with substances such as cooking oil, petroleum, acetone, alcohol, petrol, kerosene, stain removers, turpentine, wax.
▼ Remove these substances in a hot wash using an additional quantity of detergent prior to loading the items in the drier.
Do not dry items such as foam rubber, latex, raincoats, waterproof fabrics, rubber mats, preformed items, clothes or cushions with foam rubber inserts, as these may melt and damage other items in the washing or even the appliance itself.
▼ Fabric softeners, or similar products, must be used respecting the manufacturer's instructions on the packaging.
If the appliance is sold or given away, remember to hand over this instruction book with it. This will help the new owner use the drier both correctly and safely.
Do not attempt to repair any appliance faults alone, in that repairs carried out by a non-professional may cause serious damage and will invalidate any rights to repairs under guarantee.
▼ Repairs to the appliance can only be carried out by personnel authorised by the customer service centres. All repairs must make use of original spare parts only.
▼ Spin dry or wring the washing well before

loading it into the drier. Spun dry washing will dry quicker.

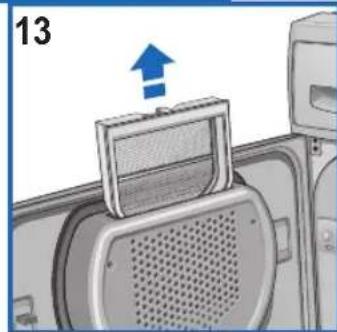

√ Clean the filter thoroughly each time the drier is used in order to guarantee perfect air circulation.
▼ Never insert or remove the plug from the mains socket with wet hands.
The drier must be connected to a mains socket fitted with an efficient earth complying with current safety standards.
Do not use extension leads or multiple plug adapters to connect the appliance to the mains supply.
▼ Do not expose the appliance to atmospheric agents.
When servicing or cleaning the appliance, remember to disconnect it from the mains supply.
Do not pull the power supply cable to unplug the appliance from the mains supply. Pull the plug only.
This appliance is marked as complying with European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). Make sure that the product is disposed of in a correct manner. The user is obliged to contribute towards preventing any negative consequences for health and the environment.

The symbol affi xed to the product or accompanying documents signifi es that the product must not be treated as normal domestic refuse, but must be delivered to an authorised collection centre to enable the electric and electronic equipment to be recycled.

When disposing of the appliance, comply with local waste disposal regulations.

For further information on the treatment, recovery and recycling of this product, refer to the appropriate offi ces, local domestic waste collection service or the retailer from where the appliance was purchased.

Warning!!! Surfaces on which this symbol appears may heat up during normal operation.

THE MANUFACTURER WILL NOT BE HELD RESPONSIBLE FOR ANY INCIDENTS RESULTING FROM NON-COMPLIANCE WITH SAFETY STANDARDS OR THE REQUIREMENTS OF THIS INSTRUCTION BOOK.

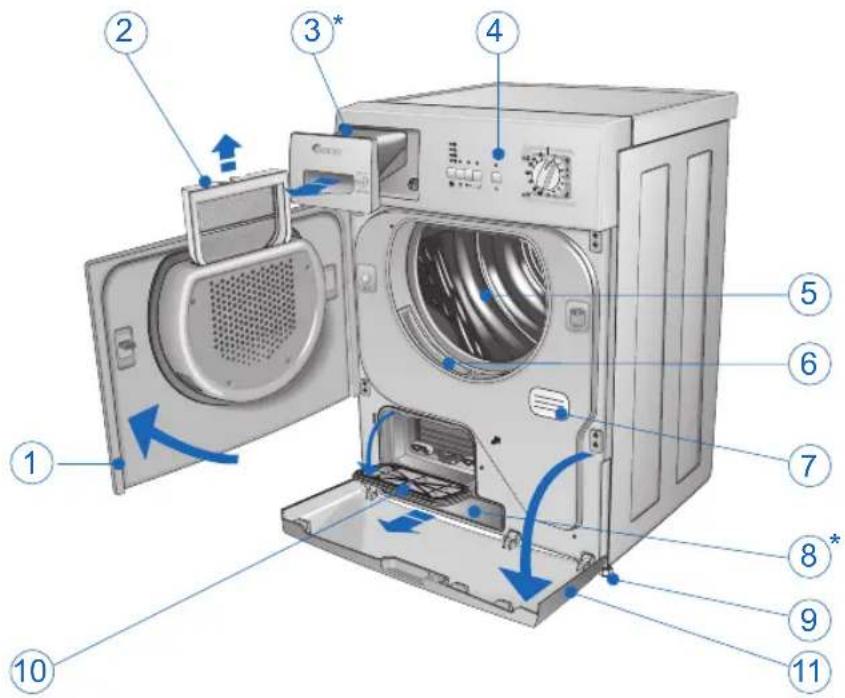

DESCRIPTION OF THE APPLIANCE

1 Drum door.
2 Drum door filter.
3 Upper condensation water reservoir*. (The condensation is collected in this reservoir when the condensation drain hose is not connected directly to the drainage system).
4 Control panel.
5 Drier drum.

6 Drum mouth fi Iter.
7 Rating plate.
8 Lower condensation water reservoir*.
9 Adjustable feet
10 Condenser door.
11 Lower door.

* according to model

Diagram of a washing machine with numbered parts and directional arrows indicating internal components

OPTIONAL ACCESSORIES

The retailer can provide an accessory to enable the drier to be mounted on top of a front - loading washing machine, thus saving space. The installer will inform you of the appliance model for which this option is possible.

INSTALLING THE APPLIANCE

INSTALLATION

3D rendering of a mechanical ventilation unit with a circular vent and flanges (no text or symbols visible)

▼ Installation must be carried out by qualified personnel in line with the instructions supplied by the manufacturer. Incorrect installation may result in damage and/or injury.
▼ Do not install the drier in rooms subject to freezing temperatures. Freezing temperatures could damage the electronics.
▼ Position the drier in a well-ventilated room.

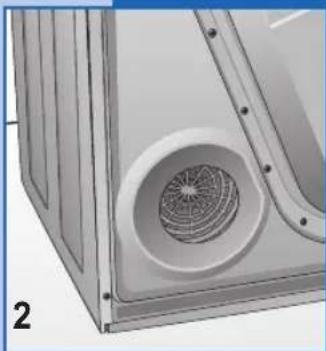

▼ Do not cover the ventilation hole on the back (fig. 2) and do not place the drier on thick carpet.
▼ Clean the inside of the drying drum using a damp cloth to remove any dust deposits.

LEVELLING THE DRIER

Adjustable feet. Place the drier upright so that it rests firmly on all four feet. Level the drier by adjusting the feet as follows:

▼ Lift the drier slightly.
▼ Adjust the feet to the correct height (fi g. 3).
▼ Lower the drier.

NB. A badly levelled appliance may cause damage to the bearings and lead to their premature wear. This drier does not need to be anchored to the floor.

Hand holding a door clip with blue directional arrows indicating rotation (no text or symbols)

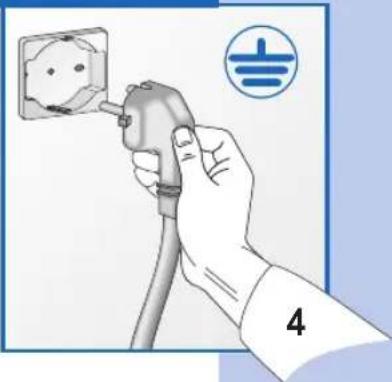

CONNECTING TO THE MAINS SUPPLY

▼ Make sure that the voltage indicated on the identification plate attached to the back of the appliance corresponds to that of the mains supply.
All cut-outs, electric wiring and mains sockets must have a rating such that enables them to support the maximum load indicated on the identification plate.
▼ Once the appliance has been installed, it must be connected to the mains supply through a single-pole switch.
The mains supply to which the appliance is connected must be fitted with an earthing system. If this is not the case, the manufacturer will not be held liable for any incidents that may occur (fi g. 4).
If the power supply cable is damaged in any way, contact the appropriate specialised customer technical service centre.
The drier must not be connected to the mains supply using indirect methods such as extension leads or multiple adapters.
▼ Position the appliance so that the power supply cable is easily accessible for disconnection when the need arises.

Hand holding a plug inserted into an electrical socket, with a symbol (no text or labels)

Important: On completion of the drying cycle, disconnect the appliance from the mains supply to prevent young children from operating the drier.

The condensation can be collected in the reservoir (fi g. 10) or, alternatively, the hose can be connected directly to the drainage system.

In this case, the collected water is pumped out.

To connect the condensation hose directly to the drainage system, proceed as follows:

Before starting any operations, unplug the appliance from the mains socket.

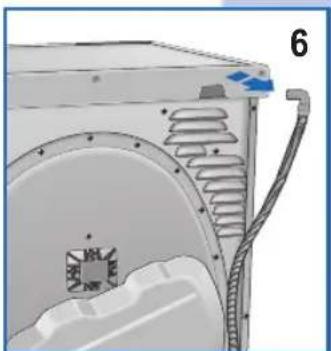

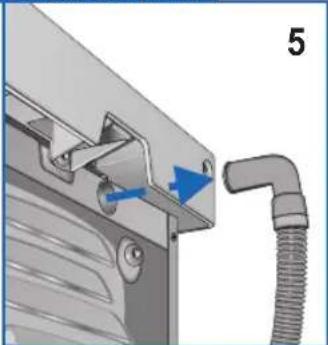

Extract the hose on the back of the appliance by pulling it from its housing, (fig. 5/6) and insert it in the waste water pipe.

Mechanical assembly diagram showing a lever handle and pipe connection (no text or symbols)

Technical illustration of a mechanical component with internal channels and a blue arrow indicating direction (no text or symbols)

OPENING THE DOOR AND CHANGING THE OPENING DIRECTION

Illustration of a hand pressing down on a device panel with blue arrows indicating force or movement (no text or symbols)

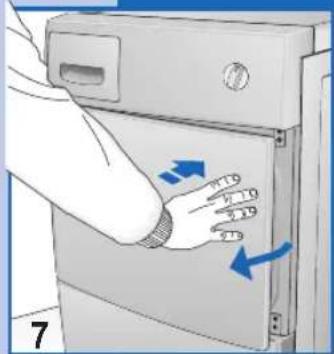

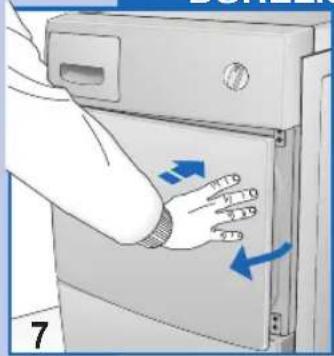

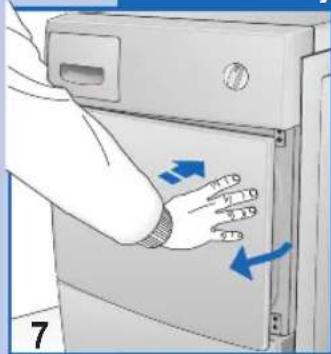

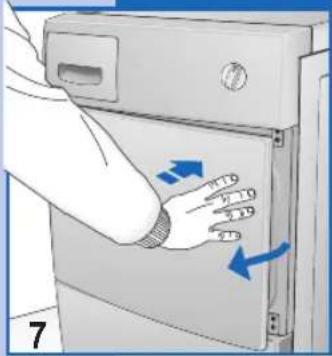

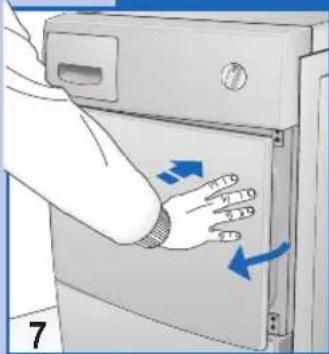

▼ Press the right side of the door (fig. 7) to open it. If the door has been reversed, press the left side.

Diagram of a washing machine with blue tubing connecting the door to a fan (no text or symbols)

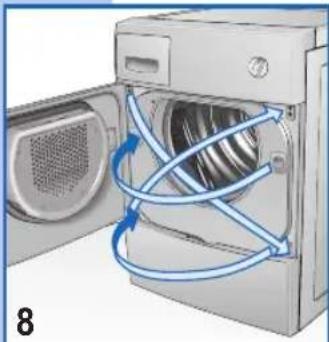

▼ The direction of the drum door opening can be modified according to needs (fig. 8).

- N.B.: This operation must only be carried out by a qualified technician. Contact the customer service centre.

USING THE DRIER

PRECAUTIONS FOR FABRIC TYPES

In the case of doubt as to the type of fabric, read the label on the item itself.

Almost all items that can be machine dried have this information specified on the label.

To avoid static electricity being generated in the items, add a conditioner to the rinse cycle of the washing machine.

Remove synthetic materials from the drum immediately to prevent them from creasing.

RECOMMENDATIONS PRIOR TO DRYING

SORTING THE WASHING

Before drying the washing, spin it at the recommended rpm for the type of load. Spinning at maximum rpm will result in up to a 35% saving in energy. The higher the spin speed, the better the drying result. Using a softener in the wash cycle will improve drying and save time. Before drying the washing in the drier, check the items to make sure they can be machine dried. Refer to the clothing care symbols on the labels.

If the label has no drying symbol, proceed as follows:

▼ White/coloured washing and crease-proof washing can be dried at normal temperature using the appropriate drying programme.
▼ Delicate washing, acrylics for example, must always be dried at low temperature.

General advice:

Jersey often shrinks, not only in the wash but also during drying.

Pure linen.

▼ Only dry garments with specific drying instructions on label, otherwise, the fabric could roughen.
In order to avoid staining, never dry dark coloured washing together with light coloured washing.

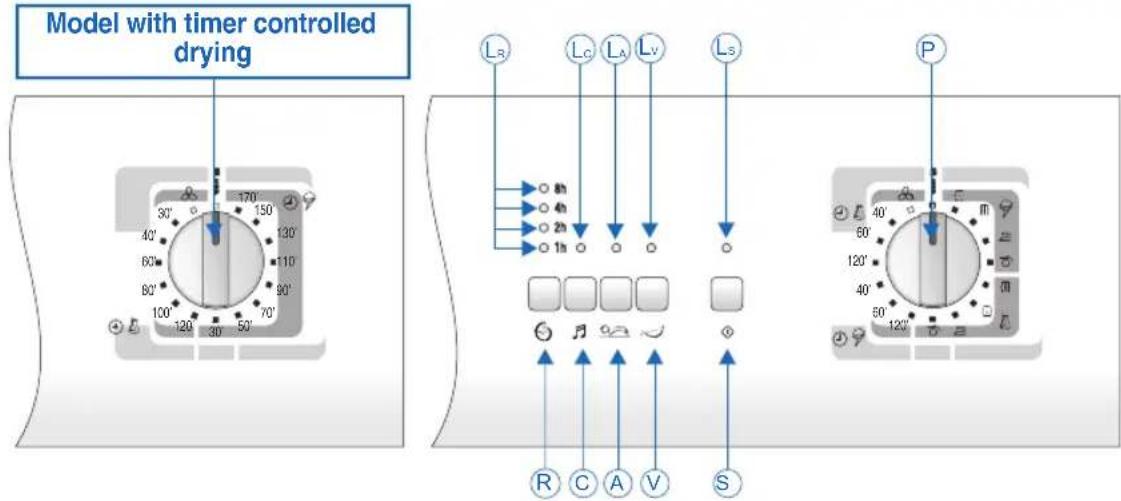

DESCRIPTION OF THE CONTROL PANEL.

Model with timer controlled drying L_R L_C L_A L_V L_S P R C A V S

9

P. Programmer knob. Used to select the required programmes according to the types of fabrics and their specific needs. If, for any reason, you want to change the programme or add more washing to the load during the drying cycle, simply place the programmer knob in the "STOP" position. Then re-position the knob on the required program and press the "START" button.

NB. Warning!! Only use this function if strictly necessary and then only if the programme to reset has been running for less than 3 minutes.

S. Start Button. Press this button to start the programmed drying cycle.

Ls. Start Led. Off indicates the "STOP" position. On fi xed indicates the cycle is running. Fast fl ashing indicates the set programme is ready to start. Slow fl ashing indicates the end of the drying programme.

V. Water reservoir alarm reset button. Used to restart the cycle after the condensation water reservoir has been emptied (fi g. 11)

Lv. Reservoir full alarm Led. A flashing light indicates that the reservoir is full and needs to be emptied (the drying cycle stops). After the container has been replaced, a fixed light indicates that the function is restarting. Light off indicates that the alarm has been reset (the cycle restarts).

A. Anti-crease button. Activates a function that, at the end of the drying cycle, rotates the drum and the washing loaded in it in one direction then in the other for a further sixty minutes to reduce

creasing. Each rotation is signalled by a short beep.

LA. Anti-crease Led. Off indicates that the function has been disabled. A fi xed light indicates that the anti-crease function is active. A fl ashing light indicates that the function is running. When the drying cycle is over, the start Led will also light up and fl ash slowly.

C. Beep silencer button. Disables the beep function, which would otherwise be permanently enabled.

Lc. Beeper Led. Off indicates that the beeper is enabled, on indicates that the beeper is disabled (the selection remains memorised even when the appliance is switched off).

R. Delayed start button. Used to delay drier start-up for up to a maximum of 8 hours. The delay in hours can be selected as follows: each time the button is pressed, the drying cycle is delayed 1, 2, 4 and 8 hours. When the START button is pressed, the selected led will fl ash signalling that the function has been activated. The machine will wait for the number of hours set to elapse and then start the drying cycle automatically.

If the power supply is interrupted while the delayed start function is active, the function itself will be annulled. Pressing the start button will start the drying cycle immediately.

LR. Delayed start Leds. These light up one at a time. A fixed light indicates the set time delay. A flashing led indicates that the delayed time function has been activated. The led switches off when the set time delay has elapsed.

PROGRAMME TABLE

ELECTRONIC DAMPNESS CONTROL PROGRAMMES

Resistant	Max 7.0 kg.	Extra dry	Wardrobe dry	Iron damp	Very damp
Delicates	Max 3.5 kg.

TIMED PROGRAMMES

Resistant	Max 7.0 kg.	min. 120 - 60	min. 120 - 60	min. 60 - 40	min. 60 - 40
Delicates	Max 3.5 kg.

20 min.

PROGRAMMES FOR DRIERS WITH TIMED DRYING CONTROL

Fabric type\Damp +/-	Extra dry	Wardrobe dry	Iron damp	Very damp
Max 7.0 kg.	*170 min.**150 min.	*150 min.**130 min.	*130 min.** 110 min.	* 110 min.** 90 min.
Max 3.5 kg.	*130 min.** 110 min.	* 110 min.** 90 min.	* 90 min.** 70 min.	* 70 min.** 50 min.
Max 3.5 kg.	*120 min.** 100 min.	* 100 min.** 80 min.	* 80 min.** 60 min.	———
20 min.

* Drying time necessary after spinning at 800 rpm.
** Drying time necessary after spinning at 1000 rpm.

HOW TO DRY

1) Load the washing in the drum and close the door.
2) With dry hands, insert the plug in the mains socket.
3) Position the programmer knob on Stop to reset any previous programmes, then rotate it to the ideal programme for the type of fabric, the amount loaded in the drum and the required degree of drying (see Programme Table).
4) Select the required options by pressing the appropriate buttons.

5) Press the START button to start the drying cycle.
6) The end of the drying cycle is signalled by the fl ashing start led and beeper. At this point, return the selector to the STOP position.
7) Open the drum door and remove the washing.
8) Re-close the door.
9) With dry hands, remove the plug from the mains socket.

MAINTENANCE

INTERNAL LIGHT (AVAILABLE ACCORDING TO MODEL)

Diagram of a washing machine with blue arrows indicating air circulation or motion, no text or symbols present

The drier is fitted with an internal light.

To replace the bulb, proceed as follows:

▼ Remove the plug from the mains socket or switch off the main power supply;
▼ Remove the lamp cover.
▼ Remove the bulb (fi g. 10).
▼ Warning: Do not use bulbs of rating higher than 15 W!
▼ Replace the lamp cover.

DRAINING THE CONDENSATION WATER RESERVOIR

If the condensation drain hose is not connected directly to the drainage system, the condensation is collected in the reservoir (fi g. 11). The reservoir must be emptied after each drying cycle.

To empty the reservoir, proceed as follows:

▼ Remove the reservoir from the drier (Fig. 11).

▼ Empty the reservoir. The drain hole is located on the top right (fig. 12).
▼ After emptying, replace the container in its housing making sure it is properly seated.
If the reservoir is not emptied or it fills up excessively during a drying cycle, the condensation reservoir warning light will flash and the drier will stop. If this happens, proceed as described above.
▼ To restart the programme, press the reservoir alarm reset button (V) (fig. 9).

Hand placing a component into a machine component, no visible text or symbols

Illustration of a mechanical assembly with hands holding a bracket and a numbered label '12' (no text or symbols on the diagram itself)

CLEANING AND MAINTENANCE

Disconnect the drier from the mains supply before cleaning. It is important to clean the drier after each drying cycle in order to save in drying time and consequently save energy.

1. Door fl uff fi lter (fi g. 13).

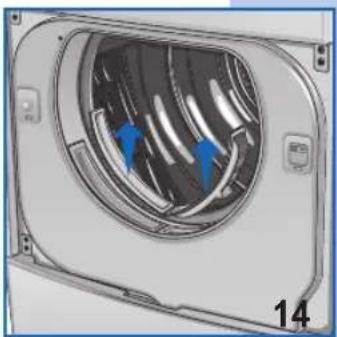

2. Fluff filter in the loading aperture (fig. 14).
3. Condenser (fi g. 15).
   ▼ Remove the filter by pulling upwards and then clean it (fig. 13).

It is also possible to remove the two fluff filters from the door opening and clean them (fi g. 14).

NB. The presence of fl uff in the fi lter is not the result of the drying procedure. The fl uff comes from the fi bres of fabrics damaged or unthreaded during the wash and, above all, as a result of wear.

The filters can be cleaned by simply placing them under hot running water.

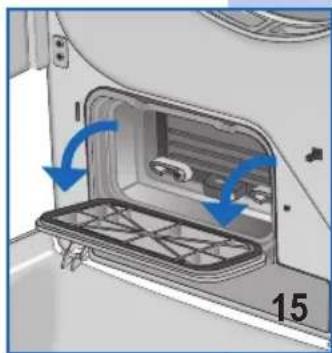

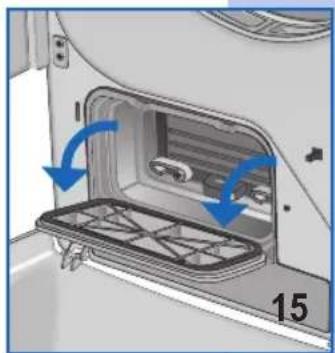

▼ The condenser should be cleaned two or three times a year (fig. 15/18).
▼ Open the door, rotate the lever to the vertical position and remove the cover (fig. 15).

Diagram of a device interior with a blue arrow indicating upward motion (no text or symbols)

Diagram of a mechanical component with internal airflow or heat exchange, showing blue arrows indicating direction (no text or symbols)

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

CLEANING AND MAINTENANCE

Interior view of a vehicle air conditioner unit with blue directional arrow indicating airflow (no text or symbols)

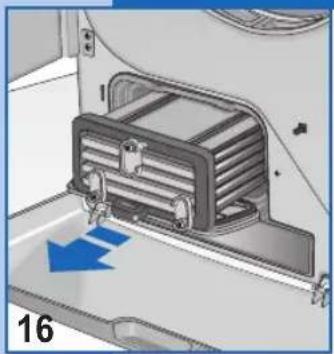

▼ Rotate the 3 levers to the vertical position and remove the condenser (fig. 16).

Illustration of a hand holding a handheld device next to a cylindrical device with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying a hairdryer onto a rack with blue arrows indicating motion (no text or symbols)

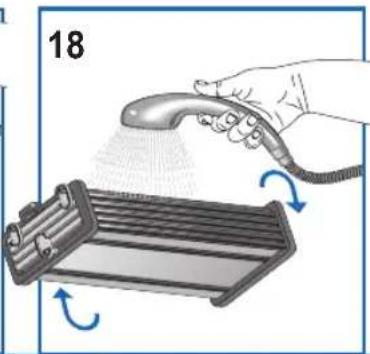

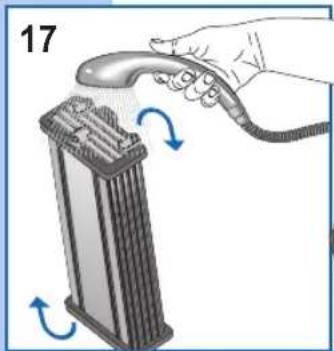

▼ Wash the front, back and sides of the condenser, aiming the jet of water as shown (fi g.17/18).

To dry the condenser thoroughly, place it on its side on a towel.

When the condenser is dry, replace it following the same procedure in reverse order.

TROUBLESHOOTING

All electric appliances may break-down at some time.

Remember to call a qualified technician in these cases. However, many problems can be resolved without the need for external intervention.

Important: If a fault occurs, disconnect the appliance from the mains supply immediately.

Before calling the customer service centre, check the points listed below.

RESOLVING PROBLEMS

If the drier doesn't start

- Check that:

1) The appliance is plugged into the mains supply.

2) The mains socket is working correctly: 2a) The fuse has not blown. (Check by plugging in another appliance such as a table lamp and see if that works)

2b) All the instructions in the manual have been followed.

If the drier doesn't start

- Check that:

1) The door is closed properly

2) The start button has been pressed.

The washing does not dry

- Check that:

1) The air exhaust aperture is not blocked.

2) The filter is not blocked. (Remember that when the door is opened, the internal parts of the drier and the washing may be very hot).

If, after all these checks have been carried out, the appliance still does not work, inform the nearest customer service centre. When contacting the service centre, inform them of the appliance model, serial number and type of fault. This information will help the service centre operator in procuring the necessary spare parts, thus guaranteeing a speedy and efficient repair.

Verehrter Kunde,

Diagram of a washing machine with numbered parts and directional arrows indicating internal components

OPTIONALES ZUBEHÖR

3D rendering of a mechanical ventilation unit with a circular vent and flanges (no text or symbols visible)

Illustration of a hand holding a small object near a cabinet, with blue arrows indicating rotation or movement (no text or symbols)

Hand holding a plug inserted into an electrical socket, with a symbol (no text or labels)

Mechanical assembly diagram showing a pipe connection with a blue arrow indicating direction (no text or symbols)

Technical diagram of a mechanical component with internal channels and a labeled part (6), no readable text or symbols present.

Illustration of a hand pressing down on a device panel with blue arrows indicating motion (no text or symbols)

Illustration of a washing machine with blue tubing connecting its door to the interior (no text or symbols)

Diagram of a washing machine with blue arrows indicating clockwise motion (no text or symbols)

Hand placing a component into a machine (no text or symbols visible)

Illustration of a mechanical assembly with hands holding a bracket and a numbered label '12' (no text or symbols on the diagram itself)

Diagram of a device with a blue arrow pointing to a component, no text or symbols present

Diagram of a mechanical component with internal airflow or heat exchange, showing blue arrows indicating direction (no text or symbols)

Interior view of a car showing a door, vent, and rack with blue arrows indicating direction (no text or symbols)

Interior view of a vehicle air conditioner unit with blue directional arrow indicating airflow (no text or symbols)

Illustration of a hand holding a handheld device next to a cylindrical device with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying water onto a rack with arrows indicating motion (no text or symbols)

Diagram of a washing machine with numbered parts and directional arrows indicating internal components

ACCESSOIRES EN OPTION

3D rendering of a mechanical ventilation unit with a circular vent and flanges (no text or symbols visible)

Illustration of a hand holding a small object near a door, with blue curved arrows indicating rotation or movement (no text or symbols)

BRANCHEMENT À L'INSTALLATION ÉLECTRIQUE

Illustration of a hand holding an electrical outlet plug with a symbol (no text or labels)

Mechanical assembly diagram showing a pipe connection with a blue arrow indicating direction (no text or symbols)

Technical illustration of a mechanical component with internal channels and a labeled part (6), no readable text or symbols present.

OUVERTURE ET MODIFICATION DU SENS D'OUVERTURE DE LA PORTE

Illustration of a hand pressing down on a device panel with blue arrows indicating force or movement (no text or symbols)

Diagram of a washing machine with blue tubing connecting internal components (no text or symbols)

Illustration of a washing machine with blue arrows indicating circulation or rotation (no text or symbols)

Hand pressing a button on a device component (no visible text or symbols)

Mechanical assembly diagram showing a metal bracket with mounting holes and a numbered label (12), no readable text or symbols present.

NETTOYAGE ET ENTRETIEN

Diagram of a device interior with a blue arrow indicating upward motion (no text or symbols)

3D rendering of a mechanical component with internal blades and blue arrows indicating direction (no text or symbols)

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

NETTOYAGE ET ENTRETIEN

Interior view of a vehicle air conditioner unit with blue directional arrow indicating airflow or movement (no text or symbols)

Illustration of a hand holding a handheld device next to a battery stack with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying a hairdryer onto a rack with blue motion arrows indicating rotation (no text or symbols)

Labeled diagram of a washing machine showing internal components and directional arrows indicating flow or movement.

Close-up of a white industrial air duct with a circular vent and ventilation grille (no text or symbols visible)

Illustration of a hand holding a small object near a cabinet, with blue arrows indicating rotation or movement (no text or symbols)

Hand holding a plug with an electrical socket, symbolizing electrical power or appliance (no text or symbols present)

Mechanical assembly diagram showing a pipe connection with a blue arrow indicating direction (no text or symbols)

Technical illustration of a mechanical component with internal channels and a blue arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a door panel with blue arrows indicating clockwise motion (no text or symbols)

Illustration of a washing machine with blue tubing connecting its internal components (no text or symbols)

Diagram of a washing machine with blue arrows indicating air circulation or cooling system (no text or symbols)

Hand pressing a button on a device component (no visible text or symbols)

Illustration of a mechanical assembly with hands installing components (no text or symbols visible)

LIMPIEZA Y MANTENIMIENTO

Diagram of a device interior with a blue arrow indicating upward motion (no text or symbols)

Diagram of a mechanical component with blue arrows indicating direction, no visible text or symbols

Interior view of a car showing a door opening with a tray and blue arrows indicating direction (no text or symbols)

LIMPIEZA Y MANTENIMIENTO

Interior view of a vehicle air conditioner unit with blue directional arrow indicating airflow or movement (no text or symbols)

Illustration of a hand using a handheld tool to press down a cylindrical device with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying a spray onto a rack with blue arrows indicating rotation (no text or symbols)

Labeled diagram of a washing machine showing internal components and directional arrows indicating flow or movement.

ACESSÓRIOS DE OPÇÃO

Close-up of a white industrial air duct with a circular vent and ventilation grille (no text or symbols visible)

Hand holding a tool near a cabinet, with blue arrows indicating rotation or movement (no text or symbols)

Hand holding a plug inserted into an electrical socket, with a blue symbol and number 4 visible (no text or symbols on the plug itself)

Mechanical assembly diagram showing a pipe connection with a blue arrow indicating direction (no text or symbols)

Technical diagram of a mechanical component with internal channels and a blue arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a device panel with blue arrows indicating force or movement (no text or symbols)

Diagram of a washing machine with blue tubing connecting its door to the front panel (no text or symbols)

Lₗ L₀ L₁ L₂ L₃ 8h 4h 2h 1h P R C A V S 60' 120' 40' 50' 120'

9

Diagram of a washing machine with blue arrows indicating clockwise motion (no text or symbols)

Hand placing a button into a device component (no visible text or symbols)

Illustration of a mechanical assembly with hands holding a bracket and a numbered label '12' (no text or symbols on the diagram itself)

Diagram of a device with a blue arrow pointing to a component, no text or symbols present

3D rendering of a mechanical component with internal blades and blue arrows indicating direction (no text or symbols)

Interior view of a car showing a door opening with blue arrows indicating clockwise motion (no text or symbols)

Interior view of a vehicle air conditioner unit with blue directional arrow indicating airflow or movement (no text or symbols)

Illustration of a hand using a handheld tool to press down a cylindrical device with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying a hairdryer onto a rack with motion arrows indicating rotation (no text or symbols)

ESCHRIJVING VAN HET APPARAAT 65

• Optionele accessoires 65

STALLATIE VAN DE MACHINE 65-67

• Installatie 65

BESCHRIJVING VAN HET APPARAAT

Labeled diagram of a washing machine showing internal components and parts with numbered annotations

OPTIONELE ACCESSOIRES

3D rendering of a white industrial air duct with a circular vent and ventilation slots (no text or symbols visible)

Illustration of a hand holding a small object near a cabinet, with blue arrows indicating rotation or movement (no text or symbols)

AANSLUITEN OP HET ELEKTRICITEITSNET

Hand holding a plug with an outlet socket, symbolizing electrical power or appliance (no text or symbols present)

Mechanical assembly diagram showing a pipe connection with a blue arrow indicating direction (no text or symbols)

Technical diagram of a mechanical component with internal channels and a labeled part (6), no readable text or symbols present.

OPENEN EN OMKEREN VAN DE DEUR

7

Illustration of a washing machine with blue tubing connecting its interior components (no text or symbols)

	Witte en bonte was	Max 7.0 kg.	Extra droog	Kastdroog	Strijkdroog Zeer vochtig
	Fijne was	Max 3.5 kg.

TIJDPROGRAMMA'S

	Witte en bonte was	Max 7.0 kg.	min. 120 - 60	min. 120 - 60	min. 60 - 40	min. 60 - 40
	Fijne was	Max 3.5 kg.

20 min.

PROGRAMMA'S VOOR TIJDGESTUURDE WASDROGER

Illustration of a washing machine with blue arrows indicating clockwise motion (no text or symbols)

Hand pressing a button on a device component (no text or symbols visible)

Illustration of a mechanical assembly with hands holding a bracket and a numbered label '12' (no text or symbols on the diagram itself)

REINIGING EN ONDERHOUD

Diagram of a device interior with a blue arrow indicating upward motion (no text or symbols)

Diagram of a device interior with blue arrows indicating flow or movement, labeled '14' at bottom (no text or symbols on diagram itself)

Interior view of a car showing a door panel with blue arrows indicating direction (no text or symbols)

REINIGING EN ONDERHOUD

Interior view of a vehicle air conditioner unit with blue directional arrow indicating airflow or movement (no text or symbols)

Illustration of a hand holding a handheld device next to a battery stack with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying a hairdryer onto a rack with blue motion arrows indicating rotation (no text or symbols)

Labeled diagram of a washing machine showing internal components and parts with numbered annotations

AKCESORIA OPCJONALNE

3D rendering of a white industrial fan or vent with a circular grille and mounting holes (no text or symbols visible)

Illustration of a hand holding a small object near a cabinet, with blue arrows indicating rotation or movement (no text or symbols)

Hand holding a plug inserted into an electrical socket, with a symbol and number 4 visible (no text or labels on the diagram itself)

Mechanical assembly diagram showing a pipe connection with a blue arrow indicating direction (no text or symbols)

Technical diagram of a mechanical component with internal channels and a labeled part (6), no readable text or symbols present.

ZMIANA KIERUNKU OTWIERANIA DRZWICZEK

Illustration of a hand pressing down on a device panel with blue arrows indicating force or movement (no text or symbols)

Illustration of a washing machine with blue cables connecting internal components (no text or symbols)

Diagram of a washing machine with blue arrows indicating internal components (no text or symbols)

Hand placing a button into a device component (no visible text or symbols)

Illustration of a hand holding a metal bracket with mounting holes, labeled '12' (no text or symbols on the diagram itself)

CZYSZCZENIE I KONSERWACJA

Diagram of a device with a blue arrow pointing upward, showing a mesh component and ventilation grille (no text or symbols)

3D rendering of a mechanical component with internal fan-like structure and blue arrows indicating direction (no text or symbols)

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

CZYSZCZENIE I KONSERWACJA

Interior view of a vehicle air conditioner unit with blue directional arrow indicating airflow (no text or symbols)

Illustration of a hand holding a handheld device next to a cylindrical device with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying water onto a rack with arrows indicating motion (no text or symbols)

Labeled diagram of a washing machine showing internal components and directional arrows indicating movement or flow.

VOLITELNÉ PŘÍSLUŠENSTVÍ

3D rendering of a white industrial air duct with a circular vent and ventilation slots (no text or symbols visible)

Illustration of a hand holding a small object near a cabinet, with blue arrows indicating rotation or movement (no text or symbols)

PŘIPOJENÍ K ELEKTRICKÉMU SYSTÉMU

Illustration of a hand holding an electrical outlet with a medical cross symbol (no text or labels)

Mechanical assembly diagram showing a pipe connection with a blue arrow indicating direction (no text or symbols)

Technical diagram of a mechanical component with internal channels and a labeled part (6), no readable text or symbols present.

OTVÍRÁNÍ A ZMĚNA OTVÍRÁNÍ DVÍŘEK

Illustration of a hand pressing down on a device panel with blue arrows indicating force or movement (no text or symbols)

Diagram of a washing machine with blue tubing connecting the door and fan (no text or symbols)

Diagram of a washing machine with blue arrows indicating clockwise motion (no text or symbols)

Hand placing a button into a device component (no visible text or symbols)

Illustration of a mechanical assembly with hands holding a bracket and a numbered label '12' (no text or symbols on the diagram itself)

ČIŠTĚNÍ A ÚDRŽBA

Diagram of a device with a blue upward arrow pointing to a component, no text or symbols present

Diagram of a device interior with blue arrows indicating flow or movement, labeled '14' at bottom (no text or symbols on diagram itself)

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

ČIŠTĚNÍ A ÚDRŽBA

Interior view of a vehicle air conditioner unit with blue directional arrow indicating airflow or movement (no text or symbols)

Illustration of a hand holding a tool next to a cylindrical device with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying a hairdryer onto a rack with motion arrows indicating rotation (no text or symbols)

Labeled diagram of a washing machine showing internal components and parts with numbered annotations

DOPLNKOVÉ PRÍSLUŠENSTVO

3D rendering of a white industrial fan or vent with a circular grille and mounting holes (no text or symbols visible)

Illustration of a hand holding a tool near a kitchen appliance, with blue arrows indicating rotation (no text or symbols)

ZAPOJENIE K ELEKTRICKEJ SIETI

Hand holding a plug inserted into an electrical socket, with a blue circular symbol and number 4 visible (no text or symbols on the plug itself)

Mechanical assembly diagram showing a pipe connection with a blue arrow indicating direction (no text or symbols)

Technical diagram of a mechanical component with internal channels and a blue arrow indicating direction (no text or symbols)

ZMENA ROTÁCIE DVERÍ

7 10 10 10 10

Diagram of a washing machine with blue tubing connecting internal components (no text or symbols)

Diagram of a washing machine with blue arrows indicating airflow or circulation (no text or symbols)

Hand placing a button into a device component (no visible text or symbols)

Illustration of a mechanical assembly with hands holding a bracket and a numbered label '12' (no text or symbols on the diagram itself)

ČISTENIE A ÚDRŽBA

Diagram of a device with a blue arrow pointing upward, showing a component with no visible text or symbols.

3D rendering of a mechanical component with internal fan-like structure and blue arrows indicating direction (no text or symbols)

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

ČISTENIE A ÚDRŽBA

Interior view of a vehicle air conditioner unit with blue directional arrow indicating airflow or movement (no text or symbols)

Illustration of a hand holding a handheld device next to a cylindrical device with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying water onto a rack with arrows indicating motion (no text or symbols)

Labeled diagram of a washing machine showing internal components and directional arrows indicating movement or flow.

VÁLASZTHATÓ TARTOZÉKOK

3D rendering of a white industrial fan or vent with a circular vent and ventilation grille (no text or symbols visible)

Illustration of a hand holding a small object with blue arrows indicating rotation or movement (no text or symbols)

CSATLAKOZTATÁS AZ ELEKTROMOS HÁLÓZATRA

Hand holding a plug with an electrical socket, symbolizing power or appliance (no text or symbols present)

Mechanical assembly diagram showing a pipe connection with a blue arrow indicating direction (no text or symbols)

Technical illustration of a mechanical component with internal channels and a blue arrow indicating direction (no text or symbols)

Diagram of a washing machine with blue tubing connecting the door and fan (no text or symbols)

Diagram of a washing machine with blue arrows indicating clockwise motion (no text or symbols)

Hand placing a component into a machine component (no visible text or symbols)

Illustration of a mechanical assembly with hands holding a bracket and a numbered label '12' (no text or symbols on the diagram itself)

Diagram of a device interior with a blue arrow indicating upward motion (no text or symbols)

3D rendering of a mechanical component with internal fan-like structure and blue arrows indicating direction (no text or symbols)

Interior view of a car showing a door, vent, and rack with blue arrows indicating direction (no text or symbols)

Interior view of a vehicle air conditioner unit with blue directional arrow indicating airflow or movement (no text or symbols)

Illustration of a hand holding a handheld device next to a cylindrical device with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying water onto a rack with arrows indicating motion (no text or symbols)

Labeled diagram of a washing machine showing internal components and directional arrows indicating movement or flow.

PASIRENKAMI PRIEDAI

3D rendering of a white industrial fan or vent with a circular grille and mounting holes (no text or symbols visible)

Illustration of a hand holding a small object with blue arrows indicating rotation or movement (no text or symbols)

JUNGIMAS | ELEKTROS TINKLA

Hand holding a plug inserted into an electrical socket, with a symbol (no text or labels)

Mechanical assembly diagram showing a pipe connection with a blue arrow indicating direction (no text or symbols)

Technical illustration of a mechanical component with internal channels and a blue arrow indicating direction (no text or symbols)

DURELIŲ ATIDARYMAS IR ATIDARYMO KRYPTIES KEITIMAS

7

Diagram of a washing machine with internal components and blue tubing, no text or symbols present

Lₗ Lc Lₐ Lv L₃ 8h 4h 2h 1h P 40' 60' 120' 40' 50' 120' R C A V S

9

Diagram of a washing machine with blue arrows indicating clockwise motion (no text or symbols)

Hand placing a component into a device, showing a blue arrow indicating motion (no text or symbols present)

Illustration of a mechanical assembly with hands installing components (no text or symbols visible)

VALYMAS IR TECHNINĖ PRIEŽIŪRA

Diagram of a device interior showing a ventilation grille and fan, with an upward arrow indicating direction (no text or symbols)

Diagram of a mechanical component with internal airflow or heat distribution arrows, labeled '14' (no text or symbols on the diagram itself)

Interior view of a vehicle showing a door panel with blue arrows indicating direction (no text or symbols)

VALYMAS IR TECHNINĖ PRIEŽIŪRA

Interior view of a vehicle air conditioner unit with blue directional arrow indicating airflow (no text or symbols)

Illustration of a hand holding a handheld device next to a cylindrical device with blue arrows indicating rotation (no text or symbols)

Illustration of a hand using a spray gun to dispense or spread material around a metal tray (no text or symbols)

Labeled diagram of a washing machine showing internal components and directional arrows indicating movement or flow.

Додатна опрема

3D rendering of a white industrial fan or vent with a circular grille and mounting holes (no text or symbols visible)

Illustration of a hand holding a tool near a refrigerator with blue directional arrows indicating rotation (no text or symbols)

Illustration of a hand holding an electrical outlet plug with a medical cross symbol (no text or labels)

Mechanical assembly diagram showing a pipe connection with a blue arrow indicating direction (no text or symbols)

Technical diagram of a mechanical component with internal channels and a labeled part (6), no readable text or symbols present.

Diagram of a washing machine with blue tubing connecting internal components (no text or symbols)

Lₗ L₀ L₁ L₂ L₃ 8h 4h 2h 1h P R C A V S 60' 120' 40' 50' 120'

9

Diagram of a washing machine with blue arrows indicating air circulation or mechanical components (no text or symbols)

Hand placing a button into a device component (no text or symbols visible)

Illustration of a mechanical assembly with hands holding a bracket and a numbered label '12' (no text or symbols on the diagram itself)

ЧИШЪЕЊЕ И ОДРЖАВАЊЕ

Diagram of a device with a blue arrow pointing to a component, no text or symbols present

3D rendering of a mechanical component with internal blades and blue arrows indicating direction (no text or symbols)

Interior view of a refrigerator showing the door, tray, and side panel with blue arrows indicating motion (no text or symbols)

ЧИШЪЕЊЕ И ОДРЖАВАЊЕ

Interior view of a vehicle air conditioner unit with blue directional arrow indicating airflow (no text or symbols)

Illustration of a hand holding a handheld device next to a cylindrical device with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying water onto a rack with arrows indicating motion (no text or symbols)

Labeled diagram of a washing machine showing numbered components and directional arrows indicating internal flow or movement.

ДОДАТКОВІ ПРИСТРОЇ

3D rendering of a white industrial air duct with a circular vent and ventilation slots (no text or symbols visible)

Illustration of a hand holding a tool near a refrigerator with blue directional arrows indicating rotation (no text or symbols)

Illustration of a hand holding an electrical outlet plug with a symbol (no text or labels)

Mechanical assembly diagram showing a pipe connection with a blue arrow indicating direction (no text or symbols)

Technical illustration of a mechanical component with internal channels and mounting features (no text or symbols)

Diagram showing hand pressing down on a device with blue directional arrows indicating force or movement

Diagram of a washing machine with blue tubing connecting internal components (no text or symbols)

Lₗ Lc Lₐ Lv L₃ 8h 4h 2h 1h P R C A V S 60' 120' 40' 50' 120'

9

Hand placing a button into a device component (no text or symbols visible)

Illustration of a mechanical assembly with a bracket and mounting holes (no text or symbols)

Diagram of a device interior with a blue arrow indicating upward motion (no text or symbols)

Diagram of a mechanical component with blue arrows indicating direction, labeled '14' at bottom (no text or symbols on the diagram itself)

Interior view of a vehicle showing a door opening with blue arrows indicating direction (no text or symbols)

Interior view of a vehicle air conditioner unit with blue directional arrow indicating airflow or movement (no text or symbols)

Illustration of a hand holding a handheld device next to a battery stack with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying a hairdryer onto a rack with motion arrows indicating rotation (no text or symbols)

Labeled diagram of a washing machine showing internal components and directional arrows indicating movement or flow.

ACCESORII OPTIONALE

3D rendering of a white industrial air duct with a circular vent and ventilation slots (no text or symbols visible)

Illustration of a hand holding a small object near a cabinet, with blue arrows indicating rotation or movement (no text or symbols)

BRANŞAREA LA INSTALATIA ELECTRICĂ

Hand holding a plug inserted into an electrical socket, with a symbol (no text or labels)

REGLAREA EVACUĂRII APEI DE CONDENS ÎNSPRE EXTERIOR

Mechanical assembly diagram showing a pipe connection with a blue arrow indicating direction (no text or symbols)

Technical diagram of a mechanical component with internal channels and a labeled part (6), no readable text or symbols present.

MODIFICAREA SENSULUI DE DESCHIDERE A UŞII

Illustration of a hand pressing down on a device panel with blue arrows indicating force or movement (no text or symbols)

Diagram of a washing machine with blue tubing connecting its internal components (no text or symbols)

PROGRAME PENTRU USCĂTOR CU CONTROLUL USCĂRII TEMPORIZAT

Illustration of a washing machine with blue arrows indicating airflow or circulation (no text or symbols)

Hand placing a button into a device component (no visible text or symbols)

Illustration of a hand holding a metal bracket with mounting holes (no text or symbols)

Diagram of a device interior with a blue arrow indicating upward motion (no text or symbols)

Diagram of a mechanical component with blue arrows indicating direction, labeled '14' at bottom (no text or symbols on the diagram itself)

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

Interior view of a vehicle air conditioner unit with blue directional arrow indicating airflow or movement (no text or symbols)

Illustration of a hand holding a handheld device next to a battery stack with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying a hairdryer onto a rack with motion arrows indicating rotation (no text or symbols)

Diagram of a washing machine with numbered parts and directional arrows indicating internal components

Close-up of a white industrial air duct with a circular vent and ventilation grille (no text or symbols visible)

Illustration of a hand holding a small object with blue directional arrows indicating rotation (no text or symbols)

Illustration of a hand holding an electrical outlet plug with a medical cross symbol (no text or labels)

Mechanical assembly diagram showing a valve mechanism with a blue arrow indicating direction (no text or symbols present)

Technical diagram of a mechanical component with internal channels and a blue arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a device panel with blue arrows indicating force or movement (no text or symbols)

Illustration of a washing machine with blue airflow lines indicating internal components (no text or symbols)

Lₗ Lc Lₐ Lv L₅ 8h 8h 8h 1h P 40' 60' 120' 40' 50' 120' R C A V S

9

Illustration of a washing machine with blue arrows indicating airflow or circulation (no text or symbols)

Hand placing a button into a device component (no text or symbols visible)

Illustration of a mechanical assembly with hands holding a bracket and a numbered label '12' (no text or symbols on the diagram itself)

Diagram of a device with a blue arrow pointing upward, showing a mesh component and panel (no text or symbols)

Diagram of a mechanical component with blue arrows indicating direction, labeled '14' at bottom (no text or symbols on the diagram itself)

Interior view of a car showing a door opening with blue arrows indicating direction (no text or symbols)

Interior view of a vehicle air conditioner unit with blue directional arrow indicating airflow or movement (no text or symbols)

Illustration of a hand holding a handheld device next to a cylindrical battery with blue arrows indicating rotation (no text or symbols)

Illustration of a hand spraying a hairdryer onto a rack with blue motion arrows (no text or symbols)
