Car Kit Easy HKP600 - Built-in kit SIEMENS - Free user manual and instructions

USER MANUAL Car Kit Easy HKP600 SIEMENS

Please read the operating instructions and the safety precautions carefully before use!

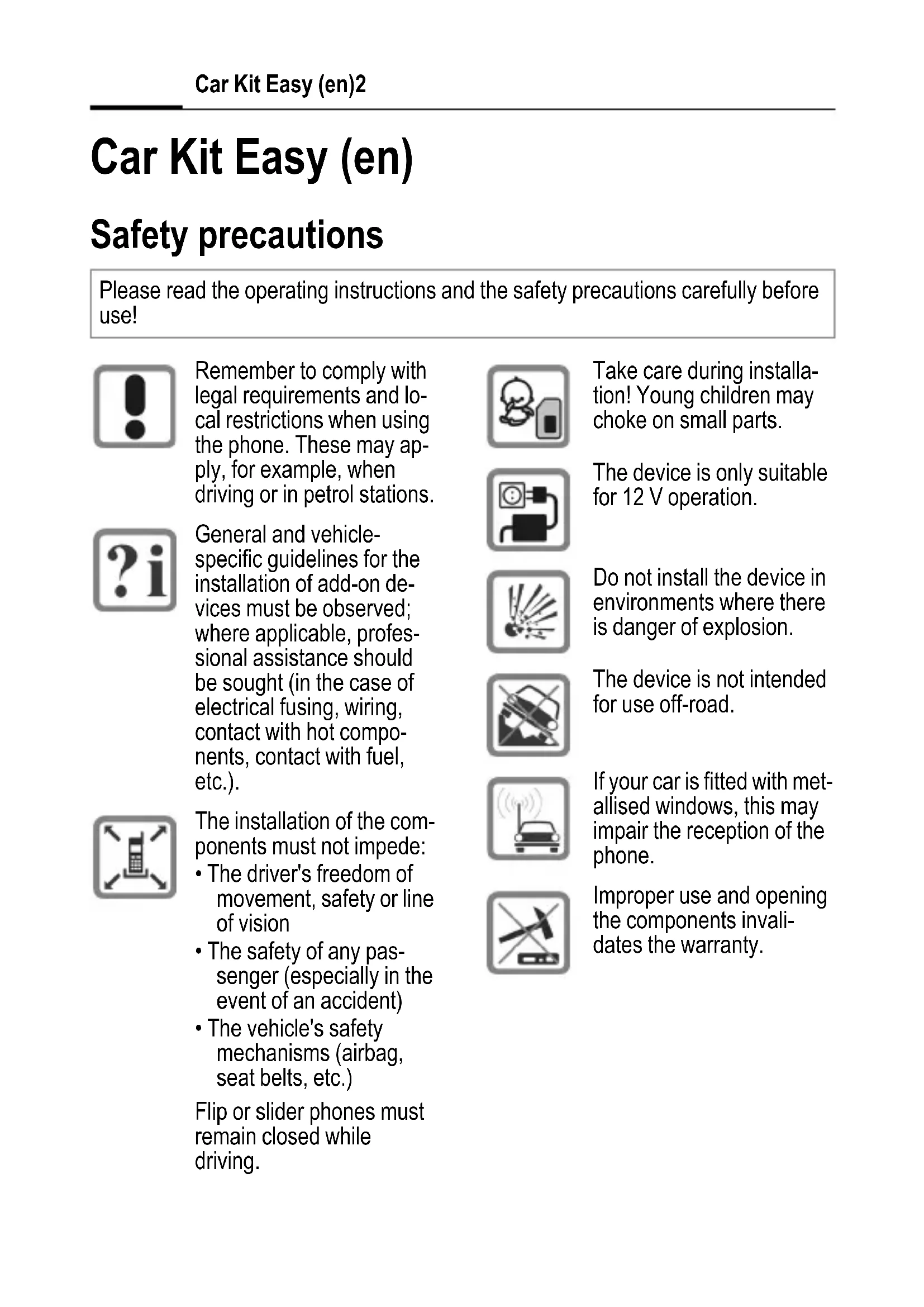

Remember to comply with legal requirements and local restrictions when using the phone. These may apply, for example, when driving or in petrol stations.

General and vehicle-specific guidelines for the installation of add-on devices must be observed; where applicable, professional assistance should be sought (in the case of electrical fusing, wiring, contact with hot components, contact with fuel, etc.).

The installation of the components must not impede:

The driver's freedom of movement, safety or line of vision
- The safety of any passenger (especially in the event of an accident)
- The vehicle's safety mechanisms (airbag, seat belts, etc.)

Flip or slider phones must remain closed while driving.

Take care during installation! Young children may choke on small parts.

The device is only suitable for 12V operation.

Do not install the device in environments where there is danger of explosion.

The device is not intended for use off-road.

If your car is fitted with metallised windows, this may impair the reception of the phone.

Improper use and opening the components invalidates the warranty.

Please note:

Please dispose of unwanted telephones and accessories in accordance with the relevant legislation.

Please remove all covers from the camera and from the pin and socket contacts before placing the phone in the holder. Otherwise the leads may be damaged (e.g. connector for mobile phone holder).

Only use Siemens original accessories. In this way you will avoid possible health risks and damage to the product and ensure compliance with the relevant provisions.

For further operating instructions, please refer to the operating instructions for your mobile phone.

Please observe the compatibility table on the packaging. Only the phones listed there fit optimally in the holders. If you put other phones in the holder, the phone may not click firmly into place or you may damage the phone or the holder.

The Car Kit Easy is referred to below as Car Kit.

It is suitable for use in 12V power sockets (cigarette lighter).

The scope of supply includes the Car Kit main module with cradle as well as a microphone with adjusting clips and adhesive pad (use is optional).

The Car Kit is suitable for use with Siemens mobile phones in accordance with the compatibility table on the packaging.

It may be necessary to replace the cradle in order to use your phone with the Car Kit. To do this, check the compatibility information on the rear of the holder.

Replacing the cradle

The Car Kit can be converted for using a different Siemens phonotype by replacing the cradle.

First release the microphone with the adjusting clips, if necessary, from the holder.

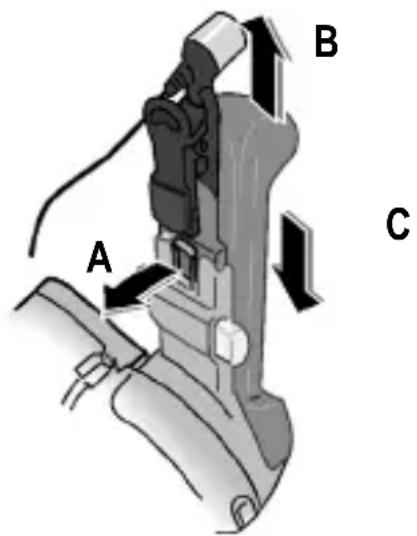

There is a clip on the rear of the cradle. Pull this gently (A) and then pull the cradle upwards (B).

Place the new cradle on the guide mechanism and push it down until it clicks into place (C).

Place the microphone with the adjusting clips on the holder, if appropriate.

Note

Do not mount or operate the Car Kit without the cradle. This would endanger functionality and safety.

Assembly

Main module

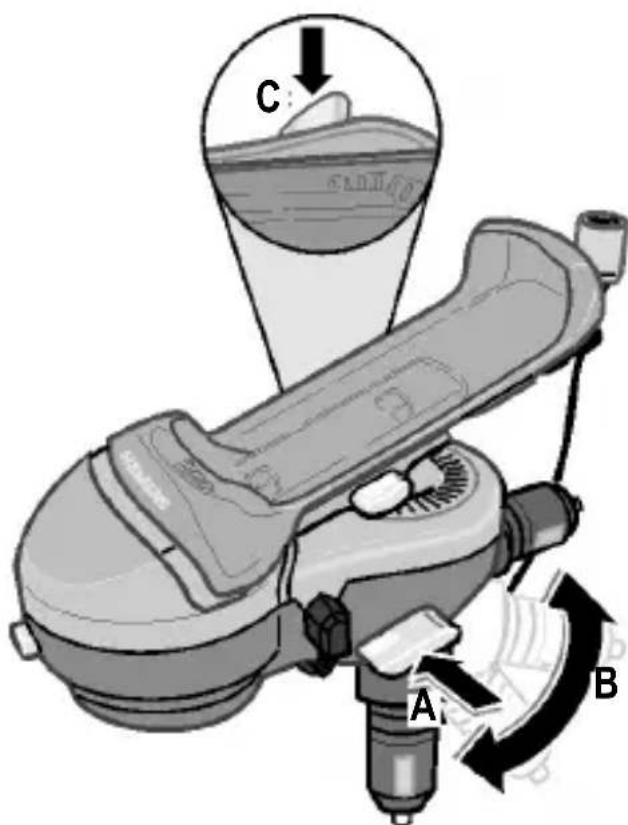

Release the locks on the main module. Press the release button () as shown in the picture, see (A).

Remove the cigarette lighter, if appropriate, and insert the connector for the Car Kit in the 12 V power socket.

Do not use any plug extensions or a plug adapter for assembly, as otherwise it cannot be guaranteed that the Car Kit will be held securely.

Twist or tilt the Car Kit into the desired position (B) (note the point of contact).

Now press the locking key in the direction indicated by the symbol () . The main module is now secured in place.

Cradle

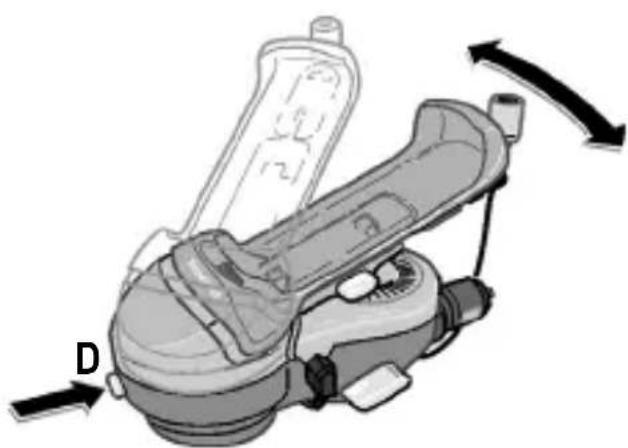

Now align the cradle. To do this, hold down the locking key (D).

Twist the cradle into the desired position (note the point of contact). Release the locking key.

Microphone

You can leave the microphone plugged into the main module.

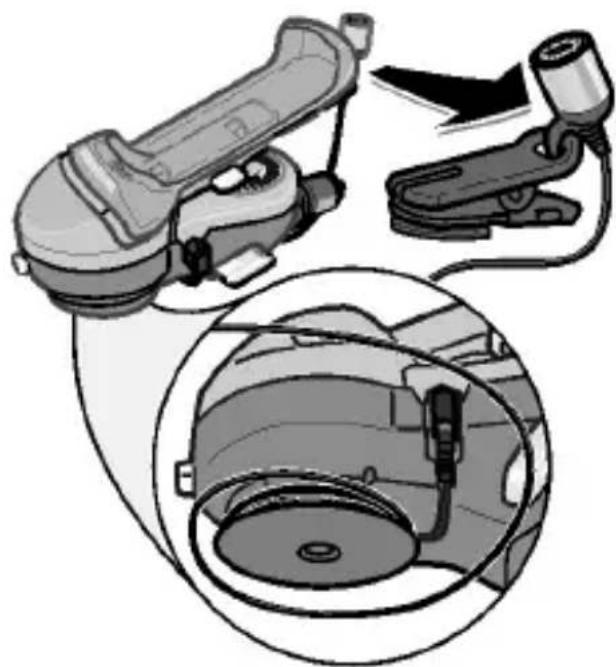

In order to ensure optimum voice quality, you can also clip the microphone onto your lapel, for example, using the adjusting clips or attach it to the dashboard with the adhesive pad.

A minimum distance of 60~cm is recommended between the microphone and loudspeaker.

To do this, unroll the microphone cable from the integrated cable holder.

Dismantling

You can dismantle the Car Kit at any time in order to use it, for example, in another vehicle.

Remove the phone (see instructions for removing the phone). Release the lock on the main module. Press the release key ( ). Now remove the Car Kit from the 12 V power socket.

Wind up the microphone cable into the cable holder if necessary.

Operating instructions

Inserting the mobile phone

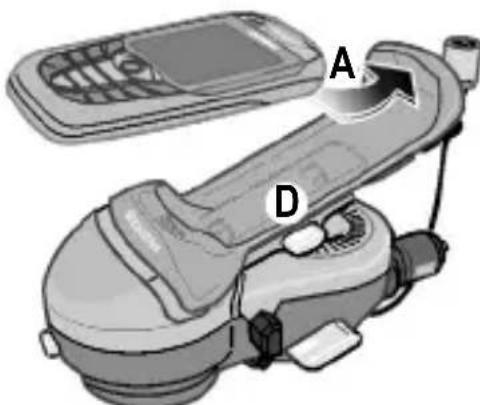

In order to ensure that the cradle is free, press the release keys (D) at the same time. Insert the phone into the upper end of the cradle (A).

Slider phones must remain closed while driving.

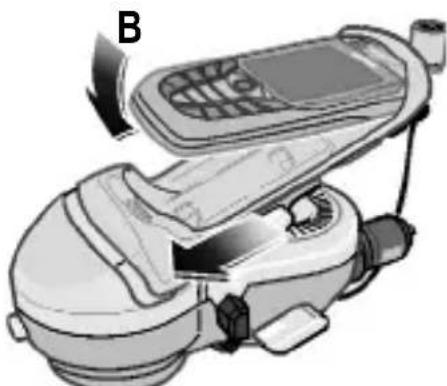

Then press the lower end of the phone into the cradle (B).

Push the cradle gently downward until it locks into place.

Removing the mobile phone

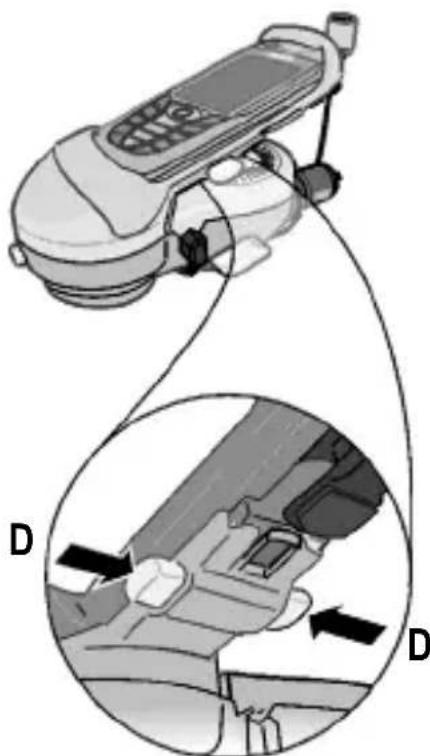

To remove the phone, press the release keys (D) on the cradle. The cradle extends upwards and releases the phone.

Activating the Car Kit

When the phone is switched off: Place the phone in the holder. The phone is activated automatically when the ignition is switched on and the PIN can be entered. The phone can also be switched on manually. The Car Kit is ready for use immediately.

When the phone is switched on: Place the phone in the holder. The Car Kit is ready for use immediately and the phone is charged.

You can now make and take calls in handsfree mode.

After a call has been established in handsfree mode, a short beep is generated via the Car Kit loudspeaker.

For information on other functions such as volume control, automatic call acceptance, call rejection, connection setup, end call, toggle, conference etc. please refer to the relevant sections of the operating instructions for your phone.

Slider phones in a Car Kit Easy are only intended for operation in a closed state with automatic call acceptance. Numbers must not be dialled while driving when the slider phone is open (see also P. 2).

Important settings on the phone

Your Siemens phone has several profiles. The profile Car Kit is automatically activated when the phone is placed in the Car Kit. You can adjust the profile of your phone. Please read the relevant sections of the operating instructions for your phone.

Troubleshooting

Your partner on the phone cannot hear you

• Microphone must be mounted laterally in the socket for the main module.

Automatic call acceptance does not work

• The function is not activated on the phone.

Loud background noise on called partner's terminal

• Do not install the microphone in the air flow of the sunroof, window or ventilation.

Poor voice and audio quality

• Increase the distance between the microphone and loudspeaker.
• Increase the volume of the phone.
• The distance from the microphone to the user's mouth should not exceed 80~cm .

Poor reception quality

If your car is filled windows, this may impair the reception of the phone.

Key lock does not work

• The key lock is automatically disabled when the phone is placed in the Car Kit.

Phone switches itself off

• See operating instructions for the phone.

Service phone numbers

See Customer Care, P. 122.

Technical data

Power supply 10.8 V to 16 V
Current input max. 1 A / max. 1 mA (idle current)
Operating temperature	-20 °C to +55 °C
Loudspeaker output power	max. 1.3 W

Maintenance

The product should be cleaned with a soft, slightly damp (not wet), cloth.

d with metal- Do not use cleaning agents, colourants or other chemical substances.

Accessories

• Replacement cradles

Products are available from specialist dealers or visitour online shop at:

In some countries repair and replace services are impossible where the products are not sold through our authorised dealers.
