USER MANUAL OTD 28111 OK

14_OTD2817_50320_V04

wae aeninocm

mm - mm - mm
mm - mm - mm
mm - mm - mm
mm - mm - mm

OTD 28111

KONDENSTROCKNER // CONDENSER DRYER

05 GROUBOURAMANISVUSIONS
10 GROUFOFFICEHETELE
12 USEMATERIALS 25
13 MARULALIS DE STRUTTORCENCO
14 MONGOLYKENTELI/77
15 FEGUCAKELIOLOKYOENKO

JANRADE LILLY DESTORO
SOFIA GORMACALA MANUEL O'BRIAN
SOFIA HUATAKHA ORBISI JOLI
JANRADE LILLY DESTORO
SOFIA GORMACALA MANUEL O'BRIAN
SOFIA HUATAKHA ORBISI JOLI

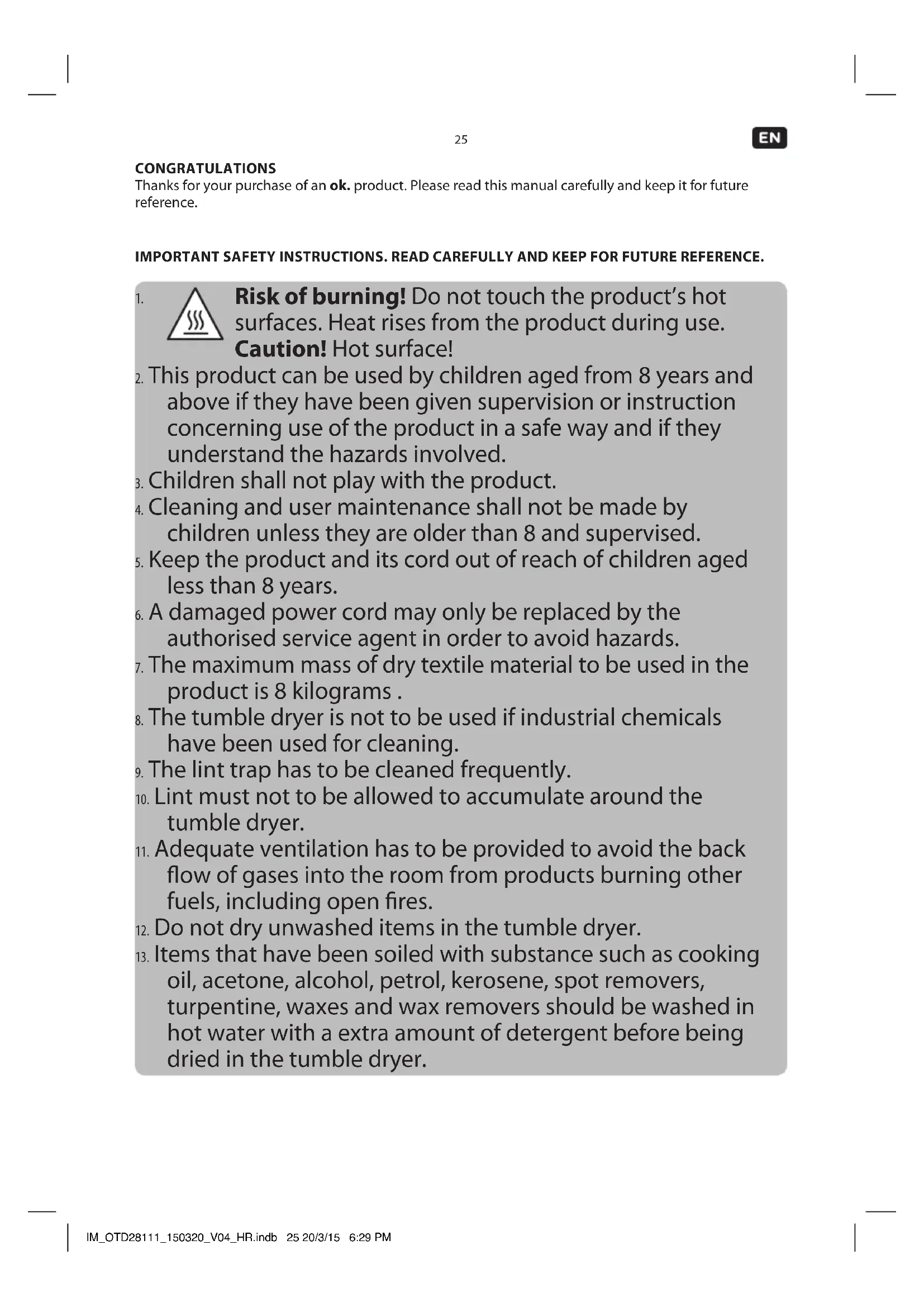

HERZLICHEN GLUCKWUNSCH!

Thanks for your purchase of an ok. product. Please read this manual carefully and keep it for future reference.

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Risk of burning! Do not touch the product's hot surfaces. Heat rises from the product during use. Caution! Hot surface!
2. This product can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the product in a safe way and if they understand the hazards involved.
Children shall not play with the product.
4. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
5. Keep the product and its cord out of reach of children aged less than 8 years.
6. A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
7. The maximum mass of dry textile material to be used in the product is 8 kilograms.
8. The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
9. The lint trap has to be cleaned frequently.
10. Lint must not to be allowed to accumulate around the tumble dryer.
11. Adequate ventilation has to be provided to avoid the back flow of gases into the room from products burning other fuels, including open fires.
12. Do not dry unwashed items in the tumble dryer.
13. Items that have been soiled with substance such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with a extra amount of detergent before being dried in the tumble dryer.

EN

26

1. Items such as foam rubber (latex form), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
2. Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
3. The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature the ensures that the items will not be damaged.
4. Remove all objects from pockets such as lighters and matches.
5. WARNING: never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
6. Children of less than 3 years should be kept away unless continuously supervised.
7. The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliance burning gas or other fuels.
8. The appliance must not be install behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer. In such a way that a full opening of the tumble dryer door is restricted.
9. For appliances with ventilation openings in the base, that a carpet must not obstruct the openings.
10. Follow the instructions in the chapter Cleaning and care.

11. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

12. Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.

13. Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
14. Never leave the product unsupervised while it is switched on.
15. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
16. Do not under any circumstances attempt (e.g. damage in power cord, product is dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
17. The mains voltage must match the information on the rating label of the product.
18. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
19. Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.
20. Only unplug from the power socket by the plug itself. Do not pull on the cord.

21. Unplug the product ..

22. when the product is not being used,
    -in case of malfunctions,

23. before attaching / detaching accessories and

24. before cleaning the product.

25. Use this product in dry indoor areas only and never outdoors.

26. Never use, expose or put the product near to:

27. direct sunlight and dust;

28. fire (fireplace, grill, candles), water (water splashes, vases, ponds, bath tube) or heavy moisture.

29. This product is not intended for commercial use. It is designed for household use only.

INTENDED USE

This product is designed for drying clothes and textiles. Any other use may result in damage to product or injuries. This product is designed for household use only and not intended for commercial use.

EN

28

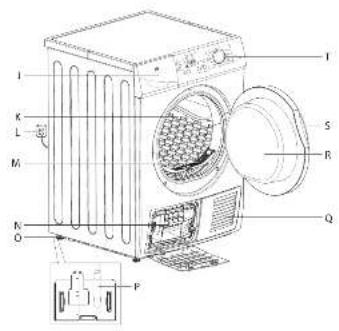

COMPONENTS

A. Program selection knob
B. Time button (Zeit)
C. Delay button (Startvorwahl)
D. Status indicator
E. Start/Pause button
F. Display
G. Anti Grease button (Knitterschutz)
H. Gentle button (Schonen)
1. On/Off button (Ein/Aus)
J. Condensation water tank
K.Drum
L. Power cable with plug
M. Lint filter
N. Service flap air condenser
O. Adjustable feet
P. Condensation water drainage connection
Q. Service flap air inlet
R. Door with window
S. Recessed grip
T. Operation panel

BEFORE FIRST TIME USE

• Remove the product and accessories from the original packaging carefully. For disposal of the original packaging, follow applicable legal requirements. If you have questions about correct disposal, contact your local authority.
• Check the package contents for completeness and damage. If the package content is incomplete or damages can be found, contact your place of purchase immediately.
  After unpacking clean the product, see chapter Cleaning and care.

INSTALLATION

Note: The tumble dryer is equipped with power cord and plug. Make sure before installation that the wall outlet is at the desired place of installation.

Consider the dimension of the product for placing and installation.

Place the tumble dryer on an even, horizontal and steady surface. For leveling the feet are adjustable and can be screwed in or out.
The dryer can be connected to drainage.

1. Pull down the hose.
2. Connect your drainage hose to the fitting.
3. Put the other end into a sink. Observe the max. height of the outlet of drainage hose.

Note:

If an external drainage hose is used, the condensation water tank does not to be emptied anymore.
A suitable hose holder and drainage hose are available as optional accessories.

3 Connect the power plug to the mains.

PREPARATION

• Before drying, thoroughly spin the laundry in washing machine. High spin speed can reduce the drying time and save energy consumption.
• For uniform drying result, sort the laundry according to fabric type and drying program.
  Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.
• Do not over dry the clothes, because over dried clothes can easily get creases or shrinkage.
• Do not dry the articles containing rubber or similar elastic materials such as raincoats, bicycle covers and feather products.
• The door can be opened only after the program of the dryer is completed. Do not open the door before the program finished, as the skin may be scalded by steam or hot surface.
• Clean the lint filter and empty container after each use to avoid extension of drying time and energy consumption.
• Do not dry these clothes after dry-clean process.
  Consider below weight references:

Blended Coats: about 800 g	Jackets: about 800 g in cotton	Jeans Trousers: about 800 g	Towel Quilts: about 900 g in cotton
Single Sheets: about 600 g in cotton	Work Clothes, upper and lower: about 1120 g in cotton	Pajamas: about 200 g	Shirts: about 300 g in cotton
Undershirts: about 180 g in cotton	Underpants: about 70 g in cotton	Socks: about 30 g in blended material

EN

30

OPERATION

Drying clothes

4 For drying clothes follow below instructions:

1. Open the door, fill the drum with your clothes and close the door.
   Note: The drum is illuminated if the door is opened. This function eases filling and emptying the drum.
2. Switch on the appliance with ON/OFF button (Ein/Aus).
3. Chose your program, refer to Programming table.
4. Chose an additional function if needed or set the time.
5. Push button Start/Pause. The dryer starts the drying process at the preset conditions.

During the drying process the current drying status is shown by the LEDs of the status indicator.

The remaining time REMAIN is shown in display.

6 If drying is finished, - is shown in display.

Caution! The door can only be opened if the appliance is not running, e.g. after drying process is finished. Do not try to open the door when the appliance is running to avoid burns or scalding cause by hot steam or hot surfaces. There is also a mechanical danger cause by the rotating drum.

If no drainage hose for condensation water is used, the condensation water tank must be emptied after each use.

Pull out the tank and empty it into a sink.
Put back the tank.

Programming table

8 Chose a suitable drying program.

Program		Weight (max)	Application/Properties
Cotton (Baumwolle)	For cottons and coloured clothes made of cotton or linen.
	Light (Pflegeleicht)	8.0 kg	To dry cotton pieces of clothing.Drying level: applicable to hang.
	Iron (Bügeltrocken)		To dry cotton pieces of clothing.Drying level: applicable to iron.
	Standard (Standard)		To dry cotton pieces of clothing.Drying level: cupboard dry.
	Cupboard(Schranktrocken)		To dry cotton pieces of clothing.Drying level: extra dry.
Synthetics (Synthetik)	For non-iron washing made of synthetic and blended fabrics, cotton.
	Light (Pflegeleicht)	3.5 kg	To dry thin synthetic fabrics which are also to be hanged or ironed, such as knitwear, shirts.Drying level: applicable to hang or iron.
	Standard (Standard)		To dry thin synthetic fabrics which are not ironed, such as easy care shirts, table linen, baby clothes, socks.Drying level: cupboard dry
	Cupboard(Schranktrocken)		To dry thick or multi-layered synthetic fabrics.Drying level: extra dry.
Cool (Kalt) 3.0 kg			For machine-washable woolen textiles. Textiles are fluff, but not dried.Remove and hang up textiles when the program ends.
Warm (Warm)(20 min / 30 min)		3.0 kg	For timer program, delicate textiles made of acrylic fibers or small items.USing Time function to adjust Warm time.
Quick (Schnelltrocken) 3.0 kg			For washing which is to be dried quickly, e.g. made of acrylic fibers or for individual small items. Also for subsequent drying.
Refresh (Auffrischen) 1.0 kg			For refreshing or gently cleaning textiles with commercially available dry cleaning products.

Note: The appliance is equipped with a humidity sensor to measure the moisture in the drum or appliance. The residual time for drying is determined by the weight of clothes and measured moisture. This function is not active during Warm (Warm), Cool (Kalt) and Refresh (Auffrischen) modes.

EN

32

ADDITIONAL FUNCTIONS Setting the drying time (Zeit)

For special drying processes, e.g. a few small clothes, e.g. socks, the drying can be adjusted manually by setting the drying time. Chose program mode Warm (1) and set the suitable time between 20-60 minutes by switching button Time (Zeit) (2).

Delayed drying (Startvorwahl)

10 If you wish to postpone the drying process a time delay can be set. Use the button Delay (Startvorwahl) to set a postponed start between 1-24 hours. The dryer starts the drying process after the preset time elapsed.

1. Fill the drum with your clothes and close the door.
2. Switch ON the appliance with On/Off switch (Ein/Aus).
3. Chose your program and an additional function if needed (e.g. Anti-Creatase and/or Gentle).
4. Push button Delay (Startvorwahl) for as many times as needed to set the time delay in hours (H) as shown in display.
5. Push button Start/Pause. The dryer is activated and will start the drying process once the preset time has elapsed.
6. Push button Start/Pause to pause the timer. For cancellation push On/Off switch (Ein/Aus).

11 Once the child protection is activated, setting cannot be changed. In that case the dryer can only be switched OFF by pushing On/Off switch (Ein/Aus).

1. Activation: Press anti grease (Knitterschutz) and gentle (Schonen) at once and for more than 3 seconds. The display shows child protection (Kindersicherung).
2. De-activation: Press again anti grease (Knitterschutz) and gentle (Schonen) at once and for more than 3 seconds. The information child protection (Kindersicherung) in display disappears.

Anti-crease function (Knitterschutz)

This function is used to minimize the appearance of crease after drying process is finished. The standard time for this function is 30 minutes or 120 minutes (selected). The drum rotates intermittently in order to minimize formation of crease.

Press Anti Crease (Knitterschutz) and the related LED lights on.

13 The drying process is working at lower temperatures to avoid damaging sensitive clothes and textiles. This function is not available in program modes Warm (Warm), Cool (Kalt) and Refresh (Auffrischen)

Press Gentle (Schonen) and the related LED lights on.

CLEANING AND CARE

• Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Warning! Switch off the tumble dryer and let it cool down completely before cleaning.
• Clean the exterior surfaces of the product with a slightly damp cloth and dry them well. Make sure that no water enters the product interior (e.g. at the switches).

Cleaning the lint filter

Pull out the filter and open it. Remove lint and fibers by hand. Wash the filter with tap water in order to remove remaining lint or particles. Reassembling is done in reverse order.

Cleaning the air condenser

The air condenser must be cleaned regularly from time to time.

Warning! Before opening the service flap, put a big cloths in front and below the flap. Large amount of water may leak when opening the flap.

15 Push down both clips of the service flap and open it. Pull the levers of the sealing cap into the correct direction in order to unlock the cap. Take off the sealing cap. Pull out the air condenser. If necessary clean the air condenser with a soft brush and rinse thoroughly.

Warning! During reassembling make sure the sealing cap fits correctly and that it is correctly locked by the two levers in order to avoid water leakage.

Cleaning air inlet

Regularly from time to time check the air inlet opening at the front side is free from obstacles and not clogged or blocked.

Take of the service flap. Make sure the air inlet grill and foam filter are clean. Remove obstacles and particles if any. Install the service flap.

BULB REPLACEMENT

Warning! Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

Caution! Before changing the interior light of the oven, the cavity and the bulb must be completely cooled down.

Take off the lamp cover and remove the defective bulb. Insert a new bulb type E14 and screw the lamp cover.

ERROR INDICATION AND TROUBLESHOOTING

Error indication shown in display and remedy

Follow below table to understand error messages and to remedy. Error messages are shown in display during use.

Error message	Reason Alarm signal	Remedy
is flashing	Water tank full or pump error	-- Empty condensation water tank. · Check drainage and make sure it is not blocked · If the error code is sill shown there, contact your service agent.
is flashing	Air circulation blocked -- Clean the lint filter.		· Open the service flap of air inlet and make sure grill and filter are not blocked.
E30 Error of heating system If the error code is shown an alarm signal occurs every 15 minutes. Contact your service agent
E32 Error of humidity sensor
E33 Error of temperature sensor
E34	Front temperature sensor (E33) Rear temperature sensor (E34)

TROUBLESHOOTING

Problem Solution
Display doesn't work · Power supply · Check preset program · Check fuses of you electric supply
Dryer doesn't start · Make sure the door is closed · Chose correct program and push button Start/Pause
Water leakage · Align dryer horizontally. · Check air condenser, sealing cap and drainage and make sure it is installed correctly. · If the problem persists contact your service agent.
Door opens by itself or cannot be closed	· Close door slowly until it clicks. Do not slam the door. · Remove clothes if overloaded
Humidity in the room increasing significantly	· Ventilate room adequately. · Clean the air inlet grille. · Ensure that the air condenser has been inserted.
Degree of dryness not reached or drying time too long	· Clean lint filter and wash condenser. · Empty condensation water tank. · Clean the moisture sensors. · Use next higher drying program or use Timer program.

TECHNICAL DATA

Rated voltage: 220 - 240V 50Hz

Rated power : 2700 W

Protection class : I

Rated drying capacity: 8kg

Dimensions: 595 × 615 × 845 ~mm

Bulb : E14/ 15W

This is a Condenser Dryer.
Erp-testing was done according to EN 61121:2013.
See website below for detailed technical information or ask your vendor for specification sheet.

www.ok-online.com

DISPOSAL

Do not dispose of this product as municipal waste. Return it to a designated collection point for the recycling of electrical and electronic equipment. Contact your retailer or local authorities for more information.
