USER MANUAL ODW 120 OK

Technical line drawing of an open industrial machine with internal components and housing (no text or symbols)

De

GebrauchsanweisunG

en

user Manual

Deutsch 4 - 21

English 23 - 41

Line drawing of a laboratory setup with a hand pouring liquid into a beaker containing a bowl and a tray (no text or symbols)

Illustration of a hand holding a stack of books with a scroll, no text or symbols present

Illustration of a spray bottle with a dropper and a small sphere above it (no text or symbols)

sPÜIMiTTelTableTTen (Tabs)

Illustration of a plastic basket filled with kitchen utensils (no text or symbols)

IN ↑

Tassen1

Technical line drawing of a mechanical assembly with gears and shafts, no visible text or symbols

Pure technical diagram of a U-shaped component with radial lines and a numbered arrow (no text or symbols)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Technical line drawing of a mechanical assembly or housing with internal components and an upward arrow indicating motion (no text or symbols present)

Line drawing of a hand holding a pipe fitting with a handle (no text or symbols)

• Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.
  Keep it to refer to it at a later date.
  Pass it on to any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

BEFORE CALLING FOR SERVICE

• To review the section on troubleshooting Tips will help you to solve some common problems by yourself.
• If you can not solve the problems by yourself, please ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

TABLE OF CONTENT

Safety Information 24

Disposal 25

Operating instructions 26

Control panel 26

Dishwasher features....26

Loading the salt into the softenerA. 25

B. Fill the rinse aid despenser 28

C. Function of detergent....30

Loading the baskets ....30

Attention before or after loading the dishwasher baskets ....30

Loading the upper basket 31

Loading the lower basket 30

Cutlery basket 31

Starting a washprogramme 32

Washcycles table....32

Turning on the appliance 33

Change the programme 33

At the end of a washcycle 33

Maintenance and cleaning 34

Filtering system 34

Caring for the dishwasher....35

Installation instruction....36

Positioning the appliance ....36

About electricity connecting ....36

Water connection....37

Dishwasher installation steps....37

Troubleshooting tips 38

Error codes....40

Technical information....40

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Intended use: This appliance has been designed exclusively for use in dry-interior households. Every other use is improper and may lead to injuries, whereby the liability of the manufacturer will cease.

Make sure the voltage indicated on the appliance corresponds to your local mains voltage.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The door should not be left in the open position since this could present a tripping hazard.
• WARNING: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position. Locate sharp items so that they are not likely to damage the door seal.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
  The ventilation openings in the base must not be obstructed by a carpet.

- The appliance is to be connected to the water mains using new hose-sets; old hose-sets should not be reused. The mains plug is the disconnect device and shall remain readily operable.

- This appliance is only intended for washing dishes. Only use according to these instructions in order to avoid hazardous situations.

- Do not use this appliance outdoors or for commercial purposes. This unit is intended for household use only.

- Regularly check if the supply cord, appliance or extension cable are defective. If found defective, do not put appliance into operation. Immediately pull the plug.

- Place the supply cord or any extension cord in a way that pulling or tripping over it is impossible. Do not allow the supply cord to hang down within easy reach.

- Never carry or pull the appliance by the supply cord. Do not pull the supply cord over sharp edges. Do not jam or bend it.

- Switch the appliance off and disconnect the plug from the mains when not in use. Never pull the plug by the supply cord or with wet hands. Disconnect the mains plug in case of faults during use, before cleaning or moving the appliance, and after use.

- Do not abuse, sit on, or stand on the door or dish rack of the appliance.

- Do not touch the heating element during or immediately after use. (This instruction is only applicable to machines with a visual heating element.)

- Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.

- Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.

- When using the appliance, prevent plastic items from coming into contact with the heating element. (This instruction is only applicable to machines with a visual heating element.)

- Check that the detergent compartment is empty after completion of the wash cycle.

- Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not marked so, check the manufacturer's recommendation.

- Use only detergent and rinse additives designed for an automatic dishwasher.

- Never use soap, laundry detergent, or hand washing detergent in the appliances. Keep these products out of reach of children.

- Keep children away from detergent and rinse aid; keep children away from the open door of the dishwasher, there could still be some detergent left inside.

- Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.

- Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.

- Please dispose of packing materials properly. Keep away from children.

- During installation, the supply cord must not be excessively or dangerously bent or flattened.

DisPOsal

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Electric and electronic equipment may contain dangerous and hazardous substances. Do not dispose of this appliance as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations:

PE Polyethylene, e.g. sheet wrapping material

PS Polystyrene, e.g. padding material

POM Polyoxymethylene, e.g. plastic clips

PP Polypropylene, e.g. Salt filler

ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel.

Packaging material could be dangerous for children!

• For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable.
• Cardboard packaging is manufactured from recycled paper and should be dis posed in the waste paper collection for recycling.
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
• For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.

OPeraTiOn insTrucTiOn

iMPOrTanT: To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

cOnTrOI Panel

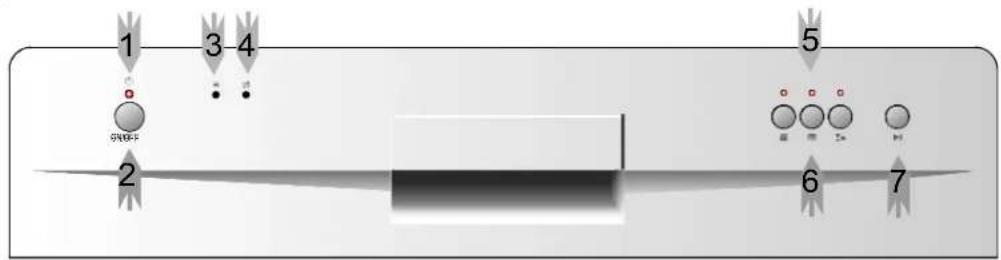

Power Light: 1 To be on when the ON/ OFF Button is pressed down.

ON/OFF But-2 ton: To turn on/off the power supply.

3 Rinse Aid Warning Light: To be on when the rinse aid dispenser needs to be refilled.

Salt Warning 4 Light : To be on when the softener needs to be refilled.

Running 5 indicator light: To show the state of the dishwasher.

Washing Pro-6 gram Selector: Press button to select wash cycles

Start / Reset 7 Button: To start and pause the selected washing program or reset the program when the machine is working.

Dishwasher FeaTures

Front view Back view

Salt container1

Detergent dispenser2

Cutlery basket3

Filter assembly4

Rinse aid dispenser5

Spray arms6

Cup shelf7

8 Basket

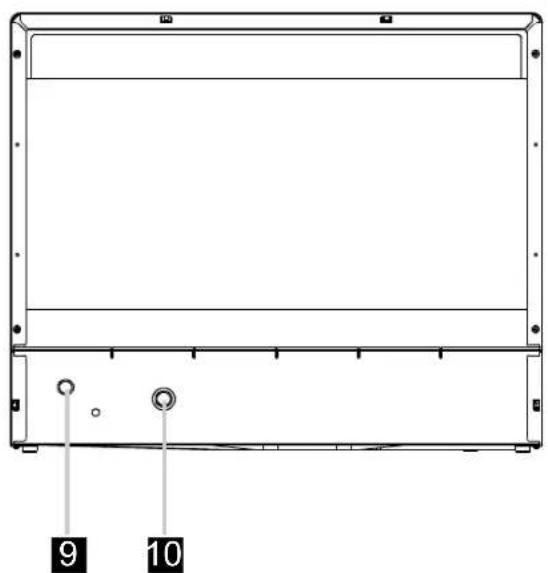

9 Drain pipe connector

10 Inlet pipe connector

IOaDinG The salt inTO The sOFener

Always use the salt intended for use with dishwasher.

The salt container is located beneath the lower basket and should be filled as explained in the following:

aTTenTiOn!

• Only use salt specifically designed for the use in dishwashers! Every other type of salt not specifically designed for the use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.
• Only fill with salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

Line drawing of a cooking demonstration setup with a hand pouring liquid into a bowl (no text or symbols)

Remove the lower basket and then unscrew and remove the cap from the salt container (1).A

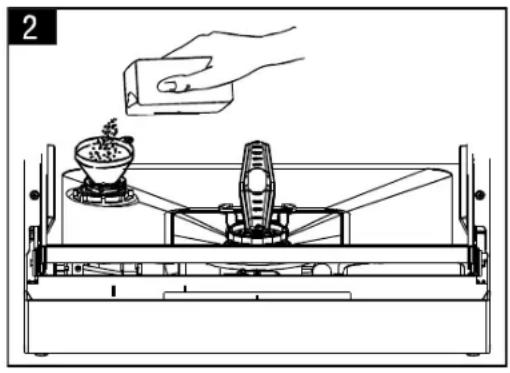

Place the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt (2).B

Full fill the salt container with water. It is normal for a small amount of water to come out of the salt container. C

After filling the container, screw the cap tightly back clockwise. D

E Usually, the salt warning light will stop being illuminated within 2-6 days after the salt container has been filled with salt.
F Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use the soak or rapid program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

nOTe:

The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on 1, how well the salt dissolves, the salt warning light may still be on even though the salt container is filled. If there is no salt warning light in the control panel (for some Models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.

If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.2.

Fill The rins aiD DisPenser

rinse aiD DisPenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

FuncTiOn OF rinse aiD

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

aTTenTiOn!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

when TO reFill The rinse aiD DisPenser

If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour of the optical level indicator c located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid level fall 1/4 full.

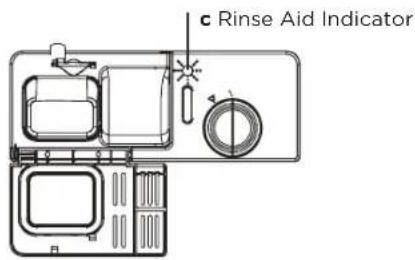

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

304 full

1 full

1/4 full - Should refill to eliminate spotting

Empty

Illustration of a hand holding a card with a scroll, no text or symbols present

Illustration of a spray bottle with a dropper and a small sphere above it (no text or symbols)

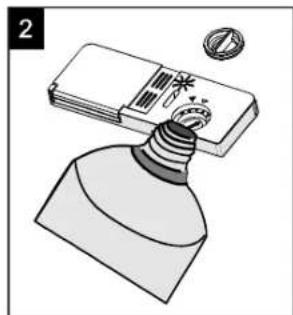

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.1.

Pour the rinse aid into the dispenser, being careful not to overfill.2.

Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.3.

nOTe:

Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door.

aDJusTinG rinse aiD DisPenser

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

nOTe:

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

FuncTiOn OF DeTerGenT

PrOper use OF DeTerGenT

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry. Don't put powder detergent into the dispenser until you're ready to wash dishes.

DeTerGenTs

There are 3 sorts of detergents

1. With phosphate and with chlorine

2. With phosphate and without chlorine

3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 °dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

cOncenTraTeD DeTerGenT

Based on their chemical composition, detergents can be split in two basic types:

Conventional, alkaline detergents with caustic components

Low alkaline concentrated detergents with natural enzymes•

The use of “normal” washing programs in combination with concentrated detergents reduces pollution and is good for your dishes; these wash programs are specifically matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason “normal” wash programs in which concentrated detergents are used can achieve the same results that can otherwise only be achieved using “intensive” programs.

DeTerGenT TableTs

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

DeTerGenT DisPenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

aMOunT OF DeTerGenT TO use

nOTe:

If the lid is closed: press release button. The lid will spring open.

Always add the detergent just before starting each wash cycle.

Only use branded detergent aid for dishwasher.

warning:

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

Fill in DeTerGenT

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

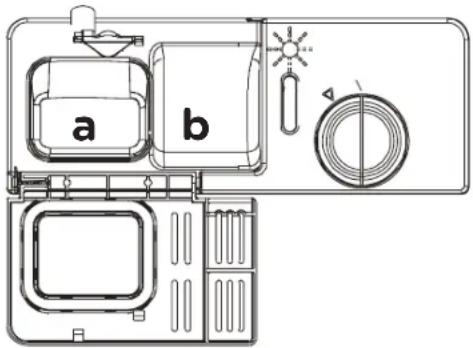

The place of main wash cycle detergent placed.A The place of pre-wash cycle detergent placed.B

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

Close the lid and press until it locks in place.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

nOTe:

You find information about the amount of detergent for the single programme on the last page.

- Please aware, that according to the level soiling and the specific hardness of water differences are possible. Please observe the manufacturer's recommendations on the detergent packaging.

IOaDinG The Dishwaher basKeTs

recOMMenDaTiOn

Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.

FOr washing in The Dishwasher The FOLLOWing cuTlery / Dishes

are nOT suiTable

Cutlery with wooden, horn china or mother-of-pearl • handles

Plastic items that are not heat resistant•

Older cutlery with glued parts that are not temperature resistant

Bonded cutlery items or dishes•

Pewter or cooper items•

Crystal glass•

Steel items subject to rusting•

Wooden platters•

• Items made from synthetic fibres

are OF liMiTeD suiTabiliTy

• Some types of glasses can become dull after a large number of washes
• Silver and aluminum parts have a tendency to discolour during washing
- Glazed patterns may fade if machine washed frequently

aTTenTiOn beFOre Or aFTer IOaDinG The Dishwasher basKeTs

(For best performance of the dishwasher, follow these loading guide lines. Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots /pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

nOTe:

• Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
- Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water can not collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage to glasses, they must not touch.
Load large items which are most difficult to clean into the lower basket.
• The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups.
Long bladed knives stored in an upright position are a potential hazard!
• Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
- Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.
Do not put in items that are dirty of cigarette ash, candle wax, lacquer or paint.
If you buy new dishes please make sure that they are suitable for dishwashers.

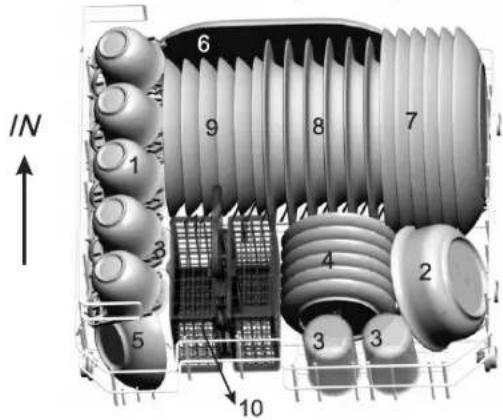

IOaDinG The basKeT

Position the dishes and cookware so that they will not get moved by the spray of water

Cups1

Medium serving bowl2

Glasses3

Saucers4

5 Dishes

6 Oval platter

7 Dinner plates

8 Soup plates

9 Dessert dishes

10 Cutlery basket

cuTlery basKeT basKeT

Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket as shown in the picture.

warning:

For personal safety and a top quality cleaning, place the silverware in the basket making sure that:

• Do not let any item extend through the bottom.
  • Always load sharp utensils with the sharp point down!
  • They do not nest together.
  • Silverware is placed with the handles-down.
  • But place knives and other potentially dangerous utensils are placed handles-up.

LOADING THE BASKET

Position the dishes and cookware so that they will not get moved by the spray of water

1 Cups
2 Large serving bowl
3 Glasses
4 Saucers
5 Dishes
6 Dessert dishes
7 Dinner plates
8 Soup plates
9 Cutlery basket

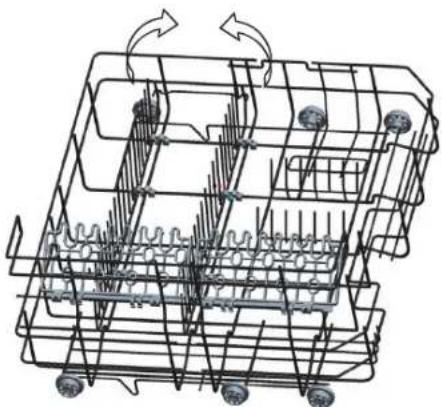

WHEN LOADING BIGGER OBJECTS

Technical line drawing of a mechanical assembly with gears and rotating components (no text or symbols)

PLATE RACKS OF BASKET

The basket is fitted with plate racks which can be stored horizontally if required.

STARTING A WASHING PROGRAMME

WASH CYCLE TABLE

Program Cycle selection information		Description of cycle	Detergent (pre/main)	Running time (min)	Energy (kWh)	Water (l)	Rinse Aid
Normal For normally soiled loads, such as pots, plates, glasses and lightly soiled pans.		Pre-wash (50 °C)Wash (55 °C)RinseRinse (65 °CDrying	3/15 g 125 0,70	8,4
Eco* Standard daily cycle for normally soiled loads, such as pots, plates, glasses.		Pre-washWash (50 °C)Rinse (60 °CDrying	3/15 g 170 0,61	7,0
Rapid A shorter wash for lightly soiled loads and quick wash.		Wash (40 °C)RinseRinse (40 °C)	15 g 30 0,30	6,0

* This programme is the test cycle, for comparability test in accordance with EN 50242, as follows:
• Capacity: 6 setting
- Rinse aid setting: 6
• The power consumption of off-mode is 0 W, left-on mode is 0.73 W

Turning On The aPPIance

sTarTinG a washcycle

Draw out the lower and up per basket, load the dishes and push them back. It is commended to load the lower 1. basket first, then the upper one (see the section entitled “Loading the Dishwasher”).

Pour in the detergent (see the section entitled "Salt, Detergent and Rinse Aid").2.

Insert the plug into the socket. The power supply is 220-240 VAC / 50 HZ, the specification of the socket is 10A 3.250 VAC. Make sure that the water supply is turned on to full pressure.

Close the door, press the ON/OFF button, and the ON/OFF light will turn on. Turn the program knob to select a 4. desired wash cycle, press the Start/Reset button, the machine will work after 10 seconds.

nOTe:

When you press the Start/Reset button to pause during washing, the running indicator light will stop blinking and the dishwasher will mooring every minute unless you press the Start/Reset button to start.

chanGe The ProOGraM

Premise

A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the 1. detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent"). When you press the Start/Reset button more than 3 seconds, you can cancel the running programme and select 2. other programmes (see the section entitled "Starting a wash cycle"). When you select Normal/Eco. Programmes, you can select the All in1 function.3. The Display window shows the state of the dishwasher:4.

a) Running indicator light is off stand by
b) Running indicator light is on and not blinking pause
c) Running indicator light is on and blinking run

nOTe:

If you open the door during a wash cycle, the machine will pause. The running indicator light will stop blinking and the buzzer will mooing every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds.

FOR GOT TO aDD a Dish

A forgotten dish can be added any time before the detergent cup opens: Press the start/reset button.1.

1. After the spray arms stop working, you can open the door completely.
2. Add forgotten dishes.
3. Close the door.
4. Press the start/reset button, the dishwasher will run after 10 seconds.

aT The enD OF a washcycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

swiTch OFF The Dishwasher

1. Switch off the dishwasher by pressing the ON/OFF button.
2. Turn off the water tap!

OPen The DOOr careFully

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance. Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

unIOaDinG The Dishwasher

It is normal that the dishwasher is wet inside. Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

warning:

It is dangerous to open the door when washing, because the hot water may scald you.

MAINTENANCE AND CLEANING

FILTERING SYSTEM

The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.

The filter system consists of a coarse filter, a flat (Main filter) and a microfilter (Fine filter).

MAIN FILTER1.

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

COARSE FILTER2.

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift out.

FINE FILTER3.

This filter holds soil and food residues in the sump area and prevents it from being redeposit on the dishes during wash cycle.

WARNING:

The dishwasher must never be used without the filters.

- Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

FILTER ASSEMBLY

For best performance and results, the filter assembly must be cleaned. The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction. The entire filter assembly should be cleaned once a week.

To clean the coarse filter and the fine filter, use a cleaning brush. Then, reassemble the filter parts as shown in the figures left and reinsert the entire assembly in the dishwasher, positioning in its seat and pressing downward. The dishwasher must never be used without the filters. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

Step 1: Turn the filter in anti-clockwise direction, then lift it up.

Pure mechanical component diagram without any text, numbers, or symbols

Step 2: Lift the Main filter up.

Step 3: Lift the fine filter up.

NOTE:

When following this procedure from step1 to step 3, the filter system will be removed; when following it from Step 3 to Step 1, the filter system will be installed.

carinG FOR The Dishwasher

The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry it thoroughly. For the exterior, use a good appliance polish wax. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

cleaning The DOOr

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

warning:

• Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
- Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

PrOTecT aGainsT FreezinG

Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:

Cut off the electrical power to the dishwasher.1.

Turn off the water supply and disconnect the water inlet pipe from the water valve.2.

Drain the water from the inlet pipe and water valve. (Use a pan to catch the water)3.

Reconnect the water inlet pipe to the water valve.4.

Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.5.

nOTe:

If your dishwasher cannot work because of the ice, please contact professional service persons.

hOw TO KeeP yOur Dishwasher in shaPe

aFTer eVery wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

reMOVE The PluG

Before cleaning or performing maintenance, always remove the plug from the socket.

nO sOlVenTs Or abrasiVe cleaningG

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little vinegar, or a cleaning product made specifically for dishwashers.

when nOT in use FOR a IOnGTiMe

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

MOVinG The aPPIance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

cleaninG The sPrayarM

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

Technical line drawing of an aircraft fuselage inside a vehicle cabin, showing structural components and airflow direction (no text or labels)

The spray arms can be easily removed for periodic cleaning of the nozzles, to prevent possible clogging. Wash them under running water and carefully replace them in their seats, checking that their rotary movement is in no way impeded.

Grasp the middle of the spray arm, pull it upwards to remove it. Wash the arms under a jet of running water and return them carefully to their seat. After reassembly, check that the spray arms turn freely. Otherwise, check that they have been installed correctly.

insTallaTiOn insTrucTiOn

warning:

The installation of the pipes and electrical equipment should be done by professionals.

- Danger of Electrical Shock Hazard! Disconnect electrical power before installing dishwasher. Failure to do so can result in death or electrical shock.

The instTallaTiOn POsiTiOn OF Dishwasher shOulD be near The exisTinG inleT anD Drain hOses anD Power cOrD. One siDe OF The cabineT sinK shOulD be chOsen TO FaciliTaTe The cOnnecTiOn OF Drain hOses OF The Dishwasher.

POsiTiOninG The aPPIance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

POwer cOnnecTiOn

warning:

For personal safety:

DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING CONNECTION FROM THE POWER • CORD.

elecTrical reQuireMenTs

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

elecTrical cOnnecTiOn

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

GrOunDinG insTrucTiOns

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

warning:

• Improper connection of the equipment earthing conductor can result in the risk of an electric shock.
• Check with a qualified person or service representative if you are in doubt whether the appliance is properly earthed.
• Do not modify the plug provided with the appliance. If the plug does not fit properly to the outlet, please have a qualified electrician to install a proper outlet.

cOID waTer cOnnecTiOn

Line drawing of a hand holding a faucet with a pipe fitting (no text or symbols)

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water in let to be blocked and damage the appliance.

warning:

- In order to avoid that there is more water staying in the inlet hose, please close the hydrant after using. (Not applicable to appliances without aqua-stop.)

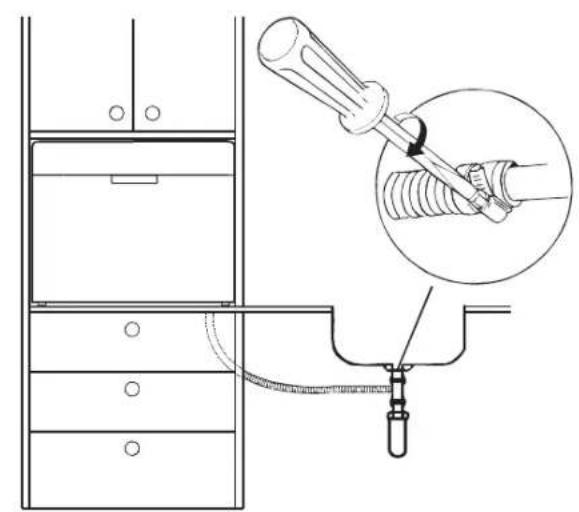

Drain hOse cOnnecTiOn

Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to avoid bending or crimping it. Use the special plastic support that comes with the appliance. The top of the hose must be at a height between 40 and 100cm. The free end of the hose must not be immersed in water to avoid the back flow of it. ATTENTION: The special plastic hose support must be solidly fastened to the wall to prevent the drain hose from moving and allowing water to spill outside the drain.

Technical line drawing of a mechanical assembly with a magnified inset showing a screwdriver inserted into a threaded component (no text or symbols present)

hOw TO Drain excess waTer FrOM hOses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower then the sink.

waTer OuTleT

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kin ked or squashed.

exTensiOn hOse

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

syPhOn cOnnecTiOn

The waste connection must be at a height of between 40 cm (minimum) and 100 cm (maximum) from the bottom of the dish. The water drain hose should be fixed by a hose clip. The free end of the hose must not be immersed in water.

sTarT OF Dishwasher

The following things should be checked before starting the dishwasher.

The dishwasher is level and fixed properly1.

The inlet valve is open2.

There is a leakage at the connections of the conducts3.

The wires are tightly connected4.

The power is switched on5.

The inlet and drain hoses are knotted6.

All packing materials and printings should be taken out from the dishwasher7.

aTTenTiOn:

After installation, please make sure to keep this manual. The content of this manual is very helpful to the users.

TOubleshOOTinG TiPs

beFOre callingFOr serVice

Review the charts on the following pages may save you from calling for service.

PrObleM POssible causes what TO DO

Technical problems	Dishwasher doesn't start	Fuse blow, or the circuit breaker acted	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher.
		Power supply is not turned on	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
		Water pressure is low	Check that the water supply is connected properly and the water is turned on.
		Door of dishwasher not properly closed	Make sure to close the door properly and latch it.
	Water not pumped from dishwasher	Kink in drain hose Check drain hose.
		Filter clogged Check coarse the filter (see section "Cleaning the filter")
		Kitchen sink clogged	Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink not draining, you may need a plumber rather than a serviceman for dishwash-ers.
General problems	Suds in the tub Improper detergent		Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then Start any wash cycle to drain out the water.
	There are rusty stains on cutlery	The affected items are not corrosion resistant
		A programme was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle.	Always run the quick wash programme without any crockery in the dishwasher and without selecting the Turbo function (if present) after adding dishwasher salt.
		The lid of the softer is loose	Check the lip. Ensure the fix is fine.
PrObleM POssible causes whaT TO DO
Noise	Knocking noise in the wash cabinet	A spray arm is knocking against an item in a basket	Interrupt the programme, and rearrange the items which are obstructing the spray arm.
	Rattling noise in the wash cabinet	Items of crockery are loose in the wash cabinet	Interrupt the programme, and rearrange the items of crockery.
	Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping	This has no influence on the dishwasher function. If in doubt, contact a suitably qualified plumber.
Unsatisfactory washing results	The dishes are not clean	The dishes were not loaded correctly	See notes in "Loading the dishwasher baskets"
		The programme was not powerful enough	Select a more intensive programme. See "Wash cycle table".
		Not enough detergent was dispensed	Use more detergent, or change your detergent.
		Items are blocking the path of the spray arms	Rearrange the items so that the spray arm can rotate freely.
		The filter combination in the base of wash cabinet is not clean or is not correctly fitted. This may cause the spray arm jets to get blocked.	Clean and/or fit the filter combination correctly. Clean the spray arm jets. See "Cleaning the spray arms".
	Cloudiness on glassware	Combination of soft water an too much detergent	Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean.
	Black and gray marks on dishes	Aluminium utensils have rubbed against dishes	Use a mild abrasive cleaner to estimate those marks.
	Detergent left over in cups	Dishes block detergent cups	Re-loading the dishes properly.
Unsatisfactory drying results	The dishes are not drying	Improper loading Load the dishwasher as suggested in the directions.
		Too little rinse-aid Increase the amount of rinse-aid/refill the rinse-aid dispenser.
		Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can escape. Begin unloading the dishwasher only once the dishes are barely warm to the touch. Empty the low basket first. This prevents water from dropping off dishes in the upper basket.
		Wrong program has been selected	In short program the washing temperature is lower. This also lowers cleaning performance. Choose a program wit a long washing time.
		Use of cutlery with a low-quality coating	Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher.

errOr cODes

When some malfunctions come on, the appliance will display error codes to warn you:

cODe Meaning POssible cause

The Rapid light flickers fleetly Longer inlet time Tab is not opened, or water intake is restricted, or pressure is too low.

The Normal light flickers fleetly Overflow Some element of disheswasher leaks.

warning:

If overflow occurs, turn off the main water supply before calling a service. • If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

Technical inFOrMaTiOn

Height:

Width:

Depth:

Water pressure:

Power supply:

Capacity:

438 mm

550 mm

511,5 mm

0,04 - 1,0 MPa

See rating label

6 Place settings

Technical DaTa sheet

Sheet of household dishwasher according to EU Directive 1059/2010:

Manufacturer OK
Type / Description ODW 120
Standard place settings 6
Energy efficiency class ^1	A+
Annual energy consumption ^2	174 kWh
Energy consumption of the standard cleaning cycle 0,61 kWh
Power consumption of off-mode 0 W
Power consumption of left-on mode 0,73 W
Annual water consumption ^3	2240 liter
Drying efficiency class ^4	A
Standard cleaning cycle ^5	Eco 55 °C
Program duration of the standard cleaning cycle 170 min
Noise level 55 dB(A) re 1 pW
Mounting Not applicable
Height 43,8 cm
Width 55 cm
Depth (with connectors) 51,5 cm
Power consumption 1930 W
Rated voltage / frequency 230 V~ / 50 Hz
Water pressure (flow pressure)	0,4 - 10 bar = 0,04 - 1 MPa

nOTe

^1 A+++ (highest efficiency) to D (lowest efficiency)
^2 Energy consumption "174" kWh per year, based on 280 standard cleaning cycles using cold water fill an the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
^3 Water consumption "2240" litres per year, based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.
^4 A (highest efficiency) to G (lowest efficiency)
^5 This program is suitable for cleaning solid normally soiled tableware and that is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.

The device meets the European standards and the directives in the current version at delivery:

- LVD 2006/95/EC

- EMC 2004/108/EC

- EUP 2009/125/EC

The above values have been measured in accordance with standards under specified operating conditions. Results may vary greatly according to quality and pollution of the dishes, water hardness, amount of detergent, etc.

The manual is based on the European Union's standards and rules.
