Product Type	Freestanding Dishwasher
Brand	OK
Model	ODW 45012 FS A2
Dimensions (H x W x D)	85 cm x 45 cm x 60 cm
Weight	Approximately 40 kg
Power Supply	220-240 V, 50 Hz, 10 A
Energy Consumption	0.93 kWh per cycle (Eco)
Water Consumption	9.5 L per cycle (Eco)
Number of Place Settings	6
Programs	Eco, Intensive, Normal, Quick, Rinse
Additional Functions	Delay Start (up to 24h), Half Load, Extra Dry
Noise Level	49 dB(A)
Energy Class	E
Drying Performance	Condensation drying
Water Connection	Cold water only, inlet hose length 1.5 m
Drain Hose Length	1.5 m
Filter System	Self-cleaning microfilter
Interior Material	Stainless steel
Child Lock	Yes, button lock
Anti-Flood Protection	Yes, water stop system
Adjustable Racks	Upper basket height adjustable
Salt and Rinse Aid Indicator	Yes, on control panel
Spare Parts Availability	Filter, spray arms, racks, heating element
Repairability Index	7.5/10 (estimated)

Frequently Asked Questions - ODW 45012 FS A2 OK

How do I start a wash cycle on my OK ODW 45012 FS A2 dishwasher?

Load the dishes, add detergent, close the door, select a program using the program button, and press the Start button. The dishwasher will begin after a short delay.

What does the error code E1 mean on my dishwasher?

Error code E1 indicates a water inlet issue. Check if the water tap is open, the inlet hose is not kinked, and the filter in the inlet valve is clean.

Why is my dishwasher not drying dishes properly?

Ensure you use rinse aid and that the dispenser is filled. Also, select a program with drying phase (e.g., Extra Dry). Overloading or plastic dishes can reduce drying performance.

How often should I clean the filter?

Clean the filter after every few cycles or at least once a month. Remove large debris under running water and ensure the fine filter is clean to avoid odors and poor washing results.

Can I use regular dish soap instead of dishwasher detergent?

No, do not use regular dish soap as it creates excessive foam and can damage the dishwasher. Always use specialized dishwasher detergent (powder, gel, or tablets).

How do I load the dishwasher for best results?

Place larger items on the lower rack (plates, pots) and smaller items on the upper rack (glasses, cups). Ensure spray arms can rotate freely and avoid nesting items.

What is the delay start function and how do I use it?

Delay start allows you to schedule the wash to begin later (up to 24 hours). Press the Delay button repeatedly to set the desired delay time, then press Start. The dishwasher will start automatically.

Why is there water left at the bottom after a cycle?

A small amount of water is normal to seal the drain. If excessive, check the drain hose for kinks or clogs. Also clean the filter and ensure the drain pump is not blocked.

How do I reset my OK dishwasher?

To reset, press and hold the Start button for 3 seconds or turn off the power for 1 minute. If the problem persists, consult the manual.

What type of salt and rinse aid should I use?

Use specific dishwasher salt (coarse grains) and rinse aid (liquid). Fill the salt tank with water before adding salt for the first time. Adjust rinse aid dosage according to water hardness.

USER MANUAL ODW 45012 FS A2 OK

IH_ODW6032_60118_V04

www.ac.jp/room

Immuno GmbH Warkostrasse 3 050-16 registered. Germany www.immro.s.

ODW 60032 FS A2

ODW 45012 FS A2

GESCHIRRSPÜLER STANDGERÄT // FREESTANDING DISHWASHER

Front view of a white disposable water level dishwasher (no visible text or labels)

HERZLICHEN GLÜCKWUNSCH!

Thanks for your purchase of an ok. product. Please read this manual carefully and keep it for future reference.

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the product.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. This product is designed for washing maximum 12 place setting (ODW 60032 FS A2) / 9 place settings (ODW 45012 FS A2).
5. The door shall not be left in the open position since this could present a tripping hazard.
6. Follow the instructions on how to load the dishwasher.
   Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
7. The normal use of the dishwasher.
   This dishwasher is suitable for household purposes; Do not use it for another purpose. The commercial use of the dishwasher will void the warranty.
8. Follow the supplied instructions for installation.
9. The dishwasher has ventilation openings in the base. These openings must not be obstructed by a carpet.
10. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
11. This product is connected to the water mains. Consider minimum and maximum permitted inlet water pressure, see chapter Technical Data. Consider all instructions about installation for detachable hose-sets, use new hose-sets for installation. Do not reuse old hose-sets.
12. Follow the instructions in the chapter Cleaning and Care.

EN

1. Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
2. Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards. Never leave the product unsupervised while it is switched on.
3. Never leave the product unsupervised while it is switched on.
4. Do not under any circumstances attempt (e.g. damage in power cord, product is dropped, etc.) to repair the product yourself. For servicing and repairs, please consult an authorised service agent.
5. The mains voltage must match the information on the rating label of the product.
6. Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
7. Keep this product including power cord and power plug away from all heat sources like for example, ovens, hot plates and other heat-producing products/objects.
8. Only unplug from the power socket by the plug itself. Do not pull on the cord.
9. Unplug the product ...
10. when the product is not being used,
11. in case of malfunctions,
12. before attaching / detaching accessories and
13. before cleaning the product.
14. Use this product in dry indoor areas only and never outdoors.
15. This product is not intended for commercial use. It is designed for household use only.

INTENDED USE

This product is only intended for cleaning dishes and cutlery which are dishwasher proof or suitable for dishwashers. Any other use may result in damage to product or injuries. This product is designed for household use only and not intended for commercial use.

The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.

COMPONENTS

A. Operation panel

A1. On/Off button
A2. Mode selection button P
A3. On/Off-Indicator
A4. Mode display
A5. Half load mode
A6. Signal lamp for water softener empty (Salt)
A7. Signal lamp for rinse aid empty
A8. Half load button 1/2
A9. Start/Pause-button

B. Handle
C. Door
D. Cutlery basket
E. Upper dish basket
F. Lower dish basket

G. Fill compartment

Detergent tab/powder compartment

G1. Cover
G2. Compartment for main washing
G3. Lock
G4. Compartment for pre-washing

Rinse aid compartment

G5. Fill indicator
G6. Rinse aid container

H. Inside

H1. Salt container
H2. Water outlet with filter set
H3. Upper and lower spray arms

Backside

1. Power cord with plug
   J. Waste water hose (pre-assemble)
   K. Water inlet connection

Accessories

Hose for water inlet (Not shown)

Funnel (Not shown)

BEFORE FIRST TIME USE

• Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.
• Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.
  • After unpacking, please refer to chapter Cleaning and care.

EN

INSTALLATION

Note: The dishwasher is equipped with power cord and plug. Make sure before installation that the wall outlet is at the desired place of installation.

Consider the dimension of the product for placing and installation.

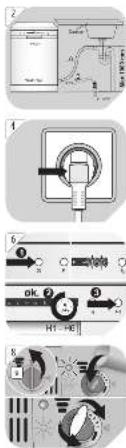

1 Place the dishwasher on an even, horizontal and steady surface.

Note: The dishwasher is not intended to be built in.

2 The dishwasher must be connected to drainage.

1. The hose is already connected the waste water outlet. Cut the straps and unwind the hose.
2. Connect the end to a drainpipe (Option A oder B). Observe the max. height of the outlet of drainage hose.

Note:

A suitable hose holder is available as optional accessories.

3 Connect the water inlet to tap water supply (3/4") using the provided hose and make sure it fastened tightly.

Note: If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance.

4 Connect the power plug to the mains.

PREPARATION

Putting salt into the salt container

5 Depending on your tap water hardness (hardness degree) use additional salt (water softener). Always consider instruction provided with the salt.

1. Remove the basket and then unscrew and remove the cap from the salt container.
2. Before first wash, add 1.5 lt. of water in the salt container of your machine.
3. Place the end of the funnel (supplied) into the hole and introduce about 1.5 kg of salt. It is normal for a small amount of water to come out of the salt container.
4. After filling the container, screw the cap tightly back clockwise.
5. Immediately after filling the salt into the salt container, a washing program should be started (rapid program suggested). Otherwise filter system, pump or other important parts of the machine may be damaged by salty water which is out of warranty.

Note: Depending on how fully the salt dissolves, the salt warning light may still be on even though the salt container is filled.

Warning!

• Only use salt specifically designed for use in dishwashers! All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any caused damages.
  • If there are spills of the salt, a soak or a rapid program should be run to remove the excess salt.
• Only fill with salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been split, remaining of the bottom of the machine for any period of time, which may cause corrosion.
• The salt container must only be refilled when the salt warning light in the control panel comes on.

Adjusting salt consumption

6 1. Activate the setup mode: Close the door within 60 seconds after power ON, press Start/Pause button and hold for 5 seconds, the machine will enter setting mode which is indicated by the alternatingly blinking indicator lights of ✕ and ⚫

1. Adjust level of salt consumption: Press the Start/Reset button to select the proper setting according to your local environment. Follow table below to find correct setting.

Water Hardness level		Setting Digital display stalls
^^1)	mmol/ I^2)
0-5 0-0.9	4 1
6-11 1.0-2.0	2
12-17 2.1-3.0	3
18-22 3.1-4.0	4 *
23-34 4.1-6.0	5
35-55 6.1-9.8	6

1. The product will exit the setup mode automatically 5 seconds after last setting/operation of switch.

Note:

1) German degree of measurement for the water hardness
2) Millimol, international unit for water hardness
*) Factory setting

Contact your local water board for information on the hardness of your water supply.

EN

Adding detergent

7 The dispenser must be refilled before the start of each wash cycle.

• For the correct amount follow the instructions provided with the detergent.

1. Press release button. The lid springs open.
2. Always add the detergent just before starting each wash cycle, otherwise it could get damp and will not dissolve properly.
3. If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

Consider the difference of two compartments:

a) Compartment for detergent for main wash cycle.
b) Compartment for detergent for pre-wash cycle.

1. Close the lid and press until it locks in place.

Note: Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.

Fill rinse aid dispenser

8 Your dishwasher is designed to use liquid rinse aids which are released during the final rinse to prevent water from forming droplets on your dishes.

1. Open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110 ml.

• To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
• Pour the rinse aid into the dispenser, being careful not to overfill.

Indicator Status
●	Full
◎	34 full
◎	12 full
◎	14 full
○	Empty

- Replace the cap by inserting it aligned with "open" arrow and turning it to the "closed" (right) arrow.

Note: Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

1. Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.
2. If the rinse aid dispenser is empty the rinse aid signal lamp will turn on red.

Adjust the rinse aid dispenser

The dosage can be adjusted in 6 levels. Default level is 4. This setting is a recommendation.

Note:

• Set the dosage level higher, if stains remain on the dishes.
• Set the dosage lower, if clouds or streaks remain on the dishes.
  • Use a coin to change the setting.

Loading the dishwasher basket

• Only clean dishes and cutlery which are dishwasher proof or suitable for dishwashers. Follow instructions of manufacturers.
  • Scrape off any large amounts of leftover food. Soften remnants of burnt food in pan
  • It is not necessary to rinse the dishes under running water.
• Place objects in the dishwasher in following way:
• Items such as cups, glasses, pots/pans, etc. are face down.
• Curved items, or those with recesses, should be loaded at a slant so that water can run off.
• All utensils are stacked securely and cannot tip over.
• All utensils are placed in the way that the spray arms can rotated freely during washing.
• Arrange small dishes in the upper basket, e.g. lightweight and delicate items such as Saucers, cups, glasses, dessert bowls etc.
• Arrange large and heavy parts in the lower basket, such as plates, sheets, pots, bowls etc.

Note: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

Warning!

• Long bladed knives stored in an upright position are a potential hazard.
  • Do not let any item extend through bottom.
  • Always load sharp utensils with the sharp point down!
  • Do not overload your dishwasher as this will impair the results.

9a Adjusting the upper basket

In order to get more space in the upper or lower basket to obtain for taller pieces of crockery, you can load the upper basket in 2 positions. Pull out the upper basket. Depending on the desired position, set the corresponding rollers on the top rail.

9b Observe the general plan for placing dishes and cutlery into the basket. See table below for possible part designations.

Cups Saucers Glasses Small serving bowl Medium serving bowl
Large bowl Dessert dishes Dinner plates Soup plates Oval platter

10 Observe the plan for placing cutlery into the cutlery basket. See table below for possible part designations.

1 Soup spoons	2 Forks	3 Knives	4 Teaspoons
5 Dessert spoons	6 Serving spoons	7 Serving forks	8 Gravy ladies

EN

22

OPERATION

Washing dishes

11 • Consider following steps to start the washing process:

1. Prepare dishwasher.
2. Load the dishwasher basket.
3. Add detergent or rinse aid.

4. Make sure the water-tap/water supply is open, the appliance is connected to the mains and the door is closed correctly.

5. Push Ein/Aus switch to turn on the dishwasher and choose your program, refer chapter Choosing Program.

6. Push Start/Pause button.

• To stop the process push again Start/Pause button.

Note: The program lights show the state of the dishwasher:

a) Program light on: standby or pause.
b) Program light blinking: washing process ongoing.

1. When the working cycle has finished, the buzzer of dishwasher will sound 8 seconds, then stop.

- Turn off the appliance using the Ein/Aus button and shut off the water supply.

- Open the door of the dishwasher.

Warning! It is dangerous to open the door when washing, because the hot water may scald you.

• Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.
• Unload the dishwasher.

Pause the washing cycle

- You can modify the washing program when the dishwasher just runs for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water.

• Press Start/Pause button more than three seconds the machine will be in stand by state,
• Change the program to the desired cycle setting.
• Press Start/Pause button again to continue washing process.

Note: If you open the door during washing, the machine will pause. When you close the door and press the Start/Pause button, the machine will continue working after 10 seconds.

- If you forgot a dish you can pause the process and add it, but make sure the detergent compartment has not already opened.

1. Open the door a little to pause the washing process.
2. After the spray arms stop working, you can open the door completely.
3. Add forgotten dishes.
4. Close the door and press the Start/Pause button again and the dishwasher will continue after 10 seconds.

CHOOSING PROGRAM

12 Consider below table to choose the correct program according your needs.

Program	Information and purpose	Description of cycle	Detergent Pre/Main	Running time in min	Energy cons. in kWh	Water cons. in litre	Rinse aid	Model
Normal	For normally soiled loads such as pots, plates, Glasses and lightly soiled pans.	Pre-wash 45 °C Wash 55 °C Rinse Rinse 65 °C Drying	5/25 g 180	1.25 15			★	ODW 60032
			5/22 g 155	1.07 13				ODW 45012
[37DX] Intensive	For heaviest soiled crockery, and normally soiled pots, pans, dishes, etc. with dried on soiling.	Pre-wash 50°C Wash 60 °C Rinse Rinse Rinse 65 °C Drying	5/25 g (1 oder 2 Stk)	160 1.5	18.5		★	ODW 60032
			5/22 g 135	1.3 16				ODW 45012
[7X50]	For lightly soiled crockery and glass.	Wash 40 °C Rinse 60 °C Drying	5/25g 120	0.85 14.5			★	ODW 60032
			5/22 g 110	0.7 13				ODW 45012
Eco (*EN 50242)	This is standard programme; It is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.	Pre-wash Wash 45 °C Rinse Rinse 65 °C Drying	5/25g 185	0.91 11			★	ODW 60032
			5/22 g 185	0.69 9				ODW 45012
[HX03]	For lightly soiled loads that do not need excellent drying efficiency.	Wash 65 °C Rinse 65 °C Drying	30g 90	1.35 12.5			★	ODW 60032
			27 g 90	1.1 10.5				ODW 45012
	A shorter wash for lightly soiled loads and quick wash.	Vorwäsche		15 0.02	4		No	ODW 60032
				8 0.01	3.5			ODW 45012

EN

Legal note:

* EN 50242: This program is the test cycle. The information for comparability test in accordance with EN 50242, is as following:

• Capacity: 12 setting (ODW 60032 FS A2), 9 setting (ODW 45012 FS A2).
• Upper basket: top wheels on rail.
• Rinse aid setting: 6
• The power consumption of: off-mode is 0.45 W left-on mode is 0.49 W

CLEANING AND CARE

• Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
• Clean the exterior surfaces of the product with a slightly damp cloth and dry them well. Make sure that no water enters the product interior (e.g. at the switches).
• Clean the edge around the door using a soft, warm and damp cloth only. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Cleaning the filter assembly

The filter prevents larger remnants of food or other objects from getting inside the pump. Inspect the filters for blocking every time the dishwasher has been used.

13 The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (fine filter).

• Main filter A: Food and soil particles trapped by this filter are pulverized by a special jet on the spray arm and washed down to drain.
• Fine filter B: This filter holds soil and food residue in the sump area and prevents it from being deposited on the dishes during wash cycle.
• Coarse filter C: Larger items, such as pieces of bones or glass that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift out.

Disassemble and clean the filter according to following steps:

• Turn the filter cap (filter C) anticlockwise and take off whole filter assembly.
• Take out filters B and C.
• Take out filter C.
- Wash filters under running water.
- Reassembling is done in reverse order. Make sure the filter assembly is installed correctly.

Note: Do not use the dishwasher with filter system not installed.

Cleaning the spray arms

14 The spray arms can be easily removed for periodic cleaning of the nozzles, to prevent possible clogging.

• Grasp the middle of the spray arm, pull it upwards to remove it.
- Wash the arms under a jet of running water.
- Return them carefully to their seat and make sure that the spray arms are installed correctly and can turn freely.

ERROR CODES

Code Meaning Possible causes
The light flickers.	Longer inlet time	Faucets is not openedWater intake is restrictedWater pressure is too low
The ECO light flickers.	Overflow	Some component of dishwasher leaks

TROUBLESHOOTING

If there are any problems during operation, please refer to the following table. If problems cannot be solved as indicated under Solution, please contact your manufacturer.

Problem Possible causes Solution
Product does not work	Interrupted power supply	Check the power supply
	Water pressure is low Check whether water supply is connected properly and water is turned on
	Dishwasher door is not closed properly	Ensure door is closed properly
Water not pumps from dishwasher	Kink in drain hose Check the drain hose
	Filter is clogged Check and clean the coarse filter
	Kitchen sink is clogged Check the kitchen sink is draining well or call a service agent for help
Sud in the tub Improper detergent	Only use special dishwasher detergent
	Spilled rinse aid Wipe up rinse-aid spills
Sud tub interior Detergent with colourant was used		Only use detergent without colourant
White film on inside surfact	Hard water minerals	Clean the interior with a damp sponge regulatory
Rust stains on cutlery	Cutlery are not corrosion resistant	Do not wash these items in dishwasher
	A programme was not run after fill in salt	Always run a quick programme after adding salt
	Softener lid is loose	Check and fix it
Knocking noise in the cabinet	Spray arm is knocking against an item in the basket	Interrupt the program and re-arrange the items
Rattling noise	Items of crockery are loose in the cabinet
Knocking noise in water pipes	Caused by on-site installation or cross section of the piping	This has no influence in the dishwasher function
Dishes ware not clean	Dishes not loaded correctly	Re-arrange the dishes
	Spray arms are blocked
	Not enough detergent	Add more detergent
	Program was not powerful enough	Choose another program
	Filter is dirty or not correctly inserted	Clean the filter and ensure it's fit in correctly

EN

26

Cloudiness on glassware	• Too much detergent	• Use less detergent and choose shortest cycle for cleaning glasses
Black or grey marks on dishes •	Aluminum utensils have rubbed against dishes	• Use a mild abrasive cleaner
Detergent left in dispenser cups	• Detergent cups are blocked	• Re-arrange the dishes
Dishes are not drying • Improper loading
	• Rinse-aid level is too low •	Increase the rinse-aid level
	• Dishes removed too soon •	Do not removed the dishes immediately after washing.

TECHNICAL DATA

Power consumption 1760 - 2100 W
Rated voltage / frequency 220 - 240 V ~ 50 Hz
Water pressure (flow pressure) 0.4 - 10 bar / 0.04 - 1 MPa

• This is a Dishwasher.
- Erp-testing was done according to EN50242:2008+A11, Directive(EU)1016/2010, Directive(EU)1059/2010.
- See website below for detailed technical information or ask your vendor for specification sheet. www.ok-online.com.

DISPOSAL

Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.

Produktdatenblatt/ Product fiche
1 Imtron
2	Modell / Model	ODW 60032 FS A2 ODW 45012 FS A2
3	Energieeffizienzklasse / Energy efficiency class	A++ A++
4	Standardreinigungszyklus / Standard cleaning cycle	ECO 45 °C ECO 45 °C
5	Energieverbrauch Standardreinigungszyklus* / Energy consumption of the standard cleaning cycle*	0.91 kWh 0.69 kWh
6	Reinigungswirkungsklasse / Cleaning performance class	A	A
7	Trocknungseffizienzklasse / Drying efficiency class	A	A
8	Standardgedecke / Standard place settings	12	9
9	Wasserverbrauch per Zyklus / Water consumption per cycle	11 Liter 9 Liter
10	Zeitdauer Standardreinigungszyklus / Program duration of the standard cleaning cycle	185 min 185 min
11	Geschätzter jährlicher Energieverbrauch (280 Standardprogramme) / Estimated annual energy consumption (280 cycles)	258 kWh 197 kWh
12	Geschätzter jährlicher Wasserverbrauch (280 Standardprogramme) / Estimated annual water consumption (280 cycles)	3080 Liter 2520 Liter
13	Geräuschpegel / Noise level	49 dB(A) re 1 pW 49 dB(A) re 1 pW
14	Energieverbrauch, Gerät: Aus / Power consumption of off-mode	0.45 W 0.45 W
15	Energieverbrauch, Gerät: Ein / Power consumption of left-on mode	0.49 W 0.49 W
16	Einbauart / Mounting Freistehend / Free standing	Freistehend / Free standing
17	Einbau möglich / Could be built-in	Ja / Yes	Ja / Yes
18	Höhe / Height	84.5 cm	84.5 cm
19	Breite / Width	59.8 cm	44.8 cm
20	Tiefe (mit Anschlüssen) / Depth (with connectors)	60 cm	60 cm
21	Leistung / Power consumption	1760 - 2100 W	1760 - 2100 W
22	Nennspannung /-frequenz / Rated voltage / frequency	220 - 240 V ~ 50 Hz	220 - 240 V ~ 50 Hz
23	Wasserdruck (Durchflussdruck) / Water pressure (flow pressure)	0,4-10 bar / 0.04-1 MPa	0,4-10 bar / 0.04-1 MPa
