OTD 71116 - Tumble drier OK - Free user manual and instructions
Find the device manual for free OTD 71116 OK in PDF.
| Brand | OK |
| Model | OTD 71116 |
| Product type | Condenser tumble dryer |
| Drying capacity | 7 kg |
| Dimensions (W x D x H) | 555 x 595 x 840 mm |
| Power supply | 220-240 V ~, 50 Hz |
| Rated power | 2000 W |
| Protection class | I |
| Protection rating | IPX4 |
| Energy class | C |
| Estimated annual consumption | 520 kWh/year |
| Drying programs | Cotton, Mix, Synthetics, Time, Special (Delicate, Refresh, Quick, Air, Wool) |
| Additional functions | Delayed start (1-24h), Anti-crease, Intensity (3 levels), Audible signal, Child lock |
| Drum type | Rotating drum |
| Lint filter | Yes, washable with water |
| Water tank | Yes, to be emptied after each use |
| Noise level | 69 dB |
| Maintenance | Clean the lint filter and empty the water tank after each use; clean surfaces with a damp cloth |
| Safety | Child lock, hot surface, door opening at cycle end |
| Included accessories | Air exhaust hose, user manual, warranty card |
Frequently Asked Questions - OTD 71116 OK
User questions about OTD 71116 OK
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Tumble drier in PDF format for free! Find your manual OTD 71116 - OK and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. OTD 71116 by OK.
USER MANUAL OTD 71116 OK
IH_OTD 7112_OTD 7116_1810CE_V04
www.ac-pr-1800m
Immuno GmbH Warkostrasse 3 050-16 Registered. Germany www.immro.s.
OTD 71112 / OTD 71116
AIR VENTED DRYER // ABLUFTTROCKNER // DROGER MET LUCHTEVACUATIE // SÉCHE-LINGE À ÉVACUATION
12.07.2018, 1998, 2013, 1998

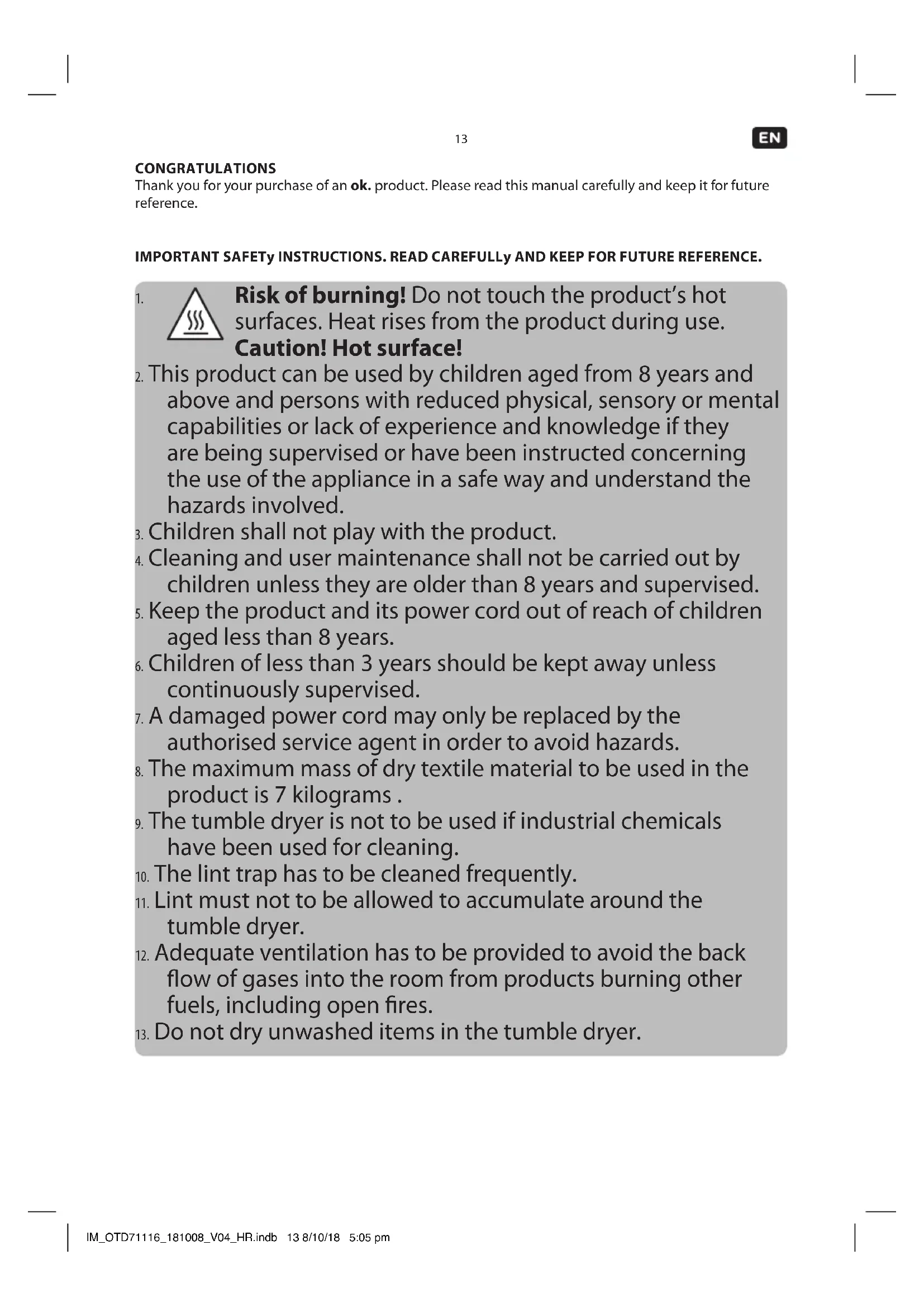

HERZLICHEN GLÜCKWUNSCH!
Thank you for your purchase of an ok. product. Please read this manual carefully and keep it for future reference.
IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
1.
Risk of burning! Do not touch the product's hot surfaces. Heat rises from the product during use. Caution! Hot surface!
- This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been instructed concerning the use of the appliance in a safe way and understand the hazards involved.
- Children shall not play with the product.
- Cleaning and user maintenance shall not be carried out by children unless they are older than 8 years and supervised.
- Keep the product and its power cord out of reach of children aged less than 8 years.
- Children of less than 3 years should be kept away unless continuously supervised.
- A damaged power cord may only be replaced by the authorised service agent in order to avoid hazards.
- The maximum mass of dry textile material to be used in the product is 7 kilograms.
- The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
- The lint trap has to be cleaned frequently.
- Lint must not to be allowed to accumulate around the tumble dryer.
- Adequate ventilation has to be provided to avoid the back flow of gases into the room from products burning other fuels, including open fires.
- Do not dry unwashed items in the tumble dryer.
EN
- Items that have been soiled with substance such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
- Items such as foam rubber (latex form), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
- Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
- The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that does not damage the dried cloth.
- Remove all objects from pockets such as lighters and keys.
- Warning: never stop the tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the clothes are allowed to properly cool down.
- The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
- The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.
- For appliances with ventilation openings in the base, make sure that the openings are not obstructed, e.g. by carpet.
-
Follow the instructions in the chapter Cleaning and care.
-
Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
-
Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
-
Never leave the product unsupervised while it is switched on.
-
Never immerse electrical parts of the product in water or any other fluids during cleaning or operation. Never hold the product under running water.
-
Do not under any circumstances attempt to repair the product yourself. For servicing and repairs, please consult an authorised service agent (e.g. damaged power cord, product has been dropped during installation, etc.).
-
The mains voltage must match the information on the rating label of the product.
-
Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
-
Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
-
Only unplug from the power socket by the plug itself. Do not pull on the cord.
-
Unplug the product ...
-
when the product is not being used,
- in case of malfunctions,
- before attaching / detaching accessories and
-
before cleaning the product.
-
Use this product in dry indoor areas only and never outdoors.
-
Never use, expose or put the product near to:
-
direct sunlight and dust;
-
fire (fireplace, grill, candles), water (water splashes, vases, ponds, bath tube) or heavy moisture.
-
This product is not intended for commercial use. It is designed for household use only.
INTENDED USE
This product is designed for drying clothes and textiles. Any other use may result in damage to the product or injuries. This product is designed for household use only and not intended for commercial use. The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer's specified purpose.
EN
CONTROLS AND COMPONENTS
A. Operation panel
a1 Program selection knob
a2 Display
a3 Display of additional functions and status
a4 Ein/Aus (on/off) button
a5 Start/Pause button
a6 Signal button
a7 Intensität (intensity) button
a8 Startzeitvorwahl (delay) button
a9 Knitterschutz (anti-crease) button
B. Power cord with plug
C. Drum
D. Lint filter
E. Adjustable feet
F. Handle
G. Door with window
H. Exhaust outlet (rear side)
CONTENT
1 x Air Vented Dryer
1 x Exhaust hose
1 x User manual
1 x Warranty card
BEFORE FIRST TIME USE
- Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.
- Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.
• After unpacking, please refer to chapter Cleaning and Care.
INSTALLATION
Note: The air vented dryer is equipped with power cord and plug. Before installation, make sure that a wall outlet is at the desired place of installation.
Consider the dimension of the product for placing and installation.
1 Place the tumble dryer on an even, horizontal and steady surface. For levelling the feet are adjustable and can be screwed in or out. Use a level to ensure that the device is in a horizontal position.
Make sure to keep the minimum clearance to the rear side.
Installing the exhaust hose
2 Connect the end of the flex tube with the flange to the air outlet at the backside of the device and turn it until it is fixed tightly.
3 Warning! The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliance burning gas or other fuels.
The other end of flex tube has to be extended to an outdoor area or a proper ventilation pit.
4 Connect the power plug to the mains socket.
PREPARATION
- Before drying, thoroughly spin the laundry in the washing machine. High spin speed can reduce the drying time and save energy consumption.
- For uniform drying result, sort the laundry according to fabric type and desired drying program.
• Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc. - Do not over dry the clothes, because over dried clothes can easily get creases or might shrink.
- Do not dry articles containing rubber or similar elastic materials such as raincoats, bicycle covers and feather products.
- The door may be opened only after the program of the dryer is completed. Do not open the door before the program has finished, as skin may be scalded by steam or hot surface.
- Clean the lint filter after each use to avoid extension of drying time and energy consumption.
• Do not dry clothes after chemical dry-cleaning.
Consider below weight references. Please note, that the values below are just a reference and that the actual weight of the item depends on the material etc.:
 |  |  |  |
| Blended Coats: about 800 g | Jackets: about 800 g in cotton | Jeans Trousers: about 800 g | Towel Quilts: about 900 g in cotton |
 |  |  |  |
| Single Sheets: about 600 g in cotton | Work Clothes, upper and lower: about 1120 g in cotton | Pajamas: about 200 g | Shirts: about 300 g in cotton |
 | [6HZZ] |  | |
| Undershirts: about 180 g in cotton | Underpants: about 70 g in cotton | Socks: about 50 g in blended material |
EN
OPERATION
Drying clothes
5 For drying clothes follow below instructions:
- Open the door, fill the drum with your clothes and close the door.
- Switch on the appliance with ON/OFF button (Ein/Aus).
- Chose the desired program, refer to Programming table.
- Chose an additional function if needed or set the time delay (Startzeitvorwahl).
- Push button Start/Pause. The dryer starts the drying process at the preset conditions.
- By pushing the Start/Pause button again, the dryer stops. To continue the drying process push the Start/Pause button again.
If drying is finished a beep will sound six times and the Filter and Anti-Crease control LEDs will flash continuously until the door is opened. Open the door and remove all clothes.
Caution!
The door may only be opened if the appliance is not running, e.g. after the drying process has finished. Do not try to open the door when the appliance is running to avoid burns or scalding caused by hot steam or hot surfaces. There is also a mechanical danger due to the rotating drum.
Note:
- The appliance is equipped with a humidity sensor to measure the moisture in the drum or appliance. The residual time for drying is determined by the weight of inserted clothes and measured moisture.
• This function is not active during refresh (Auffrischen) mode.
Programming table
6 Chose a suitable drying program.
| Program | Weight (max.) | Application/Properties Delay Intensity | |||
| Baumwolle(Cotton) | For coloured clothes made of cotton or linen | ||||
| Extra | 7,0kg cup | Drying level: Extra Yes Yes | |||
| Standard Drying level: Drying level: | Drying level: | board dry Yes Yes | |||
| Less (Leicht) | less dry Yes Yes | ||||
| Mix(Mix) | If you cannot determine what the clothing's material is, please choose Mix | ||||
| Extra | 7,0kg | Drying level: Extra Yes Yes | |||
| Standard Drying level: cup | Drying level: | board dry Yes Yes | |||
| Pflegeleicht(Synthetics) | For non-iron clothes made of synthetic and blended fabrics, cotton | ||||
| Extra | 3,0kg | Drying level: Extra | Yes Yes | ||
| Standard Drying level: cup | Drying level: | board dry | Yes Yes | ||
| Dauer(Time) | 30 min | - | Duration: 30 minutes Yes No | ||
| 40 min Duration: 40 minutes | - | Yes No | |||
| 50 min Duration: 50 minutes | - | Yes No | |||
| 60 min Duration: 60 minutes | - | Yes No | |||
| Spezial(Special) | Delicate(Feinwäsche) | - | Drying delicate clothes | Yes No | |
| Refresh(Auffrischen) | For refreshing or gently cleaning textiles with commercially available dry cleaning products. | Yes No | |||
| Quick(Kurz) | For clothes that are to be dried quickly, e.g. clothes made of acrylic fibers or small clothes. Also suitable for repeated drying. | Yes No | |||
| Lüften(Airing) | Airing(Lüften) | - To air | clothes without blowing hot air Yes No | ||
| Wolle Auffrischen(Wool refresh) | Wool(Wolle) | - | For a fluffy and fresh wool clothing (cannot be used for drying wool clothing), when the cycle is done, take out the clothes at once and let them dry in the air. | Yes No | |
EN
20
ADDITIONAL FUNCTIONS
Delayed drying (Startzeitvorwahl)
7 If you wish to postpone the drying process, a time delay can be set. Use the time delay button (Startzeitvorwahl) to set a postponed start between 1-24 hours. The dryer starts the drying process after the preset time has elapsed.
- Fill the drum with your clothes and close the door.
- Switch ON the appliance with the On/Off switch (Ein/Aus).
- Chose your program and an additional function if needed (e.g. Anti-Crease).
- Push the button delay (Startzeitvorwahl) for as many times as needed to set the time delay in hours (h) which is indicated by the LED in the time delay display.
- Push the button Start/Pause. The dryer is activated and will start the drying process once the preset time has elapsed.
- Push the button Start/Pause to pause the timer. For cancellation push the On/Off switch (Ein/Aus).
8 Once the child protection is activated, the setting cannot be changed. In that case the dryer can only be switched off by pushing the On/Off switch (Ein/Aus). The child protection can only be activated if the dryer operation was started or is running either directly or by time delay.
-
Activation: Press the anti-crease button (Knitterschutz) and the delay button (Startzeitvorwahl) at once and for more than 3 seconds. The corresponding LED of the control panel indicates the child protection (Kindersicherung).
-
De-activation: Press the buttons anti-crease (Knitterschutz) and delay (Startzeitvorwahl) at once and for more than 3 seconds. The corresponding LED of the control panel (Kindersicherung) turns off.
Anti-crease function (Knitterschutz)
9 This function is used to minimize the appearance of crease after the drying process is finished. The standard time for this function is 30 minutes. The drum rotates intermittently in order to minimize formation of crease.
- Press anti-crease (Knitterschutz) and the related LED lights on.
Intensity
10 Press the button Intensity to select additional dryness levels for the laundry. Three levels can be chosen. The drying time increases 3 minutes in every level.
• Intensity function can be activated only before the program start.
- Pess the Intensity button repeatedly to select the additional drying time.
Signal
11 Press the Signal button to select acoustic signal function being on or off.
CLEANING AND CARE
- Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
- Warning! Switch off the tumble dryer and let it cool down completely before cleaning.
- Clean the exterior surfaces of the product with a slightly damp cloth and dry them well. Make sure that no water enters the product interior (e.g. at the control wheel).
Cleaning the lint filter
The LED Filter on the control panel will indicate when the air inlet needs to be cleaned.
12 Pull out the filter and open it. Remove lint and fibers by hand. Wash the filter with tap water in order to remove remaining lint or particles. Reassembling is done in reverse order.
ERROR INDICATION AND TROUBLESHOOTING
Error indication shown in display and remedy
Follow below table to understand error messages and to remedy. Error messages are shown in display during use.
| Error message Reason Remedy | ||
| E36 Error of temperature sensor, open or short circuit | Contact your service agent | |
TROUBLESHOOTING
If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution, please contact your manufacturer.
| Problem Solution | |
| Display doesn’t light on • Check power supply• Check fuses of your electric supply | |
| Dryer doesn’t start • Make sure the door is closed• Chose correct program and push button Start/Pause | |
| Water leakage • Align dryer horizontally.• If the problem persists contact your service agent. | |
| Door opens by itself or cannot be closed | • Close door slowly until it clicks. Do not slam the door.• Remove clothes if overloaded |
| Humidity in the room increasing significantly | • Ventilate room adequately.• Check exhaust hose. |
| Degree of dryness not reached or drying time too long | • Clean lint filter.• Use next higher drying program or use higher drying time. |
Technical data
Rated Voltage: 220 - 240 V\~, 50 Hz
Rated power : 2000 W
Protection class : I
Rated drying capacity : 7 kg
Dimensions : 555 x 595 x 840 mm
Protection degree : IPX4
• This is a an Air vented Dryer.
• Erp-testing was done according to EN 61121:2013.
• See website below for detailed technical information or ask your vendor for specification sheet.
www.ok-online.com
DISPOSAL
Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.
EU product fiche
The information in this product data sheet is given in accordance with article 3 letter b) in conjunction with Annex II of the Commission delegated Regulation (EU) No 392/2012 supplementing Directive 2010/30/EU of the European Parliament and of the Council with regard to energy labelling of household tumble driers.
| a) | Supplier's trade mark | ok. | ||
| b) Model identifier OTD 71112 / OTD 71116 | ||||
| SymbolValueUnit | ||||
| c) | Rated capacity of cotton laundry for the standard cotton program at full load | 7.0 kg | ||
| d) Type of the household tumble drier air-vented household tumble drier | ||||
| e) Energy efficiency class C | ||||
| f) Weighted Annual Energy Consumption 1 | AE_c | 520.0 kWh/year | ||
| g) Automatism of the household tumble drier automatic | ||||
| h) EU Ecolabel award under Regulation (EC) No 66/2010 n/a | ||||
| i) | Energy consumption of the standard cotton program | |||
| at full load E | dry | 4.44 kWh | ||
| at partial load E | dry1/2 | 2.31 kWh | ||
| j) | Power consumption for the standard cotton program at full mode: | |||
| in the off-mode P | 0 | 0.46 | W | |
| in the left-on mode | P_1 | 0.48 | W | |
| k) | Duration of the "left-on mode" | t_L | 10 | min |
| l) | The 'standard cotton programme' used at full and partial load is the standard drying program to which the information in the label and this fiche relates. This program is suitable for drying normal wet cotton laundry and is the most efficient program in terms of energy consumption for cotton. | Program: "Baumwolle Standard", marked with an arrow | ||
| m) | Weighted program time of the standard cotton program at full and partial load | T_t | 105 | min |
| program time of the standard cotton program at full load | T_dry | 145 | min | |
| program time of the standard cotton program at partial load T | dry1/2 | 75 | min | |
| n) | Condensation efficiency class on a scale from G (least efficient) to A (most efficient) | n/a | ||
| o) | Average condensation efficiency of the standard cotton program | |||
| at full load | C_dry | n/a | % | |
| at partial load | C_dry1/2 | n/a | % | |
| weighted condensation efficiency for the standard cotton program at full and partial load | G_t | n/a | % | |
| p) Sound power level (weighted average value) | L_wA | 69 | dB | |
^1 Energy consumption based on 160 drying cycles of the standard cotton program at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.
