USER MANUAL Origo A100 DOMETIC

Exterior view of a modern gas stove with a central dome and side blades (no text or symbols visible)

Exterior view of a two-wet gas stove with two flanges (no text or symbols visible)

A100, A200

EN

Alcohol stoves

Operating manual....8

DE

Spirituskocher

Line drawing of a hand using a tool to switch a valve on a gas stove (no text or symbols)

Technical diagram of a portable stove with labeled parts and an inset view showing internal components.

Technical line drawing of a mechanical assembly with labeled component '1' (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with labeled components (no text or symbols present)

5 >750 mm >50 mm >50 mm

6 σφ0.45

7 1 2

8 1. 2.

9 1. 2.

10 1.

Line drawing of a hand using a tool to cut concentric rings around a circular object (no text or symbols)

Diagram showing concentric circles with a central shaded region and an arrow pointing to it, labeled '12' in the top-left corner (no text or symbols within the diagram itself)

13 1 2

14 1. 2.

Line drawing of a hand using a tool to adjust or install a mechanical component on a stovetop (no text or symbols)

Please read this instruction manual carefully before first use, and store it in a safe place. If you pass on the product to another person, hand over this instruction manual along with it.

Table of contents

1 Explanation of symbols....8
2 General safety instructions....9
3 Scope of delivery ..... 11
4 Accessories....11
5 Intended use .... 11
6 Technical description ..... 12
7 Mounting the stove....12
8 Using the stove....14
9 Cleaning and maintaining the stove....16
10 Guarantee....16
11 Disposal....17
12 Technical data....17

1 Explanation of symbols

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair the function of the product.

NOTE

Supplementary information for operating the product.

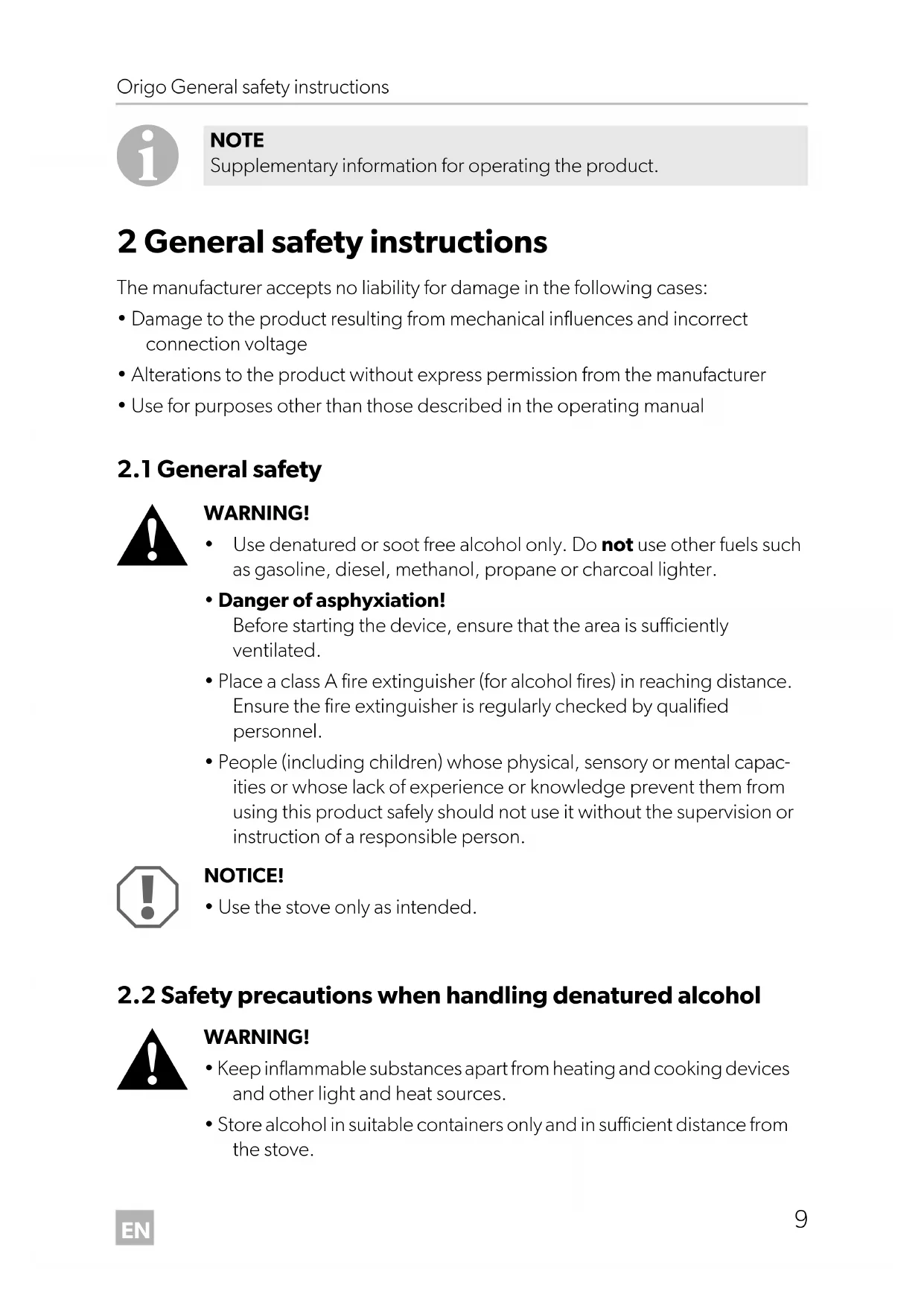

2 General safety instructions

The manufacturer accepts no liability for damage in the following cases:

• Damage to the product resulting from mechanical influences and incorrect connection voltage
  • Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in the operating manual

2.1 General safety

WARNING!

• Use denatured or soot free alcohol only. Do not use other fuels such as gasoline, diesel, methanol, propane or charcoal lighter.
  • Danger of asphyxiation!
  Before starting the device, ensure that the area is sufficiently ventilated.
• Place a class A fire extinguisher (for alcohol fires) in reaching distance. Ensure the fire extinguisher is regularly checked by qualified personnel.
• People (including children) whose physical, sensory or mental capacities or whose lack of experience or knowledge prevent them from using this product safely should not use it without the supervision or instruction of a responsible person.

NOTICE!

- Use the stove only as intended.

2.2 Safety precautions when handling denatured alcohol

WARNING!

- Keep inflammable substances apart from heating and cooking devices and other light and heat sources.

- Store alcohol in suitable containers only and in sufficient distance from the stove.

• Eliminate all sources of sparks or flames where the alcohol is stored or filled-in.
• Never fill the canisters while still in the stove. Never pour fuel through the burner openings in top of the stove (fig. 1, page 3).
  • Overfilling, spilt alcohol and hot objects can cause severe burns.
• Denatured alcohol burns with almost invisible flame, so great damage can arise before you notice the danger.

NOTICE!

• Mop up any spilt alcohol immediately to prevent uncontrollable burning.
• Do not smoke when handling alcohol or when operating the stove.
• Fill the canister to the maximum capacity only. Alcohol expands in the canister when heated. Overfilled alcohol can cause uncontrollable burning inside the stove.

2.3 Operating the device safely

CAUTION!

• Use long matches or long lighters to light the burner. Quickly remove your hand as soon as the burner ignites.
• Wear proper clothing when operating the stove. Do not wear hanging garments which can catch fire.

NOTICE!

• Let the stove cool down to ambient temperature before you touch it with bare hands.
• Keep the area surrounding the stove and interior parts free of grease, fat, alcoholic substances, plastic or inflammable cloths (for instance curtains, towels, kitchen utensils).
• Use only pots and pans with flat bottoms and with a maximum diameter of 23 cm (9"). The pots and pans should be large enough to cover the heating element. The use of undersized utensils will expose a portion of the heating element to direct contact and may result in ignition of clothing. Proper sized utensils will also improve efficiency.

• When cooking ensure that pans and pots are securely in position. Recommended is the use of pot holders (fig. 2 2, page 3, accessory).

• Never allow pot handles to extend beyond the edge of the stove. Turn pot handles inward, but not extending over other burners. This will minimize the possibility of spillage, ignition of flammable materials and/or serious burns.

• Be careful when heating grease or oil. Grease and oil catch fire when exposed to great heat.
• Use only dry pot cloths to prevent the formation of steam. Do not use towels or the like instead of pot cloths as these can catch fire.
• Only operate the device when you or another person can attend to it. Pots boiling over can cause smoke and fires.
• Move the burner control (fig. 2 1, page 3) to the off position before removing the pot.
  • D o not use the stove as a heater.

3 S c o p e o f d

• Stove
• Operating Manual

4 A c c e s s o r i

Description Ref. no.

A100 A200

Glass Lid 9103303992 9103303991

Pot Holder 9103303982

Canister 9103303993

5 Intended use

WARNING!

The device must only be used outdoors.

Origo stoves are unpressurized spirit stoves. The stove must only be used outdoors for the purpose of cooking food.

6 Technical description

6.1 Function

The stove is made of stainless steel and uses the absorption principle. The canister has a capacity of 1.2 l. Denatured alcohol is used as fuel. The burner can be lit with long matches or a corresponding lighter.

Alcohol is absorbed into a non-flammable material in the canister. It is not equipped with fuel valve or fuel lines, which can develop leaks, or with other such components requiring regular service.

6.2 Specifications for the device variants

Various stove versions are available.

• A100: single-burner unit
• A200: double-burner unit

To define your device see the Ref. number on the type plate located on the right side of the stove.

6.3 Operating elements

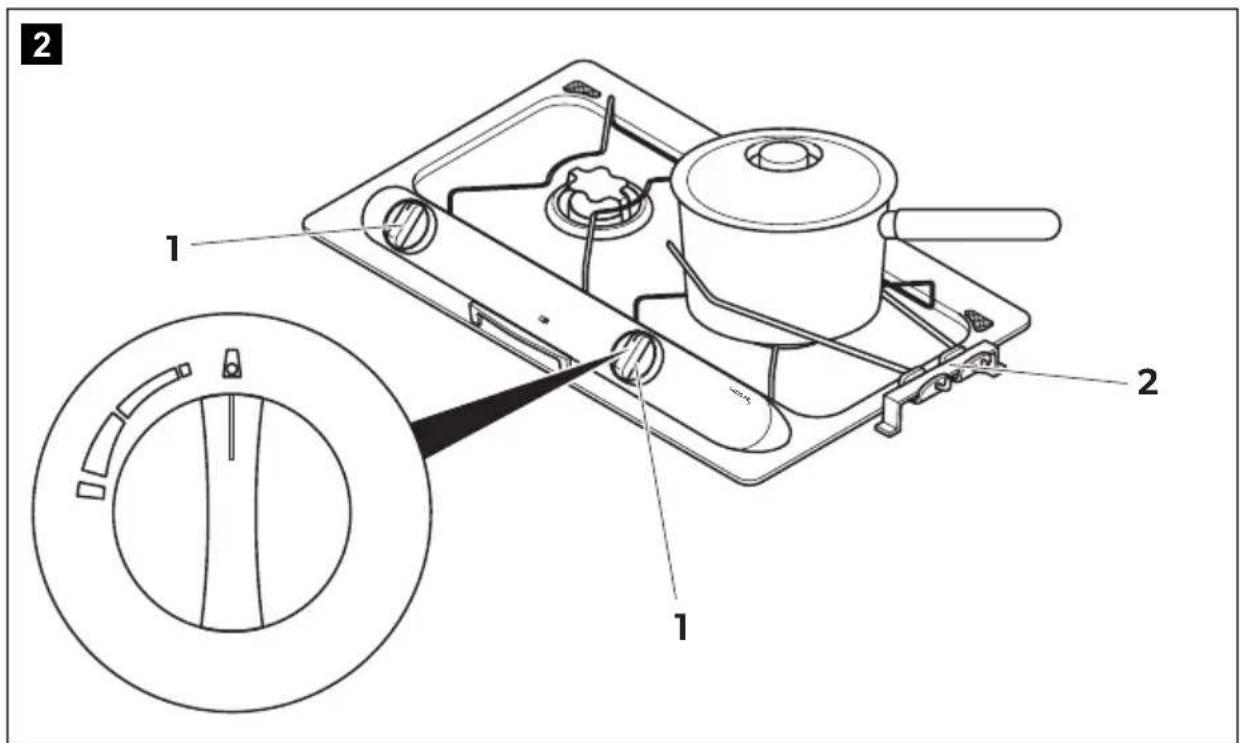

Operating elements for operation with denatured alcohol (fig. 2, page 3):

No. Description

1 Control knob, continuously adjustable

Turn counter-clockwise to increase the burner's flame

2 P o t h o l d e r (accessory)

7 M o u n t i n g t

WARNING!

The device must only be used outdoors.

You can fit the stove into the countertop of your outdoor kitchen.

7.1 Selecting the installation location

When selecting the installation location, observe the following instructions:

• Select a well-ventilated outdoor location for the device.

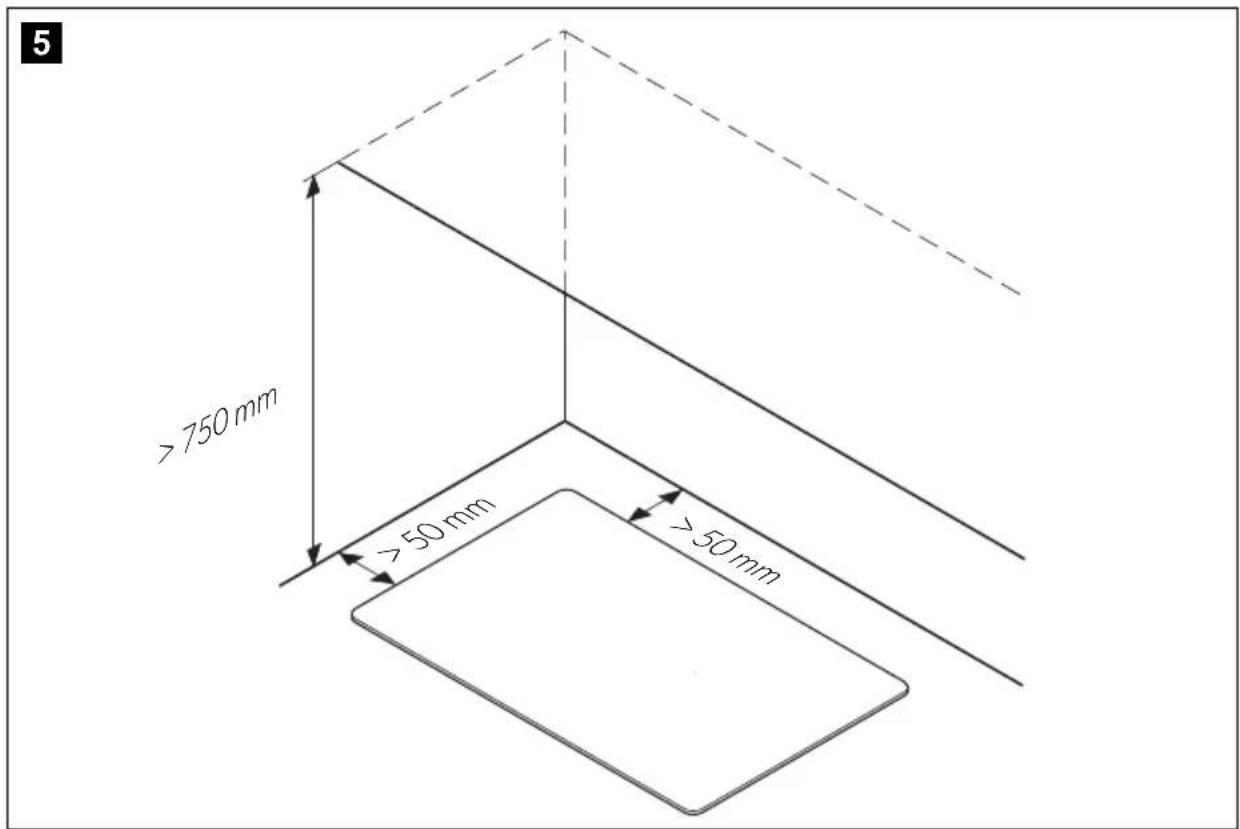

• Ensure a minimum distance (fig. 5, page 5) of
• 50 mm to side and back walls
• 750 mm between stove coil element and horizontal surface above the stove
• If there is a draft at the installation location, attach an additional wind protector.
• Do not install the stove underneath suspended cabinets. Otherwise you risk burns and fire when reaching over the stove.
• Do not operate the device in areas that are potentially explosive.

7.2 Installing the stove

NOTICE! Danger of damaging the device!

Before drilling any holes, make sure that no electrical cables or other parts of the vehicle can be damaged by drilling, sawing and filing.

▶Cut a rectangular hole into the countertop (dimensions see following table):

Model Dimensions (W x D x H)
A100	255 x 150 x 340 mm
A200	485 x 150 x 340 mm

▶ Open the top and remove the canisters (see chapter "Taking out the canister" on page 14).
▶Open up the hinge part in the back of the stove.

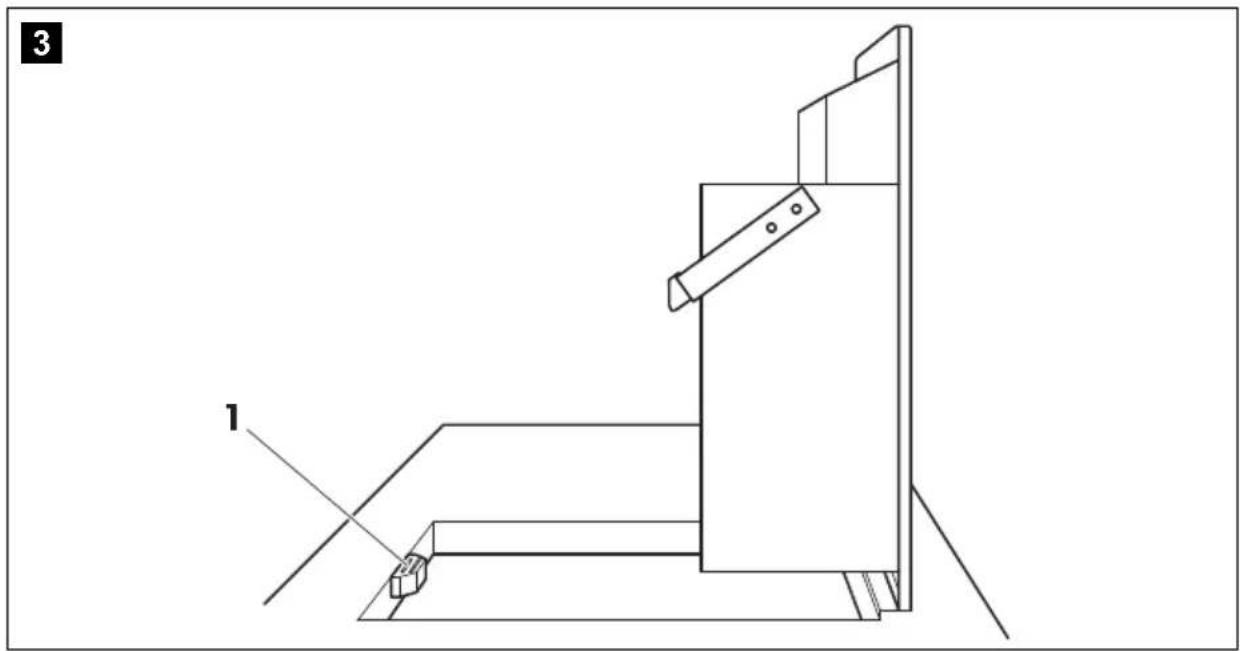

▶ Place the stove according to fig. 3, page 4.

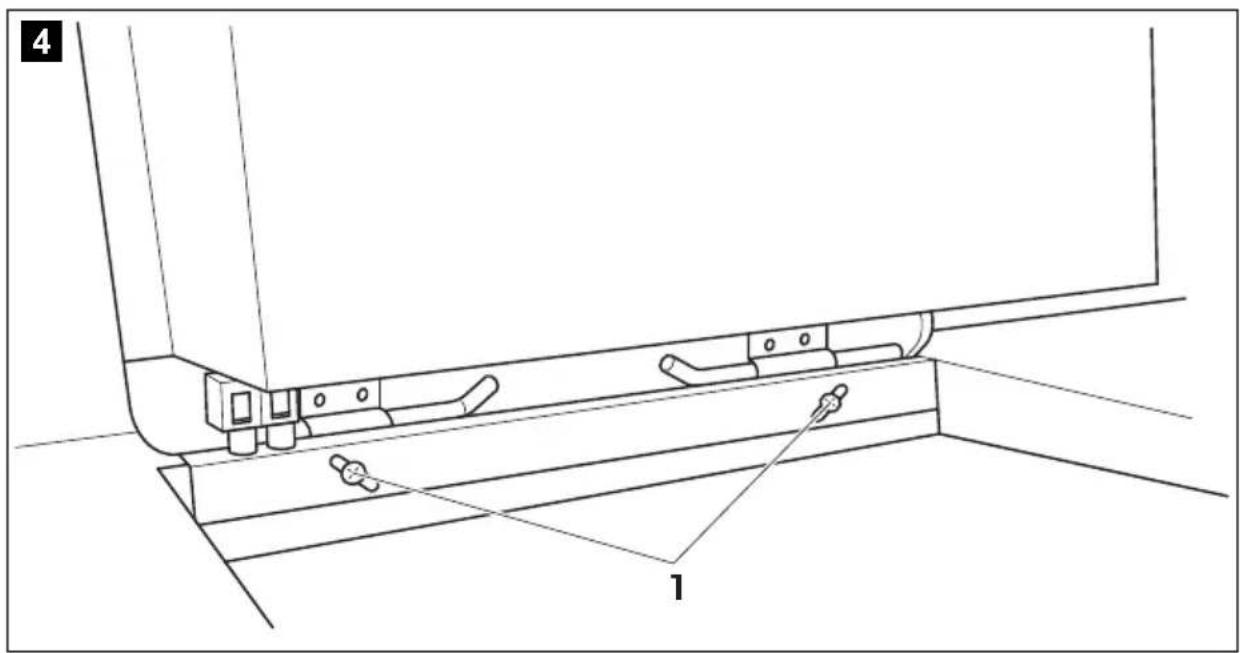

▶Mark the drill holes. Use the fastening holes in the hinge as a template.
▶Pre-drill the holes into the countertop where marked.
▶ Fasten the stove by screwing flat head screws through each drill hole in the hinge (fig. 4 2, page 4).
▶ Install the magnetic locker in the front of the cut-out (fig. 3 1, page 4).
▶Place a class B-1 fire extinguisher in reaching distance.

8 Using the stove

8.1 Filling-in denatured alcohol

WARNING!

Never pour fuel through the burner openings in top of the stove (fig. 1, page 3).

Overfilling, spilt alcohol and hot objects can cause severe burns.

▶Turn the control knob to the OFF position in order to close all burners.
▶ Ensure the stove is cooled down to room temperature.

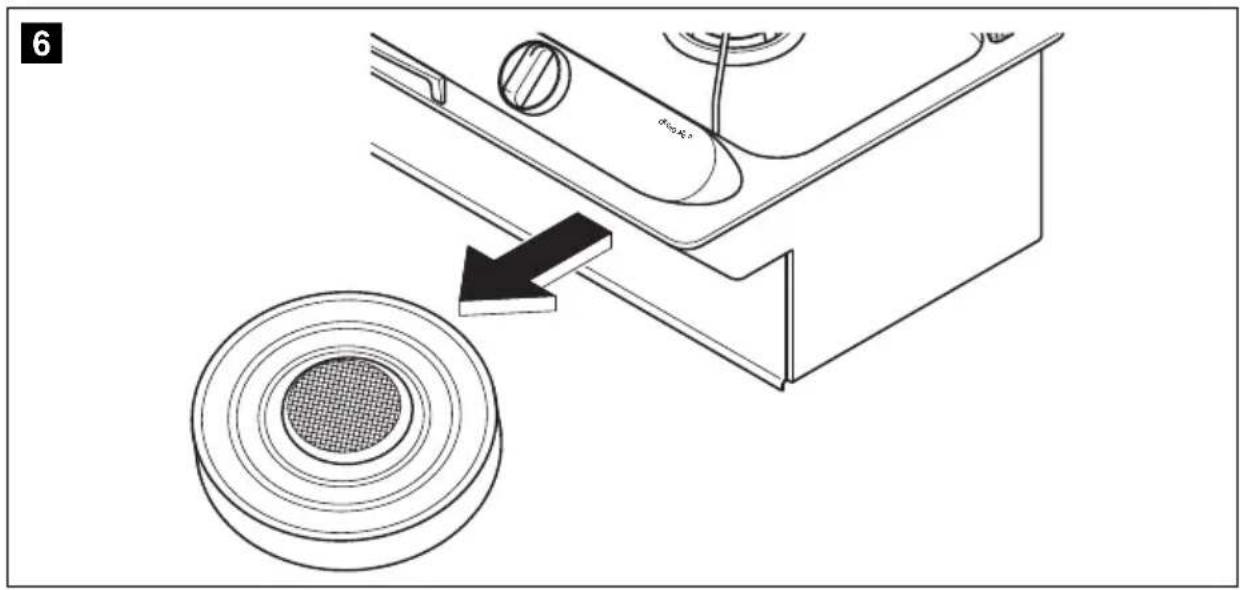

▶ Open the stovetop (fig. 6, page 5).

Taking out the canister

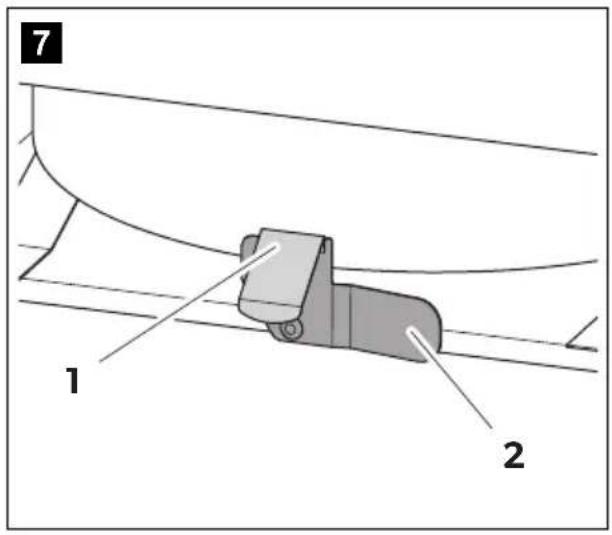

In operating mode, the flexible catch (fig. 7 1, page 6) is locked in the cut-out on the safety lever (fig. 7 2, page 6).

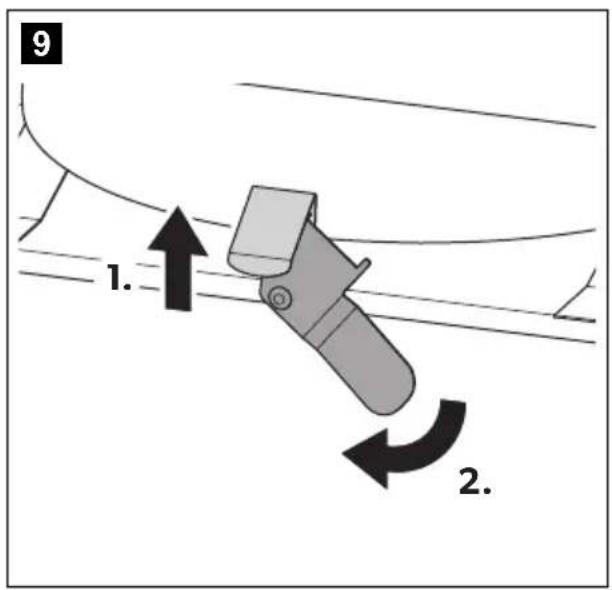

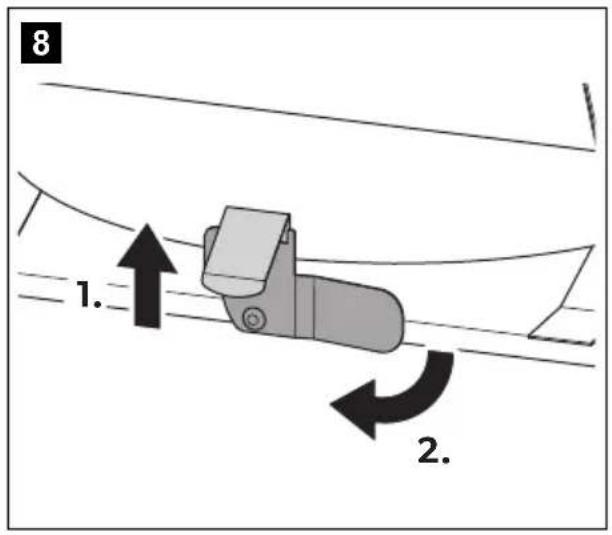

▶ Push the catch (fig. 8 1, page 6) in the direction of the arrow and turn the lever (fig. 8 2, page 6) clockwise (fig. 9, page 6).

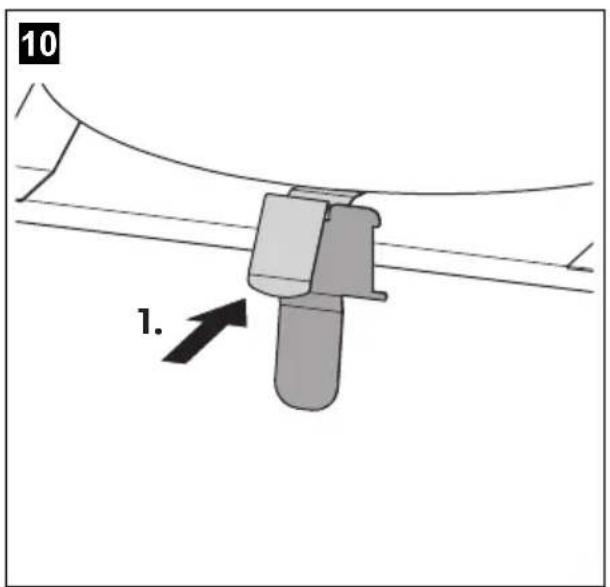

▶ When the catch (fig. 10 1, page 6) is vertical, push it in the direction of the arrow.

√The canister is released.

▶Take out the canister.

Filling with denatured alcohol

▶ Check canister opening ensuring there’s neither fire nor glow.
▶Make sure the canister is cool enough to be held in your bare hand before filling.

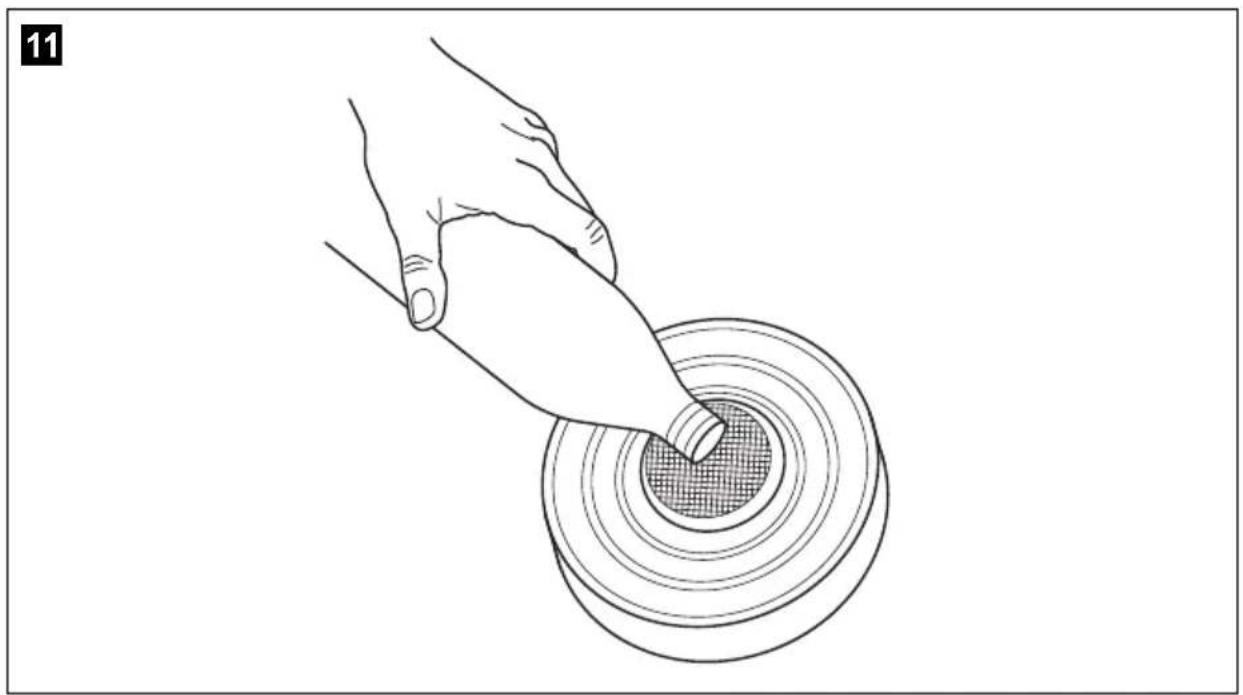

▶ Hold the canister tilted down (fig. 11, page 6).
▶Fill the denatured alcohol through the wire mesh into the opening of the canisters.
The maximum capacity per canister must not exceed 1.2 l.

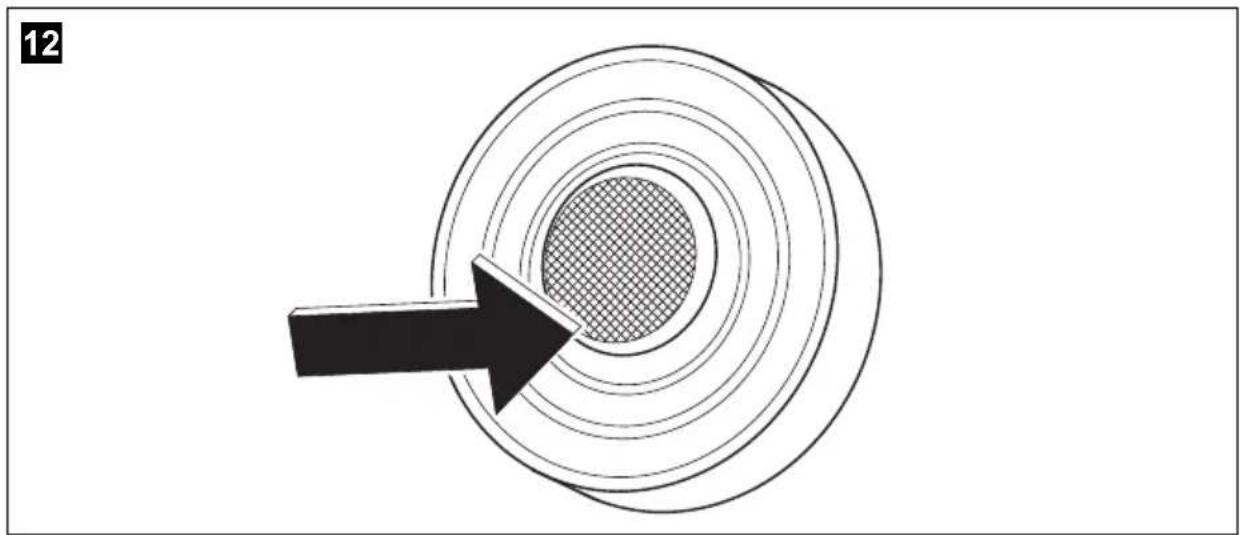

▶ Check the fuel level by tilting the canister vertically (fig. 12, page 7). Keep it in this position for 20 s, to make sure it's not overfilled. In addition, in the case of accidental overfilling you can get rid of the surplus fuel.

√The maximum fuel level is reached when the fuel is visible at the bottom of the opening.

NOTE

The stove will operate even if the canister isn't filled with the maximum capacity.

▶Wipe possible spilt alcohol off the outside of the canister.

Inserting the canister

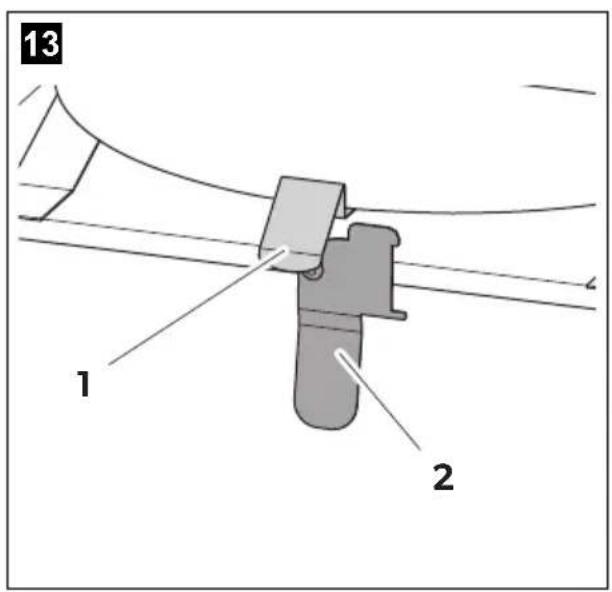

▶ Push the canister into the stove as far as it will go so that it is locked by the catch (fig. 13 1, page 7).

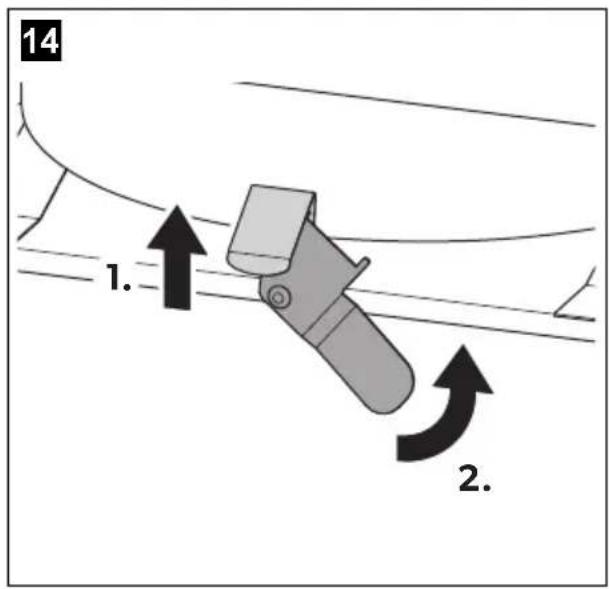

To secure the catch (fig. 14 1, page 7), push it in the direction of the arrow and simultaneously turn the safety lever (fig. 14 2, page 7) anti-clockwise until the catch (fig. 14 1, page 7) is engaged.

8.2 Lighting the stove

CAUTION!

Use extra-long matches or an extra-long lighter for lighting. Remove your hand quickly as soon as the burner is lit.

▶Turn the controller up.
√The burner is opened.

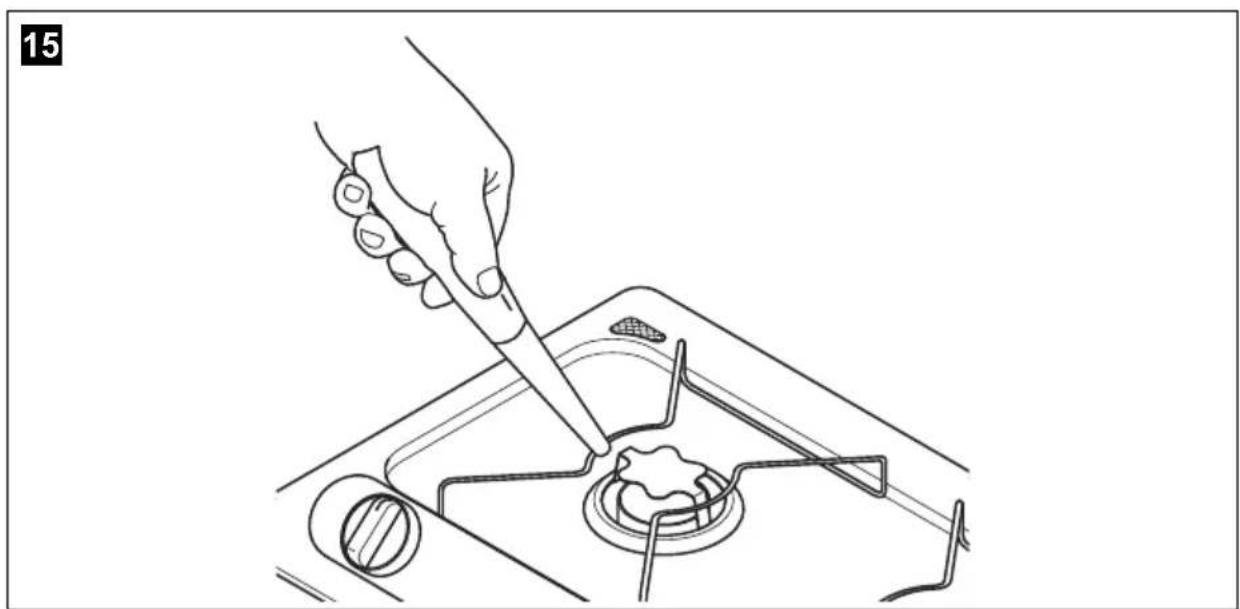

▶Light the cooker by holding an extra-long match or extra-long lighter to the burner opening (fig. 15, page 7).
▶Adjust the flame so it does not extend beyond the edge of the pot.
▶Choose the desired power setting via control knob.

NOTE

If the stove hasn't cooled down from previous use, the burner may ignite but immediately extinguish. In this case blow air into the burner opening to dissipate vapour.

Afterwards light the stove as described above.

8.3 Extinguish the flame

▶Turn the control knob to the Off position.
√The burned is closed.
▶Wait about five seconds.
▶ Turn the control knob to the Maximum position to make sure the flame is extinguished.
√The burner is open.
▶Turn the control knob to the Off position.
√The burner is closed.
▶If applicable, wait until the stove has cooled down completely before replacing the glass lid (accessory).

9 Cleaning and maintaining the stove

NOTICE!

Do not use any sharp or hard objects for cleaning since they may damage the device.

▶Remove the grate from the stovetop.
▶Clean the stovetop. In particular remove carefully sticky grease and oil.
▶Never use a steam cleaner for cleaning the stove.

10 Guarantee

The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see the back of the instruction manual for the addresses).

For repair and guarantee processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date
- A reason for the claim or description of the fault

11 Disposal

▶ Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

12 Technical data

	Origo A100 Origo A200
Ref. no.: 9103303935 9103303937
Number of burners: 1 2
Burning duration: approx. 4.5 h
Power of burner: 2000 W
Cooking time for 1 l water: 10 min
Canister capacity:	1.2 l
Dimensions (W x H x D):	270 x 160 x 365 mm	500 x 160 x 365 mm
Weight:	3,5 kg	7 kg
