USER MANUAL GSP545PVYZ LG

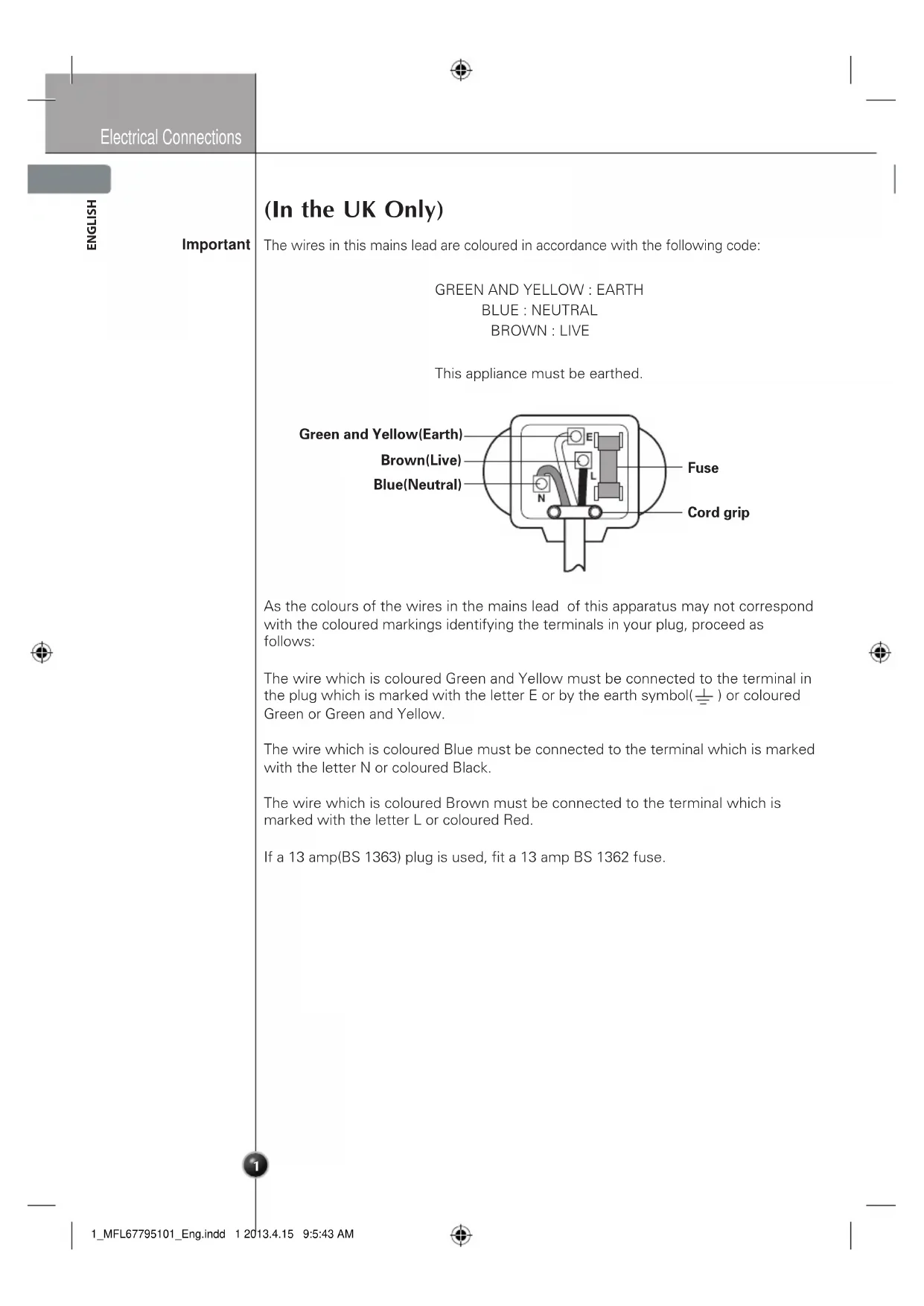

ENGLISH Introduction Installation Operation Suggestion on food storage Care and maintenance The wires in this mains lead are coloured in accordance with the following code: As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol( ) or coloured Green or Green and Yellow. The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black. The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Red. If a 13 amp(BS 1363) plug is used, fit a 13 amp BS 1362 fuse.

GREEN AND YELLOW : EARTH

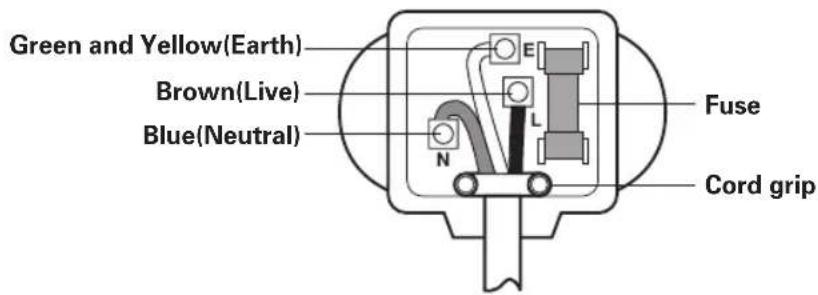

BLUE : NEUTRAL BROWN : LIVE This appliance must be earthed. Important (In the UK Only) Green and Yellow(Earth) Brown(Live) Blue(Neutral) Fuse Cord grip 1_MFL67795101_Eng.indd 1 2013.4.15 9:5:43 AMENGLISH2 Entry Important safety instructions Identification of parts Where to Install Feed water pipe installation Auto ice maker Freezer Compartment (Applicable to some models only) Two stars section (Applicable to some models only) General information Suggestion for energy saving Cleaning Smart Diagnosis Disposal of your old appliance Table of contents

1_MFL67795101_Eng.indd 2 2013.4.15 9:5:43 AM Viewing the owner’s manual.The owner’s manual in a PDF file format is supplied on a CD. Install the Adobe Acrobat Reader to view the owner’s manual on your PC.1. Insert the supplied CD. The web page appears automatically.2. Click Owner’s Manual on the web page.3. View the owner’s manual.If the web page does not appear automatically, access My computer and then click LG and index.htm to view the owner’s manual.

Entry The model and serial numbers are found on the inner case on the back or one side of the refrigerator compartment of this unit. These numbers are unique to this unit and are not available to others. You should record requested information here and retain this guide as a permanent record of your purchase. Staple your receipt here. Date of purchase : Dealer purchased from : Dealer address : Dealer phone no. : Model no. : Serial no. : Important safety instructions Before it is used, this refrigerator must be properly installed and located in accordance with the installation instructions in this document. This Refrigerator is intended for Domestic indoor use only. Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull it straight out from the outlet. When moving your appliance away from the wall, be careful not to roll over the power cord or to damage it in any way. After your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment, particularly when your hands are damp or wet. Skin could adhere to these extremely cold surfaces. Unplug the power cord from the power outlet for cleaning or other maintenance. Never touch the appliance with wet hands as you may receive an electric shock or injure yourself. Never damage, press, severely bend, pull or twist the power cord as damage to the cord may cause a fire or electric shock. Naver touch the cord if you are uncertaim if the appliance is correctly earthed. The fuse on the refrigerator must be changed by a qualified technician or service company. - Failing to do so may result in electric shock or personal injury. Never place glass items in the freezer as they may break due to expansion of their contents on freezing. Never put your hands into the storage bin of the automatic ice maker as you could be injured during its operation. The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance. Never allow anyone to climb, sit, stand or hang on the refreshment centre door. These actions may damage the refrigerator and even tip it over, causing severe personal injury. Child entrapment Grounding (Earthing) Don’t use an extension cord WARNING WARNING WARNING WARNING WARNING Accessibility of Supply Plug Supply Cord Replacement 1_MFL67795101_Eng.indd 3 2013.4.15 9:5:43 AMENGLISHIntroduction

DANGER: Risk of child entrapment.

Before you dispose of your old refrigerator please remove doors but leave the shelves in place so that children cannot climb inside. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. Do not store or use gasoline or other flammable vapour and liquids in the vicinity of this or any other appliance. In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current. In order to prevent possible electric shock this appliance must be earthed. Improper connection of the earthing plug can cause electric shock. Consult a qualified electrician or service engineer if the earthing instructions are not completely understood, or if you have doubts as to whether the appliance is properly earthed. Do not move refrigerator while the refrigerator is operating. Compressor may occur a temporary rattling noise. (This is normal and will not impact on the performance or the life of the compressor. The rattling will stop after the refrigerator comes to a rest.) It is advised that this appliance should be connected through an independent power socket to prevent it and other appliances from overloading the circuit and causing a power outage. The appliance should be positioned so that the supply plug is easily accessible for quick disconnection should an accident occur. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Do not modify or extend the Power Cord length. It may cause electric shock or fire. Connect the power plug in proper position with the cord hanging down.

If you connect the power plug upside down, wire can get cut off and cause fire or electric shock. Make sure that the power plug is not squashed or damaged by the back of the refrigerator. Child entrapment Don’t store Grounding (Earthing) Don’t use an extension cord WARNING WARNING WARNING WARNING Accessibility of Supply Plug Supply Cord Replacement 1_MFL67795101_Eng.indd 4 2013.4.15 9:5:44 AM ENGLISHIntroduction

Keep ventilation openings in the room where the appliance is installed clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Do not damage the refrigerant circuit.

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Disposal procedures. If disposing of this appliance, please consult with a service agent or a similarly qualified person for more details.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Do not use aerosols near the refrigerator. - Aerosols used near the refrigerator may cause an explosion or fire. This appliance may contain (Check the rating/comliance label for the refriger-ant type and amount. Applicable to some models only) a small amount of isobutane refrigerant (R600a), natural gas with high environmental compatibility, but it is also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes. In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 1m

in size for every 8g of R600a refrigerant inside the appliance. The amount of refriger-ant in your particular appliance is shown on the Identification plate inside the appliance. Never start up an appliance showing any signs of damage. If in doubt, consult your dealer. WARNING 1_MFL67795101_Eng.indd 5 2013.4.15 9:5:44 AM ENGLISHIntroduction

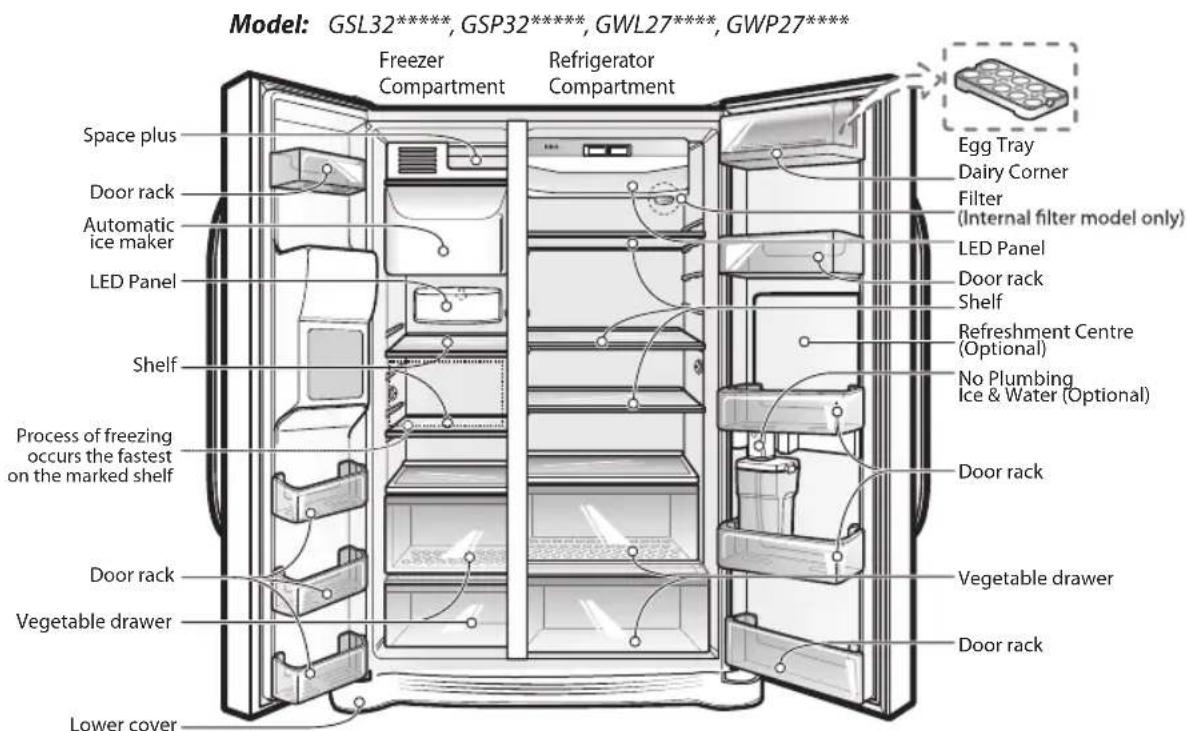

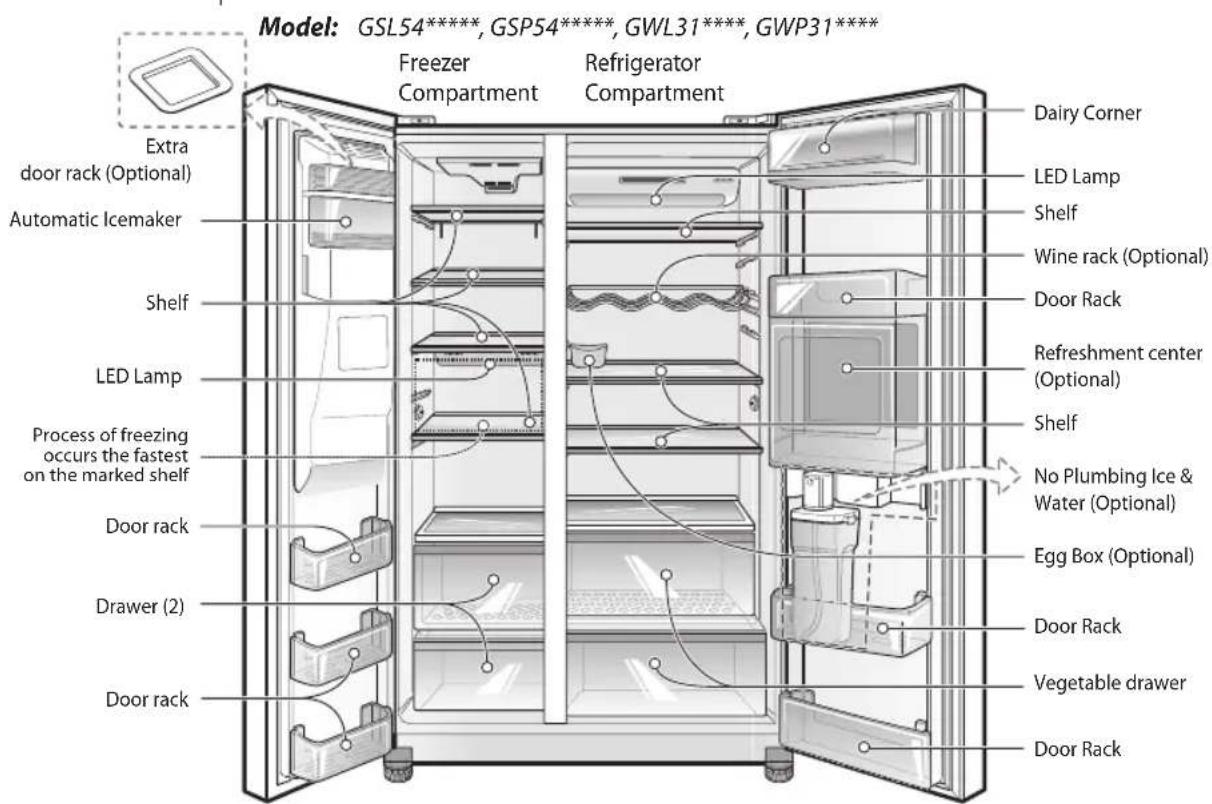

1_MFL67795101_Eng.indd 6 2013.4.15 9:5:45 AMFreezer CompartmentRefrigerator CompartmentLower coverDairy CornerFilter LED PanelShelfRefreshment Centre (Optional)No Plumbing Ice & Water (Optional)ShelfDoor rackDoor rackDoor rackEgg TrayLED PanelVegetable drawerSpace plusDoor rackAutomaticice makerDoor rackVegetable drawer Identification of parts Parts, features, and options vary by model. Your model may not include every option. NOTE Freezer Compartment Refrigerator Compartment Automatic IcemakerExtra door rack (Optional)ShelfLED LampDoor rackDrawer (2)Door rackShelfWine rack (Optional) ShelfEgg Box (Optional)Refreshment center(Optional)No Plumbing Ice & Water (Optional)LED LampDairy CornerDoor RackDoor RackDoor RackVegetable drawerProcess of freezing occurs the fastest on the marked shelfProcess of freezing occurs the fastest on the marked shelf Model: GSL54*****, GSP54*****, GWL31****, GWP31**** Model: GSL32*****, GSP32*****, GWL27****, GWP27**** ENGLISHInstallation

1. Place your appliance where it is easy to use.

2. Avoid placing the unit near heat sources, di-rect

sunlight or moisture. Do not operate the appliance outdoors where it can be exposed directly, or indirectly to sun, wind and rain.

3. To ensure proper air circulation around the

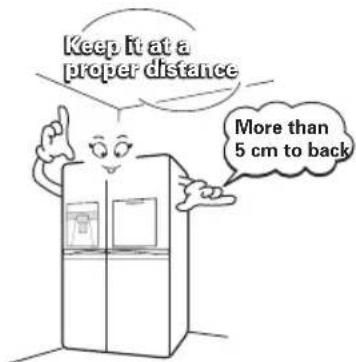

fridge-fteezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.

4. To avoid vibrations, the appliance must be levelled.

Do not install the appliance in temperatures of less than 5°C as the performance may be affected. Select a good location Where to Install Disposal of the old appliance Before Installation Appliance usage range This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable. All the packaging materials should be sent to the collection centre for recycling. For details of your local recycling centre, please contact your local council. Ensure that none of the pipes on the back of the appliance are damaged prior to disposal. The appliance must be positioned so that the plug is accessible after installation. Never use gas pipes, telephone lines or other potential lightening rods as ground. - Improper use of the ground plug can result in electric shock. If the appliance generates a strange noise, a burning or smell or smoke, unplug the power plug immediately and contact your nearest service center. If any dust or water is in refrigerator, pull out power plug and contact your LG Electronics service center. - There is a risk of fire. The water supply to this refrigerator must only be installed/connected by a suitably qualified person and connect to a potable water supply only. Use only the ice maker provided with the refrigerator. When installing, servicing or cleaning behind the refrigerator, be sure to pull the unit straight out and push back in straight after finishing. After unpacking, keep the packing materials out of reach of children. - There is a risk of death from suffocation if children put them over their head. This appliance is intended to be used in household and similar applications such as – staff kitchen areas in shops, offices and other working environments; – farm houses and by clients in hotels, motels and other residential type environments; – bed and breakfast type environments; – catering and similar non-retail applications. More than 5 cm to back Remove the freezer compartment door Remove feed water tube Remove the refrigerator compartment door WARNING Keep it at a proper distance Keep it at a proper distance 1_MFL67795101_Eng.indd 7 2013.4.15 9:5:45 AM ENGLISHInstalacja

) or below, it is necessary to purchase a separate pressure pump for normal automatic icing and cool water feed. Keep the total length of the feed water pipe tube within 8 m and be careful that the tube does not bend. If the tube is 8 m or longer it may cause water feed problems owing to the drain water pressure. Install the feed water pipe tube at a place free from heat. Connect to drinking water supply only. .noitallatsni rof tik retlif retaw htiw snoitcurtsni ot refeR .ruoloc emas hctam ebut retaw eht taht luferac eB .denimaxe eb dluohs secalp eseht ni egakael eht ,desu gnieb erofeB .NOITALLATSNI ENIL RETAW revoc ton seod ytnarraW GL The cost of connection to a water supply is at the customer expense, unless included in the delivery charge (refer to the delivery agreement with the seller) .dedeen fi noitallatsni eht rof rellatsnI desirorhtua ro rebmulP tcatnoc esaelP .rellatsni tcatnoc esaelP ,noitallatsni reporpmi ot eud srucco egakael retaW fI

Connect to potable water supply only. (for Plumbing Type)

Fill with potable water only. (for Non-Plumbing Type) WARNING Before Installation Auto Ice maker Precautions when using the dispenser (on some model) To get cold water The dispensed water will not be icy cold, but just cool or cold. If you want colder water, dispense ice before dispensing water. If you have difficulty in replacing the ice storage bin Rotate the rotary gear in 1/4 cycle as shown in the illustration and then push it back.

Figure depends on model. NOTE

Do not put your hands into the Ice maker during operation. You may injure yourself.

Do not store ice (cubes) for longer than two weeks., they can cause the dispenser to malfunction as the ice cubes clump together. WARNING ENGLISH9 Po ustawieniu wysokości drzwi OSTROŻNIE 2-MFL67788701_POLISH.indd 9 2013.5.3 1:51:34 PM

Naver insert your hand or any other object into the ice chute as this may damage dispenser parts or cause injury to the hand.

If ice is discoloured, stop using the dispenser and call the service centre.

as it may injure the hand.

Naver insert your hands into the ice maker during operation. It may cause injury

Do not allow your children to hang off the ice dispenser or the ice storage bin. This could cause injury. When the ice dispenser will not operate properly It is normal that the ice maker will not operate correctly when there is only a small amount of ice left in the storage bin. Allow approximately one day for the ice maker to restock. If the ice forms into a solid lump and interrupts the operation of the automatic ice maker mechanism, remove the ice storage bin, separate the ice, discard the inseparable ice, and put the usable ice pieces back into the bin. The intermittent dispensing of ice is normal. However, since ice may get stuck and block the ice chute, regularly check the ice chute and clear any obstacles. WARNING

Figure depends on model. NOTE

Freezer Compartment (Applicable to some models only) If a large quantity of food is to be placed in the freezer compartment: The middle drawer of freezer compartment shall be taken out of the appliance and food shall be stacked directly on the wire shelf. Freezer compartment provides wire shelf on default to maximize food storage capacity. And also the drawer is provided to convenient usage for watery meat or half-liquid state food. If there is already food in the compartment, please set freezer to the coldest condition (depends of type: -23/-24°C) and press on "Express frz" button several hours before placing fresh produce in the freezer compartment to get maximum capacity. As a rule 4 hours is adequate. Max Freezing capacity Operation ENGLISH Po ustawieniu OSTROŻNIE 2-MFL67788701_POLISH.indd 9 2013.5.3 1:51:34 PM Cleaning Regular cleaning is recommended. Wash all compartments with a baking soda solution or a mild detergent and warm water. Rinse and dry. Please verify that the power cord is not damaged, power plug is not overheated, or power plug is well inserted into the wall outlet socket. Always remove power cord from the wall outlet prior to cleaning near to electrical equipment (lamps, switches, controls, etc.). Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing an electric shock. Never use metallic scouring pads, brushes, coarse abrasive cleaners, strong alkaline solutions, flammable or toxic cleaning liquids on any surface. Do not touch frozen surfaces with wet or damp hands, because damp object will stick to extremely cold surfaces. It is important that your refrigerator be kept clean to prevent undesirable odours. Spilled food should be wiped up immediately, since it may acidify and stain plastic surfaces if allowed to settle. Use a luke warm solution of mild soap or detergent to clean the durable finish of your refrigerator. Wipe with a clean damp cloth and then dry. Exterior Interior After cleaning WARNING

Do not directly spray water inside or outside the refrigerator. - There is a risk of fire or electric shock.

Do not spray cleaning products directly on the display. - Printed letters on the display may come off.

Remove any foreign matter or dust from the power plug pins. But do not use a wet or damp cloth when cleaning the plug, remove any foreign material or dust from the power plug pins. - Otherwise there is a risk of fire or electric shock. Suggestion for energy saving

Please do not keep the door open for a long time, close door in the shortest time.

Storing too much food is not recommended. Sufficient space should be left to ensure proper air circulation.

Do not set the temperature of fridge freezer lower than needed. Do not put food near the temperature sensors. Keep the distance of at least 5mm from the sensors.

Allow hot food to cool prior to storing. Placing hot food in the fridge freezer could affect other food, and lead to higher energy consumption.

Do not block air vents. Smooth circulation of cold air maintains the appropriate temperature.

Do not open the door frequently. Opening the door lets warm air enter the fridge- freezer, and causes the temperature to rise.

The configuration of shelves, baskets and drawers supplied by the manufacturer is the most efficient in terms of energy saving CAUTION Care and maintenance ENGLISH Jak nastawić temperaturę w komorze zamrażarki Jak nastawić temperaturę w komorze chłodziarki 2-MFL67788701_POLISH.indd 11 2013.5.3 1:51:36 PM Smart Diagnosis Should you experience any problems with your refrigerator, it has the capability of transmitting data via your telephone to the LG service center. This gives you the capability of speaking directly to our trained specialists. The specialist records the data transmitted from your machine and uses it to analyze the issue, providing a fast and effective diagnosis. If you experience problems with your refrigerator, call to the LG service center. Only use the Smart Diagnosis feature when instructed to do so by the LG call center agent. The transmission sounds that you will hear are normal and sound similar to a fax machine. Smart Diagnosis cannot be activated unless your refrigerator is connected to power. If your refrigerator is unable to turn on, then troubleshooting must be done without using Smart Diagnosis. First, call to the LG service center. Only use the Smart Diagnosis feature when instructed to do so by the LG call center agent.

Lock the display. To lock the display, press and hold the Lock button for three seconds. (If the display has been locked for over five minutes, you must deactivate the lock and then reactivate it.)

2. Open the right refrigerator door.

3. Hold the mouthpiece of your phone in front of the speaker

that is located on the right hinge of the refrigerator door, when instructed to do so by the call center.

4. Press and hold the Freezer Temperature button for three seconds

while continuing to hold your phone to the speaker.

5. After you hear three beeps, release the Freezer Temperature button.

6. Keep the phone in place until the tone transmission has finished. This takes about

3 seconds, and the display will count down the time. Once the countdown is over and the tones have stopped, resume your conversation with the specialist, who will then be able to assist you in using the information transmitted for analysis. Using Smart Diagnosis

For best results, do not move the phone while the tones are being transmitted.

If the call center agent is not able to get an accurate recording of the data, you may be asked to try again.

Call quality differences by region may affect the function.

Use the home telephone for better communication performance, resulting in better service.

Bad call quality may result in poor data transmission from your phone to the machine, which could cause Smart Diagnosis to not work properly. NOTE Model: GSL54*****, GSP54***** GWL31****, GWP31**** Care and maintenance ENGLISH

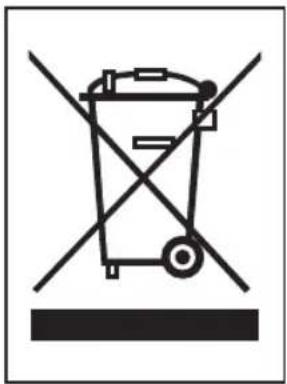

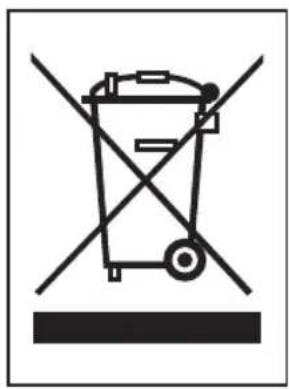

1. When this crossed-out wheeled bin symbol is attached

to a product it means the product is covered by the European Directive 2002/96/EC.

2. All electrical and electronic products should be disposed

of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

3. The correct disposal of your old appliance will help

prevent potential negative consequences for the environment and human health.

4. For more detailed information about disposal of your old

appliance,please contact your local Council, waste disposal service or the shop where you purchased the product.

DISPOSAL OF YOUR OLD APPLIANCE

This product contains fluorinated greenhouse gases covered by the Kyoto Protocol (Optional).

Information of fluorinated greenhouse gases used as refrigerant of this refrigerator. Chemical name Composition of Gases Total GWP (kg CO
