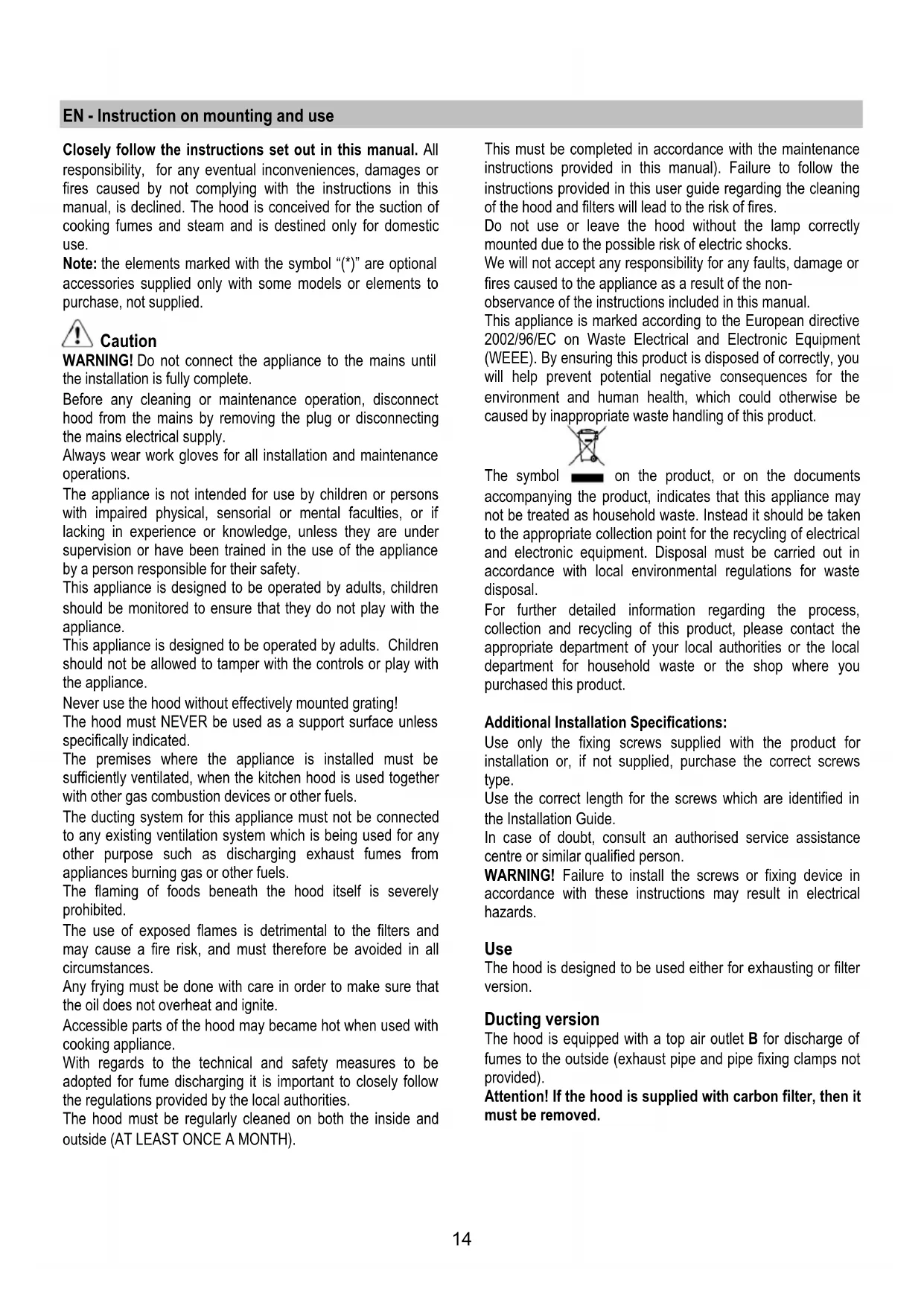

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All

responsibility, for any eventual inconveniences, damages or

fires caused by not complying with the instructions in this

manual, is declined. The hood is conceived for the suction of

cooking fumes and steam and is destined only for domestic

Note: the elements marked with the symbol “(*)” are optional

accessories supplied only with some models or elements to

purchase, not supplied.

WARNING! Do not connect the appliance to the mains until

the installation is fully complete.

Before any cleaning or maintenance operation, disconnect

hood from the mains by removing the plug or disconnecting

the mains electrical supply.

Always wear work gloves for all installation and maintenance

The appliance is not intended for use by children or persons

with impaired physical, sensorial or mental faculties, or if

lacking in experience or knowledge, unless they are under

supervision or have been trained in the use of the appliance

by a person responsible for their safety.

This appliance is designed to be operated by adults, children

should be monitored to ensure that they do not play with the

This appliance is designed to be operated by adults. Children

should not be allowed to tamper with the controls or play with

Never use the hood without effectively mounted grating!

The hood must NEVER be used as a support surface unless

specifically indicated.

The premises where the appliance is installed must be

sufficiently ventilated, when the kitchen hood is used together

with other gas combustion devices or other fuels.

The ducting system for this appliance must not be connected

to any existing ventilation system which is being used for any

other purpose such as discharging exhaust fumes from

appliances burning gas or other fuels.

The flaming of foods beneath the hood itself is severely

The use of exposed flames is detrimental to the filters and

may cause a fire risk, and must therefore be avoided in all

Any frying must be done with care in order to make sure that

the oil does not overheat and ignite.

Accessible parts of the hood may became hot when used with

With regards to the technical and safety measures to be

adopted for fume discharging it is important to closely follow

the regulations provided by the local authorities.

The hood must be regularly cleaned on both the inside and

outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance

instructions provided in this manual). Failure to follow the

instructions provided in this user guide regarding the cleaning

of the hood and filters will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly

mounted due to the possible risk of electric shocks.

We will not accept any responsibility for any faults, damage or

fires caused to the appliance as a result of the non-

observance of the instructions included in this manual.

This appliance is marked according to the European directive

2002/96/EC on Waste Electrical and Electronic Equipment

(WEEE). By ensuring this product is disposed of correctly, you

will help prevent potential negative consequences for the

environment and human health, which could otherwise be

caused by inappropriate waste handling of this product.

on the product, or on the documents

accompanying the product, indicates that this appliance may

not be treated as household waste. Instead it should be taken

to the appropriate collection point for the recycling of electrical

and electronic equipment. Disposal must be carried out in

accordance with local environmental regulations for waste

For further detailed information regarding the process,

collection and recycling of this product, please contact the

appropriate department of your local authorities or the local

department for household waste or the shop where you

purchased this product.

Additional Installation Specifications:

Use only the fixing screws supplied with the product for

installation or, if not supplied, purchase the correct screws

Use the correct length for the screws which are identified in

the Installation Guide.

In case of doubt, consult an authorised service assistance

centre or similar qualified person.

WARNING! Failure to install the screws or fixing device in

accordance with these instructions may result in electrical

The hood is designed to be used either for exhausting or filter

The hood is equipped with a top air outlet B for discharge of

fumes to the outside (exhaust pipe and pipe fixing clamps not

Attention! If the hood is supplied with carbon filter, then it

Should it not be possible to discharge cooking fumes and

vapour to the outside, the hood can be used in the filter

version, fitting an activated carbon filter and the deflector F

on the support (bracket) G, fumes and vapours are recycled

through the top grille H by means of an exhaust pipe

connected to the top air outlet B and the connection ring

mounted on the deflector F (exhaust pipe and pipe fixing

clamps not provided).

Attention! If the hood is not supplied with carbon filter,

then it must be ordered and mounted.

The models with no suction motor only operate in ducting

mode, and must be connected to an external suction device

The connecting instructions are supplied with the peripheral

The minimum distance between the supporting surface for the

cooking equipment on the hob and the lowest part of the

range hood must be not less than 50cm from electric cookers

and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a

greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating

indicated on the plate situated inside the hood. If provided with

a plug connect the hood to a socket in compliance with current

regulations and positioned in an accessible area, after

installation. If it not fitted with a plug (direct mains connection)

or if the plug is not located in an accessible area, after

installation, apply a double pole switch in accordance with

standards which assures the complete disconnection of the

mains under conditions relating to over-current category III, in

accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains

supply and checking the efficient function, always check that

the mains cable is correctly assembled.

The hood is provided with a special power cable ; if the cable

is damaged, request a new one from Technical Service.

Note: The hood may be installed both with and without a

Before beginning installation:

• Check that the product purchased is of a suitable size for

the chosen installation area.

• To facilitate installation, remove the fat filters and the

other parts allowed and described here, dismantle and

To remove see also the relative paragraphs.

• Remove the active carbon (*) filter/s if supplied (see also

relative paragraph). This/these is/are to be mounted only

if you want lo use the hood in the filtering version.

• Check (for transport reasons) that there is no other

supplied material inside the hood (e.g. packets with

screws (*), guarantees (*), etc.), eventually removing

them and keeping them.

• If possible, disconnect and move freestanding or slide-in

range from cabinet opening to provide easier access to

rear wall/ceiling. Otherwise put a thick, protective

covering over countertop, cooktop or range to protect

from damage and debris. Select a flat surface for

assembling the unit. Cover that surface with a protective

covering and place all canopy hood parts and hardware

• Disconnect the hood during electrical connection, by

turning the home mains switch off.

• In addition check whether near the installation area of the

hood (in the area accessible also with the hood mounted)

an electric socket is available and it is possible to

connect a fumes discharge device to the outside (only

• Carry out all the masonry work necessary (e.g.

installation of an electric socket and/or a hole for the

passage of the discharge tube).

Expansion wall plugs are provided to secure the hood to most

types of walls/ceilings. However, a qualified technician must

verify suitability of the materials in accordance with the type of

wall/ceiling. The wall/ceiling must be strong enough to take

the weight of the hood. Do not tile, grout or silicone this

appliance to the wall. Surface mounting only.

Installation without flue

1. Use a pencil to mark the line representing the centre of

the appliance on the wall, as far as the ceiling. This will

make the installation process easier.

2. Position the drilling template on the wall: the vertical

centre line printed on the template should be aligned with

the centre line marked on the wall, and the lower edge of

the template should line up with the lower edge of the

3. Rest the lower support bracket on the drilling template,

making sure it coincides with the sketched rectangle,

then mark the two outer holes and drill them.

Note: Always make the holes indicated on the template:

the 2 upper holes are used to position the hood, while the

lower holes (generally 1 central or several at the sides)

are used to fix it in place and secure it properly.

Remove the drilling template, insert the rawl plugs and fix

the cooker hood support bracket in place using 2 screws

4. Hang the cooker hood on the lower bracket.

5. Adjust the distance between the cooker hood and the

6. Adjust the horizontal position of the cooker hood.

7. Fix the cooker hood to the wall securely

Connect a tube (tube and fixing clamps not supplied;

these are to be purchased separately) for the expulsion

of smoke to the connection ring located above the

suction motor assembly.

The other end of the tube should be connected to a

device for the expulsion of smoke outdoors if the cooker

hood is to be used as a ducted version.

Remove the air outlet connection and apply the anti-

Attention! If the hood is not supplied with carbon

filter, then it must be ordered and mounted.

9. Slot the front panel in and perform the necessary

electrical connections for the control panel.

10. Fix the front panel in place using 6 screws (3 per side).

11. Slot in the side panels and fix them in place by sliding

12. Position the upper fixing bracket and secure it using 2

13. Perform all necessary electrical connections.

Remount the carbon filter frame and the fat/s filter/s and check

the perfect functioning of the hood.

Installation with flue

1. Use a pencil to mark the line representing the centre of

the appliance on the wall, as far as the ceiling. This will

make the installation process easier.

2. Position the drilling template on the wall: the vertical

centre line printed on the template should be aligned with

the centre line marked on the wall, and the lower edge of

the template should line up with the lower edge of the

3. Rest the lower support bracket on the drilling template,

making sure it coincides with the sketched rectangle,

then mark the two outer holes and drill them.

Note: Always make the holes indicated on the template:

the 2 upper holes are used to position the hood, while the

lower holes (generally 1 central or several at the sides)

are used to fix it in place and secure it properly.

Remove the drilling template, insert the rawl plugs and fix

the cooker hood support bracket in place using 2 screws

4. Place the flue support bracket “G” on the wall so that it is

against the ceiling, use the flue support bracket as a

drilling template (if present, the small slot on the support

should coincide with the line made previously on the wall)

and use a pencil to mark 2 holes, then drill them (Ø 8

mm) and insert 2 rawl plugs.

5. Fix the flue support bracket to the wall using 2 screws

6. Hang the cooker hood on the lower bracket.

7. Adjust the distance between the cooker hood and the

8. Adjust the horizontal position of the cooker hood.

9. Fix the cooker hood to the wall securely

10. Connect a tube (tube and fixing clamps not supplied;

these are to be purchased separately) for the expulsion

of smoke to the connection ring located above the

suction motor assembly.

The other end of the tube should be connected to a

device for the expulsion of smoke outdoors if the cooker

hood is to be used as a ducted version. If you wish to use

the cooker hood as a filter version, fix deflector F to flue

support bracket G and connect the other end of the tube

to the connection ring located under deflector F.

11. Perform all necessary electrical connections.

12. Position the flue.

13. Fix the flue to the flue support bracket G using 2 screws.

14. Slot the front panel in and perform the necessary

electrical connections for the control panel.

15. Fix the front panel in place using 6 screws (3 per side).

16. Slot in the side panels and fix them in place by sliding

17. Position the upper fixing bracket and secure it using 2

Remount the carbon filter frame and the fat/s filter/s and check

the perfect functioning of the hood.

Description of the hood

3. Grease filter release handle

7. Air outlet (used for filter version only)

Use the high suction speed in cases of concentrated kitchen

vapours. It is recommended that the cooker hood suction is

switched on for 5 minutes prior to cooking and to leave in

operation during cooking and for another 15 minutes

approximately after terminating cooking.

1. Lights ON/OFF Key: press and release to turn the lights

on and off at the preset intensity; keep pressed to adjust

the intensity of the light.

2. ON(Stand by)/OFF suction Key

-ON (Stand by) – the Key is on.

-OFF - the Key is off: all the commands with the

exception of key 1 are disenabled.

To set the hood on ON (stand by) or OFF press the key

and wait until the key lights up or turns off on the basis of

the setting desired.17

3. Speed (power) suction selection key 1: press once to

select the suction speed (power), press again and keep it

pressed to activate 20 minute (flashing key) functioning

time, after which the hood turns off (Stand by)

4. Speed (power) suction selection key 2: press once to

select the suction speed (power), press again and keep it

pressed to activate 15 minute (flashing key) functioning

time, after which the hood turns off (Stand by)

5. Speed (power) suction selection key 3: press once to

select the suction speed (power), press again and keep it

pressed to activate 10 minute (flashing key) functioning

time, after which the hood turns off (Stand by).

6. Intensive suction speed (power) ON/OFF selection

key (timed): press to select the suction speed (power).

Functioning time is 5 minutes after which suction turns off

or returns to the speed (power) previously selected.

7. COMFORT button: the hood begins to operate in a

“cyclical” manner when filtering the air, which means the

motor is activated at speed level 1 for 5 minutes and then

switched OFF for 30 minutes. This operating mode

remains set until the OFF button (or any of the speed

buttons) is pressed; this will stop the COMFORT function

and activate the motor at the selected speed level.

8. Reset saturation filters key: the hood, through the

signal of this luminous key, tells the user when it is

necessary to carry out maintenance of the fat filters and

Key lit in green: carry out maintenance of the fat filters,

after which press the key for about 3 seconds and the

Key lit in red: carry out maintenance of the carbon filter,

after which press the key for about 3 seconds and the

Attention: the hood is preset only for signaling the fat

To enable the signaling of the carbon filter: Set the

hood on OFF, press key 8 for 3 seconds. The key turns

on in red to signal that the setting has taken place. To

disenable the carbon filter signal, repeat this operation

again (the key lights up in green).

Note: A beep sounds each time this key is pressed.

ATTENTION! Before performing any maintenance operation,

isolate the hood from the electrical supply by switching off at

the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and

socket, then the plug must be removed from the socket.

The cooker hood should be cleaned regularly (at least with the

same frequency with which you carry out maintenance of the

fat filters) internally and externally. Clean using the cloth

dampened with neutral liquid detergent. Do not use abrasive

products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning

recommendations of the cooker hood and replacement of the

filters may cause fire risks.

Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to

the motor or any fire damage linked to inappropriate

maintenance or failure to observe the above safety

This must be cleaned once a month (or when the filter

saturation indication system – if envisaged on the model in

possession – indicates this necessity) using non aggressive

detergents, either by hand or in the dishwasher, which must

be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolour

slightly, but this does not affect its filtering capacity.

Remove the filter holder frame by turning the knobs (g) 90°

that affix the chimney to the cooker hood.

Charcoal filter (filter version only)

It absorbs unpleasant odours caused by cooking.

The charcoal filter can be washed once every two months (or

when the filter saturation indication system – if envisaged on

the model in possession – indicates this necessity) using hot

water and a suitable detergent, or in a dishwasher at 65°C (if

the dishwasher is used, select the full cycle function and leave

Eliminate excess water without damaging the filter, then put it

in the oven for 10 minutes at 100° C to dry completely.

Replace the mattress every 3 years and when the cloth is

Place the mat around the grease filter and fix it in place using

the devices provided.

Position the upper cap and fix it in place using the fixing pin.

To disassemble, perform the steps in the reverse order.

Disconnect the appliance from the electricity.

Warning! Prior to touching the light bulbs ensure they are

Replace the old light bulb with the one of the same type as

specified in the feature label or near the light lamp on the

• Use a small screwdriver as a lever on the borders of the

lamp in order to remove the lightbulb.

• Slide out the lightbulb to be replaced and replace with a

new 12V 20W MAX 30° Ø35 12V GU4.

• Carry out the replacement and mount the new lightbulb

by following instructions in the reverse.

If the lights do not work, make sure that the lamps are fitted

properly into their housings before you call for technical

and Electronic Equipment, WEEE).

Electrical and Electronic Equipment (WEEE)

2002/96/EC, Waste Electrical and Electronic Equipment

Friturestegning skal ske under opsyn for at forhindre, at den

Electronic Equipment (WEEE).

- Waste Electricаl and Electronic Equipment (WEEE).

Electrical And Electronic Equipment (WEEE). Pārliecinoties,

2002/96/EC, Waste Electrical and Electronic Equipment

2002/96/ES, Waste Electrical and Electronic Equipment

2002/96/EC, Waste Electrical and Electronic Equipment

    .

2 . ON) Stand by / ( OFF 

- ON) Stand by ( -  

- OFF –   :   

Electrical and Electronic Equipment (WEEE). 
