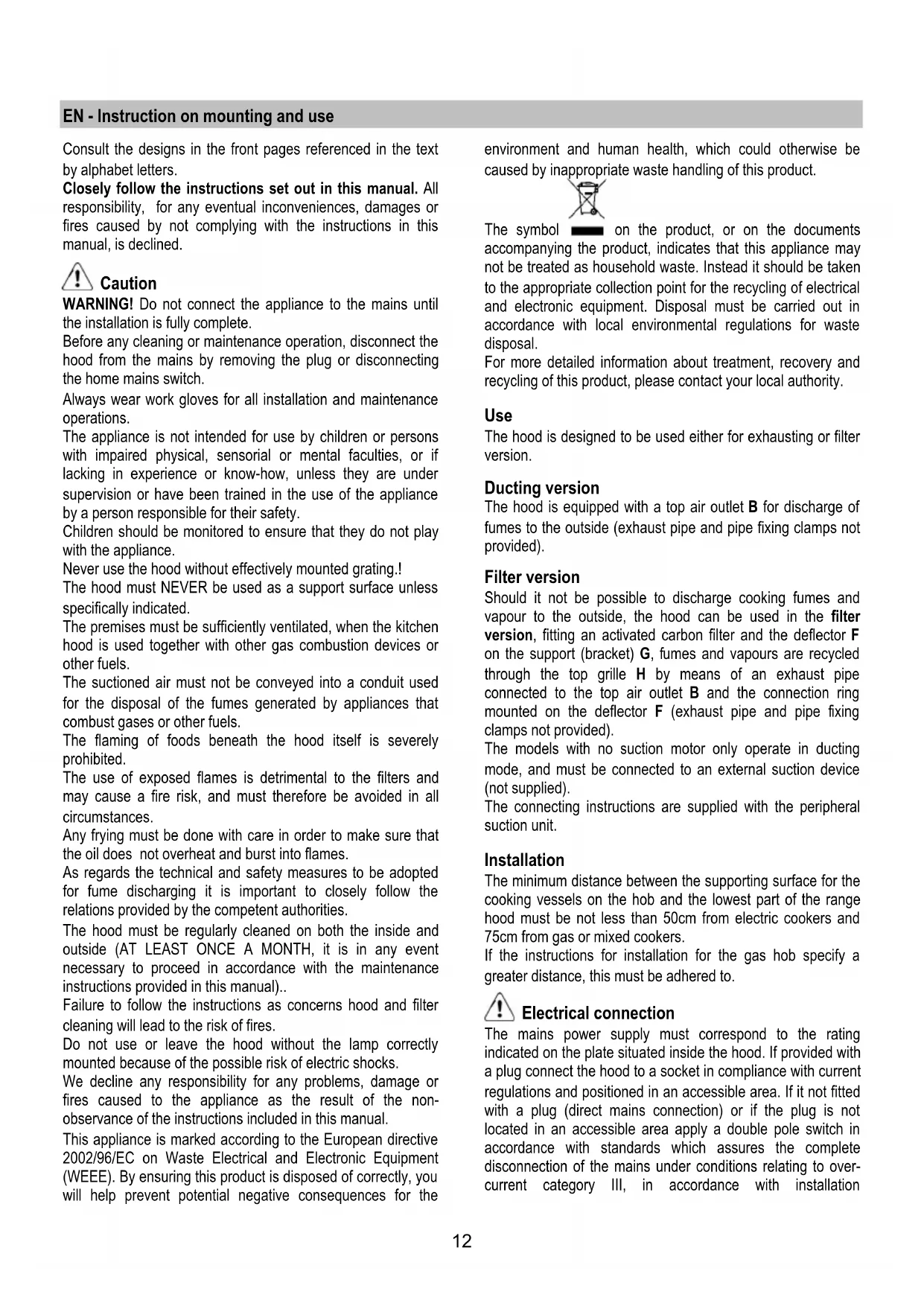

EN Instruction on mounting and use

an den Kundendienst wendet.12

EN - Instruction on mounting and use

Consult the designs in the front pages referenced in the text

by alphabet letters.

Closely follow the instructions set out in this manual. All

responsibility, for any eventual inconveniences, damages or

fires caused by not complying with the instructions in this

manual, is declined.

WARNING! Do not connect the appliance to the mains until

the installation is fully complete.

Before any cleaning or maintenance operation, disconnect the

hood from the mains by removing the plug or disconnecting

the home mains switch.

Always wear work gloves for all installation and maintenance

The appliance is not intended for use by children or persons

with impaired physical, sensorial or mental faculties, or if

lacking in experience or know-how, unless they are under

supervision or have been trained in the use of the appliance

by a person responsible for their safety.

Children should be monitored to ensure that they do not play

Never use the hood without effectively mounted grating.!

The hood must NEVER be used as a support surface unless

specifically indicated.

The premises must be sufficiently ventilated, when the kitchen

hood is used together with other gas combustion devices or

The suctioned air must not be conveyed into a conduit used

for the disposal of the fumes generated by appliances that

combust gases or other fuels.

The flaming of foods beneath the hood itself is severely

The use of exposed flames is detrimental to the filters and

may cause a fire risk, and must therefore be avoided in all

Any frying must be done with care in order to make sure that

the oil does not overheat and burst into flames.

As regards the technical and safety measures to be adopted

for fume discharging it is important to closely follow the

relations provided by the competent authorities.

The hood must be regularly cleaned on both the inside and

outside (AT LEAST ONCE A MONTH, it is in any event

necessary to proceed in accordance with the maintenance

instructions provided in this manual)..

Failure to follow the instructions as concerns hood and filter

cleaning will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly

mounted because of the possible risk of electric shocks.

We decline any responsibility for any problems, damage or

fires caused to the appliance as the result of the non-

observance of the instructions included in this manual.

This appliance is marked according to the European directive

2002/96/EC on Waste Electrical and Electronic Equipment

(WEEE). By ensuring this product is disposed of correctly, you

will help prevent potential negative consequences for the

environment and human health, which could otherwise be

caused by inappropriate waste handling of this product.

on the product, or on the documents

accompanying the product, indicates that this appliance may

not be treated as household waste. Instead it should be taken

to the appropriate collection point for the recycling of electrical

and electronic equipment. Disposal must be carried out in

accordance with local environmental regulations for waste

For more detailed information about treatment, recovery and

recycling of this product, please contact your local authority.

The hood is designed to be used either for exhausting or filter

The hood is equipped with a top air outlet B for discharge of

fumes to the outside (exhaust pipe and pipe fixing clamps not

Should it not be possible to discharge cooking fumes and

vapour to the outside, the hood can be used in the filter

version, fitting an activated carbon filter and the deflector F

on the support (bracket) G, fumes and vapours are recycled

through the top grille H by means of an exhaust pipe

connected to the top air outlet B and the connection ring

mounted on the deflector F (exhaust pipe and pipe fixing

clamps not provided).

The models with no suction motor only operate in ducting

mode, and must be connected to an external suction device

The connecting instructions are supplied with the peripheral

The minimum distance between the supporting surface for the

cooking vessels on the hob and the lowest part of the range

hood must be not less than 50cm from electric cookers and

75cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a

greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating

indicated on the plate situated inside the hood. If provided with

a plug connect the hood to a socket in compliance with current

regulations and positioned in an accessible area. If it not fitted

with a plug (direct mains connection) or if the plug is not

located in an accessible area apply a double pole switch in

accordance with standards which assures the complete

disconnection of the mains under conditions relating to over-

current category III, in accordance with installation13

Warning! Before re-connecting the hood circuit to the mains

supply and checking the efficient function, always check that

the mains cable is correctly assembled.

Expansion wall plugs are provided to secure the hood to most

types of walls/ceilings. However, a qualified technician must

verify suitability of the materials in accordance with the type of

wall/ceiling. The wall/ceiling must be strong enough to take

the weight of the hood. Do not tile, grout or silicone this

appliance to the wall. Surface mounting only.

Assembling the deflector (Fig. 6 - 3 parts – only for filter

The three parts should be fixed with 2 screws, the deflector

extension is adjustable and should correspond to the width of

the chimney flue support, to which it is then fixed.

During electrical connection ensure the power supply is

disconnected at the domestic main switch.

1. Adjust extension of the hood support structure, as the

final height of the hood depends on this, and remember

that with installation completed the hood must be at least

50 cm above the cook-top for electric cookers and 75 cm

for gas or mixed cookers.

2. a. Fix the two sections of the structure using 8 screws.

b. If the hood is provided with extensions longer than the

minimum, fit the reinforcement bracket S to the frame,

3. Place the ceiling hole diagram directly above the cook-

top (the center of the diagram must match the center of

the cook-top and the edges must be parallel to the sides

of the cook-top – the side of the diagram with the wording

FRONT corresponds to the control panel side). Prepare

the electrical connection.

4. Drill as shown (6 holes for 6 wall plugs – 4 plugs for

fixture), screw the outer screws leaving a space of about

1 cm. between the screw head and the ceiling.

5. Fit an exhaust pipe inside the truss and connect it to the

motor compartment connection ring (exhaust pipe and

fixing brackets are not supplied).

6. Hook the frame onto the 4 screws (see step 4).

CAUTION! The side of the truss with connection box

corresponds to the side of the control panel with hood

7. Tighten the 4 screws.

8. Insert and tighten another 2 screws in the remaining free

holes for secure fixing.

9. Carry out the electrical connection to the mains power

supply, only turn on the power supply upon completion of

10. Hook the hood onto the truss, ensuring it fits properly – to

hook the hood onto the truss partially tighten 4 screws

11. Secure the hood to the truss using two screws; this will

also help center the two sections.

12. Tighten the 4 screws securing the truss to the hood.

13. For extractor versions (13A), connect the other end of the

exhaust pipe to the flue.

For filter versions (13F), fit deflector F to the truss and

secure it to the bracket supplied using 4 screws, then

connect the exhaust pipe to the connection ring located

14. Fit the nuts with fixing hooks supplied inside the top and

bottom sections of the flues at the rectangular slots. A

total of 14 nuts must be fitted.

15. Join the two top sections of the flue to cover the truss so

that one of the slots on the sections is situated on the

same side of the control panel and the other on the

opposite side. Screw the two sections together with 8

screws (4 each side- see the plan diagram for joining the

16. Fix the top flue assembly to the truss, near the ceiling,

with two screws (one each side).

17. Carry out electrical connection of control panel and bulbs.

Warning! Make connections taking care to insert the

connectors in the right way.

18. Join the two bottom sections of the flue covering the truss

using 6 screws (3 each side, see the plan diagram for

joining the two sections).

19. Insert the bottom section of the flue in its seat so that it

completely covers the motor compartment and electrical

connection box, then ensure it from inside the hood using

20. Apply the 2 tabs (supplied) to cover the fixing points of

the bottom flue (CAUTION! THE BOTTOM FLUE TABS ARE THE NARROWER AND SHALLOWER ONES).

The wider and deeper tabs are those used for the top

flue, and must be cut to size.

For models shown in Fig. 1H: A double face adhesive

strip is supplied with the hood, cut it in 8 pieces and use it

21. Turn the mains power on again at the central electrical

panel and check for correct hood operation.

Description of the hood

3. Grease filter release handle

7. Air outlet (used for filter version only)

Use the high suction speed in cases of concentrated kitchen

vapours. It is recommended that the cooker hood suction is

switched on for 5 minutes prior to cooking and to leave in

operation during cooking and for another 15 minutes

approximately after terminating cooking.14 Functioning - 5-key electronic model

1. Motor OFF button 2. ON button and motor speed selection button 1 - 2 - 3 - 1 - 2 - . . . . 3. Speed 1 LED 4. Speed 2 LED and metal grease filter saturation LED (in this latter case, the LED will flash - See instructions on grease filter cleaning). Once the grease filters have been cleaned, press button 1 for about 3 seconds until you hear the acoustic signal (beep): the LED 4 will now stop flashing. 5. Speed 3 LED and active carbon filter saturation LED (in this latter case, the LED will flash - See instructions on active carbon filter replacement). Once you have replaced the charcoal filter, press button 1 for about 3 seconds until you hear the acoustic signal (beep). LED 5 will now stop flashing. Warning! The active carbon filter saturation LED is not activated. In order to activate the active carbon filter saturation indicator, press buttons 2 and 7 simultaneously for 3 seconds. Initially, only LED 4 will flash, then after the 3 seconds have passed, LED 5 will also start flashing, indicating that the active carbon filter saturation control system is active. To switch off the system, re-press the same two buttons: after 3 seconds LED 5 will stop flashing and the device will be switched off. 6. Intensive speed LED 7. Intensive speed ON switch This speed should be used when the concentration of cooking fumes or odours is particularly strong (for example when frying, cooking fish etc.). The fast speed will run for about 5 minutes and then return to the speed previously set automatically (1, 2 or 3), or switch off if no speed was selected. To turn off the fast speed, before the end of the 5 minutes, press button 1 or button 2. 8. OFF lamp button 9. ON lamp button

If the hood fails to operate correctly, briefly disconnect it from the mains power supply for almost 5 sec. by pulling out the plug. Then plug it in again and try once more before contacting the Technical Assistance Service. Functioning – Model with Keyboard

a. ON/OFF lighting b. OFF motors c. - d. - e. Minimum suction power (c.), medium (d.), maximum (e.). f. Operation warning light (where present). Functioning - Model with display

ABCD FEG A. OFF key (Display off) /Stand-by (led lit on the display) – press for a long time to select the function desired. B. Lighting, on/off. C. Timer for selected speed (visualizes the speed selected and flashing LED on the lower side of the display). This knob permits the operation of the cooker hood for a established period: 20 minutes if the speed selected is 1 15 minutes if the speed selected is 2 10 minutes if the speed selected is 3 5 minutes if the intensive speed P is selected. D. Display showing: • Fan speed (1-3-P). • Change grease filters (grease filter saturation indicator - F) After washing the anti-grease filter, depress knob A for about 3 seconds. The letter F will disappear from the display. • Change activated carbon filters (carbon filter saturation indicator - C). After replacing the charcoal filter, depress knob A for about 3 seconds. The letter C will disappear from the display. • When the led in the lower right side is on, it indicates that the cooker hood is ready for operation (“standby” position), the flashing LED indicates that the timer has been activated for selected speed. Attention! The active carbon filter saturation indicator is normally deactivated, to activate it: Set the hood on OFF (display off), press keys C and G contemporaneously for 3 secs. Initially, only letter F will fbe displayed, then after the 3 seconds have passed, letter C will be displayed as well,15

indicating that the carbon filter saturation control system is

To switch off the system, re-press the same two buttons:

letter C appear on display and after 3 seconds letter it

disappear and the device will be switched off.

E. Knob to decrease the speed.

F. Knob to increase the speed.

G. Timed intensive speed button: the hood operates at this

speed for 5 minutes and than returns to the previus

settings. The display will show P and a blinking dot. This

function can be cancelled by pressing button A.

If the hood fails to operate correctly, briefly disconnect it from

the mains power supply for almost 5 sec. by pulling out the

plug. Then plug it in again and try once more before

contacting the Technical Assistance Service.

Warning! Always press the fan off button A before

disconnecting the hood from the mains supply.

ATTENTION! Before performing any maintenance operation,

isolate the hood from the electrical supply by switching off at

the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and

socket, then the plug must be removed from the socket.

The cooker hood should be cleaned regularly (at least with the

same frequency with which you carry out maintenance of the

fat filters) internally and externally. Clean using the cloth

dampened with neutral liquid detergent. Do not use abrasive

products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning

recommendations of the cooker hood and replacement of the

filters may cause fire risks.

Therefore, we recommend oserving these instructions.

The manufacturer declines all responsibility for any damage to

the motor or any fire damage linked to inappropriate

maintenance or failure to observe the above safety

This must be cleaned once a month (or when the filter

saturation indication system – if envisaged on the model in

possession – indicates this necessity) using non aggressive

detergents, either by hand or in the dishwasher, which must

be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolour

slightly, but this does not affect its filtering capacity.

To remove the grease filter B, pull the spring release handle.

Charcoal filter (filter version only)

It absorbs unpleasant odours caused by cooking.

The charcoal filter can be washed once every two months (or

when the filter saturation indication system – if envisaged on

the model in possession – indicates this necessity) using hot

water and a suitable detergent, or in a dishwasher at 65°C (if

the dishwasher is used, select the full cycle function and leave

Eliminate excess water without damaging the filter, then

remove the mattress located inside the plastic frame and put it

in the oven for 10 minutes at 100° C to dry completely.

Replace the mattress every 3 years and when the cloth is

Remove the filter holder frame by turning the knobs (g) 90°

that affix the chimney to the cooker hood.

Insert the pad (i) of activated carbon into the frame (h) and fit

the whole back into its housing (j).

It is possible to use a traditional carbon filter, neither

washable nor regenerable, to be replaced every 3 - 4 months.

The filter holder frame of the carbon filter is welded together;

the eventual frame supplied with the hood is not, therefore, to

Insert it into its housing and fix it turning the 2 plastic knobs.

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are

For models shown in Fig. 1A:

1. press on the lamp cover and release to open. (fig. 4A).

2. Replace the damaged light bulb.

Only use halogen bulbs of 20W max (G4), making sure

you do not touch them with your hands.

3. Close the lamp cover (it will snap shut).

For models shown in Fig. 1B-1C-1D-1G-1H:

1. Extract the guard by levering it off with a small screwdriver

or similar tool.. (fig. 4B).

2. Replace the damaged light bulb.

Only use halogen bulbs of 20W max (G4), making sure

you do not touch them with your hands.

3. Close the lamp cover (it will snap shut).

For models shown in Fig. 1E:

1. Use a small screwdriver as a lever on the borders of the

lamp in order to remove the lightbulb. (fig. 4C).

2. Slide out the lightbulb to be replaced and replace with a

new 12V 20W 30° Ø35 12V GU4 PHILIPS STANDARD LINE code 425409.

If the lights do not work, make sure that the lamps are fitted

properly into their housings before you call for technical

B. Touche illumination, on/off

Pré-montar as 3 partes do deflector com 2 parafusos, a

2002/96/EC, Waste Electrical and Electronic Equipment

Electrical and Electronic Equipment (WEEE)

and Electronic Equipment, WEEE).

Friturestegning skal ske under opsyn for at forhindre, at den

Electronic Equipment (WEEE). Ved at sørge for, at dette

2002/96/EC, Waste Electrical and Electronic Equipment

(POZOR! VÝLOŽKY PRE SPODNÝ DYMOVOD SÚ
