USER MANUAL Silkepil 7 7751 BRAUN

only with model 7-751

For hygienic reasons, do not share this appliance with other persons.

This appliance is provided with a special cord set with an inte- grated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is risk of electric shock. For electric specifications, please see printing on the special cord set. The special cord set automatically adapts to any worldwide AC voltage.

This appliance is suitable for use in a bath or shower. For safety reasons, it can only be operated cordlessly.

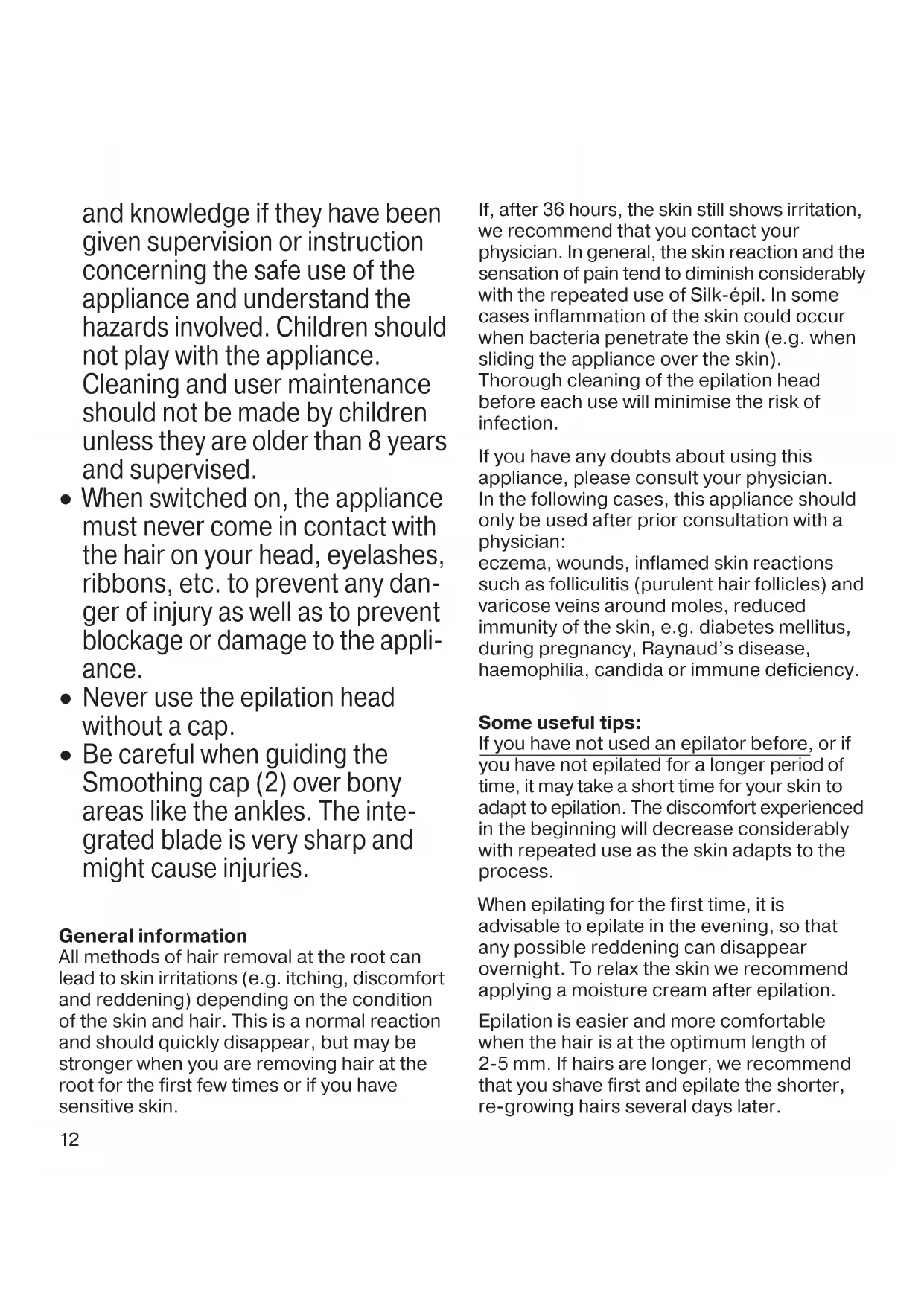

This appliance can be used by children aged from 8 years above and persons with reduced physical, sensory or mental capabilities or lack or experience 96754508_SE7-751_MN_S6-132.indd 1196754508_SE7-751_MN_S6-132.indd 11 29.04.14 12:0829.04.14 12:08 CSS APPROVED Effective Date 16May2014 GMT - Printed 06Aug2014 Page 11 of 13212 and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children unless they are older than 8 years and supervised.

When switched on, the appliance must never come in contact with the hair on your head, eyelashes, ribbons, etc. to prevent any dan- ger of injury as well as to prevent blockage or damage to the appli- ance.

Never use the epilation head without a cap.

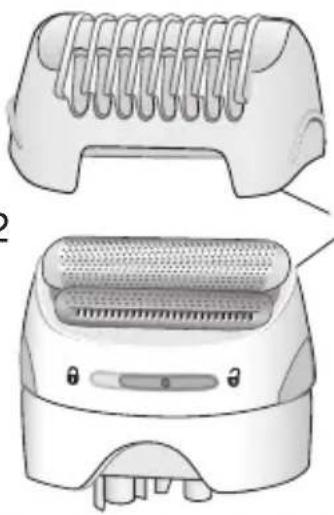

Be careful when guiding the Smoothing cap (2) over bony areas like the ankles. The inte- grated blade is very sharp and might cause injuries. General information All methods of hair removal at the root can lead to skin irritations (e.g. itching, discomfort and reddening) depending on the condition of the skin and hair. This is a normal reaction and should quickly disappear, but may be stronger when you are removing hair at the root for the first few times or if you have sensitive skin. If, after 36 hours, the skin still shows irritation, we recommend that you contact your physician. In general, the skin reaction and the sensation of pain tend to diminish considerably with the repeated use of Silk-épil. In some cases inflammation of the skin could occur when bacteria penetrate the skin (e.g. when sliding the appliance over the skin). Thorough cleaning of the epilation head before each use will minimise the risk of infection. If you have any doubts about using this appliance, please consult your physician. In the following cases, this appliance should only be used after prior consultation with a physician: eczema, wounds, inflamed skin reactions such as folliculitis (purulent hair follicles) and varicose veins around moles, reduced immunity of the skin, e.g. diabetes mellitus, during pregnancy, Raynaud’s disease, haemophilia, candida or immune deficiency. Some useful tips: If you have not used an epilator before, or if you have not epilated for a longer period of time, it may take a short time for your skin to adapt to epilation. The discomfort experienced in the beginning will decrease considerably with repeated use as the skin adapts to the process. When epilating for the first time, it is advisable to epilate in the evening, so that any possible reddening can disappear overnight. To relax the skin we recommend applying a moisture cream after epilation. Epilation is easier and more comfortable when the hair is at the optimum length of 2-5 mm. If hairs are longer, we recommend that you shave first and epilate the shorter, re-growing hairs several days later. 96754508_SE7-751_MN_S6-132.indd 1296754508_SE7-751_MN_S6-132.indd 12 29.04.14 12:0829.04.14 12:08 CSS APPROVED Effective Date 16May2014 GMT - Printed 06Aug2014 Page 12 of 13213 Description 1 Protection cap 2 Smoothing cap (wet usage) 2a Integrated blade 2b Lubrastrip 3 Epilation head 4 SmartLight 5 Switch with lock keys (5a) 6a Charging light 6b Low charge light 7 Non-slip grip 8 Special cord set 9 Release button 10 Epilation cap (wet&dry usage) 11 Epilation cap for sensitive areas (wet&dry usage) 12 Shaver head (dry usage) Charging

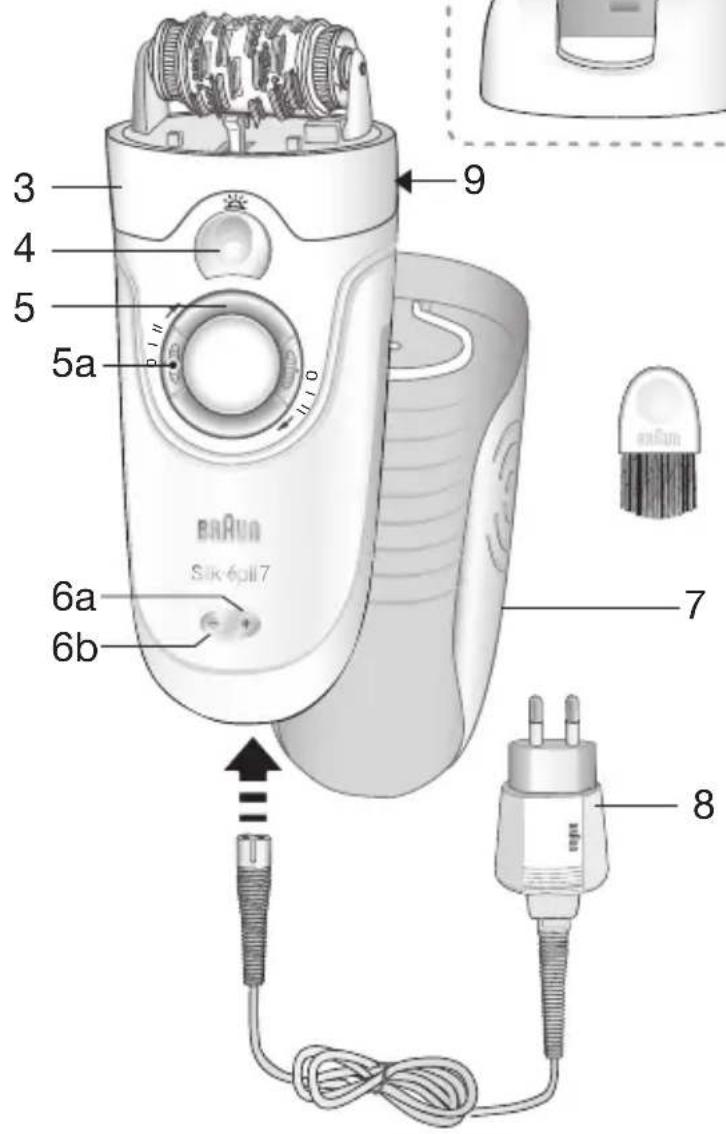

• Before use, charge the appliance. For best performance, we recommend that you always use a fully charged appliance. Using the special cord set, connect the appliance to an electrical outlet with the motor switched off.

• Charging time is approximately 1 hour.

• The charging light (6a) flashes green (+) to show that the appliance is being charged. When the battery is fully charged, the charging light shines permanently. Once fully charged, use the appliance without cord.

• A full charge provides up to 30 minutes of effective usage time.

• When the low charge light (6b) flashes red (–), reconnect the appliance to an electrical outlet to recharge.

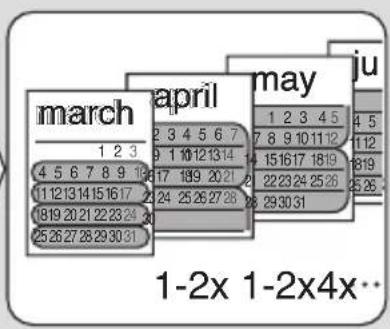

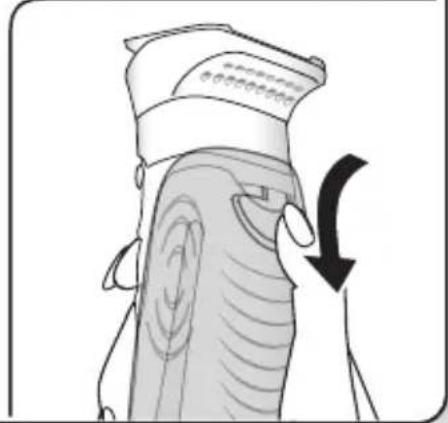

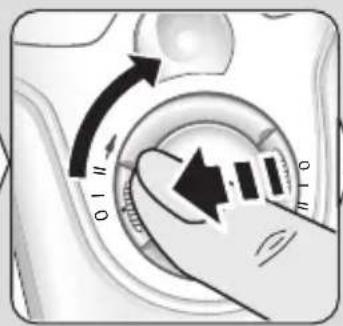

• The best environmental temperature for charging, using and storing the appliance is between 15 °C and 35 °C. In case the tem- perature is beyond this range, the charging time might be longer whereas the cordless operation time might be reduced. Overheating protection As a safety feature to avoid the unlikely event of the appliance overheating, it may happen that the red low charge light shines permanently for 8 seconds and then the appliance turns off automatically. In this case, turn the switch back (5) to the position «0» and let the appliance cool down. Turning on Press one of the lock keys (5a) and turn the switch clockwise to select your preferred speed setting: «I» = extra gentle «II» = extra efficient The SmartLight comes on instantly and shines as long as the appliance is switched on. A Dual Epilation with the Smoothing cap Dual epilation with the Smoothing cap has been designed and optimized for wet usage with shave gel or foam on legs. If you want to use the Smoothing cap for hair removal in other body areas, please take extra care because of the sharp blades. Skin needs to be stretched during usage. Start-up phase In order to allow your skin to adapt to the new hair removal process, it is most important that you use the appliance once a week during the first month of usage. After 3-4 usages, with every hair being epilated once and the hair re-growth adapted to the new process, you will be able to enjoy long-lasting results as with normal epilation, using the dual epilator every 2-3 weeks. 96754508_SE7-751_MN_S6-132.indd 1396754508_SE7-751_MN_S6-132.indd 13 29.04.14 12:0829.04.14 12:08 CSS APPROVED Effective Date 16May2014 GMT - Printed 06Aug2014 Page 13 of 13214 How to use the Dual Epilator

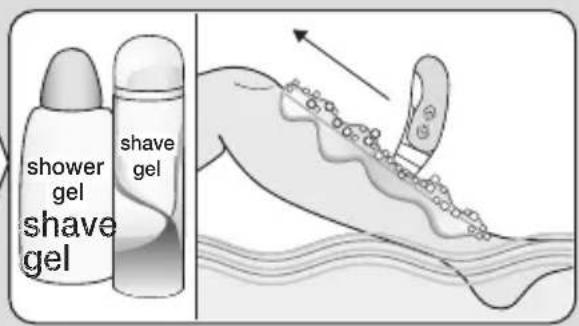

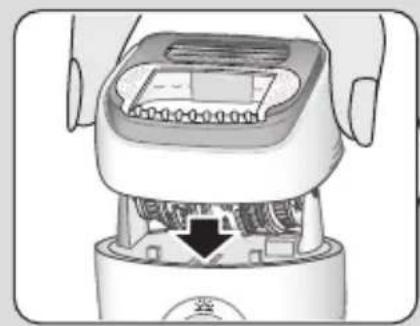

• Before use, make sure that epilation head (3) is clean. Attach the Smoothing cap (2). For improved handling under wet conditions, you may want to attach the non-slip grip (7).

• Apply shave foam or gel on the wet skin.

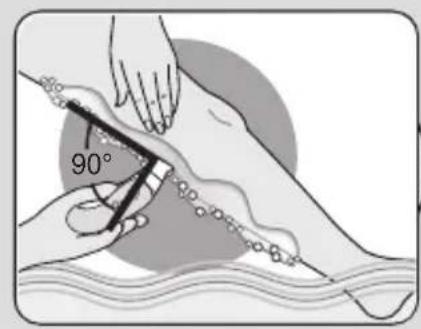

• Stretching your skin, guide the appliance in a slow, continuous movement without pressure against the hair growth in the direction of the switch.

• Make sure that the head is guided flat over the skin. Its pivoting head perfectly adapts to the skin contours. It first epilates and then smoothens your skin in one stroke. Thanks to the integrated blade, the Smoothing cap provides increased efficiency. You do not need to go several times over the same area.

• Guide the dual epilator starting from the lower leg in an upward direction. Keep your leg stretched out straight when removing hair in the area behind the knee. Take special care to avoid injuries around the ankles and on other bony areas.

• From time to time, rinse off the foam built up on the Smoothing cap. B Epilation Remove the Smoothing cap (2) and attach the epilation cap (10) or the cap for sensitive areas (11). You may epilate under wet or dry conditions: Wet usage: To achieve best gliding conditions, make sure the skin is very moist. Dry usage: Make sure your skin is dry and free from grease and cream. Leg epilation:

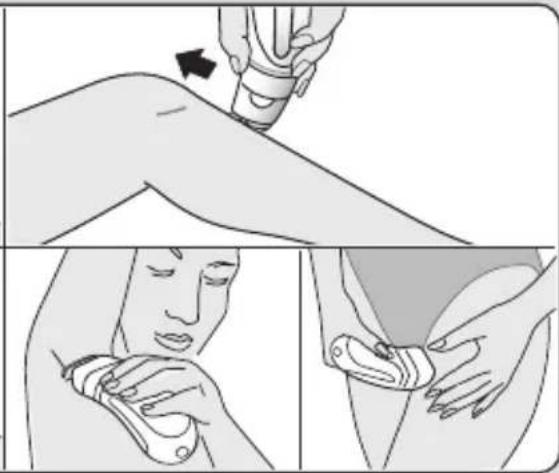

• Stretching your skin, guide the appliance in a slow, continuous movement without pressure against the hair growth in the direction of the switch.

• As hair grows in different directions, it may be helpful to guide the appliance in different directions to achieve best results. Epilation in sensitive areas:

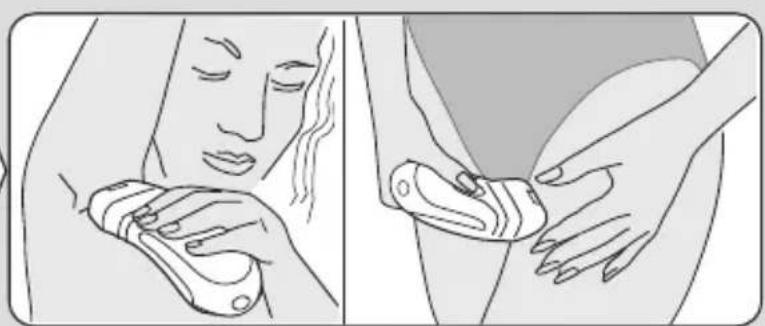

• For underarm and bikini line epilation, attach the epilation cap (11) which has been specifically developed for use in sensitive areas.

• Before epilating, thoroughly clean the respective area to remove residues (like deodorant). Keep your arm raised up so that the skin is stretched and guide the appliance in different directions. As skin may be more sensitive directly after epilation, avoid using irritating substances such as deodorants with alcohol.

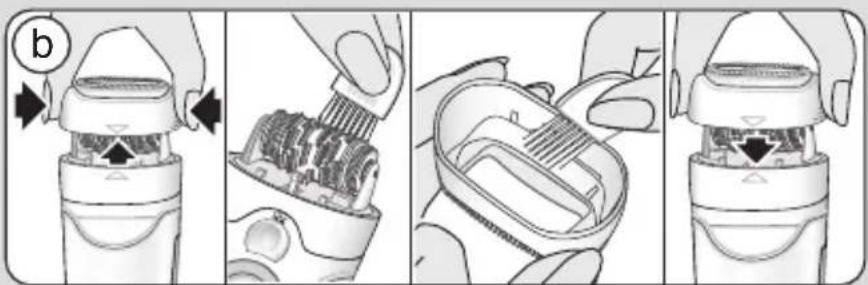

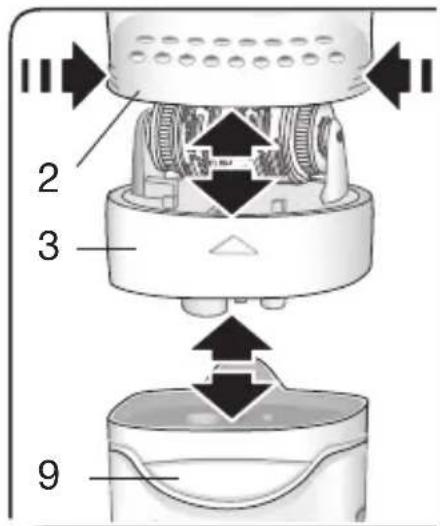

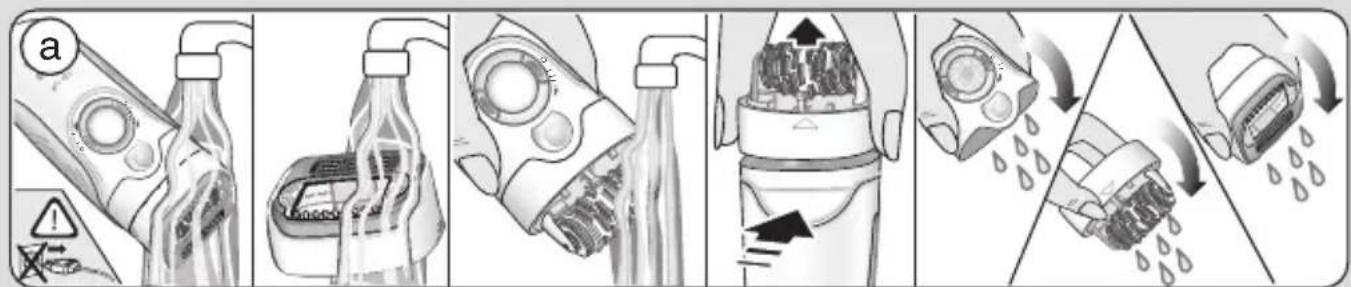

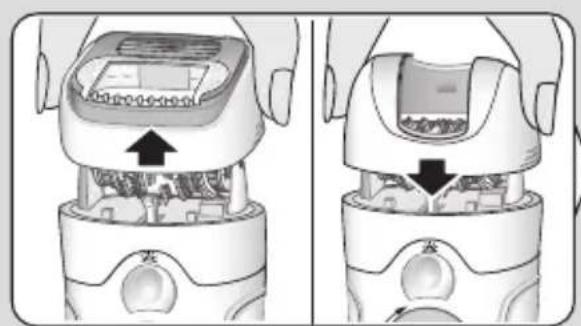

• Please be aware that especially in the beginning, these areas are particularly sensitive to pain. Therefore, we recom- mend that you select speed setting «I» for the first few usages. With repeated usage the pain sensation will diminish. C Keeping the appliance in top shape a Cleaning with water After each wet usage, thoroughly clean the appliance with water. Remove the Smoothing cap (2) and clean it under warm running water. Hold the appliance with the epilation head under running water and briefly switch it on. Then press the release button (9) to remove the epilation head. Shake the appliance and the epilation head to remove excess water. Remove the non-slip grip and leave all parts to dry. Before reattaching, 96754508_SE7-751_MN_S6-132.indd 1496754508_SE7-751_MN_S6-132.indd 14 29.04.14 12:0829.04.14 12:08 CSS APPROVED Effective Date 16May2014 GMT - Printed 06Aug2014 Page 14 of 13215 make sure all parts are completely dry. After reassembling the epilation head and the Smoothing cap (2), you may attach the protection cap (1) to protect the blade. b Cleaning with the brush If you have used the appliance in dry conditions, it may be sufficient to clean it with the brush. Thoroughly clean the tweezers from the rear side of the epilation head with the brush dipped into alcohol. While doing so, turn the tweezer element manually. This cleaning method ensures best hygienic conditions for the epilation head. c Replacing the Smoothing cap The Smoothing cap (2) is provided with a lubrastrip (2b) which turns white over time to indicate that the blade is becoming dull and that it is time to replace the Smoothing cap. As the lubrastrip is water soluble the Smoothing cap should be stored in a dry environment and never be left in the sink, face down. To ensure maximum performance, replace the Smoothing cap after 12 usages, when the lubrastrip turns white or when the blade shows wear or kinks. For safety reasons, stop using the smoothing cap if it has been dropped and replace it with a new one. Replacement Smoothing caps (Reference # 771 WD) are available from the retailer where the appliance was bought, from Braun Service Centres or via www.service.braun.com. D Using the shaver head The shaver head (12) is designed for a fast and close shave of underarms and bikini line, contour trimming and cutting hair to 5 mm length. Use the shaver head on dry skin only. a Shaving: select «

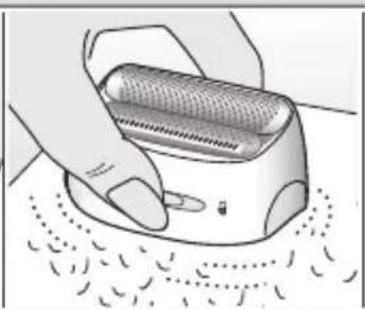

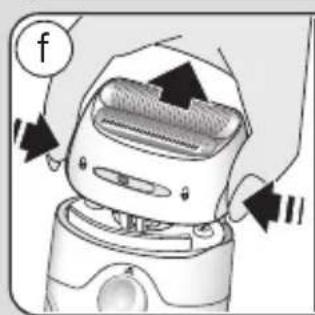

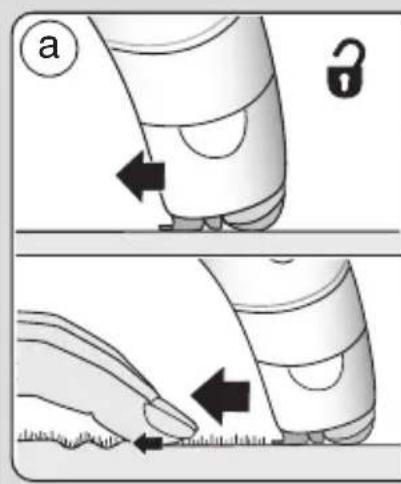

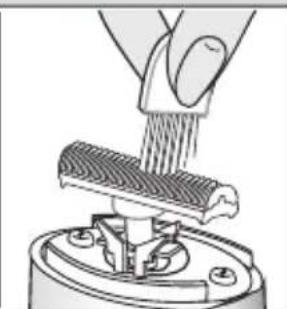

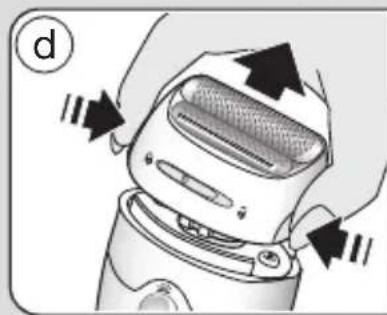

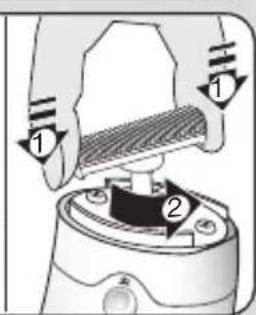

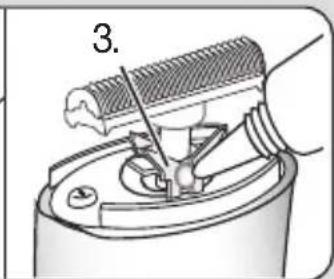

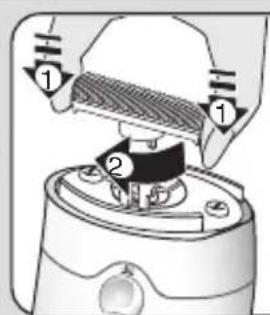

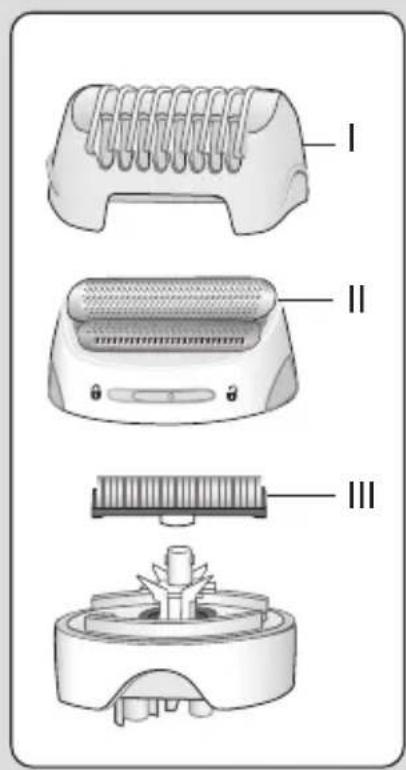

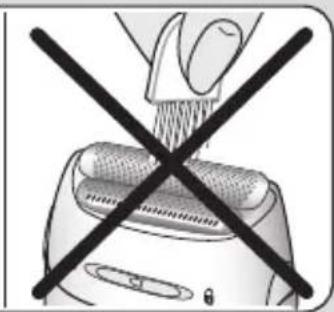

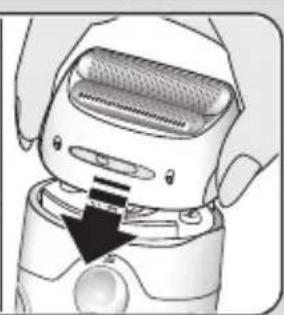

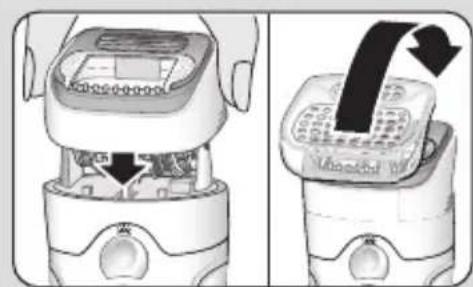

and put on the trimmer cap (I). d Cleaning Do not clean the shaver foil (II) with the brush as this may damage the foil. e The shaving parts need to be lubricated regularly every 3 months. f Replace the foil frame (II) and cutter block (III) when you notice a reduced shaving performance. Replacements parts can be obtained from your retailer or Braun Customer Service Centres or via www.service.braun.com. Do not shave with a damaged foil. Environmental notice This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in the house- hold waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country. Subject to change without notice Guarantee We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. 96754508_SE7-751_MN_S6-132.indd 1596754508_SE7-751_MN_S6-132.indd 15 29.04.14 12:0829.04.14 12:08 CSS APPROVED Effective Date 16May2014 GMT - Printed 06Aug2014 Page 15 of 13216 This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used. To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre. For UK only: This guarantee in no way affects your rights under statutory law. For Australia & New Zealand only: Warranty In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The benefits given by this warranty are in addition to other rights and remedies of the consumer law. For Claims in Australia please contact: Procter & Gamble Australia Pty Ltd 1 Innovation Road, Macquarie Park NSW 2113 Telephone: +612 8864 5000 Facsimile: +612 8864 5574 Email: gillette@au.pgconsumers.com For claims in New Zealand please contact: Procter & Gamble Distributing New Zealand Limited Unit 3, Building I, 5 Orbit Drive Rosedale, North Shore City 0632 Auckland, New Zealand Telephone: +649 477 6400 Facsimile: +649 477 6399 Email: gillette@nz.pgconsumers.com Our Warranty This appliance is also covered by a 24 Month Replacement Warranty commencing on the date of purchase (Our Warranty). Our Warranty applies in all States and Territories of Australia and in New Zealand and is in addition to any mandatory statutory obligations imposed on Procter & Gamble Australia Pty. Ltd., its distributors and its manufacturer. Our Warranty does not purport to exclude, restrict or modify any such mandatory statutory obligations. Our Warranty only covers defects in the appliance resulting from faults in workmanship or materials. Therefore, if your appliance becomes faulty as a result of faults in workmanship or materials, it will be exchanged by your retailer, on presentation of proof of purchase. Our Warranty only applies to domestic or household use of this appliance and the warranty will only apply if the correct operating instructions included with this product have been followed. For any appliance replaced under this warranty, Our Warranty ends on the expiry of the warranty period that applied to the original appliance. Our Warranty does not cover: A. Damage arising from improper use or operation on incorrect voltages. 96754508_SE7-751_MN_S6-132.indd 1696754508_SE7-751_MN_S6-132.indd 16 29.04.14 12:0829.04.14 12:08 CSS APPROVED Effective Date 16May2014 GMT - Printed 06Aug2014 Page 16 of 13217 B. Breakages to shaver foils, glass jars, etc. C. Normal wear due to moving parts. D. Repairs undertaken by unauthorised service personnel or use of non genuine parts. E. Appliances that are outside the warranty period or are not faulty. This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance. If the appliance is powered by a cord extension set or electrical portable outlet device these should be positioned so they are not subject to splashing or ingress of moisture. To the extent permitted by the laws of the Commonwealth of Australia and New Zealand and applicable laws of a State or Territory of Australia, and without affecting any mandatory statutory obligations imposed by law, Our Warranty is given in exchange for any other rights you may have against Procter & Gamble Australia Pty. Ltd. or its distributors or manufacturer, whether at law, in tort (including negligence), in equity or under statute. Please retain proof of purchase of this appliance. If you have any questions in relation to Our Warranty, please call our Consumer Service line (see below for numbers). If you intend to make a claim please telephone our Customer Service line on the numbers set out below to obtain information about your claim and any costs associated with claiming under Our Warranty. You will bear the cost of returning your product to us. Repairs and service If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense. For service or replacement parts refer to the authorised Service Agents listed overleaf. Local Service Agents may change from time to time – in that event please contact the Consumer Service free call number below for updated local service agent details. Australian Consumer Service (free call): 1 800 641 820 New Zealand Consumer Service (free call): 0 800 108 909 N2820 Australian & New Zealand Service Agents VICTORIA & TASMANIA Statewide Services Pty Ltd trading as J A Appliances 17-19 Hossack Avenue Coburg North, VIC 3058 Tel. (03) 8371 9100 Fax. (03) 9355 8644 Email: jaappliances@statewideservices. com.au QUEENSLAND Walters Import trading as Brisbane Appliance Service Centre 449 Beaudesert Road Moorooka QLD 4105 Tel. (07) 3277 0360 Fax. (07) 3274 2909 Email: basc@waltersimport.com.au 96754508_SE7-751_MN_S6-132.indd 1796754508_SE7-751_MN_S6-132.indd 17 29.04.14 12:0829.04.14 12:08 CSS APPROVED Effective Date 16May2014 GMT - Printed 06Aug2014 Page 17 of 13218 Français WESTERN AUSTRALIA Mark 1 Appliances Unit 1, 46 Abernethy Road Belmont, WA 6104 Tel. (08) 9475 0911 Fax. (08) 9475 0922 Email: mark1app@iinet.net.au
