USER MANUAL DPI4400B DE DIETRICH

= Fonction ICS = Fonction Recall = Fonction Switch = Fonction Boil

Number of cooking zones and/or areas

Energy consumption for the hob calculated per kg Energy consumption per cooking zone or area calculated per kg For non-circular cooking zones or areas: length and width of useful surface area per electric heated cooking zone or area, rounded to the nearest 5 mm For circular cooking zones or area: diameter of useful surface area per electric heated cooking zone, rounded to the nearest 5 mm

Heating technology (induction cooking zones and cooking areas, radiant cooking zones, solid plates)

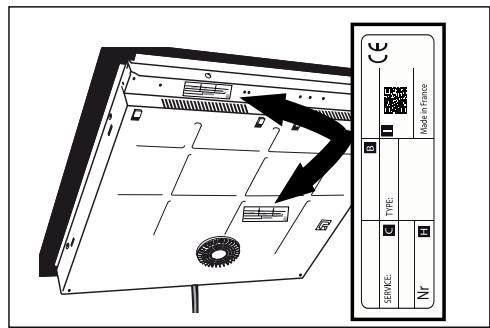

Total power Type of hob Rating plate Model identification Symbol

DEAR CUSTOMER, You have just purchased a De Dietrich product. This choice reflects your high standards and taste for the French way of life. Resulting from over 300 years’ know-how, the De Dietrich creations embody the fusion between design, authenticity and technology at the service of culinary arts. Our appliances are manufactured using noble materials and offer an irreproachable quality of finish. We are certain this high-quality product will enable cooking enthusiasts to express all their talents. The De Dietrich Customer Service Department is at your disposal for all your questions and suggestions to always better meet your expectations. We are honoured to be your new partner in the kitchen and thank you for your trust. With its factories based in France, in Orléans and Vendôme, De Dietrich cultivates a constant search for excellence, perpetuating exceptional know-how in the design of perfectly finished products. Many of our electrical appliances are certified by the “Origine France Garantie” label, an acknowledgement which certifies they are manufactured in France. This label both ensures the quality and durability of our appliances, as well as their traceability, thus offering a clear and objective indication of their provenance. www.de-dietrich.com CONTENTS

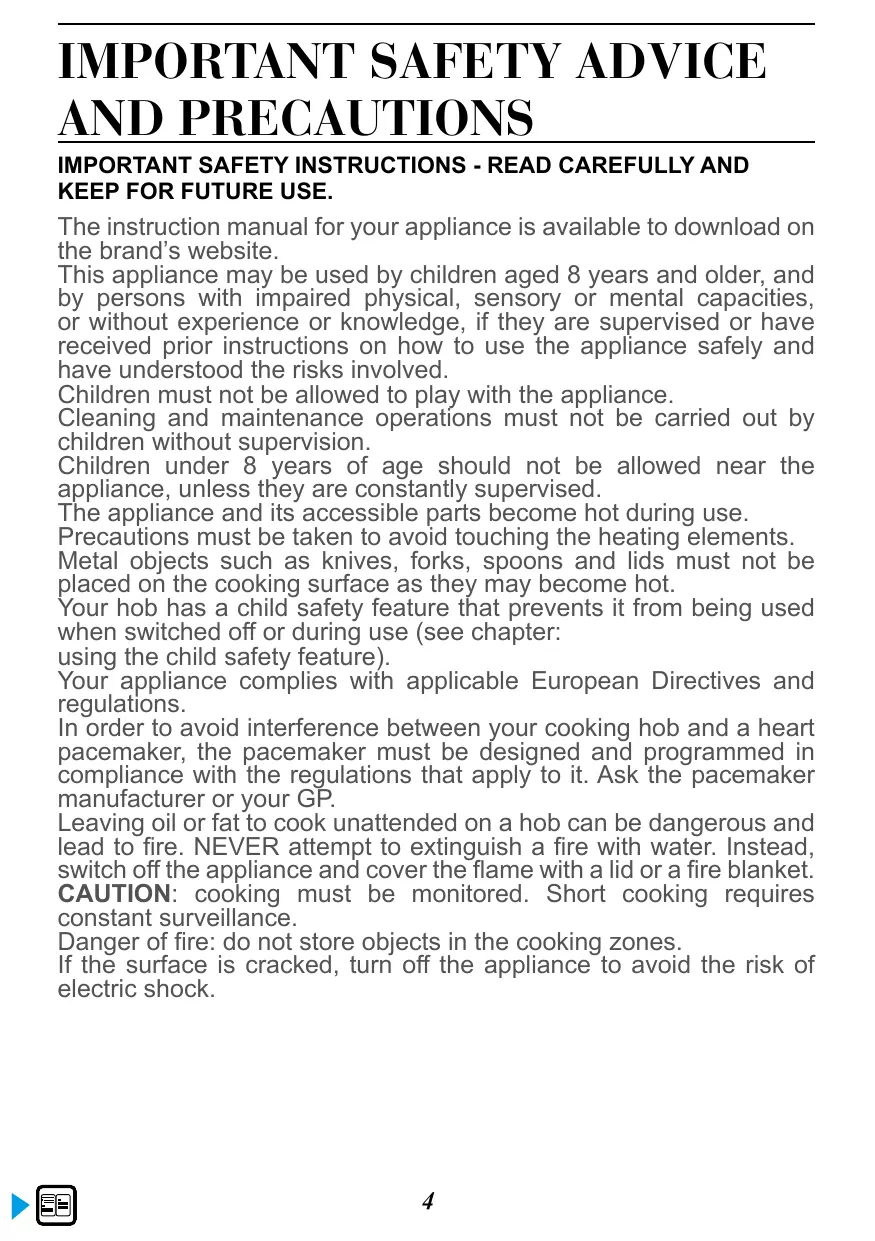

AND PRECAUTIONS IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY AND KEEP FOR FUTURE USE. The instruction manual for your appliance is available to download on the brand’s website. This appliance may be used by children aged 8 years and older, and by persons with impaired physical, sensory or mental capacities, or without experience or knowledge, if they are supervised or have received prior instructions on how to use the appliance safely and have understood the risks involved. Children must not be allowed to play with the appliance. Cleaning and maintenance operations must not be carried out by children without supervision. Children under 8 years of age should not be allowed near the appliance, unless they are constantly supervised. The appliance and its accessible parts become hot during use. Precautions must be taken to avoid touching the heating elements. Metal objects such as knives, forks, spoons and lids must not be placed on the cooking surface as they may become hot. Your hob has a child safety feature that prevents it from being used when switched off or during use (see chapter: using the child safety feature). Your appliance complies with applicable European Directives and regulations. In order to avoid interference between your cooking hob and a heart pacemaker, the pacemaker must be designed and programmed in compliance with the regulations that apply to it. Ask the pacemaker manufacturer or your GP. Leaving oil or fat to cook unattended on a hob can be dangerous and lead to fire. NEVER attempt to extinguish a fire with water. Instead, switch off the appliance and cover the flame with a lid or a fire blanket. CAUTION: cooking must be monitored. Short cooking requires constant surveillance. Danger of fire: do not store objects in the cooking zones. If the surface is cracked, turn off the appliance to avoid the risk of electric shock.

IMPORTANT SAFETY ADVICE

AND PRECAUTIONS Do not use your hob until you have replaced the glass top. Avoid hard shocks from cookware: although the vitroceramic glass worktop is very sturdy, it is not unbreakable. Do not place any hot lids flat on your cooking hob. A suction effect may damage the vitroceramic surface. Avoid dragging cookware across the surface, which could damage the decorative finish on the vitroceramic top in the long term. Never use aluminium foil for cooking. Never place items wrapped in aluminium foil or packaged in aluminium dishes on your cooking hob. The aluminium will melt and permanently damage your appliance. Do not store cleaning products or flammable products in the cabinet underneath the hob. These hobs must be connected to the power grid via an all-pole cut-off device that complies with installation regulations in effect. A disconnection device must be incorporated into the fixed wiring. Your hob is designed to work at a frequency of 50Hz or 60Hz (50Hz/60Hz), without you having to do anything. After use, turn off the hob using its control device and do not rely on the pan sensor to do this. The appliance must be connected via a standardised power supply cable with the suitable number of conductors for the type of connection wanted (see installation chapter). If the power cable is damaged, it should be replaced by the manufacturer, its after-sales service department or a similarly qualified person, so as to avoid danger. Ensure that the power cables of any electrical appliances plugged in close to the hob are not in contact with the cooking zones. Never use a steam cleaner to clean your cooking hob. The appliance is not designed to be switched on using an external timer or separate remote control system.

WARNING: Only use hob protectors designed by the manufacturer

of the cooking appliance or listed as suitable in the user guide, or included with the appliance. The use of unsuitable protectors could cause accidents.

Advice on how to save energy Cooking with the correctly sized lid saves energy. If you use a glass lid, you can control your cooking perfectly. This symbol indicates that this appliance must not be treated as household waste. Your appliance contains a large amount of recyclable material. This logo indicates that used appliances must be taken to a special waste collection point. Contact your local authority or retailer for details of your nearest used equipment collection points. Recycling of appliances organised by your manufacturer is carried out under the best conditions, in accordance with the European regulation on waste disposal of electronic and electrical equipment. Some of the packaging material used for this appliance can also be recycled. Recycle and contribute towards protecting the environment by disposing of packaging in local waste containers designed for this purpose. We thank you for your help in protecting the environment.

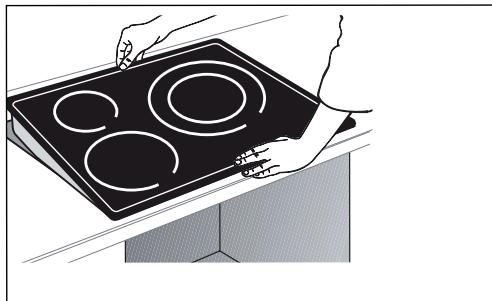

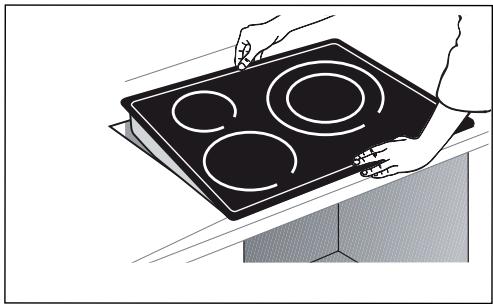

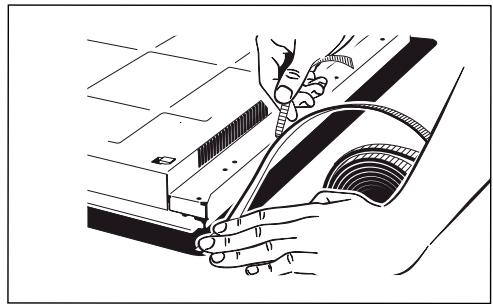

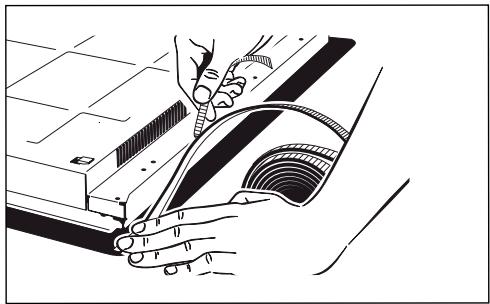

2 INSTALLATION UNPACKING Remove all the protective elements from the hob. Check and respect the appliance's characteristics that appear on the nameplate. Note the service and standard references shown on this plate in the boxes below for future reference. XXXXXXX TYPE: XXXXXXX xxx-x xxV xx/xxHz XXXX W-

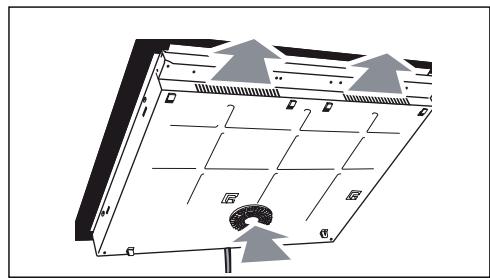

Check that the air intakes and outlets are unobstructed. Comply with the information concerning the fitting dimensions (in millimetres) of the work top destined to receive the hob. Check that air can flow correctly between the front and back of your hob. Fitting into the worktop Fitting flush with the worktop

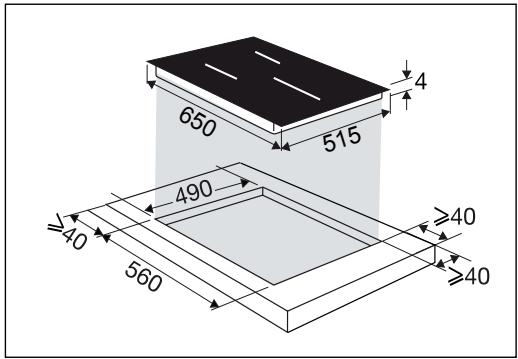

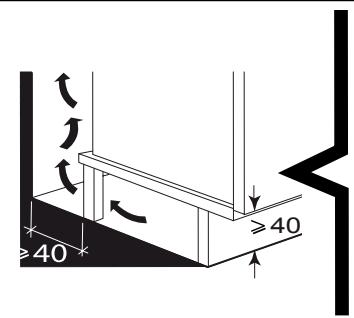

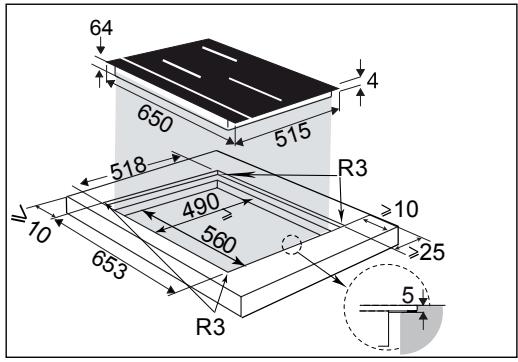

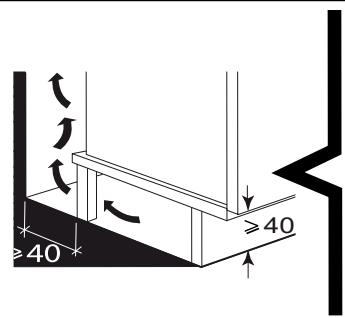

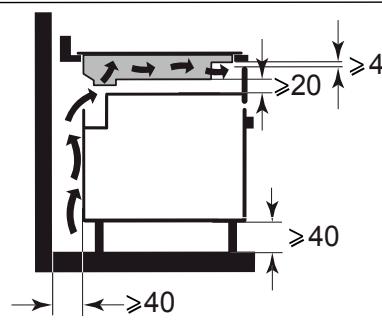

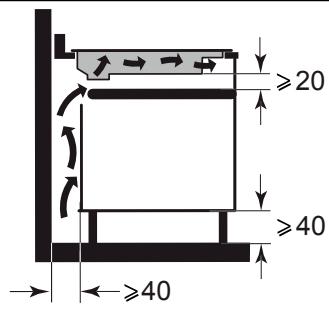

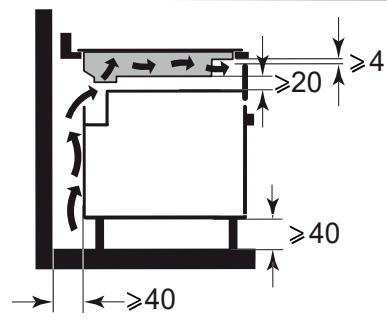

or above a built-in oven, comply with the dimensions provided on the illustrations to ensure a sufficient outlet air flow. Apply a seal all around the edge of the hob before fitting it.

Warning If your hob is located above your oven, the hob’s thermal safety devices can impede the simultaneous use of the hob and the oven’s pyrolysis programme, display code "F7" in the control zones. In such circumstances we recommend that you increase the hob’s ventilation by creating an opening in the side of the cabinet (8cm x 5cm).

2 INSTALLATION ELECTRIC CONNECTION These hobs must be connected to the mains via an all-pole cut-off device that complies with current installation regulations. A disconnection device must be incorporated into the fixed wiring. Identify the cable for your hob. a) green-yellow b) blue c) brown d) black e) grey When power is first supplied to your hob, or after an extended power outage, an indicator light will appear on the control panel. Wait approximately 30 seconds or press any touchkey on the control panel to make the information disappear and use your hob (this display is normal and is reserved for use by After-Sales Service, where applicable). In all cases, it should be disregarded.

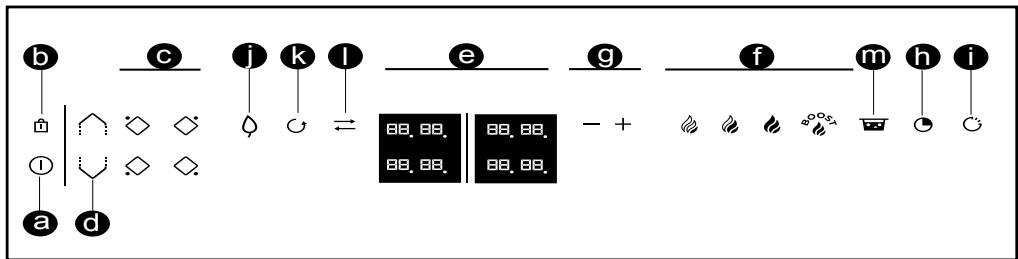

= On / Off switch = Locking/Clean Lock = Choice of cooking ring = Horizone or Duozone = Display = Pre-selection = Power/time setting = Timer = Elapsed time function

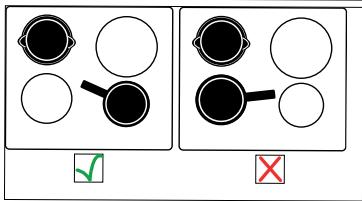

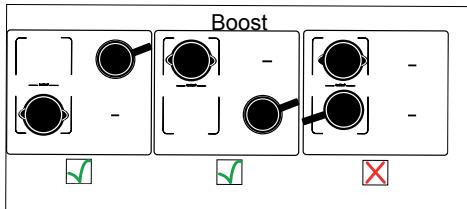

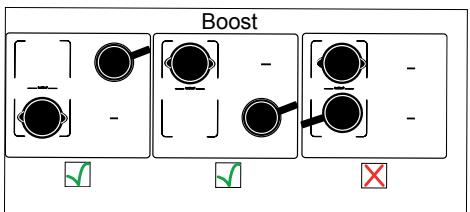

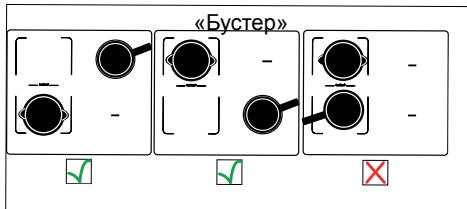

When you use maximum power (Boost) on several cooking rings at the same time, position pans to achieve the best positioning and avoid arrangements. Most cookware is compatible with induction. Only glass, terracotta, aluminium without a special base, copper and some non-magnetic stainless steels do not work with induction cooking. Boost We suggest that you choose cookware with a thick, flat bottom. The heat will be better distributed and cooking will be more uniform. Never leave an empty pan to heat unattended. Avoid putting cookware on the control panel.

4.2 COOKING RING SELECTION

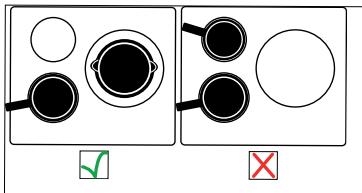

You have several cooking rings available. Select one that is suitable, based on the size of the pan. If the base of the cookware is too small, the power indicator will start to flash and the cooking ring will not work, even if the cookware's material is recommended for induction. Avoid using pans which are smaller in diameter than the cooking ring (see table). Max Cooking ring diameter power of the diameter (cm) (Watts) Diameter of bottom of cookware (cm) 16* 2000 / 2400

Press the On / Off key each zone for 8 seconds. . A "0" flashes in

When several cooking rings are used at the same time, the hob manages the power distribution, so as not to exceed its total power. If no pan is detected, select your cooking ring. If a pan is detected, the "0" flashes with a dot. You can then adjust the power. If you do not select a power level, the cooking zone will automatically turn itself off.

4 USE Switching off a zone on the hob Press and hold the key for the ring, a long beep sounds and the display switches off or the“H” symbol (residual heat) appears. Press the On/Off touchkey to switch the hob off completely. Set a new power level by pressing the key. After a few moments, a beep confirms your action. Note: Power levels must be between + or - 1 and 3 for

4.4 SETTING THE POWER

4 and 11 for Press the + or - key to adjust your power level between 1 and 19 or 1 and 14 (Power Management). 12 and 19 for

4.5 HORIZONE OR DUOZONE

The free zone is selected with the key When switching on the hob, you can directly select the maximum power level (excluding boost) by pressing the “-” key for the cooking ring. Power presets: There are four touchkeys available that provide direct access to pre-set power levels: The power and timer are adjusted as for a normal cooking ring. To stop the zone, press key; a long beep sounds and hold the and the displays go off or the "H" symbol appears. Pressing the touchkey in front of or behind the ring deactivates the function and transfers the settings to the selected ring. = level 2 - Keep warm = level 10 - Simmer = level 19 - Sear = maximum power setting.

All these power values apart from BOOST can be modified. Proceed as follows: The hob must be switched off. - Select holding it.

Each cooking ring has a dedicated timer. This can be set once the relevant cooking ring is on. To activate or adjust the timer, press the timer key . by pressing and

4 USE You can stop the timer by pressing and holding down the cooking ring selection key.

This function displays the time since the power setting was last changed for a selected cooking ring. To use this function, press the key. The time elapsed flashes on the timer display for the chosen burner. - key. To assist with setting long cooking times, you can go straight to 99 minutes by pressing the - key from the start. At the end of cooking, the display indicates 0 and a warning beep sounds. To cancel this information, press any button for the particular cooking zone being used. Otherwise, they will switch off after a few seconds. To stop the timer during cooking, press the + and - keys at the same time or go back to 0 with the - key. Independent timer With this function, you can time an event without cooking. - Select a free ring. If you want cooking to end within a specific time, press the key and, within 5 seconds, press + on the timer to increase it to the desired cooking time. The elapsed time is displayed fixed for 3 seconds and then the remaining time is displayed. A beep sounds to confirm your choice. This function is available with or without the timer function. Remark: if the timer displays a time, it cannot be changed for 5 seconds after pressing . After 5 seconds, cooking time can be modified.

LOCKING THE CONTROLS - Press the key. - Set the time with A "t" flashes in the display. the

key. - When you have set the time, the “t” becomes fixed and the timer starts.

Child safety lock Your hob has a child safety device which locks the controls when the hob is not in use or during cooking (to maintain the current settings). For safety reasons, only the stop control and ring selection keys are still active, allowing the hob or a cooking ring to be switched off.

4 USE Locking Press and hold the key, until the "bloc" locking symbol appears in the displays and a beep confirms the operation.

Table locked in operation The displays of cooking rings that are on alternately indicates power and the locked symbol. When you press the power or timer controls for the rings which are "on": "bloc" appears for 2 seconds and then goes off. Unlocking Press . The “ICS” symbol flashes in the display key until the "bloc" locked Press the symbol disappears and a beep confirms this. CLEAN LOCK function This function allows you to temporarily lock your hob while cleaning it. To activate Clean lock : Press the key briefly (padlock). A beep sounds and the "bloc" symbol flashes in the display. After a predefined time, the lock will automatically disengage. Two beeps sound and "bloc" switches off. You may deactivate the Clean lock at any key. time by pressing and holding the ICS FUNCTION Intelligent Cooking System This function optimises the choice of cooking zone for the diameter of cookware used. Proceed as follows: Place the pan on the cooking ring (e.g. 28 cm dia.). Select Boost power and possibly a cooking time. either the selected ring is the best one for the pan and "ICS" disappears leaving the initial cooking parameters in the display. or the selected ring is not the best one for the pan and the display then indicates which ring should be used and the settings are transferred to it automatically NOTE: The hob must be cold to use this function.

RECALL FUNCTION This function lets you display the last "power and timer" settings for all the burners which were switched off less than 3 minutes previously. To use this function, the hob must be unlocked. Press the On/Off key and then give a short press on the key . When the hob is on, the function shows the power and timer settings for the ring(s) that have been switched off for less than 30 seconds.

A beep sounds out when cooking is finished. NOTE: It is important that water is at ambient temperature at the start of cooking or the final result will be distorted. Do not use a cast iron pan with this function. You can also use this function to boil any food that needs to be cooked in boiling water. SWITCH FUNCTION This function allows a pan to be moved from one ring to another while retaining the original settings (power and time). Press the key briefly, Advice on how to save energy Cooking with the correctly sized lid saves energy. If you use a glass lid, you can control your cooking perfectly. the ==== symbols flash in the display. Select the zone to which you wish to move the pan. The settings will be transferred to the selected zone and you can now move the pan.

AND RECOMMENDATIONS BOIL FUNCTION Residual heat With this function you can boil and simmer water to cook pasta, for example. Select your ring and briefly press the "Boil" key

After intensive use, the cooking ring you have just used may remain hot for several minutes, A “H” symbol is displayed during this time. By default, the quantity of water proposed is 2 litres, but you. may modify it using + or - keys. Avoid touching the areas concerned.

Set the quantity of water required (from 0.5 to 6 litres). Confirm by pressing the "Boil" symbol or wait a few seconds for automatic confirmation. Cooking starts. A beep sounds when the water is boiling and the "Boil" symbol flashes in the display. You can then add the pasta and confirm by pressing the "Boil" key. By default, the display shows the power and a cooking time of 8 minutes. You can still adjust the power and the cooking time suggested.

4 USE Temperature limiter Each cooking ring is fitted with a safety sensor that continuously monitors the temperature of the bottom of the pan. In the event that an empty pan is left on a zone that is switched on, the sensor automatically adapts the power delivered by the hob and limits the risk of damaging the cookware or the hob. Sounds similar to the ticking of a clock may be heard. These sounds occur when the hob is in operation and disappear or decrease according to the heating configuration. There may also be whistling sounds depending on the model and quality of your cookware. Such noises are a normal part of induction technology and do not indicate a fault. Spillage protection The hob may be switched off in the following three cases: - Spillage covering the control keys. We do not recommend using any hob protection mechanisms. - Damp cloth placed over the keys. - Metal object placed on the control keys. Remove the object or clean and dry the control keys to restart cooking. In these cases, the symbol is displayed accompanied by an audible signal. "Auto-Stop" System If you forget to switch off a pan, your hob has an “Auto-Stop” safety function that automatically switches off the forgotten cooking ring after a pre-set time (between 1 and 10 hours based on the power level setting). If the safety system is triggered, the cooking ring is shown as switched off with "AS" displayed on the control panel and a beep sounds for about 2 minutes. To stop it, simply press any of the control keys.

LOOKING AFTER THE HOB

For light soiling, use a kitchen sponge. Use hot water to wet the area to be cleaned and then wipe dry. For burnt-on food deposits, sugary spills, melted plastic, use a scouring sponge and/ or a special glass cleaning scraper. Use hot water to wet the area to be cleaned, use a special glass cleaning scraper to remove the dirt, finish off with a scouring sponge and then wipe dry. For rings and hard water residue, apply warm white vinegar to the stain, let stand, then wipe with a soft cloth. For shiny metal streaks and weekly maintenance, use a special vitroceramic glass product. Apply the special product (which contains silicon and preferably has a protective effect) to the vitroceramic glass. Important note: do not use abrasive powders or scourers. Use cleaning creams and special gentle washing up sponges.

6 TROUBLESHOOTING When using for the first time During use The circuit breaker trips/blows a fuse or only one side of the hob works. The hob has been wired incorrectly. Verify its compliance (see connexion chapter). Code F7 is displayed. The electronic circuits have overheated (See “Fitting” chapter). You notice that something appears in the display. This is normal. It will disappear after 30 seconds. The hob produces an odour during the first cooking sessions. The appliance is new. Heat each ring for half an hour with a pan full of water. When you switch it on The hob does not work and the lights on the panel stay off. There is no power to the hob. The electrical supply or the connection are faulty. Inspect the fuses and the circuit-breaker. The hob does not work and another message is displayed. The electronic circuit is faulty. Call the After-Sales service. The hob does not work, the "bloc" information is displayed. Unlock the child safety lock. Fault code F9: voltage is below 170 V. Fault code D1: temperature is below 5°C.

The hob does not work, the screen displays and a beep sounds. There was a spillage or an object is obstructing the control panel. Clean or remove the object and resume cooking. While a heating area is on, the control panel's illuminated symbols continue to flash. The pan being used is not suitable. The cookware makes a noise and your hob clicks during cooking (see “Safety precautions and recommendations”). This is normal. With certain types of pan, heat passing from the hob to the pan causes this clicking. The ventilation continues to operate after the hob is switched off. This is normal. It cools the electronics. In the event of a persistent fault, switch off your hob for 1 minute. If the problem persists, contact the After-Sales Service.
