ZHC92662XA - Kitchen hood ZANUSSI - Free user manual and instructions

Brand	ZANUSSI
Model	ZHC92662XA
Product type	Cooker hood
Power supply	220-240 V, 50/60 Hz
Lighting power	2 x 20 W max, halogen 12V G4
Number of speeds	3 speeds (minimum, medium, maximum)
Installation type	Extraction version (external venting) or recirculation version (internal recirculation)
Grease filter	Dishwasher safe, clean once a month
Charcoal filter	Type 20 LONG LIFE washable (every 2 months) or type 15 non-washable (replace every 4 months)
Minimum distance from cooker	50 cm (electric), 65 cm (gas or mixed)
Cleaning	Exterior and interior at least once a month with a damp cloth and mild detergent
Safety	Disconnect before maintenance; do not use without filter; avoid open flames
Usage	Turn on 5 min before cooking, leave on for 15 min after
Control panel	Suction speed control and lighting control
Bulb type	Halogen 12V - 20W max - G4
Recycling	Recyclable packaging; electrical appliance not to be disposed of with household waste
Domestic use	Yes

Frequently Asked Questions - ZHC92662XA ZANUSSI

How to choose between extraction and recirculation version?

The extraction version requires external venting. The recirculation version recycles indoor air with a charcoal filter. Consult your installation manual to determine which version corresponds to your model.

What minimum distance should be observed between the hood and the cooker?

For electric cookers: 50 cm. For gas or mixed cookers: 65 cm. If the cooker manufacturer's instructions specify a greater distance, follow those.

How to clean the hood?

Disconnect the hood before cleaning. Clean the exterior and interior at least once a month with a damp cloth and mild liquid detergent. Do not use abrasive products or alcohol.

How often to clean or replace the filters?

The grease filter must be cleaned once a month (by hand or in the dishwasher at low temperature). The type 20 LONG LIFE charcoal filter is cleaned every 2 months (hot water or dishwasher at 65°C). The non-washable type 15 is replaced every 4 months.

What to do if the lamps no longer work?

Make sure the lamps are cool before touching them. Use only halogen lamps 12V - 20W max - G4. Replace them without touching directly with hands. If the problem persists, contact after-sales service.

Can I use the hood without filter?

No, never use the hood without the filter properly mounted. Using without filter may damage the appliance and poses a fire risk.

How to optimize hood efficiency?

Turn on the hood 5 minutes before starting cooking and let it run for 15 minutes after cooking. Use maximum power in case of high vapor concentration. Clean the filters regularly.

What to do in case of malfunction or abnormal noise?

First check that the hood is properly installed and the filters are clean. If the noise persists, unplug the appliance and contact after-sales service. Do not attempt to repair yourself.

Can I use the hood above an induction cooker?

Yes, the hood can be used with any type of cooker, electric, gas, mixed or induction. Respect the indicated minimum distances (50 cm for electric, 65 cm for gas).

How to recycle the hood at end of life?

Do not dispose of the appliance with household waste. Take it to a local recycling center or contact your municipal services for sorting instructions. Packaging must be recycled separately.

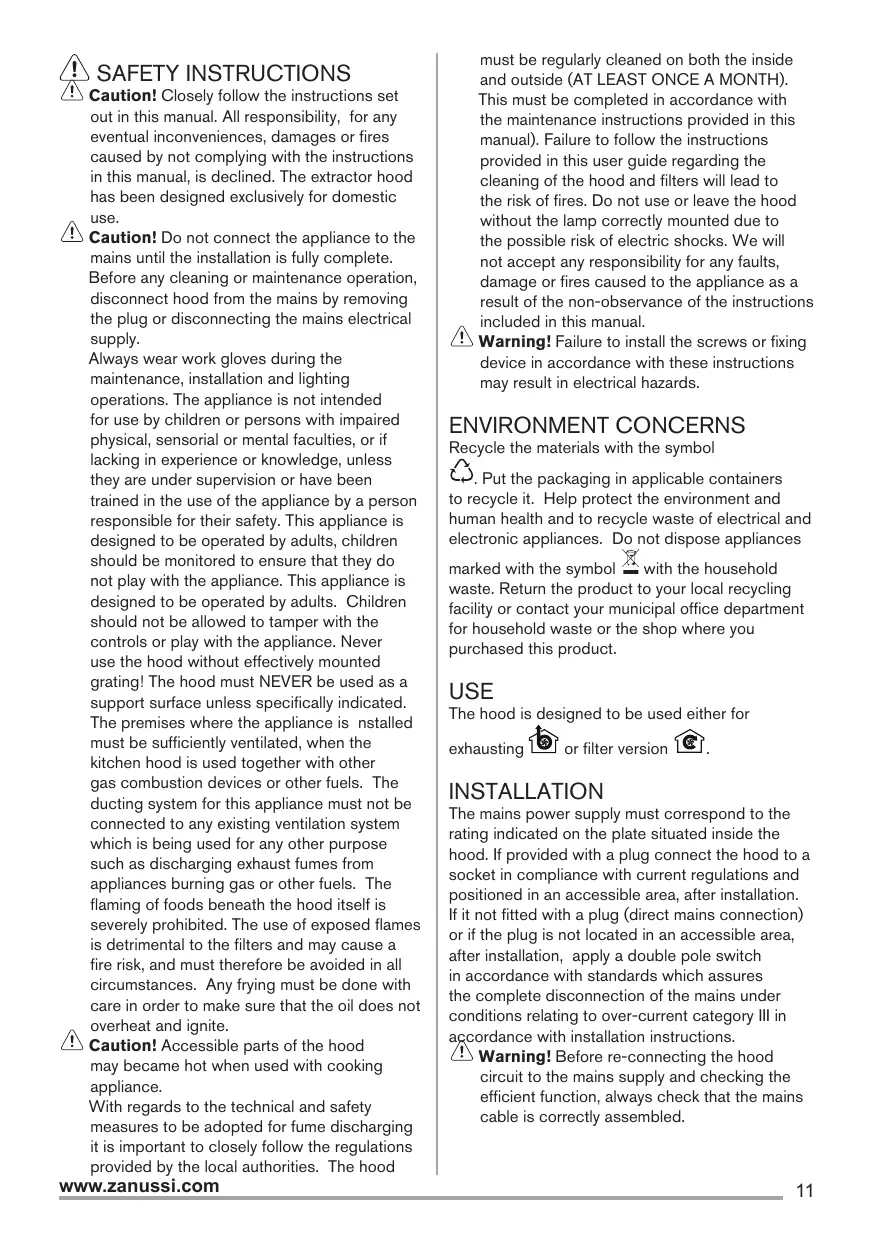

USER MANUAL ZHC92662XA ZANUSSI

Caution! Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. The extractor hood has been designed exclusively for domestic use.

Caution! Do not connect the appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves during the maintenance, installation and lighting operations. The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety. This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance. Never use the hood without effectively mounted grating! The hood must NEVER be used as a support surface unless specifically indicated. The premises where the appliance is stalled must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels. The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels. The flaming of foods beneath the hood itself is severely prohibited. The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances. Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Caution! Accessible parts of the hood may became hot when used with cooking appliance.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities. The hood

must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH). This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires. Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks. We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observation of the instructions included in this manual.

Warning! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

ENVIRONMENT CONCERNS

Recycle the materials with the symbol.

Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances

marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office department for household waste or the shop where you purchased this product.

USE

The hood is designed to be used either for

exhausting or filter version.

INSTALLATION

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug, connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it is not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50 cm from electric cookers and 65 cm from gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

MAINTENANCE

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse. Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using a cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

Warning! Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks. Therefore, we recommend observing these instructions. The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

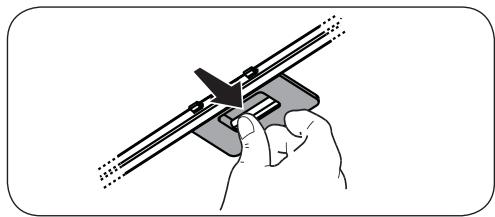

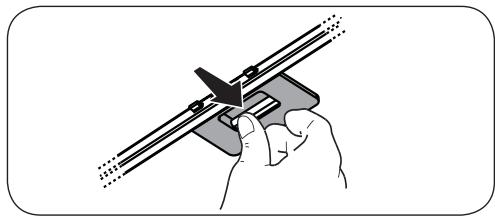

Grease filter - The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Charcoal filter - Type 20 LONG LIFE - Washable activated charcoal filter

The charcoal filter can be washed once every two months using hot water and a suitable detergent, or in a dishwasher at 65°C (if the dishwasher is used, select the full cycle function and leave dishes out). Eliminate excess water without damaging the filter, then remove the mattress located inside the plastic frame and put it in the oven for 10 minutes at 100°C to dry completely. Replace the mattress every 3 years and when the cloth is damaged.

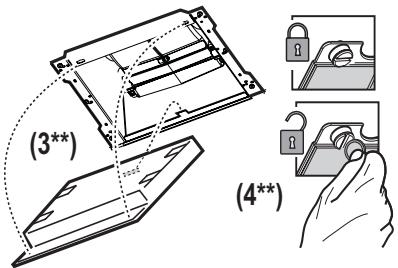

Type 15 - NON-washable activated charcoal filter

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter. In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

(1*)

(2*)

( ) Type 20 ( *) Type 15 - Type 20

CONTROLS

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

1. ON/OFF lighting
2. OFF motors
3. -4. -5. Minimum suction power (3.), medium (4.), maximum (5.).

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

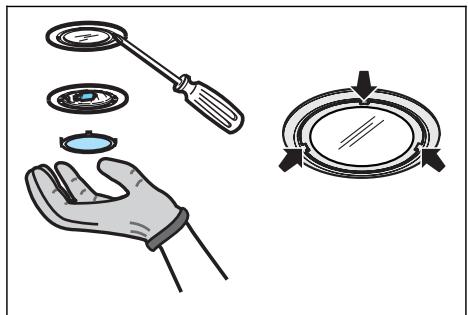

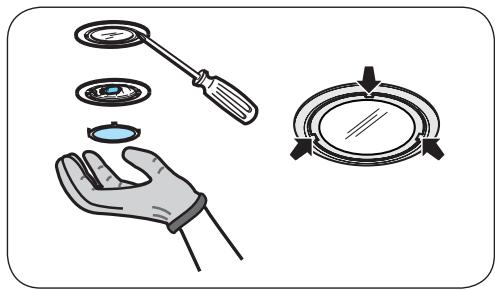

LIGHTING

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch new light with bare hands.

1. SAFETY INSTRUCTIONS

12v-20Wmax-i

G4

20 1

65

（）

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a aaa

J 1

A

12 100 12 100 12 100 12 100 12 100 12 100 12 100 12 100 12 100 12 100 12 100 12 100 12 100 12 100 12 100 1

DO NOT USE ALCOHOL!

PROBLEMS RELATED TO THE ENVIRONMENT

Recycle materials with the symbol. Place the packaging in recycling containers if available. Help protect the environment and human health by recycling waste electrical and electronic equipment. Do not throw

the devices marked with the household waste symbol. Return the product to your local recycling point or contact your municipal office.

USAGE

INSTRUCTIONS FOR USE

Warning! Please read the instructions carefully before use. The manufacturer is not responsible for any possible incorrect use, damage, or breakdown of the device resulting from failure to follow the instructions in this manual. The vacuum cleaners are intended for household use only.

Warning! Do not connect the device to the mains if its assembly is not complete. Before cleaning or maintenance, the vacuum cleaner must be disconnected from the mains by unplugging the plug or by switching off the circuit breaker.

Attention! Keep the working parts away from the body during operation, especially when using the nozzle.

The device should not be used by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the vacuum cleaner.

Never use the vacuum cleaner if the filter is not properly installed! The vacuum cleaner must never be used as a blower unless specifically indicated.

The room must be well ventilated when the kitchen vacuum cleaner is used simultaneously with other appliances using gas or other fuels. The vacuum cleaner's exhaust air must not be directed towards openings through which smoke, working gas, or other fuel is vented.

It is strictly forbidden to cook over an open flame under the vacuum cleaner.

Using the vacuum cleaner without the filter in place may cause a fire, so absolutely avoid this.

The top must be cleaned regularly to prevent the accumulation of dust.

Warning! The accessible parts may become hot when used with cooking appliances.

Regarding the technical and safety measures that must be taken for the disposal of the device, they must be strictly followed according to the local regulations of the competent authorities.

The appliance must be cleaned as often as necessary, both inside and out (at least once a month). It is necessary to follow the instructions for maintenance, as indicated in the following points. Failure to maintain the hood and filters in accordance with the instructions may result in a fire hazard. Do not use or leave the hood without properly installed filters! Danger of electric shock! The manufacturer is not responsible for any damage, fire, or injury caused by failure to follow these instructions.

Attention! Improper installation of the screws and fixing mechanisms in accordance with these instructions may lead to risks of electric shock.

PROTECTION OF THE ENVIRONMENT

Recycle materials with the symbol.

Place the packaging in the appropriate recycling containers.

Help protect the environment and public health, as well as recycle electrical and electronic devices. Do not dispose of devices marked with this symbol with household waste. Return the device to a local recycling point or contact your municipal waste service.

USE

The hoods are designed for use in the version with suction duct

Ventilated external intake or filtered recirculation

INSTALLATION

The voltage in the mains must correspond to the voltage indicated on the rating plate of the hood, located on its inner side. If the hood is equipped with a plug, connect it to a socket that complies with current regulations and is accessible after installation. If it is not equipped with a plug (direct connection to the mains), or if the plug is not accessible after installation, install a two-pole switch in accordance with the regulations, ensuring proper disconnection from the mains with a contact opening of at least 3 mm, in accordance with installation rules.

Attention! Before connecting the hood to the mains and checking that it functions correctly, check that the cable is installed as required.

The minimum distance between the surface on which the cooking vessels are placed and the lower part of the kitchen hood must be not less than 50 cm for electric cookers and not less than 65 cm for gas or combined cookers. If the instructions for the gas cooking appliance specify a greater distance, this must be respected.

MAINTENANCE

Attention! Before any operation connected with cleaning or maintenance, remove the plug from the socket and remove the filter from the appliance. Then remove the main filter from the appliance.

The appliance should be cleaned regularly (or after each use, clean the filter), including the inside and outside. Use a soft cloth and neutral cleaning agents.

Avoid cleaning agents that contain abrasives. Caution! Never clean with spirits!

Attention! Failure to follow the cleaning and filter maintenance instructions may result in fire hazard. Follow the instructions strictly! We accept no responsibility for any damage caused by fire resulting from incorrect maintenance or failure to follow these instructions! Motor filter – clean once a month with neutral cleaning agents. It may be washed in a dishwasher at low temperature and short washing cycle. Note: The motor filter in the dishwasher may become discolored, but this in no way affects its filtering capacity.

Type 20 LONG LIFE – replaceable active carbon filter

The active carbon filter should be replaced every two months with warm water and suitable cleaning agents or in a dishwasher at 65°C (follow the washing instructions; the dishwasher must not contain other dishes).

Rinse the filter thoroughly, remove the carbon pad from the plastic frame and place it in the oven for 10 minutes at 100°C to dry completely.

The carbon pad should be replaced every 3 years or when you notice it is saturated.

Type 15 – replaceable active carbon filter

The active carbon filter becomes saturated approximately after a certain period of use depending on the type of cooking and how often you clean the filter.

In any case, it is necessary to replace the active carbon filter every four months or when the filter saturation indicator shows it is necessary.

Do not use it again.

( ) Type 20 ( * ) Type 15 - Type 20

CONTROLS

The appliances are equipped with a control panel with speed adjustment for suction and lighting control for the hob.

1. ON/OFF button 2. Turning off (OFF) the motor 3.-4.-5. Suction power: minimum (3.), medium (4.), maximum (5.).

If a lot of dust is released during ironing, switch to maximum operating mode. It is preferable to turn on the vacuum cleaner 5 minutes before you start ironing and to let it run for about 15 minutes after you finish.

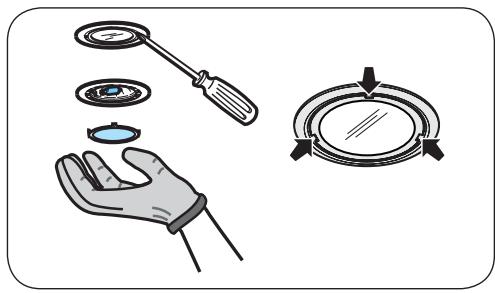

LIGHTING DEVICE

Disconnect the device from the electrical outlet before cleaning.

Attention! Take precautions against burns.

Turn the rings to remove the cover. Use only halogen bulbs of 12V, max 20W-G4, being careful not to touch them with your fingers.

SAFETY INSTRUCTIONS

Attention! Follow strictly the instructions given in this manual. We decline any responsibility for damages or fires caused by improper use of the device if the result of non-compliance with the instructions in this manual. The vacuum cleaner is intended exclusively for domestic use.

Warning! Do not connect the device to the electrical supply until the filter is completely installed. Before cleaning or maintenance, disconnect the vacuum cleaner from the electrical outlet by pulling the plug or by disconnecting the household power supply.

Always wear protective gloves during cleaning, installation, and removal of the device. This device is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the device. Never use the vacuum cleaner without the properly mounted filter!

The vacuum cleaner must never be used as a support surface unless it is precisely indicated. The room must be sufficiently ventilated when the household vacuum cleaner is used together with appliances that burn gas or other fuels. The exhaust air must not be discharged into the active flue of appliances that burn gas or other fuels. Strictly avoid vacuuming food under the vacuum cleaner. The use of open flames is dangerous for the filters and may cause a risk of fire or damage. This must be avoided in all circumstances. Every connection must be made carefully to prevent overheating of the oil and ignition.

Attention! The cleaning of the vacuum cleaner can be significantly delayed when used together with an ironing device. This is regulated by the technical safety measures for use in ironing. It is important to follow the rules given by the competent authorities. The vacuum cleaner must be cleaned regularly both inside and outside (at least every month, in any case when necessary, it must be serviced in accordance with the instructions).

Follow the instructions in this manual. If the instructions for the appliance are not followed, there is a risk of fire. Do not use the appliance without properly installed filters. The filters may pose a risk of electric shock. We disclaim any responsibility for problems, damage, or fire caused by the appliance as a result of failure to follow the instructions in this manual.

Warning! Failure to install the hoses or the fixing brackets in accordance with these instructions may lead to electrical hazards.

Environmental guidelines

Air, or in the version with a filter with circular air flow.

Installation

The main air supply must comply with the general requirements for the characteristics specified for the appliance. If the appliance is supplied with a plug, insert it into the socket in accordance with the installation instructions and the positioning of the plug before installation. If it is not supplied with a plug (direct connection to the electrical supply) or if the plug is not positioned at the installation site, install a disconnecting device in accordance with the standards to ensure complete disconnection from the electrical supply under conditions of overvoltage category III, in accordance with the installation instructions.

Warning! Before reconnecting the appliance to the electrical supply, always check that the power cord is properly installed.

The minimum distance between the hob and the extractor hood for cooking appliances must not be less than 50 cm for electric cooking appliances and 65 cm for gas or combined cooking appliances.

If the installation instructions for the gas hob specify a greater distance, this must be respected.

Maintenance

Warning! Before performing any cleaning or maintenance operation, disconnect the appliance from the electrical supply by removing the plug or switching off the main switch.

The appliance must be cleaned regularly (at least with the frequency with which the filter maintenance is carried out) both internally and externally. For cleaning, use a damp cloth with mild neutral detergent. Do not use abrasive products. DO NOT USE

ALCOHOL! Warning! If the instructions for cleaning the appliance and replacing the filters are not followed, there is a risk of fire. It is recommended to follow the provided instructions. We disclaim any responsibility for possible damage to the motor or fire caused by improper maintenance or failure to follow the instructions.

The oil filter is a metal oil filter. It should be read once a month with a non-staining detergent, early or in the machine for washing dishes at the end of the program and in a short interval. With the transfer to the machine for washing dishes, the metal oil filter can release a small amount of water; its characteristics for filtering are not changed.

Type 20 LONG LIFE - filter with activated carbon can be washed

The carbon filter can be washed every few months in warm water and with a non-staining detergent in the dishwasher at 65°C (the dishwasher transfer without dishes can be filled with a complete rinse without dishes inside).

Rinse the filter under running water without damaging it, then remove the filter element placed inside the plastic part and place it in the oven for 10 minutes at 100°C for complete drying.

Replace the filter element every 3 years whenever it is worn out.

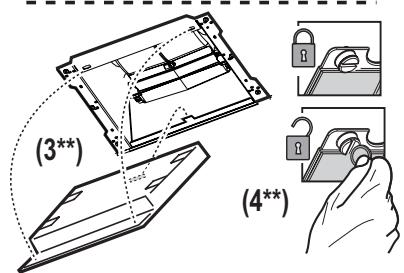

Type 15 - filter with activated carbon cannot be washed

The saturation of the carbon filter occurs more or less quickly depending on the type of cooking and the regularity of cleaning the oil filter. In any case, it is necessary to replace the filter at least every 4 months.

It cannot be washed or regenerated.

( ) Type 20 ( ^*) Type 15 - Type 20

CONTROL

The aspirator is adjusted with a control panel with a speed regulator for suction and a regulator for the lighting of the hob.

1. ON/OFF light
2. OFF MOTORS 3.-4.-5. Possible switching on: minimum (3.), medium (4.), maximum (5.).

Use the highest speed in case of high concentration of steam in the kitchen. We recommend turning on the suction 5 minutes before starting to cook and leaving it on for 15 minutes after finishing cooking.

LIGHTING UNIT

IcknyeTe ro ypeoT Oc CtpyjHTo HanojyBaNe.

Warning! Before connecting the device, check if it is damaged. Use only halogen bulbs of 12V -20W max-G4, keeping in mind not to touch them with bare hands.

!SAFETY INSTRUCTIONS

Warning! Strictly follow the instructions provided with this appliance. We disclaim any responsibility for possible injuries, damage or fire caused by the appliance if it is not installed in accordance with the instructions provided. This appliance is designed exclusively for household use. Warning! Do not connect the appliance to the power supply until you have completely finished with the installation. Always wear protective gloves during operations related to maintenance, installation and lighting. Before any maintenance or cleaning, disconnect the appliance from the power supply by pulling the plug or switching off the circuit breaker in the house. Persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, should not use this appliance unless they are under the supervision of persons responsible for their safety or have been instructed by them on the safe use of the appliance. Supervise children to ensure they do not play with the appliance. Never use the appliance without properly mounting the filter! The appliance must never be used as a support for placing or hanging objects unless explicitly stated. The space where the appliance is to be installed must have good ventilation when used together with other appliances in spaces that are on gas or other fuel. The exhaust air must not be discharged into a chimney used for exhaust from appliances on gas or other fuel. Strictly forbidden is the use of the appliance for cooking food. The use of uncontrolled flame is dangerous for the filters and may cause fire, so it should be avoided in any case. During cooking, control that the food is not overheated. Warning! Parts that are accessible may become hot when used together with cooking appliances. Regarding technical safety measures that must be carried out concerning the discharge of air, strictly follow the regulations of the local authorities. The appliance must be cleaned regularly both inside and outside (at least once a month), following the instructions in

Instructions for maintenance that accompany this appliance. Improper rules about cleaning the appliance and replacing or cleaning the filters increase the risk of fire. Do not use and do not leave the appliance without properly mounting the lamp because there is a risk of electric shock. We disclaim any responsibility for possible injuries, damage or fire caused by the appliance if it is not installed in accordance with the instructions provided.

Warning! If you do not install these guards and fastenings in accordance with these instructions, it may lead to electrical danger.

ENVIRONMENTAL QUESTIONS

Recycling packaging marked with the recycling symbol should be disposed of in recycling containers. Protect animal and human health as with recycled material from electrical and electronic devices. Items marked with the symbol should not be disposed of together with household waste. Return the product to a local recycling center or contact the local waste disposal service.

COPYRIGHT

This aspirator is designed for use in the suction version with external discharge, or in the filtration version with internal recirculation.

INSTALLATION

The power supply must match the power supply indicated on the rating plate with the characteristics stated on the aspirator. If there is a plug, connect the aspirator with a plug that is in accordance with the standards and that is installed on the power cord. If the aspirator is without a plug, (direct connection to the mains) or if the plug is not installed on the power cord, install a bipolar switch that ensures complete disconnection from the mains under category III overvoltage conditions, in accordance with installation regulations.

Warning! Before reconnecting the aspirator to the electrical mains and checking proper operation, make sure that the power cord is properly installed.

The minimum distance between the surface that supports the cooking vessels on the cooking appliance and the lower part of the aspirator must not be less than 50 cm for electric cookers and 65 cm for gas or mixed cookers. If the installation instructions for the gas cooking appliance specify a greater distance, these instructions must be followed.

MAINTENANCE

Warning! Before performing any cleaning or maintenance operation, disconnect the aspirator from the mains by removing the plug or switching off the main switch.

The aspirator should be cleaned frequently (as often as the grease filter is cleaned), both inside and outside. Use a soft cloth dampened with neutral liquid detergent. Avoid using abrasive products. DO NOT USE ALCOHOL!

Warning! Failure to follow the rules for cleaning the appliance and replacing the filter increases the risk of fire. Therefore, we recommend that you follow the instructions provided. We decline any liability for possible damage caused to the motor, fire resulting from improper maintenance, or failure to follow the warnings.

Grease filter - The aspirator should be cleaned once a month with neutral detergents, by hand or in the dishwasher at low temperatures, including a short wash cycle.

After washing in the dishwasher, the metal grease filter may lose its shine (slightly oxidized) but its filtering capacity will not be affected.

Type 20 LONG LIFE - Activated carbon filter that can be regenerated

The carbon filter can be regenerated every three months in hot water in the dishwasher at a temperature of 65°C (in case of washing in the dishwasher, include a complete wash cycle without other dishes inside the machine).

Replace the bulb with a new one of the same type and power, after letting it cool for at least 10 minutes at a temperature below 100°C to avoid burns. Replace the bulb every 3 years or whenever the material shows signs of wear.

Type 15 - filter made of activated carbon that must NOT be washed

Lamp: 12V-20W, G4 base, not

Do not touch the bulb with bare hands.

Danger of burns! Before replacing the lamp, ensure the device is unplugged and has cooled down completely. Do not touch the lamp until it has cooled. If the lamp is damaged, do not use it and replace it immediately.

Warning! Do not operate the device with wet hands or in damp conditions! Ensure the device is properly grounded and do not use it near water. Keep the device away from children and pets. If the device malfunctions, unplug it immediately and contact a qualified technician. Do not attempt to repair the device yourself.

Do not use the device if the power cord or plug is damaged. If the device is not working properly, do not attempt to repair it yourself. Contact a qualified technician for assistance.

The device must be cleaned regularly to prevent the accumulation of dust and debris.

Warning! When cleaning the device, do not use abrasive materials or harsh chemicals. Use a soft, dry cloth to wipe the exterior. Do not immerse the device in water or any other liquid.

Do not operate the device if the power cord is damaged or if the device has been dropped or damaged in any way.

Before replacing the lamp, ensure the device is unplugged and has cooled down completely. Do not touch the lamp until it has cooled.

Warning! Do not place the device near open flames or heat sources, as this may cause a fire hazard.

KOPUFAH OPTAFA 3IYH KEJIIPMEY

TYPAJIbIMAFJYMATTAP

Benri caIbIHfAH MaTePnAaIapDbI KaI Ta eNdeyIeH eTKi3yRe TANCbIPbIHbI3. OpaMaTePnAaIapbIH KaITa eNdeyIeH eTKi3y yIiH TiICTi KOHTeHepJIepe CaIbIHbI3. 3JeKtpNIk XHe 3JeKtpOnHkaIbIK KpyIbIaNapDbIH KaIbIFbIH KaITa eNdeyIeH eTKi3y apKbIbI, KopUshaF anOpTara XHe aAMHbIH deHCayIbIFbIH a3MbIH KeTIptetIH xJaDaIInapra XoJ bepMeyre e3 yIecin3di KocbIHbI3. BEnI

caIbIHFaH Kpyblfblnapbl TypMbICTbIK KaIbIKTapMeH bipre TactaMaHbI3. HImDi keprilikTI KaIta eHcy optaIbIFbHa eTKi3Hl3 HeMece keprilikTI meKemere xa6apnacbHbI3.

ПАДДАНУ

Cybykannarbi copfblipeHne Hemece cnIbtp peIHpe naIandaHy ywiin eHdienreH.

OPHATY

JKeiHIn KepHeyi acnAnTbH iwiHde opHaIacKaH TaKtaiWada 6eJIrIneHReTH texHnKaIbIK depeKterPei KePHeye CaiKec KeNyi Kepek. Erep copfbiu BNikamEn Jka6dbkTaNfAH BcONca, opHaTbIraHHaN KeiH De icTeyre BoNTaH, KOJ KeTePNIk Jkepe D6Olyb Tnic, icTe NypFaH epExeNEpre CaiKec anMaIbI-caIMaIbI uTeNCbIbre CopfblStIOKcbIHb3.Erep copfbiu BNikamEn Jka6dbkTaNMaFANB O5nca (Jenire Typa KocbIy), Hemece anMaIbI-caImaIbI uTeNCbel opHaTbIraHHaN KeiH De KOJ KeTePNIk Jkepe BoIMaca, OHJa opHaTy HcckaybHa caiKec 3-dapeKeJei eri AChbIN KepHeydi BoIbIpMaHTbIH KHe JKeJIiH TOblk AwblNyBH KaMTaMaccB3 etEtIH TnICTE ekINOnIOCTIK axbPaTKblTbNaadanbHb3.

Eckeprty! Kopek Jxenicihe CopfbltBn H 3neKtpnik Kyyin CIn Kocy aIbHda Kopek KaBeni Dpybc MOHTaJdAraHaHa Ke3 JeTki3iH3.

CopfbltbiH TEmHeH KbIpB MeH bIbIc acTbHdaBi Tipeyiii Ka3bIKbIfbIHHbIH apa Ka7bIKTbIFbI eNeKtp nniTacbi yuHIN 50cm, an ra3 Hemece biipKtiPInre nTTanap yuHIN 65cm DeH KEM 6oMMaybTnic. Eere npckayda ra3 nnTacbiH opHaTyfa apTbIfpak apa Ka7bIKbTKbI 6eJIrJHeHReH 6oNca, OHBe cckepiH3.

TEXHINKAJIbIK KYTIM KÖPCETY

Eckopty! Ke3 keJireh ta3aJay hemecetexHnKaJIbIK KbI3Met ety onepauncaBihKacaydah 6pybIH, BnIKAHbI bIfapBIn hemec 6eJIMeHH, bactbI aXbIpaTkbIbH cyIbIPin copblITbI eKeKtp KekiciHeaXbIpaTbIHbI3.

CopbIi iHHe HKe He cbIpTbHaH KJI Ta3aHaBIn TpyI KaKeT (KEM DeReHne 7aMaMeH MaIbI yCTan KanatbIH fNtBTPdi Ta3aay MeP3imHe cAnKeC).Ta3anay yuH 6eTapan KybIi 3aTne CyaNaFah apHaBI uBepeKti naIdaHaBnHbI. A6pa3nJIbIK kOcnaBb 6ap 3aTTbI naJaIaNbHaBIs.

CNIPTTI NAIДАЛАHБАнbl3！

Ecepy!ΦnIbTpdi ayibcTbipy KHe acnantbl Ta3aJaiy epexepePiH cakTalbH6aybi eptTin naJa 6OlybHa kEnyi Mymkyn. CoNdbkTah beipire HcyayMeH naJdanaHyfKehe6epeMi3. KOrapbda KepcetInre h eceptynepi dacTaTMaFAhBkTAH HeMeec dypbic emec KHeHdey caJapbHaH onGanF anpHT HeMece Ko3afayuBtB 6yhiinyne baJhaBcTb bapbK kayanKepuinik aJIbHaDbI.

Before starting any maintenance or repair work, ensure that the machine is completely cooled down, the temperature is lowered, and the pressure is released. It is possible to perform maintenance on the machine without disconnecting the filter, but only if all safety precautions are strictly followed.

Type 20 LONG LIFE - replaceable filter.

The filter should be washed in clean water, or at a temperature of 65°C in a washing machine (without detergent, using a gentle cycle) at least once every two months.

Do not remove the filter from the housing while it is still hot; allow it to cool down. Then, wash the plastic parts in a 100°C solution for 10 minutes, then rinse thoroughly.

Do not use abrasive brushes or sponges to clean the filter.

Type 15 - replaceable filter

If the filter becomes clogged or damaged, it must be replaced with a new one of the same type and size. Regardless of the condition, replace the filter at least once every 4 months.

The filter cannot be repaired and must not be reused.

( ) Type 20 ( ^*) Type 15 - Type 20

CONTROL ELEMENTS

To turn on the device, press the switch on the top of the device. To turn off, press the switch again.

1. CONNECTING THE HOSE
2. CONNECTING THE MOTOR
3. -4. -5. Minimum (3.), medium (4.), maximum (5).

If the concentration of the solution is too high, dilute it with water. We recommend adding 5 liters of water to the solution before use, and after use, add 15 liters of water for rinsing.

Electrical appliance safety

Before connecting the appliance to the power supply, check that the voltage matches the local supply.

The appliance is designed for use with 12V-20V DC power supplies only. Do not connect it to any other power source.

SAFETY INSTRUCTIONS
