ZHT 630 - Kitchen hood ZANUSSI - Free user manual and instructions

Product type	Wall-mounted or under-cabinet cooker hood
Brand	ZANUSSI
Model	ZHT 630
Installation	On the wall or under a cabinet
Usage version	External extraction or internal recirculation
Minimum distance from cooking surface	65 cm
Electrical supply	230 V ~ 50 Hz (check the rating plate)
Electrical connection	Bipolar switch with a minimum opening of 3 mm
Insulation class	Class II (double insulation) for some models
Grounding	Mandatory for hoods with ground cable
Fan speed	3 adjustable speeds
Lighting	Replacement bulb (same type and wattage)
Grease filter	Multi-layer washable metal or thin disposable (depending on model)
Metal grease filter maintenance	Monthly wash in warm water or dishwasher
Activated carbon filter	Replaceable, replace every 3 months
External cleaning	Warm water and neutral detergent, no abrasive products
Extraction connection diameter	100 mm (120 mm for some models)
Material	Stainless steel or lacquered (not specified)
Dimensions (approx.)	W 60 cm x D 50 cm x H 15 cm (common estimate)
Weight (approx.)	Approximately 15 kg
Safety	No flambé under the hood, monitor frying
Repairability	Spare parts available: filters, bulbs, motor

Frequently Asked Questions - ZHT 630 ZANUSSI

What is the minimum distance I should maintain between the hood and the hob?

The minimum distance is 65 cm between the cooking surface and the lowest part of the hood.

Can I use the hood in recirculation mode without an external duct?

Yes, the hood can be used in recirculation mode by installing an activated carbon filter. This allows air to be recycled without external extraction.

How to clean the metal grease filter?

Wash the metal filter every month in warm water with normal detergent, or in the dishwasher. Let it dry before putting it back in place.

When should I replace the carbon filter?

The activated carbon filter must be replaced every three months to ensure good odor absorption.

How to change the hood bulb?

Open the suction grille, check that the bulb is screwed in properly. If necessary, replace it with a bulb of same type and same wattage.

What to do if the hood does not work at all?

First check the electrical supply and the bipolar switch. Make sure the hood is properly plugged in and that the circuit breaker has not tripped.

Can I install the hood above a gas hob?

Yes, but strictly respect the safety distance of 65 cm. Never flambé food under the hood.

How to switch from extraction mode to recirculation mode?

Open the grille, set the lever or button to the filtering position, then install the activated carbon filter by screwing it onto the motor support.

What products to use to clean the hood?

Use warm water and a neutral liquid detergent. Never use abrasive or caustic products that could damage the surface.

Where to find spare parts for this hood?

Contact the ZANUSSI after-sales service or an authorized dealer. Available parts include filters, bulbs and the motor.

USER MANUAL ZHT 630 ZANUSSI

INSTALLATION, USE AND MAINTENANCE HANDBOOK

MANUEL D'INSTRUCTIONS POUR L'INSTALLATION, L'EMPLOI ET L'ENTRETIEN HAND

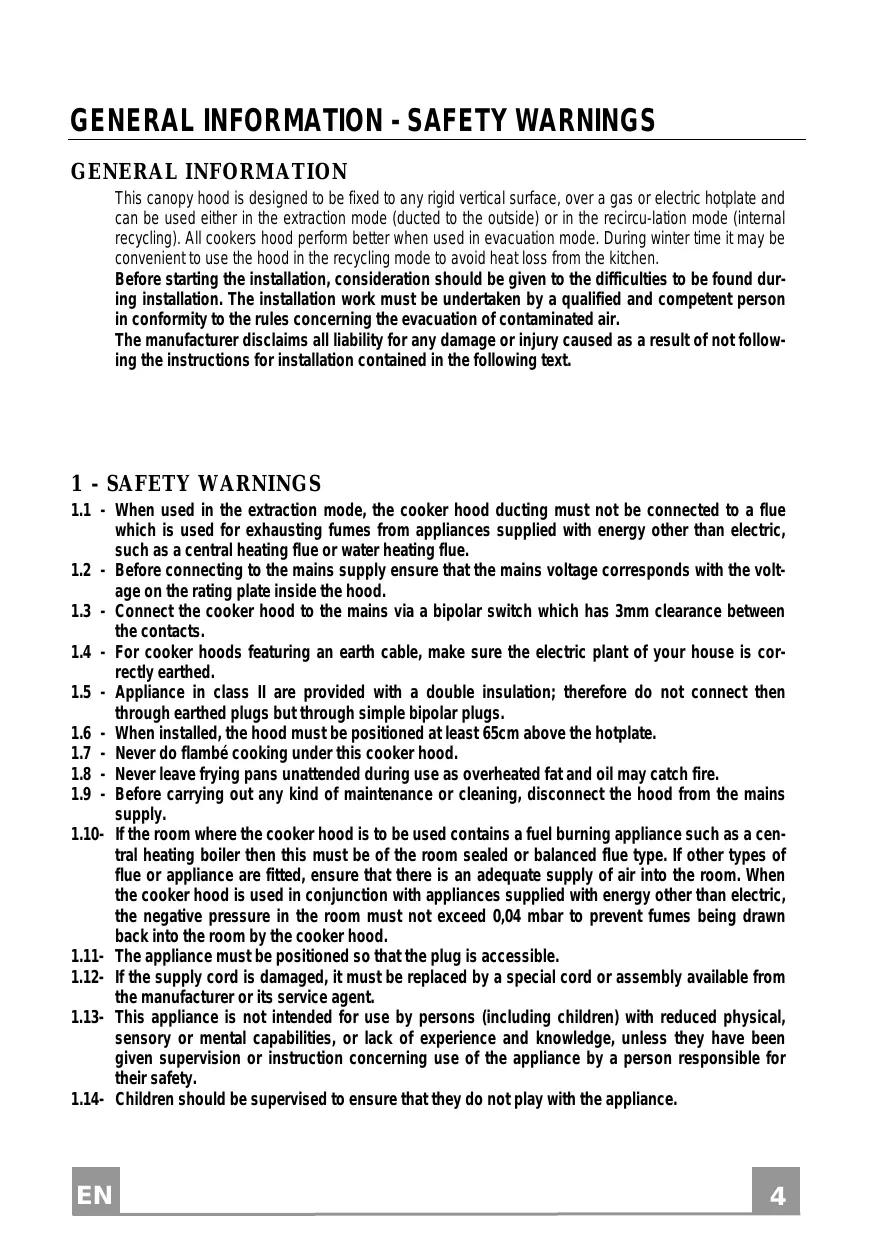

This canopy hood is designed to be fixed to any rigid vertical surface, over a gas or electric hotplate and can be used either in the extraction mode (ducted to the outside) or in the recircu-lation mode (internal recycling). All cookers hood perform better when used in evacuation mode. During winter time it may be convenient to use the hood in the recycling mode to avoid heat loss from the kitchen.

Before starting the installation, consideration should be given to the difficulties to be found during installation. The installation work must be undertaken by a qualified and competent person in conformity to the rules concerning the evacuation of contaminated air.

The manufacturer disclaims all liability for any damage or injury caused as a result of not following the instructions for installation contained in the following text.

1 - SAFETY WARNINGS

1.1 - When used in the extraction mode, the cooker hood ducting must not be connected to a flue which is used for exhausting fumes from appliances supplied with energy other than electric, such as a central heating flue or water heating flue.
1.2 - Before connecting to the mains supply ensure that the mains voltage corresponds with the voltage on the rating plate inside the hood.
1.3 - Connect the cooker hood to the mains via a bipolar switch which has 3mm clearance between the contacts.
1.4 - For cooker hoods featuring an earth cable, make sure the electric plant of your house is correctly earthed.
1.5 - Appliance in class II are provided with a double insulation; therefore do not connect then through earthed plugs but through simple bipolar plugs.
1.6 - When installed, the hood must be positioned at least 65cm above the hotplate.
1.7 - Never do flambe cooking under this cooker hood.
1.8 - Never leave frying pans unattended during use as overheated fat and oil may catch fire.
1.9 - Before carrying out any kind of maintenance or cleaning, disconnect the hood from the mains supply.
1.10- If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then this must be of the room sealed or balanced flue type. If other types of flue or appliance are fitted, ensure that there is an adequate supply of air into the room. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
1.11- The appliance must be positioned so that the plug is accessible.
1.12- If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
1.13- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
1.14- Children should be supervised to ensure that they do not play with the appliance.

2 - INSTALLATION INSTRUCTIONS

Some installation systems require the opening and removal of the metal grille panel.

2.1 - Instructions for opening and removing the metal grille panel

To open the grille panel, press inwardly on the two slider catches at each side of the grille panel and the grille will pivot down.

To remove the metal grille, pull forward on the right hand side so that the hinge pin on the back of the grille will be released from the slot in the side of the casing.

2.2 - Wall cabinet fixing

a - Predrilled wall cabinet: fix the hood onto the wall cabinet base panel using the four screws 4.2 × 45 mm (supplied with the fixing kit).

It is not necessary to open the metal grille.
b- No predrilled wall cabinet:

b.1 -If the hood is provided with a paper fixing template, follow the instructions.
b.2 - If the hood is not provided with a paper fixing template, position the hood on the wall cabinet base panel and pilot drill the 3.5 × 16 mm screws (not supplied with the fixing kit) from the inside onto the wood.

2.3 - Wall mounting

a - Drill two 0.8mm holes on the wall using the paper template, insert two rawl plugs and two 4.2 × 44.4 mm screws leaving 5mm untightened. Open the metal grille panel, hook the hood on and fully tighten the screws.
b- If the hood is not provided with a paper fixing template, drill two 0.8mm holes (see draw.), insert the plugs and screws, proceeding as directed under paragraph a.
c - For wall mounting using wallbrackets (optional), follow the instructions of the fixing template.
d - Pay attention to the safety regulation of point 1.6.

2.4 - Choice of operating mode

a - Evacuation mode

To check that the hood is set up for evacuation, open the grille panel and make sure that the conversion lever or the change-over knob on the centrifugal unit is in the DUCTING position. The charcoal filter is not required.

For ducting to the outside, the hood is supplied with a rear and top outlet. A flange spigot of 100mm diameter (120 mm in certain models) is usually fitted on the top outlet and a blanking plug on the rear outlet. If you choose to duct the hood from the rear of the casing, you should invert the position of the flange and of the blanking plug. Pay attention to the safety regulation 1.1.

b - Internal recirculation mode

To check that the hood is set up for recycling, open the grille panel and make sure that the conversion lever or the change-over knob on the centrifugal unit is in the RECYCLING position.

The charcoal filter is to be fitted. To fit the charcoal filter, support the filter with one hand and turn the thumb screw through the centre of the charcoal filter. If the filter is of the interlocking type, turn the filter clockwise. The hood can remain connected to the outside.

2.5 - Electrical connection and working test

1 - The safety measures 1.2, 1.3, 1.4 and 1.5 of paragraph 1 are to be strictly observed.
2- Once the electrical connection has been completed, check that the worktop illumination, motor and speeds work properly.

3 - OPERATION

3.1- Controls are located on the right hand side of the front to operate worktop illumination and select the most suitable working speed for your cooking. To increase the area of extraction, the glass visor should be pulled open. The top speed should be used when frying or cooking foods with strong odours, while a lower speed can be used for normal cooking. To obtain the best performance from your hood, turn it on before you start cooking and leave it running for a few minutes after your cooking is over to clear the air.
3.2- Pay attention to safety regulations 1.7 and 1.8.

4 - MAINTENANCE AND CLEANING

Regular maintenance and cleaning will ensure good performance and reliability, while extending the working-life of the hood. Special attention should be reserved to the grease filter and to the charcoal filter (recycling mode).

4.1 - Grease filter

This retains the solid grease particles and can be supplied in different types. It is fitted onto the reverse side of the metal grille panel. Maintenance of the grease filter varies according to the used type.

a-Whatever type of filters used, the filter is easily removed from the grille by pushing the metal wire clips to one side and removing.
b-Thin synthetic filter (1 mm thick). It should not be washed and should be replaced every two months. If the filter is provided with a saturation indicator, replace when:

b.1-The violet colour of the dots, which are visible through the metal grille, is spread over the whole surface of the filter.
b.2-The red colour of the stripes, which is not visible through the metal grille when the filter is clean, becomes visible from the outside of the metal grille.

c-Multi-layer metal filter. It should be washed once a month in hot water using mild detergent or liquid soap. It can be washed in a dish-washer. It should not be bent and should be left to drain dry.

WARNING: An excess of grease in the filter not only would affect the performance of the hood, but it is also a possible fire risk. We strongly recommend therefore to clean and replace filters in accordance with the manufacturer instructions.

4.2 - Cleaning Metal self- supporting Grease Filters

• The filters are washable and must be cleaned at least every 2 months of operation, or more frequently for particularly heavy usage.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

4.3 - Charcoal filter

The charcoal filter is a chemical filter to be used only when the hood is in the recycling position. To replace the charcoal filter, open the grille and remove the thumb screw through the centre of the charcoal filter. If the filter is of the interlocking type, turn the filter anticlockwise. Replace by reversing the operation. For a good performance replace the charcoal filter on average every three months.

4.4 - Worktop illumination

If a lamp fails to function at any time, open the metal grille panel and check that the lamp is fully screwed into the holder. When changing the lamp, an identical replacement must be fitted to ensure a safe working of the hood.

4.5 - Cleaning

The metal work should be cleaned regularly, at least once a month, using mild household cleaner and polish. Never use abrasives. For all operations from point 4.1 to point 4.4 and in particular for point 4.3, pay special attention to the safety regulation 1.9.

GENERALITES - CONSEILS CONCERNANT LA SECURITE

GENERALITES

1 - SIGURNOSNE UPUTE

1.1 - Nemojte spajati napu na vodove za odvodenje plinova, koji nastaju izgaranjem (kotlovi, kamini, itd.).
1.2 - Provjerite je li mrežni napon isti kao i napon, navenen na pločici koja se nalazi u unutrašnjosti nape.
1.3 - Spojite napu na mrežni napon stavljanjem izmedu dvopolog prekidača s otvorom kontakata od najmanje 3 mm.
1.4 - Kod napa s uzemljenjem uvjerite se da kucne elektricne instalacije jamce pravilno fungkioniranje.
1.5 - Nape klase II imaju dvostruku izolaciju; ne moraju se spajati na mrežu pomocu utikača s uzemljenjem, vecse spajaju pomocu jegnestavnog dvopolnog utikača.
1.6 - Minimalna sigurnosna udaljenost izmedu povrsine za kuhanje i nape mora iznositi 65 cm.
1.7 - Nemojte flambirati hranu ispod nape.
1.8 - Provjeravajte friteze dok su u radu: pregrijano ulje moze se zapaliti.
1.9 - Prijeillegalbilo koju radnju ciścenjali odrzavanja,isključite uredaj tako da izvučete utikač,ili takado isključite glavniprekidac.
1.10- Ako se u prostoriji osim nape koriste i uredaji, koji ne rade na struju (primjerice uredaji koji rade na plin), treba se pobrinuti za dostatno provjetravanje prostorije. Pravilna i sigurna uporaba postize se kada maksimalni niski tlak prostorije nods veci od 0,04 mbara; na taj se način izbjugava vracanje opadnih plinova natrag u prostoriju.
1.11- Uredaj mora bita takomontiran da je utikač dostupan.
1.12- Ako je kabel za napajanje oštećen, treba ga zamijeniti drugim kabelom ili posebnim kompletom, koji se mogu nabaviti od proizvodača ili ovlastenog servisera.
1.13- Ovaj uredaj nods namijenjen za uporabu od strane osoba (ukljucujuci i djecu) koja imaju smanjene fizičke, senzoričke ili mentalne sposobnosti, ili nemaju dovoljno iskustva i znanja, osim ako nisu pod nadzorom ili im nisu dane jasne upute vezane uz uporabu uredaja od strane osobe odgovorne za njihovu sigurnost.
1.14- Djeca bi trebala biti pod nadzorom kako bi se osiguralo da se ne igraju s uredajem.

2 - INSTALLACIJA

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
