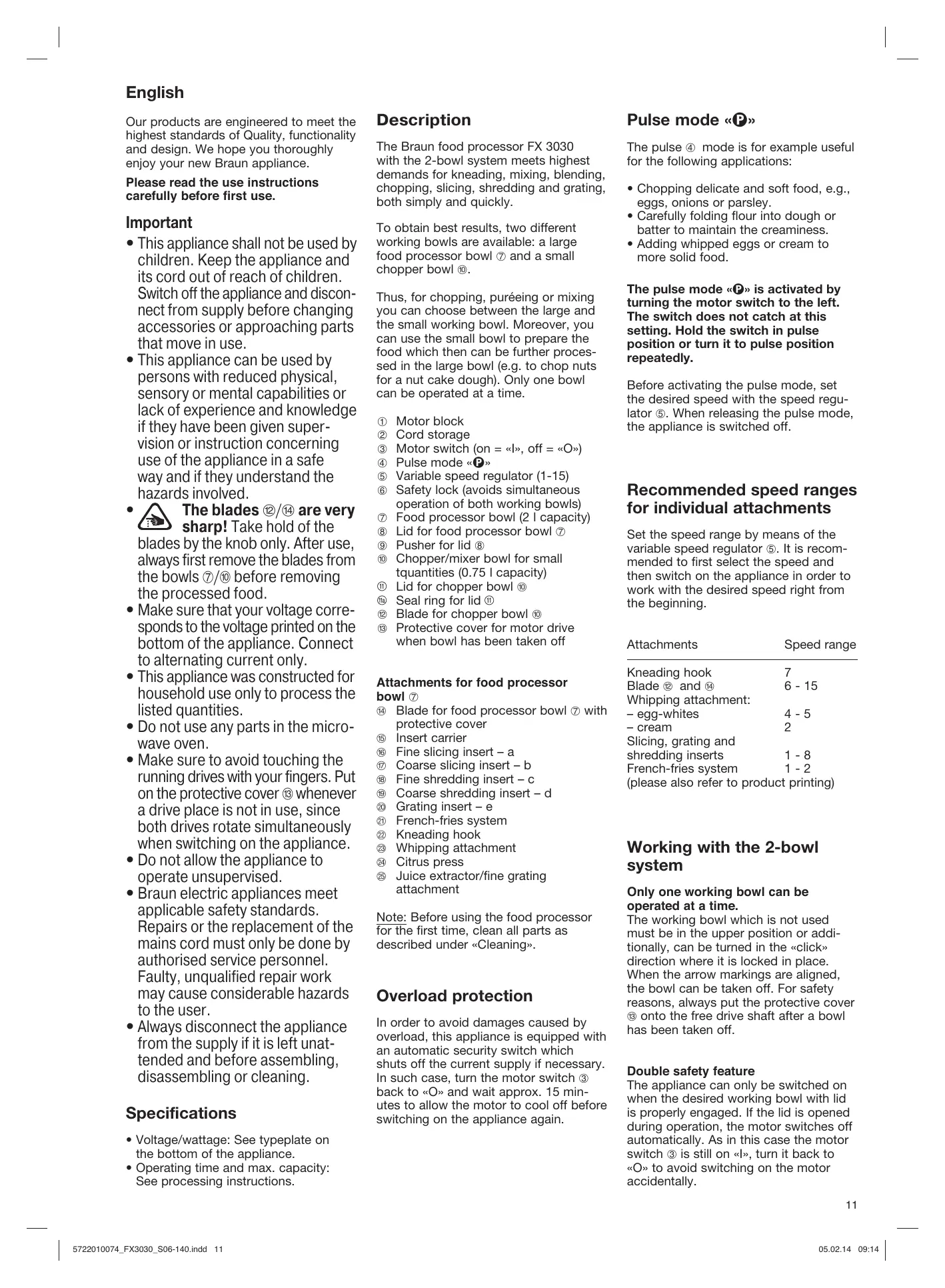

English Our products are engineered to meet the highest standards of Quality, functionality and design. We hope you thoroughly enjoy your new Braun appliance. Please read the use instructions carefully before first use. Important

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. The blades l/n are very sharp! Take hold of the blades by the knob only. After use, always first remove the blades from the bowls 7/j before removing the processed food.
• Make sure that your voltage corresponds to the voltage printed on the bottom of the appliance. Connect to alternating current only.
• This appliance was constructed for household use only to process the listed quantities.
• Do not use any parts in the microwave oven.
• Make sure to avoid touching the running drives with your fingers. Put on the protective cover m whenever a drive place is not in use, since both drives rotate simultaneously when switching on the appliance.
• Do not allow the appliance to operate unsupervised.
• Braun electric appliances meet applicable safety standards. Repairs or the replacement of the mains cord must only be done by authorised service personnel. Faulty, unqualified repair work may cause considerable hazards to the user.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning. Specifications
• Voltage/wattage: See typeplate on the bottom of the appliance.
• Operating time and max. capacity: See processing instructions. Description Pulse mode «» The Braun food processor FX 3030 with the 2-bowl system meets highest demands for kneading, mixing, blending, chopping, slicing, shredding and grating, both simply and quickly. The pulse 4 mode is for example useful for the following applications: To obtain best results, two different working bowls are available: a large food processor bowl 7 and a small chopper bowl j. Thus, for chopping, puréeing or mixing you can choose between the large and the small working bowl. Moreover, you can use the small bowl to prepare the food which then can be further processed in the large bowl (e.g. to chop nuts for a nut cake dough). Only one bowl can be operated at a time.

Motor block Cord storage Motor switch (on = «I», off = «O») Pulse mode «» Variable speed regulator (1-15) Safety lock (avoids simultaneous operation of both working bowls) Food processor bowl (2 l capacity) Lid for food processor bowl 7 Pusher for lid 8 Chopper/mixer bowl for small tquantities (0.75 l capacity) Lid for chopper bowl j Seal ring for lid q Blade for chopper bowl j Protective cover for motor drive when bowl has been taken off Attachments for food processor bowl 7 n Blade for food processor bowl 7 with protective cover o Insert carrier p Fine slicing insert – a q Coarse slicing insert – b r Fine shredding insert – c s Coarse shredding insert – d t Grating insert – e u French-fries system v Kneading hook w Whipping attachment x Citrus press y Juice extractor/fine grating attachment Note: Before using the food processor for the first time, clean all parts as described under «Cleaning». Overload protection In order to avoid damages caused by overload, this appliance is equipped with an automatic security switch which shuts off the current supply if necessary. In such case, turn the motor switch 3 back to «O» and wait approx. 15 minutes to allow the motor to cool off before switching on the appliance again.

• Chopping delicate and soft food, e.g., eggs, onions or parsley.
• Carefully folding flour into dough or batter to maintain the creaminess.
• Adding whipped eggs or cream to more solid food. The pulse mode «» is activated by turning the motor switch to the left. The switch does not catch at this setting. Hold the switch in pulse position or turn it to pulse position repeatedly. Before activating the pulse mode, set the desired speed with the speed regulator 5. When releasing the pulse mode, the appliance is switched off. Recommended speed ranges for individual attachments Set the speed range by means of the variable speed regulator 5. It is recommended to first select the speed and then switch on the appliance in order to work with the desired speed right from the beginning. Attachments Speed range Kneading hook Blade l and n

6 - 15

Whipping attachment: – egg-whites 4-5 – cream Slicing, grating and shredding inserts 1-8 French-fries system 1-2 (please also refer to product printing) Working with the 2-bowl system Only one working bowl can be operated at a time. The working bowl which is not used must be in the upper position or additionally, can be turned in the «click» direction where it is locked in place. When the arrow markings are aligned, the bowl can be taken off. For safety reasons, always put the protective cover m onto the free drive shaft after a bowl has been taken off. Double safety feature The appliance can only be switched on when the desired working bowl with lid is properly engaged. If the lid is opened during operation, the motor switches off automatically. As in this case the motor switch 3 is still on «I», turn it back to «O» to avoid switching on the motor accidentally.

5722010074_FX3030_S06-140.indd 11

05.02.14 09:14

Attaching the working bowls The food processor bowl 7 is operated on the large drive place of the motor block 1. The chopper bowl j is operated on the small dirve place.

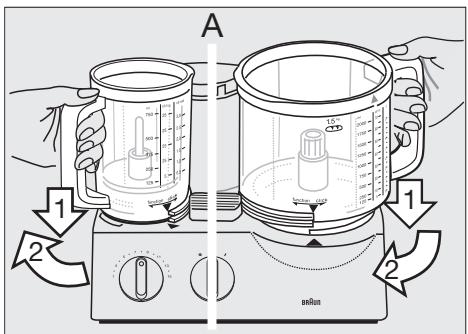

1. With the motor switched off, place

the respective bowl onto its drive place matching the arrow on the bowl with the arrow on the motor block (A).

N.B. When attaching the lid q of the chopper bowl j, it must be provided with the 11a . seal ring ß

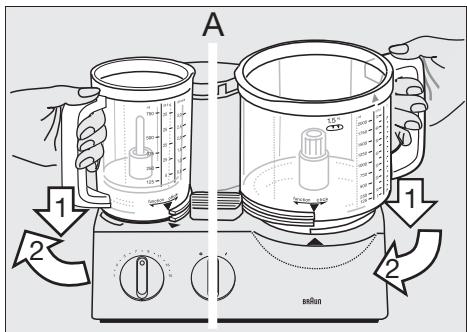

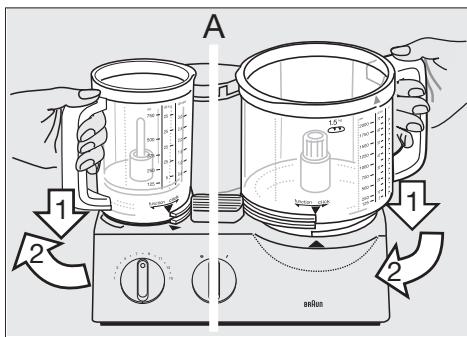

Then turn the bowl in the «function» direction until the lower fixed stop is reached. The bowl on the other drive place must be in the lifted position. If the other drive place is free, put on the protective cover m.

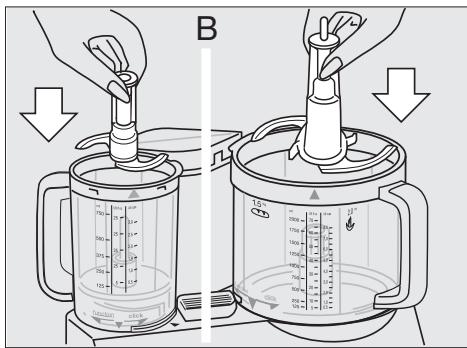

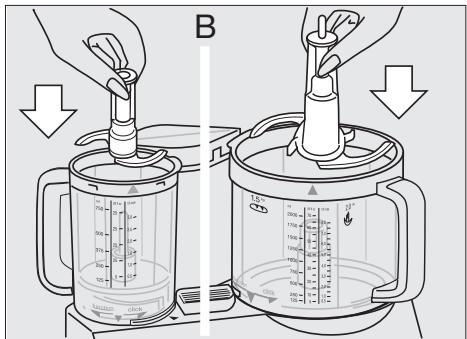

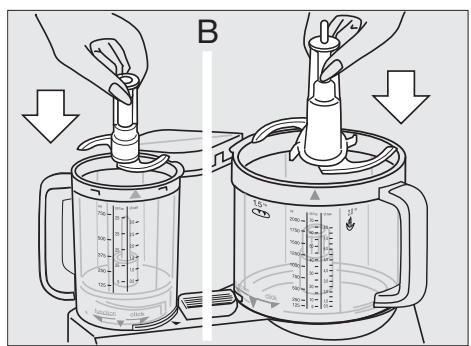

2. Put the attachment needed (see

instructions for each of the attachments) onto the drive shaft of the bowl and push it down as far as it will go (B).

click When inserting the blade l onto the chopper bowl j, push it down until it audibly snaps in place.

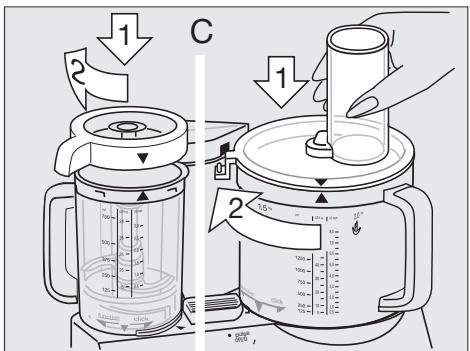

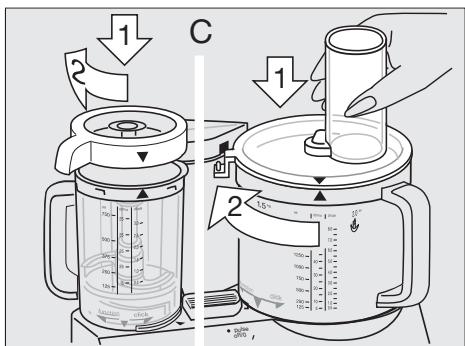

3. Put the lid onto the bowl matching

the arrow on the lid with the arrow on the bowl (C).

When using the food processor bowl, always insert the required attachments before adding ingredients. Removing the working bowls Switch off the appliance. Turn the lid anti-clockwise and lift it off. Then turn the bowl in the «click» direction until the arrow on the bowl matches the arrow on the motor block and lift off the bowl. When removing the blade from a bowl, take hold of it by the knob and pull it off.

Using the food processor bowl 7 Caution: The blades are very sharp! The blade n comes with a protective cover. If not in use, store the blade on the protective cover. Note: If you continue turning the food processor bowl in the «click» direction as far as it will go, beyond the stop position, you can lock the food processor bowl on the motor part. In this position, however, you cannot switch on the motor.

1. Kneading

For kneading you can use the kneading hook v or the blade n. For best results, we recommend using the kneading hook which is specially designed for making yeast dough, pasta and pastries. Yeast dough (bread/cake) Max. 500 g flour plus other ingredients Speed 7, 1 ½ minutes Pour the flour into the food processor bowl, then add the other ingredients – except liquids. Put on the lid 8 and lock in place. Then choose speed 7 and switch the appliance on. Add liquids by pouring them through the filling tube of the lid while the motor is running. First, always switch off the motor and unplug the appliance. Clean the motor block 1 with a damp cloth only. When kneading with the blade n, do not add ingredients like raisins, candied peel, almonds, etc. which are not supposed to be cut. These have to be added manually after having taken the kneaded dough out of the food processor bowl. All parts can be cleaned in the dishwasher. If necessary, clean all parts thoroughly with a spatula or a brush before rinsing them. Color-intensive food (e.g. carrots) may leave stains on the plastic parts; wipe them off with cooking oil before cleaning with water. For cleaning the lid q, first remove the 11a . Put the seal ring back in seal ring ß place after cleaning. You can use the seal ring from both sides. Do not use sharp objects for cleaning purposes. Clean the blades and the inserts very carefully – they are very sharp! Pour the flour into the food processor bowl, then add the other ingredients – except liquids. Pour the required amount of liquid through the filling tube in the lid when the motor is running. Do not add any liquid after the dough has formed into a ball as then the liquid will no longer be absorbed evently. Pastries Max. 500 g flour plus other ingredients Speed 7, approx. 1 minute Pour flour into the food processor bowl, then add the other ingredients. For best results, be butter used must not be too hard, nor too soft.

click Put on the lid 8 and lock in place. Choose speed 7 and switch on the appliance. pulse off/0 Then turn the lid clockwise guiding its nose into the safety lock opening of the motor block 1 until it audibly snaps in place. Stop kneading the dough shortly after a ball has formed. Otherwise the pastry dough will become too soft.

5722010074_FX3030_S06-140.indd 12

05.02.14 09:14

2. Mixing

For mixing cake dough or sponges use the blade n. The kneading hook v is not suitable for mixing cake doughs or sponges. Max. 500 g flour plus other ingredients Cake mixture (2 methods) a) Cream butter with sugar end eggs pour in milk and carefully fold in flour with pulse mode. b) Pour all ingredients except liquids into the food processor bowl. Processing examples The processing times are approximate and depend on the quality, the amount of food to be processed and the required degree of fineness. Product Max. amount Preparation Speed Mode Time/pulses Hard bread rolls

1 minute (snow) Apples 700 g quartered

15 secs Chocolate cool 400 g broken

coarse 15 secs fine 30 secs Eggs

Cheese (soft) 400 g 3-cm cubes

20 secs Cheese (hard) 700 g 3-cm cubes

60-70 secs Meat 700 g in cubes

40 secs Carrots 700 g in pieces

10 secs Onions 700 g quartered

10 - 13 x

Add required liquids through the filling tube of the lid while the motor is running. Finally add ingredients like raisins manually.

5. Slicing, shredding, grating

Sponge Cream eggs and water (if required) and sugar fold in flour with pulse mode add cocoa powder

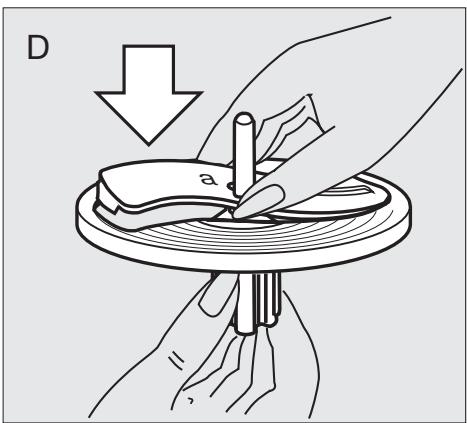

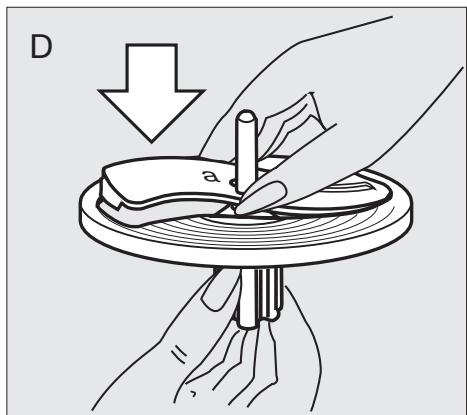

• Place the insert you want to use into the insert carrier o as shown in (D) and snap into position. In order to remove the insert, push up the insert end that protrudes at the bottom of the insert carrier.

3. Blending

Use the blade n for blending soups, shakes, etc. Maximum capacity 2 l Speed 10 (otherwise the bowl may overflow)

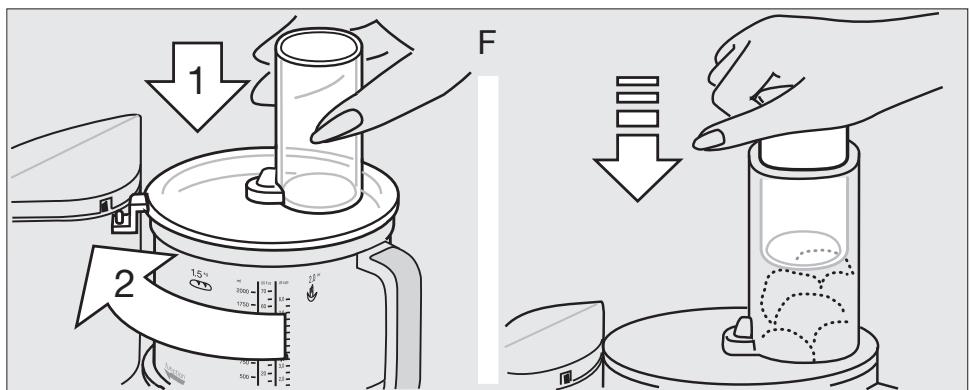

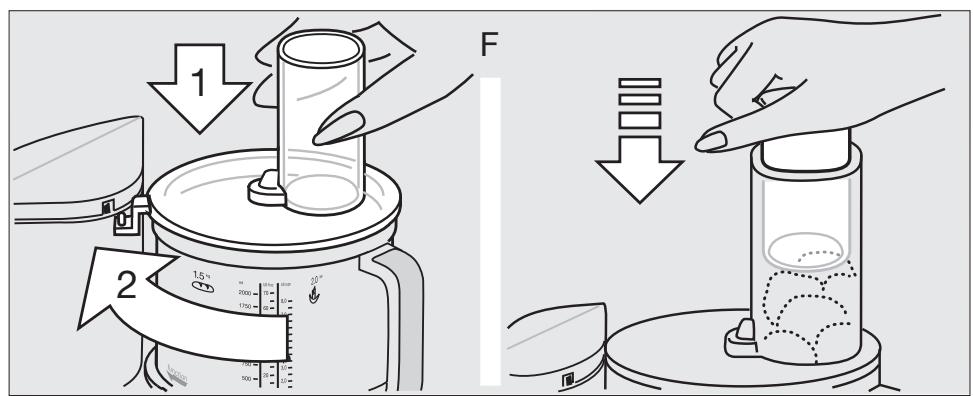

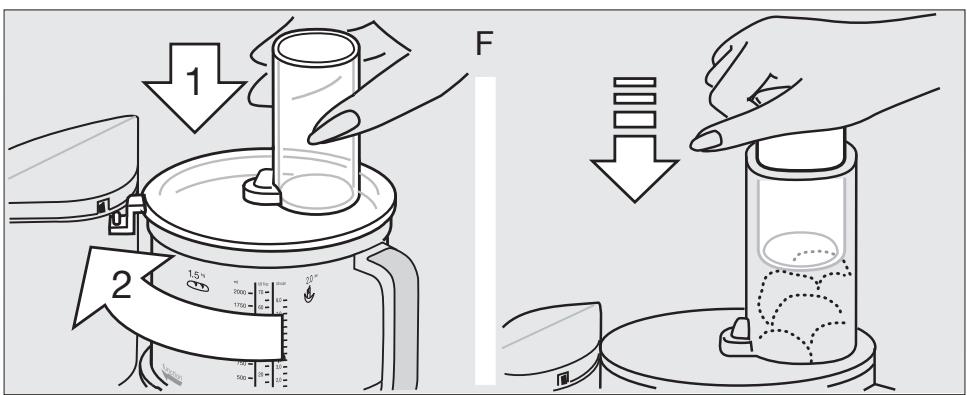

• Never reach into the filling tube when the motor is running. Always use the pusher 9 (F). For milk-shakes, pour coarsely chopped fruit into the food processor bowl. Put on the lid 8 and lock in place. With speed 15, blend fruit first, then add liquid at speed 10 and finish blending. When blending milk, please not that it will froth. Use smaller Quantities.

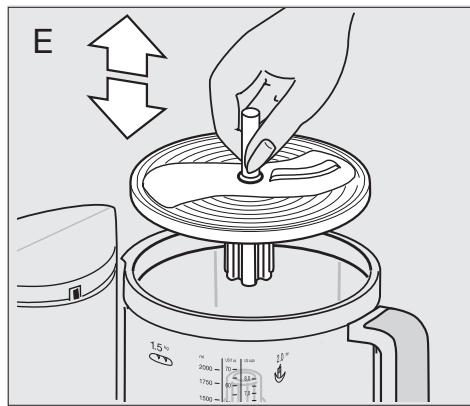

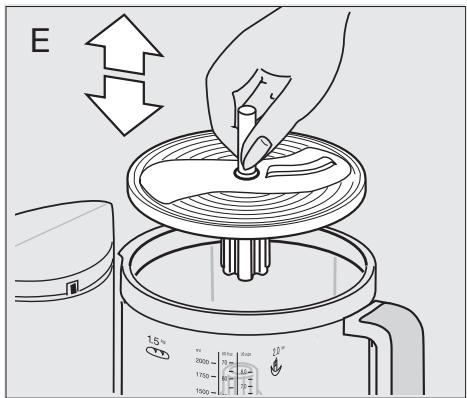

• Put the assembled slicer/shredder onto the drive shaft of the food processor bowl (E).
• Put on the lid 8 and lock in place. Set the speed and fill the food to be processed into the filling tube while the motor is switched off. Refilling should be done with the motor switched off.

4. Chopping

Chopping in the food processor bowl with the blade n Note: For processing larger quantities, use the food processor bowl 7 with blade n. For processing smaller quantities, we recommend to use the chopper bowl j with blade l. N.B.: When processing juicy or soft food, you will obtain better results at a lower speed. Hard food should be processed at a higher speed. Do not overload the food processor bowl.

Fine slicing insert – a p Speed 1 - 2 Processing examples: cucumbers, cabbage, raw potatoes, carrots, onions, radishes.

5722010074_FX3030_S06-140.indd 13

05.02.14 09:14

Coarse slicing insert – b q Speed 1 - 2 Processing examples: cucumbers, kohlrabi, raw potatoes, onions, bananas, tomatoes, mushrooms, celery. Fine shredding insert – c r Speed 3 - 6 Processing examples: cheese (soft to medium), cucumbers, carrots, raw potatoes, apples. Coarse shredding insert – d s Speed 3 - 6 Processing examples: cheese (soft to medium), cucumbers, kohlrabi, beetroot, carrots, raw potatoes, apples, cabbage. Grating insert – e t Speed 8 - 15 Processing examples: raw potatoes (e.g. for potatoe pancakes), horseradish, parmigiano cheese (hard). French-fries system u Place the French-fries system onto the drive shaft, put on the lid 8 and lock in place. For best results, place 3 - 4 potatoes (depending on size) in the filling tube of the lid 8 while the motor is switched off. Set speed to 1 - 2 and switch on the appliance. Before filling in a new load, switch the motor off. Use the pusher 9 to apply slight pressure when pushing the potatoes into the filling tube. Using the chopper bowl j Whith the motor switched off, insert the blade l in the chopper bowl j, then place all ingredients into the chopper bowl. Liquids can be poured through the opening in the lid q when the motor is running. The blade l can be used for chopping, blending, puréeing and mixing smaller quantities. The chopper bowl is perfectly suited for preparing mousse, pastes or dips. Maximum capacity: 750 ml liquid. Caution: The blade l is extremely sharp. 11a onto Put the lid q with the seal ring ß the chopper bowl and close it as described earlier. After use, always remove the blade from the chopper bowl first and then empty the processed food. When blending milk, please note that it will froth. Use smaller quantities. Important: The maximum processing time in the chopper bowl is 1 minute. Liquids can be processed longer. Chocolate, hard spices and coffee beans may not be chopped. Processing examples The processing times are approximate and depend on the quality and amount of food to be processed and the degree of fineness required. Chopping Product Max. amount Preparation Carrots 150 g in pieces Onions 100 g / quartered 1 ½ onion Parsley 30 g / ½ bunch withouth stems Garlic 1 clove Meat (lean) 250 g Speed Switch position Time/pulses

6. Whipping with the

whipping attachment w Speed/Time Whipping sponges Max. 280-300 g flour plus ingredients Cream eggs and water (if required) add sugar fold in flour 5 / ca. 2 mins 5 / ca. 2 mins 1 / ca. 30 secs 2/ca. 1-2 mins 2/ca. 3.5-4 mins Blending Product Preparation Speed Switch position Mixed drinks Chop fruit before processing. Add milk.

approx. 30 seconds Baby food (e.g. fruit, vegetable) Chopped

10 x 10 seconds Mayonnaise Blend 1 egg, seasoning, mustard and vinegar. Slowly pour in oil through lid opening.

30-45 seconds Tartar Blend 1 egg, seasoning, mustard and vinegar. Slowly pour in oil through lid opening. Add quartered egg and vinegar.

3-5 x Chop 1 clove garlic, add 2 ripe avocados (quartered, w/o stone), 1 tbsp. lemon juice, 1 tbsp. olive oil, 150 ml yogurt, ½ tsp. sugar, salt, pepper.

ca. 45 seconds Before whipping sterilized cream, keep the cream cool for several hours (at 4 °C approx.). Avocado

5722010074_FX3030_S06-140.indd 14

05.02.14 09:14

Vanilla-Honey-Prunes (as a pancake stuffing or spread) (use the chopper bowl j, speed 15) Fill 100 g creamy honey and 100 g prunes into the chopper bowl and chop 10 seconds, then add 50 ml water (vanilla-flavoured) and resume chopping for 3 seconds. Mixing smaller dough quantities The chopper bowl is only suitable for processing the following dough type; the recipe reflects maximum quantities: Speed Pancake mixture 240 g flour 375 ml milk 2 eggs salt Switch position Time Mix the flour, eggs, salt and half of the milk, add rest of the milk while te motor is running.

30 secs. Whipping cream 200 ml cream Juice extractor / Fine grating attachment Description

Juicer drum Fine grating disc Strainer basket Cover Filling tube Pusher Before the first use After unpacking the appliance, please disassemble it and clean all parts. To disassemble the appliance proceed as follows:

• Unlock the strainer basket 3 by turning it clockwise (a) and wash all parts by hand.
• Pull the key in the bottom of the juicer drum 1 as far as it will go (b).
• Turn the juicer drum 1 anti-clockwise with the key in the bottom of the juicer drum pulled (b) – until the fine grating disc 2 is unlocked.
• Then pull the fine grating disc 2 by its shaft out of the juicer drum 1 (c). Assembling
• Attach the food processor bowl (without the blade) to the motor block and lock it in place. For grating:

• Use the fine grating disc 2 only (e). For juice extracting:
• Insert the fine grating disc 2 into the juicer drum 1 so that the cut-out sections in the rim of the fine grating disc slide over the holding studs in the juicer drum (d).
• Push the fine grating disc 2 by its shaft slightly down and turn it clockwise until it clicks in (d).
• Check by trying to turn the shaft of the fine grating disc 2 whether the grating disc is properly locked. If it is, the shaft cannot be turned.
• Insert the strainer basket 3 into the juicer drum 1, and ensure that both tabs fit into the notches of the drum (f).

• For juice extracting set the assembled juice extractor on the food processor bowl drive shaft. If you want to grate, set the fine grating disc 2 only on the drive shaft of the food processor bowl.
• Place the cover 4 on the food processor bowl so that the arrow on the cover matches the arrow on the food processor bowl. Then turn the cover clockwise until the nozzle on the cover is in the safety lock on the motor block and audibly snaps into place (g). To remove, turn the cover anticlockwise. Swiss sprintz cheese), horse-radish (e.g. for horse-radish cream), apples and carrots (e.g. for baby food). Extracting juice

• Speed selection: Please select the setting 7–15. Note: Hard food should be grated at higher speeds. Maximum capacity: 500 g or when the pulp space is full. You can extract juice from fruits, as well as from vegetables.
• Preparing fruits or vegetables: First wash or peel the food. Fruits with pits should always have the pits removed first. Citrus fruits, as well as fruits with skin and vegetables (e.g. red beets and Kiwi-fruits) should be thoroughly peeled. Seed fruits (e.g. apples) can be processed with peels and cores.
• Speed selection: Please select the setting 7–8.
• Extracting: Turn on the motor. Fill the prepared fruits or vegetables into the filling tube 5 and push it down with the pusher 6 (h). Caution: Always use the pusher. Never reach into the filling tube while the motor is running! Do not overload the appliance.
• Disassembling: Turn off the motor. Turn the cover 4 anti-clockwise and remove it from the food processor bowl. Then proceed as described in the section «Before the first use». Remove all parts from the food processor bowl. If the fruit pulp is very dense, pull the disengaged strainer basket 3 out of the juicer drum 1 by using the pull rings (f). Grating The fine grating device is designed for very fine grating of food such as hard cheese (e.g. Italian parmigiano cheese or Important: The fine grating disc is not suited for grating chocolate.
• Preparing the food for grating: Fruits and vegetables should be washed first or peeled. Seeds and cores should be removed. Cut off the crust from cheese. The food should be cut small enough to fit into the filling tube 5.

• Grating: Turn on the motor. Fill the prepared food into the filling tube 5 and push it down with the pusher 6 (h). Caution: Always use the pusher. Never reach into the filling tube while the motor is running!
• Disassembling: Turn off the motor. Turn the cover 4 anti-clockwise and remove it from the food processor bowl. Then remove the fine grating disc 2 from the food processor bowl. Cleaning All parts can be cleaned in the dishwasher at temperatures up to 65 °C. Pulp and other residues should not become dry before the appliance is cleaned. The appliance may discolour when processing food with high degree of pigments (e.g. carrots); use vegetable oil to clean it, before cleaning with detergents or in the dishwasher. Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country. Subject to change without notice.

5722010074_FX3030_S06-140.indd 15

05.02.14 09:14
